简单部署单机模式Nacos
参考 https://nacos.io/docs/latest/quickstart/quick-start/
安装依赖
apt install openjdk-11-jdk
# 或者
dnf install java-11-openjdk-devel
下载安装包
https://github.com/alibaba/nacos/releases

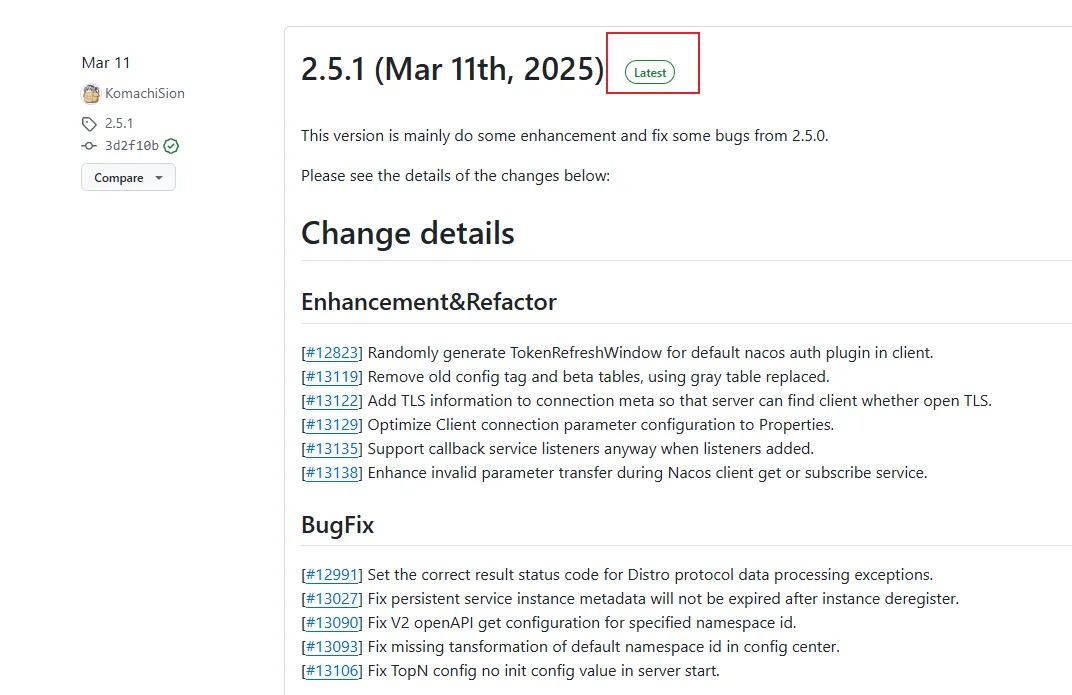

找到最新的稳定版本
下载好后，直接解压
wget https://github.com/alibaba/nacos/releases/download/2.5.1/nacos-server-2.5.1.tar.gz
tar xf nacos-server-2.5.1.tar.gz
cd nacos/
tree
.
├── LICENSE
├── NOTICE
├── bin
│ ├── shutdown.cmd
│ ├── shutdown.sh
│ ├── startup.cmd
│ └── startup.sh
├── conf
│ ├── 1.4.0-ipv6_support-update.sql
│ ├── announcement_en-US.conf
│ ├── announcement_zh-CN.conf
│ ├── application.properties
│ ├── application.properties.example
│ ├── cluster.conf.example
│ ├── console-guide.conf
│ ├── derby-schema.sql
│ ├── mysql-schema.sql
│ └── nacos-logback.xml
└── target
└── nacos-server.jar
直接使用bin目录下的脚本来启动和关闭
默认可以直接启动
注意：单机模式需要加上参数 -m standalone
$ bash bin/startup.sh -m standalone
/usr/lib/jvm/java-11-openjdk-amd64/bin/java -Xms512m -Xmx512m -Xmn256m -Dnacos.standalone=true -Dnacos.member.list= -Xlog:gc*:file=/root/nacos/logs/nacos_gc.log:time,tags:filecount=10,filesize=100m -Dloader.path=/root/nacos/plugins,/root/nacos/plugins/health,/root/nacos/plugins/cmdb,/root/nacos/plugins/selector -Dnacos.home=/root/nacos -jar /root/nacos/target/nacos-server.jar --spring.config.additional-location=file:/root/nacos/conf/ --logging.config=/root/nacos/conf/nacos-logback.xml --server.max-http-header-size=524288
nacos is starting with standalone
nacos is starting. you can check the /root/nacos/logs/start.out
$ ps -ef | grep nacos
root 240122 1 99 16:00 pts/2 00:00:39 /usr/lib/jvm/java-11-openjdk-amd64/bin/java -Xms512m -Xmx512m -Xmn256m -Dnacos.standalone=true -Dnacos.member.list= -Xlog:gc*:file=/root/nacos/logs/nacos_gc.log:time,tags:filecount=10,filesize=100m -Dloader.path=/root/nacos/plugins,/root/nacos/plugins/health,/root/nacos/plugins/cmdb,/root/nacos/plugins/selector -Dnacos.home=/root/nacos -jar /root/nacos/target/nacos-server.jar --spring.config.additional-location=file:/root/nacos/conf/ --logging.config=/root/nacos/conf/nacos-logback.xml --server.max-http-header-size=524288 nacos.nacos
root 240613 27464 0 16:01 pts/2 00:00:00 grep --color=auto nacos
$ tail -100 logs/start.out
/usr/lib/jvm/java-11-openjdk-amd64/bin/java -Xms512m -Xmx512m -Xmn256m -Dnacos.standalone=true -Dnacos.member.list= -Xlog:gc*:file=/root/nacos/logs/nacos_gc.log:time,tags:filecount=10,filesize=100m -Dloader.path=/root/nacos/plugins,/root/nacos/plugins/health,/root/nacos/plugins/cmdb,/root/nacos/plugins/selector -Dnacos.home=/root/nacos -jar /root/nacos/target/nacos-server.jar --spring.config.additional-location=file:/root/nacos/conf/ --logging.config=/root/nacos/conf/nacos-logback.xml --server.max-http-header-size=524288
,--.
,--.'|
,--,: : | Nacos 2.5.1
,`--.'`| ' : ,---. Running in stand alone mode, All function modules
| : : | | ' ,'\ .--.--. Port: 8848
: | \ | : ,--.--. ,---. / / | / / ' Pid: 240122
| : ' '; | / \ / \. ; ,. :| : /`./ Console: http://10.0.2.33:8848/nacos/index.html
' ' ;. ;.--. .-. | / / '' | |: :| : ;_
| | | \ | \__\/: . .. ' / ' | .; : \ \ `. https://nacos.io
' : | ; .' ," .--.; |' ; :__| : | `----. \
| | '`--' / / ,. |' | '.'|\ \ / / /`--' /
' : | ; : .' \ : : `----' '--'. /
; |.' | , .-./\ \ / `--'---'
'---' `--`---' `----'
2025-04-10 16:00:43,883 INFO Tomcat initialized with port(s): 8848 (http)
2025-04-10 16:00:44,328 INFO Root WebApplicationContext: initialization completed in 4055 ms
WARNING: An illegal reflective access operation has occurred
WARNING: Illegal reflective access by com.alipay.sofa.jraft.util.internal.UnsafeUtil (jar:file:/root/nacos/target/nacos-server.jar!/BOOT-INF/lib/jraft-core-1.3.14.jar!/) to field java.nio.Buffer.address
WARNING: Please consider reporting this to the maintainers of com.alipay.sofa.jraft.util.internal.UnsafeUtil
WARNING: Use --illegal-access=warn to enable warnings of further illegal reflective access operations
WARNING: All illegal access operations will be denied in a future release
2025-04-10 16:00:49,973 INFO Will secure any request with [org.springframework.security.web.session.DisableEncodeUrlFilter@46911148, org.springframework.security.web.context.request.async.WebAsyncManagerIntegrationFilter@2db1b657, org.springframework.security.web.context.SecurityContextPersistenceFilter@1fbf088b, org.springframework.security.web.header.HeaderWriterFilter@58b5a2f3, org.springframework.security.web.csrf.CsrfFilter@5e99b9c, org.springframework.security.web.authentication.logout.LogoutFilter@3aaa3c39, org.springframework.security.web.savedrequest.RequestCacheAwareFilter@d70f722, org.springframework.security.web.servletapi.SecurityContextHolderAwareRequestFilter@1e1eeedd, org.springframework.security.web.authentication.AnonymousAuthenticationFilter@7e351d7, org.springframework.security.web.session.SessionManagementFilter@58fbd02e, org.springframework.security.web.access.ExceptionTranslationFilter@4d9754a8]
2025-04-10 16:00:50,405 INFO Adding welcome page: class path resource [static/index.html]
2025-04-10 16:00:50,848 INFO Exposing 1 endpoint(s) beneath base path '/actuator'
2025-04-10 16:00:50,871 WARN You are asking Spring Security to ignore Ant [pattern='/**']. This is not recommended -- please use permitAll via HttpSecurity#authorizeHttpRequests instead.
2025-04-10 16:00:50,872 INFO Will not secure Ant [pattern='/**']
2025-04-10 16:00:50,872 WARN You are asking Spring Security to ignore Mvc [pattern='/prometheus']. This is not recommended -- please use permitAll via HttpSecurity#authorizeHttpRequests instead.
2025-04-10 16:00:50,872 INFO Will not secure Mvc [pattern='/prometheus']
2025-04-10 16:00:50,872 WARN You are asking Spring Security to ignore Mvc [pattern='/prometheus/namespaceId/{namespaceId}']. This is not recommended -- please use permitAll via HttpSecurity#authorizeHttpRequests instead.
2025-04-10 16:00:50,872 INFO Will not secure Mvc [pattern='/prometheus/namespaceId/{namespaceId}']
2025-04-10 16:00:50,872 WARN You are asking Spring Security to ignore Mvc [pattern='/prometheus/namespaceId/{namespaceId}/service/{service}']. This is not recommended -- please use permitAll via HttpSecurity#authorizeHttpRequests instead.
2025-04-10 16:00:50,872 INFO Will not secure Mvc [pattern='/prometheus/namespaceId/{namespaceId}/service/{service}']
2025-04-10 16:00:50,948 INFO Tomcat started on port(s): 8848 (http) with context path '/nacos'
2025-04-10 16:00:50,967 INFO No TaskScheduler/ScheduledExecutorService bean found for scheduled processing
2025-04-10 16:00:51,030 INFO Nacos started successfully in stand alone mode. use embedded storage
查看日志，出现了 Nacos started successfully in stand alone mode. use embedded storage 表示启动成功

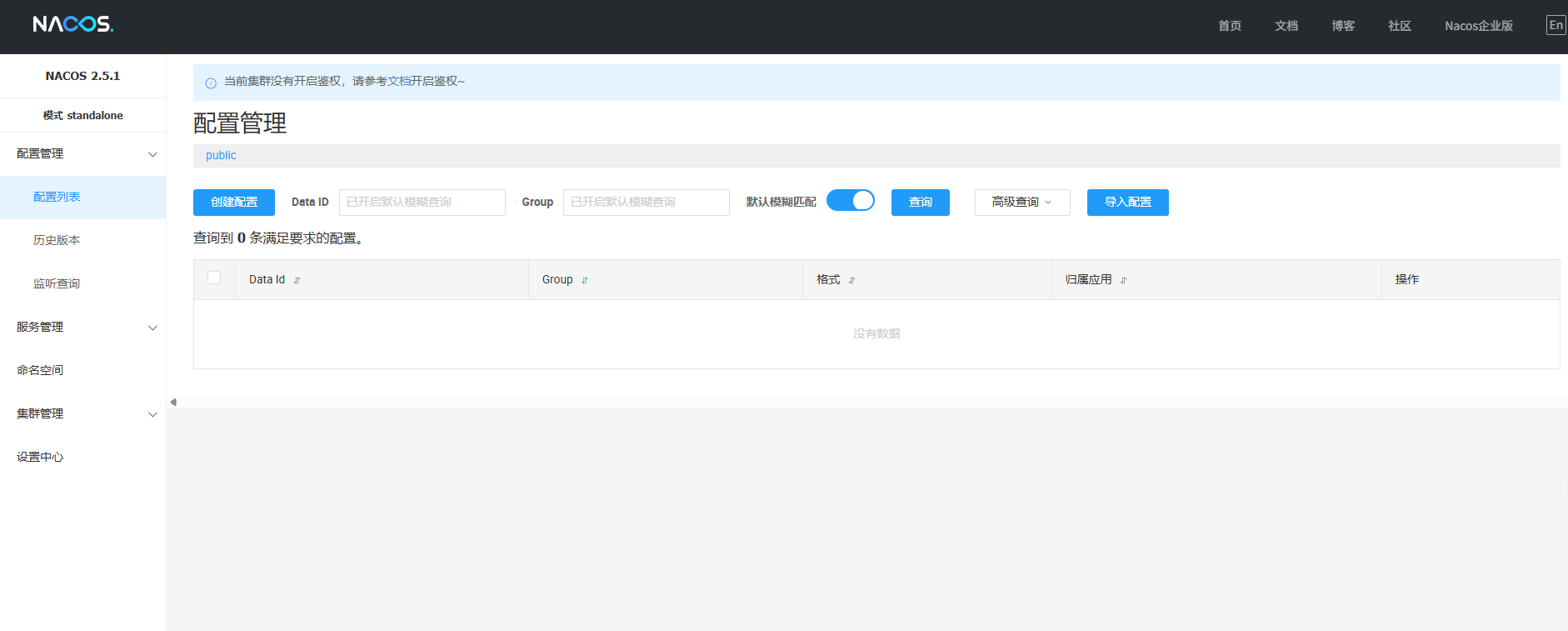

然后直接访问 <IP>:8848/nacos
直接就进来了，因为默认是不开启认证的
开启认证
关闭服务
$ bash bin/shutdown.sh
The nacosServer(240122) is running...
Send shutdown request to nacosServer(240122) OK
修改配置文件
vim conf/application.properties
#修改下面这几个选项
### If turn on auth system:
nacos.core.auth.enabled=true
### Since 1.4.1, worked when nacos.core.auth.enabled=true and nacos.core.auth.enable.userAgentAuthWhite=false.
### The two properties is the white list for auth and used by identity the request from other server.
nacos.core.auth.server.identity.key=abc
nacos.core.auth.server.identity.value=111
### worked when nacos.core.auth.system.type=nacos
### The token expiration in seconds:
nacos.core.auth.plugin.nacos.token.cache.enable=true
nacos.core.auth.plugin.nacos.token.expire.seconds=18000
### The default token (Base64 String):
nacos.core.auth.plugin.nacos.token.secret.key=MTExMTExMTExMTExMTExMTExMTExMTExMTExMTExMTExCg==
然后再重新启动
$ bash bin/startup.sh -m standalone
/usr/lib/jvm/java-11-openjdk-amd64/bin/java -Xms512m -Xmx512m -Xmn256m -Dnacos.standalone=true -Dnacos.member.list= -Xlog:gc*:file=/root/nacos/logs/nacos_gc.log:time,tags:filecount=10,filesize=100m -Dloader.path=/root/nacos/plugins,/root/nacos/plugins/health,/root/nacos/plugins/cmdb,/root/nacos/plugins/selector -Dnacos.home=/root/nacos -jar /root/nacos/target/nacos-server.jar --spring.config.additional-location=file:/root/nacos/conf/ --logging.config=/root/nacos/conf/nacos-logback.xml --server.max-http-header-size=524288
nacos is starting with standalone
nacos is starting. you can check the /root/nacos/logs/start.out

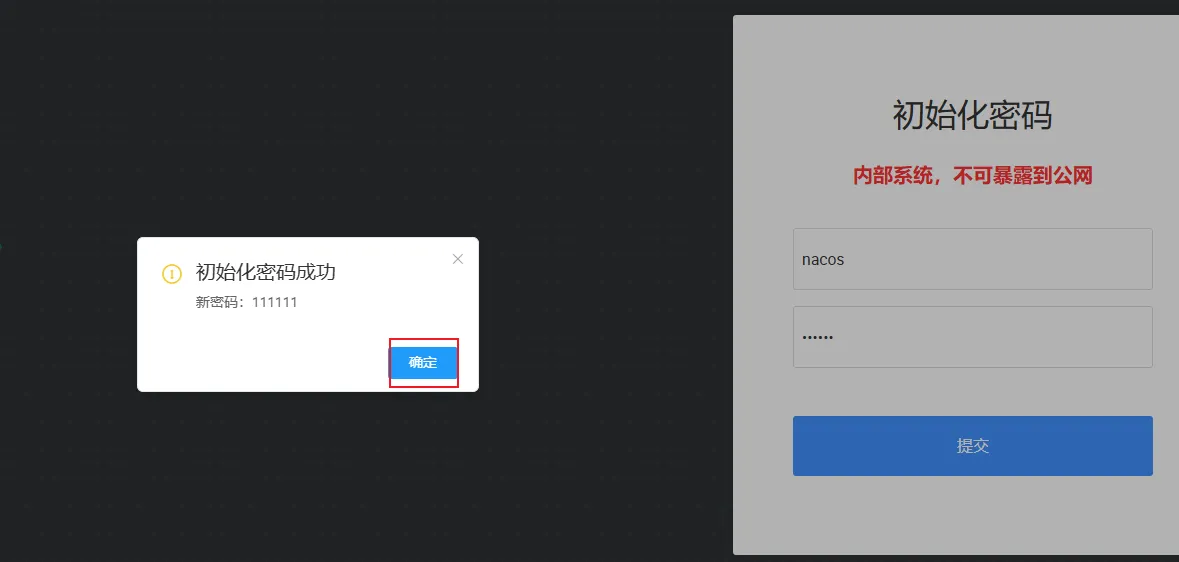

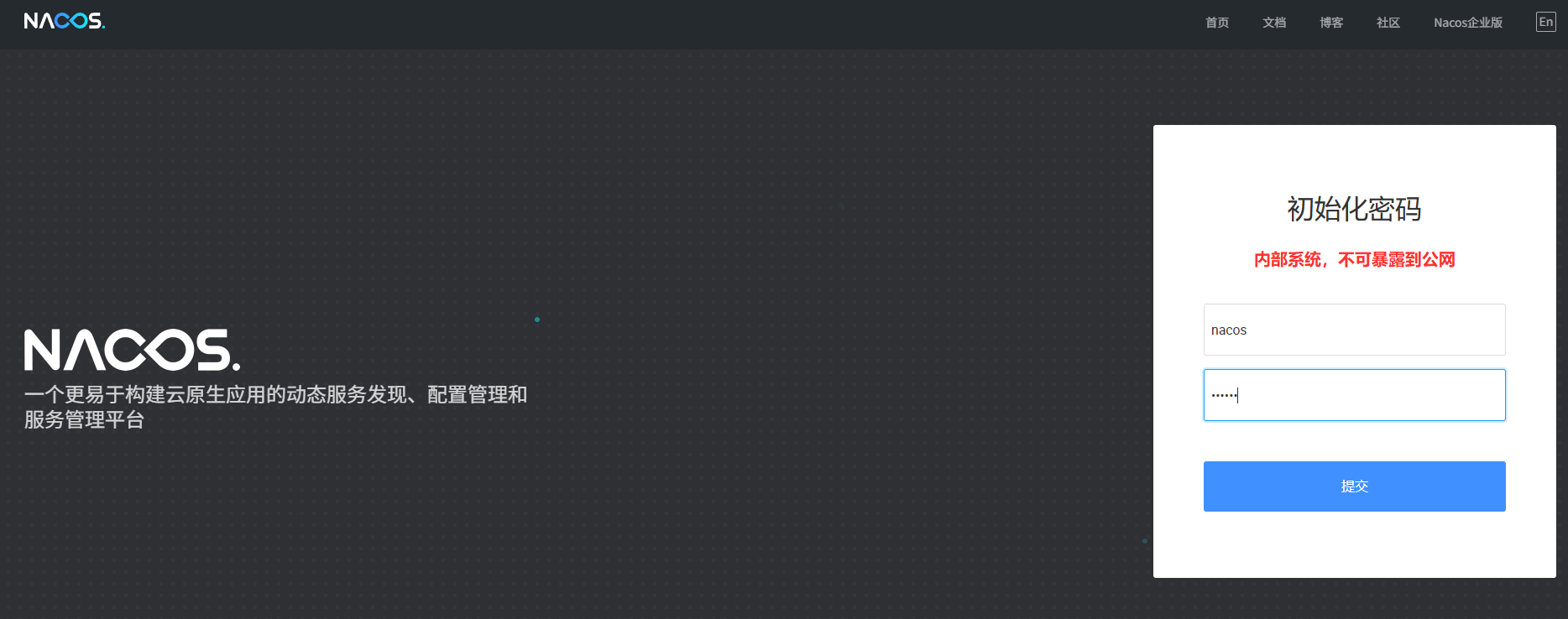

用户名是nacos，然后密码随便填，你写的什么密码，那密码就会被设置成什么
配置外部数据库
这里使用docker运行测试数据库
services:
mysql:
image: mysql:8
container_name: mysql
ports:
- 3306:3306
restart: always
user: '0'
volumes:
- ./db:/var/lib/mysql
- /usr/share/zoneinfo/Asia/Shanghai:/etc/localtime
environment:
MYSQL_ROOT_PASSWORD: 111111
#允许空密码
MYSQL_ALLOW_EMPTY_PASSWORD: no
#新建数据库
MYSQL_DATABASE: nacos
#新建用户
MYSQL_USER: admin
#设置用户密码
MYSQL_PASSWORD: 111111
这里会创建一个nacos数据库
导入表
mysql -h10.1.0.108 -uroot -p111111
mysql> GRANT ALL PRIVILEGES ON nacos.* TO 'admin'@'%';
Query OK, 0 rows affected (0.01 sec)
mysql> exit
Bye
mysql -h10.1.0.108 -uadmin -p111111
mysql> use nacos
Database changed
mysql> show tables;
Empty set (0.00 sec)
# 执行脚本
mysql> source /root/nacos/conf/mysql-schema.sql
Query OK, 0 rows affected, 3 warnings (0.03 sec)
Query OK, 0 rows affected, 1 warning (0.02 sec)
Query OK, 0 rows affected, 4 warnings (0.01 sec)
Query OK, 0 rows affected, 9 warnings (0.01 sec)
Query OK, 0 rows affected, 4 warnings (0.02 sec)
Query OK, 0 rows affected, 9 warnings (0.01 sec)
Query OK, 0 rows affected, 5 warnings (0.01 sec)
Query OK, 0 rows affected (0.01 sec)
Query OK, 0 rows affected (0.00 sec)
Query OK, 0 rows affected (0.01 sec)
mysql> show tables;
+----------------------+
| Tables_in_nacos |
+----------------------+
| config_info |
| config_info_gray |
| config_tags_relation |
| group_capacity |
| his_config_info |
| permissions |
| roles |
| tenant_capacity |
| tenant_info |
| users |
+----------------------+
10 rows in set (0.01 sec)
配置nacos
vim conf/application.properties
#修改下面这几个选项
spring.sql.init.platform=mysql
### Count of DB:
db.num=1
### Connect URL of DB:
db.url.0=jdbc:mysql://10.1.0.108:3306/nacos?characterEncoding=utf8&connectTimeout=1000&socketTimeout=3000&autoReconnect=true&useUnicode=true&useSSL=false&serverTimezone=Asia/Shanghai
db.user.0=admin
db.password.0=111111
再次启动
bash bin/startup.sh -m standalone
