SpringCloud-负载均衡Robbin

SpringCloud-负载均衡Robbin

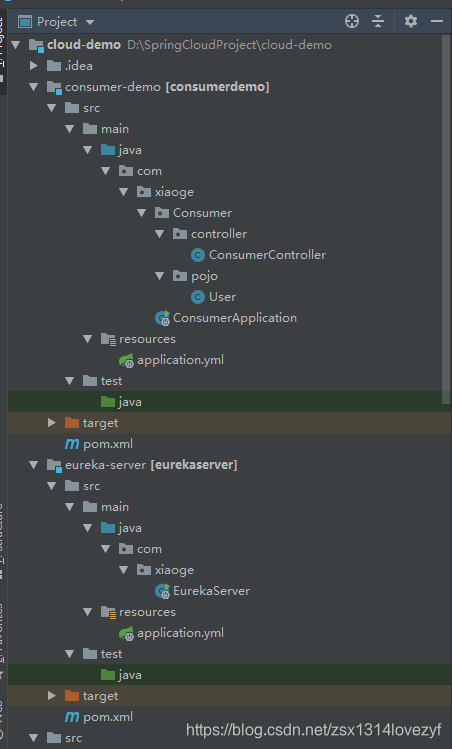

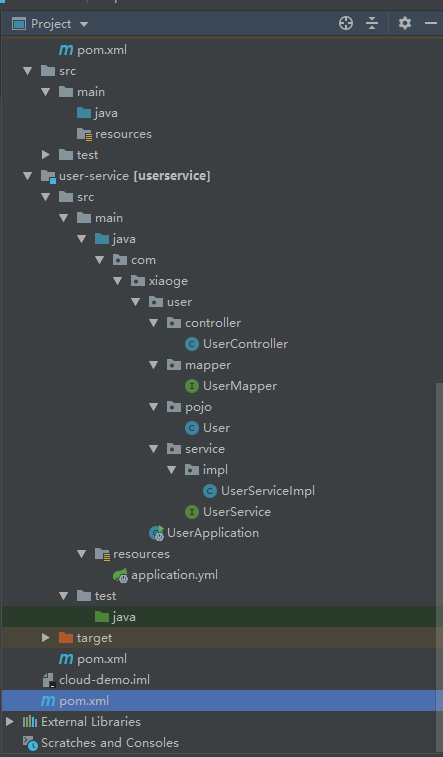

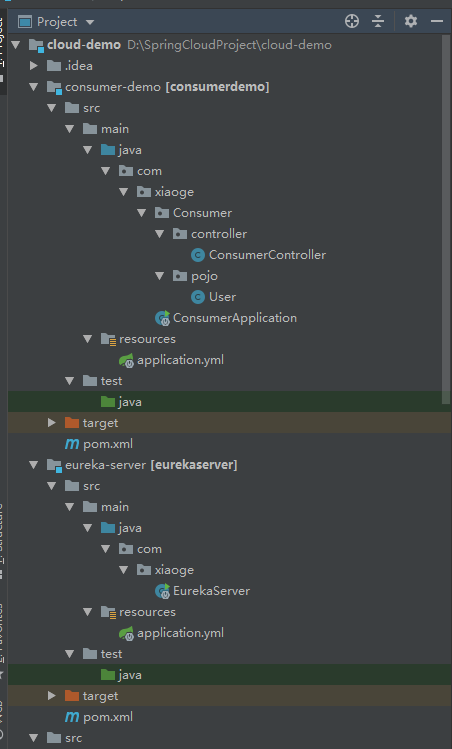

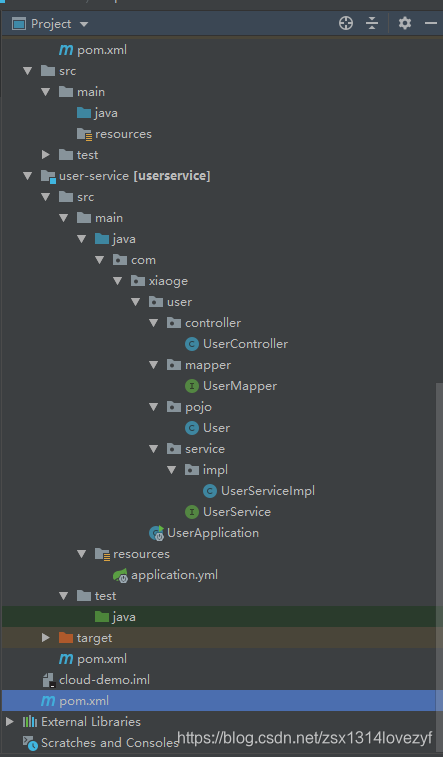

项目结构

父工程(每一个服务都是一个子工程)

1. pom.xml

   <?xml version="1.0" encoding="UTF-8"?>
   <project xmlns="http://maven.apache.org/POM/4.0.0"
            xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
            xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
       <modelVersion>4.0.0</modelVersion>

       <groupId>com.xiaoge.demo</groupId>
       <artifactId>cloud-demo</artifactId>
       <version>1.0-SNAPSHOT</version>
       <modules>
           <module>user-service</module>
           <module>consumer-demo</module>
           <module>eureka-server</module>
       </modules>
       <packaging>pom</packaging>

       <parent>
           <groupId>org.springframework.boot</groupId>
           <artifactId>spring-boot-starter-parent</artifactId>
           <version>2.0.4.RELEASE</version>
           <relativePath/> <!-- lookup parent from repository -->
       </parent>

       <properties>
           <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
           <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
           <java.version>1.8</java.version>
           <spring-cloud.version>Finchley.SR1</spring-cloud.version>
           <mapper.starter.version>2.0.3</mapper.starter.version>
           <mysql.version>5.1.32</mysql.version>
       </properties>

       <dependencyManagement> <!-- 所有子工程, 必须引下面的依赖才会有 -->
           <dependencies>
               <!-- spring cloud 引用了它, 以后cloud依赖版本就不用写了 -->
               <dependency>
                   <groupId>org.springframework.cloud</groupId>
                   <artifactId>spring-cloud-dependencies</artifactId>
                   <version>${spring-cloud.version}</version>
                   <type>pom</type>
                   <scope>import</scope>
               </dependency>

               <!-- 通用Mapper启动器 -->
               <dependency>
                   <groupId>tk.mybatis</groupId>
                   <artifactId>mapper-spring-boot-starter</artifactId>
                   <version>${mapper.starter.version}</version>
               </dependency>

               <!-- mysql驱动 -->
               <dependency>
                   <groupId>mysql</groupId>
                   <artifactId>mysql-connector-java</artifactId>
                   <version>${mysql.version}</version>
               </dependency>

           </dependencies>
       </dependencyManagement>

       <dependencies> <!-- 因为不会再dependencyManagement标签里, 所以所有的子工程都可以用 -->
           <dependency>
               <groupId>org.projectlombok</groupId>
               <artifactId>lombok</artifactId>
           </dependency>
       </dependencies>

       <build>
           <plugins>
               <plugin>
                   <groupId>org.springframework.boot</groupId>
                   <artifactId>spring-boot-maven-plugin</artifactId>
               </plugin>
           </plugins>
       </build>

   </project>


consumer-demo服务

1. 配置文件

   1. pom.xml

      <?xml version="1.0" encoding="UTF-8"?>
      <project xmlns="http://maven.apache.org/POM/4.0.0"
               xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
               xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
          <parent>
              <artifactId>cloud-demo</artifactId>
              <groupId>com.xiaoge.demo</groupId>
              <version>1.0-SNAPSHOT</version>
          </parent>
          <modelVersion>4.0.0</modelVersion>

          <artifactId>consumer-demo</artifactId>

          <dependencies>
              <dependency>
                  <groupId>org.springframework.boot</groupId>
                  <artifactId>spring-boot-starter-web</artifactId>
              </dependency>

              <!-- 引入eureka客户端依赖 -->
              <dependency>
                  <groupId>org.springframework.cloud</groupId>
                  <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
              </dependency>

              <!-- 引入负载均衡 ribbon -->
              <dependency>
                  <groupId>org.springframework.cloud</groupId>
                  <artifactId>spring-cloud-starter-netflix-ribbon</artifactId>
              </dependency>

          </dependencies>

      </project>


   2. application.yml

      server:
        port: 8088
      spring:
        # 在eureka中注册的服务名称
        application:
          name: consumer-service

      # 注册方
      # eureka配置 因为它要去注册中心注册, 所以要配置
      eureka:
        client:
          service-url:
            defaultZone: http://127.0.0.1:10086/eureka, http://127.0.0.1:10087/eureka # 配置所有的eureka地址, 防止其中一个eureka挂掉
          registry-fetch-interval-seconds: 3 # 设置拉取服务列表的周期 为3秒
          fetch-registry: true # 默认为true 拉取列表, 改为false 不拉取
        instance:
          prefer-ip-address: true # 我希望使用ip地址
          ip-address: 127.0.0.1 # 设置ip地址
      # 对那个服务实现负载均衡
      user-service: # 对user-service服务 (服务名称)
        ribbon: # 固定写法
          NFLoadBalancerRuleClassName: com.netflix.loadbalancer.RandomRule # 使用负载均衡随机算法, 默认是轮询


2. 启动类

   1. ConsumerApplication

      package com.xiaoge;

      import org.springframework.boot.SpringApplication;
      import org.springframework.boot.autoconfigure.SpringBootApplication;
      import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
      import org.springframework.cloud.client.loadbalancer.LoadBalanced;
      import org.springframework.context.annotation.Bean;
      import org.springframework.web.client.RestTemplate;

      /**
       * @program: cloud-demo
       * @description: 服务调用方
       * @author: Mr.Xiao
       * @create: 2020-05-04 16:04
       **/
      @EnableDiscoveryClient // 它也是客户端, 它捷能兼容eureka 又能consul、zookeeper等等, 更通用, 更广泛
      @SpringBootApplication
      public class ConsumerApplication {

          @Bean
          @LoadBalanced // 加上ribbon 负载均衡注解
          public RestTemplate restTemplate() {
              return new RestTemplate();
          }

          public static void main(String[] args) {
              SpringApplication.run(ConsumerApplication.class);
          }

      }



3. 实体类

   1. User

      package com.xiaoge.Consumer.pojo;

      import lombok.Data;

      import java.io.Serializable;
      import java.util.Date;

      /**
       * @program: cloud-demo
       * @description:
       * @author: Mr.Xiao
       * @create: 2020-05-04 16:06
       **/
      @Data
      public class User implements Serializable {
          // 主键
          private Long id;

          // 用户名
          private String username;

          // 密码
          private String password;

          // 姓名
          private String name;

          // 年龄
          private Integer age;

          // 性别，1男性，2女性
          private Integer sex;

          // 出生日期
          private Date birthday;

          // 创建时间
          private Date created;

          // 更新时间
          private Date updated;

          // 备注
          private String note;

      }


4. 表现层

   1. ConsumerController

      package com.xiaoge.Consumer.controller;

      import com.xiaoge.Consumer.pojo.User;
      import org.springframework.beans.factory.annotation.Autowired;
      import org.springframework.cloud.client.discovery.DiscoveryClient;
      import org.springframework.cloud.netflix.ribbon.RibbonLoadBalancerClient;
      import org.springframework.web.bind.annotation.GetMapping;
      import org.springframework.web.bind.annotation.PathVariable;
      import org.springframework.web.bind.annotation.RequestMapping;
      import org.springframework.web.bind.annotation.RestController;
      import org.springframework.web.client.RestTemplate;

      import java.util.List;

      /**
       * @program: cloud-demo
       * @description: 动态拉取服务列表
       * @author: Mr.Xiao
       * @create: 2020-05-04 16:08
       **/
      @RestController
      @RequestMapping("/consumer")
      public class ConsumerController {

          @Autowired
          private RestTemplate restTemplate;

          @Autowired
          private DiscoveryClient discoveryClient; // 专门负责服务发现

          //@Autowired
          //private RibbonLoadBalancerClient client; // 专门负责 负载均衡 获取服务的

         /*
             @GetMapping("/{id}")
              public User queryById(@PathVariable("id") Long id){
                  // 拉取服务  根据服务id获取实例
                  List<ServiceInstance> instances = discoveryClient.getInstances("user-service");

                  // 获取第一个实例, 从实例当中取出ip和端口
                  ServiceInstance instance = instances.get(0); // 这个位置正常情况下, 要写负载均衡算法, 我这里是随便取得

                  // 获取ip
                  String ip = instance.getHost();

                  // 获取端口
                  int port = instance.getPort();

                  // 访问的地址
                  String url = "http://" + ip + ":" + port;

                  User user = restTemplate.getForObject(url + "/user/" + id, User.class);
                  return user;
              }
          */

          /*
              @GetMapping("/{id}")
              public User queryById(@PathVariable("id") Long id){
                  // 负载均衡算法: 随机, 轮询. hash

                  // 拉取服务  根据服务id获取实例
                  ServiceInstance instance = client.choose("user-server"); // 默认使用的轮询

                  // 获取ip
                  String ip = instance.getHost();

                  // 获取端口
                  int port = instance.getPort();

                  // 访问的地址
                  String url = "http://" + ip + ":" + port;

                  User user = restTemplate.getForObject(url + "/user/" + id, User.class);
                  return user;
              }
          */

          @GetMapping("/{id}")
          public User queryById(@PathVariable("id") Long id){
              // 负载均衡算法: 随机, 轮询. hash

              // 1. 在注册restTemplate上加注解@LoadBalanced

              // 2. 直接写路径
              String url = "http://user-service/user/" + id;
              User user = restTemplate.getForObject(url, User.class);
              return user;
          }

      }



eureka-server服务

1. 配置文件

   1. pom.xml

      <?xml version="1.0" encoding="UTF-8"?>
      <project xmlns="http://maven.apache.org/POM/4.0.0"
               xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
               xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
          <parent>
              <artifactId>cloud-demo</artifactId>
              <groupId>com.xiaoge.demo</groupId>
              <version>1.0-SNAPSHOT</version>
          </parent>
          <modelVersion>4.0.0</modelVersion>

          <artifactId>eureka-server</artifactId>

          <dependencies>
              <!-- springcloud 注册中心 eureka -->
              <dependency>
                  <groupId>org.springframework.cloud</groupId>
                  <artifactId>spring-cloud-starter-netflix-eureka-server</artifactId>
              </dependency>
          </dependencies>

      </project>


   2. application.yml

      # 这是eureka的默认端口号
      server:
        port: 10086

      # 配置eureka服务名称
      spring:
        application:
          name: eureka-server

      # 注册方
      # 告诉eureka要注册的地址在哪里 (这样eureka就不会报一个com.sun.jersey.api.client.ClientHandlerException异常)
      eureka:
        client:
          service-url:
            defaultZone: http://127.0.0.1:10086/eureka # 配置所有的eureka地址, 防止其中一个eureka挂掉
          register-with-eureka: false  # 默认为true 注册自己, 改为false 不 注册自己
        instance:
          prefer-ip-address: true # 我希望使用ip地址
          ip-address: 127.0.0.1 # 设置ip地址
        server:
          eviction-interval-timer-in-ms: 60000 # 设置eureka失效剔除时长, 每隔60秒失效剔除一次, 失效剔除挂掉的eureka


2. 启动类

   1. EurekaServer

      package com.xiaoge;

      import org.springframework.boot.SpringApplication;
      import org.springframework.boot.autoconfigure.SpringBootApplication;
      import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

      /**
       * @program: cloud-demo
       * @description: EurekaServer端
       * @author: Mr.Xiao
       * @create: 2020-05-04 16:34
       **/
      @EnableEurekaServer // 启动Eureka服务
      @SpringBootApplication
      public class EurekaServer {

          public static void main(String[] args) {
              SpringApplication.run(EurekaServer.class);
          }

      }


user-service服务

1. 配置文件

   1. pom.xml

      <?xml version="1.0" encoding="UTF-8"?>
      <project xmlns="http://maven.apache.org/POM/4.0.0"
               xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
               xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
          <parent>
              <artifactId>cloud-demo</artifactId>
              <groupId>com.xiaoge.demo</groupId>
              <version>1.0-SNAPSHOT</version>
          </parent>
          <modelVersion>4.0.0</modelVersion>

          <artifactId>user-service</artifactId>

          <dependencies>
              <dependency>
                  <groupId>org.springframework.boot</groupId>
                  <artifactId>spring-boot-starter-web</artifactId>
              </dependency>

              <dependency>
                  <groupId>mysql</groupId>
                  <artifactId>mysql-connector-java</artifactId>
              </dependency>

              <dependency>
                  <groupId>tk.mybatis</groupId>
                  <artifactId>mapper-spring-boot-starter</artifactId>
              </dependency>

              <!-- 引入eureka(注册中心)-客户端 -->
              <dependency>
                  <groupId>org.springframework.cloud</groupId>
                  <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
              </dependency>
          </dependencies>

      </project>


   2. application.yml

      server:
        port: 9090
      spring:
        # 在eureka中注册的服务名称
        application:
          name: user-service
        # 数据库连接信息配置
        datasource:
          url: jdbc:mysql://localhost:3306/yun6
          username: root
          password: root
          hikari:
            maximum-pool-size: 20
            minimum-idle: 10
      # 别名包
      mybatis:
        type-aliases-package: com.xiaoge.user.pojo

      # 注册方
      # eureka配置 因为它要去注册中心注册, 所以要配置
      eureka:
        client:
          service-url:
            defaultZone: http://127.0.0.1:10086/eureka, http://127.0.0.1:10087/eureka # 配置所有的eureka地址, 防止其中一个eureka挂掉
        instance:
          prefer-ip-address: true # 我希望使用ip地址
          ip-address: 127.0.0.1 # 设置ip地址
          lease-renewal-interval-in-seconds: 30 # 每隔30秒发一次心跳
          lease-expiration-duration-in-seconds: 90 # 每隔30秒发一次心跳, 如果隔了90秒都没发, 那就证明挂了


2. 启动类

   1. UserApplication

      package com.xiaoge;

      import org.springframework.boot.SpringApplication;
      import org.springframework.boot.autoconfigure.SpringBootApplication;
      import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
      import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
      import tk.mybatis.spring.annotation.MapperScan;

      /**
       * @program: cloud-demo
       * @description: 服务的提供方
       * @author: Mr.Xiao
       * @create: 2020-05-04 15:43
       **/
      @EnableDiscoveryClient // 它也是客户端, 它捷能兼容eureka 又能consul、zookeeper等等, 更通用, 更广泛
      @SpringBootApplication
      @MapperScan("com.xiaoge.user.mapper")
      public class UserApplication {

          public static void main(String[] args) {
              SpringApplication.run(UserApplication.class);
          }

      }


3. 实体类

   1. User

      package com.xiaoge.user.pojo;

      import lombok.Data;
      import tk.mybatis.mapper.annotation.KeySql;

      import javax.persistence.Id;
      import javax.persistence.Table;
      import java.io.Serializable;
      import java.util.Date;

      /**
       * @program: cloud-demo
       * @description:
       * @author: Mr.Xiao
       * @create: 2020-05-04 15:46
       **/
      @Table(name = "tb_user")
      @Data
      public class User implements Serializable {

          @Id
          @KeySql(useGeneratedKeys = true) // id自动增长
          private Long id;

          // 用户名
          private String username;

          // 密码
          private String password;

          // 姓名
          private String name;

          // 年龄
          private Integer age;

          // 性别，1男性，2女性
          private Integer sex;

          // 出生日期
          private Date birthday;

          // 创建时间
          private Date created;

          // 更新时间
          private Date updated;

          // 备注
          private String note;

      }


4. 表现层

   1. UserController

      package com.xiaoge.user.controller;

      import com.xiaoge.user.pojo.User;
      import com.xiaoge.user.service.UserService;
      import org.springframework.beans.factory.annotation.Autowired;
      import org.springframework.web.bind.annotation.GetMapping;
      import org.springframework.web.bind.annotation.PathVariable;
      import org.springframework.web.bind.annotation.RequestMapping;
      import org.springframework.web.bind.annotation.RestController;

      /**
       * @program: cloud-demo
       * @description:
       * @author: Mr.Xiao
       * @create: 2020-05-04 15:51
       **/
      @RestController
      @RequestMapping("/user")
      public class UserController {

          @Autowired
          private UserService userService;

          @GetMapping("/{id}")
          public User queryById(@PathVariable("id") Long id) {
              User user = userService.queryById(id);
              return user;
          }

      }



5. 业务层

   1. UserService接口

      package com.xiaoge.user.service;

      import com.xiaoge.user.pojo.User;

      /**
       * @program: cloud-demo
       * @description:
       * @author: Mr.Xiao
       * @create: 2020-05-04 15:50
       **/
      public interface UserService {

          public User queryById(Long id);

      }


   2. UserServiceImpl实体类

      package com.xiaoge.user.service.impl;

      import com.xiaoge.user.mapper.UserMapper;
      import com.xiaoge.user.pojo.User;
      import com.xiaoge.user.service.UserService;
      import org.springframework.beans.factory.annotation.Autowired;
      import org.springframework.stereotype.Service;

      /**
       * @program: cloud-demo
       * @description:
       * @author: Mr.Xiao
       * @create: 2020-05-04 15:51
       **/
      @Service
      public class UserServiceImpl implements UserService {

          @Autowired
          private UserMapper userMapper;

          @Override
          public User queryById(Long id) {
              return userMapper.selectByPrimaryKey(id);
          }
      }


6. Mapper

   1. UserMapper

      package com.xiaoge.user.mapper;


      import com.xiaoge.user.pojo.User;
      import tk.mybatis.mapper.common.Mapper;

      /**
       * @program: cloud-demo
       * @description:
       * @author: Mr.Xiao
       * @create: 2020-05-04 15:49
       **/

      public interface UserMapper extends Mapper<User> {
      }
