SpringBoot集成Rabbitmq配置类版

SpringBoot集成Rabbitmq配置类版

consumer(消费者模块)

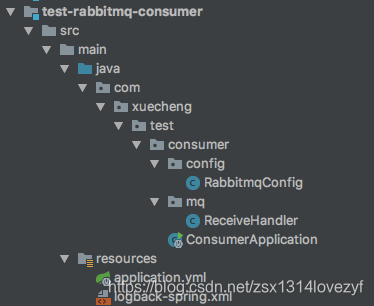

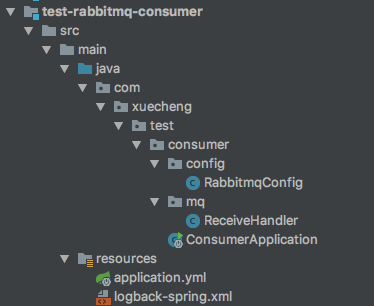

项目结构图

在这里插入图片描述

配置文件

  1. pom.xml

    <?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>xc-framework-parent</artifactId>
        <groupId>com.xuecheng</groupId>
        <version>1.0-SNAPSHOT</version>
        <relativePath>../xc-framework-parent/pom.xml</relativePath>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>test-rabbitmq-consumer</artifactId>

    <dependencies>
        <!-- 此版本与spring boot 1.5.9版本匹配 -->
        <!--<dependency>-->
            <!--<groupId>com.producer</groupId>-->
            <!--<artifactId>amqp-client</artifactId>-->
            <!--<version>4.0.3</version>-->
        <!--</dependency>-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-amqp</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-logging</artifactId>
        </dependency>
    </dependencies>

</project>

  2. application.yml

    server:
  port: 45000
spring:
  application:
    name: test-consumer-consumer
  rabbitmq:
    host: 127.0.0.1  # 安装rabbitmq的ip
    username: guest # rabbitmq的账号
    password: guest # rabbitmq的密码
    virtual-host: / # 虚拟主机

配置类

  1. RabbitmqConfig

    package com.xuecheng.test.consumer.config;

import org.springframework.amqp.core.*;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * @Author: 潇哥
 * @DateTime: 2020/11/9 下午5:17
 * @Description: TODO
 */
@Configuration
public class RabbitmqConfig {

    public static final String QUEUE_INFORM_EMAIL = "queue_inform_email";

    public static final String QUEUE_INFORM_SMS = "queue_inform_sms";

    public static final String EXCHANGE_TOPIC_INFORM = "exchange_topic_inform";

    public static final String ROUTINGKEY_EMAIL = "inform.#.email.#";

    public static final String ROUTINGKEY_SMS = "inform.#.sms.#";


    // 声明交换机
    @Bean(EXCHANGE_TOPIC_INFORM)
    public Exchange EXCHANGE_TOPIC_INFORM(){
        // durable(true) 持久化, mq重启之后交换机还在
        return ExchangeBuilder.topicExchange(EXCHANGE_TOPIC_INFORM).durable(true).build();
    }

    // 声明QUEUE_INFORM_EMAIL队列
    @Bean(QUEUE_INFORM_EMAIL)
    public Queue QUEUE_INFORM_EMAIL(){
        return new Queue(QUEUE_INFORM_EMAIL);
    }

    // 声明QUEUE_INFORM_SMS队列
    @Bean(QUEUE_INFORM_SMS)
    public Queue QUEUE_INFORM_SMS(){
        return new Queue(QUEUE_INFORM_SMS);
    }

    // ROUTINGKEY_EMAIL队列绑定交换机, 指定routingKey
    // @Qualifier注解给类成员变量使用时需要依赖@Autowired, 但是给方法参数可以单独使用
    @Bean
    public Binding BINDING_QUEUE_INFORM_EMAIL(@Qualifier(QUEUE_INFORM_EMAIL) Queue queue, @Qualifier (EXCHANGE_TOPIC_INFORM) Exchange exchange){
        return BindingBuilder.bind(queue).to(exchange).with(ROUTINGKEY_EMAIL).noargs();
    }

    // ROUTINGKEY_SMS队列绑定交换机, 指定routingKey
    // @Qualifier注解给类成员变量使用时需要依赖@Autowired, 但是给方法参数可以单独使用
    @Bean
    public Binding BINDING_QUEUE_INFORM_SMS(@Qualifier(QUEUE_INFORM_SMS) Queue queue, @Qualifier (EXCHANGE_TOPIC_INFORM) Exchange exchange){
        return BindingBuilder.bind(queue).to(exchange).with(ROUTINGKEY_SMS).noargs();
    }
}

mq消息监听类

  1. ReceiveHandler

    package com.xuecheng.test.consumer.mq;

import com.xuecheng.test.consumer.config.RabbitmqConfig;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;

/**
 * @Author: 潇哥
 * @DateTime: 2020/11/9 下午5:32
 * @Description: TODO
 */
@Component
public class ReceiveHandler {

    @RabbitListener(queues = {RabbitmqConfig.QUEUE_INFORM_EMAIL})
    public void accept_email(String msg, Message message) {
        System.out.println(msg);
    }

}

启动类

  1. ConsumerApplication

    package com.xuecheng.test.consumer;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

/**
 * @Author: 潇哥
 * @DateTime: 2020/11/9 下午5:47
 * @Description: TODO
 */
@SpringBootApplication
public class ConsumerApplication {

    public static void main(String[] args) {
        SpringApplication.run(ConsumerApplication.class, args);
    }

}

producer(生产者模块)

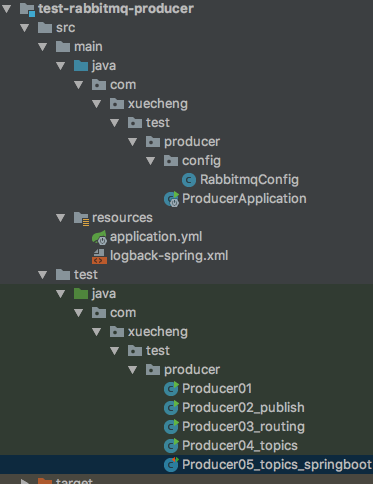

项目结构图

在这里插入图片描述

配置文件

  1. pom.xml

    <?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>xc-framework-parent</artifactId>
        <groupId>com.xuecheng</groupId>
        <version>1.0-SNAPSHOT</version>
        <relativePath>../xc-framework-parent/pom.xml</relativePath>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>test-rabbitmq-producer</artifactId>

    <dependencies>
        <!-- 此版本与spring boot 1.5.9版本匹配 -->
        <!--<dependency>-->
            <!--<groupId>com.producer</groupId>-->
            <!--<artifactId>amqp-client</artifactId>-->
            <!--<version>4.0.3</version>-->
        <!--</dependency>-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-amqp</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-logging</artifactId>
        </dependency>
    </dependencies>

</project>

  2. application.yml

    server:
  port: 44000
spring:
  application:
    name: test-producer-producer
  rabbitmq:
    host: 127.0.0.1  # 安装rabbitmq的ip
    username: guest # rabbitmq的账号
    password: guest # rabbitmq的密码
    virtual-host: / # 虚拟主机

配置类

  1. RabbitmqConfig

    package com.xuecheng.test.producer.config;

import org.springframework.amqp.core.*;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * @Author: 潇哥
 * @DateTime: 2020/11/9 下午5:17
 * @Description: TODO
 */
@Configuration
public class RabbitmqConfig {

    public static final String QUEUE_INFORM_EMAIL = "queue_inform_email";

    public static final String QUEUE_INFORM_SMS = "queue_inform_sms";

    public static final String EXCHANGE_TOPIC_INFORM = "exchange_topic_inform";

    public static final String ROUTINGKEY_EMAIL = "inform.#.email.#";

    public static final String ROUTINGKEY_SMS = "inform.#.sms.#";


    // 声明交换机
    @Bean(EXCHANGE_TOPIC_INFORM)
    public Exchange EXCHANGE_TOPIC_INFORM(){
        // durable(true) 持久化, mq重启之后交换机还在
        return ExchangeBuilder.topicExchange(EXCHANGE_TOPIC_INFORM).durable(true).build();
    }

    // 声明QUEUE_INFORM_EMAIL队列
    @Bean(QUEUE_INFORM_EMAIL)
    public Queue QUEUE_INFORM_EMAIL(){
        return new Queue(QUEUE_INFORM_EMAIL);
    }

    // 声明QUEUE_INFORM_SMS队列
    @Bean(QUEUE_INFORM_SMS)
    public Queue QUEUE_INFORM_SMS(){
        return new Queue(QUEUE_INFORM_SMS);
    }

    // ROUTINGKEY_EMAIL队列绑定交换机, 指定routingKey
    // @Qualifier注解给类成员变量使用时需要依赖@Autowired, 但是给方法参数可以单独使用
    @Bean
    public Binding BINDING_QUEUE_INFORM_EMAIL(@Qualifier(QUEUE_INFORM_EMAIL) Queue queue, @Qualifier (EXCHANGE_TOPIC_INFORM) Exchange exchange){
        return BindingBuilder.bind(queue).to(exchange).with(ROUTINGKEY_EMAIL).noargs();
    }

    // ROUTINGKEY_SMS队列绑定交换机, 指定routingKey
    // @Qualifier注解给类成员变量使用时需要依赖@Autowired, 但是给方法参数可以单独使用
    @Bean
    public Binding BINDING_QUEUE_INFORM_SMS(@Qualifier(QUEUE_INFORM_SMS) Queue queue, @Qualifier (EXCHANGE_TOPIC_INFORM) Exchange exchange){
        return BindingBuilder.bind(queue).to(exchange).with(ROUTINGKEY_SMS).noargs();
    }
}

启动类

  1. ProducerApplication

    package com.xuecheng.test.producer;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

/**
 * @Author: 潇哥
 * @DateTime: 2020/11/8 下午10:05
 * @Description: TODO
 */
@SpringBootApplication
public class ProducerApplication {

    public static void main(String[] args) {
        SpringApplication.run(ProducerApplication.class, args);
    }

}

测试–生产消息

  1. Producer05_topics_springboot

    package com.xuecheng.test.producer;

import com.xuecheng.test.producer.config.RabbitmqConfig;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.amqp.core.AmqpTemplate;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;

/**
 * @Author: 潇哥
 * @DateTime: 2020/11/9 下午5:25
 * @Description: TODO
 */
@SpringBootTest
@RunWith(SpringRunner.class)
public class Producer05_topics_springboot {

    // 这两个模板都能生产消息

    // 构建消息
    @Autowired
    private RabbitTemplate rabbitTemplate;

    // 构建消息
    @Autowired
    private AmqpTemplate amqpTemplate;

    @Test
    public void testSendEmail() {
        String message = "send email message to user";

        // 生产消息方式一
        rabbitTemplate.convertAndSend(RabbitmqConfig.EXCHANGE_TOPIC_INFORM, "inform.email", message);

        // 生产消息方式二
        amqpTemplate.convertAndSend(RabbitmqConfig.EXCHANGE_TOPIC_INFORM, "inform.email", message);
    }

}
