第十三周
1、ansible-playbook实现MySQL的二进制部署
1.1 安装ansible
# yum -y install ansible
1.2 配置主机清单文件
# vi /etc/ansible/hosts
[local]
10.0.0.7 ansible_connection=local #指定连接类型为本地，无需通过ssh连接
[mysql]
10.0.0.17
10.0.0.27
10.0.0.37
1.3 mysql配置文件
# cat /apps/mysql/my.cnf
[mysqld]
user=mysql
datadir=/data/mysql
socket=/data/mysql/mysql.sock
innodb_file_per_table=on
skip_name_resolve = on #禁止主机名解析，建议使用
[client]
port=3306
socket=/data/mysql/mysql.sock
[mysqld_safe]
log-error=/var/log/mysqld.log
pid-file=/data/mysql/mysql.pid2.1 使用脚本实现
# bash ssh_key.sh
Generating public/private rsa key pair.
Your identification has been saved in /root/.ssh/id_rsa.
Your public key has been saved in /root/.ssh/id_rsa.pub.
The key fingerprint is:
SHA256:laHw87m60FI35AeBGdv5NhU8PW4Ol77WFPssLZK+LEY root@7-1
The key's randomart image is:
+---[RSA 2048]----+
| . .+o ... |
| oo+ = oo.|
| = B o.o|
| * + o * |
| S * = * o|
| o .E= . +.|
| o ... . ++|
| o .o.o oo=|
| oo o+o.o |
+----[SHA256]-----+
sshpass-1.06-2.el7.x86_64
/usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/root/.ssh/id_rsa.pub"
/usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
Number of key(s) added: 1
Now try logging into the machine, with: "ssh -o 'StrictHostKeyChecking=no' '10.0.0.7'"
and check to make sure that only the key(s) you wanted were added.
ssh: connect to host 10.0.0.3 port 22: Connection refused
lost connection
ssh: connect to host 10.0.0.3 port 22: Connection refused
lost connection
known_hosts 100% 1195 619.5KB/s 00:00
known_hosts 100% 1195 1.1MB/s 00:00
known_hosts 100% 1195 604.3KB/s 00:00
known_hosts 100% 1195 1.8MB/s 00:00
known_hosts 100% 1195 1.6MB/s 00:00
known_hosts 100% 1195 1.5MB/s 00:00
known_hosts 2.2 ssh健康性检查
# ansible mysql -m ping
10.0.0.7 | SUCCESS => {
"ansible_facts": {
"discovered_interpreter_python": "/usr/bin/python"
},
"changed": false,
"ping": "pong"
}
10.0.0.17 | SUCCESS => {
"ansible_facts": {
"discovered_interpreter_python": "/usr/bin/python"
},
"changed": false,
"ping": "pong"
}
10.0.0.37 | SUCCESS => {
"ansible_facts": {
"discovered_interpreter_python": "/usr/bin/python"
},
"changed": false,
"ping": "pong"
}
10.0.0.27 | SUCCESS => {
"ansible_facts": {
"discovered_interpreter_python": "/usr/bin/python"
},
"changed": false,
"ping": "pong"
3、批量安装mysql
# cat install-bin-mysql5.6.yml
---
# 批量安装二进制mysql5.6
# 将配置文件my.cnf放到目录/apps/mysql下
- hosts: mysql
remote_user: root
gather_facts: no
tasks:
- name: install packages
yum : name=libaio,perl-Data-Dumper,autoconf state=installed
- name: create group mysql
group:
name: mysql
gid: 306
system: yes
- name: create user mysql
user:
name: mysql
uid: 306
group: mysql
shell: /sbin/nologin
system: yes
home: /data/mysql
- name: download mysql_file
unarchive :
src: "http://mirrors.163.com/mysql/Downloads/MySQL-5.6/mysql-5.6.51-linux-glibc2.12-x86_64.tar.gz"
dest: "/usr/local"
owner: root
remote_src: yes
- name: prepare Soft links
shell: ln -s mysql-5.6.51-linux-glibc2.12-x86_64/ mysql
args:
chdir: "/usr/local"
- name: bash mysql_instll_db
shell: ./scripts/mysql_install_db --user=mysql --datadir=/data/mysql --basedir=/usr/local/mysql/
args:
chdir: "/usr/local/mysql"
- name: prepare my.cnf
copy:
src: "/apps/mysql/my.cnf"
dest: "/etc/my.cnf"
- name: prepare service file
shell: cp /usr/local/mysql/support-files/mysql.server /etc/init.d/mysqld && chkconfig --add mysqld && chkconfig mysqld on
- name: add path
shell: echo 'PATH=/usr/local/mysql/bin:$PATH' > /etc/profile.d/mysql.sh && . /etc/profile.d/mysql.sh
- name: start mysql
shell: service mysqld start
# ansible-playbook --syntax-check install-bin-mysql5.6.yml #检查语法
# ansible-playbook install-bin-mysql5.6.yml #运行
PLAY [mysql] ******************************************************************************
TASK [install packages] *******************************************************************
changed: [10.0.0.17]
changed: [10.0.0.37]
changed: [10.0.0.27]
TASK [create group mysql] *****************************************************************
changed: [10.0.0.17]
changed: [10.0.0.27]
changed: [10.0.0.37]
TASK [create user mysql] ******************************************************************
changed: [10.0.0.37]
changed: [10.0.0.17]
changed: [10.0.0.27]
TASK [download mysql_file] ****************************************************************
changed: [10.0.0.17]
changed: [10.0.0.27]
changed: [10.0.0.37]
TASK [prepare Soft links] *****************************************************************
[WARNING]: Consider using the file module with state=link rather than running 'ln'. If
you need to use command because file is insufficient you can add 'warn: false' to this
command task or set 'command_warnings=False' in ansible.cfg to get rid of this message.
changed: [10.0.0.27]
changed: [10.0.0.37]
changed: [10.0.0.17]
TASK [bash mysql_instll_db] ***************************************************************
changed: [10.0.0.37]
changed: [10.0.0.27]
changed: [10.0.0.17]
TASK [prepare my.cnf] *********************************************************************
changed: [10.0.0.37]
changed: [10.0.0.17]
changed: [10.0.0.27]
TASK [prepare service file] ***************************************************************
changed: [10.0.0.17]
changed: [10.0.0.27]
changed: [10.0.0.37]
TASK [add path] ***************************************************************************
changed: [10.0.0.27]
changed: [10.0.0.17]
changed: [10.0.0.37]
TASK [start mysql] ************************************************************************
[WARNING]: Consider using the service module rather than running 'service'. If you need
to use command because service is insufficient you can add 'warn: false' to this command
task or set 'command_warnings=False' in ansible.cfg to get rid of this message.
changed: [10.0.0.37]
changed: [10.0.0.17]
changed: [10.0.0.27]
PLAY RECAP ********************************************************************************
10.0.0.17 : ok=10 changed=10 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0
10.0.0.27 : ok=10 changed=10 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0
10.0.0.37 : ok=10 changed=10 unreachable=0 failed=0 skipped=0 rescued=0 ignored=0
2、Ansible playbook实现apache批量部署,并对不同主机提供以各自IP地址为内容的index.html
[root@ansible-server ansible]# tree roles/
roles/
└── httpd
├── files
│ └── httpd.conf
├── handlers
│ └── main.yml
├── tasks
│ ├── config.yml
│ ├── group.yml
│ ├── index.yml
│ ├── install.yml
│ ├── main.yml
│ ├── service.yml
│ └── user.yml
└── templates
└── index.html
[root@ansible-server httpd]# cat tasks/main.yml
- include: group.yml
- include: user.yml
- include: install.yml
- include: config.yml
- include: index.yml
- include: service.yml
[root@ansible-server httpd]# cat tasks/group.yml
- name: create group apache
group: name=apache system=yes gid=80
[root@ansible-server httpd]# cat tasks/user.yml
- name: create user apache
user: name=apache system=yes shell=/sbin/nologin home=/var/www uid=80 group=apache
[root@ansible-server httpd]# cat tasks/install.yml
- name: install httpd
yum: name=httpd state=present
[root@ansible-server httpd]# cat tasks/config.yml
- name: config file
copy: src=httpd.conf dest=/etc/httpd/conf/ backup=yes
notify: restart
[root@ansible-server httpd]# cat tasks/index.yml
- name: index.html
template: src=index.html dest=/var/www/html/
[root@ansible-server httpd]# cat tasks/service.yml
- name: start service
service: name=httpd state=started enabled=yes
[root@ansible-server httpd]# cat templates/index.html

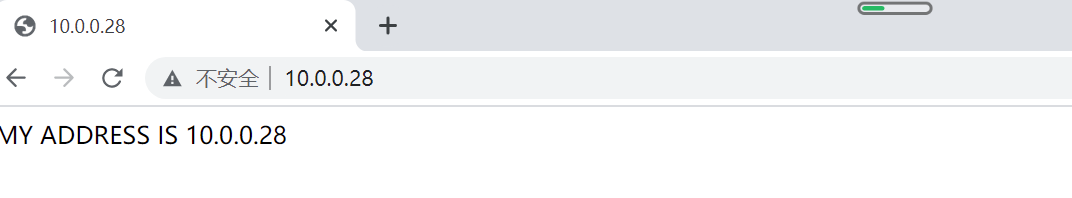

MY ADDRESS IS {{ ansible_eth0.ipv4.address }}
[root@ansible-server httpd]# cat handlers//main.yml
- name: restart
service: name=httpd state=restarted
[root@ansible-server ansible]# ansible-playbook role_httpd.yml
3、http的报文结构和状态码总结
1.请求报文结构
包括报文首部、空行、报文主体3部分。
报文首部： 第一行：请求行，请求方法，请求路径，HTTP版本 后续为各个首部：包括请求首部字段、通用首部字段和实体首部字段
空行：
报文主体： 向服务器发送的数据。如get请求中的各个参数。post请求中的参数。
2.响应报文结构
也是包括报文首部、空行、报文主体3部分。
报文首部： 第一行：状态行，包括HTTP版本 状态码 原因短语 后续为首部字段：响应首部字段、通用首部字段、实体首部字段
报文主体：服务器返回的响应体。如HTTM页面。
3.常见状态码
4.1 2xx
2开头的状态码表示成功
200 OK
正常处理并返回了
204 No Content
正常处理了，但响应中不含主体。 用于需要从客户端往服务器发送数据但不需要响应内容的情况。
206 Partial Content
客户端进行了范围请求，服务器正常返回了。请求时通过Content-Range指定范围。
4.2 3xx
重定向相关
301 Moved Permanently
永久性重定向。表示请求的资源已经永久性分配了新的URI，以后应该使用该新的URI。 使用Location首部字段表示新URI地址。浏览器会重新请求一次该URI。
302 Found
临时重定向，希望用户本次使用的新分配的URI。 和301非常类似，浏览器也会根据Location字段重新进行请求。 在实际开发中常用于页面跳转。
303 See Other
和302功能相同，只是明确表明客户端应该使用get请求。
304 Not Modified
和重定向没有关系。表示资源没有改变，可直接使用客户端未过期的缓存。在请求附带条件时有可能返回这个状态码。
4.3 4xx
客户端错误
400 Bad Request
请求中有语法错误。如参数拼接的的问题等。
401 Unauthorized
未认证
403
禁止访问
404 Not Found
4.4 5xx
服务器错误
500
服务器内部错误
503
服务不可用
