Sonar本地使用手册for eclipse

Sonar-Scanner集成

主要是针对非maven项目

1. 配置本地环境变量，path中增加%SONAR_SCANNER%\bin
2. 修改%SONAR_SCANNER%\conf\sonar-runner.properties配置

#----- Default SonarQube server

sonar.host.url=http://10.102.16.91:9000



#----- Default source code encoding

sonar.sourceEncoding=UTF-8

1. 在项目根目录增加配置文件sonar-project.properties，配置demo：

# must be unique in a given SonarQube instance

sonar.projectKey=com.wind.buy.lctime:lctime-parent

# this is the name displayed in the SonarQube UI

sonar.projectName=lctime-parent

sonar.projectVersion=1.0.0.1



# Encoding of the source code. Default is default system encoding

sonar.sourceEncoding=UTF-8



# The value of the property must be the key of the language.

sonar.language=java





# Path is relative to the sonar-project.properties file. Replace "\" by "/" on Windows.

# Since SonarQube 4.2, this property is optional if sonar.modules is set.

# If not set, SonarQube starts looking for source code from the directory containing

# the sonar-project.properties file.

# sonar.sources=src/main/java

sonar.modules=lctime-daemon,lctime-dal,lctime-integration,lctime-manager,lctime-website



# Properties can obviously be overriden for each module - just prefix them with the module ID

# lctime-daemon

lctime-daemon.sonar.projectName=lctime-daemon

lctime-daemon.sonar.sources=src/main/java

lctime-daemon.sonar.projectBaseDir=lctime-daemon



# lctime-dal

lctime-dal.sonar.projectName=lctime-dal

lctime-dal.sonar.sources=src/main/java

lctime-dal.sonar.projectBaseDir=lctime-dal



# lctime-integration

lctime-integration.sonar.projectName=lctime-integration

lctime-integration.sonar.sources=src/main/java

lctime-integration.sonar.projectBaseDir=lctime-integration



# lctime-manager

lctime-manager.sonar.projectName=lctime-manager

lctime-manager.sonar.sources=src/main/java

lctime-manager.sonar.projectBaseDir=lctime-manager



# lctime-website

lctime-website.sonar.projectName=lctime-website

lctime-website.sonar.sources=src/main/java

lctime-website.sonar.projectBaseDir=lctime-website



1. 进入项目根目录，执行sonar-runner



集成maven

1. 检查前提条件：

Maven 3.x

when SonarQube>=5.6 then maven-sonar-plugin=3.4.0.905 else maven-sonar-plugin=3.3.0.603

JDK 1.8



1. 更新settings.xml文件（非必须）

  <pluginGroups>

    <pluginGroup>org.sonarsource.scanner.maven</pluginGroup>

  </pluginGroups>

  <profiles>

    <profile>

      <id>sonar</id>

      <activation>

        <activeByDefault>true</activeByDefault>

      </activation>

      <properties>

        <sonar.host.url>http://10.102.16.91:9000</sonar.host.url>

      </properties>

    </profile>

  </profiles>



1. 执行分析命令：

1)       mvn clean install -Dmaven.test.skip=true

2)       mvn sonar:sonar -Dsonar.host.url= http://10.102.16.91:9000 -Dsonar.login=you token  -Dsonar.branch=JFIRE_20180104_wdbyh





注：

1.  sonar.login为用户的token，由sonar管理员或自己生成

2.  1)、2)两个步骤可以合并成一个，如果在settings.xml中已配置了sonar的地址，命令中可以不需要指定



Eclipse集成sonarLint

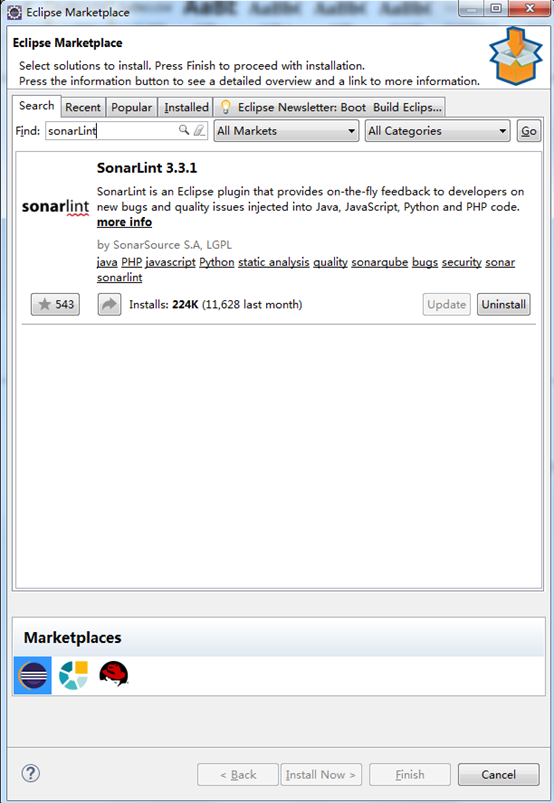

进入Help->Eclipse Marketplace，搜索“sonarLint”点安装即可：
