ArKTS: DAL，Model，BLL，Interface，Factory using SQLite
HarmonyOS 用@ohos.data.rdb 用DBHelper.ets 共用调用SQLite 库，进行DAL,Model,BLL,Interface,Factory 框架模式，表为
CREATE TABLE IF NOT EXISTS signInRecord ( id INTEGER PRIMARY KEY AUTOINCREMENT, employeeId TEXT NOT NULL, employeeName TEXT NOT NULL, signInTime TEXT NOT NULL )

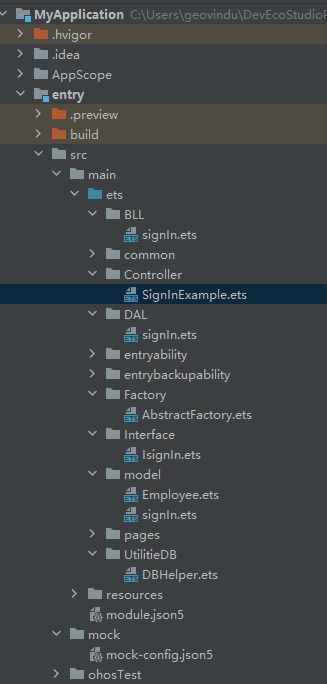

项目结构 ：
UtilitieDB
--DBHelper.ets
DAL
--signIn.ets
Model
--signIn.ets
BLL
----signIn.ets
Interface
----IsignIn.ets
Factory
--AbstractFactory.ets
/*
# encoding: utf-8
# 版权所有 2025 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：
# Author : geovindu,Geovin Du 涂聚文.
# IDE : DevEco Studio 5.1.1 HarmonyOS
# os : windows 10
# database : mysql 9.0 sql server 2019, postgreSQL 17.0 Oracle 21c Neo4j
# Datetime : 2025/7/22 19:11
# User : geovindu
# Product : DevEco Studio
# Project : MyApplication
# File : signIn.ets
*/
export interface SignInRecordDbObject {
id?: number;
employeeId: string;
employeeName: string;
signInTime: string;
}
export class SignInRecord {
id: number | null;
employeeId: string;
employeeName: string;
signInTime: string;
constructor(
employeeId: string,
employeeName: string,
signInTime: string,
id: number | null = null
) {
this.id = id;
this.employeeId = employeeId;
this.employeeName = employeeName;
this.signInTime = signInTime;
}
// 转换为数据库存储的对象格式（类型安全版本）
toDbObject(): SignInRecordDbObject {
const dbObject: SignInRecordDbObject = {
employeeId: this.employeeId,
employeeName: this.employeeName,
signInTime: this.signInTime
};
if (this.id !== null) {
dbObject.id = this.id;
}
return dbObject;
}
// 从数据库对象创建模型实例（类型安全版本）
static fromDbObject(dbObject: SignInRecordDbObject): SignInRecord {
return new SignInRecord(
dbObject.employeeId,
dbObject.employeeName,
dbObject.signInTime,
dbObject.id !== undefined ? dbObject.id : null
);
}
}
/*
# encoding: utf-8
# 版权所有 2025 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：
# Author : geovindu,Geovin Du 涂聚文.
# IDE : DevEco Studio 5.1.1 HarmonyOS
# os : windows 10
# database : mysql 9.0 sql server 2019, postgreSQL 17.0 Oracle 21c Neo4j
# Datetime : 2025/7/22 19:04
# User : geovindu
# Product : DevEco Studio
# Project : MyApplication
# File : DBHelper.ets
*/
import relationalStore from '@ohos.data.relationalStore';
import { BusinessError } from '@ohos.base';
import { Context } from '@ohos.abilityAccessCtrl';
export class DBHelper {
private static readonly DB_NAME: string = 'signInDB.db';
private static readonly DB_VERSION: number = 1;
private rdbStore: relationalStore.RdbStore | null = null;
private static instance: DBHelper | null = null;
private context: Context | null = null; // 新增上下文存储
private constructor() {}
/**
*
* @returns
*/
public static getInstance(): DBHelper {
if (!DBHelper.instance) {
DBHelper.instance = new DBHelper();
}
if (!DBHelper.instance) {
throw new Error('无法创建DBHelper实例，请检查实现');
}
return DBHelper.instance;
}
/**
* 初始化数据库时保存上下文
* @param context
* @returns
*/
public async initDB(context: Context): Promise<relationalStore.RdbStore> {
if (this.rdbStore) {
return this.rdbStore;
}
/**
* 保存上下文供后续使用
*/
this.context = context;
const storeConfig: relationalStore.StoreConfig = {
name: DBHelper.DB_NAME,
securityLevel: relationalStore.SecurityLevel.S1
};
try {
this.rdbStore = await relationalStore.getRdbStore(context, storeConfig);
await this.createTables();
return this.rdbStore;
} catch (error) {
const err = error as BusinessError;
console.error(`初始化数据库失败: ${err.code} - ${err.message}`);
throw new Error(`数据库初始化失败: ${err.message}`);
}
}
/**
*
* @returns
*/
private async createTables(): Promise<void> {
if (!this.rdbStore) {
throw new Error('数据库未初始化，请先调用initDB方法');
}
const createTableSql: string = `
CREATE TABLE IF NOT EXISTS signInRecord (
id INTEGER PRIMARY KEY AUTOINCREMENT,
employeeId TEXT NOT NULL,
employeeName TEXT NOT NULL,
signInTime TEXT NOT NULL
)
`;
try {
await this.rdbStore.executeSql(createTableSql);
console.log('签到记录表创建成功或已存在');
} catch (error) {
const err = error as BusinessError;
console.error(`创建签到记录表失败: ${err.code} - ${err.message}`);
throw new Error(`创建数据表失败: ${err.message}`);
}
}
/**
*
* @returns
*/
public getRdbStore(): relationalStore.RdbStore | null {
if (!this.rdbStore) {
console.warn('数据库尚未初始化，请先调用initDB方法');
}
return this.rdbStore;
}
/**
* 修正关闭数据库的方法
* @returns
*/
public async closeDB(): Promise<void> {
if (this.rdbStore && this.context) {
try {
// 正确调用deleteRdbStore，需要传入上下文和数据库名称
await relationalStore.deleteRdbStore(this.context, DBHelper.DB_NAME);
this.rdbStore = null;
this.context = null; // 清除上下文
console.log('数据库已关闭并删除');
} catch (error) {
const err = error as BusinessError;
console.error(`关闭数据库失败: ${err.code} - ${err.message}`);
throw new Error(`关闭数据库失败: ${err.message}`);
}
} else {
if (!this.context) {
console.warn('上下文不存在，无法关闭数据库');
} else {
console.warn('数据库连接不存在，无需关闭');
}
}
}
}
/*
# encoding: utf-8
# 版权所有 2025 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：
# Author : geovindu,Geovin Du 涂聚文.
# IDE : DevEco Studio 5.1.1 HarmonyOS
# os : windows 10
# database : mysql 9.0 sql server 2019, postgreSQL 17.0 Oracle 21c Neo4j
# Datetime : 2025/7/22 19:14
# User : geovindu
# Product : DevEco Studio
# Project : MyApplication
# File : IsignIn.ets
*/
import { SignInRecord } from '../model/signIn';
export interface ISignIn {
/**
* 添加签到记录
* @param record
* @returns
*/
addSignInRecord(record: SignInRecord): Promise<number>;
/**
* 根据ID获取签到记录
* @param id
* @returns
*/
getSignInRecordById(id: number): Promise<SignInRecord | null>;
/**
* 获取所有签到记录
* @returns
*/
getAllSignInRecords(): Promise<SignInRecord[]>;
/**
* 根据员工ID获取签到记录
* @param employeeId
* @returns
*/
getSignInRecordsByEmployeeId(employeeId: string): Promise<SignInRecord[]>;
/**
* 更新签到记录
* @param record
* @returns
*/
updateSignInRecord(record: SignInRecord): Promise<number>;
/**
* 删除签到记录
* @param id
* @returns
*/
deleteSignInRecord(id: number): Promise<number>;
}
/*
# encoding: utf-8
# 版权所有 2025 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：
# Author : geovindu,Geovin Du 涂聚文.
# IDE : DevEco Studio 5.1.1 HarmonyOS
# os : windows 10
# database : mysql 9.0 sql server 2019, postgreSQL 17.0 Oracle 21c Neo4j
# Datetime : 2025/7/22 19:16
# User : geovindu
# Product : DevEco Studio
# Project : MyApplication
# File : AbstractFactory.ets
*/
import { ISignIn } from '../Interface/IsignIn';
import { SignInDAL } from '../DAL/signIn';
import { SignInBLL } from '../BLL/signIn';
/**
* 抽象工厂类
*/
export abstract class AbstractFactory {
// 创建数据访问层实例
public abstract createSignInDAL(): ISignIn;
// 创建业务逻辑层实例
public abstract createSignInBLL(): ISignIn;
}
/**
* 签到记录工厂类
*/
export class SignInFactory extends AbstractFactory {
// 创建签到记录数据访问层实例
public createSignInDAL(): ISignIn {
return new SignInDAL();
}
/**
* 创建签到记录业务逻辑层实例
* @returns
*/
public createSignInBLL(): ISignIn {
// 可以在这里注入不同的DAL实现，方便测试或切换数据源
const dal = this.createSignInDAL();
return new SignInBLL(dal);
}
}
/*
# encoding: utf-8
# 版权所有 2025 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：
# Author : geovindu,Geovin Du 涂聚文.
# IDE : DevEco Studio 5.1.1 HarmonyOS
# os : windows 10
# database : mysql 9.0 sql server 2019, postgreSQL 17.0 Oracle 21c Neo4j
# Datetime : 2025/7/22 19:17
# User : geovindu
# Product : DevEco Studio
# Project : MyApplication
# File : signIn.ets
*/
import relationalStore from '@ohos.data.relationalStore';
import { DBHelper } from '../UtilitieDB/DBHelper';
import { SignInRecord, SignInRecordDbObject } from '../model/signIn';
import { ISignIn } from '../Interface/IsignIn';
import { BusinessError } from '@ohos.base';
// 定义与数据库字段对应的类型映射
type SignInColumn = 'id' | 'employeeId' | 'employeeName' | 'signInTime';
export class SignInDAL implements ISignIn {
private getRdbStore() {
const rdbStore = DBHelper.getInstance().getRdbStore();
if (!rdbStore) {
throw new Error('数据库未初始化，请先调用initDB方法');
}
return rdbStore;
}
/**
* 添加签到记录
* @param record
* @returns
*/
async addSignInRecord(record: SignInRecord): Promise<number> {
try {
const dbObject = record.toDbObject();
// 构建符合要求的ValuesBucket
const valuesBucket: relationalStore.ValuesBucket = {
'employeeId': dbObject.employeeId,
'employeeName': dbObject.employeeName,
'signInTime': dbObject.signInTime
};
const rowId = await this.getRdbStore().insert('signInRecord', valuesBucket);
return rowId;
} catch (error) {
const err = error as BusinessError;
console.error(`添加签到记录失败: ${err.code} - ${err.message}`);
throw new Error(`添加签到记录失败: ${err.message}`);
}
}
/**
* 根据ID获取签到记录
* @param id
* @returns
*/
async getSignInRecordById(id: number): Promise<SignInRecord | null> {
try {
const predicates = new relationalStore.RdbPredicates('signInRecord');
predicates.equalTo('id', id);
const resultSet = await this.getRdbStore().query(predicates, ['*']);
let record: SignInRecord | null = null;
if (await resultSet.goToFirstRow()) {
const dbObject: SignInRecordDbObject = {
id: resultSet.getLong(resultSet.getColumnIndex('id')),
employeeId: resultSet.getString(resultSet.getColumnIndex('employeeId')),
employeeName: resultSet.getString(resultSet.getColumnIndex('employeeName')),
signInTime: resultSet.getString(resultSet.getColumnIndex('signInTime'))
};
record = SignInRecord.fromDbObject(dbObject);
}
await resultSet.close();
return record;
} catch (error) {
const err = error as BusinessError;
console.error(`查询签到记录失败: ${err.code} - ${err.message}`);
throw new Error(`查询签到记录失败: ${err.message}`);
}
}
/**
* 根据员工ID获取签到记录
* @param employeeId
* @returns
*/
async getSignInRecordsByEmployeeId(employeeId: string): Promise<SignInRecord[]> {
try {
const predicates = new relationalStore.RdbPredicates('signInRecord');
predicates.equalTo('employeeId', employeeId)
.orderByDesc('signInTime');
const resultSet = await this.getRdbStore().query(predicates, ['*']);
const records: SignInRecord[] = [];
while (await resultSet.goToNextRow()) {
const dbObject: SignInRecordDbObject = {
id: resultSet.getLong(resultSet.getColumnIndex('id')),
employeeId: resultSet.getString(resultSet.getColumnIndex('employeeId')),
employeeName: resultSet.getString(resultSet.getColumnIndex('employeeName')),
signInTime: resultSet.getString(resultSet.getColumnIndex('signInTime'))
};
records.push(SignInRecord.fromDbObject(dbObject));
}
await resultSet.close();
return records;
} catch (error) {
const err = error as BusinessError;
console.error(`根据员工ID查询签到记录失败: ${err.code} - ${err.message}`);
throw new Error(`根据员工ID查询签到记录失败: ${err.message}`);
}
}
/**
* 获取所有签到记录
* @returns
*/
async getAllSignInRecords(): Promise<SignInRecord[]> {
try {
const predicates = new relationalStore.RdbPredicates('signInRecord');
predicates.orderByDesc('signInTime');
const resultSet = await this.getRdbStore().query(predicates, ['*']);
const records: SignInRecord[] = [];
while (await resultSet.goToNextRow()) {
const dbObject: SignInRecordDbObject = {
id: resultSet.getLong(resultSet.getColumnIndex('id')),
employeeId: resultSet.getString(resultSet.getColumnIndex('employeeId')),
employeeName: resultSet.getString(resultSet.getColumnIndex('employeeName')),
signInTime: resultSet.getString(resultSet.getColumnIndex('signInTime'))
};
records.push(SignInRecord.fromDbObject(dbObject));
}
await resultSet.close();
return records;
} catch (error) {
const err = error as BusinessError;
console.error(`获取所有签到记录失败: ${err.code} - ${err.message}`);
throw new Error(`获取所有签到记录失败: ${err.message}`);
}
}
/**
* 更新签到记录
* @param record
* @returns
*/
async updateSignInRecord(record: SignInRecord): Promise<number> {
if (record.id === null) {
throw new Error('更新失败，签到记录ID不能为空');
}
try {
const dbObject = record.toDbObject();
const predicates = new relationalStore.RdbPredicates('signInRecord');
predicates.equalTo('id', record.id); // 这里已经指定了要更新的记录ID
// 构建ValuesBucket，不包含id字段，因为不需要更新主键
const valuesBucket: relationalStore.ValuesBucket = {
'employeeId': dbObject.employeeId,
'employeeName': dbObject.employeeName,
'signInTime': dbObject.signInTime
};
// 执行更新操作
const rowsUpdated = await this.getRdbStore().update(valuesBucket, predicates);
return rowsUpdated;
} catch (error) {
const err = error as BusinessError;
console.error(`更新签到记录失败: ${err.code} - ${err.message}`);
throw new Error(`更新签到记录失败: ${err.message}`);
}
}
/**
* 删除签到记录
* @param id
* @returns
*/
async deleteSignInRecord(id: number): Promise<number> {
try {
const predicates = new relationalStore.RdbPredicates('signInRecord');
predicates.equalTo('id', id);
const rowsDeleted = await this.getRdbStore().delete(predicates);
return rowsDeleted;
} catch (error) {
const err = error as BusinessError;
console.error(`删除签到记录失败: ${err.code} - ${err.message}`);
throw new Error(`删除签到记录失败: ${err.message}`);
}
}
/**
* 将结果集转换为签到记录数组
* @param resultSet
* @returns
*/
private convertResultSetToSignInRecords(resultSet: relationalStore.ResultSet): SignInRecord[] {
const records: SignInRecord[] = [];
resultSet.goToFirstRow();
do {
const record = this.convertResultSetToSignInRecord(resultSet);
records.push(record);
} while (resultSet.goToNextRow());
return records;
}
/**
* 结果集转换为单个签到记录
* @param resultSet
* @returns
*/
private convertResultSetToSignInRecord(resultSet: relationalStore.ResultSet): SignInRecord {
return new SignInRecord(
resultSet.getString(resultSet.getColumnIndex('employeeId')),
resultSet.getString(resultSet.getColumnIndex('employeeName')),
resultSet.getString(resultSet.getColumnIndex('signInTime')),
resultSet.getLong(resultSet.getColumnIndex('id'))
);
}
}
/*
# encoding: utf-8
# 版权所有 2025 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：
# Author : geovindu,Geovin Du 涂聚文.
# IDE : DevEco Studio 5.1.1 HarmonyOS
# os : windows 10
# database : mysql 9.0 sql server 2019, postgreSQL 17.0 Oracle 21c Neo4j
# Datetime : 2025/7/22 18:18
# User : geovindu
# Product : DevEco Studio
# Project : MyApplication
# File : signIn.ets
*/
import { ISignIn } from '../Interface/IsignIn';
import { SignInRecord } from '../model/signIn';
import { SignInDAL } from '../DAL/signIn';
export class SignInBLL implements ISignIn {
private signInDAL: ISignIn;
constructor(signInDAL: ISignIn = new SignInDAL()) {
this.signInDAL = signInDAL;
}
/**
* 添加签到记录，包含业务逻辑验证
* @param record
* @returns
*/
async addSignInRecord(record: SignInRecord): Promise<number> {
// 业务逻辑验证：检查必要字段
if (!record.employeeId || record.employeeId.trim() === '') {
throw new Error('员工ID不能为空');
}
if (!record.employeeName || record.employeeName.trim() === '') {
throw new Error('员工姓名不能为空');
}
// 检查签到时间格式是否合法
if (!this.isValidDateTime(record.signInTime)) {
throw new Error('签到时间格式不正确');
}
// 调用数据访问层添加记录
return this.signInDAL.addSignInRecord(record);
}
/**
* 根据ID获取签到记录
* @param id
* @returns
*/
async getSignInRecordById(id: number): Promise<SignInRecord | null> {
if (id <= 0) {
throw new Error('无效的记录ID');
}
return this.signInDAL.getSignInRecordById(id);
}
/**
* 获取所有签到记录
* @returns
*/
async getAllSignInRecords(): Promise<SignInRecord[]> {
return this.signInDAL.getAllSignInRecords();
}
/**
* 根据员工ID获取签到记录
* @param employeeId
* @returns
*/
async getSignInRecordsByEmployeeId(employeeId: string): Promise<SignInRecord[]> {
if (!employeeId || employeeId.trim() === '') {
throw new Error('员工ID不能为空');
}
return this.signInDAL.getSignInRecordsByEmployeeId(employeeId);
}
/**
* 更新签到记录
* @param record
* @returns
*/
async updateSignInRecord(record: SignInRecord): Promise<number> {
if (!record.id) {
throw new Error('签到记录ID不能为空');
}
/**
* 验证更新的数据
*/
if (!record.employeeId || record.employeeId.trim() === '') {
throw new Error('员工ID不能为空');
}
if (!this.isValidDateTime(record.signInTime)) {
throw new Error('签到时间格式不正确');
}
return this.signInDAL.updateSignInRecord(record);
}
/**
* 删除签到记录
* @param id
* @returns
*/
async deleteSignInRecord(id: number): Promise<number> {
if (id <= 0) {
throw new Error('无效的记录ID');
}
return this.signInDAL.deleteSignInRecord(id);
}
// 验证日期时间格式 (YYYY-MM-DD HH:MM:SS)
private isValidDateTime(dateTime: string): boolean {
const regex = /^\d{4}-\d{2}-\d{2} \d{2}:\d{2}:\d{2}$/;
return regex.test(dateTime);
}
}
/*
# encoding: utf-8
# 版权所有 2025 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：
# Author : geovindu,Geovin Du 涂聚文.
# IDE : DevEco Studio 5.1.1 HarmonyOS
# os : windows 10
# database : mysql 9.0 sql server 2019, postgreSQL 17.0 Oracle 21c Neo4j
# Datetime : 2025/7/22 18:56
# User : geovindu
# Product : DevEco Studio
# Project : MyApplication
# File : SignInExample.ets
*/
import { Context } from '@ohos.abilityAccessCtrl';
import { SignInFactory } from '../Factory/AbstractFactory';
import { DBHelper } from '../UtilitieDB/DBHelper';
import { SignInRecord } from '../model/signIn';
import { ISignIn } from '../Interface/IsignIn';
export class SignInExample {
private signInBLL: ISignIn;
constructor(context: Context) {
// 初始化数据库
this.initDatabase(context);
// 通过工厂获取BLL实例
const factory = new SignInFactory();
this.signInBLL = factory.createSignInBLL();
}
/**
* 初始化数据库
* @param context
*/
private async initDatabase(context: Context) {
try {
await DBHelper.getInstance().initDB(context);
console.log('数据库初始化成功');
} catch (error) {
console.error('数据库初始化失败:', error);
}
}
/**
* 添加签到记录示例
* @returns
*/
async addSignInRecordExample() {
try {
// 创建签到记录对象
const now = new Date();
const signInTime = `${now.getFullYear()}-${(now.getMonth() + 1).toString().padStart(2, '0')}-${now.getDate().toString().padStart(2, '0')} ${now.getHours().toString().padStart(2, '0')}:${now.getMinutes().toString().padStart(2, '0')}:${now.getSeconds().toString().padStart(2, '0')}`;
const record = new SignInRecord(
'EMP001', // employeeId
'张三', // employeeName
signInTime // signInTime
);
// 调用BLL层添加记录
const rowId = await this.signInBLL.addSignInRecord(record);
console.log(`添加签到记录成功，ID: ${rowId}`);
return rowId;
} catch (error) {
console.error('添加签到记录失败:', error);
return null;
}
}
/**
* 查询签到记录示例
*/
async querySignInRecordsExample() {
try {
// 1. 查询所有签到记录
const allRecords = await this.signInBLL.getAllSignInRecords();
console.log(`所有签到记录(${allRecords.length}条):`, allRecords);
// 2. 根据ID查询记录（假设我们知道一个存在的ID）
if (allRecords.length > 0) {
const firstRecordId = allRecords[0].id;
if (firstRecordId !== null) {
const singleRecord = await this.signInBLL.getSignInRecordById(firstRecordId);
console.log(`ID为${firstRecordId}的签到记录:`, singleRecord);
}
}
// 3. 根据员工ID查询记录
const empRecords = await this.signInBLL.getSignInRecordsByEmployeeId('EMP001');
console.log(`员工EMP001的签到记录(${empRecords.length}条):`, empRecords);
return allRecords;
} catch (error) {
console.error('查询签到记录失败:', error);
return null;
}
}
/**
*
* @param id
* @returns
*/
async querySignInRecordsExampleId(id:string) {
try {
// 1. 查询所有签到记录
const allRecords = await this.signInBLL.getSignInRecordsByEmployeeId(id);
console.log(`所有签到记录(${allRecords.length}条):`, allRecords);
// 2. 根据ID查询记录（假设我们知道一个存在的ID）
if (allRecords.length > 0) {
const firstRecordId = allRecords[0].id;
if (firstRecordId !== null) {
const singleRecord = await this.signInBLL.getSignInRecordById(firstRecordId);
console.log(`ID为${firstRecordId}的签到记录:`, singleRecord);
}
}
// 3. 根据员工ID查询记录
const empRecords = await this.signInBLL.getSignInRecordsByEmployeeId('EMP001');
console.log(`员工EMP001的签到记录(${empRecords.length}条):`, empRecords);
return allRecords;
} catch (error) {
console.error('查询签到记录失败:', error);
return null;
}
}
/**
* 更新签到记录示例
* @param recordId
*/
async updateSignInRecordExample(recordId: number) {
try {
// 先查询要更新的记录
const record = await this.signInBLL.getSignInRecordById(recordId);
if (!record) {
console.log(`未找到ID为${recordId}的签到记录`);
return -1;
}
// 修改记录内容
record.employeeName = '张三(更新)'; // 修改员工姓名
// 调用BLL层更新记录
const rowsUpdated = await this.signInBLL.updateSignInRecord(record);
console.log(`更新成功，影响行数: ${rowsUpdated}`);
// 验证更新结果
const updatedRecord = await this.signInBLL.getSignInRecordById(recordId);
console.log('更新后的记录:', updatedRecord);
return 1;
} catch (error) {
console.error('更新签到记录失败:', error);
return -1;
}
}
/**
* 删除签到记录示例
* @param recordId
*/
async deleteSignInRecordExample(recordId: number) {
try {
// 调用BLL层删除记录
const rowsDeleted = await this.signInBLL.deleteSignInRecord(recordId);
console.log(`删除成功，影响行数: ${rowsDeleted}`);
// 验证删除结果
const deletedRecord = await this.signInBLL.getSignInRecordById(recordId);
if (!deletedRecord) {
console.log(`ID为${recordId}的签到记录已成功删除`);
}
return 1;
} catch (error) {
console.error('删除签到记录失败:', error);
return -1;
}
}
/**
* 完整操作流程示例
*/
async completeOperationFlow() {
// 1. 添加一条新记录
const newRecordId = await this.addSignInRecordExample();
if (newRecordId) {
// 2. 查询记录
await this.querySignInRecordsExample();
// 3. 更新记录
await this.updateSignInRecordExample(newRecordId);
// 4. 删除记录
await this.deleteSignInRecordExample(newRecordId);
}
// 关闭数据库（通常在应用退出时调用）
// await DBHelper.getInstance().closeDB();
}
}
// 在Ability中使用示例
// export default class SignInAbility extends Ability {
// onWindowStageCreate(windowStage: window.WindowStage) {
// // 初始化示例并执行操作
// const signInExample = new SignInExample(this.context);
// signInExample.completeOperationFlow();
// }
// }
调用：
/**
# encoding: utf-8
# 版权所有 2024 ©涂聚文有限公司
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：
# Author : geovindu,Geovin Du 涂聚文.
# IDE : DevEco Studio 5.1.1
# OS : windows 10
# database : mysql 9.0 sql server 2019, postgreSQL 17.0 Oracle 21c Neo4j
# Datetime : 2025/7/22 19:33
# User : geovindu
# Product : MyApplicatin
# Project : MyApplicatin
# File : Register.ets
* */
import router from '@ohos.router'
import promptAction from '@ohos.promptAction'
import { SignInExample } from '../Controller/SignInExample';
import { SignInRecord } from '../model/signIn';
import { Context } from '@ohos.abilityAccessCtrl';
@Entry
@Component
struct Register {
@State message: string = '注册用户';
// 页面数据
@State allRecords: SignInRecord[] = [];
@State employeeId: string = 'EMP001';
@State employeeName: string = '张三';
@State currentRecordId: number | null = null;
// 页面上下文（用于数据库初始化）
private context: Context = getContext(this) as Context;
// 签到业务实例
private signInExample: SignInExample = new SignInExample(this.context);
// 页面加载时初始化数据
async aboutToAppear() {
await this.loadAllRecords(); // 加载所有签到记录
}
// 加载所有签到记录
// 修正后的加载所有签到记录方法
async loadAllRecords() {
try {
// 调用查询方法并获取结果
const result = await this.signInExample.querySignInRecordsExample();
// 空值判断：如果结果为null，设置为空数组
if (result === null) {
this.allRecords = [];
promptAction.showToast({ message: '没有查询到签到记录' });
return;
}
// 类型判断：确保返回的是数组
if (!Array.isArray(result)) {
this.allRecords = [];
promptAction.showToast({ message: '数据格式错误' });
console.error('查询签到记录返回非数组类型:', result);
return;
}
// 正常赋值
this.allRecords = result;
// 空数组提示
if (this.allRecords.length === 0) {
promptAction.showToast({ message: '当前没有签到记录' });
}
} catch (error) {
// 错误处理：统一捕获并处理所有可能的异常
this.allRecords = []; // 出错时清空列表
const errorMsg = error instanceof Error ? error.message : String(error);
promptAction.showToast({ message: `加载失败: ${errorMsg}` });
console.error('加载签到记录失败:', error);
}
}
/**
* 添加签到记录（绑定按钮点击事件）
*/
async handleAdd() {
if (!this.employeeId || !this.employeeName) {
promptAction.showToast({ message: '请输入员工ID和姓名' });
return;
}
try {
// 生成当前时间（格式：yyyy-MM-dd HH:mm:ss）
const now = new Date();
const signInTime = `${now.getFullYear()}-${(now.getMonth() + 1).toString().padStart(2, '0')}-${now.getDate()
.toString()
.padStart(2, '0')} ${now.getHours().toString().padStart(2, '0')}:${now.getMinutes()
.toString()
.padStart(2, '0')}:${now.getSeconds().toString().padStart(2, '0')}`;
// 创建记录并添加
const record = new SignInRecord(this.employeeId, this.employeeName, signInTime);
const newId = await this.signInExample.addSignInRecordExample(); //record
promptAction.showToast({ message: `添加成功，ID: ${newId}` });
// 刷新列表
await this.loadAllRecords();
} catch (error) {
promptAction.showToast({ message: `添加失败: ${error.message}` });
}
}
/**
* 更新签到记录（绑定按钮点击事件）
* @param record
*/
async handleUpdate(record: SignInRecord) {
if (!record.id) {
promptAction.showToast({ message: '记录ID不存在' });
return;
}
try {
// 修改记录（示例：在姓名后加"[已更新]"）
const updatedRecord = new SignInRecord(
record.employeeId,
`${record.employeeName}[已更新]`,
record.signInTime,
record.id
);
// 执行更新
const rows = await this.signInExample.updateSignInRecordExample(1) //(updatedRecord);
if (rows > 0) {
promptAction.showToast({ message: '更新成功' });
await this.loadAllRecords(); // 刷新列表
}
} catch (error) {
promptAction.showToast({ message: `更新失败: ${error.message}` });
}
}
/**
* 删除签到记录（绑定按钮点击事件）
* @param id
*/
async handleDelete(id: number) {
try {
const rows = await this.signInExample.deleteSignInRecordExample(id);
if (rows > 0) {
promptAction.showToast({ message: '删除成功' });
await this.loadAllRecords(); // 刷新列表
}
} catch (error) {
promptAction.showToast({ message: `删除失败: ${error.message}` });
}
}
/**
* 根据员工ID查询（绑定按钮点击事件）
*/
async handleQueryByEmpId() {
// 验证员工ID输入
if (!this.employeeId || this.employeeId.trim() === '') {
promptAction.showToast({ message: '请输入有效的员工ID' });
return;
}
try {
// 调用BLL层方法查询（修正方法名和调用方式）
const result = await this.signInExample.querySignInRecordsExampleId(this.employeeId.trim());
// 空值判断
if (result === null) {
this.allRecords = [];
promptAction.showToast({ message: '未查询到相关记录' });
return;
}
// 类型验证
if (!Array.isArray(result)) {
this.allRecords = [];
promptAction.showToast({ message: '查询数据格式错误' });
console.error('员工签到记录查询返回非数组类型:', result);
return;
}
// 赋值并提示结果
this.allRecords = result;
// 根据结果数量显示不同提示
if (this.allRecords.length === 0) {
promptAction.showToast({ message: `未查询到员工${this.employeeId}的签到记录` });
} else {
promptAction.showToast({ message: `查询到${this.allRecords.length}条记录` });
}
} catch (error) {
// 错误处理
this.allRecords = [];
const errorMsg = error instanceof Error ? error.message : String(error);
promptAction.showToast({ message: `查询失败: ${errorMsg}` });
console.error(`查询员工${this.employeeId}的签到记录失败:`, error);
}
}
// 界面渲染

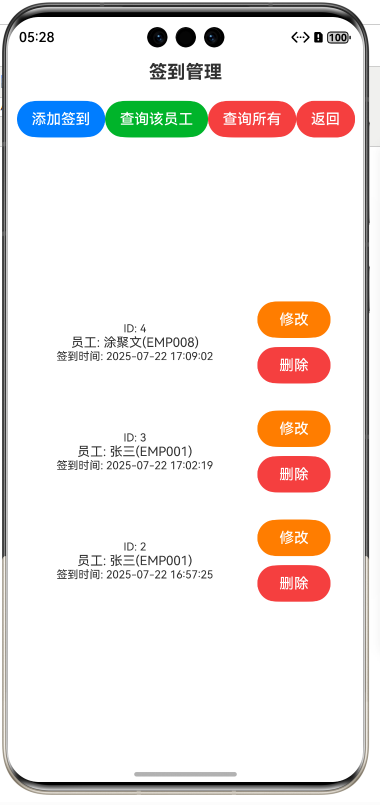

build() {
Column() {
// 操作区域
Column() {
Text('签到管理').fontSize(20).fontWeight(FontWeight.Bold).margin(10);
// 输入区域
Row() {
Button('添加签到').onClick(() => this.handleAdd())
.backgroundColor('#007DFF');
Button('查询该员工').onClick(() => this.handleQueryByEmpId())
.backgroundColor('#00B42A');
Button('查询所有').onClick(() => this.loadAllRecords())
.backgroundColor('#F53F3F');
Button('返回').onClick(() => {
router.back();
})
.backgroundColor('#F53F3F');
}.margin(10);
// 记录列表
Scroll() {
List() {
ForEach(this.allRecords, (record: SignInRecord) => {
ListItem() {
Row() {
Column() {
Text(`ID: ${record.id}`).fontSize(12);
Text(`员工: ${record.employeeName}(${record.employeeId})`).fontSize(14);
Text(`签到时间: ${record.signInTime}`).fontSize(12);
}.width('70%');
Column() {
Button('修改').onClick(() => this.handleUpdate(record))
.width(80)
.margin(5)
.backgroundColor('#FF7D00');
Button('删除').onClick(() => this.handleDelete(record.id!))
.width(80)
.margin(5)
.backgroundColor('#F53F3F');
}
}.padding(10);
}
})
}
}.width('100%').flexGrow(1);
}.width('100%').height('100%');
}.width('100%').height('100%');
}
}
哲学管理(学)人生, 文学艺术生活, 自动(计算机学)物理(学)工作, 生物(学)化学逆境, 历史(学)测绘(学)时间, 经济(学)数学金钱(理财), 心理(学)医学情绪, 诗词美容情感, 美学建筑(学)家园, 解构建构(分析)整合学习, 智商情商(IQ、EQ)运筹(学)生存.---Geovin Du(涂聚文）
浙公网安备 33010602011771号
