ArKTS: sqlite







/*
# encoding: utf-8
# 版权所有  2025 ©涂聚文有限公司™ ®
# 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
# 描述：
# Author    : geovindu,Geovin Du 涂聚文.
# IDE       : DevEco Studio 5.1.1 HarmonyOS
# os        : windows 10
# database  : mysql 9.0 sql server 2019, postgreSQL 17.0  Oracle 21c Neo4j
# Datetime  : 2025/7/21 21:58
# User      :  geovindu
# Product   : DevEco Studio
# Project   : MyApplication
# File      : Employee.ets
*/

/**
 * 员工类
 */
export class Employee{

  /**
   * 员工ID
   */
  id: number=0 //数据库表自增主键id
  /**
   * 员工编号
   */
  employeeId: string=''
  /**
   * 员工姓名
   */
  employeeName: string=''
  /**
   * 签到时间
   */
  signInTime: string=''
  /**
   *@param id
   * @param employeeId
   * @param signInTime
   */
  constructor(id:number,employeeId:string,employeeName:string,signInTime:string) {
    this.id = id
    this.employeeId = employeeId
    this.employeeName = employeeName
    this.signInTime = signInTime
  }
  /**
   * 获取员工信息
   * @returns
   */
  toString():string{
    return `员工ID：${this.employeeId}，员工姓名：${this.employeeName}，签到时间：${this.signInTime}`
  }
  /**
   * 获取员工ID
   * @returns
   */
  set Id(value: string) {
    if (value.length <= 0) {
      throw new Error("Id should be positive");
    }
    this.employeeId = value;
  }
  /**
   * 获取员工ID
   * @returns
   */
  get Id(): string {
    return this.employeeId;
  }

  /**
   * 设置员工姓名
   * @returns
   */
  get Name(): string {
    return this.employeeName;
  }
  /***
   * 设置员工姓名
   * @param value
   */
  set Name(value: string) {
    if (value.length <= 0) {
      throw new Error("Name should not be empty");
    }
    this.employeeName = value;
  }

  /**
   * 获取员工签到时间
   * @returns
   */
  get Time():string
  {
    return this.signInTime;
  }
  /**
   * 设置员工签到时间
   * @param value
   */
  set Time(value: string) {
    if (value.length <= 0) {
      throw new Error("Time should not be empty");
    }
    this.signInTime = value;
  }

  /**
   * 获取员工姓名
   * @returns
   */
  getName(): string {
    return this.employeeName;
  }

  /**
   * 设置员工姓名
   * @param value
   */
  setName(value: string) {
    if (value.length <= 0) {
      throw new Error("Name should not be empty");
    }
    this.employeeName = value;
  }
}

　　

/**
 # encoding: utf-8
 # 版权所有  2025 ©涂聚文有限公司™ ®
 # 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
 # 描述：
 # Author    : geovindu,Geovin Du 涂聚文.
 # IDE       : DevEco Studio 5.1.1  HarmonyOS
 # os        : windows 10
 # database  : mysql 9.0 sql server 2019, postgreSQL 17.0  Oracle 21c Neo4j
 # Datetime  : 2025/7/21 21:12
 # User      :  geovindu
 # Product   : DevEco Studio
 # Project   : MyApplication
 # File      : Employee.ets
 **/

export class Employee{

  id: number=0 //数据库表自增主键id
  employeeId: string='' //员工ID
  signInTime: string='' //签到时间
  constructor(id:number,employeeId:string,signInTime:string) {
    this.id = id
    this.employeeId = employeeId
    this.signInTime = signInTime
  }
}


/**
 # encoding: utf-8
 # 版权所有  2025 ©涂聚文有限公司™ ®
 # 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
 # 描述：
 # Author    : geovindu,Geovin Du 涂聚文.
 # IDE       : DevEco Studio 5.1.1  HarmonyOS
 # os        : windows 10
 # database  : mysql 9.0 sql server 2019, postgreSQL 17.0  Oracle 21c Neo4j
 # Datetime  : 2025/7/21 20:48
 # User      :  geovindu
 # Product   : DevEco Studio
 # Project   : MyApplication
 # File      : DBHelper.ets
 **/
import relationalStore from '@ohos.data.relationalStore'
import dataRdb from '@ohos.data.relationalStore'
import { ValuesBucket } from '@kit.ArkData'
import { Context } from '@kit.AbilityKit'
import data_rdb from '@ohos.data.rdb';

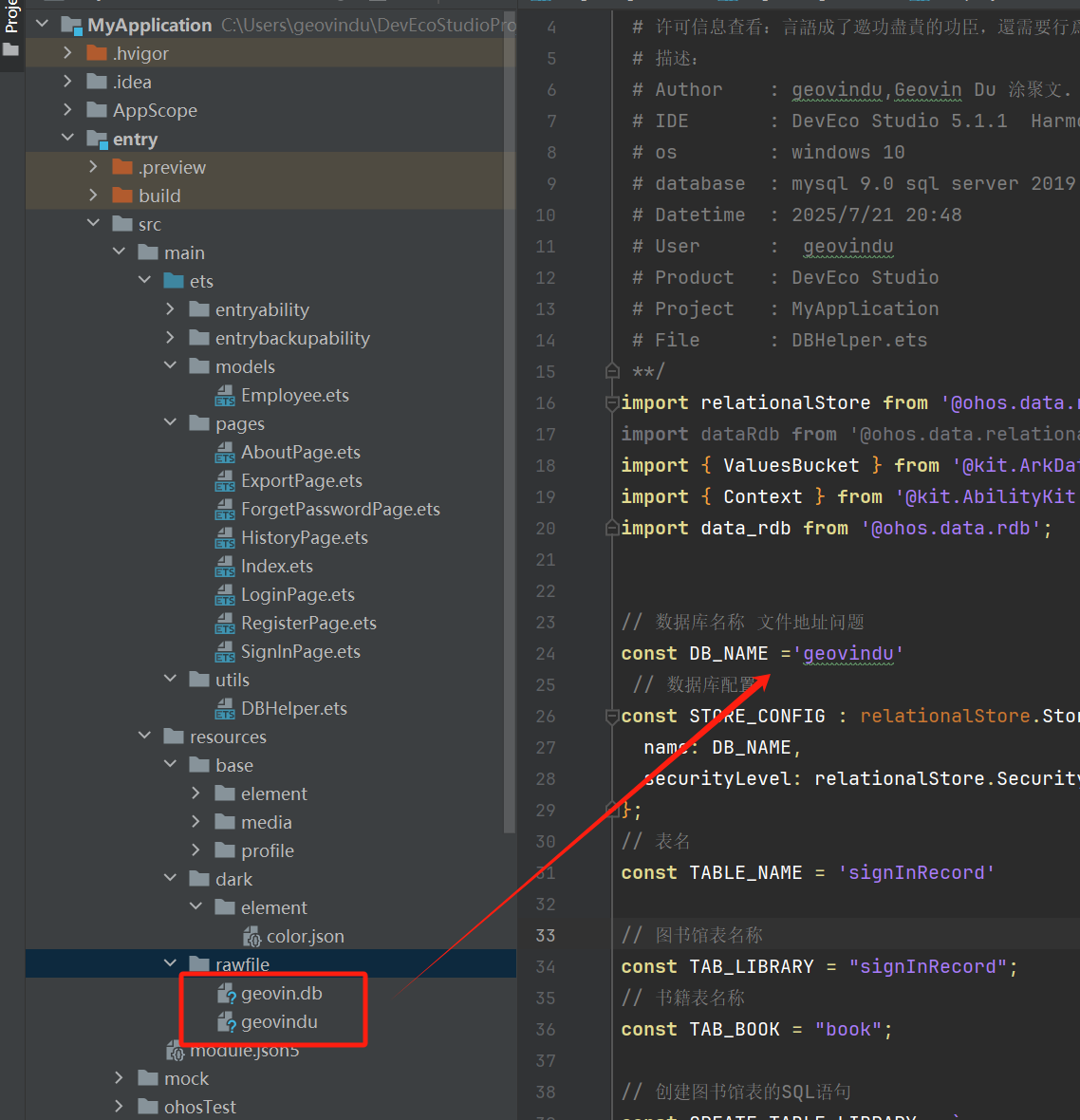

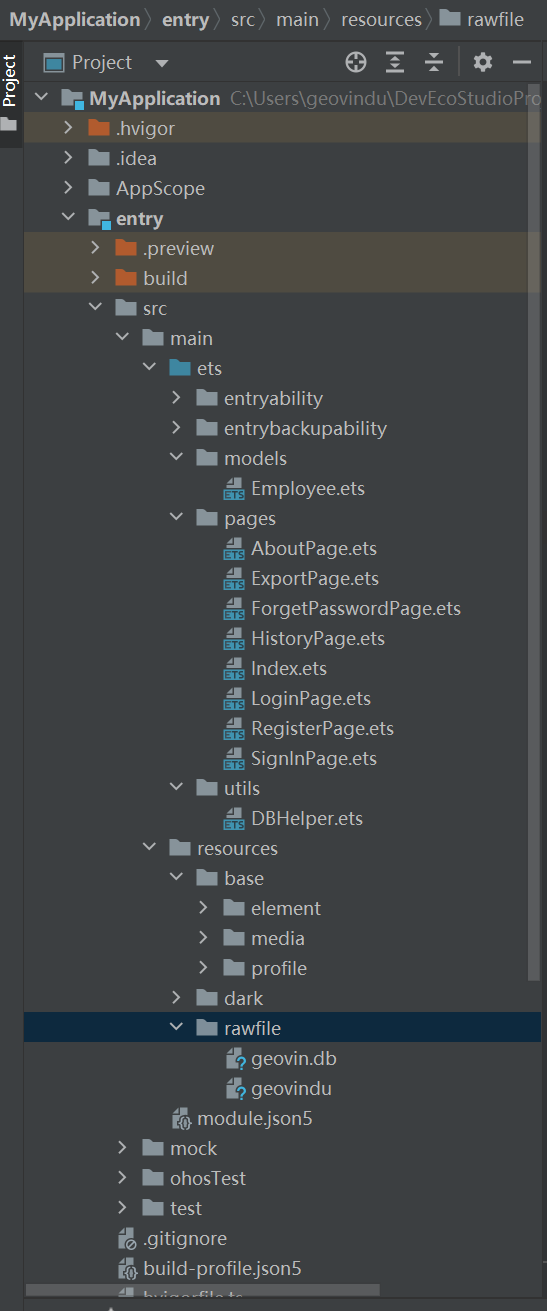

// 数据库名称 文件地址问题 src/main/resources/rawfile/
const DB_NAME ='geovindu'
 // 数据库配置
const STORE_CONFIG : relationalStore.StoreConfig= {
  name: DB_NAME,
  securityLevel: relationalStore.SecurityLevel.S1
};
// 表名
const TABLE_NAME = 'signInRecord'

// 图书馆表名称
const TAB_LIBRARY = "signInRecord";
// 书籍表名称
const TAB_BOOK = "book";

// 创建图书馆表的SQL语句
const CREATE_TABLE_LIBRARY = `
CREATE TABLE IF NOT EXISTS ${TAB_LIBRARY} (
    id INTEGER PRIMARY KEY AUTOINCREMENT,
        employeeId TEXT NOT NULL,
        signInTime TEXT NOT NULL
)`;

// 创建书籍表的SQL语句
const CREATE_TABLE_BOOK = `
CREATE TABLE IF NOT EXISTS ${TAB_BOOK} (
    id INTEGER PRIMARY KEY AUTOINCREMENT,
    title TEXT,
    author TEXT,
    libraryId INTEGER,
    FOREIGN KEY (libraryId) REFERENCES ${TAB_LIBRARY}(id)
)`;



export class DBHelper {
  private rdbStore: relationalStore.RdbStore | null = null



  /**
   * 创建数据库表
   * @param {Object} context - 上下文对象
   */
   createTable(context: Context) {
     data_rdb.getRdbStore(context, STORE_CONFIG, 1, (err, rdbStore) => {
      if (err) {
        console.error('创建数据库失败:', err);
        return;
      }
      rdbStore.executeSql(CREATE_TABLE_LIBRARY);
      rdbStore.executeSql(CREATE_TABLE_BOOK);
      console.info('表创建完成.');
    });
  }
  // 初始化数据库
  async initDB(context: Context) {
    try {


      const storeConfig: relationalStore.StoreConfig = {
        name: DB_NAME,
        securityLevel: relationalStore.SecurityLevel.S1
      }
      this.rdbStore = await relationalStore.getRdbStore(context, storeConfig)

      // 创建表
      const createTableSql = `
      CREATE TABLE IF NOT EXISTS ${TABLE_NAME} (
        id INTEGER PRIMARY KEY AUTOINCREMENT,
        employeeId TEXT NOT NULL,
        signInTime TEXT NOT NULL
      )
    `

      await this.rdbStore.executeSql(createTableSql)
      console.info(`初始化数据库成功：`)
    }
    catch (e) {
      console.error(`初始化数据库失败：${e}`)
      console.info(`初始化数据库失败：${e}`)
    }
  }
  // 插入签到记录
  async insertSignIn(employeeId: string, signInTime: string) {
    if (!this.rdbStore) return false
    const valuesBucket: ValuesBucket = {
      'employeeId': employeeId,
      'signInTime': signInTime
    }
    const rowId = await this.rdbStore.insert(TABLE_NAME, valuesBucket)
    return rowId > 0
  }
  // 查询所有签到记录
  async queryAllSignIn(): Promise<relationalStore.ResultSet | null> {
    if (!this.rdbStore) return null
    const querySql = `SELECT * FROM ${TABLE_NAME} ORDER BY signInTime DESC`
    return await this.rdbStore.querySql(querySql)
  }
}

/**
 # encoding: utf-8
 # 版权所有  2025 ©涂聚文有限公司™ ®
 # 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
 # 描述：
 # Author    : geovindu,Geovin Du 涂聚文.
 # IDE       : DevEco Studio 5.1.1  HarmonyOS
 # os        : windows 10
 # database  : mysql 9.0 sql server 2019, postgreSQL 17.0  Oracle 21c Neo4j
 # Datetime  : 2025/7/21 21:04
 # User      :  geovindu
 # Product   : DevEco Studio
 # Project   : MyApplication
 # File      : SignInPage.ets
 **/
import { DBHelper } from '../utils/DBHelper'
import { common } from '@kit.AbilityKit'
import router from '@ohos.router'
import prompt from '@ohos.prompt'
import promptAction from '@ohos.promptAction'

@Entry
@Component
struct SignInPage {
  @State employeeId: string = '' // 员工ID输入
  @State signInResult: string = '' // 签到结果提示
  @State signInTime:string = new Date().toLocaleString()
  // 在结构体中添加数据库实例
  private dbHelper: DBHelper = new DBHelper()
  private context = getContext(this) as common.UIAbilityContext
  // 在页面加载时初始化数据库
  aboutToAppear() {
    this.dbHelper.initDB(this.context)
    //this.dbHelper.createTable(this.context)
  }





  build() {
    Column() {
      Text('员工签到')
        .fontSize(25)
        .margin(20)

      // 员工ID输入框
      TextInput({ placeholder: '请输入员工ID' })
        .width(300)
        .height(50)
        .border({ width: 1 })
        .margin(10)
        .onChange((value) => {
          this.employeeId = value
        })

      // 模拟指纹识别按钮
      Button('指纹签到')
        .width(150)
        .height(50)
        .margin(20)
        .onClick(() => {
          if (this.employeeId === '') {
            this.signInResult = '请先输入员工ID'
            return
          }
          // 模拟指纹识别成功
          this.signInResult = '签到成功！时间：' + new Date().toLocaleString()
          this.signInTime = new Date().toLocaleString()
          // 后续步骤添加数据保存逻辑
          this.aboutToAppear()
          // 保存数据到数据库
          this.dbHelper.insertSignIn(this.employeeId, this.signInTime).then((success) => {
            this.signInResult = success ?
              `签到成功！时间：${this.signInTime}` :
              '签到失败，请重试'
          })

        })

      // 显示签到结果
      Text(this.signInResult)
        .fontSize(16)
        .margin(10)
        .fontColor('#FF0000')

      Button('返回')
        .onClick(() => {
          router.pushUrl({ url: 'pages/Index' }).then(() => {
            console.info('跳转成功')
            promptAction.showToast({ message: '跳转成功' })
          }).catch(() => {
            promptAction.showToast({ message: '跳转失败' })
            console.info('跳转失败')
          });
        }
        )
    }
    .width('100%')
    .height('100%')
  }

}



/**
 # encoding: utf-8
 # 版权所有  2025 ©涂聚文有限公司™ ®
 # 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
 # 描述：
 # Author    : geovindu,Geovin Du 涂聚文.
 # IDE       : DevEco Studio 5.1.1  HarmonyOS
 # os        : windows 10
 # database  : mysql 9.0 sql server 2019, postgreSQL 17.0  Oracle 21c Neo4j
 # Datetime  : 2025/7/21 21:13
 # User      :  geovindu
 # Product   : DevEco Studio
 # Project   : MyApplication
 # File      : HistoryPage.ets
 **/
import { DBHelper } from '../utils/DBHelper'
import { common } from '@kit.AbilityKit'
import { Employee } from '../models/Employee'
import router from '@ohos.router'
import prompt from '@ohos.prompt'
import promptAction from '@ohos.promptAction'

@Entry
@Component
struct HistoryPage {
  @State records: Array<Employee> = []
  private dbHelper: DBHelper = new DBHelper()
  private context = getContext(this) as common.UIAbilityContext
  async aboutToAppear() {
    await this.dbHelper.initDB(this.context)
    this.queryRecords()
  }
  // 查询记录
  async queryRecords() {
    const resultSet = await this.dbHelper.queryAllSignIn()
    if (!resultSet) return
    this.records = []
    while (resultSet.goToNextRow()) {
      this.records.push(new Employee(resultSet.getLong(resultSet.getColumnIndex('id')),
        resultSet.getString(resultSet.getColumnIndex('employeeId')),
        resultSet.getString(resultSet.getColumnIndex('signInTime'))
      ))
    }
    resultSet.close()
  }
  build() {
    Column() {

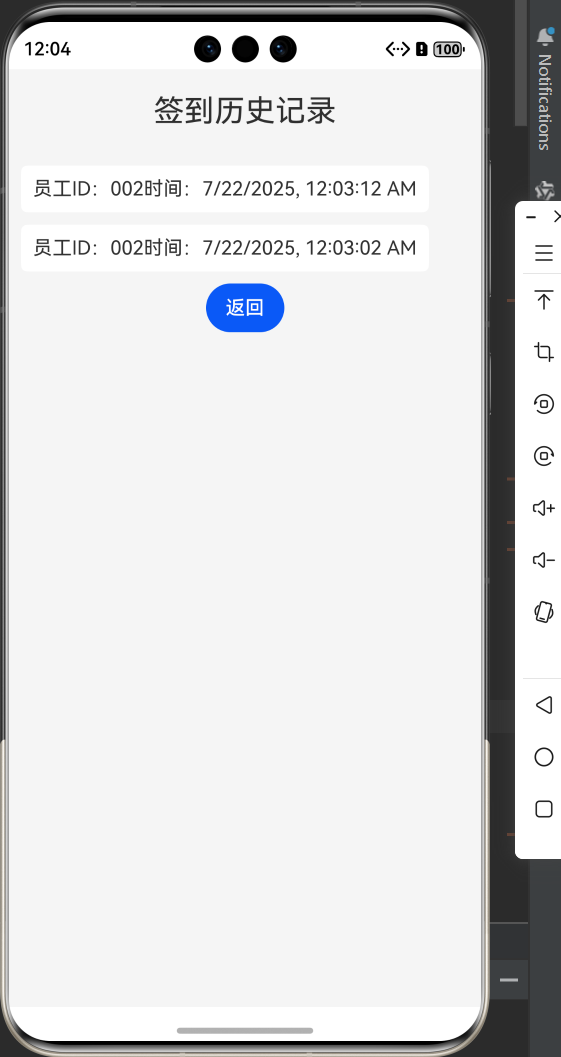

      Text('签到历史记录')
        .fontSize(25)
        .margin(20)

      // 列表展示记录
      List({ space: 10 }) {
        ForEach(this.records, (item:Employee) => {
          ListItem() {
            Row() {
              Text(`员工ID：${item.employeeId}`)
                .flexGrow(1)
              Text(`时间：${item.signInTime}`)
                .flexGrow(2)
            }
            .padding(10)
            .backgroundColor('#FFFFFF')
            .borderRadius(5)
          }
        })
      }
      .padding(10)

      Button('返回')
        .onClick(() => {
          router.pushUrl({ url: 'pages/Index' }).then(() => {
            console.info('跳转成功')
            promptAction.showToast({ message: '跳转成功' })
          }).catch(() => {
            promptAction.showToast({ message: '跳转失败' })
            console.info('跳转失败')
          });
        }
        )

    }
    .width('100%')
    .height('100%')
    .backgroundColor('#F5F5F5')
  }
}


/**
 # encoding: utf-8
 # 版权所有  2025 ©涂聚文有限公司™ ®
 # 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
 # 描述：
 # Author    : geovindu,Geovin Du 涂聚文.
 # IDE       : DevEco Studio 5.1.1  HarmonyOS
 # os        : windows 10
 # database  : mysql 9.0 sql server 2019, postgreSQL 17.0  Oracle 21c Neo4j
 # Datetime  : 2025/7/21 21:14
 # User      :  geovindu
 # Product   : DevEco Studio
 # Project   : MyApplication
 # File      : ExportPage.ets
 **/
import { DBHelper } from '../utils/DBHelper'
import { common } from '@kit.AbilityKit'
import router from '@ohos.router'
import prompt from '@ohos.prompt'
import promptAction from '@ohos.promptAction'


@Entry
@Component
struct ExportPage {
  @State exportText: string = '导出的签到数据将显示在这里...'
  private dbHelper: DBHelper = new DBHelper()
  private context = getContext(this) as common.UIAbilityContext
  async exportData() {
    await this.dbHelper.initDB(this.context)
    const resultSet = await this.dbHelper.queryAllSignIn()
    if (!resultSet) {
      this.exportText = '无数据可导出'
      return
    }
    let text = '签到记录导出：\n'
    while (resultSet.goToNextRow()) {
      text += `ID: ${resultSet.getString(resultSet.getColumnIndex('employeeId'))} 时间: ${resultSet.getString(resultSet.getColumnIndex('signInTime'))}\n`
    }
    resultSet.close()
    this.exportText = text
  }
  build() {
    Column() {
      Text('数据导出')
        .fontSize(25)
        .margin(20)

      Button('导出记录')
        .width(150)
        .height(50)
        .margin(10)
        .onClick(() => {
          this.exportData()
        })
      Button('返回')
        .onClick(() => {
          router.pushUrl({ url: 'pages/Index' }).then(() => {
            console.info('跳转成功')
            promptAction.showToast({ message: '跳转成功' })
          }).catch(() => {
            promptAction.showToast({ message: '跳转失败' })
            console.info('跳转失败')
          });
        }
        )
      TextArea({ text: this.exportText })
        .width('90%')
        .height(300)
        .margin(10)
        .border({ width: 1 })
    }
    .width('100%')
    .height('100%')
    .backgroundColor('#F5F5F5')
  }
}


/**
 # encoding: utf-8
 # 版权所有  2025 ©涂聚文有限公司™ ®
 # 许可信息查看：言語成了邀功盡責的功臣，還需要行爲每日來值班嗎
 # 描述：
 # Author    : geovindu,Geovin Du 涂聚文.
 # IDE       : DevEco Studio 5.1.1  HarmonyOS
 # os        : windows 10
 # database  : mysql 9.0 sql server 2019, postgreSQL 17.0  Oracle 21c Neo4j
 # Datetime  : 2025/7/20 10:23
 # User      :  geovindu
 # Product   : DevEco Studio
 # Project   : MyApplication
 # File      : index.ets
 **/
import router from '@ohos.router'
import prompt from '@ohos.prompt'
import promptAction from '@ohos.promptAction'

@Entry
@Component
struct Index {
  @State message: string = 'Hello World';

  build() {
    Column() {
      // 页面标题
      Text('办公签到系统')
        .fontSize(30)
        .margin(20)

      // 功能按钮区域
      Column() {
        Button('员工签到')
          .width(200)
          .height(60)
          .fontSize(18)
          .margin(10)
          .onClick(() => {
            // 后续步骤添加跳转逻辑
            router.pushUrl({ url: 'pages/SignInPage' }).then(() => {


              console.info('跳转成功')
              promptAction.showToast({ message: '跳转成功' })

            }).catch(() => {
              promptAction.showToast({ message: '跳转失败' })
              console.info('跳转失败')
            });
          })

        Button('历史记录')
          .onClick(() => {
            router.pushUrl({ url: 'pages/HistoryPage' }).then(() => {
              console.info('跳转成功')
              promptAction.showToast({ message: '跳转成功' })
            }).catch(() => {
              console.info('跳转失败')
              promptAction.showToast({ message: '跳转失败' })
            });
          })

          .width(200)
          .height(60)
          .fontSize(18)
          .margin(10)

        Button('数据导出')
          .onClick(() => {
            router.pushUrl({ url: 'pages/ExportPage' }).then(() => {
              console.info('跳转成功')
              promptAction.showToast({ message: '跳转成功' })
            }).catch(() => {
              promptAction.showToast({ message: '跳转失败' })
              console.info('跳转失败')
            });
          })
          .width(200)
          .height(60)
          .fontSize(18)
          .margin(10)
      }
      .margin(30)
    }
    .width('100%')
    .height('100%')
    .backgroundColor('#F5F5F5')


  }
}

　　

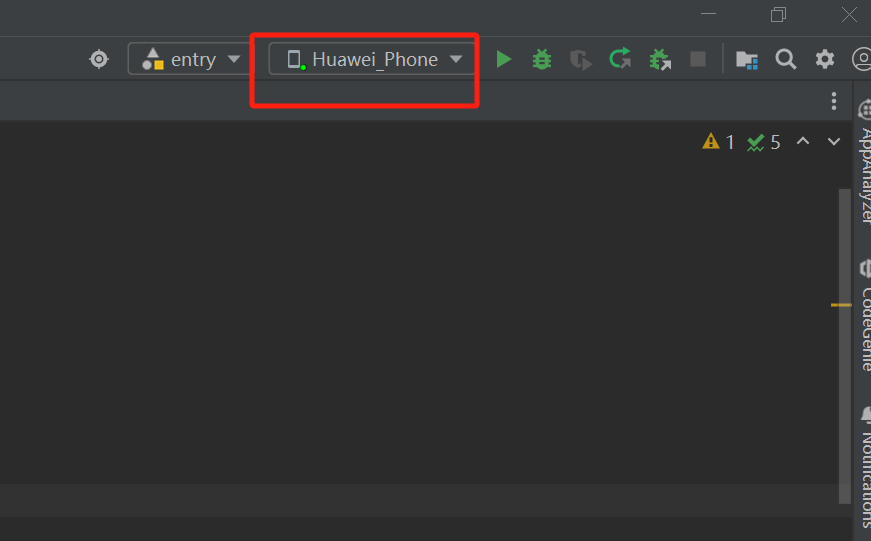

 测试需要虚拟机启动
