CSharp: Open Source QRCode Library

from: Open Source QRCode Library - CodeProject

 https://www.codeproject.com/articles/20574/open-source-qrcode-library

QRCodeEncoder.cs  edit

using System;
using System.Collections.Generic;
using System.Text;
using System.Drawing.Imaging;
using System.Drawing;
using System.IO;
using System.Resources;

using ThoughtWorks.QRCode.Properties;

using SystemUtils = ThoughtWorks.QRCode.Codec.Util.SystemUtils;
using QRCodeUtility = ThoughtWorks.QRCode.Codec.Util.QRCodeUtility;

namespace ThoughtWorks.QRCode.Codec
{

    /// <summary>
    /// from  https://www.codeproject.com/articles/20574/open-source-qrcode-library
    /// </summary>
    public class QRCodeEncoder
    {
        /// <summary>
        ///
        /// </summary>
        public enum ENCODE_MODE {ALPHA_NUMERIC,NUMERIC,BYTE};
        /// <summary>
        ///
        /// </summary>
        public enum ERROR_CORRECTION {L, M, Q, H};

        //internal static String DATA_PATH = "qrcode_data";
        //internal static String QRCODE_DATA_PATH = String.Empty;

        internal ERROR_CORRECTION qrcodeErrorCorrect;
        internal ENCODE_MODE qrcodeEncodeMode;
		internal int qrcodeVersion;

		internal int qrcodeStructureappendN;
		internal int qrcodeStructureappendM;
		internal int qrcodeStructureappendParity;

        internal Color qrCodeBackgroundColor;
        internal Color qrCodeForegroundColor;

        internal int qrCodeScale;

		internal String qrcodeStructureappendOriginaldata;

        /// <summary>
        /// Constructor
        /// </summary>
        public QRCodeEncoder()
        {
            qrcodeErrorCorrect = ERROR_CORRECTION.M;
            qrcodeEncodeMode = ENCODE_MODE.BYTE;
            qrcodeVersion = 7;

            qrcodeStructureappendN = 0;
            qrcodeStructureappendM = 0;
            qrcodeStructureappendParity = 0;
            qrcodeStructureappendOriginaldata = "";

            qrCodeScale = 4;
            qrCodeBackgroundColor = Color.White;
            qrCodeForegroundColor = Color.Black;

            //QRCODE_DATA_PATH = Environment.CurrentDirectory + @"\" + DATA_PATH;

        }

        /// <summary>
        ///
        /// </summary>
        virtual public ERROR_CORRECTION QRCodeErrorCorrect
		{
			get
			{
				return qrcodeErrorCorrect;
			}

			set
			{
				qrcodeErrorCorrect = value;
			}

		}
		/// <summary>
		///
		/// </summary>
		virtual public int QRCodeVersion
		{
			get
			{
				return qrcodeVersion;
			}

			set
			{
				if (value >= 0 && value <= 40)
				{
					qrcodeVersion = value;
				}
			}

		}
        /// <summary>
        ///
        /// </summary>
        virtual public ENCODE_MODE QRCodeEncodeMode
		{
			get
			{
				return qrcodeEncodeMode;
			}

			set
			{
				qrcodeEncodeMode = value;
			}

		}
        /// <summary>
        ///
        /// </summary>
        virtual public int QRCodeScale
        {
            get
            {
                return qrCodeScale;
            }
            set
            {
                qrCodeScale = value;
            }
        }
        /// <summary>
        ///
        /// </summary>
        virtual public Color QRCodeBackgroundColor
        {
            get
            {
                return qrCodeBackgroundColor;
            }
            set
            {
                qrCodeBackgroundColor = value;
            }
        }
        /// <summary>
        ///
        /// </summary>
        virtual public Color QRCodeForegroundColor
        {
            get
            {
                return qrCodeForegroundColor;
            }
            set
            {
                qrCodeForegroundColor = value;
            }
        }

		/// <summary>
		///
		/// </summary>
		/// <param name="m"></param>
		/// <param name="n"></param>
		/// <param name="p"></param>

		public virtual void  setStructureappend(int m, int n, int p)
		{
			if (n > 1 && n <= 16 && m > 0 && m <= 16 && p >= 0 && p <= 255)
			{
				qrcodeStructureappendM = m;
				qrcodeStructureappendN = n;
				qrcodeStructureappendParity = p;
			}
		}
	    /// <summary>
	    ///
	    /// </summary>
	    /// <param name="originaldata"></param>
	    /// <returns></returns>
		public virtual int calStructureappendParity(sbyte[] originaldata)
		{
			int originaldataLength;
			int i = 0;
			int structureappendParity = 0;

			originaldataLength = originaldata.Length;

			if (originaldataLength > 1)
			{
				structureappendParity = 0;
				while (i < originaldataLength)
				{
					structureappendParity = (structureappendParity ^ (originaldata[i] & 0xFF));
					i++;
				}
			}
			else
			{
				structureappendParity = - 1;
			}
			return structureappendParity;
		}
		/// <summary>
		///
		/// </summary>
		/// <param name="qrcodeData"></param>
		/// <returns></returns>

		public virtual bool[][] calQrcode(byte[] qrcodeData)
		{
			int dataLength;
			int dataCounter = 0;

			dataLength = qrcodeData.Length;

			int[] dataValue = new int[dataLength + 32];
			sbyte[] dataBits = new sbyte[dataLength + 32];

			if (dataLength <= 0)
			{
				bool[][] ret = new bool[][]{new bool[]{false}};
				return ret;
			}

			if (qrcodeStructureappendN > 1)
			{
				dataValue[0] = 3;
				dataBits[0] = 4;

				dataValue[1] = qrcodeStructureappendM - 1;
				dataBits[1] = 4;

				dataValue[2] = qrcodeStructureappendN - 1;
				dataBits[2] = 4;

				dataValue[3] = qrcodeStructureappendParity;
				dataBits[3] = 8;

				dataCounter = 4;
			}
			dataBits[dataCounter] = 4;

			/*  --- determine encode mode --- */

			int[] codewordNumPlus;
			int codewordNumCounterValue;

			switch (qrcodeEncodeMode)
			{
				/* ---- alphanumeric mode ---  */
                case ENCODE_MODE.ALPHA_NUMERIC:

					codewordNumPlus = new int[]{0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4};

					dataValue[dataCounter] = 2;
					dataCounter++;
					dataValue[dataCounter] = dataLength;
					dataBits[dataCounter] = 9;
					codewordNumCounterValue = dataCounter;

					dataCounter++;
					for (int i = 0; i < dataLength; i++)
					{
						char chr = (char) qrcodeData[i];
						sbyte chrValue = 0;
						if (chr >= 48 && chr < 58)
						{
							chrValue = (sbyte) (chr - 48);
						}
						else
						{
							if (chr >= 65 && chr < 91)
							{
								chrValue = (sbyte) (chr - 55);
							}
							else
							{
								if (chr == 32)
								{
									chrValue = 36;
								}
								if (chr == 36)
								{
									chrValue = 37;
								}
								if (chr == 37)
								{
									chrValue = 38;
								}
								if (chr == 42)
								{
									chrValue = 39;
								}
								if (chr == 43)
								{
									chrValue = 40;
								}
								if (chr == 45)
								{
									chrValue = 41;
								}
								if (chr == 46)
								{
									chrValue = 42;
								}
								if (chr == 47)
								{
									chrValue = 43;
								}
								if (chr == 58)
								{
									chrValue = 44;
								}
							}
						}
						if ((i % 2) == 0)
						{
							dataValue[dataCounter] = chrValue;
							dataBits[dataCounter] = 6;
						}
						else
						{
							dataValue[dataCounter] = dataValue[dataCounter] * 45 + chrValue;
							dataBits[dataCounter] = 11;
							if (i < dataLength - 1)
							{
								dataCounter++;
							}
						}
					}
					dataCounter++;
					break;

					/* ---- numeric mode ---- */

                case ENCODE_MODE.NUMERIC:

					codewordNumPlus = new int[]{0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4};

					dataValue[dataCounter] = 1;
					dataCounter++;
					dataValue[dataCounter] = dataLength;

					dataBits[dataCounter] = 10; /* #version 1-9*/
					codewordNumCounterValue = dataCounter;

					dataCounter++;
					for (int i = 0; i < dataLength; i++)
					{

						if ((i % 3) == 0)
						{
							dataValue[dataCounter] = (int) (qrcodeData[i] - 0x30);
							dataBits[dataCounter] = 4;
						}
						else
						{

							dataValue[dataCounter] = dataValue[dataCounter] * 10 + (int) (qrcodeData[i] - 0x30);

							if ((i % 3) == 1)
							{
								dataBits[dataCounter] = 7;
							}
							else
							{
								dataBits[dataCounter] = 10;
								if (i < dataLength - 1)
								{
									dataCounter++;
								}
							}
						}
					}
					dataCounter++;
					break;

					/* ---- 8bit byte ---- */

				default:

					codewordNumPlus = new int[]{0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8, 8};
					dataValue[dataCounter] = 4;
					dataCounter++;
					dataValue[dataCounter] = dataLength;
					dataBits[dataCounter] = 8; /* #version 1-9 */
					codewordNumCounterValue = dataCounter;

					dataCounter++;

					for (int i = 0; i < dataLength; i++)
					{
						dataValue[i + dataCounter] = (qrcodeData[i] & 0xFF);
						dataBits[i + dataCounter] = 8;
					}
					dataCounter += dataLength;

					break;

			}

			int totalDataBits = 0;
			for (int i = 0; i < dataCounter; i++)
			{
				totalDataBits += dataBits[i];
			}

			int ec;
			switch (qrcodeErrorCorrect)
			{

				case ERROR_CORRECTION.L:
					ec = 1;
					break;

                case ERROR_CORRECTION.Q:
					ec = 3;
					break;

                case ERROR_CORRECTION.H:
					ec = 2;
					break;

				default:
					ec = 0;
					break;

			}


			int[][] maxDataBitsArray = new int[][]{new int[]{0, 128, 224, 352, 512, 688, 864, 992, 1232, 1456, 1728, 2032, 2320, 2672, 2920, 3320, 3624, 4056, 4504, 5016, 5352, 5712, 6256, 6880, 7312, 8000, 8496, 9024, 9544, 10136, 10984, 11640, 12328, 13048, 13800, 14496, 15312, 15936, 16816, 17728, 18672}, new int[]{0, 152, 272, 440, 640, 864, 1088, 1248, 1552, 1856, 2192, 2592, 2960, 3424, 3688, 4184, 4712, 5176, 5768, 6360, 6888, 7456, 8048, 8752, 9392, 10208, 10960, 11744, 12248, 13048, 13880, 14744, 15640, 16568, 17528, 18448, 19472, 20528, 21616, 22496, 23648}, new int[]{0, 72, 128, 208, 288, 368, 480, 528, 688, 800, 976, 1120, 1264, 1440, 1576, 1784, 2024, 2264, 2504, 2728, 3080, 3248, 3536, 3712, 4112, 4304, 4768, 5024, 5288, 5608, 5960, 6344, 6760, 7208, 7688, 7888, 8432, 8768, 9136, 9776, 10208}, new int[]{0, 104, 176, 272, 384, 496, 608, 704, 880, 1056, 1232, 1440, 1648, 1952, 2088, 2360, 2600, 2936, 3176, 3560, 3880, 4096, 4544, 4912, 5312, 5744, 6032, 6464, 6968, 7288, 7880, 8264, 8920, 9368, 9848, 10288, 10832, 11408, 12016, 12656, 13328}};

			int maxDataBits = 0;

			if (qrcodeVersion == 0)
			{
				/* auto version select */

				qrcodeVersion = 1;
				for (int i = 1; i <= 40; i++)
				{
					if ((maxDataBitsArray[ec][i]) >= totalDataBits + codewordNumPlus[qrcodeVersion])
					{
						maxDataBits = maxDataBitsArray[ec][i];
						break;
					}
					qrcodeVersion++;
				}
			}
			else
			{
				maxDataBits = maxDataBitsArray[ec][qrcodeVersion];
			}
			totalDataBits += codewordNumPlus[qrcodeVersion];
			dataBits[codewordNumCounterValue] = (sbyte) (dataBits[codewordNumCounterValue] + codewordNumPlus[qrcodeVersion]);

			int[] maxCodewordsArray = new int[]{0, 26, 44, 70, 100, 134, 172, 196, 242, 292, 346, 404, 466, 532, 581, 655, 733, 815, 901, 991, 1085, 1156, 1258, 1364, 1474, 1588, 1706, 1828, 1921, 2051, 2185, 2323, 2465, 2611, 2761, 2876, 3034, 3196, 3362, 3532, 3706};

			int maxCodewords = maxCodewordsArray[qrcodeVersion];
			int maxModules1side = 17 + (qrcodeVersion << 2);

			int[] matrixRemainBit = new int[]{0, 0, 7, 7, 7, 7, 7, 0, 0, 0, 0, 0, 0, 0, 3, 3, 3, 3, 3, 3, 3, 4, 4, 4, 4, 4, 4, 4, 3, 3, 3, 3, 3, 3, 3, 0, 0, 0, 0, 0, 0};

			/* ---- read version ECC data file */

			int byte_num = matrixRemainBit[qrcodeVersion] + (maxCodewords << 3);

			sbyte[] matrixX = new sbyte[byte_num];
			sbyte[] matrixY = new sbyte[byte_num];
			sbyte[] maskArray = new sbyte[byte_num];
			sbyte[] formatInformationX2 = new sbyte[15];
			sbyte[] formatInformationY2 = new sbyte[15];
			sbyte[] rsEccCodewords = new sbyte[1];
			sbyte[] rsBlockOrderTemp = new sbyte[128];

			try
			{
				//String filename = QRCODE_DATA_PATH + @"\qrv" + System.Convert.ToString(qrcodeVersion) + "_" + System.Convert.ToString(ec) + ".dat";
	            //StreamReader reader = new StreamReader(filename);
                //BufferedStream bis = new BufferedStream(reader.BaseStream);
                               // ThoughtWorks.QRCode.Properties.Resources.
                String fileName = "qrv" + Convert.ToString(qrcodeVersion) + "_" + Convert.ToString(ec);

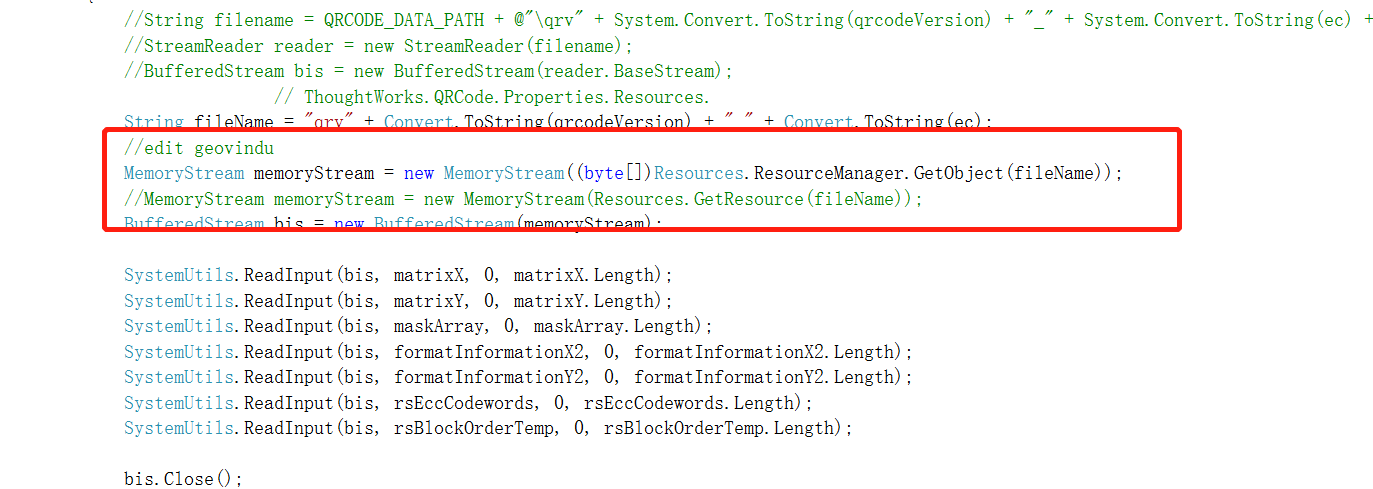

                //edit geovindu
                MemoryStream memoryStream = new MemoryStream((byte[])Resources.ResourceManager.GetObject(fileName));
                //MemoryStream memoryStream = new MemoryStream(Resources.GetResource(fileName));
                BufferedStream bis = new BufferedStream(memoryStream);

                SystemUtils.ReadInput(bis, matrixX, 0, matrixX.Length);
                SystemUtils.ReadInput(bis, matrixY, 0, matrixY.Length);
                SystemUtils.ReadInput(bis, maskArray, 0, maskArray.Length);
                SystemUtils.ReadInput(bis, formatInformationX2, 0, formatInformationX2.Length);
                SystemUtils.ReadInput(bis, formatInformationY2, 0, formatInformationY2.Length);
                SystemUtils.ReadInput(bis, rsEccCodewords, 0, rsEccCodewords.Length);
                SystemUtils.ReadInput(bis, rsBlockOrderTemp, 0, rsBlockOrderTemp.Length);

                bis.Close();
                memoryStream.Close();

                // reader.Close();
				/*
                fis.Close();
                */
			}
			catch (Exception e)
			{
				SystemUtils.WriteStackTrace(e, Console.Error);
			}

			sbyte rsBlockOrderLength = 1;
			for (sbyte i = 1; i < 128; i++)
			{
				if (rsBlockOrderTemp[i] == 0)
				{
					rsBlockOrderLength = i;
					break;
				}
			}
			sbyte[] rsBlockOrder = new sbyte[rsBlockOrderLength];
			Array.Copy(rsBlockOrderTemp, 0, rsBlockOrder, 0, (byte) rsBlockOrderLength);


			sbyte[] formatInformationX1 = new sbyte[]{0, 1, 2, 3, 4, 5, 7, 8, 8, 8, 8, 8, 8, 8, 8};
			sbyte[] formatInformationY1 = new sbyte[]{8, 8, 8, 8, 8, 8, 8, 8, 7, 5, 4, 3, 2, 1, 0};

			int maxDataCodewords = maxDataBits >> 3;

			/* -- read frame data  -- */

			int modules1Side = 4 * qrcodeVersion + 17;
			int matrixTotalBits = modules1Side * modules1Side;
			sbyte[] frameData = new sbyte[matrixTotalBits + modules1Side];

			try
			{
				//String filename = QRCODE_DATA_PATH + "/qrvfr" + System.Convert.ToString(qrcodeVersion) + ".dat";
                //StreamReader reader = new StreamReader(filename);

                String fileName = "qrvfr" + Convert.ToString(qrcodeVersion);
                MemoryStream memoryStream = new MemoryStream((byte[])Resources.ResourceManager.GetObject(fileName));
               // MemoryStream memoryStream = new MemoryStream(Resources.GetResource(fileName));

				BufferedStream bis = new BufferedStream(memoryStream);
				SystemUtils.ReadInput(bis, frameData, 0, frameData.Length);
				bis.Close();
                memoryStream.Close();
                //reader.Close();
                //fis.Close();
			}
			catch (Exception e)
			{
				SystemUtils.WriteStackTrace(e, Console.Error);
			}

			/*  --- set terminator */

			if (totalDataBits <= maxDataBits - 4)
			{
				dataValue[dataCounter] = 0;
				dataBits[dataCounter] = 4;
			}
			else
			{
				if (totalDataBits < maxDataBits)
				{
					dataValue[dataCounter] = 0;
					dataBits[dataCounter] = (sbyte) (maxDataBits - totalDataBits);
				}
				else
				{
					if (totalDataBits > maxDataBits)
					{
						System.Console.Out.WriteLine("overflow");
					}
				}
			}
			sbyte[] dataCodewords = divideDataBy8Bits(dataValue, dataBits, maxDataCodewords);
			sbyte[] codewords = calculateRSECC(dataCodewords, rsEccCodewords[0], rsBlockOrder, maxDataCodewords, maxCodewords);

			/* ---- flash matrix */

			sbyte[][] matrixContent = new sbyte[modules1Side][];
			for (int i2 = 0; i2 < modules1Side; i2++)
			{
				matrixContent[i2] = new sbyte[modules1Side];
			}

			for (int i = 0; i < modules1Side; i++)
			{
				for (int j = 0; j < modules1Side; j++)
				{
					matrixContent[j][i] = 0;
				}
			}

			/* --- attach data */
			for (int i = 0; i < maxCodewords; i++)
			{

				sbyte codeword_i = codewords[i];
				for (int j = 7; j >= 0; j--)
				{

					int codewordBitsNumber = (i * 8) + j;

					matrixContent[matrixX[codewordBitsNumber] & 0xFF][matrixY[codewordBitsNumber] & 0xFF] = (sbyte) ((255 * (codeword_i & 1)) ^ maskArray[codewordBitsNumber]);

					codeword_i = (sbyte) (SystemUtils.URShift((codeword_i & 0xFF), 1));
				}
			}

			for (int matrixRemain = matrixRemainBit[qrcodeVersion]; matrixRemain > 0; matrixRemain--)
			{
				int remainBitTemp = matrixRemain + (maxCodewords * 8) - 1;
				matrixContent[matrixX[remainBitTemp] & 0xFF][matrixY[remainBitTemp] & 0xFF] = (sbyte) (255 ^ maskArray[remainBitTemp]);
			}

			/* --- mask select --- */
			sbyte maskNumber = selectMask(matrixContent, matrixRemainBit[qrcodeVersion] + maxCodewords * 8);
			sbyte maskContent = (sbyte) (1 << maskNumber);

			/* --- format information --- */

			sbyte formatInformationValue = (sbyte) (ec << 3 | maskNumber);

			String[] formatInformationArray = new String[]{"101010000010010", "101000100100101", "101111001111100", "101101101001011", "100010111111001", "100000011001110", "100111110010111", "100101010100000", "111011111000100", "111001011110011", "111110110101010", "111100010011101", "110011000101111", "110001100011000", "110110001000001", "110100101110110", "001011010001001", "001001110111110", "001110011100111", "001100111010000", "000011101100010", "000001001010101", "000110100001100", "000100000111011", "011010101011111", "011000001101000", "011111100110001", "011101000000110", "010010010110100", "010000110000011", "010111011011010", "010101111101101"};

			for (int i = 0; i < 15; i++)
			{

				sbyte content = (sbyte) System.SByte.Parse(formatInformationArray[formatInformationValue].Substring(i, (i + 1) - (i)));

				matrixContent[formatInformationX1[i] & 0xFF][formatInformationY1[i] & 0xFF] = (sbyte) (content * 255);
				matrixContent[formatInformationX2[i] & 0xFF][formatInformationY2[i] & 0xFF] = (sbyte) (content * 255);
			}

			bool[][] out_Renamed = new bool[modules1Side][];
			for (int i3 = 0; i3 < modules1Side; i3++)
			{
				out_Renamed[i3] = new bool[modules1Side];
			}

			int c = 0;
			for (int i = 0; i < modules1Side; i++)
			{
				for (int j = 0; j < modules1Side; j++)
				{

					if ((matrixContent[j][i] & maskContent) != 0 || frameData[c] == (char) 49)
					{
						out_Renamed[j][i] = true;
					}
					else
					{
						out_Renamed[j][i] = false;
					}
					c++;
				}
				c++;
			}

			return out_Renamed;
		}
		/// <summary>
		///
		/// </summary>
		/// <param name="data"></param>
		/// <param name="bits"></param>
		/// <param name="maxDataCodewords"></param>
		/// <returns></returns>
		private static sbyte[] divideDataBy8Bits(int[] data, sbyte[] bits, int maxDataCodewords)
		{
			/* divide Data By 8bit and add padding char */
			int l1 = bits.Length;
			int l2;
			int codewordsCounter = 0;
			int remainingBits = 8;
			int max = 0;
			int buffer;
			int bufferBits;
			bool flag;

			if (l1 != data.Length)
			{
			}
			for (int i = 0; i < l1; i++)
			{
				max += bits[i];
			}
			l2 = (max - 1) / 8 + 1;
			sbyte[] codewords = new sbyte[maxDataCodewords];
			for (int i = 0; i < l2; i++)
			{
				codewords[i] = 0;
			}
			for (int i = 0; i < l1; i++)
			{
				buffer = data[i];
				bufferBits = bits[i];
				flag = true;

				if (bufferBits == 0)
				{
					break;
				}
				while (flag)
				{
					if (remainingBits > bufferBits)
					{
						codewords[codewordsCounter] = (sbyte) ((codewords[codewordsCounter] << bufferBits) | buffer);
						remainingBits -= bufferBits;
						flag = false;
					}
					else
					{
						bufferBits -= remainingBits;
						codewords[codewordsCounter] = (sbyte) ((codewords[codewordsCounter] << remainingBits) | (buffer >> bufferBits));

						if (bufferBits == 0)
						{
							flag = false;
						}
						else
						{
							buffer = (buffer & ((1 << bufferBits) - 1));
							flag = true;
						}
						codewordsCounter++;
						remainingBits = 8;
					}
				}
			}
			if (remainingBits != 8)
			{
				codewords[codewordsCounter] = (sbyte) (codewords[codewordsCounter] << remainingBits);
			}
			else
			{
				codewordsCounter--;
			}
			if (codewordsCounter < maxDataCodewords - 1)
			{
				flag = true;
				while (codewordsCounter < maxDataCodewords - 1)
				{
					codewordsCounter++;
					if (flag)
					{
						codewords[codewordsCounter] = - 20;
					}
					else
					{
						codewords[codewordsCounter] = 17;
					}
					flag = !(flag);
				}
			}
			return codewords;
		}

		/// <summary>
		///
		/// </summary>
		/// <param name="codewords"></param>
		/// <param name="rsEccCodewords"></param>
		/// <param name="rsBlockOrder"></param>
		/// <param name="maxDataCodewords"></param>
		/// <param name="maxCodewords"></param>
		/// <returns></returns>
		private static sbyte[] calculateRSECC(sbyte[] codewords, sbyte rsEccCodewords, sbyte[] rsBlockOrder, int maxDataCodewords, int maxCodewords)
		{

			sbyte[][] rsCalTableArray = new sbyte[256][];
			for (int i = 0; i < 256; i++)
			{
				rsCalTableArray[i] = new sbyte[rsEccCodewords];
			}
			try
			{
			    //String filename = QRCODE_DATA_PATH + @"\rsc" + rsEccCodewords.ToString() + ".dat";
			    //StreamReader reader = new StreamReader(filename);
                String fileName = "rsc" + rsEccCodewords.ToString();
                // geovindu edit
               // MemoryStream memoryStream = new MemoryStream(Resources.GetResource(fileName));
                MemoryStream memoryStream = new MemoryStream((byte[])Resources.ResourceManager.GetObject(fileName));
                BufferedStream bis = new BufferedStream(memoryStream);
				for (int i = 0; i < 256; i++)
				{
					SystemUtils.ReadInput(bis, rsCalTableArray[i], 0, rsCalTableArray[i].Length);
				}
				bis.Close();
				//reader.Close();
                memoryStream.Close();
			}
			catch (Exception e)
			{
				SystemUtils.WriteStackTrace(e, Console.Error);
			}


			/* ---- RS-ECC prepare */

			int i2 = 0;
			int j = 0;
			int rsBlockNumber = 0;

			sbyte[][] rsTemp = new sbyte[rsBlockOrder.Length][];
            /*
            for (int i = 0; i < rsBlockOrder.Length; i++)
            {
                rsTemp[i] = new sbyte[rsBlockOrder.Length];
            }
            */
			sbyte[] res = new sbyte[maxCodewords];
			Array.Copy(codewords, 0, res, 0, codewords.Length);

			i2 = 0;
			while (i2 < rsBlockOrder.Length)
			{
				rsTemp[i2] = new sbyte[(rsBlockOrder[i2] & 0xFF) - rsEccCodewords];
				i2++;
			}
			i2 = 0;
			while (i2 < maxDataCodewords)
			{
				rsTemp[rsBlockNumber][j] = codewords[i2];
				j++;
				if (j >= (rsBlockOrder[rsBlockNumber] & 0xFF) - rsEccCodewords)
				{
					j = 0;
					rsBlockNumber++;
				}
				i2++;
			}

			/* ---  RS-ECC main --- */

			rsBlockNumber = 0;
			while (rsBlockNumber < rsBlockOrder.Length)
			{
				sbyte[] rsTempData;
				rsTempData = new sbyte[rsTemp[rsBlockNumber].Length];
				rsTemp[rsBlockNumber].CopyTo(rsTempData, 0);

				int rsCodewords = (rsBlockOrder[rsBlockNumber] & 0xFF);
				int rsDataCodewords = rsCodewords - rsEccCodewords;

				j = rsDataCodewords;
				while (j > 0)
				{
					sbyte first = rsTempData[0];
					if (first != 0)
					{
						sbyte[] leftChr = new sbyte[rsTempData.Length - 1];
						Array.Copy(rsTempData, 1, leftChr, 0, rsTempData.Length - 1);
						sbyte[] cal = rsCalTableArray[(first & 0xFF)];
						rsTempData = calculateByteArrayBits(leftChr, cal, "xor");
					}
					else
					{
						if (rsEccCodewords < rsTempData.Length)
						{
							sbyte[] rsTempNew = new sbyte[rsTempData.Length - 1];
							Array.Copy(rsTempData, 1, rsTempNew, 0, rsTempData.Length - 1);
							rsTempData = new sbyte[rsTempNew.Length];
							rsTempNew.CopyTo(rsTempData, 0);
						}
						else
						{
							sbyte[] rsTempNew = new sbyte[rsEccCodewords];
							Array.Copy(rsTempData, 1, rsTempNew, 0, rsTempData.Length - 1);
							rsTempNew[rsEccCodewords - 1] = 0;
							rsTempData = new sbyte[rsTempNew.Length];
							rsTempNew.CopyTo(rsTempData, 0);
						}
					}
					j--;
				}

				Array.Copy(rsTempData, 0, res, codewords.Length + rsBlockNumber * rsEccCodewords, (byte) rsEccCodewords);
				rsBlockNumber++;
			}
			return res;
		}
		/// <summary>
		///
		/// </summary>
		/// <param name="xa"></param>
		/// <param name="xb"></param>
		/// <param name="ind"></param>
		/// <returns></returns>
		private static sbyte[] calculateByteArrayBits(sbyte[] xa, sbyte[] xb, String ind)
		{
			int ll;
			int ls;
			sbyte[] res;
			sbyte[] xl;
			sbyte[] xs;

			if (xa.Length > xb.Length)
			{
				xl = new sbyte[xa.Length];
				xa.CopyTo(xl, 0);
				xs = new sbyte[xb.Length];
				xb.CopyTo(xs, 0);
			}
			else
			{
				xl = new sbyte[xb.Length];
				xb.CopyTo(xl, 0);
				xs = new sbyte[xa.Length];
				xa.CopyTo(xs, 0);
			}
			ll = xl.Length;
			ls = xs.Length;
			res = new sbyte[ll];

			for (int i = 0; i < ll; i++)
			{
				if (i < ls)
				{
					if ((System.Object) ind == (System.Object) "xor")
					{
						res[i] = (sbyte) (xl[i] ^ xs[i]);
					}
					else
					{
						res[i] = (sbyte) (xl[i] | xs[i]);
					}
				}
				else
				{
					res[i] = xl[i];
				}
			}
			return res;
		}
		/// <summary>
		///
		/// </summary>
		/// <param name="matrixContent"></param>
		/// <param name="maxCodewordsBitWithRemain"></param>
		/// <returns></returns>
		private static sbyte selectMask(sbyte[][] matrixContent, int maxCodewordsBitWithRemain)
		{
			int l = matrixContent.Length;
			int[] d1 = new int[]{0, 0, 0, 0, 0, 0, 0, 0};
			int[] d2 = new int[]{0, 0, 0, 0, 0, 0, 0, 0};
			int[] d3 = new int[]{0, 0, 0, 0, 0, 0, 0, 0};
			int[] d4 = new int[]{0, 0, 0, 0, 0, 0, 0, 0};

			int d2And = 0;
			int d2Or = 0;
			int[] d4Counter = new int[]{0, 0, 0, 0, 0, 0, 0, 0};

			for (int y = 0; y < l; y++)
			{
				int[] xData = new int[]{0, 0, 0, 0, 0, 0, 0, 0};
				int[] yData = new int[]{0, 0, 0, 0, 0, 0, 0, 0};
				bool[] xD1Flag = new bool[]{false, false, false, false, false, false, false, false};
				bool[] yD1Flag = new bool[]{false, false, false, false, false, false, false, false};

				for (int x = 0; x < l; x++)
				{

					if (x > 0 && y > 0)
					{
						d2And = matrixContent[x][y] & matrixContent[x - 1][y] & matrixContent[x][y - 1] & matrixContent[x - 1][y - 1] & 0xFF;

						d2Or = (matrixContent[x][y] & 0xFF) | (matrixContent[x - 1][y] & 0xFF) | (matrixContent[x][y - 1] & 0xFF) | (matrixContent[x - 1][y - 1] & 0xFF);
					}

					for (int maskNumber = 0; maskNumber < 8; maskNumber++)
					{

						xData[maskNumber] = ((xData[maskNumber] & 63) << 1) | ((SystemUtils.URShift((matrixContent[x][y] & 0xFF), maskNumber)) & 1);


						yData[maskNumber] = ((yData[maskNumber] & 63) << 1) | ((SystemUtils.URShift((matrixContent[y][x] & 0xFF), maskNumber)) & 1);


						if ((matrixContent[x][y] & (1 << maskNumber)) != 0)
						{
							d4Counter[maskNumber]++;
						}


						if (xData[maskNumber] == 93)
						{
							d3[maskNumber] += 40;
						}

						if (yData[maskNumber] == 93)
						{
							d3[maskNumber] += 40;
						}

						if (x > 0 && y > 0)
						{

							if (((d2And & 1) != 0) || ((d2Or & 1) == 0))
							{
								d2[maskNumber] += 3;
							}

							d2And = d2And >> 1;
							d2Or = d2Or >> 1;
						}

						if (((xData[maskNumber] & 0x1F) == 0) || ((xData[maskNumber] & 0x1F) == 0x1F))
						{
							if (x > 3)
							{
								if (xD1Flag[maskNumber])
								{
									d1[maskNumber]++;
								}
								else
								{
									d1[maskNumber] += 3;
									xD1Flag[maskNumber] = true;
								}
							}
						}
						else
						{
							xD1Flag[maskNumber] = false;
						}
						if (((yData[maskNumber] & 0x1F) == 0) || ((yData[maskNumber] & 0x1F) == 0x1F))
						{
							if (x > 3)
							{
								if (yD1Flag[maskNumber])
								{
									d1[maskNumber]++;
								}
								else
								{
									d1[maskNumber] += 3;
									yD1Flag[maskNumber] = true;
								}
							}
						}
						else
						{
							yD1Flag[maskNumber] = false;
						}
					}
				}
			}
			int minValue = 0;
			sbyte res = 0;
			int[] d4Value = new int[]{90, 80, 70, 60, 50, 40, 30, 20, 10, 0, 0, 10, 20, 30, 40, 50, 60, 70, 80, 90, 90};
			for (int maskNumber = 0; maskNumber < 8; maskNumber++)
			{

				d4[maskNumber] = d4Value[(int) ((20 * d4Counter[maskNumber]) / maxCodewordsBitWithRemain)];

				int demerit = d1[maskNumber] + d2[maskNumber] + d3[maskNumber] + d4[maskNumber];

				if (demerit < minValue || maskNumber == 0)
				{
					res = (sbyte) maskNumber;
					minValue = demerit;
				}
			}
			return res;
		}


        /// <summary>
        /// Encode the content using the encoding scheme given
        /// </summary>
        /// <param name="content"></param>
        /// <param name="encoding"></param>
        /// <returns></returns>

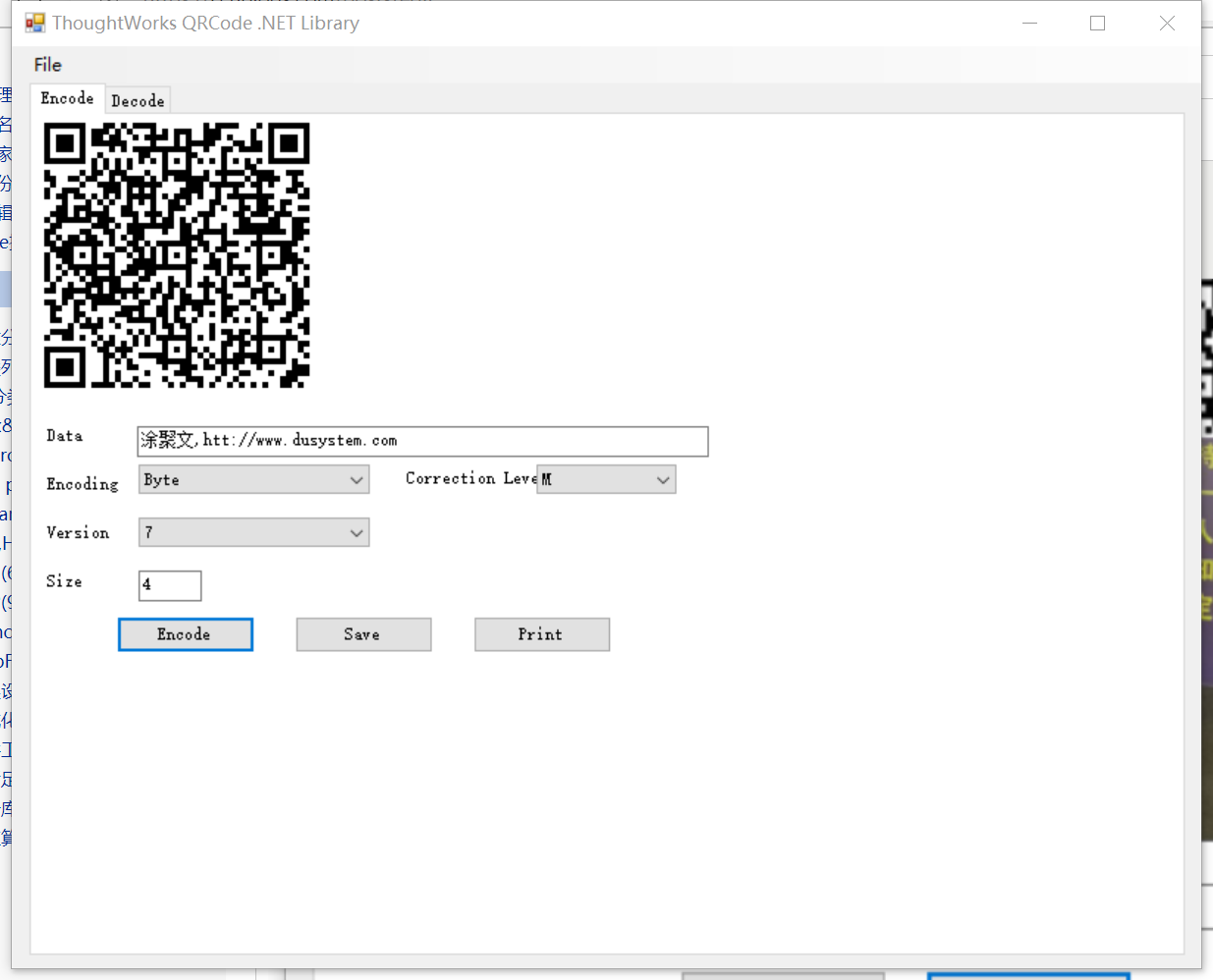

        public virtual Bitmap Encode(String content, Encoding encoding)
        {
            bool[][] matrix = calQrcode(encoding.GetBytes(content));
            SolidBrush brush = new SolidBrush(qrCodeBackgroundColor);
            Bitmap image = new Bitmap( (matrix.Length * qrCodeScale) + 1, (matrix.Length * qrCodeScale) + 1);
            Graphics g = Graphics.FromImage(image);
            g.FillRectangle(brush, new Rectangle(0, 0, image.Width, image.Height));
            brush.Color = qrCodeForegroundColor ;
            for (int i = 0; i < matrix.Length; i++)
            {
                for (int j = 0; j < matrix.Length; j++)
                {
                    if (matrix[j][i])
                    {
                        g.FillRectangle(brush, j * qrCodeScale, i * qrCodeScale, qrCodeScale, qrCodeScale);
                    }
                }
            }
            return image;
        }

        /// <summary>
        /// Encode the content using the encoding scheme given
        /// </summary>
        /// <param name="content"></param>
        /// <param name="encoding"></param>
        /// <returns></returns>
        public virtual Bitmap Encode(String content)
        {
            if (QRCodeUtility.IsUniCode(content))
            {
                return Encode(content, Encoding.Unicode);
            }
            else
            {
                return Encode(content, Encoding.ASCII);
            }
        }


    }
}
