    /// <summary>
    ///empty base class containing State methods to override
    /// State Patterns状态模式
    ///20220918
    /// geovindu,Geovin Du,涂聚文
    /// </summary>
    public class State
    {
        //keeps state of each button
        protected Mediator med;
        public State(Mediator md)
        {
            med = md;	//save reference to mediator
        }
        public virtual void mouseDown(int x, int y) { }
        public virtual void mouseUp(int x, int y) { }
        public virtual void mouseDrag(int x, int y) { }
        public virtual void selectOne(Drawing d) { }
    }

　　

   /// <summary>
    /// Summary description for RectState.
    /// State Patterns状态模式
    ///20220918
    /// geovindu,Geovin Du,涂聚文
    /// </summary>
    public class RectState : State
    {
        public RectState(Mediator md) : base(md) { }
        //-----
        public override void mouseDown(int x, int y)
        {
            VisRectangle vr = new VisRectangle(x, y);
            med.addDrawing(vr);
        }
    }

　　

   /// <summary>
    /// Summary description for StateManager.
    /// State Patterns状态模式
    ///20220918
    /// geovindu,Geovin Du,涂聚文
    /// </summary>
    public class StateManager
    {
        private State currentState;
        private RectState rState;
        private ArrowState aState;
        private CircleState cState;
        private FillState fState;
        /// <summary>
        ///
        /// </summary>
        /// <param name="med"></param>
        public StateManager(Mediator med)
        {
            //create an instance of each state
            rState = new RectState(med);
            cState = new CircleState(med);
            aState = new ArrowState(med);
            fState = new FillState(med);
            //and initialize them
            //set default state
            currentState = aState;
        }

        /// <summary>
        /// These methods are called when the toolbuttons are clicked
        /// </summary>
        public void setRect()
        {
            currentState = rState;
        }
        /// <summary>
        ///
        /// </summary>
        public void setCircle()
        {
            currentState = cState;
        }
        /// <summary>
        ///
        /// </summary>
        public void setFill()
        {
            currentState = fState;
        }
        /// <summary>
        ///
        /// </summary>
        public void setArrow()
        {
            currentState = aState;
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="x"></param>
        /// <param name="y"></param>
        public void mouseDown(int x, int y)
        {
            currentState.mouseDown(x, y);
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="x"></param>
        /// <param name="y"></param>
        public void mouseUp(int x, int y)
        {
            currentState.mouseUp(x, y);
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="x"></param>
        /// <param name="y"></param>
        public void mouseDrag(int x, int y)
        {
            currentState.mouseDrag(x, y);
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="d"></param>
        public void selectOne(Drawing d)
        {
            currentState.selectOne(d);
        }

    }

　　

    /// <summary>
    /// interface defining Drawing object
    /// State Patterns状态模式
    ///20220918
    /// geovindu,Geovin Du,涂聚文
    /// </summary>
    public interface Drawing
    {
        void setSelected(bool b);
        void draw(Graphics g);
        void move(int xpt, int ypt);
        bool contains(int x, int y);
        void setFill(bool b);
        Rectangle getRects();
        void setRects(Rectangle rect);
    }

　　

  /// <summary>
    /// Summary description for Rectangle.
    /// State Patterns状态模式
    ///20220918
    /// geovindu,Geovin Du,涂聚文
    /// </summary>
    public class Rectangle
    {

        /// <summary>
        ///
        /// </summary>
        private int xp, yp, wr, hr;
        /// <summary>
        ///
        /// </summary>
        /// <param name="x"></param>
        /// <param name="y"></param>
        /// <param name="w"></param>
        /// <param name="h"></param>
        public Rectangle(int x, int y, int w, int h)
        {
            xp = x;
            yp = y;
            wr = w;
            hr = h;
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="x"></param>
        /// <param name="y"></param>
        /// <param name="w"></param>
        /// <param name="h"></param>
        public Rectangle(float x, float y, float w, float h)
        {
            xp = (int)x;
            yp = (int)y;
            wr = (int)w;
            hr = (int)h;
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="x"></param>
        /// <param name="y"></param>
        /// <returns></returns>
        public bool contains(int x, int y)
        {
            bool cn = xp <= x && x <= xp + wr;
            cn = cn && yp <= y && y <= yp + hr;
            return cn;
        }
        /// <summary>
        ///
        /// </summary>
        public int x
        {
            get
            {
                return xp;
            }
            set
            {
                xp = value;
            }
        }
        /// <summary>
        ///
        /// </summary>
        public int y
        {
            get
            {
                return yp;
            }
            set
            {
                yp = value;
            }
        }
        /// <summary>
        ///
        /// </summary>
        public int w
        {
            get
            {
                return wr;
            }
            set
            {
                wr = value;
            }
        }
        /// <summary>
        ///
        /// </summary>
        public int h
        {
            get
            {
                return hr;
            }
            set
            {
                hr = value;
            }
        }
    }

　　

 /// <summary>
    /// Summary description for VisCircle.
    /// State Patterns状态模式
    ///20220918
    /// geovindu,Geovin Du,涂聚文
    /// </summary>
    public class VisCircle : VisRectangle
    {
        private int r;
        /// <summary>
        ///
        /// </summary>
        /// <param name="x"></param>
        /// <param name="y"></param>
        public VisCircle(int x, int y)
            : base(x, y)
        {
            r = 15; w = 30; h = 30;
            saveAsRect();
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="g"></param>
        public override void draw(Graphics g)
        {
            if (filled)
            {
                g.FillEllipse(rBrush, x, y, w, h);
            }
            g.DrawEllipse(bPen, x, y, w, h);
            if (selected)
            {
                drawHandles(g);
            }
        }
    }

　　

    /// <summary>
    /// Summary description for Memento.
    /// State Patterns状态模式
    ///20220918
    /// geovindu,Geovin Du,涂聚文
    /// </summary>
    public interface Memento
    {
        void restore();
    }

　　

   /// <summary>
    /// Summary description for Mediator.\
    /// State Patterns状态模式
    ///20220918
    /// geovindu,Geovin Du,涂聚文
    /// </summary>
    public class Mediator
    {
        private bool startRect;
        private int selectedIndex;
        private RectButton rectb;
        private bool dSelected;
        private ArrayList drawings;
        private ArrayList undoList;
        private RectButton rButton;
        private FillButton filButton;
        private CircleButton circButton;
        private PickButton arrowButton;
        private PictureBox canvas;
        private int selectedDrawing;
        private StateManager stMgr;
        /// <summary>
        ///
        /// </summary>
        /// <param name="pic"></param>
        public Mediator(PictureBox pic)
        {
            startRect = false;
            dSelected = false;
            drawings = new ArrayList();
            undoList = new ArrayList();
            stMgr = new StateManager(this);
            canvas = pic;
            selectedDrawing = -1;
        }
        /// <summary>
        ///
        /// </summary>
        public void startRectangle()
        {
            stMgr.setRect();
            arrowButton.setSelected(false);
            circButton.setSelected(false);
            filButton.setSelected(false);
        }
        /// <summary>
        ///
        /// </summary>
        public void startCircle()
        {
            stMgr.setCircle();
            rectb.setSelected(false);
            arrowButton.setSelected(false);
            filButton.setSelected(false);
        }
        /// <summary>
        ///
        /// </summary>
        public void startFill()
        {
            stMgr.setFill();
            rectb.setSelected(false);
            circButton.setSelected(false);
            arrowButton.setSelected(false);
            if (selectedDrawing >= 0)
            {
                stMgr.selectOne(getDrawing(selectedDrawing));
                FillMemento m = new FillMemento(selectedDrawing, this);
                undoList.Add(m);
            }
            repaint();
        }
        /// <summary>
        ///
        /// </summary>
        public void startArrow()
        {
            stMgr.setArrow();
            rectb.setSelected(false);
            circButton.setSelected(false);
            filButton.setSelected(false);
        }
        /// <summary>
        ///
        /// </summary>
        /// <returns></returns>
        public Drawing getSelected()
        {
            return (Drawing)drawings[selectedDrawing];
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="index"></param>
        public void setSelected(int index)
        {
            dSelected = true;
            selectedDrawing = index;
            Drawing d = getDrawing(index);
            d.setSelected(true);
            repaint();
        }
        /// <summary>
        ///
        /// </summary>
        public void fillSelected()
        {
            if (dSelected)
            {
                Drawing d = (Drawing)drawings[selectedDrawing];
                d.setFill(true);
                FillMemento m = new FillMemento(selectedDrawing, this);
                undoList.Add(m);
            }
        }
        /// <summary>
        ///
        /// </summary>
        public void undo()
        {
            rectb.setSelected(false);
            circButton.setSelected(false);
            arrowButton.setSelected(false);

            if (undoList.Count > 0)
            {
                //get last element in undo list
                object obj = undoList[undoList.Count - 1];
                undoList.RemoveAt(undoList.Count - 1);
                //get the Memento
                Memento m = (Memento)obj;
                m.restore();   //and restore the old position
                repaint();
            }
        }
        /// <summary>
        ///
        /// </summary>
        /// <returns></returns>
        public ArrayList getDrawings()
        {
            return drawings;
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="a"></param>
        /// <returns></returns>
        public Drawing getDrawing(int a)
        {
            if (a < drawings.Count)
                return (Drawing)drawings[a];
            else
                return null;
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="d"></param>
        public void addDrawing(Drawing d)
        {
            drawings.Add(d);
            DrawInstance intc = new DrawInstance(drawings.Count - 1, this);
            undoList.Add(intc);
        }
        /// <summary>
        ///
        /// </summary>
        public void clear()
        {
            drawings = new ArrayList();
            undoList = new ArrayList();
            dSelected = false;
            selectedDrawing = 0;
            repaint();
        }
        /// <summary>
        ///
        /// </summary>
        public void unpick()
        {
            dSelected = false;
            if (selectedDrawing >= 0)
            {
                Drawing d = getDrawing(selectedDrawing);
                if (d != null)
                {
                    d.setSelected(false);
                }
                selectedDrawing = -1;
                repaint();
            }
        }
        /// <summary>
        ///
        /// </summary>
        private void repaint()
        {
            canvas.Refresh();
        }

        /// <summary>
        ///
        /// </summary>
        /// <param name="rb"></param>
        public void registerRectButton(RectButton rb)
        {
            rectb = rb;
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="fb"></param>
        public void registerFillButton(FillButton fb)
        {
            filButton = fb;
        }

        /// <summary>
        ///
        /// </summary>
        /// <param name="ab"></param>
        public void registerArrowButton(PickButton ab)
        {
            arrowButton = ab;
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="cb"></param>
        public void registerCircleButton(CircleButton cb)
        {
            circButton = cb;
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="a"></param>
        public void removeDrawing(int a)
        {
            drawings.RemoveAt(a);
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="x"></param>
        /// <param name="y"></param>
        /// <returns></returns>
        public int findDrawing(int x, int y)
        {
            int i = 0;
            bool found = false;
            int index = -1;
            while (i < drawings.Count && !found)
            {
                Drawing d = getDrawing(i);
                if (d.contains(x, y))
                {
                    index = i;
                    found = true;
                }
                i++;
            }
            return index;
        }
        /// <summary>
        ///
        /// </summary>
        public void rememberPosition()
        {
            if (dSelected)
            {
                Drawing d = (Drawing)drawings[selectedDrawing];
                Memento m = new DrawMemento(d);
                undoList.Add(m);
            }
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="x"></param>
        /// <param name="y"></param>
        public void mouseUp(int x, int y)
        {
            stMgr.mouseUp(x, y);
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="x"></param>
        /// <param name="y"></param>
        public void mouseDown(int x, int y)
        {
            stMgr.mouseDown(x, y);
            repaint();
        }
        /// <summary>
        /// /
        /// </summary>
        /// <param name="x"></param>
        /// <param name="y"></param>
        public void mouseDrag(int x, int y)
        {
            stMgr.mouseDrag(x, y);
            repaint();
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="g"></param>
        public void reDraw(Graphics g)
        {

            foreach (object obj in drawings)
            {
                Drawing d = (Drawing)obj;
                d.draw(g);
            }
        }
    }

　　

  /// <summary>
    /// Summary description for FillState.
    /// State Patterns状态模式
    ///20220918
    /// geovindu,Geovin Du,涂聚文
    /// </summary>
    public class FillState : State
    {
        public FillState(Mediator md) : base(md) { }
        /// <summary>
        ///
        /// </summary>
        /// <param name="x"></param>
        /// <param name="y"></param>
        public override void mouseDown(int x, int y)
        {
            //Fill drawing if you click inside one
            int i = med.findDrawing(x, y);
            if (i >= 0)
            {
                Drawing d = med.getDrawing(i);
                d.setFill(true);  //fill drawing
            }
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="d"></param>
        public override void selectOne(Drawing d)
        {
            //fill drawing if selected
            d.setFill(true);
        }
    }

　　

  /// <summary>
    /// Summary description for FillMemento.
    /// State Patterns状态模式
    ///20220918
    /// geovindu,Geovin Du,涂聚文
    /// </summary>
    public class FillMemento : Memento
    {
        private int index;
        private Mediator med;
        /// <summary>
        ///
        /// </summary>
        /// <param name="dindex"></param>
        /// <param name="md"></param>
        public FillMemento(int dindex, Mediator md)
        {
            index = dindex;
            med = md;
        }
        /// <summary>
        ///
        /// </summary>
        public void restore()
        {
            Drawing d = med.getDrawing(index);
            d.setFill(false);
        }
    }

　　

    /// <summary>
    /// save the state of a visual rectangle
    /// State Patterns状态模式
    ///20220918
    /// geovindu,Geovin Du,涂聚文
    /// </summary>
    public class DrawMemento : Memento
    {
        private int x, y, w, h;
        private Rectangle rect;
        private Drawing visDraw;
        /// <summary>
        ///
        /// </summary>
        /// <param name="d"></param>
        public DrawMemento(Drawing d)
        {
            visDraw = d;
            rect = visDraw.getRects();
            x = rect.x;
            y = rect.y;
            w = rect.w;
            h = rect.h;
        }
        /// <summary>
        ///
        /// </summary>
        public void restore()
        {
            //restore the state of a drawing object
            rect.x = x;
            rect.y = y;
            rect.h = h;
            rect.w = w;
            visDraw.setRects(rect);
        }
    }

　　

   /// <summary>
    /// Summary description for DrawInstance.
    /// State Patterns状态模式
    ///20220918
    /// geovindu,Geovin Du,涂聚文
    /// </summary>
    public class DrawInstance : Memento
    {
        private int intg;
        private Mediator med;
        /// <summary>
        ///
        /// </summary>
        /// <param name="intg"></param>
        /// <param name="md"></param>
        public DrawInstance(int intg, Mediator md)
        {
            this.intg = intg;
            med = md;
        }
        /// <summary>
        ///
        /// </summary>
        public int integ
        {
            get
            {
                return intg;
            }
        }
        /// <summary>
        ///
        /// </summary>
        public void restore()
        {
            med.removeDrawing(intg);
        }
    }

　　

   /// <summary>
    /// Summary description for Command.
    /// State Patterns状态模式
    ///20220918
    /// geovindu,Geovin Du,涂聚文
    /// </summary>
    public interface Command
    {
        void Execute();
    }

　　

    /// <summary>
    /// Summary description for CircleState.
    /// State Patterns状态模式
    ///20220918
    /// geovindu,Geovin Du,涂聚文
    /// </summary>
    public class CircleState : State
    {
        public CircleState(Mediator md) : base(md) { }
        /// <summary>
        ///
        /// </summary>
        /// <param name="x"></param>
        /// <param name="y"></param>
        public override void mouseDown(int x, int y)
        {
            VisCircle c = new VisCircle(x, y);
            med.addDrawing(c);
        }
    }
}

　　

  /// <summary>
    /// Summary description for ArrowState.
    /// State Patterns状态模式
    ///20220918
    /// geovindu,Geovin Du,涂聚文
    /// </summary>
    public class ArrowState : State
    {

        /// <summary>
        ///
        /// </summary>
        /// <param name="md"></param>
        public ArrowState(Mediator md) : base(md) { }

        /// <summary>
        ///
        /// </summary>
        /// <param name="x"></param>
        /// <param name="y"></param>
        public override void mouseDown(int x, int y)
        {
            med.unpick();
            med.startArrow();
            int i = med.findDrawing(x, y);
            if (i >= 0)
            {
                med.setSelected(i);
                med.rememberPosition();
            }
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="x"></param>
        /// <param name="y"></param>
        public override void mouseDrag(int x, int y)
        {
            int i = med.findDrawing(x, y);
            if (i >= 0)
            {
                Drawing d = med.getDrawing(i);
                d.move(x, y);
            }
        }
    }

　　

   /// <summary>
    /// Summary description for CircleButton.
    /// State Patterns状态模式
    ///20220918
    /// geovindu,Geovin Du,涂聚文
    /// </summary>
    public class CircleButton : ComdToolBarButton
    {

        /// <summary>
        ///
        /// </summary>
        /// <param name="md"></param>
        public CircleButton(Mediator md)
            : base("Circle", md)
        {
            this.DisplayStyle = ToolStripItemDisplayStyle.Text;   //
            // this.Style=ToolBarButtonStyle.ToggleButton ;
            med.registerCircleButton(this);
        }
        /// <summary>
        /// /
        /// </summary>
        public override void Execute()
        {
            med.startCircle();
        }
    }

　　

   /// <summary>
    /// Summary description for ClearButton.
    /// State Patterns状态模式
    ///20220918
    /// geovindu,Geovin Du,涂聚文
    /// </summary>
    public class ClearButton : ComdToolBarButton
    {
        public ClearButton(Mediator md) : base("Clear", md) { }
        public override void Execute()
        {
            med.clear();
        }
    }

　　

   /// <summary>
    /// State Patterns状态模式
    ///20220918
    /// geovindu,Geovin Du,涂聚文
    /// </summary>
    public partial class ComdToolBarButton : ToolStripButton, Command
    {
        protected Mediator med;
        protected bool selected;

        /// <summary>
        ///
        /// </summary>
        /// <param name="caption"></param>
        /// <param name="md"></param>
        public ComdToolBarButton(string caption, Mediator md)
        {
            InitializeComponent();
            med = md;
            this.Text = caption;

        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="b"></param>
        public void setSelected(bool b)
        {
            selected = b;
            if (!selected)
                this.selected = false;
            //this.Pushed = false;
        }
        /// <summary>
        ///
        /// </summary>
        public virtual void Execute()
        {
        }

        /// <summary>
        ///
        /// </summary>
        public ComdToolBarButton()
        {
            InitializeComponent();
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="container"></param>
        public ComdToolBarButton(IContainer container)
        {
            container.Add(this);

            InitializeComponent();
        }
    }

　　

   /// <summary>
    /// Summary description for UndoButton.
    /// State Patterns状态模式
    ///20220918
    /// geovindu,Geovin Du,涂聚文
    /// </summary>
    public class UndoButton : ComdToolBarButton
    {
        public UndoButton(Mediator md)
            : base("Undo", md)
        {
        }
        public override void Execute()
        {
            med.undo();
        }
    }

　　

    /// <summary>
    /// Summary description for RectButton.
    /// State Patterns状态模式
    ///20220918
    /// geovindu,Geovin Du,涂聚文
    /// </summary>
    public class RectButton : ComdToolBarButton
    {
        public RectButton(Mediator md)
            : base("Rectangle", md)
        {
            //this.Style =ToolBarButtonStyle.ToggleButton ;
            this.DisplayStyle = ToolStripItemDisplayStyle.Text;
            med.registerRectButton(this);
        }
        public override void Execute()
        {
            med.startRectangle();
        }
    }

　　

    /// <summary>
    /// Summary description for PickButton.
    /// State Patterns状态模式
    ///20220918
    /// geovindu,Geovin Du,涂聚文
    /// </summary>
    public class PickButton : ComdToolBarButton
    {
        public PickButton(Mediator md)
            : base("Select", md)
        {
            //this.Style = ToolBarButtonStyle.ToggleButton ;
            this.DisplayStyle = ToolStripItemDisplayStyle.Text;
            med.registerArrowButton(this);
        }
        public override void Execute()
        {
            med.startArrow();
        }
    }

　　

    /// <summary>
    /// Summary description for FillButton.
    /// State Patterns状态模式
    ///20220918
    /// geovindu,Geovin Du,涂聚文
    /// </summary>
    public class FillButton : ComdToolBarButton
    {
        public FillButton(Mediator md)
            : base("Fill", md)
        {
            this.DisplayStyle = ToolStripItemDisplayStyle.Text;
            //this.Style = ToolBarButtonStyle.ToggleButton ;
            med.registerFillButton(this);
        }
        public override void Execute()
        {
            med.startFill();
        }
    }

　　

 /// <summary>
    /// Summary description for VisRectangle.
    /// State Patterns状态模式
    ///20220918
    /// geovindu,Geovin Du,涂聚文
    /// </summary>
    public class VisRectangle : Drawing
    {
        protected int x, y, w, h;
        private const int VSIZE = 30;
        private const int HSIZE = 40;
        private Rectangle rect;
        protected bool selected;
        protected bool filled;
        protected Pen bPen;
        protected SolidBrush bBrush, rBrush;
        /// <summary>
        ///
        /// </summary>
        /// <param name="xp"></param>
        /// <param name="yp"></param>
        public VisRectangle(int xp, int yp)
        {
            x = xp; y = yp;
            w = HSIZE; h = VSIZE;
            saveAsRect();
            bPen = new Pen(Color.Black);
            bBrush = new SolidBrush(Color.Black);
            rBrush = new SolidBrush(Color.Red);
        }

        /// <summary>
        /// used by Memento for saving and restoring state
        /// </summary>
        /// <returns></returns>
        public Rectangle getRects()
        {
            return rect;
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="value"></param>
        public void setRects(Rectangle value)
        {
            x = value.x; y = value.y;
            w = value.w; h = value.h;
            saveAsRect();
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="b"></param>
        public void setSelected(bool b)
        {
            selected = b;
        }
        /// <summary>
        /// move to new position
        /// </summary>
        /// <param name="xp"></param>
        /// <param name="yp"></param>
        public void move(int xp, int yp)
        {
            x = xp; y = yp;
            saveAsRect();
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="g"></param>
        public virtual void draw(Graphics g)
        {
            //draw rectangle
            g.DrawRectangle(bPen, x, y, w, h);
            if (filled)
                g.FillRectangle(rBrush, x, y, w, h);
            drawHandles(g);
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="g"></param>
        public void drawHandles(Graphics g)
        {
            if (selected)
            {   //draw handles
                g.FillRectangle(bBrush, x + w / 2, y - 2, 4, 4);
                g.FillRectangle(bBrush, x - 2, y + h / 2, 4, 4);
                g.FillRectangle(bBrush, x + (w / 2), y + h - 2, 4, 4);
                g.FillRectangle(bBrush, x + (w - 2), y + (h / 2), 4, 4);
            }
        }

        /// <summary>
        /// return whether point is inside rectangle
        /// </summary>
        /// <param name="x"></param>
        /// <param name="y"></param>
        /// <returns></returns>
        public bool contains(int x, int y)
        {
            return rect.contains(x, y);
        }

        /// <summary>
        /// create Rectangle object from new position
        /// </summary>
        protected void saveAsRect()
        {
            rect = new Rectangle(x, y, w, h);
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="b"></param>
        public void setFill(bool b)
        {
            filled = b;
        }
    }

　　

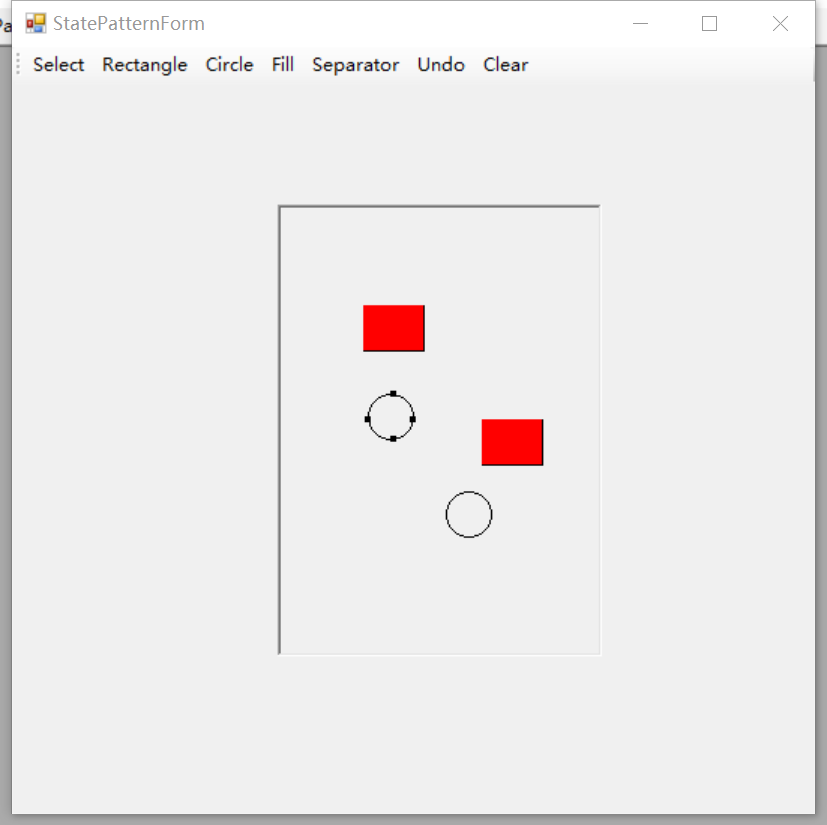

调用：

 /// <summary>
    /// State Patterns状态模式
    ///20220918
    /// geovindu,Geovin Du,涂聚文
    /// </summary>
    public partial class StatePatternForm : Form
    {
        private Mediator med;


        private CircleButton circButton;
        private RectButton rctButton;
        private PickButton arowButton;
        private FillButton flButton;
        private UndoButton undoB;
        private ClearButton clrb;
        /// <summary>
        ///
        /// </summary>
        private void init()
        {
            //create a Mediator
            med = new Mediator(pic);
            //create the buttons
            rctButton = new RectButton(med);
            arowButton = new PickButton(med);
            circButton = new CircleButton(med);
            flButton = new FillButton(med);
            undoB = new UndoButton(med);
            clrb = new ClearButton(med);
            //add the buttons into the toolbar
            tBar.Items.Add(arowButton);
            tBar.Items.Add(rctButton);
            tBar.Items.Add(circButton);
            tBar.Items.Add(flButton);
            //include a separator
            //ToolBarButton sep = new ToolBarButton();
            //sep.Style = ToolBarButtonStyle.Separator;

            ComdToolBarButton sep = new ComdToolBarButton();
            sep.DisplayStyle = ToolStripItemDisplayStyle.Text;// ToolBarButtonStyle.Separator;
            sep.Text = "Separator";

            tBar.Items.Add(sep);
            tBar.Items.Add(undoB);
            tBar.Items.Add(clrb);
        }
        /// <summary>
        ///
        /// </summary>
        public StatePatternForm()
        {
            InitializeComponent();
            init();
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void StatePatternForm_Load(object sender, EventArgs e)
        {

        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void pic_MouseDown(object sender, MouseEventArgs e)
        {
            med.mouseDown(e.X, e.Y);
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void pic_MouseMove(object sender, MouseEventArgs e)
        {
            if (e.Button != MouseButtons.None)
            {
                med.mouseDrag(e.X, e.Y);
            }
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void pic_MouseUp(object sender, MouseEventArgs e)
        {
            med.mouseUp(e.X, e.Y);
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void pic_Paint(object sender, PaintEventArgs e)
        {
            Graphics g = e.Graphics;
            med.reDraw(g);
        }
        /// <summary>
        ///
        /// </summary>
        /// <param name="sender"></param>
        /// <param name="e"></param>
        private void tBar_ItemClicked(object sender, ToolStripItemClickedEventArgs e)
        {
            Command comd = (Command)e.ClickedItem;
            comd.Execute();
        }
    }

　　

输出：
