配置RIP引入部分外部路由

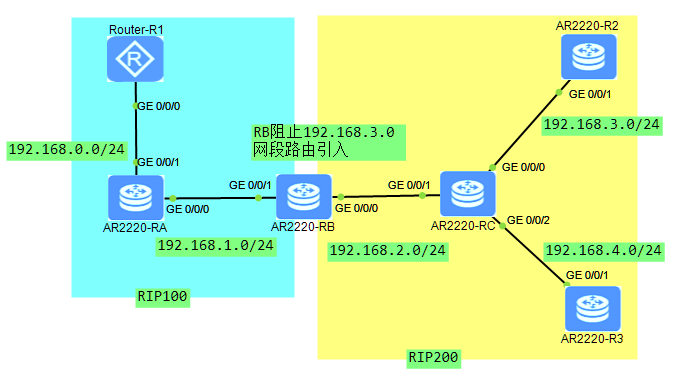

拓扑：

配置：

查看代码

[R1]dis current-configuration
#
sysname R1
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher OOCM4m($F4ajUn1vMEIBNUw#
 local-user admin service-type http
#
firewall zone Local
 priority 16
#
interface Ethernet0/0/0
#
interface Ethernet0/0/1
#
interface Serial0/0/0
 link-protocol ppp
#
interface Serial0/0/1
 link-protocol ppp
#
interface Serial0/0/2
 link-protocol ppp
#
interface Serial0/0/3
 link-protocol ppp
#
interface GigabitEthernet0/0/0
 ip address 192.168.0.2 255.255.255.0
#
interface GigabitEthernet0/0/1
#
interface GigabitEthernet0/0/2
#
interface GigabitEthernet0/0/3
#
wlan
#
interface NULL0
#
rip 100
 network 192.168.0.0
#
user-interface con 0
user-interface vty 0 4
user-interface vty 16 20
#
return

查看代码

 [RA]dis current-configuration
[V200R003C00]
#
 sysname RA
#
 snmp-agent local-engineid 800007DB03000000000000
 snmp-agent
#
 clock timezone China-Standard-Time minus 08:00:00
#
portal local-server load portalpage.zip
#
 drop illegal-mac alarm
#
 set cpu-usage threshold 80 restore 75
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
 local-user admin service-type http
#
firewall zone Local
 priority 15
#
interface GigabitEthernet0/0/0
 ip address 192.168.1.1 255.255.255.0
#
interface GigabitEthernet0/0/1
 ip address 192.168.0.1 255.255.255.0
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
rip 100
 network 192.168.0.0
 network 192.168.1.0
#
user-interface con 0
 authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
#
wlan ac
#
return

查看代码

 [RB]dis current-configuration
[V200R003C00]
#
 sysname RB
#
 snmp-agent local-engineid 800007DB03000000000000
 snmp-agent
#
 clock timezone China-Standard-Time minus 08:00:00
#
portal local-server load portalpage.zip
#
 drop illegal-mac alarm
#
 set cpu-usage threshold 80 restore 75
#
acl number 2000
 rule 5 deny source 192.168.4.0 0.0.0.255
 rule 10 permit
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
 local-user admin service-type http
#
firewall zone Local
 priority 15
#
interface GigabitEthernet0/0/0
 ip address 192.168.2.1 255.255.255.0
#
interface GigabitEthernet0/0/1
 ip address 192.168.1.2 255.255.255.0
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
rip 100
 default-cost 3
 network 192.168.1.0
 filter-policy 2000 export
 import-route rip 200
#
rip 200
 network 192.168.2.0
 import-route rip 100
#
user-interface con 0
 authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
#
wlan ac
#
return

查看代码

 [RC]dis current-configuration
[V200R003C00]
#
 sysname RC
#
 snmp-agent local-engineid 800007DB03000000000000
 snmp-agent
#
 clock timezone China-Standard-Time minus 08:00:00
#
portal local-server load portalpage.zip
#
 drop illegal-mac alarm
#
 set cpu-usage threshold 80 restore 75
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
 local-user admin service-type http
#
firewall zone Local
 priority 15
#
interface GigabitEthernet0/0/0
 ip address 192.168.3.1 255.255.255.0
#
interface GigabitEthernet0/0/1
 ip address 192.168.2.2 255.255.255.0
#
interface GigabitEthernet0/0/2
 ip address 192.168.4.1 255.255.255.0
#
interface NULL0
#
rip 200
 network 192.168.2.0
 network 192.168.3.0
 network 192.168.4.0
#
user-interface con 0
 authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
#
wlan ac
#
return

查看代码

 [R2]dis current-configuration
[V200R003C00]
#
 sysname R2
#
 snmp-agent local-engineid 800007DB03000000000000
 snmp-agent
#
 clock timezone China-Standard-Time minus 08:00:00
#
portal local-server load portalpage.zip
#
 drop illegal-mac alarm
#
 set cpu-usage threshold 80 restore 75
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
 local-user admin service-type http
#
firewall zone Local
 priority 15
#
interface GigabitEthernet0/0/0
#
interface GigabitEthernet0/0/1
 ip address 192.168.3.2 255.255.255.0
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
rip 200
 network 192.168.3.0
#
user-interface con 0
 authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
#
wlan ac
#
return

查看代码

 [R3]dis current-configuration
[V200R003C00]
#
 sysname R3
#
 snmp-agent local-engineid 800007DB03000000000000
 snmp-agent
#
 clock timezone China-Standard-Time minus 08:00:00
#
portal local-server load portalpage.zip
#
 drop illegal-mac alarm
#
 set cpu-usage threshold 80 restore 75
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
 local-user admin service-type http
#
firewall zone Local
 priority 15
#
interface GigabitEthernet0/0/0
#
interface GigabitEthernet0/0/1
 ip address 192.168.4.2 255.255.255.0
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
rip 200
 network 192.168.4.0
#
user-interface con 0
 authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
#
wlan ac
#
return
