静态路由基本配置

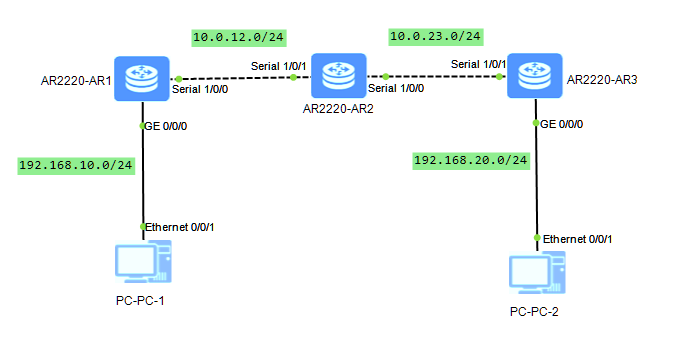

拓扑：

配置：

查看代码

[R1]dis current-configuration
[V200R003C00]
#
 sysname R1
#
 board add 0/1 2SA
#
 snmp-agent local-engineid 800007DB03000000000000
 snmp-agent
#
 clock timezone China-Standard-Time minus 08:00:00
#
portal local-server load portalpage.zip
#
 drop illegal-mac alarm
#
 set cpu-usage threshold 80 restore 75
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
 local-user admin service-type http
#
firewall zone Local
 priority 15
#
interface Serial1/0/0
 link-protocol ppp
 ip address 10.0.12.1 255.255.255.0
#
interface Serial1/0/1
 link-protocol ppp
#
interface GigabitEthernet0/0/0
 ip address 192.168.10.254 255.255.255.0
#
interface GigabitEthernet0/0/1
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
ip route-static 192.168.20.0 255.255.255.0 10.0.12.2
#
user-interface con 0
 authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
#
wlan ac
#
return

查看代码

 <R2>dis current-configuration
[V200R003C00]
#
 sysname R2
#
 board add 0/1 2SA
#
 snmp-agent local-engineid 800007DB03000000000000
 snmp-agent
#
 clock timezone China-Standard-Time minus 08:00:00
#
portal local-server load portalpage.zip
#
 drop illegal-mac alarm
#
 set cpu-usage threshold 80 restore 75
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
 local-user admin service-type http
#
firewall zone Local
 priority 15
#
interface Serial1/0/0
 link-protocol ppp
 ip address 10.0.23.1 255.255.255.0
#
interface Serial1/0/1
 link-protocol ppp
 ip address 10.0.12.2 255.255.255.0
#
interface GigabitEthernet0/0/0
#
interface GigabitEthernet0/0/1
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
ip route-static 192.168.10.0 255.255.255.0 10.0.12.1
ip route-static 192.168.20.0 255.255.255.0 10.0.23.2
#
user-interface con 0
 authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
#
wlan ac
#
return

查看代码

 [R3]dis current-configuration
[V200R003C00]
#
 sysname R3
#
 board add 0/1 2SA
#
 snmp-agent local-engineid 800007DB03000000000000
 snmp-agent
#
 clock timezone China-Standard-Time minus 08:00:00
#
portal local-server load portalpage.zip
#
 drop illegal-mac alarm
#
 set cpu-usage threshold 80 restore 75
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
 local-user admin service-type http
#
firewall zone Local
 priority 15
#
interface Serial1/0/0
 link-protocol ppp
#
interface Serial1/0/1
 link-protocol ppp
 ip address 10.0.23.2 255.255.255.0
#
interface GigabitEthernet0/0/0
 ip address 192.168.20.254 255.255.255.0
#
interface GigabitEthernet0/0/1
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
ip route-static 192.168.10.0 255.255.255.0 10.0.23.1
#
user-interface con 0
 authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
#
wlan ac
#
return
