网络自动化之python（1）：测试使用netmiko进行备份配置，及结合xlwt交换机上光模块SN进行统计

1、TOP如下：



2、脚本如下：

from netmiko import ConnectHandler
import xlwt
# from netmiko.ssh_exception import NetMikoTimeoutException
# from netmiko.ssh_exception import NetMikoAuthenticationException
# from getpass import getpass
# import threading

def get_mudel_info():

    xl = xlwt.Workbook()
    sheet1 = xl.add_sheet('sheet1')
    sheet1.write(0, 0, 'IP')
    sheet1.write(0, 1, 'interface')
    sheet1.write(0, 2, 'Type')
    sheet1.write(0, 3, 'PN')
    sheet1.write(0, 4, 'SN')
    print('sheet created successful!')
    a = 0
    b = 1
    c = 2
    d = 3
    e = 4
    r1 = 1
    r2 = 1
    print('-*-请先输入设备登录用户名及账号-*-')
    user = input('Username:')
    passwd = input('Password:')
    ips = open(r".\ip_list.csv", encoding='utf-8')
    hosts_info = ips.readlines()

    for line_info in hosts_info:
        x = r1
        host_info = line_info.strip('').split(',')
        ios = host_info[0]
        ip = host_info[1].strip()
        dev = {
            "device_type":ios,
            "host":ip,
            "port":"22",
            "username":user,
            "password":passwd
        }

        print('>>>>')
        print(f'___---___---___---___{ip} Start___---___---___---___')
        try:
            with ConnectHandler(**dev) as conne:
                print(f'{ip} login successful!please waiting...')
                # with open(r'.\logfiles\%s.txt' % ip.strip(),'w') as logfile:
                #     output = conne.send_command('')
                #     logfile.write(output)

                output = conne.send_command_timing('dis trans man inte | inc Serial')
                if '---- More ----' in output:
                    output += conne.send_command_timing('                            \n',normalize=False)
                print_infos = list(output.split('\n'))

                output1 = conne.send_command_timing('dis tran man int | inc /0')
                if '---- More ----' in output1:
                    output1 += conne.send_command_timing('                            \n',normalize=False)
                print_infos1 = list(output1.split('\n'))

                for line_print in print_infos:
                    if ':' in line_print:
                        col_e = line_print.split(':')[1].strip()
                        sheet1.write(r1,a,ip)
                        sheet1.write(r1,e,col_e)
                        r1 += 1
                for line_print1 in print_infos1:
                    if ':' in line_print1:
                        col_b = line_print1.split()[0].strip()
                        sheet1.write(r2,b,col_b)
                        r2 += 1
            y = r1 - x
            print(f'Transceiver of switch {ip} has %d(pcs)' % y)
            print('There are %d(pcs) transceiver in total' % (r1-1))
            print(f' ___---___---___---___{ip} END___---___---___---___')
        except:
            print(f'A wrong happening for {ip},please check it...')
            print('**********************************************************')
            # 此处可添加异常处理记录
            continue
    xl.save(r'.\test1.xls')

if __name__ == '__main__':
    get_mudel_info()

3、测试前，在设备清单中放入一台不存在的设备IP；







4、测试结果如下两图：

　　4.1测试界面显示：

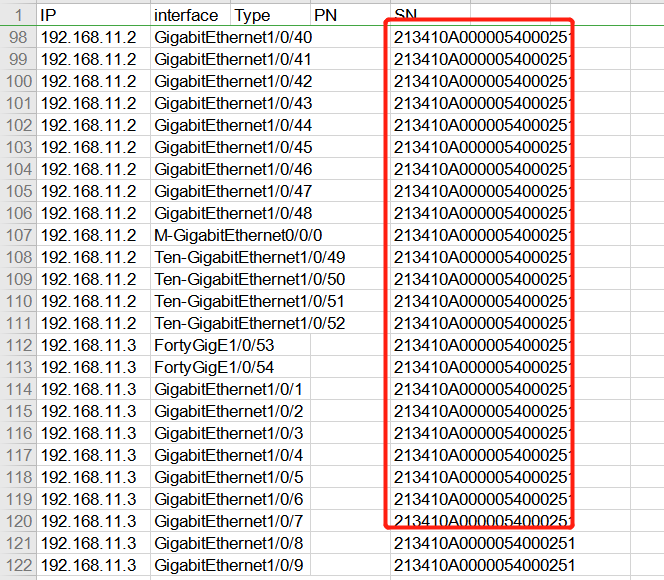

 　　4.2 测试结果如表（手动查看显示模拟器上的光膜块SN是全部相同的，与表中结果一致）：



5、补充更新1.0（添加任务选择：备份/统计光膜块SN）

from netmiko import ConnectHandler
import xlwt
# import time
# from netmiko.ssh_exception import NetMikoTimeoutException
# from netmiko.ssh_exception import NetMikoAuthenticationException
# from getpass import getpass
# import threading


def get_mudel_info():
    print('-*-请先输入设备登录用户名及账号-*-')
    user = input('Username:')
    passwd = input('Password:')
    ips = open(r".\ip_list.csv", encoding='utf-8')
    hosts_info = ips.readlines()
    xl = xlwt.Workbook()
    sheet1 = xl.add_sheet('sheet1')
    sheet1.write(0, 0, 'IP')
    sheet1.write(0, 1, 'interface')
    sheet1.write(0, 2, 'Type')
    sheet1.write(0, 3, 'PN')
    sheet1.write(0, 4, 'SN')
    print('sheet created successful!')
    a = 0
    b = 1
    c = 2
    d = 3
    e = 4
    r1 = 1
    r2 = 1
    for line_info in hosts_info:
        x = r1
        host_info = line_info.strip('').split(',')
        ios = host_info[0]
        ip = host_info[1].strip()
        dev = {
            "device_type": ios,
            "host": ip,
            "port": "22",
            "username": user,
            "password": passwd
        }
        print('>>>>')
        print(f'___---___---___---___{ip} Start___---___---___---___')
        try:
            with ConnectHandler(**dev) as conne:
                print(f'{ip} login successful!please waiting...')
                # with open(r'.\logfiles\%s.txt' % ip.strip(),'w') as logfile:
                #     output = conne.send_command('')
                #     logfile.write(output)

                output = conne.send_command_timing('dis trans man inte | inc Serial')
                if '---- More ----' in output:
                    output += conne.send_command_timing('                                   \n',normalize=False)
                print_infos = list(output.split('\n'))

                output1 = conne.send_command_timing('dis tran man int | inc /0')
                if '---- More ----' in output1:
                    output1 += conne.send_command_timing('                                  \n',normalize=False)
                print_infos1 = list(output1.split('\n'))

                for line_print in print_infos:
                    if ':' in line_print:
                        col_e = line_print.split(':')[1].strip()
                        sheet1.write(r1,a,ip)
                        sheet1.write(r1,e,col_e)
                        r1 += 1
                for line_print1 in print_infos1:
                    if ':' in line_print1:
                        col_b = line_print1.split()[0].strip()
                        sheet1.write(r2,b,col_b)
                        r2 += 1
            y = r1 - x
            print(f'Transceiver of switch {ip} has %d(pcs)' % y)
            print('There are %d(pcs) transceiver in total' % (r1-1))
            print(f' ___---___---___---___{ip} END___---___---___---___')
        except:
            print(f'A wrong happening for {ip},please check it...')
            print('**********************************************************')
            # 此处可添加异常处理记录
            continue
    xl.save(r'.\get_mudel_SN.xls')


def get_confg():
    print('-*-请先输入设备登录用户名及账号-*-')
    user = input('Username:')
    passwd = input('Password:')
    ips = open(r".\ip_list.csv", encoding='utf-8')
    hosts_info = ips.readlines()

    for line_info in hosts_info:
        host_info = line_info.strip('').split(',')
        ios = host_info[0]
        ip = host_info[1].strip()
        dev = {
            "device_type": ios,
            "host": ip,
            "port": "22",
            "username": user,
            "password": passwd
        }
        print('>>>>')
        print(f'___---___---___---___{ip} Start___---___---___---___')

        try:
            with ConnectHandler(**dev) as conne:
                print(f'{ip} login successful!please waiting...')
                with open(r'.\logfiles\%s.txt' % ip.strip(),'w') as logfile:
                    spe = '\n'.strip()
                    output = conne.send_command_timing('disp cur')
                    if '---- More ----' in output:
                        output += conne.send_command_timing('                               \n', normalize=False)
                    logfile.write(output.replace('---- More ----','').strip())
                    logfile.close()
                    print(f' ___---___---___---___{ip} END___---___---___---___')
        except:
            print(f'A wrong happening for {ip},please check it...')
            print('**********************************************************')


choice = True
while choice is not False:
    choice = input('请选择要执行的任务["1" / "2" / "r"]：\n'
                   '[1]：统计光膜块信息\n'
                   '[2]：配置备份\n'
                   '[r]：退出任务\n'
                   '>>>')
    if (choice.strip()) == '1':
        get_mudel_info()
    elif (choice.strip()) == '2':
        get_confg()
    elif (choice.strip()) == 'r':
        print('已成功退出任务！欢迎下次使用！')
        break
    else:
        print('您的选项不存在!请重新选择。或者输入"r"退出选择!')
        choice = True
        continue
