AD14、20使用技巧学习记录

bilibili上的视频排在第一位的。

1、绿色报错  tools  design rule check

2、DRC检测快捷键  TDR

3、 22讲， tools  design rule check   右键，可以取消所有在线，批量检查， tools  reset  err marks 可以复位错误标记。

4 、AD原理图中 拖动元件或网络标号时 导线跟着移动的解决方法：https://blog.csdn.net/qq_39497587/article/details/92837143

··························································································································································································································································································································································

AD14

https://www.bilibili.com/video/BV1K4411A76a?p=5      P5

规则，drc设置，48：50处讲解，在project option中。

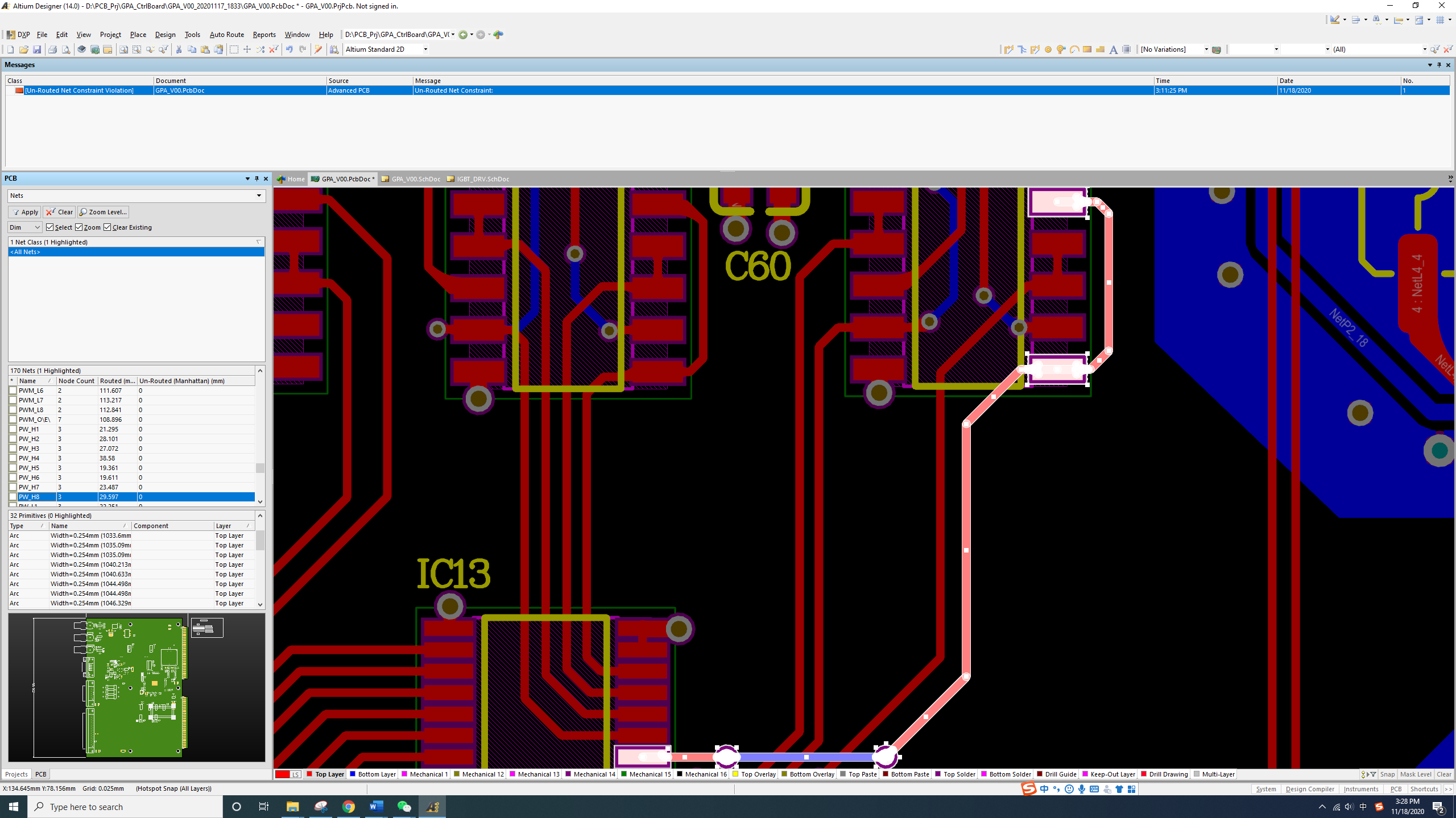

检查每根走线情况时，在PCB里面，点击一个网络，一般高亮后是全局的，需要手工放大，为了直接看最大的，清晰的，需要在celar existing前面打勾。





Altium Designer生成Gerber文件的设置(嘉立创建议 )

https://blog.csdn.net/deedzhaoyun/article/details/9785755?utm_medium=distribute.pc_relevant_t0.none-task-blog-BlogCommendFromMachineLearnPai2-1.channel_param&depth_1-utm_source=distribute.pc_relevant_t0.none-task-blog-BlogCommendFromMachineLearnPai2-1.channel_param

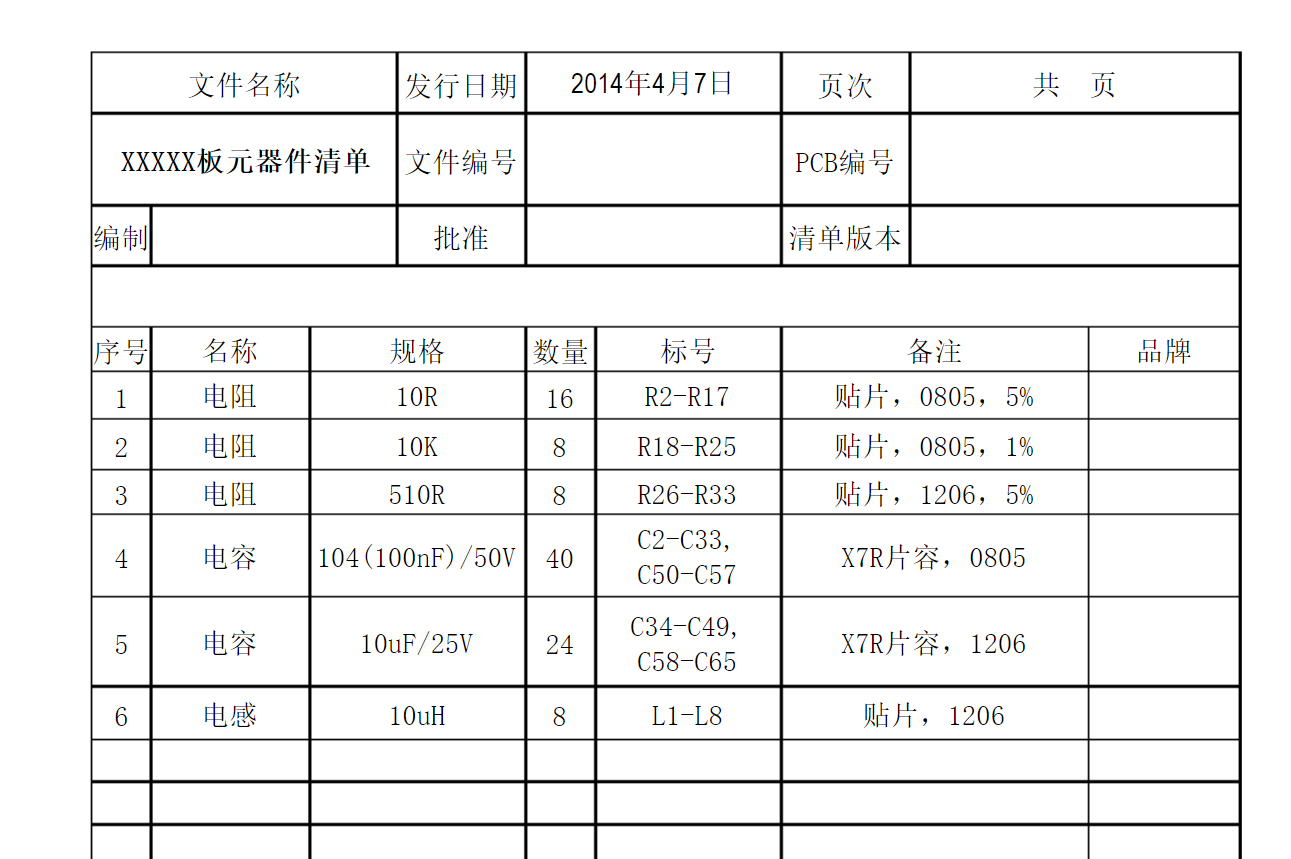

元件清单格式
