Fisco BCOS 区块链初探及数据上链
一、整体说明
BCOS的安装很简单，按照官网教程 https://fisco-bcos-documentation.readthedocs.io/zh_CN/latest/docs/installation.html#fisco-bcos 一步步来就行。
完成后直接使用控制台就可以对链进行操作，部署合约等功能。
虚机重启后，可以进入到fisco 底链安装目录，使用 bash start_all.sh 进行启动
[root@localhost ~]# cd /root/fisco/nodes/127.0.0.1/
[root@localhost 127.0.0.1]# bash start_all.sh
try to start node0
try to start node1
try to start node2
try to start node3
node0 start successfully
node1 start successfully
node2 start successfully
node3 start successfully底链启动，之后部署可视化管理控制台WeBase 管理平台 https://webasedoc.readthedocs.io/zh_CN/latest/docs/WeBASE/install.html
使用一键部署可以很快速的部署起来。其所需要的 mysql 可以使用docker进行安装 。 java和python 及各种依赖需要在虚机主机安装。
根据官网教程安装成功后，浏览器访问 虚机ip:5000 即可访问管理平台地址。
因为是用docker安装，所以虚机重启后，可以直接启动docker 容器，来启动控制台。不许启动其他程序。（第四行是启动docker中的所有容器）
[root@localhost 127.0.0.1]# docker ps -a
Cannot connect to the Docker daemon at unix:///var/run/docker.sock. Is the docker daemon running?
[root@localhost 127.0.0.1]# systemctl start docker
[root@localhost 127.0.0.1]# docker start $(docker ps -a | awk '{ print $1}' | tail -n +2)
71780e025868
6577ffbcb5aa
b590340f7f9a
63d9b01b00af
09205cc428fd
[root@localhost 127.0.0.1]# docker ps -a
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
71780e025868 webasepro/webase-web:v1.5.4 "/wait-for-it.sh 127…" 6 days ago Up 21 seconds webase-web-5000
6577ffbcb5aa webasepro/webase-node-mgr:v1.5.4 "/wait-for-it.sh 127…" 6 days ago Up 21 seconds webase-node-mgr-5001
b590340f7f9a webasepro/webase-front:v1.5.4 "/wait-for-it.sh 127…" 6 days ago Up 20 seconds webase-front-5002
63d9b01b00af webasepro/webase-sign:v1.5.3 "/wait-for-it.sh 127…" 6 days ago Up 20 seconds webase-sign-5004
09205cc428fd mysql:5.6 "docker-entrypoint.s…" 6 days ago Up 19 seconds 0.0.0.0:23306->3306/tcp, :::23306->3306/tcp mysql-webase-23306启动后直接访问控制台即可。

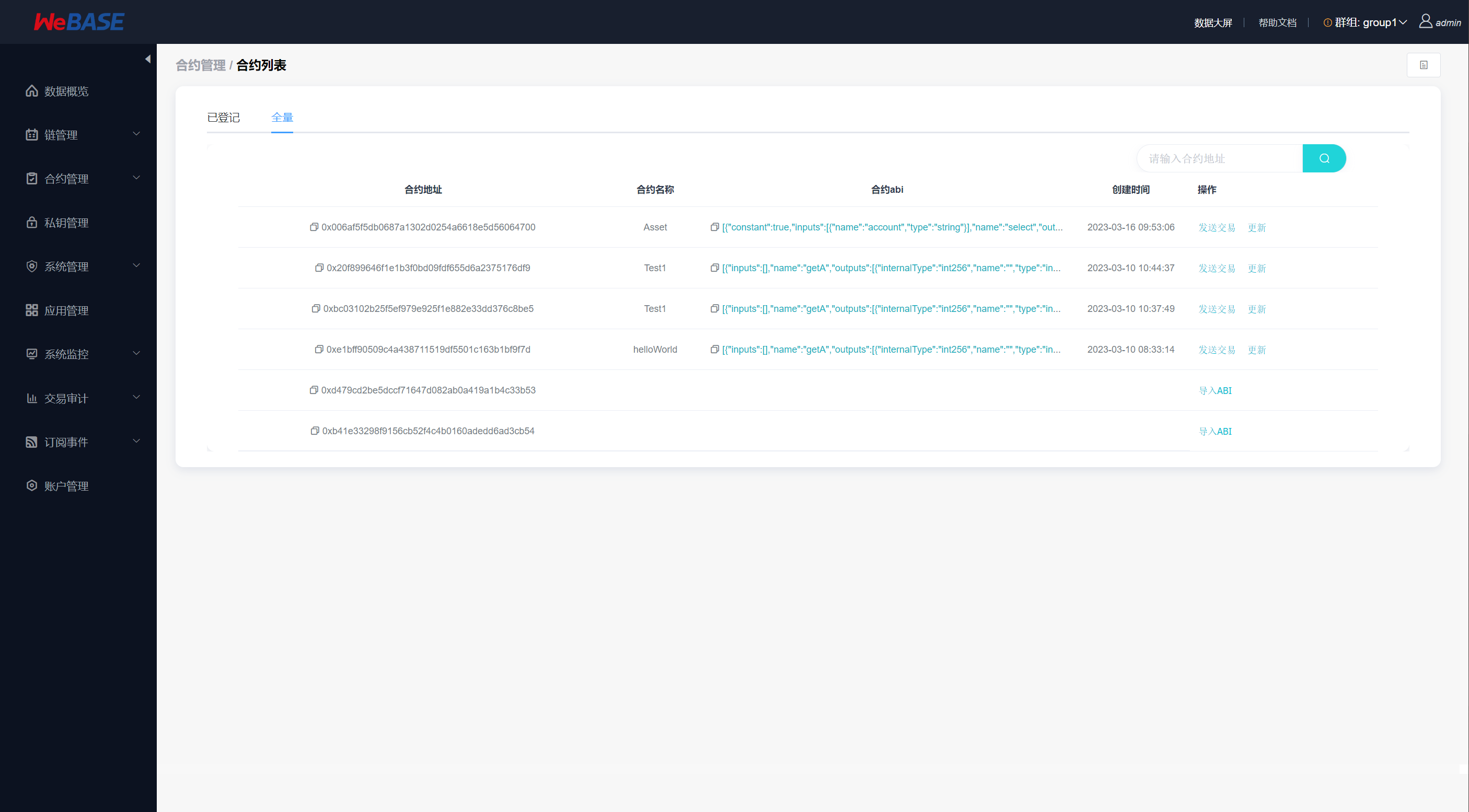

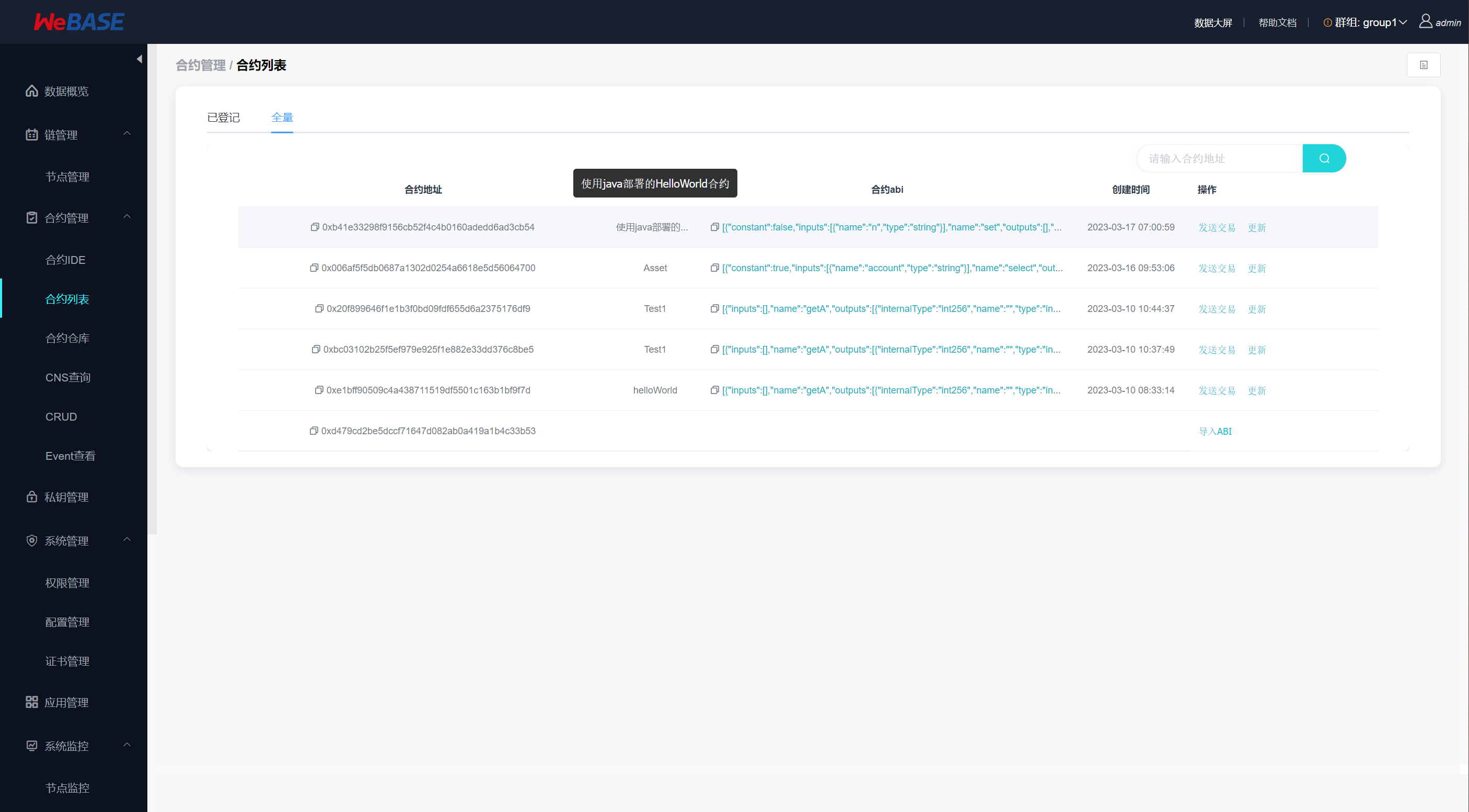

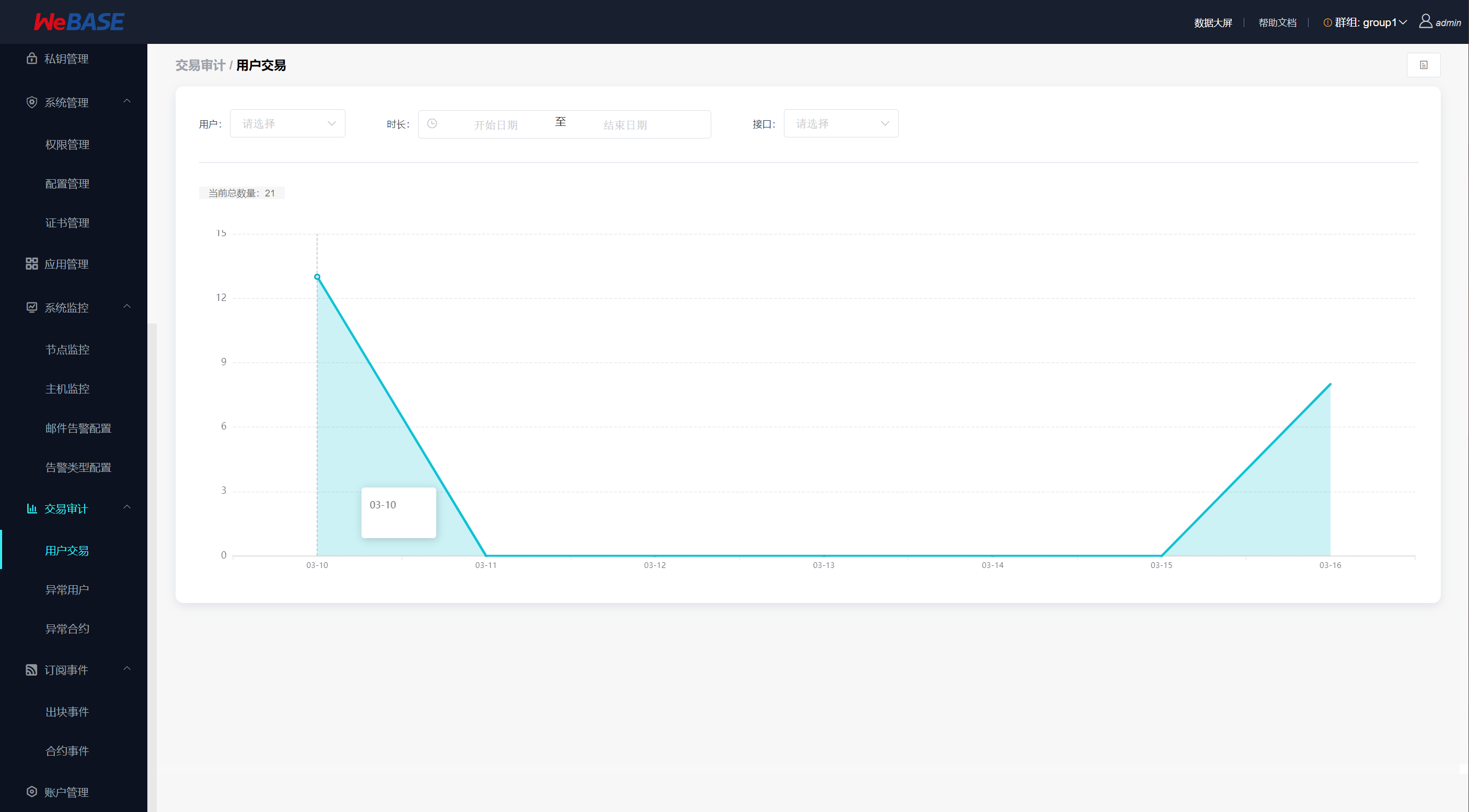

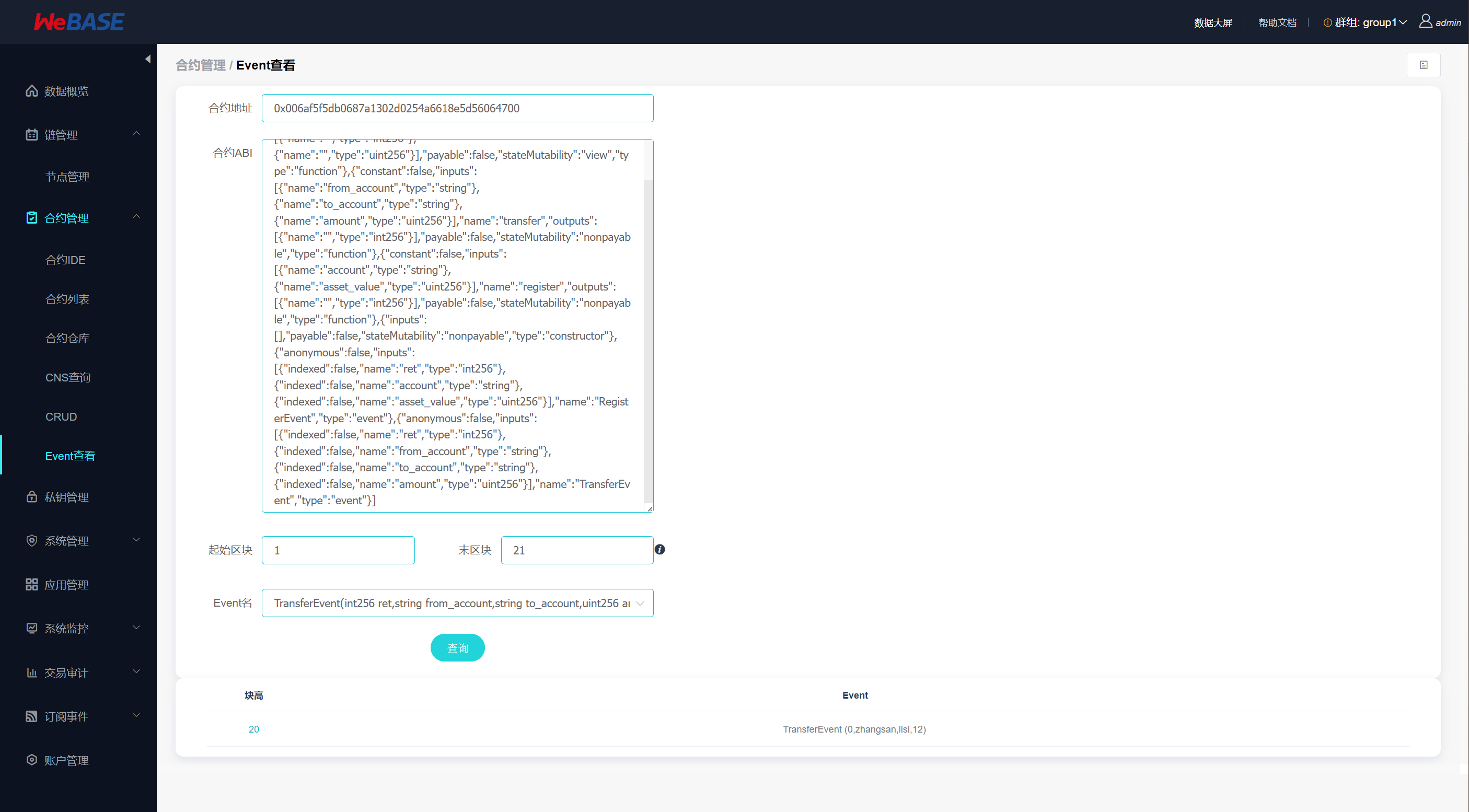

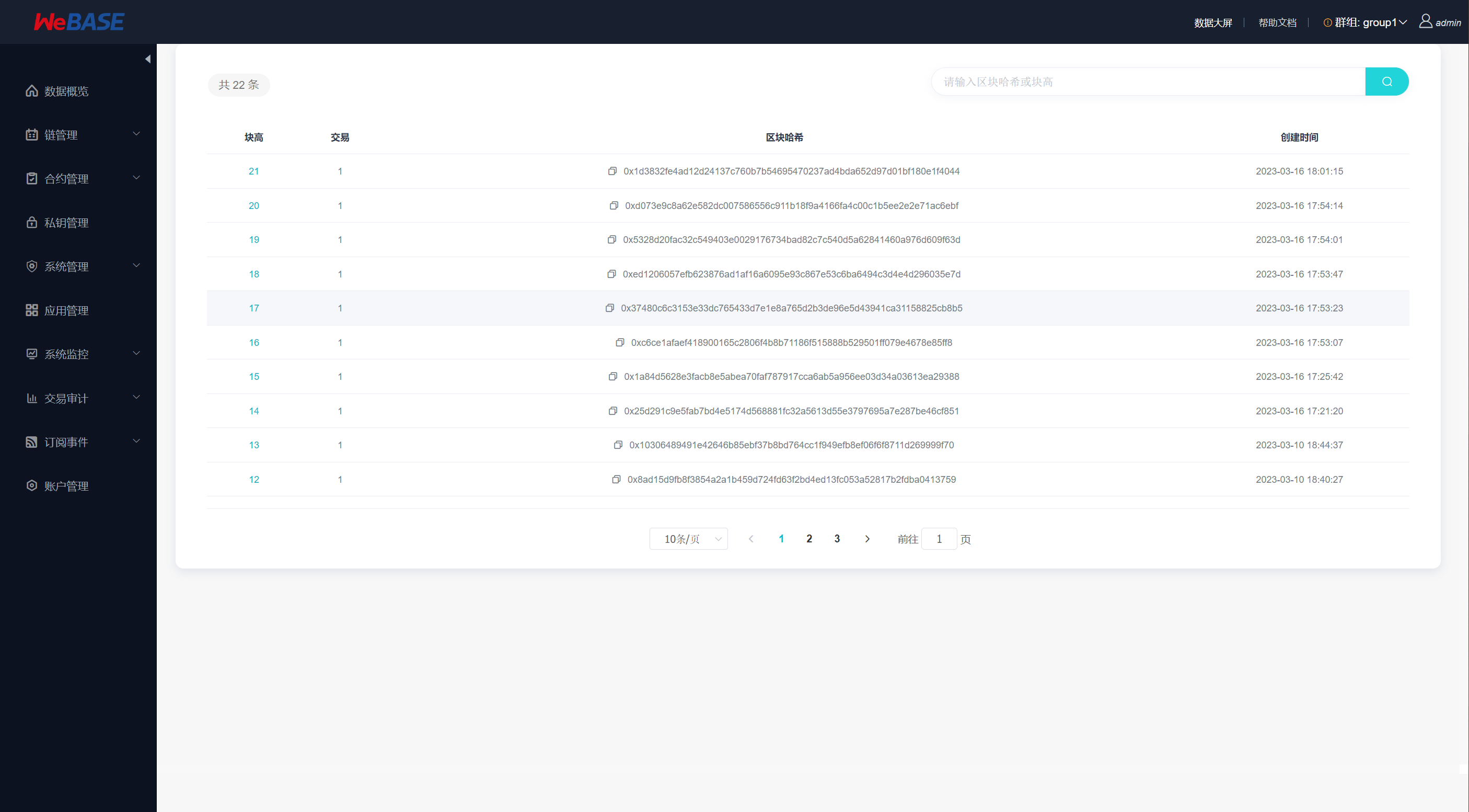

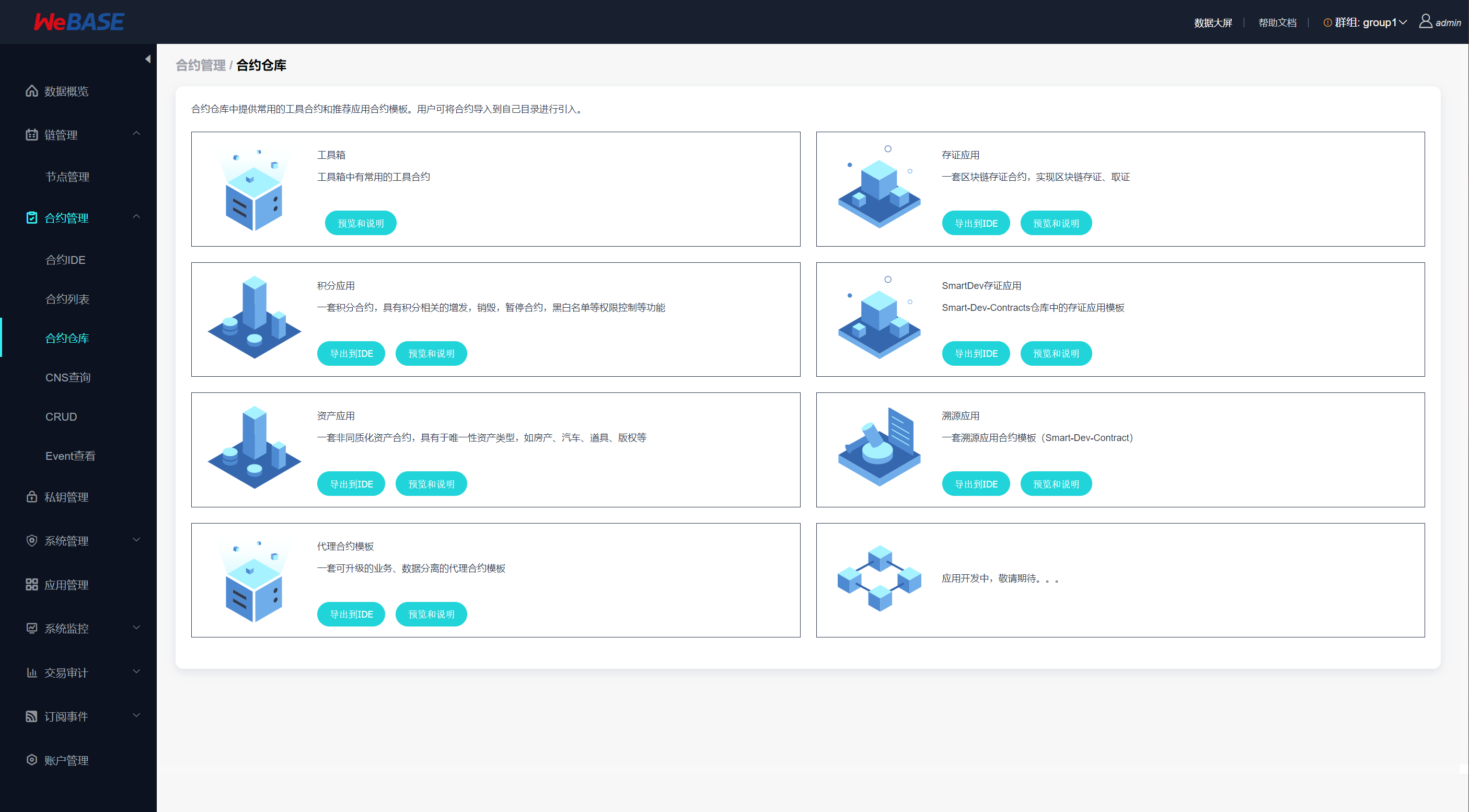

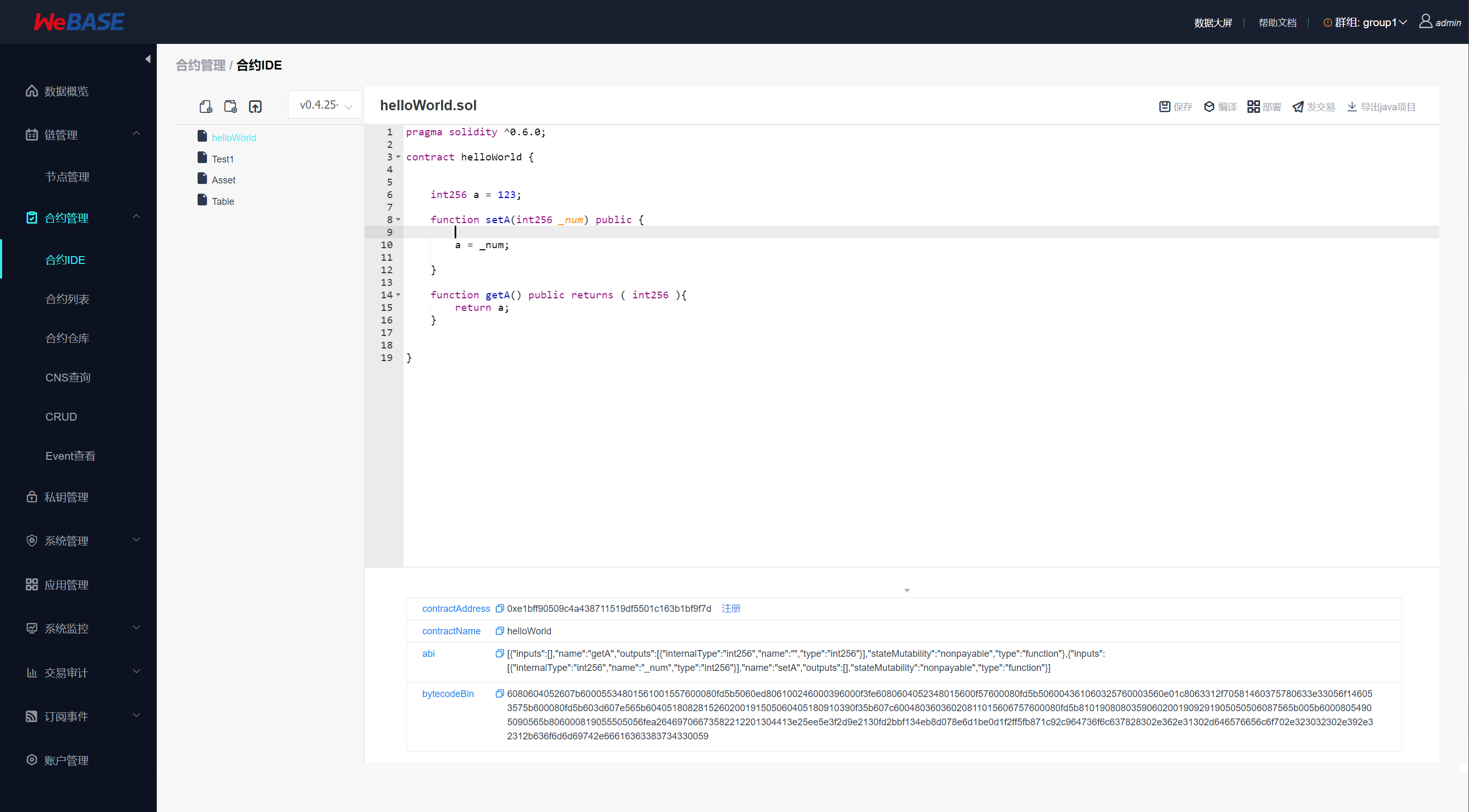

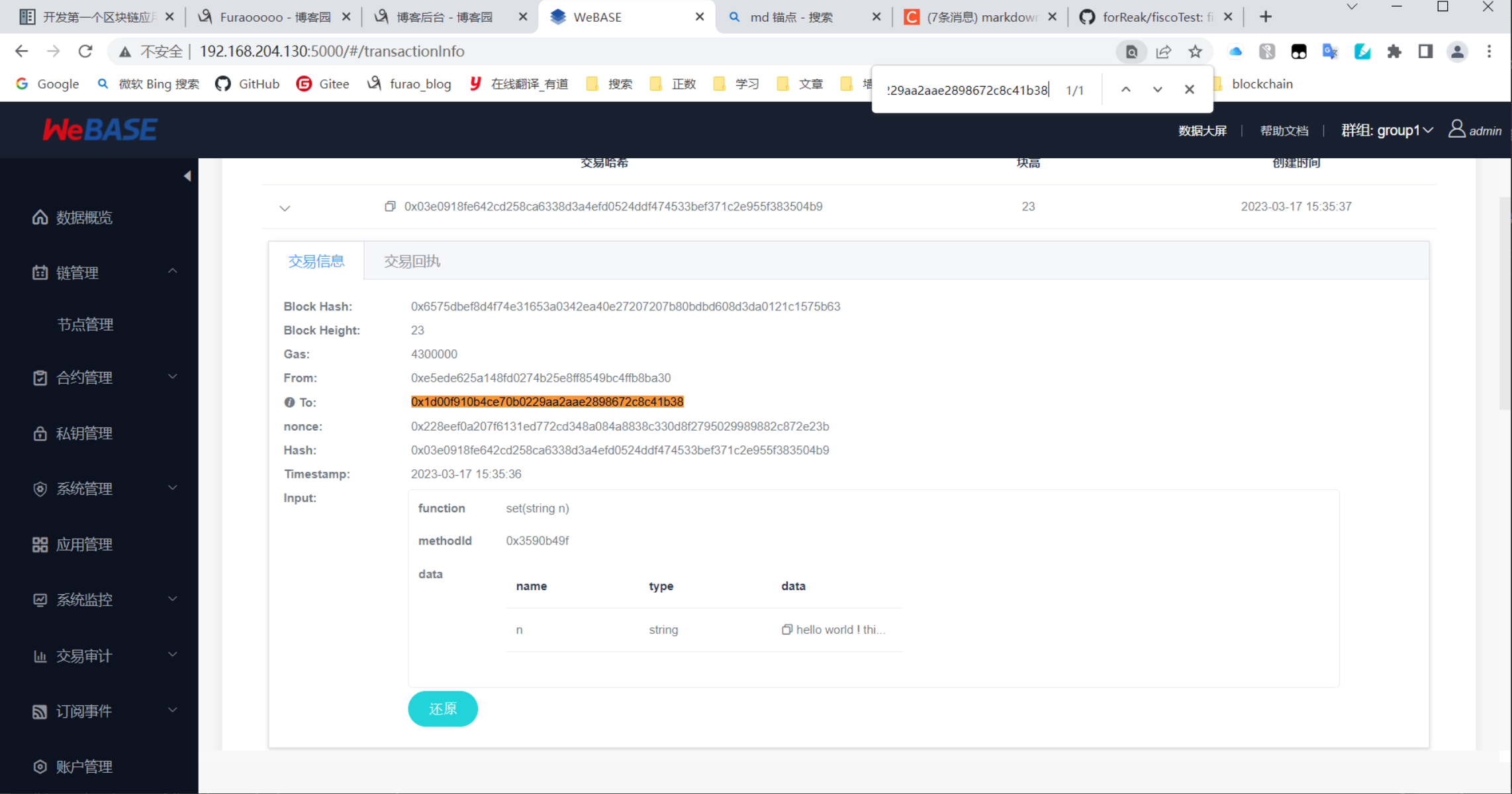

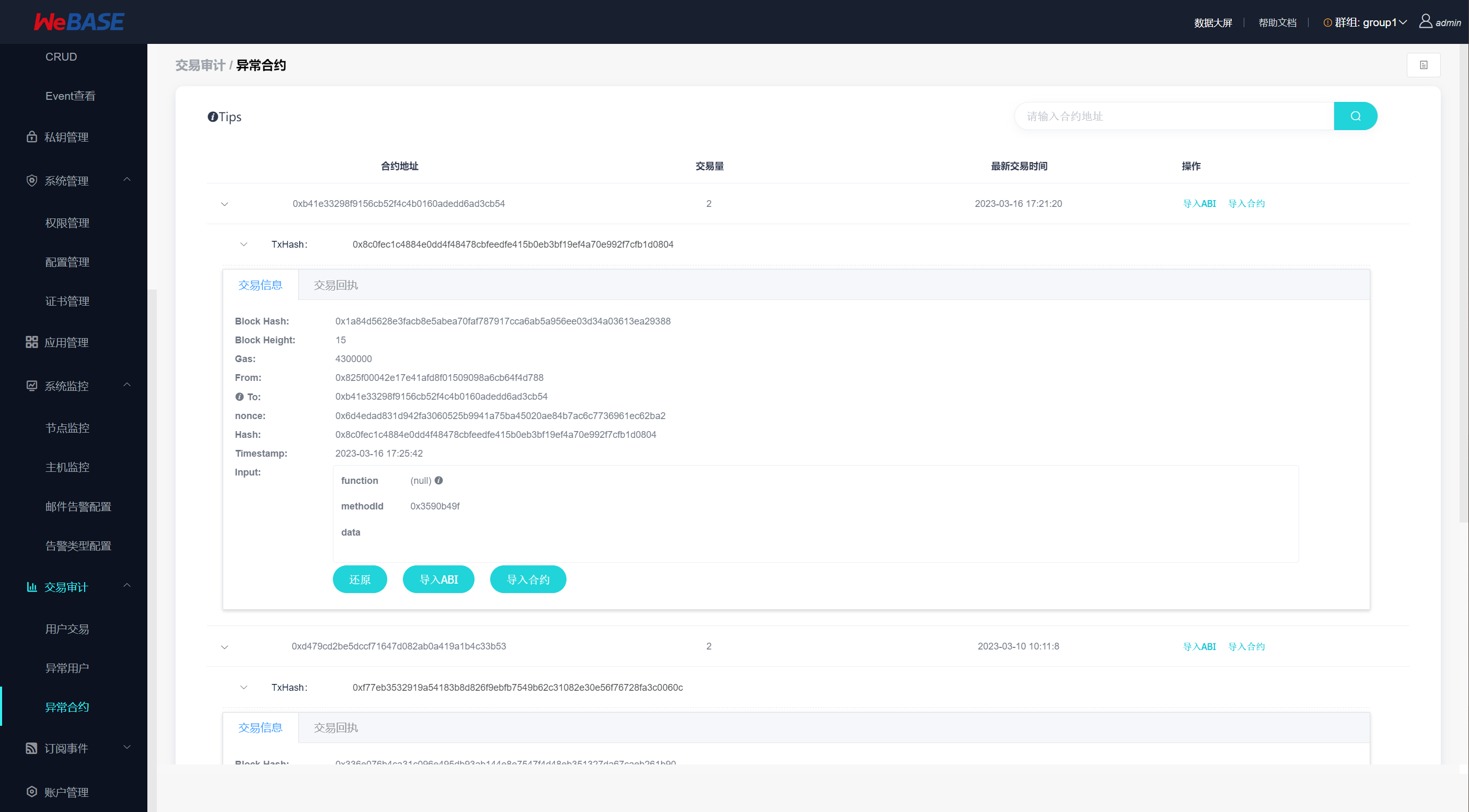

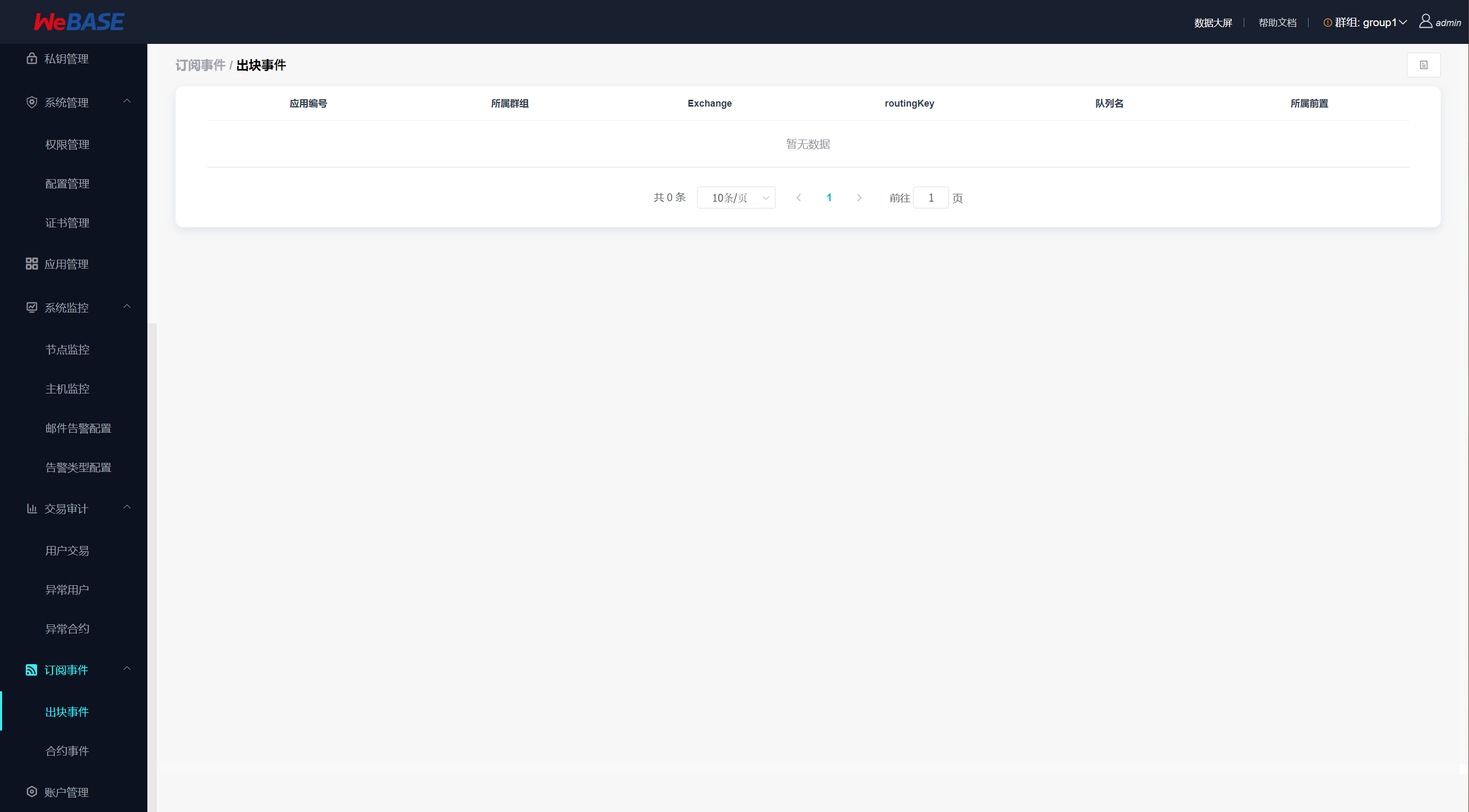

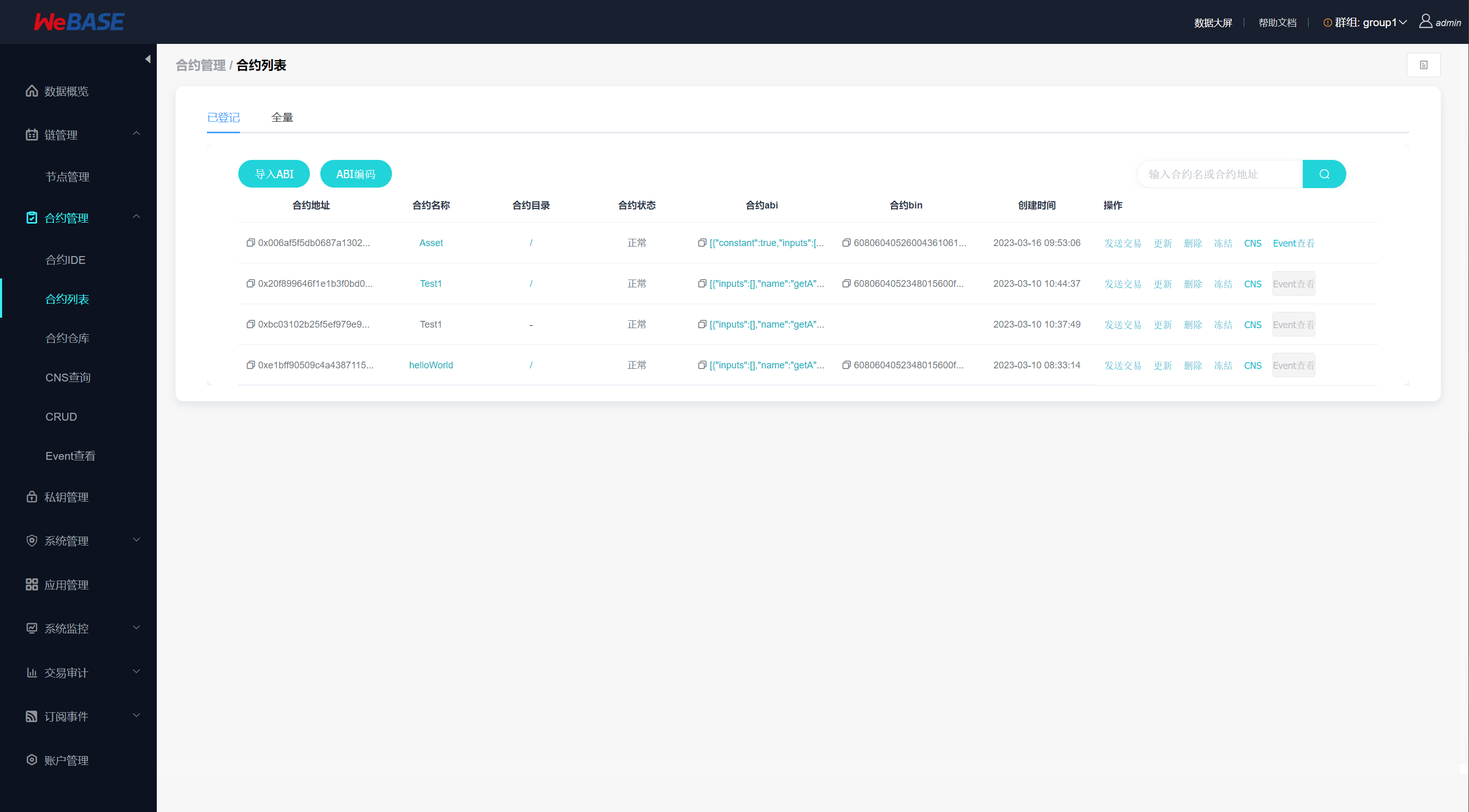

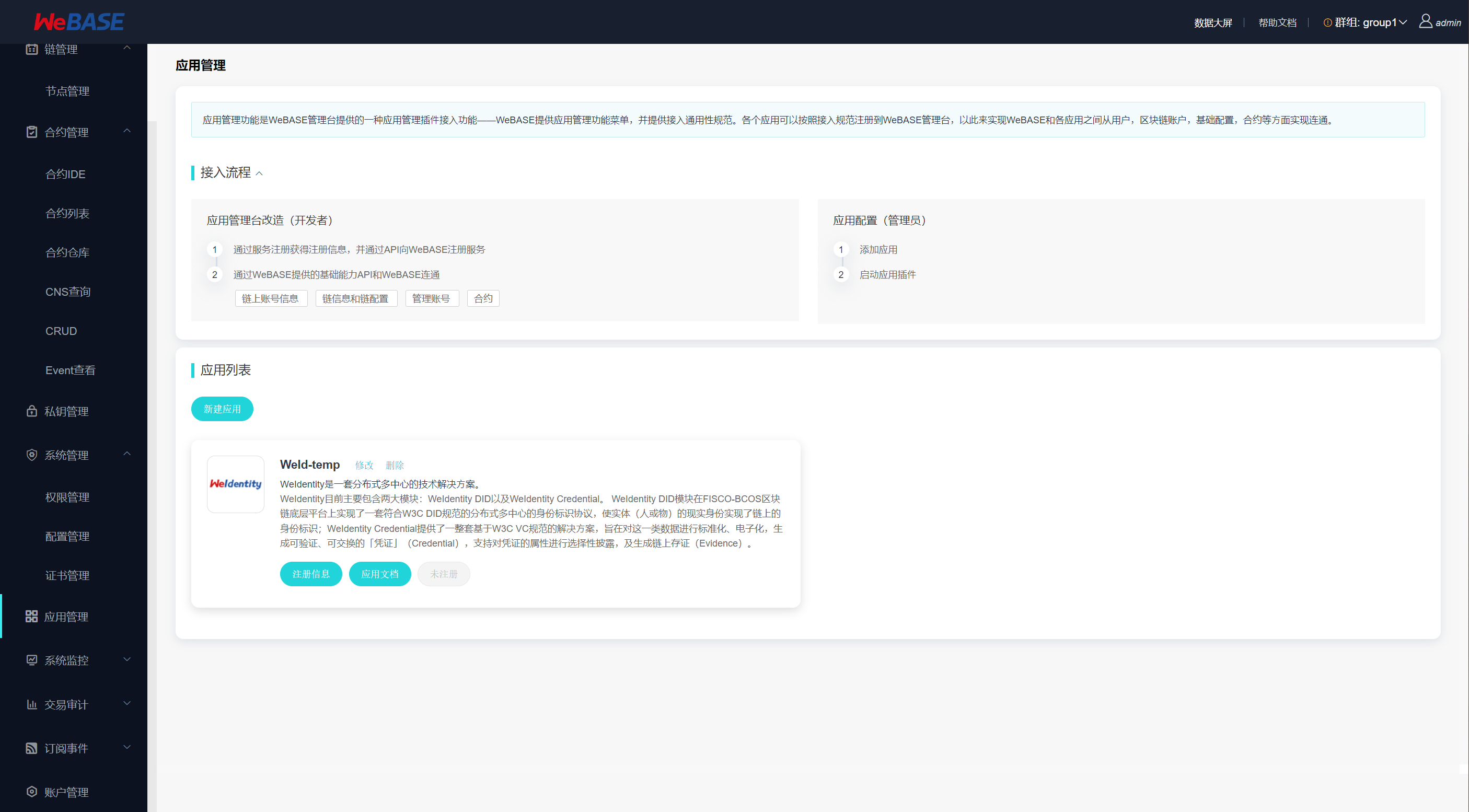

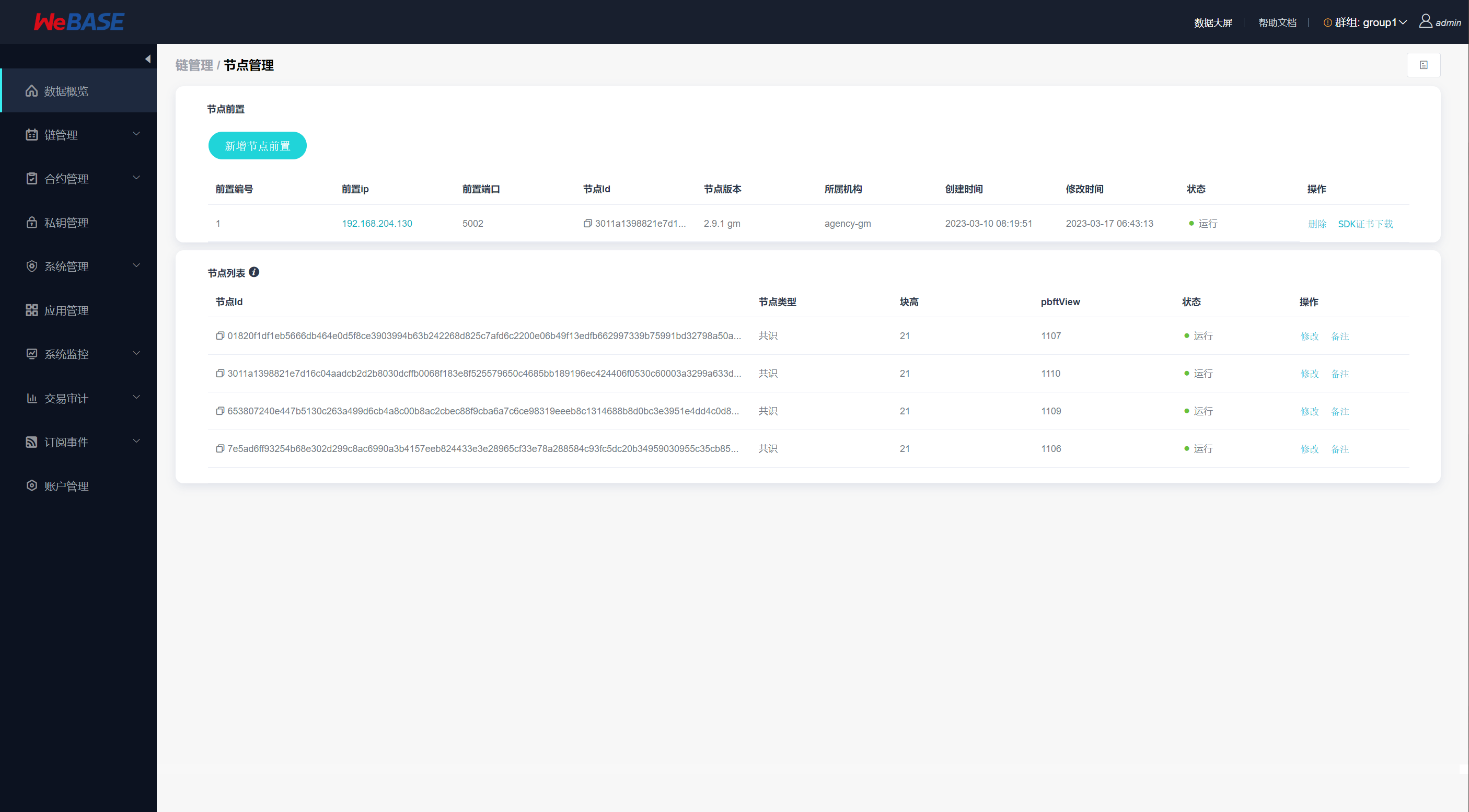

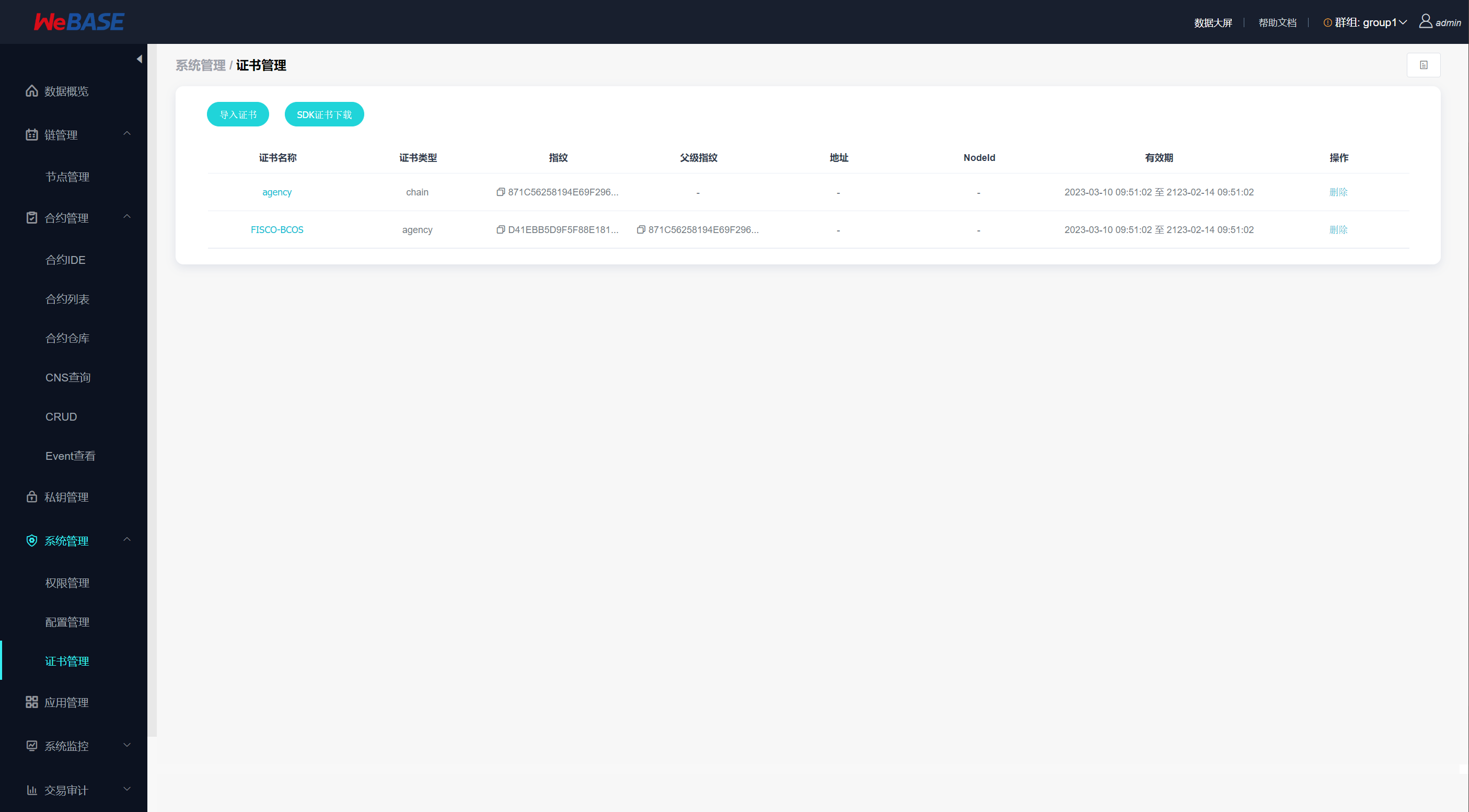

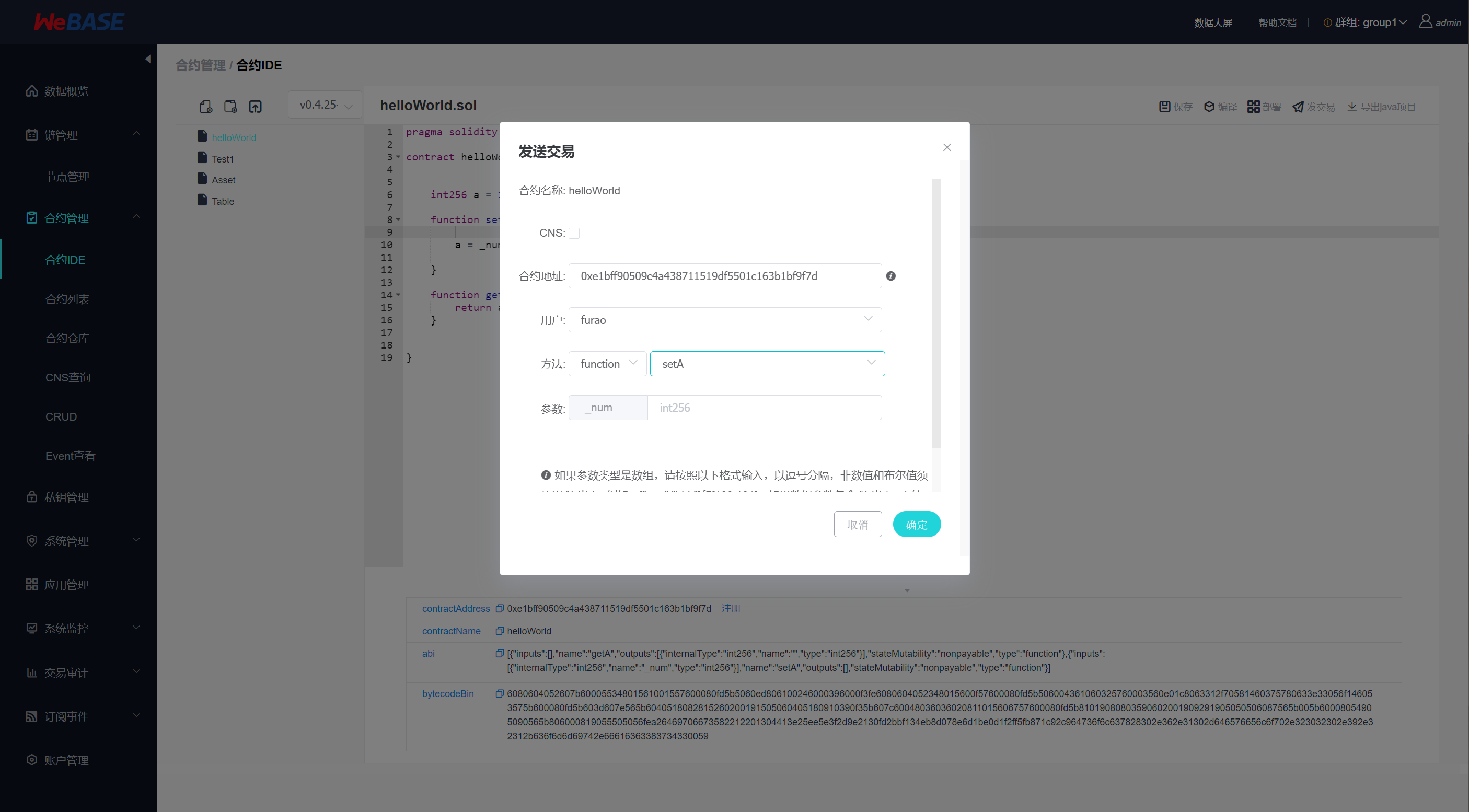

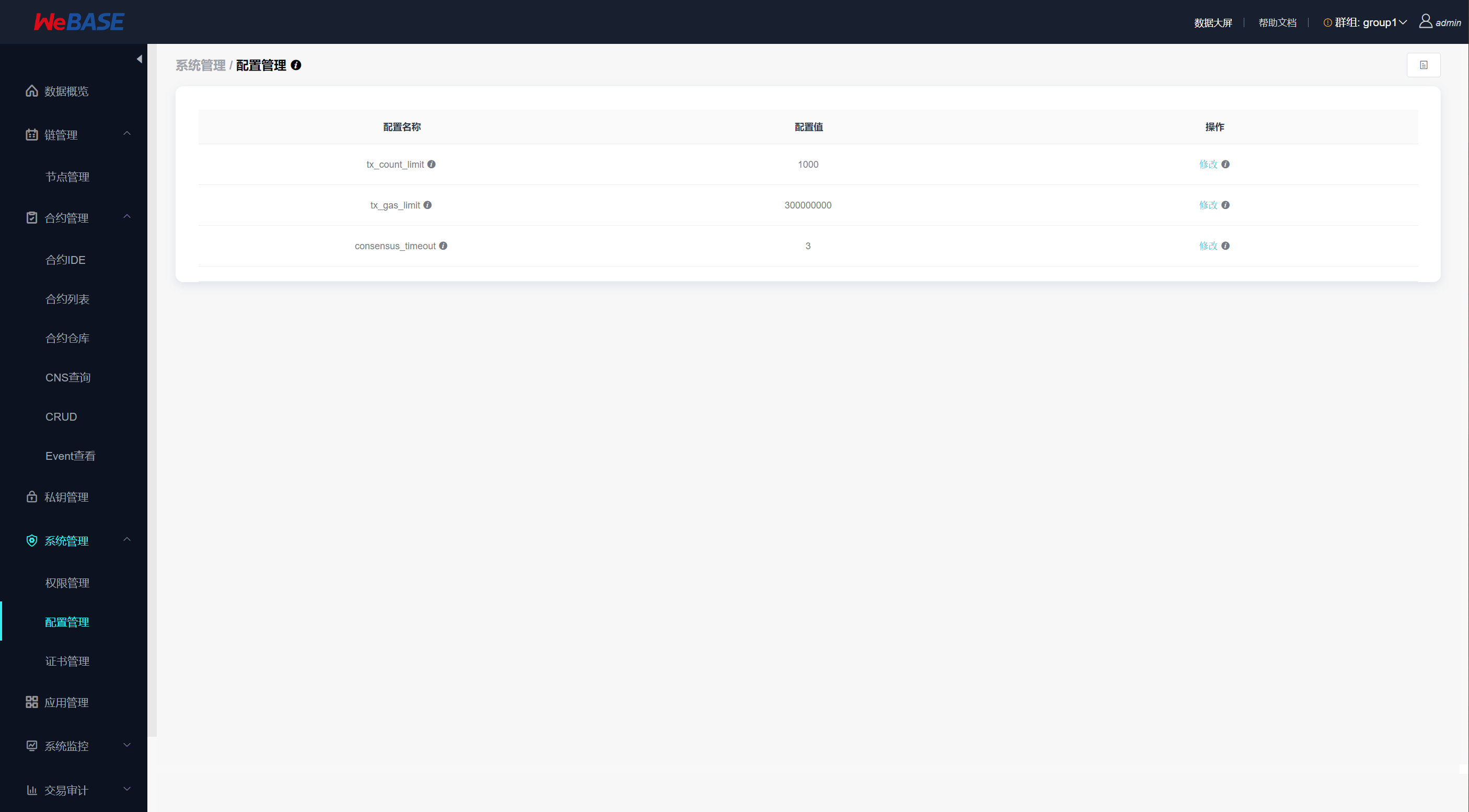

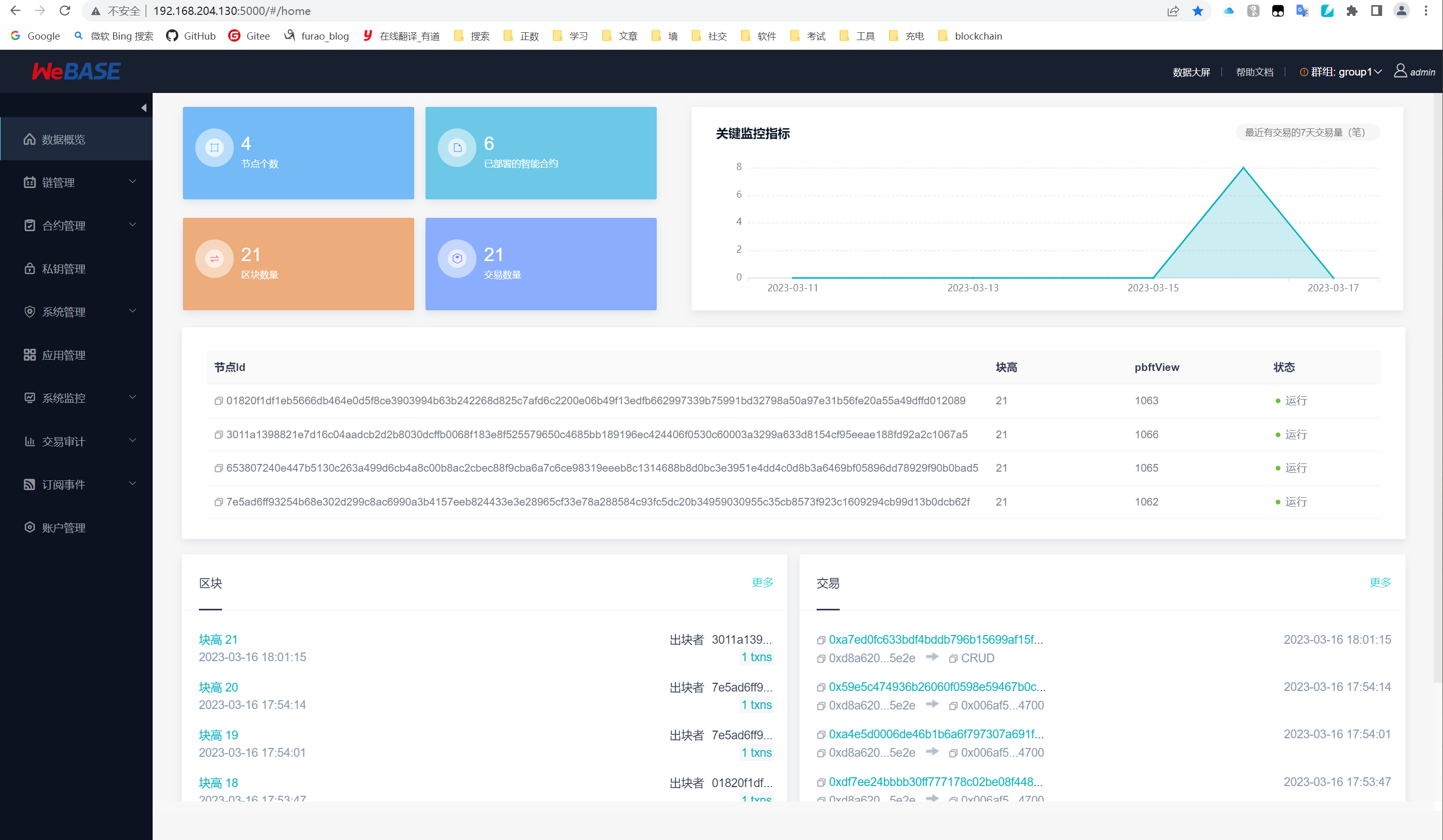

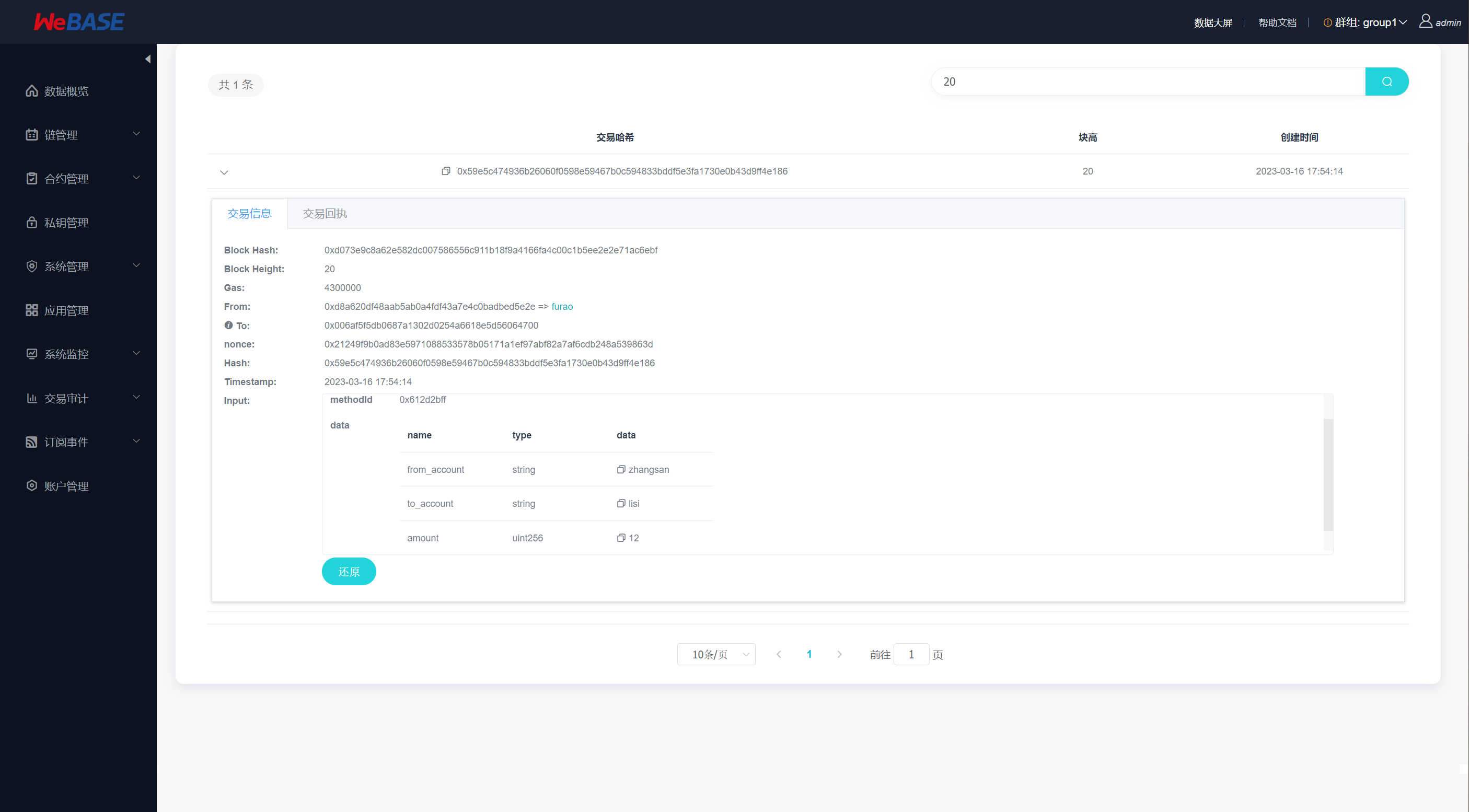

这里贴几个控制台页面，见文章最下方，用于参考。
二、sdk开发
BCOS支持使用java进行合约交互。这里是我使用的java代码。
需要注意，java 代码其中的一部分需要使用他说的 sol2java.sh 进行转换。
我的合约源码是这样：
[root@localhost solidity]# cat HelloWorld.sol
pragma solidity>=0.4.24 <0.6.11;
contract HelloWorld {
string name;
constructor() public {
name = "Hello, World!";
}
function get() public view returns (string memory) {
return name;
}
function set(string memory n) public {
name = n;
}
}
然后使用 sol2java.sh 进行转换成java代码。
转换后的代码如下：
package org.furao.fisco.contract;
import java.util.Arrays;
import java.util.Collections;
import java.util.List;
import org.fisco.bcos.sdk.abi.FunctionReturnDecoder;
import org.fisco.bcos.sdk.abi.TypeReference;
import org.fisco.bcos.sdk.abi.datatypes.Function;
import org.fisco.bcos.sdk.abi.datatypes.Type;
import org.fisco.bcos.sdk.abi.datatypes.Utf8String;
import org.fisco.bcos.sdk.abi.datatypes.generated.tuples.generated.Tuple1;
import org.fisco.bcos.sdk.client.Client;
import org.fisco.bcos.sdk.contract.Contract;
import org.fisco.bcos.sdk.crypto.CryptoSuite;
import org.fisco.bcos.sdk.crypto.keypair.CryptoKeyPair;
import org.fisco.bcos.sdk.model.CryptoType;
import org.fisco.bcos.sdk.model.TransactionReceipt;
import org.fisco.bcos.sdk.model.callback.TransactionCallback;
import org.fisco.bcos.sdk.transaction.model.exception.ContractException;
@SuppressWarnings("unchecked")
public class HelloWorld extends Contract {
public static final String[] BINARY_ARRAY = {"608060405234801561001057600080fd5b506040805190810160405280600d81526020017f48656c6c6f2c20576f726c6421000000000000000000000000000000000000008152506000908051906020019061005c929190610062565b50610107565b828054600181600116156101000203166002900490600052602060002090601f016020900481019282601f106100a357805160ff19168380011785556100d1565b828001600101855582156100d1579182015b828111156100d05782518255916020019190600101906100b5565b5b5090506100de91906100e2565b5090565b61010491905b808211156101005760008160009055506001016100e8565b5090565b90565b6102d7806101166000396000f30060806040526004361061004c576000357c0100000000000000000000000000000000000000000000000000000000900463ffffffff1680634ed3885e146100515780636d4ce63c146100ba575b600080fd5b34801561005d57600080fd5b506100b8600480360381019080803590602001908201803590602001908080601f016020809104026020016040519081016040528093929190818152602001838380828437820191505050505050919291929050505061014a565b005b3480156100c657600080fd5b506100cf610164565b6040518080602001828103825283818151815260200191508051906020019080838360005b8381101561010f5780820151818401526020810190506100f4565b50505050905090810190601f16801561013c5780820380516001836020036101000a031916815260200191505b509250505060405180910390f35b8060009080519060200190610160929190610206565b5050565b606060008054600181600116156101000203166002900480601f0160208091040260200160405190810160405280929190818152602001828054600181600116156101000203166002900480156101fc5780601f106101d1576101008083540402835291602001916101fc565b820191906000526020600020905b8154815290600101906020018083116101df57829003601f168201915b5050505050905090565b828054600181600116156101000203166002900490600052602060002090601f016020900481019282601f1061024757805160ff1916838001178555610275565b82800160010185558215610275579182015b82811115610274578251825591602001919060010190610259565b5b5090506102829190610286565b5090565b6102a891905b808211156102a457600081600090555060010161028c565b5090565b905600a165627a7a72305820aa8d37bec7b8a85e32740629893aa0bd0894e6eadefe527bc854f28f9493d1fd0029"};
public static final String BINARY = org.fisco.bcos.sdk.utils.StringUtils.joinAll("", BINARY_ARRAY);
public static final String[] SM_BINARY_ARRAY = {"608060405234801561001057600080fd5b506040805190810160405280600d81526020017f48656c6c6f2c20576f726c6421000000000000000000000000000000000000008152506000908051906020019061005c929190610062565b50610107565b828054600181600116156101000203166002900490600052602060002090601f016020900481019282601f106100a357805160ff19168380011785556100d1565b828001600101855582156100d1579182015b828111156100d05782518255916020019190600101906100b5565b5b5090506100de91906100e2565b5090565b61010491905b808211156101005760008160009055506001016100e8565b5090565b90565b6102d7806101166000396000f30060806040526004361061004c576000357c0100000000000000000000000000000000000000000000000000000000900463ffffffff168063299f7f9d146100515780633590b49f146100e1575b600080fd5b34801561005d57600080fd5b5061006661014a565b6040518080602001828103825283818151815260200191508051906020019080838360005b838110156100a657808201518184015260208101905061008b565b50505050905090810190601f1680156100d35780820380516001836020036101000a031916815260200191505b509250505060405180910390f35b3480156100ed57600080fd5b50610148600480360381019080803590602001908201803590602001908080601f01602080910402602001604051908101604052809392919081815260200183838082843782019150505050505091929192905050506101ec565b005b606060008054600181600116156101000203166002900480601f0160208091040260200160405190810160405280929190818152602001828054600181600116156101000203166002900480156101e25780601f106101b7576101008083540402835291602001916101e2565b820191906000526020600020905b8154815290600101906020018083116101c557829003601f168201915b5050505050905090565b8060009080519060200190610202929190610206565b5050565b828054600181600116156101000203166002900490600052602060002090601f016020900481019282601f1061024757805160ff1916838001178555610275565b82800160010185558215610275579182015b82811115610274578251825591602001919060010190610259565b5b5090506102829190610286565b5090565b6102a891905b808211156102a457600081600090555060010161028c565b5090565b905600a165627a7a723058200213820e973bd6ced2ea2b697ad80e27402d270ed95e854e77a8d247f96537c50029"};
public static final String SM_BINARY = org.fisco.bcos.sdk.utils.StringUtils.joinAll("", SM_BINARY_ARRAY);
public static final String[] ABI_ARRAY = {"[{\"constant\":false,\"inputs\":[{\"name\":\"n\",\"type\":\"string\"}],\"name\":\"set\",\"outputs\":[],\"payable\":false,\"stateMutability\":\"nonpayable\",\"type\":\"function\"},{\"constant\":true,\"inputs\":[],\"name\":\"get\",\"outputs\":[{\"name\":\"\",\"type\":\"string\"}],\"payable\":false,\"stateMutability\":\"view\",\"type\":\"function\"},{\"inputs\":[],\"payable\":false,\"stateMutability\":\"nonpayable\",\"type\":\"constructor\"}]"};
public static final String ABI = org.fisco.bcos.sdk.utils.StringUtils.joinAll("", ABI_ARRAY);
public static final String FUNC_SET = "set";
public static final String FUNC_GET = "get";
protected HelloWorld(String contractAddress, Client client, CryptoKeyPair credential) {
super(getBinary(client.getCryptoSuite()), contractAddress, client, credential);
}
public static String getBinary(CryptoSuite cryptoSuite) {
return (cryptoSuite.getCryptoTypeConfig() == CryptoType.ECDSA_TYPE ? BINARY : SM_BINARY);
}
public TransactionReceipt set(String n) {
final Function function = new Function(
FUNC_SET,
Arrays.<Type>asList(new org.fisco.bcos.sdk.abi.datatypes.Utf8String(n)),
Collections.<TypeReference<?>>emptyList());
return executeTransaction(function);
}
public byte[] set(String n, TransactionCallback callback) {
final Function function = new Function(
FUNC_SET,
Arrays.<Type>asList(new org.fisco.bcos.sdk.abi.datatypes.Utf8String(n)),
Collections.<TypeReference<?>>emptyList());
return asyncExecuteTransaction(function, callback);
}
public String getSignedTransactionForSet(String n) {
final Function function = new Function(
FUNC_SET,
Arrays.<Type>asList(new org.fisco.bcos.sdk.abi.datatypes.Utf8String(n)),
Collections.<TypeReference<?>>emptyList());
return createSignedTransaction(function);
}
public Tuple1<String> getSetInput(TransactionReceipt transactionReceipt) {
String data = transactionReceipt.getInput().substring(10);
final Function function = new Function(FUNC_SET,
Arrays.<Type>asList(),
Arrays.<TypeReference<?>>asList(new TypeReference<Utf8String>() {
}));
List<Type> results = FunctionReturnDecoder.decode(data, function.getOutputParameters());
return new Tuple1<String>(
(String) results.get(0).getValue()
);
}
public String get() throws ContractException {
final Function function = new Function(FUNC_GET,
Arrays.<Type>asList(),
Arrays.<TypeReference<?>>asList(new TypeReference<Utf8String>() {
}));
return executeCallWithSingleValueReturn(function, String.class);
}
public static HelloWorld load(String contractAddress, Client client, CryptoKeyPair credential) {
return new HelloWorld(contractAddress, client, credential);
}
public static HelloWorld deploy(Client client, CryptoKeyPair credential) throws ContractException {
return deploy(HelloWorld.class, client, credential, getBinary(client.getCryptoSuite()), "");
}
}本地搭建普通maven项目，pom文件如下：
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>org.example</groupId>
<artifactId>fiscoTest</artifactId>
<version>1.0-SNAPSHOT</version>
<properties>
<maven.compiler.source>8</maven.compiler.source>
<maven.compiler.target>8</maven.compiler.target>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
</properties>
<dependencies>
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.12</version>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.fisco-bcos.java-sdk</groupId>
<artifactId>fisco-bcos-java-sdk</artifactId>
<version>2.9.1</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-core</artifactId>
<version>4.3.27.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-beans</artifactId>
<version>4.3.27.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>4.3.27.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-tx</artifactId>
<version>4.3.27.RELEASE</version>
</dependency>
<dependency>
<groupId>commons-codec</groupId>
<artifactId>commons-codec</artifactId>
<version>1.14</version>
</dependency>
</dependencies>

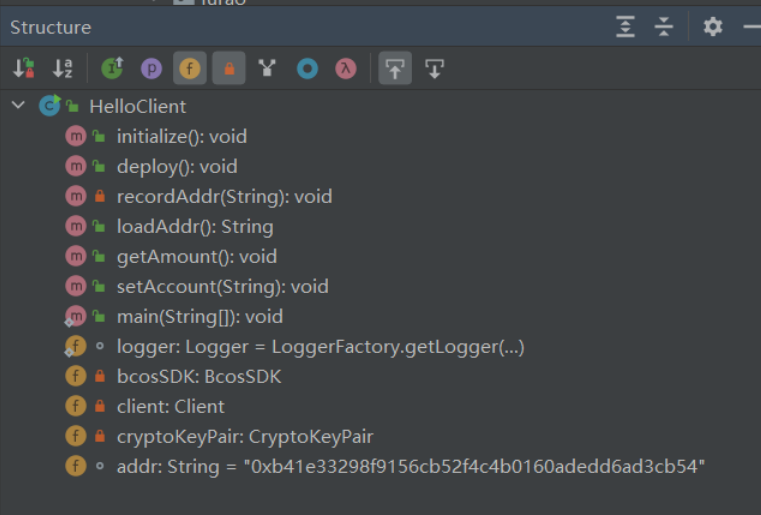

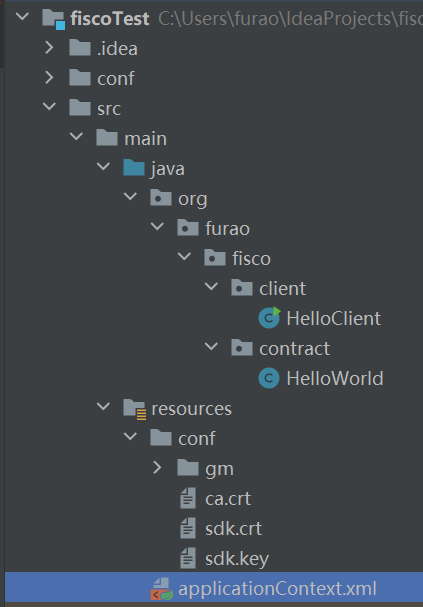

</project>把刚才生成的代码贴过来，还有注意conf 文件和证书。这个官网中提到了。之后整体的结构如下，因为我使用了国密加密，所以conf文件夹里有gm文件夹：
以及applicationContext.xml, 注意其中需要指定部署链的虚拟机ip和端口
<?xml version="1.0" encoding="UTF-8" ?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-4.0.xsd">
<bean id="defaultConfigProperty" class="org.fisco.bcos.sdk.config.model.ConfigProperty">
<property name="cryptoMaterial">
<map>
<entry key="certPath" value="conf" />
</map>
</property>
<property name="network">
<map>
<entry key="peers">
<list>
<value>192.168.204.130:20200</value>
<value>192.168.204.130:20201</value>
</list>
</entry>
</map>
</property>
<property name="account">
<map>
<entry key="keyStoreDir" value="account" />
<entry key="accountAddress" value="" />
<entry key="accountFileFormat" value="pem" />
<entry key="password" value="" />
<entry key="accountFilePath" value="" />
</map>
</property>
<property name="threadPool">
<map>
<entry key="channelProcessorThreadSize" value="16" />
<entry key="receiptProcessorThreadSize" value="16" />
<entry key="maxBlockingQueueSize" value="102400" />
</map>
</property>
</bean>
<bean id="defaultConfigOption" class="org.fisco.bcos.sdk.config.ConfigOption">
<constructor-arg name="configProperty">
<ref bean="defaultConfigProperty"/>
</constructor-arg>
</bean>
<bean id="bcosSDK" class="org.fisco.bcos.sdk.BcosSDK">
<constructor-arg name="configOption">
<ref bean="defaultConfigOption"/>
</constructor-arg>
</bean>

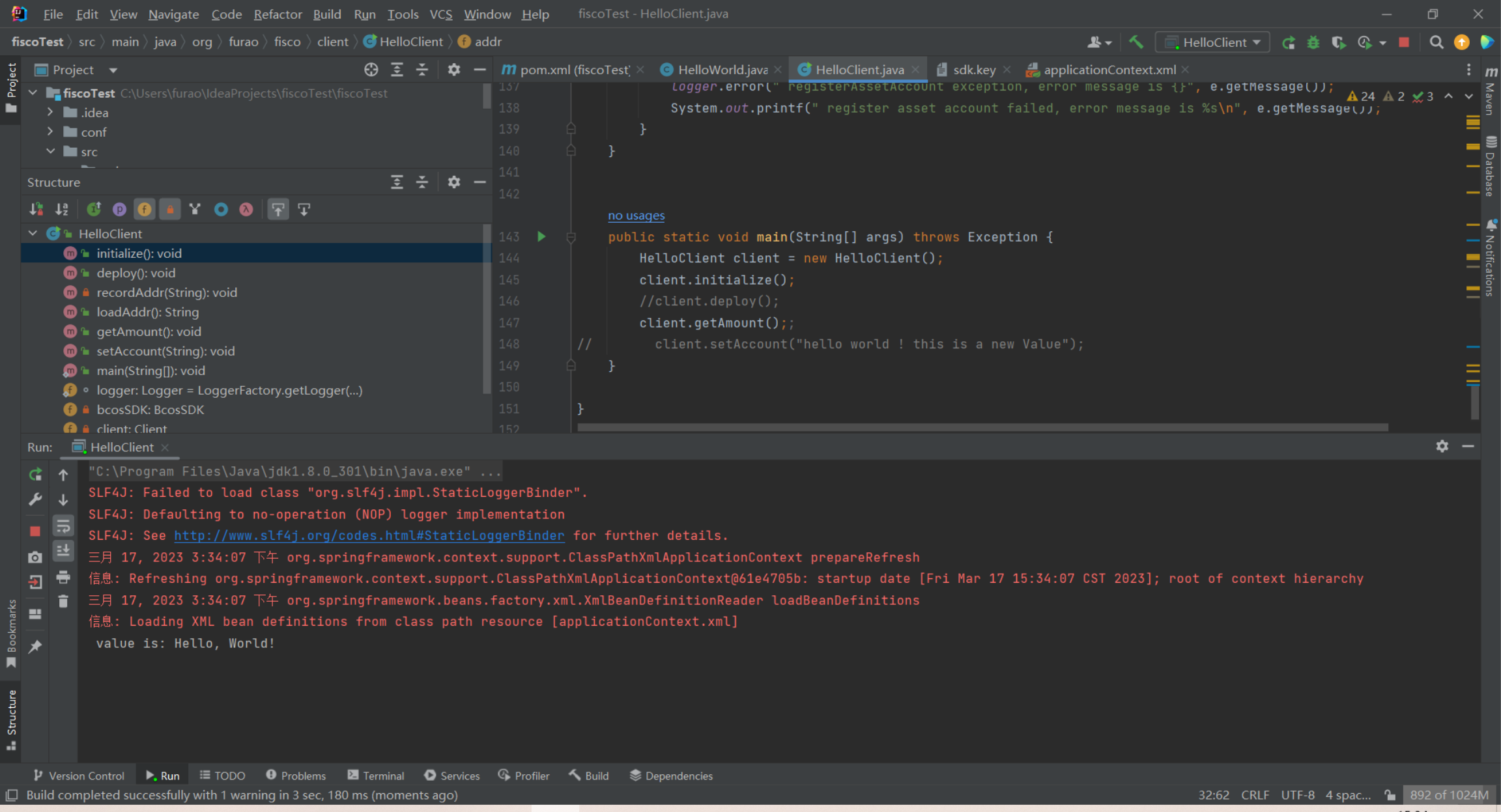

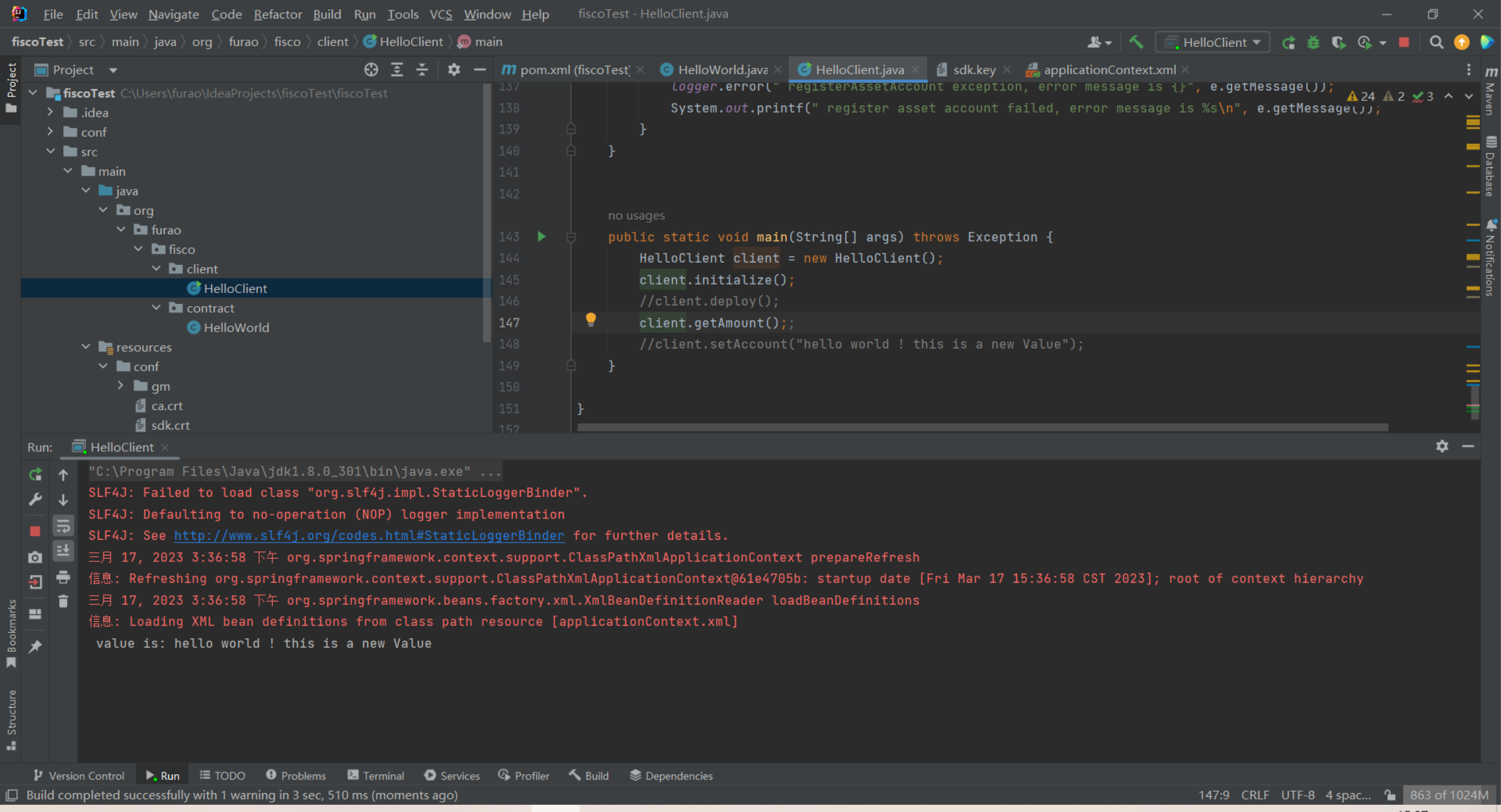

</beans>最后需要编写客户端，也就是调用合约的代码。如下：
package org.furao.fisco.client;
import java.io.FileNotFoundException;
import java.io.FileOutputStream;
import java.io.IOException;
import java.math.BigInteger;
import java.util.List;
import java.util.Properties;
import org.fisco.bcos.sdk.BcosSDK;
import org.fisco.bcos.sdk.abi.datatypes.generated.tuples.generated.Tuple2;
import org.fisco.bcos.sdk.client.Client;
import org.fisco.bcos.sdk.crypto.keypair.CryptoKeyPair;
import org.fisco.bcos.sdk.model.TransactionReceipt;
import org.furao.fisco.contract.HelloWorld;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import org.springframework.core.io.ClassPathResource;
import org.springframework.core.io.Resource;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;
public class HelloClient {
static Logger logger = LoggerFactory.getLogger(HelloClient.class);
private BcosSDK bcosSDK;
private Client client;
private CryptoKeyPair cryptoKeyPair;
String addr = "0xb41e33298f9156cb52f4c4b0160adedd6ad3cb54";
public void initialize() throws Exception {
// 函数initialize中进行初始化
// 初始化BcosSDK
@SuppressWarnings("resource")
ApplicationContext context = new ClassPathXmlApplicationContext("classpath:applicationContext.xml");
bcosSDK = context.getBean(BcosSDK.class);
// 初始化可向群组1发交易的Client
client = bcosSDK.getClient(1);
// 随机生成发送交易的公私钥对
cryptoKeyPair = client.getCryptoSuite().createKeyPair();
client.getCryptoSuite().setCryptoKeyPair(cryptoKeyPair);
logger.debug("create client for group1, account address is " + cryptoKeyPair.getAddress());
}
/**
* 部署合约
*/

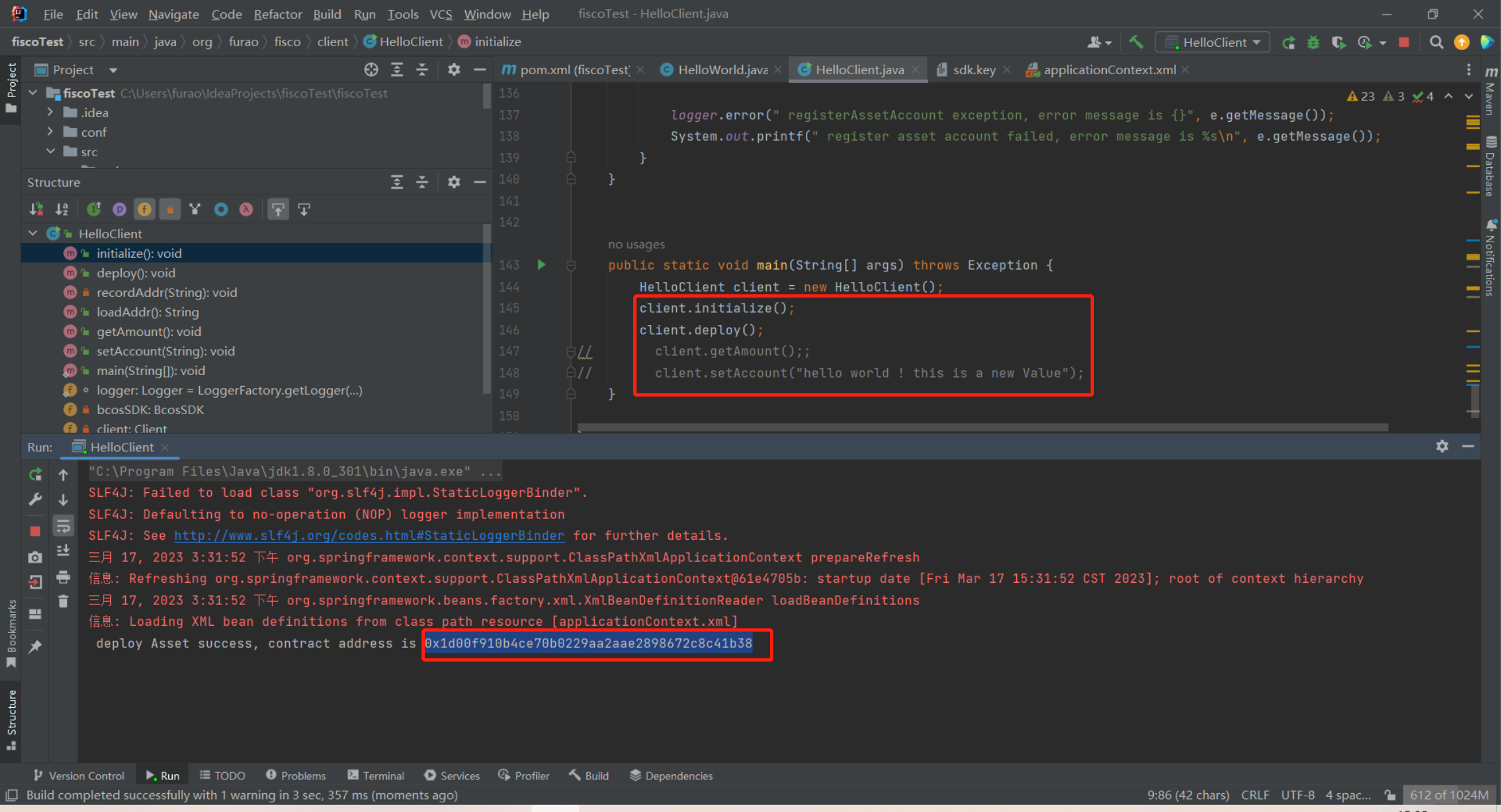

public void deploy(){
try {
HelloWorld hello = HelloWorld.deploy(client, cryptoKeyPair);
System.out.println(
" deploy Asset success, contract address is " + hello.getContractAddress());
recordAddr(hello.getContractAddress());
} catch (Exception e) {
// TODO Auto-generated catch block
// e.printStackTrace();
System.out.println(" deploy Asset contract failed, error message is " + e.getMessage());
}
}
/**
* 存储合约地址
* @param contractAddress
* @throws FileNotFoundException
* @throws IOException
*/
private void recordAddr(String contractAddress) throws FileNotFoundException, IOException {
// Properties prop = new Properties();
// prop.setProperty("address", contractAddress);
// final Resource contractResource = new ClassPathResource("contract.properties");
// FileOutputStream fileOutputStream = new FileOutputStream(contractResource.getFile());
// prop.store(fileOutputStream, "contract address");
addr = contractAddress;
}
/**
* 读取合约地址
* @return
* @throws Exception
*/
public String loadAddr() throws Exception {
// // load Asset contact address from contract.properties
// Properties prop = new Properties();
// final Resource contractResource = new ClassPathResource("contract.properties");
// prop.load(contractResource.getInputStream());
//
// String contractAddress = prop.getProperty("address");
// if (contractAddress == null || contractAddress.trim().equals("")) {
// throw new Exception(" load Asset contract address failed, please deploy it first. ");
// }
// logger.info(" load Asset address from contract.properties, address is {}", contractAddress);
return addr;
}
/**
* 从合约中获取数据
*/
public void getAmount() {
try {
String contractAddress = loadAddr();
HelloWorld hello = HelloWorld.load(contractAddress, client, cryptoKeyPair);
String s = hello.get();
System.out.println(" value is: "+ s);
} catch (Exception e) {
// TODO Auto-generated catch block
// e.printStackTrace();
logger.error(" queryAssetAmount exception, error message is {}", e.getMessage());
System.out.printf(" query asset account failed, error message is %s\n", e.getMessage());
}
}
/**
* 持久化合约中的属性
* @param amount
*/
public void setAccount(String amount) {
try {
String contractAddress = loadAddr();
HelloWorld hello = HelloWorld.load(contractAddress, client, cryptoKeyPair);
TransactionReceipt receipt = hello.set(amount);
} catch (Exception e) {
// TODO Auto-generated catch block
// e.printStackTrace();
logger.error(" registerAssetAccount exception, error message is {}", e.getMessage());
System.out.printf(" register asset account failed, error message is %s\n", e.getMessage());
}
}
public static void main(String[] args) throws Exception {
HelloClient client = new HelloClient();
client.initialize();
client.getAmount();;
// client.setAccount("hello world ! this is a new Value");
}
}整体代码位置在github中 https://github.com/forReak/fiscoTest
如何使用：
官网中的教程太复杂了，这里简单点，直接在ide中进行运行main函数。
HelloClient 中声明了几个方法
从上往下一次是初始化，部署合约，记录合约地址，读取合约地址，从合约属性中获取数据，设置数据及main方法。
首先进行部署合约。这时main'方法如下：
如上图就说明已经成功部署，并打印出合约地址 0x1d00f910b4ce70b0229aa2aae2898672c8c41b38。这个时候一定要将这个地址存起来，程序里我放到addr属性中了。
然后调用合约。
可见程序打印出合约中本身存储的数据。
然后重新设置值，调用 setAccount方法。
public static void main(String[] args) throws Exception {
HelloClient client = new HelloClient();
client.initialize();
//client.deploy();
//client.getAmount();;
client.setAccount("hello world ! this is a new Value");
}setAccount方法没有打印，等待一段时间后，重新运行getAmount 方法，即可看到新数据
至此，已经完成了如何使用sdk进行合约部署以及合约调用。
刚才的交易也可以在控制台中查到，如下：
三、控制台页面
浙公网安备 33010602011771号
