Day13-14：MCP协议
MCP协议由入门到精通2
一、MCP介绍
1 MCP是什么

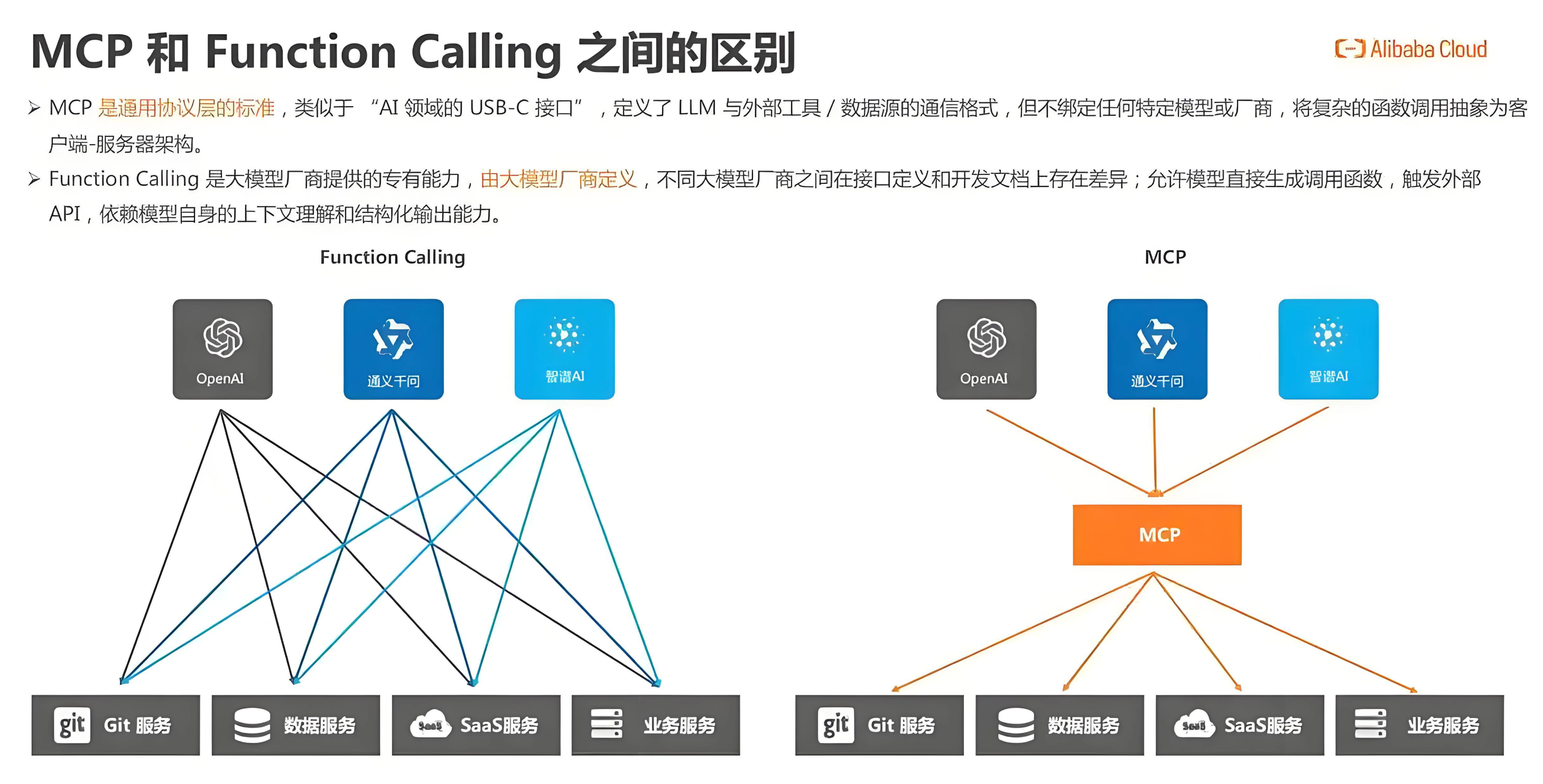

MCP（Model Context Protocol，译作：模型上下文协议）是由Anthropic公司（Claude大模型的母公司）于2024年11月25日发布的一种开放通信标准协议，旨在解决目前AI大模型因为数据孤岛限制而无法充分发挥潜力的问题，统一大模型语言（LLM）与外界数据源和工具之间的通信协议，它就像 USB-C 接口一样，提供了一种标准化的方法，将 AI 模型连接到各种数据源和工具，为 AI 应用提供了连接万物的接口。

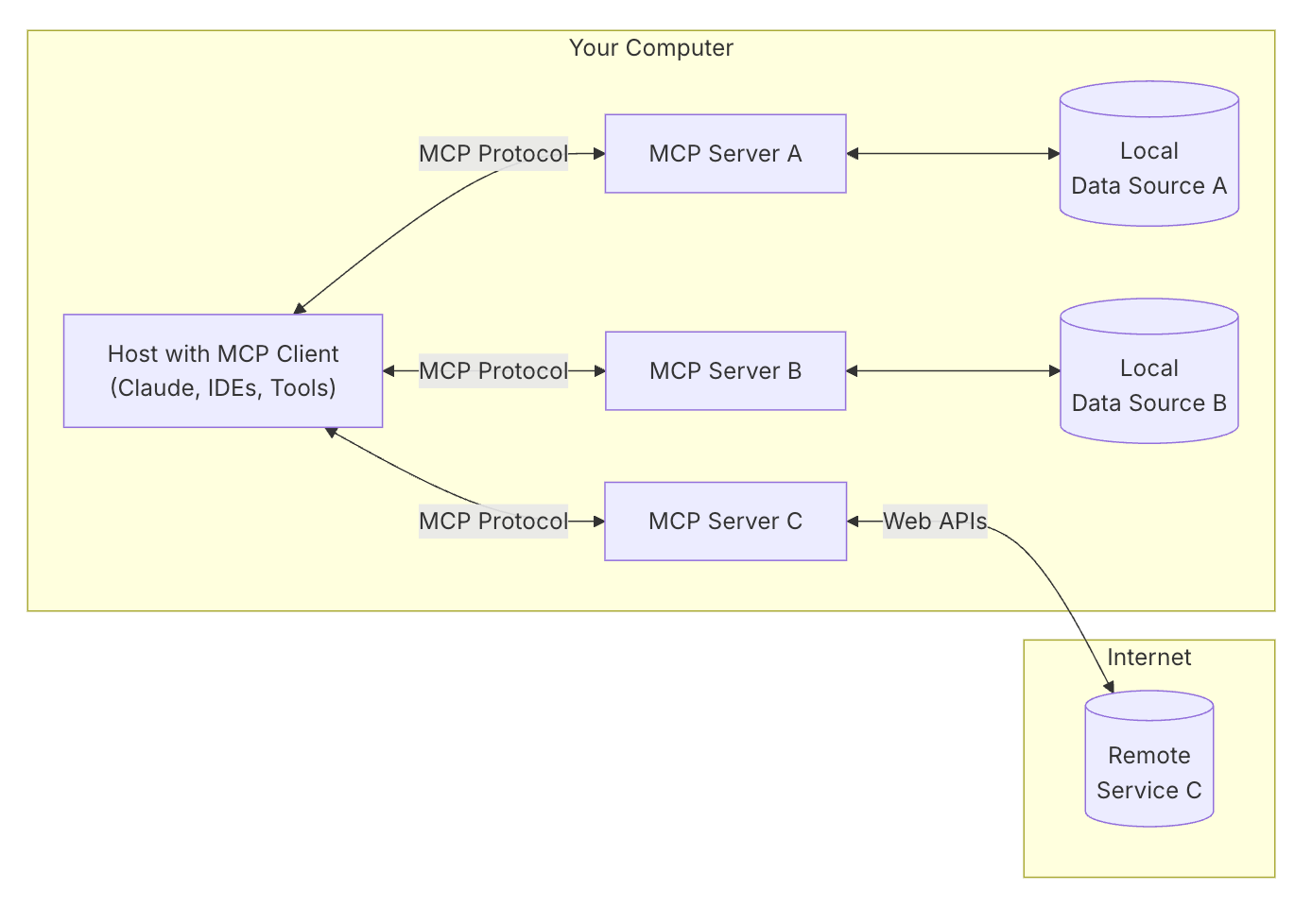

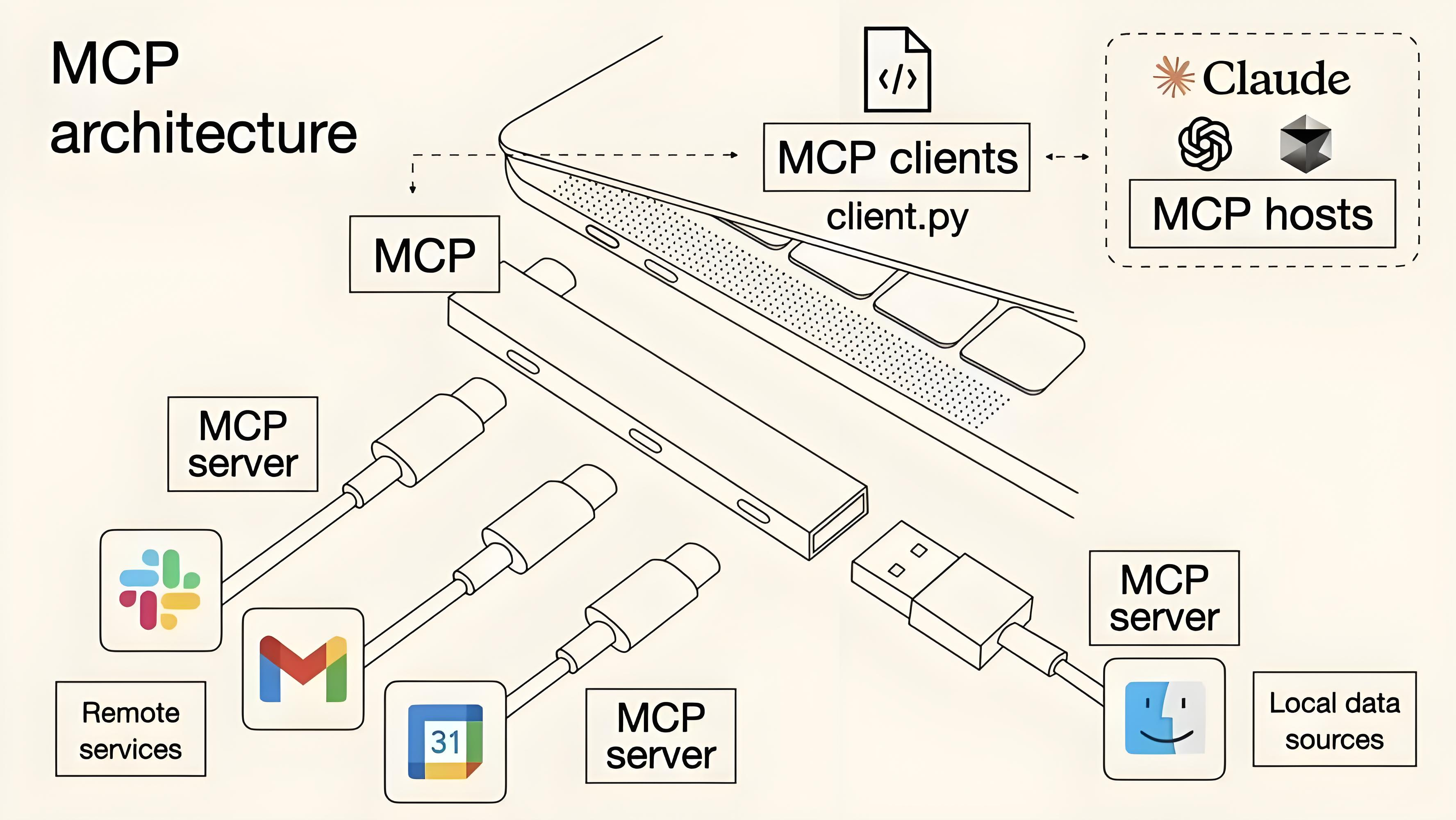

2 MCP架构
MCP采用简单的客户端-服务器架构模式：
| 架构组件 | 描述 |
|---|---|
| MCP Host | 通过 MCP 访问数据的 Claude Desktop、IDE 、 AI 工具或自己开发应用等程序 |
| MCP Clients | 与服务器保持 1：1 连接的协议客户端 |
| MCP Servers | 轻量级程序，每个程序都通过标准化的 Model Context Protocol 公开特定功能 |
| Local Data Sources | MCP 服务器可以安全访问的计算机文件、数据库和服务 |
| Remote Services | MCP 服务器可以连接到的 Internet 上可用的外部系统（例如，通过 API） |
MCP 大概的工作方式：MCP Host，比如 Claude Desktop、Cursor 这些工具，在内部实现了 MCP Client，然后MCP Client 通过标准的 MCP 协议和 MCP Server 进行交互，由各种三方开发者提供的 MCP Server 负责实现各种和三方资源交互的逻辑，比如访问数据库、浏览器、本地文件，最终再通过 标准的 MCP 协议返回给 MCP Client，最终在 MCP Host 上展示。
开发者按照 MCP 协议进行开发，无需为每个模型与不同资源的对接重复编写适配代码，可以大大节省开发工作量，另外已经开发出的 MCP Server，因为协议是通用的，能够直接开放出来给大家使用，这也大幅减少了开发者的重复劳动。
3. MCP的通信模式
MCP 协议中的 STDIO 和 SSE 其实就是是两种不同的（MCP Server 与 MCP Client）通信模式：
- STDIO（标准输入输出）：像「面对面对话」：客户端和服务器通过本地进程的标准输入和标准输出直接通信。例如：本地开发时，你的代码脚本通过命令行启动，直接与 MCP 服务器交换数据，无需网络连接。
- SSE（服务器推送事件）：像「电话热线」：客户端通过 HTTP 协议连接到远程服务器，服务器可以主动推送数据（如实时消息）。例如：AI 助手通过网页请求调用远程天气 API，服务器持续推送最新的天气信息。
简单理解，STDIO 调用方式是将一个 MCP Server 下载到你的本地，直接调用这个工具，而 SSE 则是通过 HTTP 服务调用托管在远程服务器上的 MCP Server。
4 MCP服务
mcp发布后已经有大量的 McpServer提供使用，整个生态发展非常迅速，因此我们在掌握如何编写MCP的同时，也需要了解如何介入大量的第三方MCPServers帮助我们快速拓展AI业务。
MCP 服务如雨后春笋般一下都涌了出来，MCP 市场也一下多了起来
mcp.so/zh/servers MCP.so 上目前已经有9千多个MCP服务
魔搭社区的MCP 广场。还可以在线调试你的MCP服务 MCP 广场 · 魔搭社区
| MCP平台 | 地址 |
|---|---|
| ModelContextProtocol | https://github.com/modelcontextprotocol/servers |
| MCP Market | https://mcpmarket.com/ |
| MCP.so | https://mcp.so/zh |
| SmitheryAI | https://smithery.ai/ |
| PulseMCP | https://www.pulsemcp.com/ |
| GlamaAI | https://glama.ai/mcp/servers |
| cursor.directory | https://cursor.directory/mcp |
| Awesome MCP servers | https://github.com/punkpeye/awesome-mcp-servers |
| MCP Servers | https://mcpservers.org/ |
| OpenTools | https://opentools.com/registry |
| MCP Composio | https://mcp.composio.dev/ |
| MCP-Get | https://mcp-get.com/ |
| Gumloop | https://www.gumloop.com/mcp |
| ClineMCPMarketplace | https://cline.bot/mcp-marketplace |

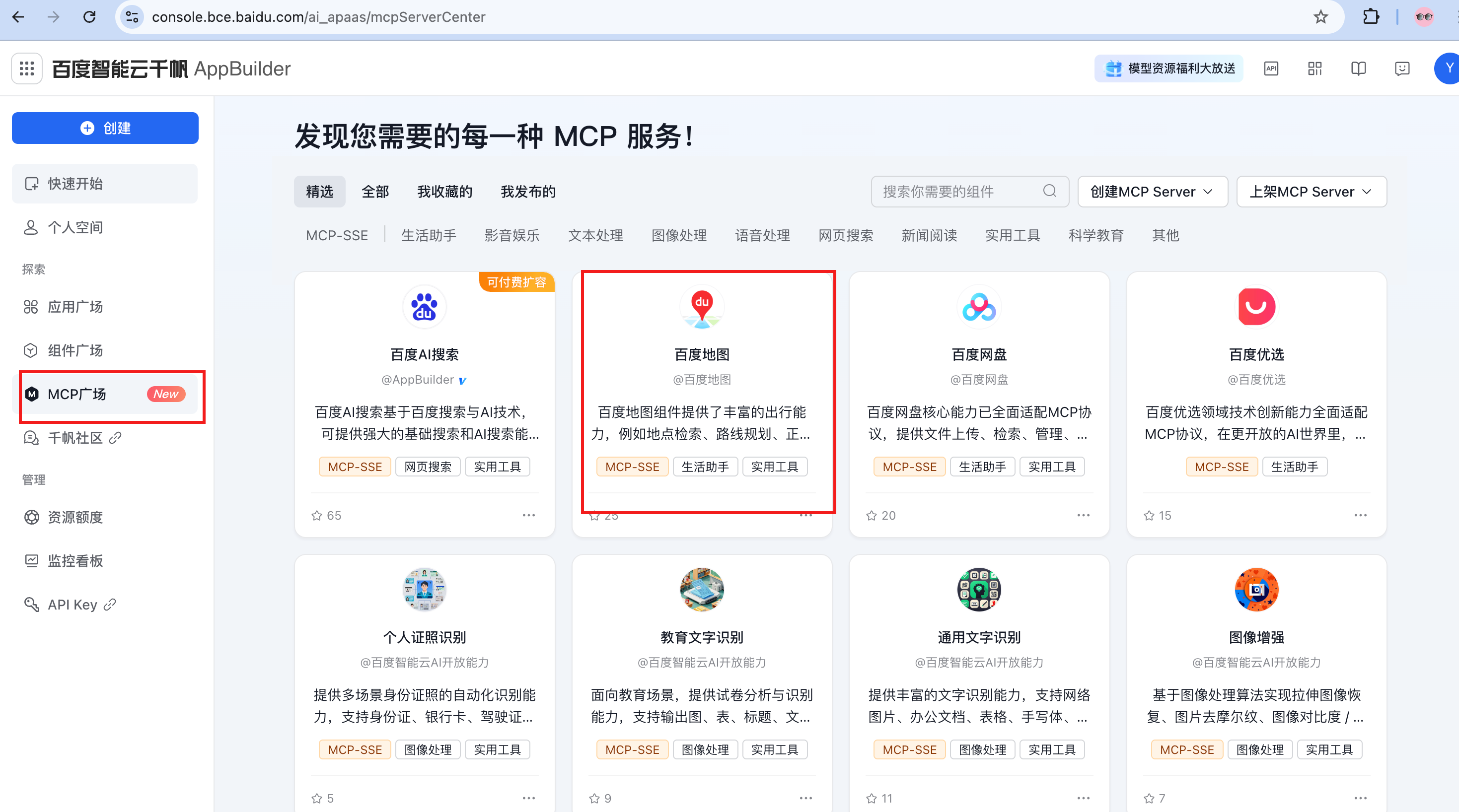

| 百度MCP平台（4月25日） | https://sai.baidu.com/ai/mcp |
| 魔塔MCP广场 | https://www.modelscope.cn/mcp |
| 百炼MCP广场 | https://bailian.console.aliyun.com/?tab=mcp |
| 腾讯云MCP广场 | https://cloud.tencent.com/developer/mcp |
| mcpservers | https://www.mcpservers.cn/ |
| MCP星球 | https://mcpmarket.cn/ |
二、MCP实战案例
1. MCP实现：FastMCP
FastMCP是一个基于Python的高级框架，专为构建MCP服务器而设计。它极大简化了MCP服务器的开发流程，让开发者能够以最小的代码量创建功能强大的MCP服务器。
FastMCP的主要特点包括：
- 简洁的API：通过装饰器模式，简化MCP服务器的创建
- 丰富的功能：支持工具（Tools）、资源（Resources）、提示模板（Prompts）等MCP核心元素
- 多种传输方式：支持stdio和SSE等不同传输协议
- 类型安全：利用Python的类型提示，自动生成MCP协议所需的模式定义
- 内置图像处理：支持图像数据的自动格式转换和处理
使用FastMCP，开发者可以专注于业务逻辑，而不必过多关注底层协议细节。
2. MCP搭建
https://github.com/ConardLi/mcp-client-nodejs
3. mcp server
【1】搜索新闻
import os
import json
import smtplib
from datetime import datetime
from email.message import EmailMessage
from mcp.server.fastmcp import FastMCP
from dotenv import load_dotenv
from openai import OpenAI
from typing import *
import httpx
# 加载环境变量
load_dotenv()
# 初始化 MCP 服务器
mcp = FastMCP("NewsServer")
@mcp.tool()
async def search_news(wd: str) -> str:
"""
描述：根据关键词搜索新闻数据
参数:
wd (str): 关键词
返回:
str: 字符串，包含查询json字符在内
"""
try:
API_KEY = os.getenv("NEWS_API_KEY")
if not API_KEY:
return "NEWS_API_KEY需要配置"
# 设置请求参数并发送请求
url = f"https://newsapi.org/v2/everything"
async with httpx.AsyncClient() as client:
response = await client.get(url, params={
"q": wd,
"from": "2025-05-10",
"sortBy": "publishedAt",
"apiKey": API_KEY
})
data = response.json()
news = [
{
"title": item.get("title"),
"description": item.get("description"),
"url": item.get("url")
} for item in data["articles"][:10] if item.get("description")
]
# 将新闻结果以带有时间戳命名后的 JSON 格式文件的形式保存在本地指定的路径
output_dir = "./search_news"
os.makedirs(output_dir, exist_ok=True)
filename = f"news_{wd}_{datetime.now().strftime('%Y%m%d_%H%M%S')}.json"
file_path = os.path.join(output_dir, filename)
with open(file_path, "w") as f:
json.dump(news, f, ensure_ascii=False, indent=4)
return f"""
# 已搜索到【{wd}】 相关的新闻：
{json.dumps(news, ensure_ascii=False, indent=2)}
# 📃文件保存路径：{file_path}
"""
except Exception as e:
return "search news error:" + str(e)
【2】查询天气
WEATHER_TOKEN = "SI876Lq1AhSR70Unn"
async def make_nws_request(url: str, params: dict | None = None) -> Dict[str, Any] | None:
"""
发起http请求，获取响应数据
"""
async with httpx.AsyncClient() as client:
headers: dict = {
"User-Agent": "weather-app/1.0",
"Accept": "application/geo+json",
}
try:
response: httpx.Response = await client.get(url, params=params or {}, headers=headers, timeout=30.0)
response.raise_for_status()
return response.json()
except httpx.HTTPError as e:
print(f"HTTP请求失败: {e}")
return None
@mcp.tool()
async def search_forecast(city: str) -> str:
"""Get weather forecast for pinyin of the city.
Args:
city: pinyin of the city
"""
api_url = f"https://api.seniverse.com/v3/weather/daily.json"
api_params = {
"key": WEATHER_TOKEN,
"location": city,
"language": "zh-Hans",
"unit": "c",
"start": 0,
"days": 5
}
response_data = await make_nws_request(api_url, api_params)
if not response_data:
return "Unable to fetch detailed forecast data for pinyin of the city."
location = response_data["results"][0]["location"]
daily = response_data["results"][0]["daily"]
forecasts = []
for period in daily:
forecast = f"""
{location['name']}:
日期: {period['date']}
白天: {period['text_day']}
夜间: {period['text_night']}
温度: {period['low']}° ~ {period['high']}°
风力: {period['wind_direction']}{period['wind_scale']}级 {period['wind_speed']}km/h
"""
forecasts.append(forecast)
return "\n---\n".join(forecasts)
【3】大模型分析文本
Python调用大模型：openai
async def open_ai(text):
openai_key = os.getenv("DASHSCOPE_API_KEY")
model = os.getenv("MODEL")
client = OpenAI(api_key=openai_key, base_url=os.getenv("BASE_URL"))
# 构造情感分析的提示词
prompt = f"请对以下内容进行综合分析：\n\n{text}"
# 向模型发送请求，并处理返回的结果
response = client.chat.completions.create(
model=model,
messages=[{"role": "user", "content": prompt}]
)
result = response.choices[0].message.content.strip()
return result
大模型分析文本：
@mcp.tool()
async def analyze_report(query: str, data: str, ) -> str:
"""
对传入的一段文本内容或者数据进行综合分析，并保存为指定名称的 Markdown 文件。
参数:
data (str): 上一个工具返回的数据文本
query：提示词要求
返回:
str: 文件路径
"""
# 按要求生成文案
prompt = f"""
数据：{data}
要求：{query}
"""
open_ai_res = await open_ai(prompt)
print("result:::")
# 生成 Markdown 格式的舆情分析报告，并存放进设置好的输出目录
markdown = f"""# 综合分析报告
**分析时间：** {datetime.now().strftime('%Y-%m-%d %H:%M:%S')}
------------------------
## 📃📃📃 原内容 📃📃📃
{data}
------------------------
## 📚📚📚 分析结果 📚📚📚
{open_ai_res}
"""
# 写文件操作
output_dir = "./reports"
os.makedirs(output_dir, exist_ok=True)
timestamp = datetime.now().strftime('%Y%m%d_%H%M%S')
file_name = f"{query[:24]}_{timestamp}.md"
file_path = output_dir + "/" + file_name
with open(file_path, "w", encoding="utf-8") as f:
f.write(markdown)
return file_name
【4】发送邮件
@mcp.tool()
async def send_email(to: str, subject: str, body: str, filename: str) -> str:
"""
将md文件作为附件发送给指定邮箱。
参数:
to: 收件人邮箱
subject: 邮件主题
body: 邮件内容
filename: md文件名
返回:
邮件发送结果
"""
# 获取并配置 SMTP 相关信息
smtp_server = os.getenv("SMTP_SERVER") # 例如 smtp.qq.com
smtp_port = int(os.getenv("SMTP_PORT", 465))
sender_email = os.getenv("EMAIL_USER")
sender_pass = os.getenv("EMAIL_PASS")
# 获取附件文件的路径，并进行检查是否存在
full_path = os.path.abspath(os.path.join("./reports", filename))
if not os.path.exists(full_path):
return f"路径{full_path}不存在"
# 创建邮件并设置内容
msg = EmailMessage()
msg["Subject"] = subject
msg["From"] = sender_email
msg["To"] = to
msg.set_content(body)
# 添加附件并发送邮件
try:
with open(full_path, "rb") as f:
file_data = f.read()
file_name = os.path.basename(full_path)
msg.add_attachment(file_data, maintype="application", subtype="octet-stream", filename=file_name)
except Exception as e:
return f"文件操作失败: {str(e)}"
try:
with smtplib.SMTP_SSL(smtp_server, smtp_port) as server:
server.login(sender_email, sender_pass)
server.send_message(msg)
return f"邮件已成功发送给 {to}，附件路径: {full_path}"
except Exception as e:
return f"邮件发送失败: {str(e)}"
if __name__ == "__main__":
mcp.run(transport='stdio')

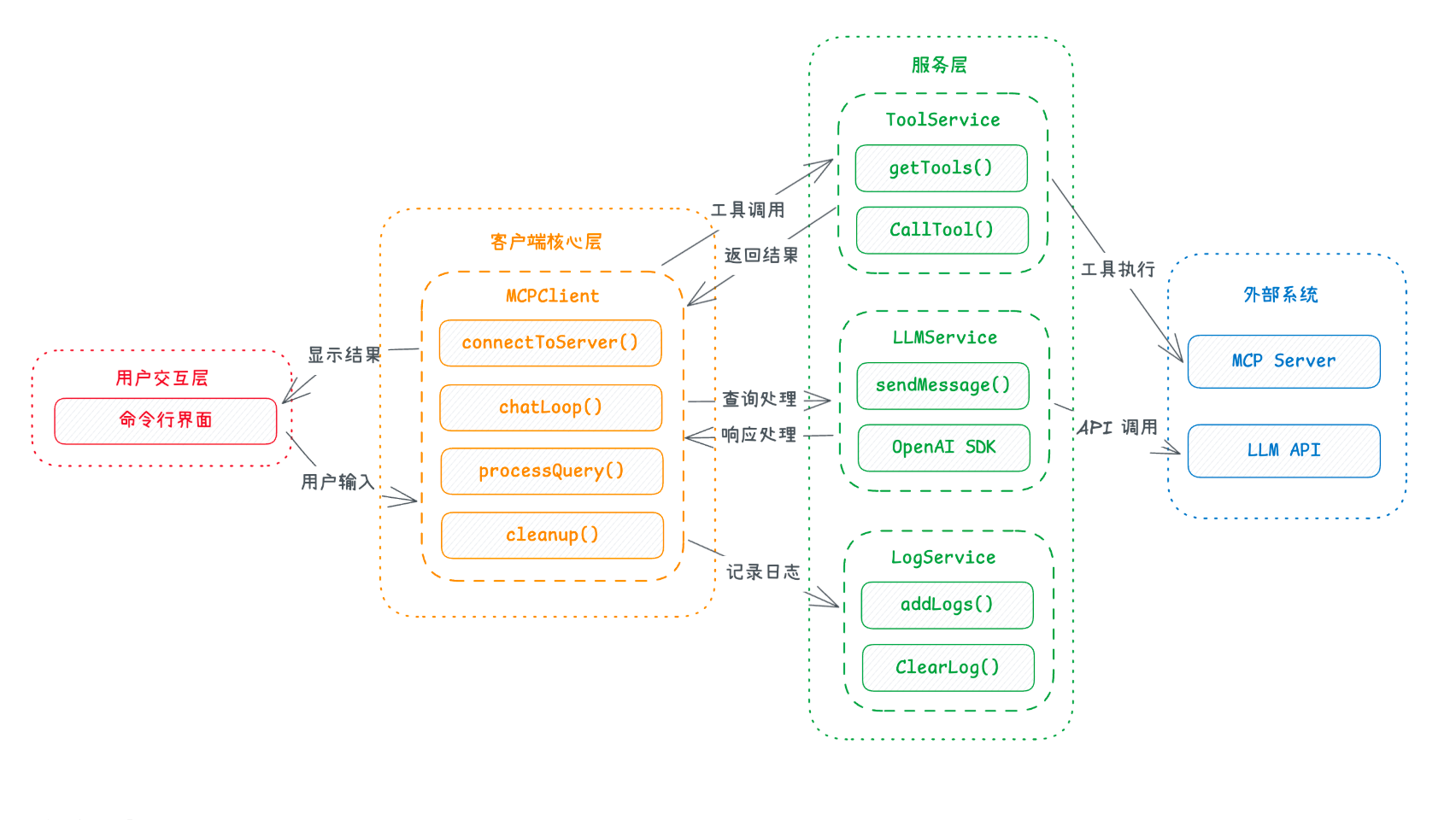

4. MCP Client
import asyncio
import os
import json
from typing import Optional, List
from contextlib import AsyncExitStack
from datetime import datetime
import re
from openai import OpenAI
from dotenv import load_dotenv
from mcp import ClientSession, StdioServerParameters
from mcp.client.stdio import stdio_client
from loguru import logger
load_dotenv()
class MCPClient:
def __init__(self):
self.exit_stack = AsyncExitStack()
self.session: Optional[ClientSession] = None
self.base_url = os.getenv("BASE_URL")
self.model = os.getenv("MODEL")
self.tools = []
self.openai_api_key = os.getenv("DASHSCOPE_API_KEY")
self.client = OpenAI(api_key=self.openai_api_key, base_url=self.base_url)
async def connect_to_server(self, server_script_path):
# 构造 MCP 所需的服务器参数，包含启动命令、脚本路径参数、环境变量（为 None 表示默认）
server_params = StdioServerParameters(command="python3.12", args=[server_script_path], env=None)
# 启动 MCP 工具服务进程（并建立 stdio 通信）
stdio_transport = await self.exit_stack.enter_async_context(stdio_client(server_params))
# 拆包通信通道，读取服务端返回的数据，并向服务端发送请求
self.stdio, self.write = stdio_transport
# 创建 MCP 客户端会话对象
self.session = await self.exit_stack.enter_async_context(ClientSession(self.stdio, self.write))
# 初始化会话
await self.session.initialize()
# 获取工具列表并打印
response = await self.session.list_tools()
self.tools = response.tools
logger.info("服务器支持的工具列表（tool/list）", self.tools)
async def get_usage_tool_list(self, query: str) -> List[dict]:
usage_tools_info = "\n".join([
f"【{tool.name}】 {tool.description}"
for tool in self.tools
])
logger.info("usage_tools_info:::", usage_tools_info)
system_prompt = {
"role": "system",
"content": f"""
你是一个任务（函数）调度专家，用户会发出一句自然语言的请求。
你必须从{usage_tools_info}中选择合适且应该调用的工具函数
-- 限制
1. 严格使用工具名
2. 如果是多个功能，一定按照逻辑上的执行顺序返回
3. 返回格式：JSON 数组，每个对象包含 name 和 arguments 字段。
4. 如果多个工具需要串联编排，通过{{上一步函数名（工具名）}}
"""
}
# 将系统提示和用户的自然语言一起作为消息输入，并选用当前的模型。
planning_messages = [
system_prompt,
{"role": "user", "content": query}
]
response = self.client.chat.completions.create(
model=self.model,
messages=planning_messages,
# tools=self.response_tools,
tool_choice="none"
)
# 提取出模型返回的 JSON 内容
content = response.choices[0].message.content.strip()
# 在解析 JSON 之后返回调用计划
try:
plan = json.loads(content.replace("json", "").replace("```", ""))
return plan if isinstance(plan, list) else []
except Exception as e:
logger.error(f"❌❌❌ 工具链调用失败: {e}\n原始返回: {content}")
return []
async def call_tools_func(self, usage_tool_list, messages):
# 缓存每一个工具以及对应结果的字典
tool_outputs = {}
# 依次执行工具调用，并收集结果
for tool in usage_tool_list:
tool_name = tool["name"]
tool_args = tool["arguments"]
for key, val in tool_args.items():
# "text": "{search_google_news}",
if isinstance(val, str) and val.startswith("{") and val.endswith("}"):
tool_args[key] = tool_outputs.get(val.strip("{}"))
logger.info(f"{tool_name}正在调用，参数为{tool_args}")
result = await self.session.call_tool(tool_name, tool_args)
# 写入缓存：tool_outputs
tool_outputs[tool_name] = result.content[0].text
messages.append({
"role": "tool",
"tool_call_id": tool_name,
"content": result.content[0].text
})
return messages
async def process_query(self, query: str):
query = f"""
用户要求：{query.strip()}
"""
usage_tool_list = await self.get_usage_tool_list(query)
logger.info("usage_tool_list:::", usage_tool_list)
messages = [{"role": "user", "content": query}]
messages = await self.call_tools_func(usage_tool_list, messages)
logger.info("messages:::", messages)
# 调用大模型生成回复信息，并输出保存结果
final_response = self.client.chat.completions.create(
model=self.model,
messages=messages
)
final_result = final_response.choices[0].message.content
print("命令执行结果:::\n\n\033[1;35m", final_result.replace("```", "").replace("plaintext", ""))
async def chat_loop(self):
logger.info("MCP Client已经启动")
while 1:
try:
query = input("\033[1;33m请输入您的要求：").strip()
if not query: continue
# 处理用户的提问，并返回结果
await self.process_query(query)
logger.info(f"✅✅✅ 命令{query}执行成功！")
except Exception as e:
print(f"❌❌❌ 异常报错，错误原因: {str(e)}")
async def main():
server_script_path = "./server.py"
client = MCPClient()
await client.connect_to_server(server_script_path)
await client.chat_loop()
if __name__ == "__main__":
asyncio.run(main())
.env文件：
BASE_URL="https://dashscope.aliyuncs.com/compatible-mode/v1"
MODEL=qwen2.5-vl-32b-instruct
DASHSCOPE_API_KEY="sk-xxxxx"
NEWS_API_KEY = 4e00a2737ff2496d9bb0aa3bc72b8dbe
SMTP_SERVER=smtp.163.com
SMTP_PORT=465
EMAIL_USER=17300138736@163.com
EMAIL_PASS=xxxxx
三、百度地图
1 MCP客户端：百度千帆
-

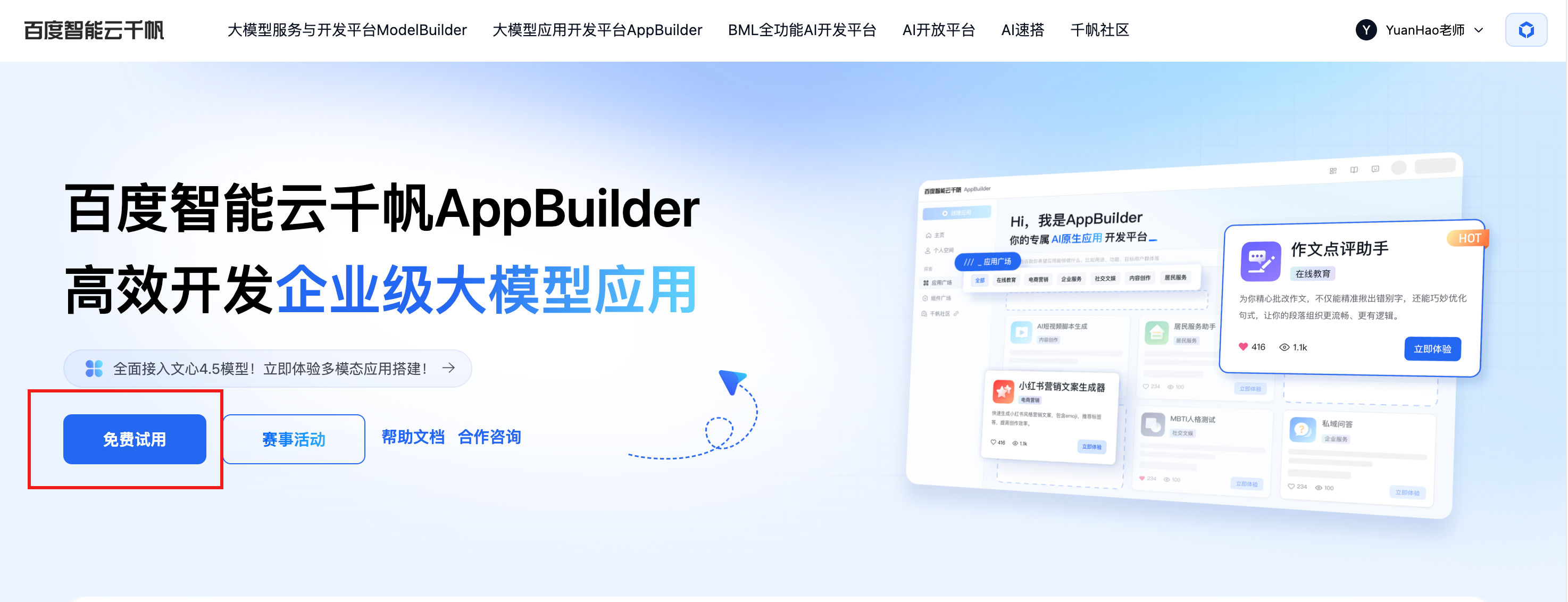

进入千帆AppBuilder主页，https://qianfan.cloud.baidu.com/appbuilder/
-
注册登录
-
试用
-

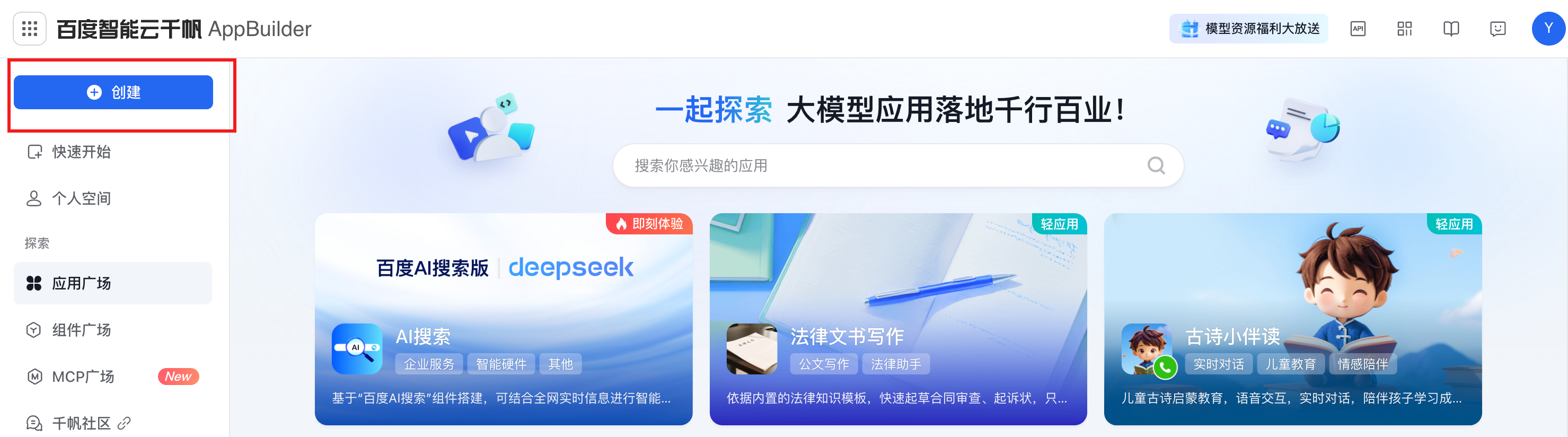

创建
-

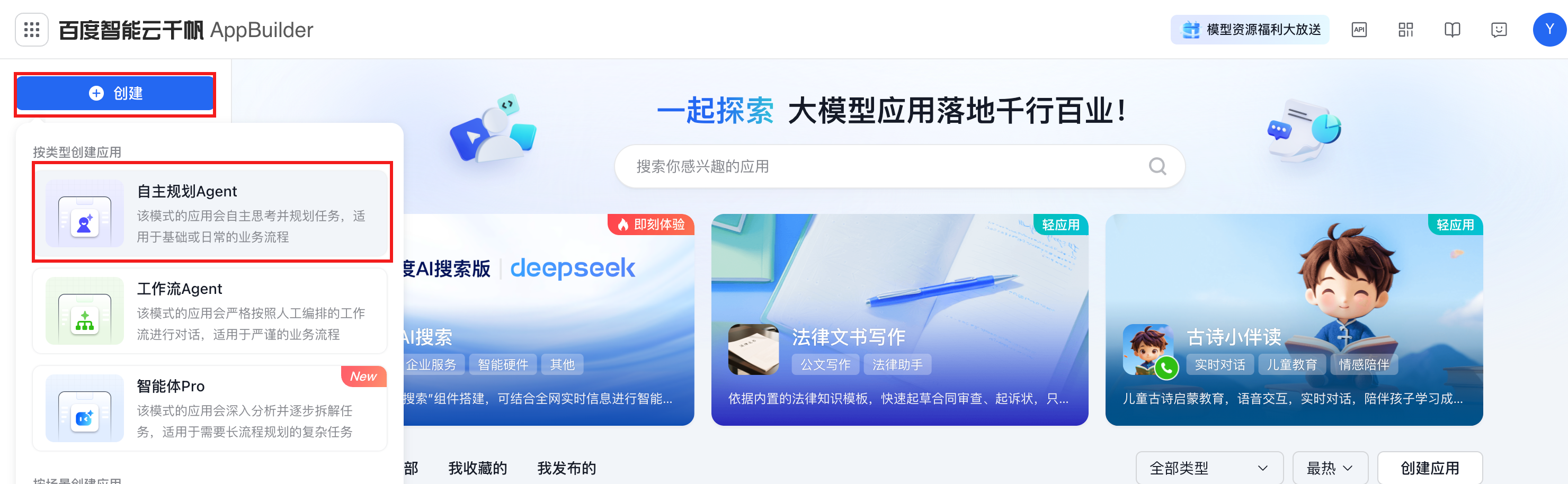

创建自主Agent
-

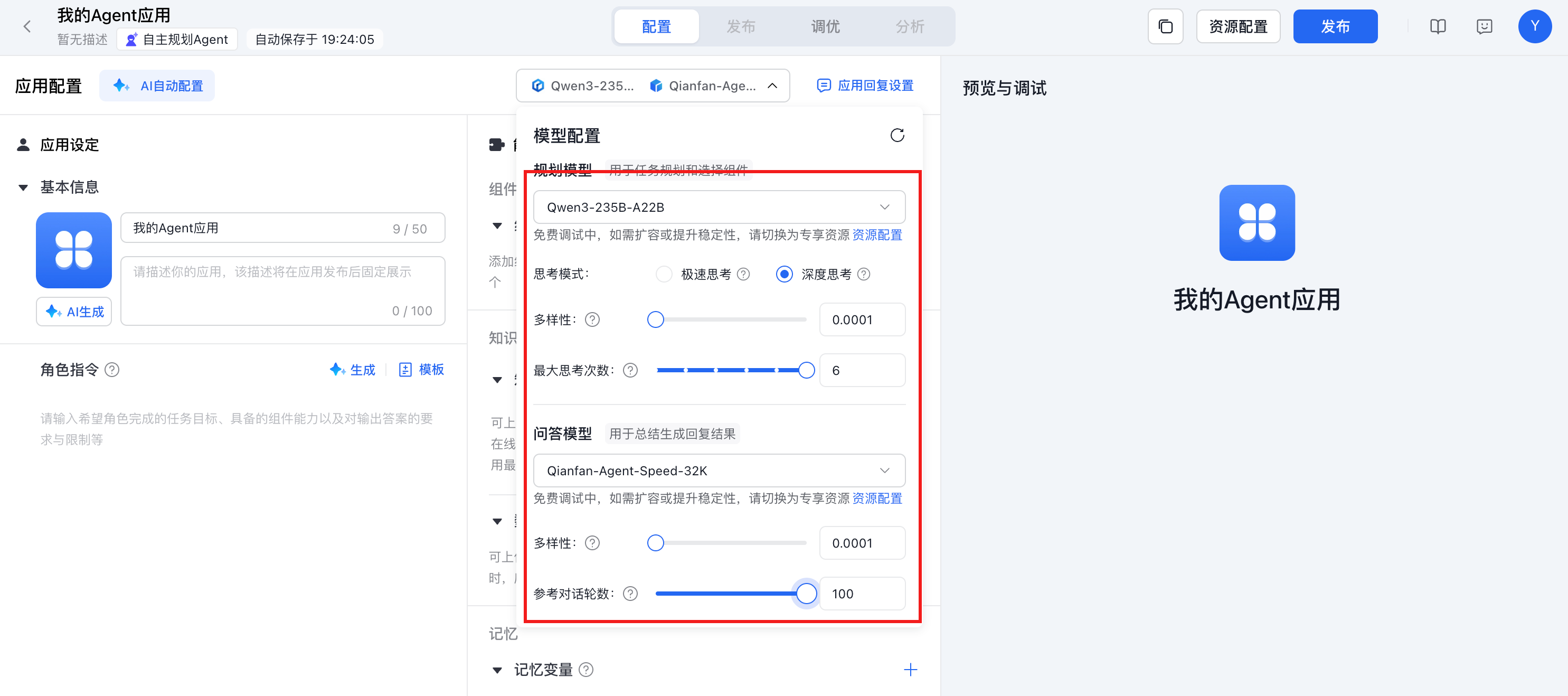

模型配置
-

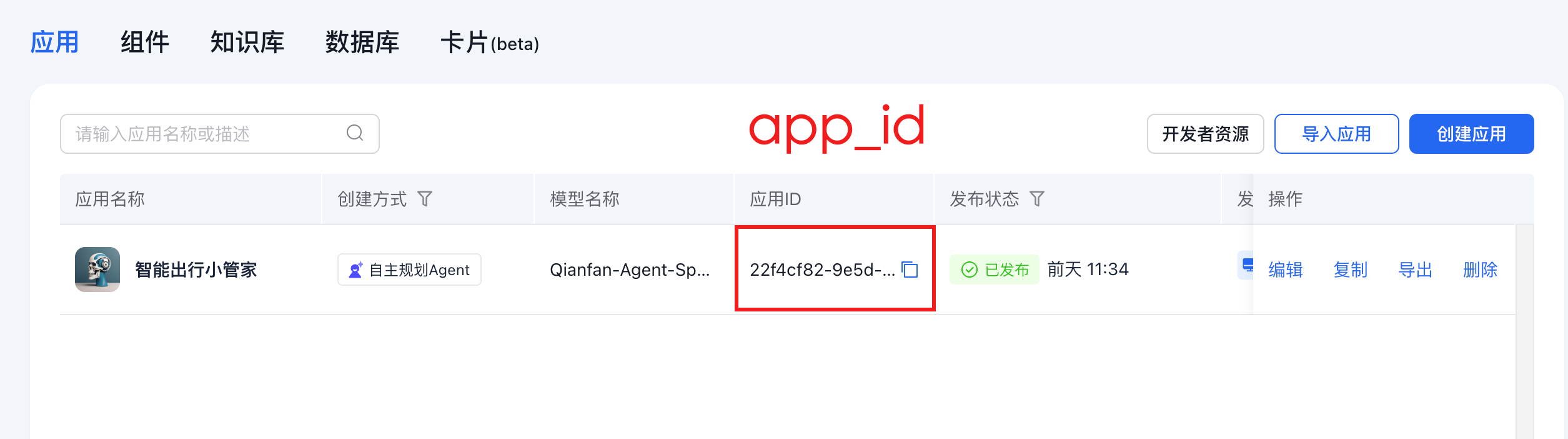

appid
-

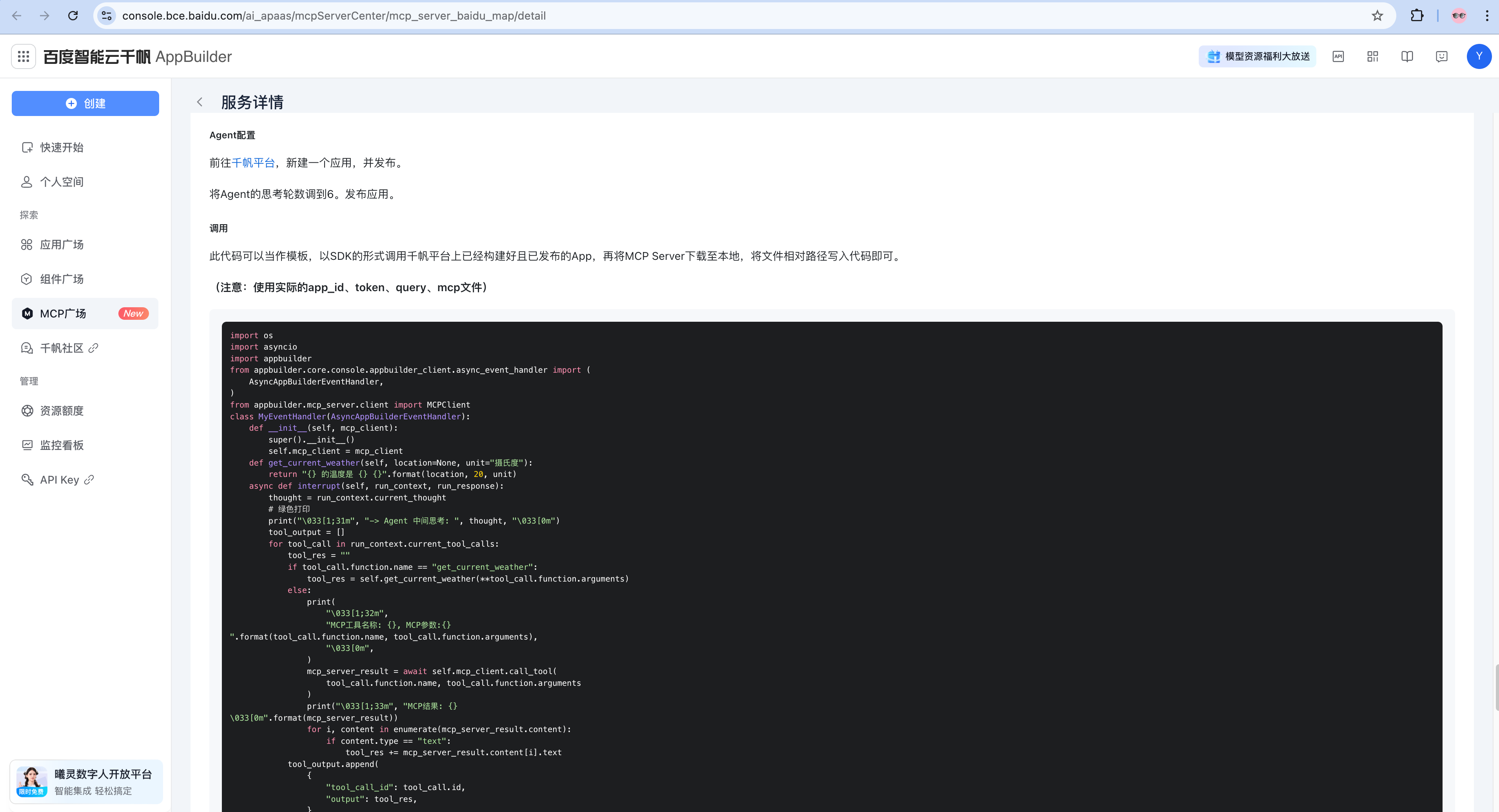

获取客户端模板代码
import os import asyncio import appbuilder from appbuilder.core.console.appbuilder_client.async_event_handler import ( AsyncAppBuilderEventHandler, ) from appbuilder.mcp_server.client import MCPClient class MyEventHandler(AsyncAppBuilderEventHandler): def __init__(self, mcp_client): super().__init__() self.mcp_client = mcp_client def get_current_weather(self, location=None, unit="摄氏度"): return "{} 的温度是 {} {}".format(location, 20, unit) async def interrupt(self, run_context, run_response): thought = run_context.current_thought # 绿色打印 print("\033[1;31m", "-> Agent 中间思考: ", thought, "\033[0m") tool_output = [] for tool_call in run_context.current_tool_calls: tool_res = "" if tool_call.function.name == "get_current_weather": tool_res = self.get_current_weather(**tool_call.function.arguments) else: print( "\033[1;32m", "MCP工具名称: {}, MCP参数:{}".format(tool_call.function.name, tool_call.function.arguments), "\033[0m", ) mcp_server_result = await self.mcp_client.call_tool( tool_call.function.name, tool_call.function.arguments ) print("\033[1;33m", "MCP结果: {}\033[0m".format(mcp_server_result)) for i, content in enumerate(mcp_server_result.content): if content.type == "text": tool_res += mcp_server_result.content[i].text tool_output.append( { "tool_call_id": tool_call.id, "output": tool_res, } ) return tool_output async def success(self, run_context, run_response): print("\033[1;34m", "-> Agent 非流式回答: ", run_response.answer, "\033[0m") async def agent_run(client, mcp_client, query): tools = mcp_client.tools conversation_id = await client.create_conversation() with await client.run_with_handler( conversation_id=conversation_id, query=query, tools=tools, event_handler=MyEventHandler(mcp_client), ) as run: await run.until_done() ### 用户Token os.environ["APPBUILDER_TOKEN"] = () async def main(): appbuilder.logger.setLoglevel("DEBUG") ### 发布的应用ID app_id = "" appbuilder_client = appbuilder.AsyncAppBuilderClient(app_id) mcp_client = MCPClient() ### 注意这里的路径为MCP Server文件在本地的相对路径 await mcp_client.connect_to_server("./map2.py") print(mcp_client.tools) await agent_run( appbuilder_client, mcp_client, '现在开车从北京市昌平区回龙观东大街昌发展AI加速中心A座门口到北京首都国际机场A2航站楼8号门', ) await appbuilder_client.http_client.session.close() if __name__ == "__main__": import certifi import os os.environ['SSL_CERT_FILE'] = certifi.where() loop = asyncio.get_event_loop() loop.run_until_complete(main())
AppBuilder 是百度智能云推出的一款 低代码/零代码 AI 原生应用开发平台，旨在帮助开发者、企业甚至非技术人员快速构建基于大语言模型（如百度文心大模型）的 AI 应用，无需复杂编程即可实现智能化功能。
依赖安装：
pip install mcp
pip install --upgrade appbuilder-sdk
2. MCP服务端：百度地图MCP服务
-
百度首页
-

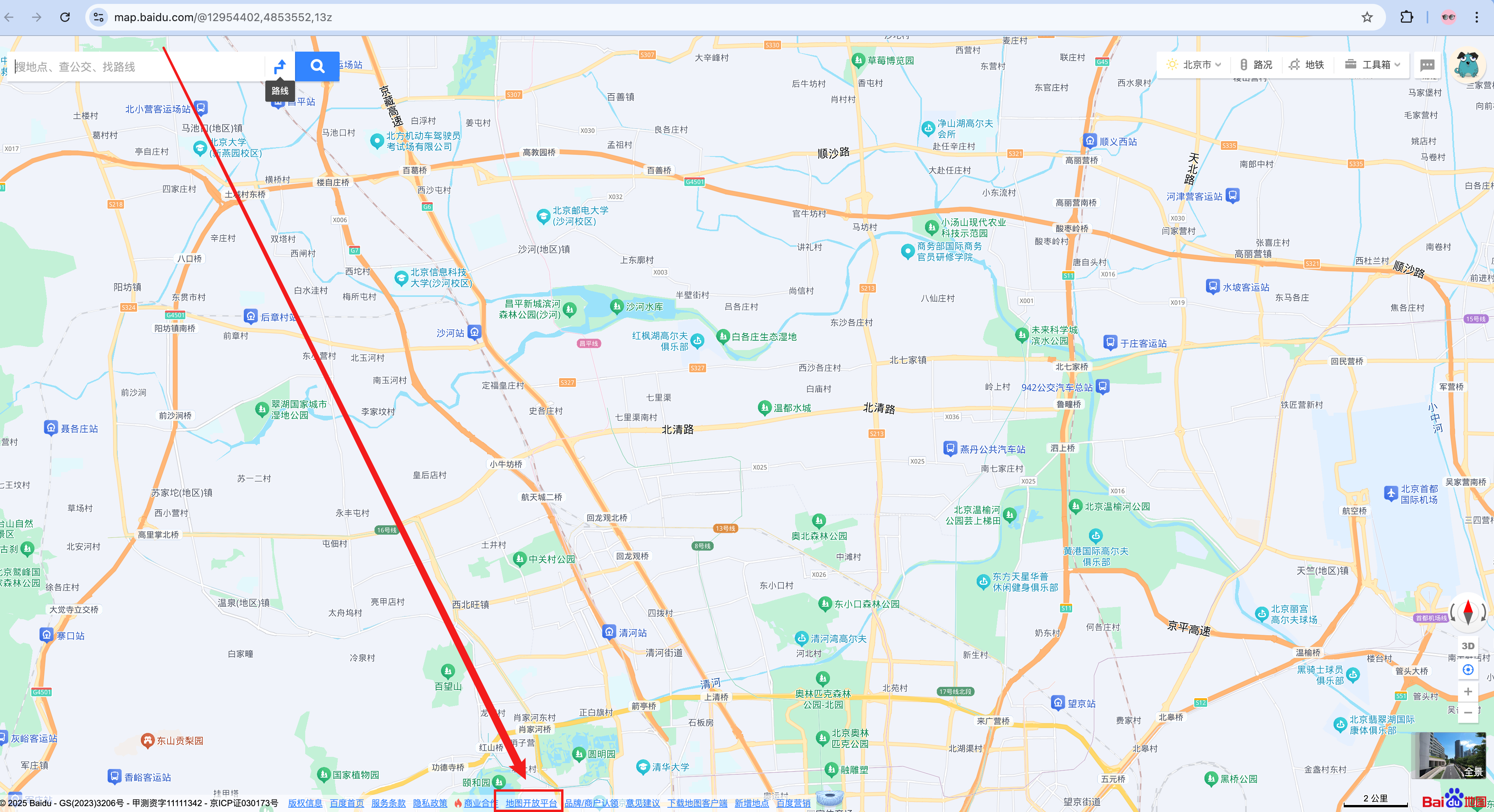

地图开发平台
-

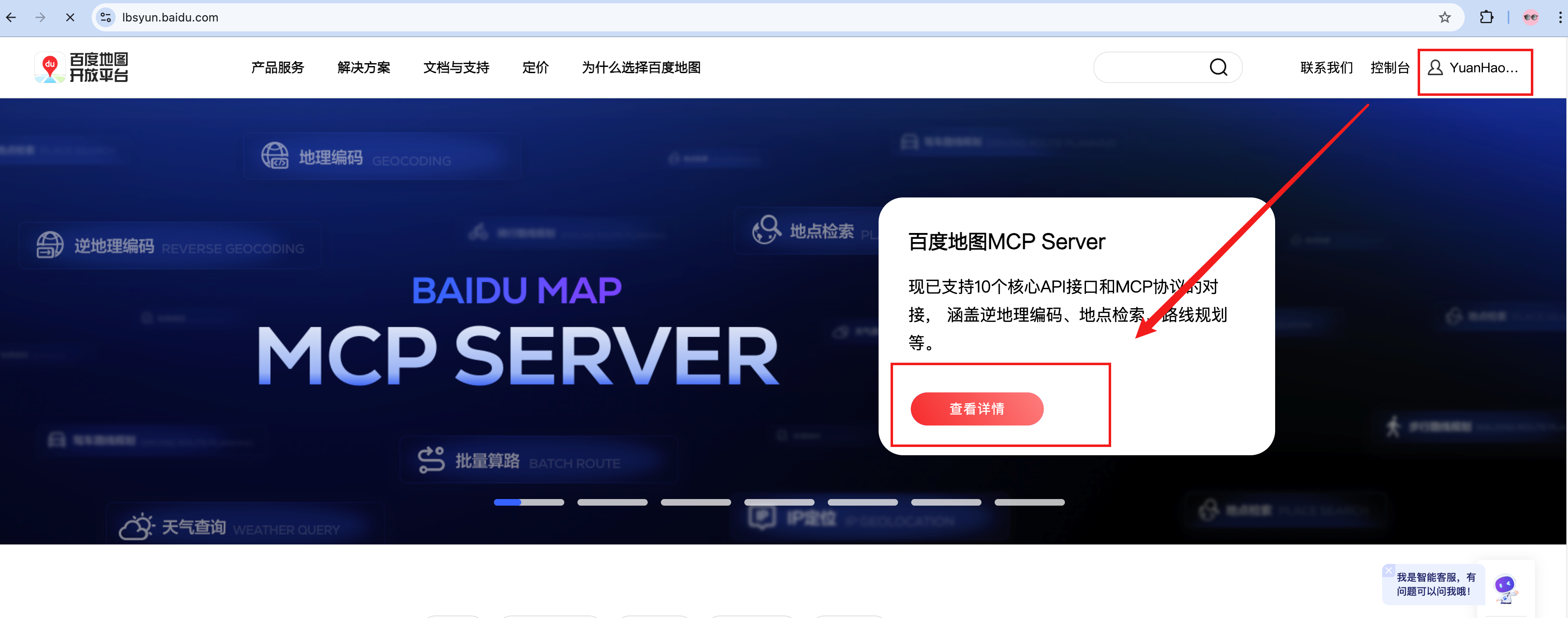

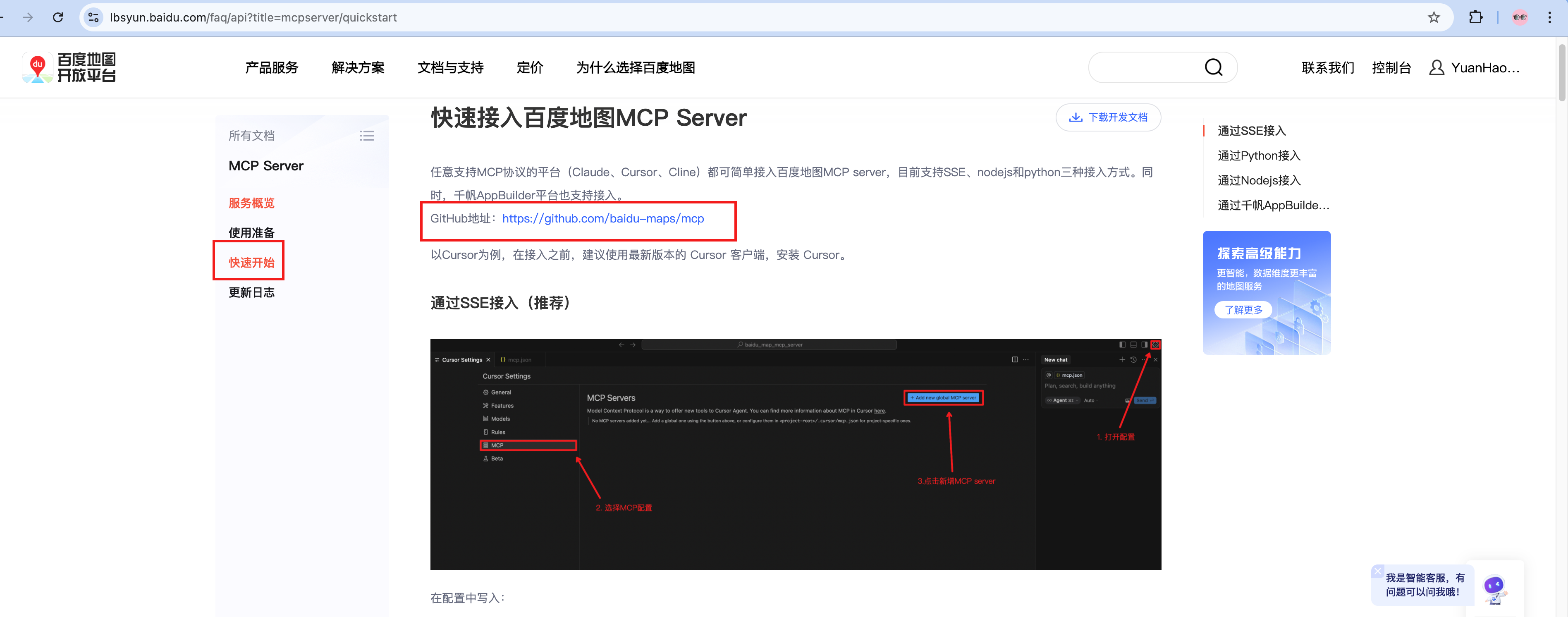

注册登录，进入MCP Server
-

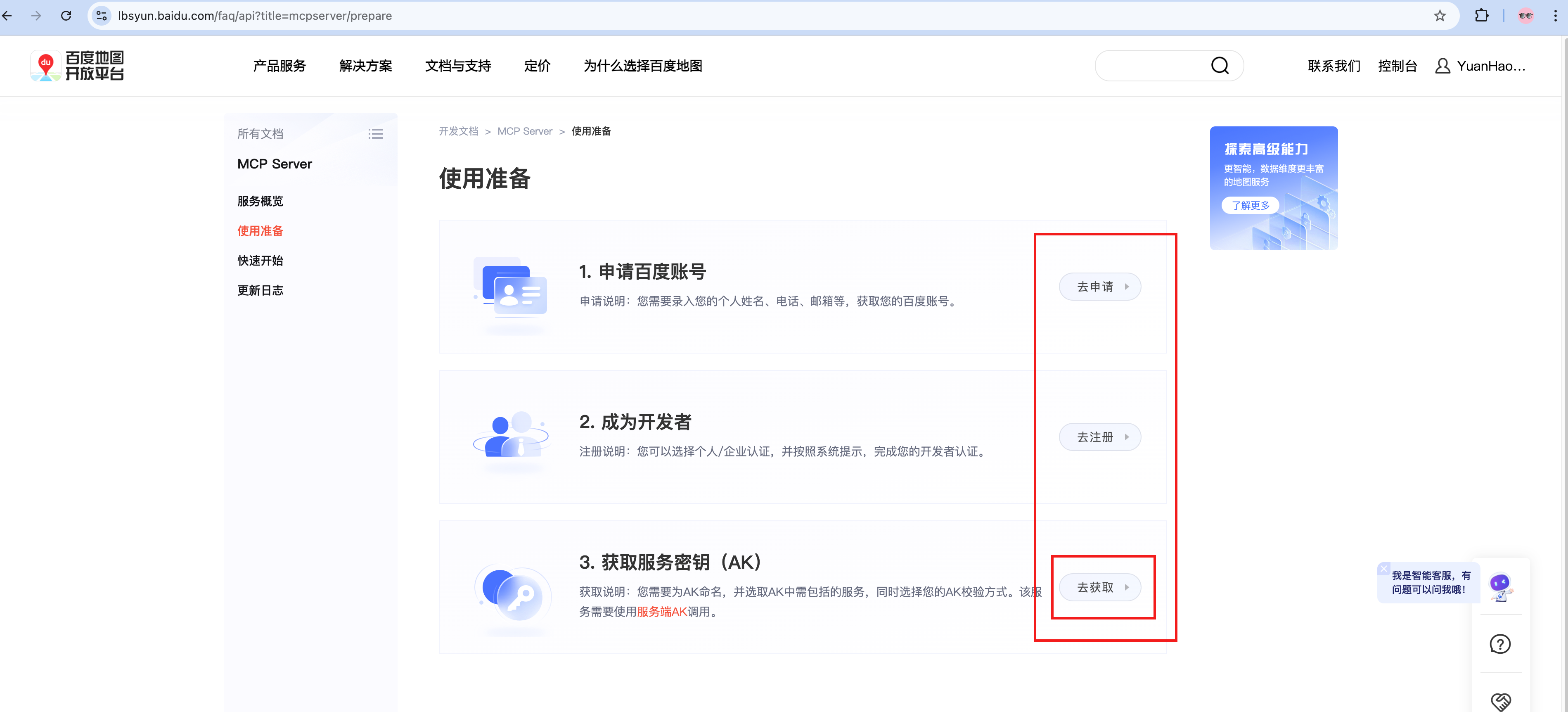

试用准备
-

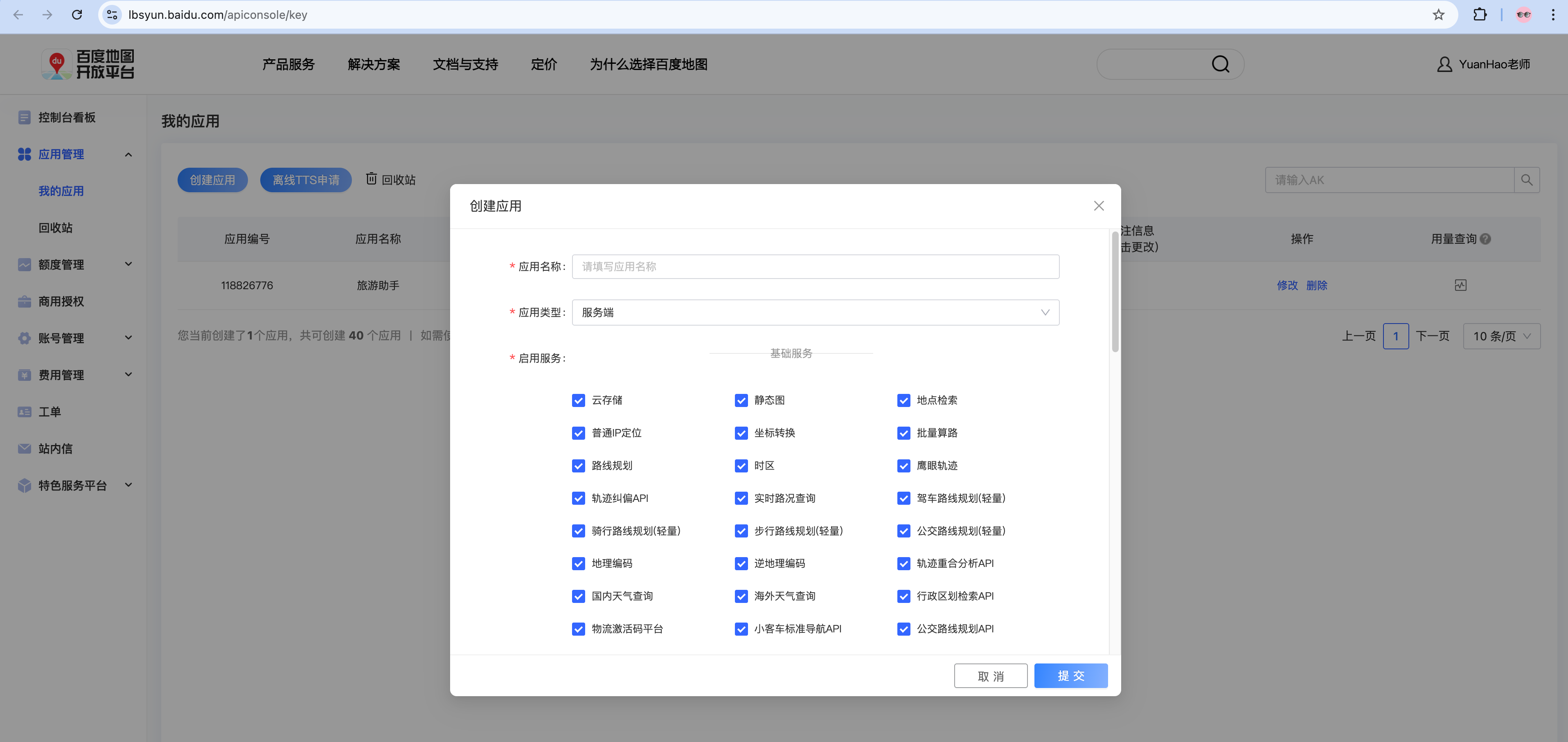

创建应用
-

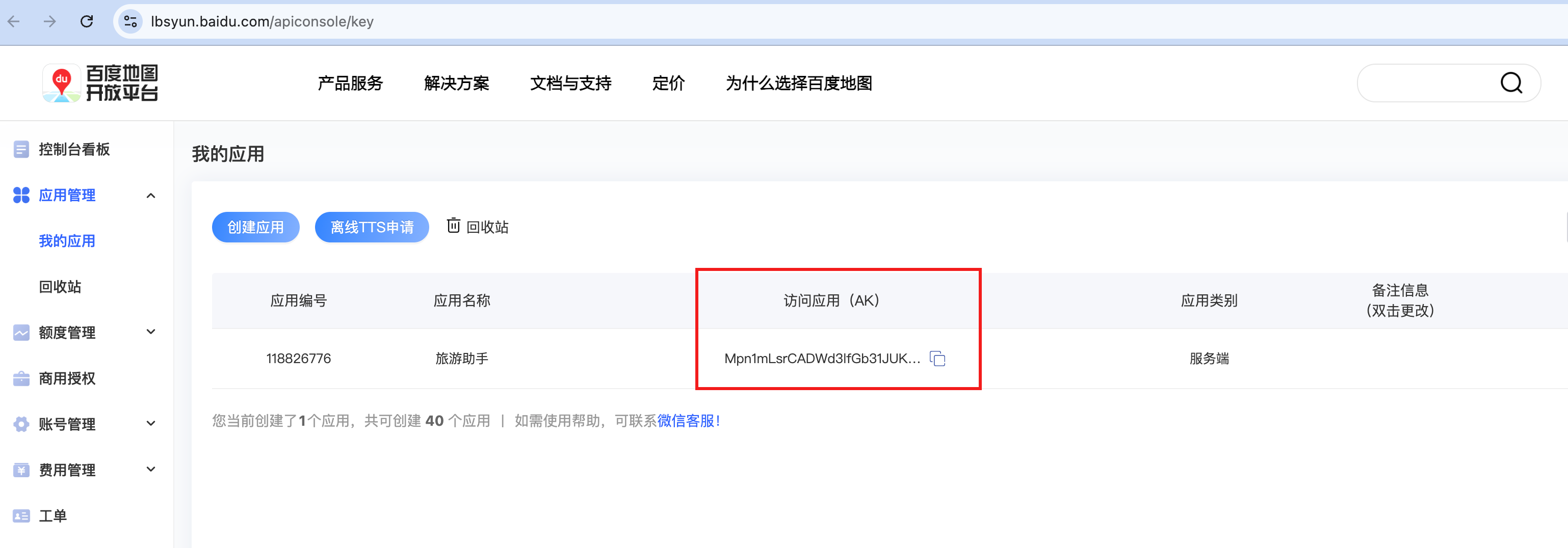

获取AK
-

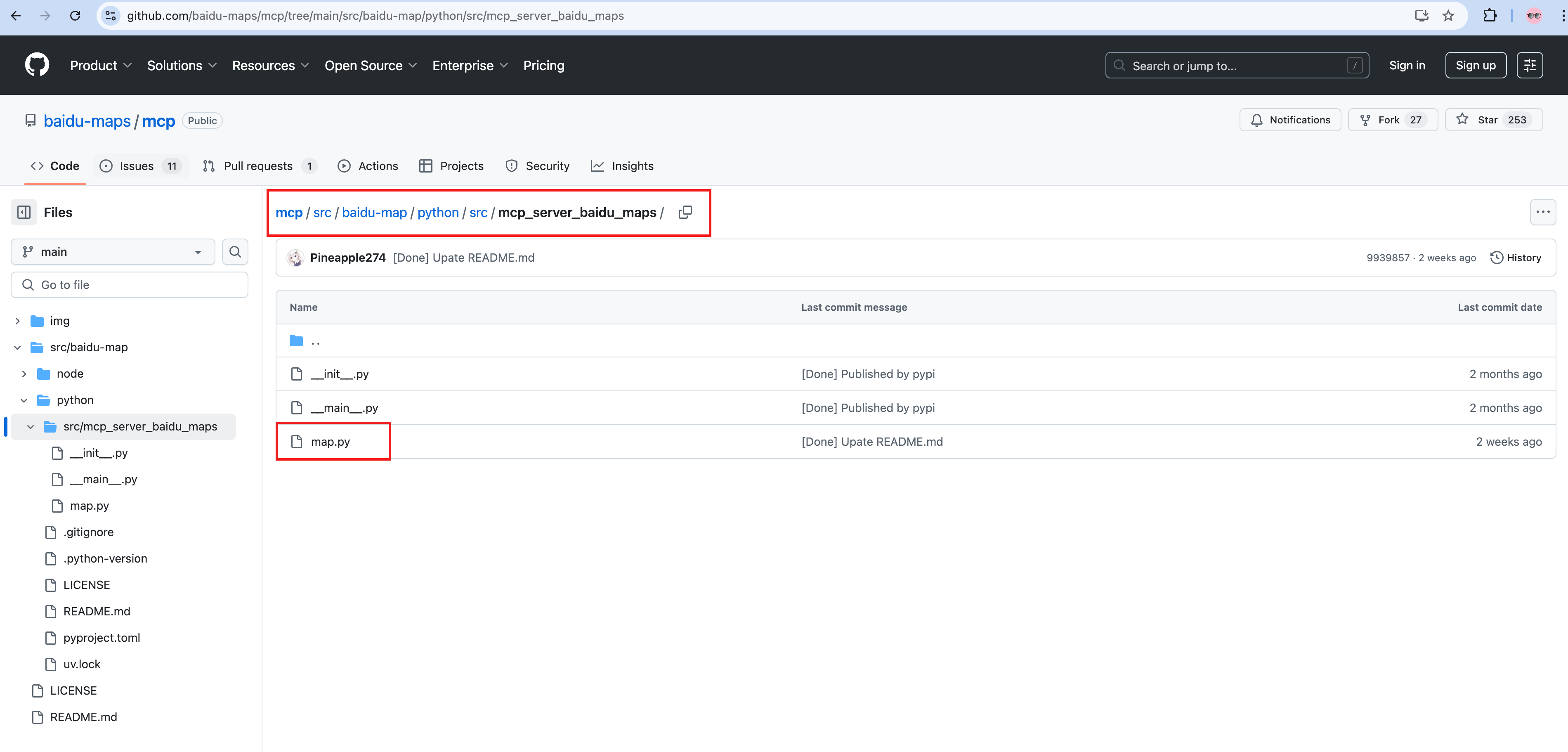

获取map.py：MCP Server源码
# map.py import os import copy import httpx from asyncio import sleep from mcp.server.fastmcp import FastMCP, Context # 创建MCP服务器实例 mcp = FastMCP("mcp-server-baidu-maps") ''' 获取环境变量中的API密钥, 用于调用百度地图API 环境变量名为: BAIDU_MAPS_API_KEY, 在客户端侧通过配置文件进行设置传入 获取方式请参考: https://lbsyun.baidu.com/apiconsole/key; ''' api_key = os.getenv('BAIDU_MAPS_API_KEY') api_url = "https://api.map.baidu.com" def filter_result(data) -> dict: """ 过滤路径规划结果，用于剔除冗余字段信息，保证输出给模型的数据更简洁，避免长距离路径规划场景下chat中断 """ # 创建输入数据的深拷贝以避免修改原始数据 processed_data = copy.deepcopy(data) # 检查是否存在'result'键 if 'result' in processed_data: result = processed_data['result'] # 检查'result'中是否存在'routes'键 if 'routes' in result: for route in result['routes']: # 检查每个'route'中是否存在'steps'键 if 'steps' in route: new_steps = [] for step in route['steps']: # 提取'instruction'字段，若不存在则设为空字符串 new_step = { 'distance': step.get('distance', ''), 'duration': step.get('duration', ''), 'instruction': step.get('instruction', '') } new_steps.append(new_step) # 替换原steps为仅含instruction的新列表 route['steps'] = new_steps return processed_data @mcp.tool() async def map_geocode( address: str, ctx: Context ) -> dict: """ Name: 地理编码服务 Description: 将地址解析为对应的位置坐标。地址结构越完整，地址内容越准确，解析的坐标精度越高。 Args: address: 待解析的地址。最多支持84个字节。可以输入两种样式的值，分别是： 1、标准的结构化地址信息，如北京市海淀区上地十街十号【推荐，地址结构越完整，解析精度越高】 2、支持“*路与*路交叉口”描述方式，如北一环路和阜阳路的交叉路口 第二种方式并不总是有返回结果，只有当地址库中存在该地址描述时才有返回。 """ try: # 获取API密钥 if not api_key: raise Exception("Can not found API key.") # 调用百度API url = f"{api_url}/geocoding/v3/" # 设置请求参数 # 更多参数信息请参考:https://lbsyun.baidu.com/faq/api?title=webapi/guide/webservice-geocoding params = { "ak": f"{api_key}", "output": "json", "address": f"{address}", "from": "py_mcp" } async with httpx.AsyncClient() as client: response = await client.get(url, params=params) response.raise_for_status() result = response.json() if result.get("status") != 0: error_msg = result.get("message", "unkown error") raise Exception(f"API response error: {error_msg}") return result except httpx.HTTPError as e: raise Exception(f"HTTP request failed: {str(e)}") from e except KeyError as e: raise Exception(f"Failed to parse reponse: {str(e)}") from e @mcp.tool() async def map_reverse_geocode( latitude: float, longitude: float, ctx: Context ) -> dict: """ Name: 逆地理编码服务 Description: 根据纬经度坐标, 获取对应位置的地址描述, 所在行政区划, 道路以及相关POI等信息 Args: latitude: 纬度 (gcj02ll) longitude: 经度 (gcj02ll) """ try: # 获取API密钥 if not api_key: raise Exception("There") # 调用百度API url = f"{api_url}/reverse_geocoding/v3/" # 设置请求参数 # 更多参数信息请参考:https://lbsyun.baidu.com/faq/api?title=webapi/guide/webservice-geocoding-abroad params = { "ak": f"{api_key}", "output": "json", "coordtype": "gcj02ll", "location": f"{latitude},{longitude}", "extensions_road": "true", "extensions_poi": "1", "entire_poi": "1",# 返回周边全量poi信息 "from": "py_mcp" } async with httpx.AsyncClient() as client: response = await client.get(url, params=params) response.raise_for_status() result = response.json() if result.get("status") != 0: error_msg = result.get("message", "unkown error") raise Exception(f"API response error: {error_msg}") return result except httpx.HTTPError as e: raise Exception(f"HTTP request failed: {str(e)}") from e except KeyError as e: raise Exception(f"Failed to parse reponse: {str(e)}") from e @mcp.tool() async def map_search_places( query: str, tag: str, region: str, location: str, radius: int, ctx: Context ) -> dict: """ Name: 地点检索服务 Description: 支持检索城市内的地点信息(最小到city级别), 也可支持圆形区域内的周边地点信息检索 城市内检索: 检索某一城市内（目前最细到城市级别）的地点信息。 周边检索: 设置圆心和半径，检索圆形区域内的地点信息（常用于周边检索场景）。 Args: query: 检索关键字, 可直接使用名称或类型, 如'query=天安门', 且可以至多10个关键字, 用英文逗号隔开 tag: 检索分类, 以中文字符输入: 如'tag=美食', 多个分类用英文逗号隔开, 如'tag=美食,购物' region: 检索的行政区划, 可为行政区划名或citycode, 格式为'region=cityname'或'region=citycode' location: 圆形区域检索的中心点纬经度坐标, 格式为location=lat,lng radius: 圆形区域检索半径，单位：米 """ try: # 获取API密钥 if not api_key: raise Exception("Can not found API key.") # 调用百度API url = f"{api_url}/place/v2/search" # 设置请求参数 # 更多参数信息请参考:https://lbsyun.baidu.com/faq/api?title=webapi/guide/webservice-placeapi params = { "ak": f"{api_key}", "output": "json", "query": f"{query}", "tag": f"{tag}", "from": "py_mcp" } if location: params["location"] = f"{location}" params["radius"] = f"{radius}" else: params["region"] = f"{region}" async with httpx.AsyncClient() as client: response = await client.get(url, params=params) response.raise_for_status() result = response.json() if result.get("status") != 0: error_msg = result.get("message", "unkown error") raise Exception(f"API response error: {error_msg}") return result except httpx.HTTPError as e: raise Exception(f"HTTP request failed: {str(e)}") from e except KeyError as e: raise Exception(f"Failed to parse reponse: {str(e)}") from e @mcp.tool() async def map_place_details( uid: str, ctx: Context ) -> dict: """ Name: 地点详情检索服务 Description: 地点详情检索: 地点详情检索针对指定POI，检索其相关的详情信息。 通地点检索服务获取POI uid。使用“地点详情检索”功能，传入uid，即可检索POI详情信息，如评分、营业时间等（不同类型POI对应不同类别详情数据）。 Args: uid: poi的唯一标识 """ try: # 获取API密钥 if not api_key: raise Exception("Can not found API key.") # 调用百度API url = f"{api_url}/place/v2/detail" # 设置请求参数 # 更多参数信息请参考:https://lbsyun.baidu.com/faq/api?title=webapi/guide/webservice-placeapi/detail params = { "ak": f"{api_key}", "output": "json", "uid": f"{uid}", # Agent入参不可控，这里给定scope为2 "scope": 2, "from": "py_mcp" } async with httpx.AsyncClient() as client: response = await client.get(url, params=params) response.raise_for_status() result = response.json() if result.get("status") != 0: error_msg = result.get("message", "unkown error") raise Exception(f"API response error: {error_msg}") return result except httpx.HTTPError as e: raise Exception(f"HTTP request failed: {str(e)}") from e except KeyError as e: raise Exception(f"Failed to parse reponse: {str(e)}") from e @mcp.tool() async def map_distance_matrix( origins: str, destinations: str, mode: str, ctx: Context ) -> dict: """ Name: 批量算路服务 Description: 根据起点和终点坐标计算路线规划距离和行驶时间 批量算路目前支持驾车、骑行、步行 步行时任意起终点之间的距离不得超过200KM，超过此限制会返回参数错误 驾车批量算路一次最多计算100条路线，起终点个数之积不能超过100 Args: origins: 多个起点纬经度坐标，纬度在前，经度在后，多个起点用|分隔。示例：40.056878,116.30815|40.063597,116.364973【骑行】【步行】支持传入起点uid提升绑路准确性，格式为：纬度,经度;POI的uid|纬度,经度;POI的uid。示例：40.056878,116.30815;xxxxx|40.063597,116.364973;xxxxx destinations: 多个终点纬经度坐标，纬度在前，经度在后，多个终点用|分隔。示例：40.056878,116.30815|40.063597,116.364973【【骑行】【步行】支持传入终点uid提升绑路准确性，格式为：纬度,经度;POI的uid|纬度,经度;POI的uid。示例：40.056878,116.30815;xxxxx|40.063597,116.364973;xxxxx mode: 批量算路类型(driving, riding, walking) """ try: # 获取API密钥 if not api_key: raise Exception("Can not found API key.") # 调用百度API url = f"{api_url}/routematrix/v2/{mode}" # 设置请求参数 # 更多参数信息请参考:https://lbsyun.baidu.com/faq/api?title=webapi/routchtout params = { "ak": f"{api_key}", "output": "json", "origins": f"{origins}", "destinations": f"{destinations}", "from": "py_mcp" } async with httpx.AsyncClient() as client: response = await client.get(url, params=params) response.raise_for_status() result = response.json() if result.get("status") != 0: error_msg = result.get("message", "unkown error") raise Exception(f"API response error: {error_msg}") return result except httpx.HTTPError as e: raise Exception(f"HTTP request failed: {str(e)}") from e except KeyError as e: raise Exception(f"Failed to parse reponse: {str(e)}") from e @mcp.tool() async def map_directions( model: str, origin: str, destination: str, ctx: Context ) -> dict: """ Name: 路线规划服务 Description: 驾车路线规划: 根据起终点`纬经度坐标`规划驾车出行路线 骑行路线规划: 根据起终点`纬经度坐标`规划骑行出行路线 步行路线规划: 根据起终点`纬经度坐标`规划步行出行路线 公交路线规划: 根据起终点`纬经度坐标`规划公共交通出行路线 Args: model: 路线规划类型(driving, riding, walking, transit) origin: 起点纬经度坐标，纬度在前，经度在后，当用户只有起点名称时，需要先通过地理编码服务或地点地点检索服务确定起点的坐标 destination: 终点纬经度坐标，纬度在前，经度在后，当用户只有起点名称时，需要先通过地理编码服务或地点检索服务确定起点的坐标 """ try: # 获取API密钥 if not api_key: raise Exception("Can not found API key.") # 调用百度API url = f"{api_url}/directionlite/v1/{model}" # 设置请求参数 # 更多参数信息请参考:https://lbs.baidu.com/faq/api?title=webapi/direction-api-v2 params = { "ak": f"{api_key}", "output": "json", "origin": f"{origin}", "destination": f"{destination}", "from": "py_mcp" } async with httpx.AsyncClient() as client: response = await client.get(url, params=params) response.raise_for_status() result = response.json() if result.get("status") != 0: error_msg = result.get("message", "unkown error") raise Exception(f"API response error: {error_msg}") ''' 过滤非公交的导航结果，防止返回的结果中包含大量冗余坐标信息，影响大模型的响应速度，或是导致chat崩溃。 当前只保留导航结果每一步的距离、耗时和语义化信息。 公交路线规划情况比较多，尽量全部保留。 ''' if model == 'transit': return result else: return filter_result(result) except httpx.HTTPError as e: raise Exception(f"HTTP request failed: {str(e)}") from e except KeyError as e: raise Exception(f"Failed to parse reponse: {str(e)}") from e @mcp.tool() async def map_weather( location: str, district_id: int, ctx: Context ) -> dict: """ Name: 天气查询服务 Description: 用户可通过行政区划或是经纬度坐标查询实时天气信息及未来5天天气预报(注意: 使用经纬度坐标需要高级权限)。 Args: location: 经纬度，经度在前纬度在后，逗号分隔 (需要高级权限, 例如: 116.30815,40.056878) district_id: 行政区划代码, 需保证为6位无符号整数 (例如: 1101010) """ try: # 获取API密钥 if not api_key: raise Exception("Can not found API key.") # 调用百度API url = f"{api_url}/weather/v1/?" # 设置请求参数 # 更多参数信息请参考:https://lbs.baidu.com/faq/api?title=webapi/weather params = { "ak": f"{api_key}", "data_type": "all", "from": "py_mcp" } # 核心入参，二选一 if not location: params["district_id"] = f"{district_id}" else : params["location"] = f"{location}" async with httpx.AsyncClient() as client: response = await client.get(url, params=params) response.raise_for_status() result = response.json() if result.get("status") != 0: error_msg = result.get("message", "unkown error") raise Exception(f"API response error: {error_msg}") return result except httpx.HTTPError as e: raise Exception(f"HTTP request failed: {str(e)}") from e except KeyError as e: raise Exception(f"Failed to parse reponse: {str(e)}") from e @mcp.tool() async def map_ip_location( # ip: str, ctx: Context ) -> dict: """ Name: IP定位服务 Description: 根据用户请求的IP获取当前的位置，当需要知道用户当前位置、所在城市时可以调用该工具获取 Args: """ try: # 获取API密钥 if not api_key: raise Exception("Can not found API key.") # 调用百度API url = f"{api_url}/location/ip" # 设置请求参数 # 更多参数信息请参考:https://lbs.baidu.com/faq/api?title=webapi/ip-api params = { "ak": f"{api_key}", "from": "py_mcp" } async with httpx.AsyncClient() as client: response = await client.get(url, params=params) response.raise_for_status() result = response.json() if result.get("status") != 0: error_msg = result.get("message", "unkown error") raise Exception(f"API response error: {error_msg}") return result except httpx.HTTPError as e: raise Exception(f"HTTP request failed: {str(e)}") from e except KeyError as e: raise Exception(f"Failed to parse reponse: {str(e)}") from e @mcp.tool() async def map_road_traffic( model: str, road_name: str, city: str, bounds: str, vertexes: str, center: str, radius: int, ctx: Context ) -> dict: """ Name: 实时路况查询服务 Description: 查询实时交通拥堵情况, 可通过指定道路名和区域形状(矩形, 多边形, 圆形)进行实时路况查询。 道路实时路况查询: 查询具体道路的实时拥堵评价和拥堵路段、拥堵距离、拥堵趋势等信息 矩形区域实时路况查询: 查询指定矩形地理范围的实时拥堵情况和各拥堵路段信息 多边形区域实时路况查询: 查询指定多边形地理范围的实时拥堵情况和各拥堵路段信息 圆形区域(周边)实时路况查询: 查询某中心点周边半径范围内的实时拥堵情况和各拥堵路段信息 Args: model: 路况查询类型(road, bound, polygon, around) road_name: 道路名称和道路方向, model=road时必传 (如:朝阳路南向北) city: 城市名称或城市adcode, model=road时必传 (如:北京市) bounds: 区域左下角和右上角的纬经度坐标,纬度在前,经度在后, model=bound时必传 (如:39.912078,116.464303;39.918276,116.475442) vertexes: 多边形区域的顶点纬经度坐标,纬度在前,经度在后, model=polygon时必传 (如:39.910528,116.472926;39.918276,116.475442;39.916671,116.459056;39.912078,116.464303) center: 圆形区域的中心点纬经度坐标,纬度在前,经度在后, model=around时必传 (如:39.912078,116.464303) radius: 圆形区域的半径(米), 取值[1,1000], model=around时必传 (如:200) """ try: # 获取API密钥 if not api_key: raise Exception("Can not found API key.") # 调用百度API url = f"{api_url}/traffic/v1/{model}?" # 设置请求参数 # 更多参数信息请参考:https://lbs.baidu.com/faq/api?title=webapi/traffic params = { "ak": f"{api_key}", "output": "json", "from": "py_mcp" } # 核心入参，根据model选择 match model: case 'bound': params['bounds'] = f'{bounds}' case 'polygon': params['vertexes'] = f'{vertexes}' case 'around': params['center'] = f'{center}' params['radius'] = f'{radius}' case 'road': params['road_name'] = f'{road_name}' params['city'] = f'{city}' case _: pass async with httpx.AsyncClient() as client: response = await client.get(url, params=params) response.raise_for_status() result = response.json() if result.get("status") != 0: error_msg = result.get("message", "unkown error") raise Exception(f"API response error: {error_msg}") return result except httpx.HTTPError as e: raise Exception(f"HTTP request failed: {str(e)}") from e except KeyError as e: raise Exception(f"Failed to parse reponse: {str(e)}") from e @mcp.tool() async def map_poi_extract( text_content: str, ctx: Context ) -> dict: """ Name: POI智能提取 Description: 根据用户提供的文本描述信息, 智能提取出文本中所提及的POI相关信息. (注意: 使用该服务, api_key需要拥有对应的高级权限, 否则会报错) Args: text_content: 用于提取POI的文本描述信息 (完整的旅游路线，行程规划，景点推荐描述等文本内容, 例如: 新疆独库公路和塔里木湖太美了, 从独山子大峡谷到天山神秘大峡谷也是很不错的体验) """ # 关于高级权限使用的相关问题，请联系我们: https://lbsyun.baidu.com/apiconsole/fankui?typeOne=%E4%BA%A7%E5%93%81%E9%9C%80%E6%B1%82&typeTwo=%E9%AB%98%E7%BA%A7%E6%9C%8D%E5%8A%A1 try: # 获取API密钥 if not api_key: raise Exception("Can not found API key.") # 调用POI智能提取的提交接口 headers = {"Content-Type": "application/x-www-form-urlencoded"} submit_url = f"{api_url}/api_mark/v1/submit" result_url = f"{api_url}/api_mark/v1/result" # 设置上传用户描述的请求体 submit_body = { "ak": f"{api_key}", "id": 0, "msg_type": "text", "text_content": f"{text_content}", "from": "py_mcp" } # 异步请求 async with httpx.AsyncClient() as client: # 提交任务 submit_resp = await client.post( submit_url, data=submit_body, headers=headers, timeout=10.0 ) submit_resp.raise_for_status() submit_result = submit_resp.json() if submit_result.get("status") != 0: error_msg = submit_result.get("message", "unkown error") raise Exception(f"API response error: {error_msg}") map_id = submit_result.get("result", {}).get("map_id") if not map_id: raise Exception("Can not found map_id") # 轮询获取结果（最多5次，间隔2秒） result_body = {"ak": api_key, "id": 0, "map_id": map_id, "from": "py_mcp"} max_retries = 5 for attempt in range(max_retries): result_resp = await client.post( result_url, data=result_body, headers=headers, timeout=10.0 ) result_resp.raise_for_status() result = result_resp.json() if result.get("status") == 0 and result.get("result"): return result elif attempt < max_retries - 1: await sleep(2) else: raise Exception("Timeout to get the result") if result.get("status") != 0: error_msg = result.get("message", "unkown error") raise Exception(f"API response error: {error_msg}") except httpx.HTTPError as e: raise Exception(f"HTTP request failed: {str(e)}") from e except KeyError as e: raise Exception(f"Failed to parse reponse: {str(e)}") from e if __name__ == "__main__": mcp.run()
import os
import asyncio
import appbuilder
from appbuilder.core.console.appbuilder_client.async_event_handler import (
AsyncAppBuilderEventHandler,
)
from appbuilder.mcp_server.client import MCPClient
class MyEventHandler(AsyncAppBuilderEventHandler):
def __init__(self, mcp_client):
super().__init__()
self.mcp_client = mcp_client
def get_current_weather(self, location=None, unit="摄氏度"):
return "{} 的温度是 {} {}".format(location, 20, unit)
async def interrupt(self, run_context, run_response):
thought = run_context.current_thought
# 绿色打印
print("\033[1;31m", "-> Agent 中间思考: ", thought, "\033[0m")
tool_output = []
for tool_call in run_context.current_tool_calls:
tool_res = ""
if tool_call.function.name == "get_current_weather":
tool_res = self.get_current_weather(**tool_call.function.arguments)
else:
print(
"\033[1;32m",
"MCP工具名称: {}, MCP参数:{}
".format(tool_call.function.name, tool_call.function.arguments),
"\033[0m",
)
mcp_server_result = await self.mcp_client.call_tool(
tool_call.function.name, tool_call.function.arguments
)
print("\033[1;33m", "MCP结果: {}\033[0m".format(mcp_server_result))
for i, content in enumerate(mcp_server_result.content):
if content.type == "text":
tool_res += mcp_server_result.content[i].text
tool_output.append(
{
"tool_call_id": tool_call.id,
"output": tool_res,
}
)
return tool_output
async def success(self, run_context, run_response):
print("\033[1;34m", "-> Agent 非流式回答: ", run_response.answer, "\033[0m")
async def agent_run(client, mcp_client, query):
tools = mcp_client.tools
conversation_id = await client.create_conversation()
with await client.run_with_handler(
conversation_id=conversation_id,
query=query,
tools=tools,
event_handler=MyEventHandler(mcp_client),
) as run:
await run.until_done()
### 用户Token
os.environ["APPBUILDER_TOKEN"] = (
""
)
async def main():
appbuilder.logger.setLoglevel("DEBUG")
### 发布的应用ID
app_id = ""
appbuilder_client = appbuilder.AsyncAppBuilderClient(app_id)
mcp_client = MCPClient()
### 注意这里的路径为MCP Server文件在本地的相对路径
await mcp_client.connect_to_server("./<YOUR_FILE_PATH>/map.py")
print(mcp_client.tools)
await agent_run(
appbuilder_client,
mcp_client,
'开车导航从北京到上海',
)
await appbuilder_client.http_client.session.close()
if __name__ == "__main__":
loop = asyncio.get_event_loop()
loop.run_until_complete(main())
浙公网安备 33010602011771号
