Avalonia:基础导航
Avalonia本身就可以实现导航功能，在主页面放置 TransitioningContentControl 控件，把它绑定到ViewModel 中的一个属性上 ViewModelBase? _currentPage;，通过更新这个属性实现导航。
我们先建二个ViewModel，一个是ColorsViewModel,一个是AboutViewModel。
using Avalonia.Data.Converters;
using Avalonia.Media;
using ReactiveUI.SourceGenerators;
using System;
using System.Collections.ObjectModel;
using System.Linq;
using System.Reflection;
namespace BasicRoutingExample.ViewModels
{
public partial class ColorsViewModel : ViewModelBase
{
[Reactive]
private string? _colorName;
[Reactive]
private Color? _color;
public static FuncValueConverter<Color, string> ToCMYK { get; } = new(color =>
{
double r = color.R / 255.0;
double g = color.G / 255.0;
double b = color.B / 255.0;
double k = 1 - Math.Max(Math.Max(r, g), b);
double C = k < 1 ? (1 - r - k) / (1 - k) : 0;
double M = k < 1 ? (1 - g - k) / (1 - k) : 0;
double Y = k < 1 ? (1 - b - k) / (1 - k) : 0;
return $"C={Math.Round(C * 100, 1)}% M={Math.Round(M * 100, 1)}% Y={Math.Round(Y * 100, 1)}% K={Math.Round(k * 100, 1)}%";
});
public ObservableCollection<ColorsViewModel> Colors { get; } = [];
public ColorsViewModel() { }
[ReactiveCommand]
private void Init()
{
var properties = typeof(Colors).GetProperties(BindingFlags.Static | BindingFlags.Public)
.Where(p => p.PropertyType == typeof(Color));
foreach (var property in properties)
{
if (property.GetValue(null) is Color color)
{
Colors.Add(new ColorsViewModel
{
Color = color,
ColorName = property.Name
});
}
}
}
}
}
using System.Reflection;
namespace BasicRoutingExample.ViewModels
{
public partial class AboutViewModel : ViewModelBase
{
public string? AppName => Assembly.GetExecutingAssembly().GetName().Name;
public string? Version => Assembly.GetExecutingAssembly().GetName()?.Version?.ToString();
public string Message => "这是用 Avalonia 设计的 App,使用 ReactiveUI 响应式框架。";
}
}
再建二个View。先建ColorsView。
<UserControl xmlns="https://github.com/avaloniaui"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:vm="using:BasicRoutingExample.ViewModels"
xmlns:b="using:BasicRoutingExample.Behaviors"
xmlns:cv="using:Avalonia.Controls.Converters"
mc:Ignorable="d" d:DesignWidth="800" d:DesignHeight="560"
x:DataType="vm:ColorsViewModel"
b:LoadedBehavior.ExecuteCommandOnLoaded="{Binding InitCommand}"
x:Class="BasicRoutingExample.Views.ColorsView">
<UserControl.Resources>
<cv:ColorToHexConverter x:Key="ColorToHex" AlphaPosition="Leading" IsAlphaVisible="False"/>
</UserControl.Resources>
<Grid RowDefinitions="Auto,*">
<TextBlock Text="{Binding Colors.Count,StringFormat='Avalonia.Media Colors {0}'}" FontSize="18" Margin="5"/>
<ScrollViewer Grid.Row="1">
<ItemsControl ItemsSource="{Binding Colors}">
<ItemsControl.ItemTemplate>
<DataTemplate>
<StackPanel Orientation="Horizontal" Spacing="10" Margin="5">
<Rectangle Width="300" Height="30">
<Rectangle.Fill>
<SolidColorBrush Color="{Binding Color}"/>
</Rectangle.Fill>
</Rectangle>
<TextBlock Text="{Binding ColorName}" Width="110"/>
<TextBlock Text="{Binding Color,Converter={StaticResource ColorToHex},ConverterParameter={x:True}}" Width="80"/>
<TextBlock Text="{Binding Color,Converter={x:Static vm:ColorsViewModel.ToCMYK}}"/>
</StackPanel>
</DataTemplate>
</ItemsControl.ItemTemplate>
</ItemsControl>
</ScrollViewer>
</Grid>
</UserControl>
再建AboutView。
<UserControl xmlns="https://github.com/avaloniaui"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:vm="using:BasicRoutingExample.ViewModels"
mc:Ignorable="d" d:DesignWidth="800" d:DesignHeight="560"
x:DataType="vm:AboutViewModel"
x:Class="BasicRoutingExample.Views.AboutView">
<Grid RowDefinitions="Auto,Auto">
<StackPanel Orientation="Horizontal" Spacing="5" Grid.Row="0">
<TextBlock Text="{Binding AppName}" FontWeight="Bold" FontSize="24"/>
<TextBlock Text="{Binding Version}" FontSize="20"/>
</StackPanel>
<TextBlock Text="{Binding Message}" Grid.Row="1" FontSize="18"/>
</Grid>
</UserControl>
在MainWindowViewModel中实现更新页面的逻辑。
using Microsoft.Extensions.DependencyInjection;
using ReactiveUI;
using ReactiveUI.SourceGenerators;
using System.Reactive.Linq;
namespace BasicRoutingExample.ViewModels
{
public partial class MainWindowViewModel : ViewModelBase
{
[Reactive]
private ViewModelBase? _currentPage;
[ReactiveCommand]
private void GotoColors()
{
if(CurrentPage is not ColorsViewModel)
{
CurrentPage = App.Current.Services?.GetRequiredService<ColorsViewModel>();
}
}
[ReactiveCommand]
private void GotoAbout()
{
if(CurrentPage is not AboutViewModel)
{
CurrentPage = App.Current.Services?.GetRequiredService<AboutViewModel>();
}
}
public MainWindowViewModel()
{
CurrentPage = App.Current.Services?.GetRequiredService<ColorsViewModel>();
_isColorsPage = this.WhenAnyValue(x => x.CurrentPage)
.Select(x => x?.GetType() == typeof(ColorsViewModel))
.ToProperty(this, x => x.IsColorsPage);
_isAboutPage = this.WhenAnyValue(x => x.CurrentPage)
.Select(x => x?.GetType() == typeof(AboutViewModel))
.ToProperty(this, x => x.IsAboutPage);
}
private readonly ObservableAsPropertyHelper<bool> _isColorsPage;
private readonly ObservableAsPropertyHelper<bool> _isAboutPage;
public bool IsColorsPage => _isColorsPage.Value;
public bool IsAboutPage => _isAboutPage.Value;
}
}
为了实现按钮被选中的效果，Avalonia可以这样做。
<Style Selector="Button.active /template/ ContentPresenter">
<Setter Property="Background" Value="{StaticResource PrimaryActiveBackground}"/>
<Setter Property="Foreground" Value="{StaticResource PrimaryActiveForeground}"/>
</Style>
<Button Command="{Binding GotoColorsCommand}" Classes.active="{Binding IsColorsPage}">
<StackPanel Orientation="Horizontal" Spacing="15">
<Image Source="/Assets/images/colors.png" Width="32"/>
<TextBlock Text="色 彩"/>
</StackPanel>
</Button>
<Button Command="{Binding GotoAboutCommand}" Classes.active="{Binding IsAboutPage}">
<StackPanel Orientation="Horizontal" Spacing="15">
<Image Source="/Assets/images/aboutA.png" Width="32"/>
<TextBlock Text="关 于"/>
</StackPanel>
</Button>
把Button按钮的Classes.active绑定到一个属性上IsColorsPage或IsAboutPage，由这个属性决定按钮是否被“选中”或“激活”。当页面属性 CurrentPage 属性发生改变时，通知前面二个公开属性，我们发现要实现这样的功能，ReactiveUI要敲更多的代码。
_isColorsPage = this.WhenAnyValue(x => x.CurrentPage)
.Select(x => x?.GetType() == typeof(ColorsViewModel))
.ToProperty(this, x => x.IsColorsPage);
_isAboutPage = this.WhenAnyValue(x => x.CurrentPage)
.Select(x => x?.GetType() == typeof(AboutViewModel))
.ToProperty(this, x => x.IsAboutPage);
如果使用communitytoolkit.mvvm，可能只需要更少的代码。
Avalonia有一个非常轻量的转换器FuncValueConverter，不需要建一个类，把它放到ViewModel中的一个属性上就可以使用，非常非常方便。
public static FuncValueConverter<Color, string> ToCMYK { get; } = new(color =>
{
double r = color.R / 255.0;
double g = color.G / 255.0;
double b = color.B / 255.0;
double k = 1 - Math.Max(Math.Max(r, g), b);
double C = k < 1 ? (1 - r - k) / (1 - k) : 0;
double M = k < 1 ? (1 - g - k) / (1 - k) : 0;
double Y = k < 1 ? (1 - b - k) / (1 - k) : 0;
return $"C={Math.Round(C * 100, 1)}% M={Math.Round(M * 100, 1)}% Y={Math.Round(Y * 100, 1)}% K={Math.Round(k * 100, 1)}%";
});
把它设置成静态属性，可以这样直接使用。
<TextBlock Text="{Binding Color,Converter={x:Static vm:ColorsViewModel.ToCMYK}}"/>
在App.axaml.cs中使用communitytoolkit.mvvm的Ioc容器。
using Avalonia;
using Avalonia.Controls.ApplicationLifetimes;
using Avalonia.Data.Core.Plugins;
using Avalonia.Markup.Xaml;
using BasicRoutingExample.ViewModels;
using BasicRoutingExample.Views;
using Microsoft.Extensions.DependencyInjection;
using System;
namespace BasicRoutingExample
{
public partial class App : Application
{
public override void Initialize()
{
AvaloniaXamlLoader.Load(this);
}
public override void OnFrameworkInitializationCompleted()
{
BindingPlugins.DataValidators.RemoveAt(0);
Services = ConfigureServices();
if (ApplicationLifetime is IClassicDesktopStyleApplicationLifetime desktop)
{
desktop.MainWindow = new MainWindow
{
DataContext = new MainWindowViewModel(),
};
}
base.OnFrameworkInitializationCompleted();
}
public new static App Current => (App)Application.Current!;
public IServiceProvider? Services { get; private set; }
private static ServiceProvider ConfigureServices()
{
var services = new ServiceCollection();
services.AddTransient<ColorsViewModel>();
services.AddTransient<AboutViewModel>();
return services.BuildServiceProvider();
}
}
}
在App.axaml中使用样式。
<Application xmlns="https://github.com/avaloniaui"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
x:Class="BasicRoutingExample.App"
xmlns:local="using:BasicRoutingExample"
RequestedThemeVariant="Default">
<!-- "Default" ThemeVariant follows system theme variant. "Dark" or "Light" are other available options. -->
<Application.DataTemplates>
<local:ViewLocator/>
</Application.DataTemplates>
<Application.Resources>
<SolidColorBrush x:Key="PrimaryBackground">#14172D</SolidColorBrush>
<SolidColorBrush x:Key="PrimaryForeground">#cfcfcf</SolidColorBrush>
<LinearGradientBrush x:Key="PrimaryGradient" StartPoint="0%,0%" EndPoint="100%,0%">
<GradientStops>
<GradientStop Offset="0" Color="#111214"/>
<GradientStop Offset="1" Color="#151E3E"/>
</GradientStops>
</LinearGradientBrush>
<SolidColorBrush x:Key="PrimaryHoverBackground">#333853</SolidColorBrush>
<SolidColorBrush x:Key="PrimaryHoverForeground">White</SolidColorBrush>
<SolidColorBrush x:Key="PrimaryActiveBackground">#334488</SolidColorBrush>
<SolidColorBrush x:Key="PrimaryActiveForeground">AliceBlue</SolidColorBrush>
</Application.Resources>
<Application.Styles>
<FluentTheme />
<Style Selector="TextBlock">
<Setter Property="Foreground" Value="{StaticResource PrimaryForeground}"/>
<Setter Property="VerticalAlignment" Value="Center"/>
</Style>
<Style Selector="TextBlock.caption">
<Setter Property="FontSize" Value="28"/>
<Setter Property="HorizontalAlignment" Value="Center"/>
<Setter Property="VerticalAlignment" Value="Center"/>
</Style>
<Style Selector="Border.menu">
<Setter Property="Background" Value="{StaticResource PrimaryGradient}"/>
<Setter Property="Padding" Value="10"/>
</Style>
<Style Selector="Border.client">
<Setter Property="Padding" Value="10"/>
<Setter Property="Background" Value="{StaticResource PrimaryBackground}"/>
</Style>
<Style Selector="Button">
<Setter Property="HorizontalContentAlignment" Value="Center"/>
<Setter Property="Width" Value="150"/>
</Style>
<Style Selector="Button /template/ContentPresenter">
<Setter Property="Background" Value="Transparent"/>
<Setter Property="Foreground" Value="{StaticResource PrimaryForeground}"/>
<Setter Property="FontSize" Value="18"/>
</Style>
<Style Selector="Button:pointerover /template/ContentPresenter">
<Setter Property="Background" Value="{StaticResource PrimaryHoverBackground}"/>
<Setter Property="Foreground" Value="{StaticResource PrimaryHoverForeground}"/>
</Style>
<Style Selector="Button.active /template/ ContentPresenter">
<Setter Property="Background" Value="{StaticResource PrimaryActiveBackground}"/>
<Setter Property="Foreground" Value="{StaticResource PrimaryActiveForeground}"/>
</Style>
</Application.Styles>
</Application>

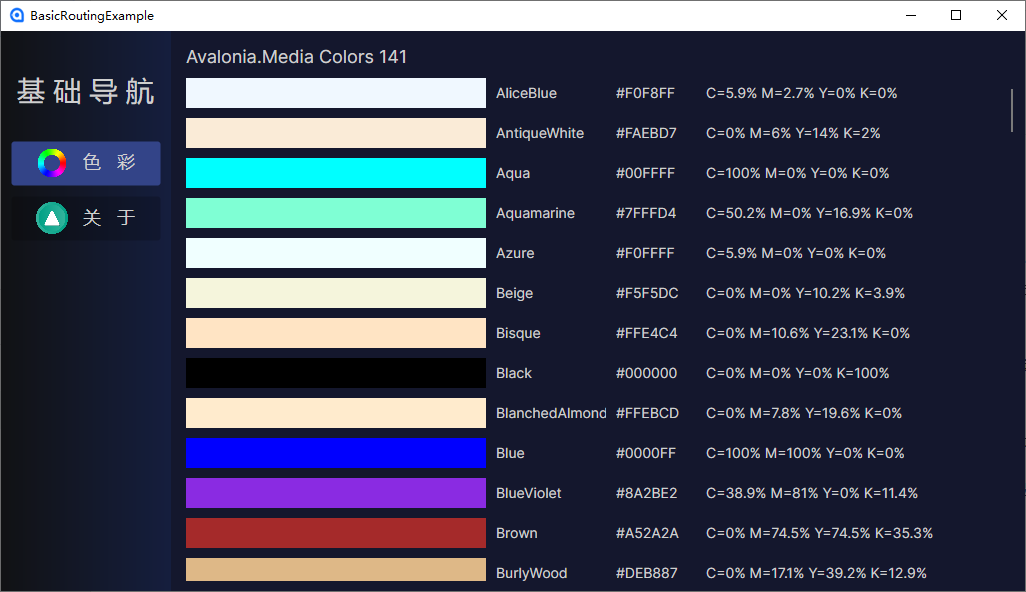

实现效果
