JAVA第三次大作业Blog

前言

题目集7-9的题量是比较少的，重点考察类设计能力，难度适中。只要类设计的恰当，题目是不难做的。也就是说这三次的题目集都只是很单纯的考察我们面向对象的设计思维和类设计能力。

设计与分析

①题目集7中7-1、7-2两题的递进式设计分析总结

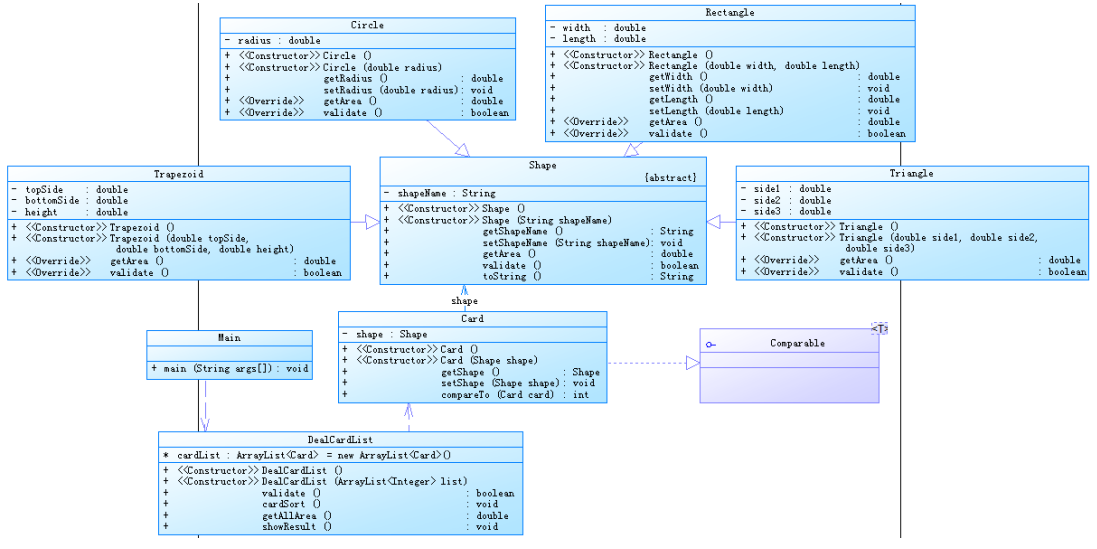

先分析题目7-1。在本题的指导书中给出了具体的类设计建议，根据该类设计完善自己的代码即可，基本不会出现什么问题。

先给出我自己的源码。

  1 import java.util.*;
  2
  3 public class Main {
  4 public static Scanner inp = new Scanner(System.in);
  5     public static void main(String[] args) {
  6         // TODO Auto-generated method stub
  7
  8         ArrayList<Integer> list = new ArrayList<Integer>();
  9         boolean flag = true;
 10
 11         flag = Input.inType(list);
 12         if(!flag) {
 13             System.out.println("Wrong Format");
 14             System.exit(0);
 15         }
 16
 17         DealCardList deal = new DealCardList(list);
 18         flag = Input.inValues(deal.cardList,list);
 19         if(!flag) {
 20             System.out.println("Wrong Format");
 21             System.exit(0);
 22         }
 23
 24         deal.showResult();
 25     }
 26
 27 }
 28 class Input {
 29
 30     static boolean inType(ArrayList<Integer> list) {
 31     //    Scanner in = new Scanner(System.in);
 32         int valu;
 33         boolean flag = true;
 34         valu = Main.inp.nextInt();
 35         while(valu!=0)
 36         {
 37             if(type_validata(valu))
 38                 list.add(valu);
 39             else
 40                 flag = false;
 41             valu = Main.inp.nextInt();
 42         }
 43         return flag;
 44     }
 45
 46     static boolean inValues(ArrayList<Card> cardList,ArrayList<Integer> list) {
 47     //    Scanner in = new Scanner(System.in);
 48         int i;
 49         boolean flag = true;
 50         int errors = 0;
 51
 52         for(i = 0;i<cardList.size();i++) {
 53
 54             switch(list.get(i)) {
 55             case 1:
 56                 double radius = Main.inp.nextDouble();
 57                 ((Circle) cardList.get(i).getShape()).setRadius(radius);
 58                 flag = ((Circle) cardList.get(i).getShape()).validata();
 59                 if(!flag)
 60                     errors++;
 61                 break;
 62             case 2:
 63                 double width = Main.inp.nextDouble();
 64                 double length = Main.inp.nextDouble();
 65                 ((Rectangle) cardList.get(i).getShape()).setWidth(width);
 66                 ((Rectangle) cardList.get(i).getShape()).setLength(length);
 67                 flag = ((Rectangle) cardList.get(i).getShape()).validata();
 68                 if(!flag)
 69                     errors++;
 70                 break;
 71             case 3:
 72                 double side1 = Main.inp.nextDouble();
 73                 double side2 = Main.inp.nextDouble();
 74                 double side3 = Main.inp.nextDouble();
 75                 ((Triangle) cardList.get(i).getShape()).setSide1(side1);
 76                 ((Triangle) cardList.get(i).getShape()).setSide2(side2);
 77                 ((Triangle) cardList.get(i).getShape()).setSide3(side3);
 78                 flag = ((Triangle) cardList.get(i).getShape()).validata();
 79                 if(!flag)
 80                     errors++;
 81                 break;
 82             case 4:
 83                 double topSide = Main.inp.nextDouble();
 84                 double bottomSide = Main.inp.nextDouble();
 85                 double height = Main.inp.nextDouble();
 86                 ((Trapezoid) cardList.get(i).getShape()).setTopSide(topSide);
 87                 ((Trapezoid) cardList.get(i).getShape()).setBottomSide(bottomSide);
 88                 ((Trapezoid) cardList.get(i).getShape()).setHeight(height);
 89                 flag = ((Trapezoid) cardList.get(i).getShape()).validata();
 90                 if(!flag)
 91                     errors++;
 92                 break;
 93                 default:
 94                 }
 95         }
 96
 97         if(errors!=0)
 98             return false;
 99         else
100             return true;
101     }
102
103     static boolean type_validata(int i) {
104         if(i>=1&&i<=4)
105             return true;
106         else
107             return false;
108     }
109 }
110 class DealCardList {
111
112     ArrayList<Card> cardList = new ArrayList<Card>();
113
114     DealCardList(){
115
116     }
117     DealCardList(ArrayList<Integer> list){
118         for(int i = 0;i<list.size();i++) {
119             trans(list.get(i));
120         }
121     }
122
123     /*
124      * boolean validata() {
125      *
126      * }
127      */
128     static int jugeType(String s) {
129         if(s.equals("Circle"))
130             return 1;
131         if(s.equals("Rectangle"))
132             return 2;
133         if(s.equals("Triangle"))
134             return 3;
135         if(s.equals("Trapezoid"))
136             return 4;
137
138         return 0;
139     }
140
141     void cardSort() {
142
143         Collections.sort(this.cardList);
144     }
145
146     double getAllArea() {
147         double area = 0;
148         int i;
149         for(i = 0;i<cardList.size();i++)
150         {
151             area += Card.result(jugeType(cardList.get(i).getShape().getShapeName()), cardList.get(i).getShape());
152         }
153         return area;
154     }
155
156     void show() {
157         int i;
158         int type;
159         double area;
160         for(i = 0;i<cardList.size();i++)
161         {
162             System.out.print(cardList.get(i).getShape().getShapeName()+":");
163             type = jugeType(cardList.get(i).getShape().getShapeName());
164             switch(type)
165             {
166             case 1:
167                 area = ((Circle) cardList.get(i).getShape()).getArea();
168                 System.out.print(String.format("%.2f", area)+" ");
169                 break;
170             case 2:
171                 area = ((Rectangle) cardList.get(i).getShape()).getArea();
172                 System.out.print(String.format("%.2f", area)+" ");
173                 break;
174             case 3:
175                 area = ((Triangle) cardList.get(i).getShape()).getArea();
176                 System.out.print(String.format("%.2f", area)+" ");
177                 break;
178             case 4:
179                 area = ((Trapezoid) cardList.get(i).getShape()).getArea();
180                 System.out.print(String.format("%.2f", area)+" ");
181                 break;
182             }
183         }
184     }
185
186     void showResult() {
187         int i;
188         int type;
189         double area;
190
191         System.out.println("The original list:");
192         show();
193         System.out.println("\nThe sorted list:");
194         cardSort();
195         show();
196         System.out.print("\nSum of area:"+String.format("%.2f",getAllArea()));
197
198     }
199
200     void trans(int i) {
201         switch(i)
202         {
203         case 1:
204             Card c1 = new Card(new Circle());
205             this.cardList.add(c1);
206             break;
207         case 2:
208             Card c2 = new Card(new Rectangle());
209             this.cardList.add(c2);
210             break;
211         case 3:
212             Card c3 = new Card(new Triangle());
213             this.cardList.add(c3);
214             break;
215         case 4:
216             Card c4 = new Card(new Trapezoid());
217             this.cardList.add(c4);
218             break;
219             default:
220
221         }
222     }
223 }
224  class Card implements Comparable<Card>{
225
226     private Shape shape;
227
228     Card(){
229
230     }
231     Card(Shape shape){
232         this.shape = shape;
233     }
234
235     public Shape getShape() {
236         return shape;
237     }
238     public void setShape(Shape shape) {
239         this.shape = shape;
240     }
241
242     public int compareTo(Card card) {
243         int t1,t2;
244         double area1,area2;
245         area1 = this.shape.getArea();
246         area2 = card.getShape().getArea();
247         if(area1>=area2)
248             return -1;
249         else
250             return 1;
251     }
252
253     static double result(int i,Shape o) {
254         switch(i) {
255         case 1:
256             return ((Circle) o).getArea();
257         case 2:
258             return ((Rectangle) o).getArea();
259         case 3:
260             return ((Triangle) o).getArea();
261         case 4:
262             return ((Trapezoid) o).getArea();
263             default:
264                 return 0;
265         }
266     }
267
268 }
269 class Triangle extends Shape{
270
271     private double side1;
272     private double side2;
273     private double side3;
274
275     Triangle(){
276         this.setShapeName("Triangle");
277     }
278     Triangle(double side1,double side2,double side3){
279         this.side1 = side1;
280         this.side2 = side2;
281         this.side3 = side3;
282         this.setShapeName("Triangle");
283     }
284
285     public double getSide1() {
286         return side1;
287     }
288     public void setSide1(double side1) {
289         this.side1 = side1;
290     }
291     public double getSide2() {
292         return side2;
293     }
294     public void setSide2(double side2) {
295         this.side2 = side2;
296     }
297     public double getSide3() {
298         return side3;
299     }
300     public void setSide3(double side3) {
301         this.side3 = side3;
302     }
303
304     //@Override
305     double getArea() {                //海伦公式
306         double p;
307         double S;
308         double area;
309         p = (this.side1+this.side2+this.side3)/2.0;            //三角形半周长
310         S = p*(p-this.side1)*(p-this.side2)*(p-this.side3);
311         area = Math.sqrt(S);
312         return area;
313     }
314
315     //@Override
316     boolean validata() {
317          if(this.side1+this.side2>this.side3&&this.side1+this.side3>this.side2&&this.side2+this.side3>this.side1) {
318              return true;
319          }
320          else
321              return false;
322     }
323 }
324  class Trapezoid extends Shape{
325
326     private double topSide;
327     private double bottomSide;
328     private double height;
329
330     Trapezoid(){
331         this.setShapeName("Trapezoid");
332     }
333     Trapezoid(double topSide,double bottomSide,double height){
334         this.topSide = topSide;
335         this.bottomSide = bottomSide;
336         this.height = height;
337         this.setShapeName("Trapezoid");
338     }
339
340     public double getTopSide() {
341         return topSide;
342     }
343     public void setTopSide(double topSide) {
344
345         this.topSide = topSide;
346     }
347     public double getBottomSide() {
348         return bottomSide;
349     }
350     public void setBottomSide(double bottomSide) {
351
352         this.bottomSide = bottomSide;
353     }
354     public double getHeight() {
355         return height;
356     }
357     public void setHeight(double height) {
358         this.height = height;
359     }
360
361     //@Override
362     double getArea() {
363         double area;
364         area = (this.topSide+this.bottomSide)*this.height/2.0;
365         return area;
366     }
367
368     //@Override
369     boolean validata() {
370         if(this.topSide<0||this.bottomSide<0||this.height<0)
371                 return false;
372         else
373             return true;
374     }
375 }
376 class Rectangle extends Shape{
377
378     private double width;
379     private double length;
380
381     Rectangle(){
382         this.setShapeName("Rectangle");
383     }
384     Rectangle(double width,double length){
385         this.width = width;
386         this.length = length;
387         this.setShapeName("Rectangle");
388     }
389
390     public double getWidth() {
391         return width;
392     }
393     public void setWidth(double width) {
394
395         this.width = width;
396     }
397     public double getLength() {
398         return length;
399     }
400     public void setLength(double length) {
401
402         this.length = length;
403     }
404
405     //@Override
406     double getArea() {
407         double area;
408         area = this.width*this.length;
409         return area;
410     }
411
412     //@Override
413     boolean validata() {
414         if(this.width<0||this.length<0)
415             return false;
416         else
417             return true;
418     }
419 }
420 class Circle extends Shape{
421
422     private double radius;
423
424     Circle(){
425         this.setShapeName("Circle");
426     }
427     Circle(double radius){
428         this.radius = radius;
429         this.setShapeName("Circle");
430     }
431
432     public double getRadius() {
433         return radius;
434     }
435     public void setRadius(double radius) {
436
437         this.radius = radius;
438     }
439
440     //@Override
441     double getArea() {
442         double area;
443         area = Math.PI*this.radius*this.radius;
444         return area;
445     }
446
447     //@Override
448     boolean validata() {
449         if(this.radius<0) {
450             return false;
451         }
452         return true;
453     }
454 }
455 abstract class Shape {
456
457     private String shapeName;
458
459     Shape(){
460
461     }
462     Shape(String shapeName){
463         this.shapeName = shapeName;
464     }
465
466     public String getShapeName() {
467         return shapeName;
468     }
469     public void setShapeName(String shapeName) {
470         this.shapeName = shapeName;
471     }
472
473     double getArea() {
474         double s = 0.0;
475         return s;
476     }
477
478     boolean validata() {
479         return true;
480     }
481
482     public String toString() {
483         String a = "example";
484         return a;
485     }
486 }

题目7-1

基于给出的类设计分析，思路主要是使用到继承和多态。对于题目卡片形状，抽象出一个Shape的抽象父类，里头定义了形状名称、形状的面积求法等（抽象定义，不实现）。又题目给出了明确的“卡片”定义，所以有一个卡片的类，当然卡片最主要的属性就是它的形状了，这都没什么好纠结的。题目给出了具体类设计，我们只需要按照类图去写代码就可以了，基本不会遇到什么问题。这里唯一需要注意的点就是在计算面积的时候，题目给出了“保留两位小数”的要求。当遇到这样的要求的时候一定要警惕，比如后面让你求和的时候，必须要注意到底是先保留两位再求和还是先求和再保留两位小数。

踩坑心得

这里唯一需要注意的点，就是求和、保留两位小数这两个点。一定要注意自己测试一下测试点到底对这个点是什么要求，有时候可能错的是保留两位小数和求和之间的矛盾点，但给出的测试点错误提示却让你没办法把这两点联系到一起，所以最好的做法就是自己先对疑惑点进行测试。

改进建议

先给出类图。

可以看出来这里面还使用了比较器。关于比较器，这个可以是默认的，也可以自己去修改。在这里根据题目的要求我是做了修改的。

因为具体比较的还是卡片，所以我的compare to 函数是在Card类里重写的。

 1 public int compareTo(Card card) {
 2         int t1,t2;
 3         double area1,area2;
 4         area1 = this.shape.getArea();
 5         area2 = card.getShape().getArea();
 6         if(area1>=area2)
 7             return 1;
 8         else
 9             return -1;
10     }

这个Compare的接口是所有类默认会继承的。

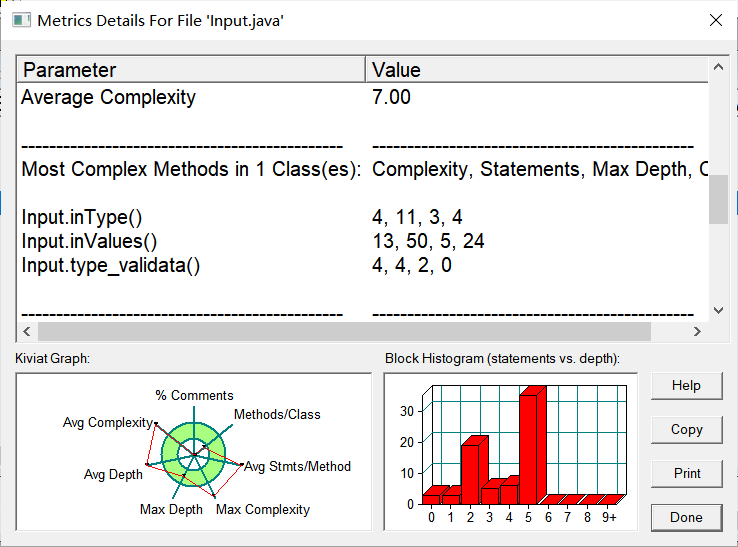

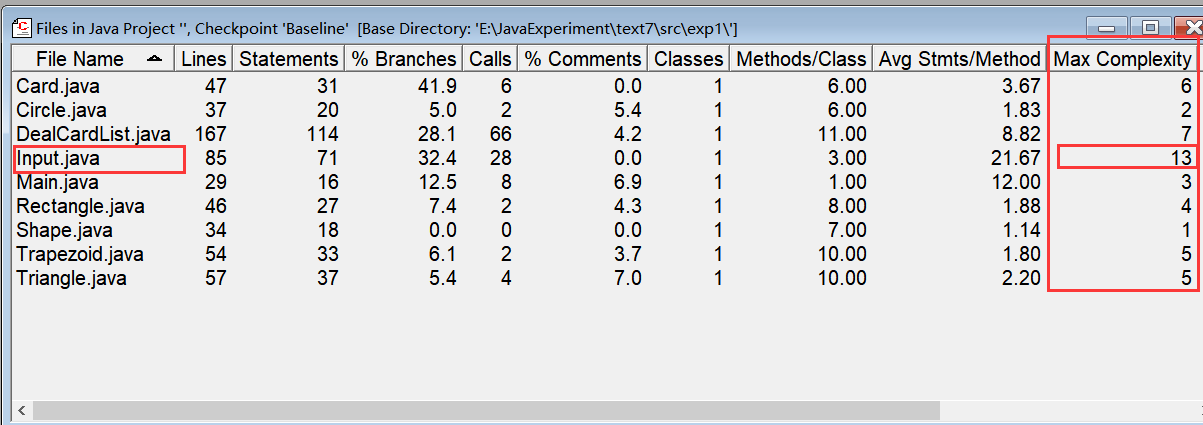

下面给出我的SourceMonitor图分析。

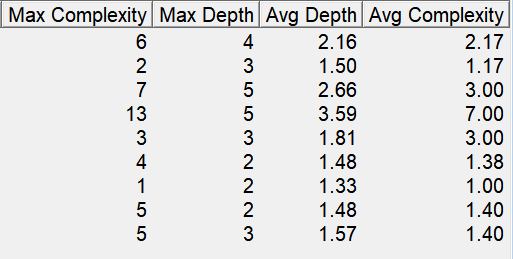

从圈复杂度可以看出来平均来说每个类的圈复杂度都蛮低的，也就是说从设计方面来说是可以的（老师给的类图）。这个Input类是我自己添进去的，为了保持Main类的单一职责。现在可以看到最大圈复杂度出现在了Input类中。截出具体Input类的情况如下。

inValues是函数的功能是分类型得到输入的数据，这是基于inType函数的基础来的。所以在inValues函数中的判断会多一些，是为了更好的对输入的数据（半径之类的）进行分类存储，为之后的计算铺垫。

从上面的分析中可以看出来，Input的圈复杂度有点过高了，很容易出现bug，所以inValues可以再把职责划分的细一点，把职责分出去，进一步降低圈复杂度。

题目7-2.

题目7-2的要求基本和7-1重合一大部分，没有什么添加的点，主要就是给卡片按图形分个类输出，然后输出的格式做点改变。

先给出我的源码。

  1 import java.util.*;
  2
  3 public class Main {
  4 public static Scanner inp = new Scanner(System.in);
  5     public static void main(String[] args) {
  6         // TODO Auto-generated method stub
  7
  8         ArrayList<Integer> list = new ArrayList<Integer>();
  9         boolean flag = true;
 10
 11         flag = Input.inType(list);
 12         if(!flag) {
 13             System.out.print("Wrong Format");
 14             System.exit(0);
 15         }
 16
 17         DealCardList deal = new DealCardList(list);
 18         flag = Input.inValues(deal.cardList,list);
 19         if(!flag) {
 20             System.out.print("Wrong Format");
 21             System.exit(0);
 22         }
 23
 24         deal.showResult2();
 25     }
 26
 27 }
 28 class Input {
 29
 30     static boolean inType(ArrayList<Integer> list) {
 31     //    Scanner in = new Scanner(System.in);
 32         int valu;
 33         boolean flag = true;
 34         valu = Main.inp.nextInt();
 35         int fflag = 0;
 36         while(valu!=0)
 37         {
 38             fflag = 1;
 39             if(type_validata(valu))
 40                 list.add(valu);
 41             else
 42                 flag = false;
 43             valu = Main.inp.nextInt();
 44         }
 45         if(fflag==0)
 46             return false;
 47         return flag;
 48     }
 49     static boolean inValues(ArrayList<Card> cardList,ArrayList<Integer> list) {
 50         int i;
 51         boolean flag = true;
 52         int errors = 0;
 53
 54         for(i = 0;i<cardList.size();i++) {
 55
 56             switch(list.get(i)) {
 57             case 1:
 58                 double radius = Main.inp.nextDouble();
 59                 ((Circle) cardList.get(i).getShape()).setRadius(radius);
 60                 flag = ((Circle) cardList.get(i).getShape()).validata();
 61                 if(!flag)
 62                     errors++;
 63                 break;
 64             case 2:
 65                 double width = Main.inp.nextDouble();
 66                 double length = Main.inp.nextDouble();
 67                 ((Rectangle) cardList.get(i).getShape()).setWidth(width);
 68                 ((Rectangle) cardList.get(i).getShape()).setLength(length);
 69                 flag = ((Rectangle) cardList.get(i).getShape()).validata();
 70                 if(!flag)
 71                     errors++;
 72                 break;
 73             case 3:
 74                 double side1 = Main.inp.nextDouble();
 75                 double side2 = Main.inp.nextDouble();
 76                 double side3 = Main.inp.nextDouble();
 77                 ((Triangle) cardList.get(i).getShape()).setSide1(side1);
 78                 ((Triangle) cardList.get(i).getShape()).setSide2(side2);
 79                 ((Triangle) cardList.get(i).getShape()).setSide3(side3);
 80                 flag = ((Triangle) cardList.get(i).getShape()).validata();
 81                 if(!flag)
 82                     errors++;
 83                 break;
 84             case 4:
 85                 double topSide = Main.inp.nextDouble();
 86                 double bottomSide = Main.inp.nextDouble();
 87                 double height = Main.inp.nextDouble();
 88                 ((Trapezoid) cardList.get(i).getShape()).setTopSide(topSide);
 89                 ((Trapezoid) cardList.get(i).getShape()).setBottomSide(bottomSide);
 90                 ((Trapezoid) cardList.get(i).getShape()).setHeight(height);
 91                 flag = ((Trapezoid) cardList.get(i).getShape()).validata();
 92                 if(!flag)
 93                     errors++;
 94                 break;
 95                 default:
 96                 }
 97         }
 98
 99         if(errors!=0)
100             return false;
101         else
102             return true;
103     }
104
105     static boolean type_validata(int i) {
106         if(i>=1&&i<=4)
107             return true;
108         else
109             return false;
110     }
111 }
112 class DealCardList {
113
114     ArrayList<Card> cardList = new ArrayList<Card>();
115
116     DealCardList(){
117
118     }
119     DealCardList(ArrayList<Integer> list){
120         for(int i = 0;i<list.size();i++) {
121             trans(list.get(i));
122         }
123     }
124     static int jugeType(String s) {
125         if(s.equals("Circle"))
126             return 1;
127         if(s.equals("Rectangle"))
128             return 2;
129         if(s.equals("Triangle"))
130             return 3;
131         if(s.equals("Trapezoid"))
132             return 4;
133
134         return 0;
135     }
136     void cardSort() {
137         Collections.sort(this.cardList);
138     }
139     double getAllArea() {
140         double area = 0;
141         int i;
142         for(i = 0;i<cardList.size();i++)
143         {
144             area += Card.result(jugeType(cardList.get(i).getShape().getShapeName()), cardList.get(i).getShape());
145         }
146         return area;
147     }
148
149     void show() {
150         int i;
151         int type;
152         double area;
153         for(i = 0;i<cardList.size();i++)
154         {
155             System.out.print(cardList.get(i).getShape().getShapeName()+":");
156             type = jugeType(cardList.get(i).getShape().getShapeName());
157             switch(type)
158             {
159             case 1:
160                 area = ((Circle) cardList.get(i).getShape()).getArea();
161                 System.out.print(String.format("%.2f", area)+" ");
162                 break;
163             case 2:
164                 area = ((Rectangle) cardList.get(i).getShape()).getArea();
165                 System.out.print(String.format("%.2f", area)+" ");
166                 break;
167             case 3:
168                 area = ((Triangle) cardList.get(i).getShape()).getArea();
169                 System.out.print(String.format("%.2f", area)+" ");
170                 break;
171             case 4:
172                 area = ((Trapezoid) cardList.get(i).getShape()).getArea();
173                 System.out.print(String.format("%.2f", area)+" ");
174                 break;
175             }
176         }
177     }
178     void show2() {
179         System.out.print("[");
180         show();
181         System.out.print("]");
182     }
183     double[] show3() {
184         int i;
185         double[] max = new double[4];
186         for(i = 0;i<4;i++)
187         {
188             System.out.print("[");
189             max[i] = 0;
190             for(int j = 0;j<cardList.size();j++)
191             {
192                 if(jugeType(cardList.get(j).getShape().getShapeName())==i+1)
193                 {
194                     //if(cardList.get(j).getShape().getArea()>max[i])
195                         max[i] += cardList.get(j).getShape().getArea();
196                     System.out.print(cardList.get(j).getShape().getShapeName()+":"+String.format("%.2f", Card.result(i+1, cardList.get(j).getShape()))+" ");
197                 }
198             }
199             System.out.print("]");
200         }
201         return max;
202     }
203     void showResult2() {
204         double[] max = new double[4];
205         System.out.println("The original list:");
206         show2();
207         System.out.println("\nThe Separated List:");
208     //    cardSort();
209         show3();
210         System.out.println("\nThe Separated sorted List:");
211         cardSort();
212         max = show3();
213         double maxnum = max[0];
214         int i = 1;
215         while(i<4) {
216             if(maxnum<max[i])
217                 maxnum = max[i];
218             i++;
219         }
220         System.out.print("\nThe max area:"+String.format("%.2f", maxnum));
221     }
222     void trans(int i) {
223         switch(i)
224         {
225         case 1:
226             Card c1 = new Card(new Circle());
227             this.cardList.add(c1);
228             break;
229         case 2:
230             Card c2 = new Card(new Rectangle());
231             this.cardList.add(c2);
232             break;
233         case 3:
234             Card c3 = new Card(new Triangle());
235             this.cardList.add(c3);
236             break;
237         case 4:
238             Card c4 = new Card(new Trapezoid());
239             this.cardList.add(c4);
240             break;
241             default:
242
243         }
244     }
245 }
246  class Card implements Comparable<Card>{
247
248     private Shape shape;
249
250     Card(){
251
252     }
253     Card(Shape shape){
254         this.shape = shape;
255     }
256
257     public Shape getShape() {
258         return shape;
259     }
260     public void setShape(Shape shape) {
261         this.shape = shape;
262     }
263
264     public int compareTo(Card card) {
265         int t1,t2;
266         double area1,area2;
267         area1 = this.shape.getArea();
268         area2 = card.getShape().getArea();
269         if(area1>=area2)
270             return -1;
271         else
272             return 1;
273     }
274
275     static double result(int i,Shape o) {
276         switch(i) {
277         case 1:
278             return ((Circle) o).getArea();
279         case 2:
280             return ((Rectangle) o).getArea();
281         case 3:
282             return ((Triangle) o).getArea();
283         case 4:
284             return ((Trapezoid) o).getArea();
285             default:
286                 return 0;
287         }
288     }
289
290 }
291 class Triangle extends Shape{
292
293     private double side1;
294     private double side2;
295     private double side3;
296
297     Triangle(){
298         this.setShapeName("Triangle");
299     }
300     Triangle(double side1,double side2,double side3){
301         this.side1 = side1;
302         this.side2 = side2;
303         this.side3 = side3;
304         this.setShapeName("Triangle");
305     }
306
307     public double getSide1() {
308         return side1;
309     }
310     public void setSide1(double side1) {
311         this.side1 = side1;
312     }
313     public double getSide2() {
314         return side2;
315     }
316     public void setSide2(double side2) {
317         this.side2 = side2;
318     }
319     public double getSide3() {
320         return side3;
321     }
322     public void setSide3(double side3) {
323         this.side3 = side3;
324     }
325
326     //@Override
327     double getArea() {                //海伦公式
328         double p;
329         double S;
330         double area;
331         p = (this.side1+this.side2+this.side3)/2.0;            //三角形半周长
332         S = p*(p-this.side1)*(p-this.side2)*(p-this.side3);
333         area = Math.sqrt(S);
334         return area;
335     }
336
337     //@Override
338     boolean validata() {
339          if(this.side1+this.side2>this.side3&&this.side1+this.side3>this.side2&&this.side2+this.side3>this.side1) {
340              return true;
341          }
342          else
343              return false;
344     }
345 }
346  class Trapezoid extends Shape{
347
348     private double topSide;
349     private double bottomSide;
350     private double height;
351
352     Trapezoid(){
353         this.setShapeName("Trapezoid");
354     }
355     Trapezoid(double topSide,double bottomSide,double height){
356         this.topSide = topSide;
357         this.bottomSide = bottomSide;
358         this.height = height;
359         this.setShapeName("Trapezoid");
360     }
361
362     public double getTopSide() {
363         return topSide;
364     }
365     public void setTopSide(double topSide) {
366
367         this.topSide = topSide;
368     }
369     public double getBottomSide() {
370         return bottomSide;
371     }
372     public void setBottomSide(double bottomSide) {
373
374         this.bottomSide = bottomSide;
375     }
376     public double getHeight() {
377         return height;
378     }
379     public void setHeight(double height) {
380         this.height = height;
381     }
382
383     //@Override
384     double getArea() {
385         double area;
386         area = (this.topSide+this.bottomSide)*this.height/2.0;
387         return area;
388     }
389
390     //@Override
391     boolean validata() {
392         if(this.topSide<0||this.bottomSide<0||this.height<0)
393                 return false;
394         else
395             return true;
396     }
397 }
398 class Rectangle extends Shape{
399
400     private double width;
401     private double length;
402
403     Rectangle(){
404         this.setShapeName("Rectangle");
405     }
406     Rectangle(double width,double length){
407         this.width = width;
408         this.length = length;
409         this.setShapeName("Rectangle");
410     }
411
412     public double getWidth() {
413         return width;
414     }
415     public void setWidth(double width) {
416
417         this.width = width;
418     }
419     public double getLength() {
420         return length;
421     }
422     public void setLength(double length) {
423
424         this.length = length;
425     }
426
427     //@Override
428     double getArea() {
429         double area;
430         area = this.width*this.length;
431         return area;
432     }
433
434     //@Override
435     boolean validata() {
436         if(this.width<0||this.length<0)
437             return false;
438         else
439             return true;
440     }
441 }
442 class Circle extends Shape{
443
444     private double radius;
445
446     Circle(){
447         this.setShapeName("Circle");
448     }
449     Circle(double radius){
450         this.radius = radius;
451         this.setShapeName("Circle");
452     }
453
454     public double getRadius() {
455         return radius;
456     }
457     public void setRadius(double radius) {
458
459         this.radius = radius;
460     }
461
462     //@Override
463     double getArea() {
464         double area;
465         area = Math.PI*this.radius*this.radius;
466         return area;
467     }
468
469     //@Override
470     boolean validata() {
471         if(this.radius<0) {
472             return false;
473         }
474         return true;
475     }
476 }
477 abstract class Shape {
478
479     private String shapeName;
480
481     Shape(){
482
483     }
484     Shape(String shapeName){
485         this.shapeName = shapeName;
486     }
487
488     public String getShapeName() {
489         return shapeName;
490     }
491     public void setShapeName(String shapeName) {
492         this.shapeName = shapeName;
493     }
494
495     double getArea() {
496         double s = 0.0;
497         return s;
498     }
499
500     boolean validata() {
501         return true;
502     }
503
504     public String toString() {
505         String a = "example";
506         return a;
507     }
508 }

题目7-2

一些需要注意的点和7-1差不多。在7-2中，题目的输入还是一样的，改变的其实主要就是输出形式的问题。所以在7-2中，我重写了输出函数。添上了要求形式的输出部分，其他的都是没变的。需要明确的是两次代码从类设计到圈复杂度都没什么太大的变化。因为只是改了一个输出的形式罢了。

两次代码的递进设计分析总结

真要说什么“递进设计”其实我觉得还是说不太上的，因为也没添加什么别的功能之类的，改的地方还只是输出形式而已，所以我做出修改的部分挺普通的，就感觉不是什么很值得讲的东西。总的来说我重写了showResult函数，也就是说Main中输出结果的函数我直接写了另一个（这里还是值得提一提的，我把输入部分和输出部分都专门写了函数或者类，把职责分出去了，所以这里我才改的比较轻松，因为很明确自己要动的是哪个部分，然后直接按7-2的新思路写就行了。相当于我又写了个输出模块然后把所有的拼起来的感觉...）。这样讲来，其实最重要的还是“单一职责”。如果不是把输出的函数单独写了出去，分了另一个模块的话，我写起来就不是那么简单的事情了。因为一旦一个职责没分好牵扯的还是比较多的，首先“调用”就是一个问题。所以还是要做好“单一职责”，按这样写，如果改的地方是输入方式，那我也能消化的比较好，原因就在于我是分了输入模块的。这样我就只需要考虑输入模块内部就可以了，而不是在整个全部的代码里去考虑修改。

②题目集8和题目集9两道ATM机仿真题目的设计思路分析总结

题目集8

先贴上我自己的源码。

  1 import java.util.ArrayList;
  2 import java.util.Scanner;
  3 public class Main {
  4     public static void main(String[] args) {
  5         // TODO Auto-generated method stub
  6         BankFederation BF =  Initiate.Init_bank();
  7         Deal.dealData(BF);
  8     }
  9 }
 10 class BankFederation {
 11     private ArrayList<Bank> bankList = new ArrayList<Bank>();
 12     public ArrayList<Bank> getBankList() {
 13         return bankList;
 14     }
 15     public void addBankList(Bank bankListmen) {
 16         this.bankList.add(bankListmen);
 17     }
 18 }
 19 class Bank {
 20     private String bankName;
 21     private ArrayList<Account> accountList = new ArrayList<Account>();
 22     private ArrayList<ATM> atmList = new ArrayList<ATM>();
 23     Bank(String bankName){
 24         this.bankName = bankName;
 25     }
 26     public String getBankName() {
 27         return bankName;
 28     }
 29     public void setBankName(String bankName) {
 30         this.bankName = bankName;
 31     }
 32     public ArrayList<Account> getAccountList() {
 33         return accountList;
 34     }
 35     public void addAccountList(Account accountListmen) {
 36         this.accountList.add(accountListmen);
 37     }
 38     public ArrayList<ATM> getAtmList() {
 39         return atmList;
 40     }
 41     public void addAtmList(ATM atmListmen) {
 42         this.atmList.add(atmListmen);
 43     }
 44 }
 45 class Account {
 46
 47     private String bankName;
 48     private String accountNum;
 49     private double accountBalance;
 50     private ArrayList<BankCard> bankCardList = new ArrayList<BankCard>();
 51     private User user;
 52
 53     Account(String accountNum,double accountBalance,User user,String bank){
 54         this.accountBalance = accountBalance;
 55         this.accountNum = accountNum;
 56         this.user = user;
 57         this.bankName = bank;
 58     }
 59
 60     public User getUser() {
 61         return user;
 62     }
 63
 64     public void setUser(User user) {
 65         this.user = user;
 66     }
 67
 68     public String getAccountNum() {
 69         return accountNum;
 70     }
 71     public void setAccountNum(String accountNum) {
 72         this.accountNum = accountNum;
 73     }
 74     public double getAccountBalance() {
 75         return accountBalance;
 76     }
 77     public void setAccountBalance(double accountBalance) {
 78         this.accountBalance = accountBalance;
 79     }
 80     public ArrayList<BankCard> getBankCardList() {
 81         return bankCardList;
 82     }
 83     public void addBankCardList(BankCard bankCardmen) {
 84         this.bankCardList.add(bankCardmen);
 85     }
 86
 87     public String getBankName() {
 88         return bankName;
 89     }
 90
 91     public void setBankName(String bankName) {
 92         this.bankName = bankName;
 93     }
 94 }
 95 class BankCard {
 96
 97     private String cardNum;
 98     private String password;
 99
100     BankCard(String cardNum,String password){
101         this.cardNum = cardNum;
102         this.password = password;
103     }
104
105     public String getCardNum() {
106         return cardNum;
107     }
108     public void setCardNum(String cardNum) {
109         this.cardNum = cardNum;
110     }
111     public String getPassword() {
112         return password;
113     }
114     public void setPassword(String password) {
115         this.password = password;
116     }
117
118
119 }
120 class Initiate {
121
122     static BankFederation Init_bank() {
123         BankFederation BF = new BankFederation();
124         Bank bank_1 = new Bank("中国建设银行");
125         Bank bank_2 = new Bank("中国工商银行");
126         BF.addBankList(bank_1);
127         BF.addBankList(bank_2);
128
129         //bank_1
130         User user_1_1 = new User("杨过");
131         Account account_1_1 = new Account("3217000010041315709",10000,user_1_1,"中国建设银行");
132         BankCard bankcard_1_1_1 = new BankCard("6217000010041315709","88888888");
133         BankCard bankcard_1_1_2 = new BankCard("6217000010041315715","88888888");
134         account_1_1.addBankCardList(bankcard_1_1_1);
135         account_1_1.addBankCardList(bankcard_1_1_2);
136         Account account_1_2 = new Account("3217000010041315715",10000,user_1_1,"中国建设银行");
137         BankCard bankcard_1_2_1 = new BankCard("6217000010041315718","88888888");
138         account_1_2.addBankCardList(bankcard_1_2_1);
139         User user_1_2 = new User("郭靖");
140         Account account_1_3 = new Account("3217000010051320007",10000,user_1_2,"中国建设银行");
141         BankCard bankcard_1_3_1 = new BankCard("6217000010051320007","88888888");
142         account_1_3.addBankCardList(bankcard_1_3_1);
143         bank_1.addAccountList(account_1_1);
144         bank_1.addAccountList(account_1_2);
145         bank_1.addAccountList(account_1_3);
146
147         ATM atm_1_1 = new ATM(bank_1,"01");
148         ATM atm_1_2 = new ATM(bank_1,"02");
149         ATM atm_1_3 = new ATM(bank_1,"03");
150         ATM atm_1_4 = new ATM(bank_1,"04");
151         bank_1.addAtmList(atm_1_1);
152         bank_1.addAtmList(atm_1_2);
153         bank_1.addAtmList(atm_1_3);
154         bank_1.addAtmList(atm_1_4);
155
156
157         //bank_2
158         User user_2_1 = new User("张无忌");
159         Account account_2_1 = new Account("3222081502001312389",10000,user_2_1,"中国工商银行");
160         BankCard bankcard_2_1_1 = new BankCard("6222081502001312389","88888888");
161         account_2_1.addBankCardList(bankcard_2_1_1);
162         Account account_2_2 = new Account("3222081502001312390",10000,user_2_1,"中国工商银行");
163         BankCard bankcard_2_2_1 = new BankCard("6222081502001312390","88888888");
164         account_2_2.addBankCardList(bankcard_2_2_1);
165         Account account_2_3 = new Account("3222081502001312399",10000,user_2_1,"中国工商银行");
166         BankCard bankcard_2_3_1 = new BankCard("6222081502001312399","88888888");
167         BankCard bankcard_2_3_2 = new BankCard("6222081502001312400","88888888");
168         account_2_3.addBankCardList(bankcard_2_3_1);
169         account_2_3.addBankCardList(bankcard_2_3_2);
170         User user_2_2 = new User("韦小宝");
171         Account account_2_4 = new Account("3222081502051320785",10000,user_2_2,"中国工商银行");
172         BankCard bankcard_2_4_1 = new BankCard("6222081502051320785","88888888");
173         account_2_4.addBankCardList(bankcard_2_4_1);
174         Account account_2_5 = new Account("3222081502051320786",10000,user_2_2,"中国工商银行");
175         BankCard bankcard_2_5_1 = new BankCard("6222081502051320786","88888888");
176         account_2_5.addBankCardList(bankcard_2_5_1);
177         bank_2.addAccountList(account_2_1);
178         bank_2.addAccountList(account_2_2);
179         bank_2.addAccountList(account_2_3);
180         bank_2.addAccountList(account_2_4);
181         bank_2.addAccountList(account_2_5);
182
183         ATM atm_2_1 = new ATM(bank_2,"05");
184         ATM atm_2_2 = new ATM(bank_2,"06");
185         bank_2.addAtmList(atm_2_1);
186         bank_2.addAtmList(atm_2_2);
187
188         return BF;
189     }
190 }
191 class ATM {
192
193     private Bank bank;
194     private String num;
195
196     ATM(Bank bank,String num){
197         this.bank = bank;
198         this.num = num;
199     }
200
201     public Bank getBank() {
202         return bank;
203     }
204     public void setBank(Bank bank) {
205         this.bank = bank;
206     }
207     public String getNum() {
208         return num;
209     }
210     public void setNum(String num) {
211         this.num = num;
212     }
213
214     public boolean checkBalance(String cardNum) {
215
216         Account nowUse = findBankCard(cardNum,0);
217         if(nowUse==null)
218             {System.out.println("Sorry,this card does not exist.");return false;}
219         else
220             System.out.print("¥"+String.format("%.2f",nowUse.getAccountBalance()));
221         return true;
222
223     }
224
225     public boolean withdrawal(String cardNum,String password,double quantity) {
226         Account nowUse = findBankCard(cardNum,password);
227         double renew;
228         int flag = 0;
229         if(nowUse==null)
230             return false;
231         else
232         {
233             if(nowUse.getAccountBalance()>=quantity)
234             {
235                 flag = 1;
236                 renew = nowUse.getAccountBalance()-quantity;
237                 nowUse.setAccountBalance(renew);
238                 System.out.println(nowUse.getUser().getUserName()+"在"+nowUse.getBankName()+"的"+this.num+"号ATM机上取款¥"+String.format("%.2f",Math.abs(quantity)));
239                 System.out.print("当前余额为¥"+String.format("%.2f",nowUse.getAccountBalance()));
240             }
241             else
242                 System.out.println("Sorry,your account balance is insufficient.");
243
244         }
245         if(flag==0)
246             return false;
247         else
248             return true;
249     }
250
251     public boolean deposit(String cardNum,String password,double quantity) {
252         Account nowUse = findBankCard(cardNum,password);
253         double renew;
254         int flag = 0;
255         if(nowUse==null)
256             return false;
257         else
258         {
259             flag = 1;
260             renew = nowUse.getAccountBalance()+Math.abs(quantity);
261             nowUse.setAccountBalance(renew);
262             System.out.println(nowUse.getUser().getUserName()+"在"+nowUse.getBankName()+"的"+this.num+"号ATM机上存款¥"+String.format("%.2f",Math.abs(quantity)));
263             System.out.print("当前余额为¥"+String.format("%.2f",nowUse.getAccountBalance()));
264         }
265         if(flag==0)
266             return false;
267         else
268             return true;
269     }
270
271     public Account findBankCard(String cardNum,int n) {
272         String s1 = cardNum.substring(3, 16);
273         int flag = 0;
274
275         for(Account i:bank.getAccountList()) {
276             String s2 = i.getAccountNum().substring(3, 16);
277             if(s1.equals(s2)) {
278                 for(BankCard j:i.getBankCardList()) {
279                     if(cardNum.equals(j.getCardNum()))
280                     {
281                     //    System.out.println("¥"+i.getAccountBalance());
282                             return i;
283
284                     }
285                 }
286             }
287         }
288
289         return null;
290     }
291
292     public Account findBankCard(String cardNum,String pass) {
293         String s1 = cardNum.substring(3, 16);
294         int flag = 0;
295
296     cir1:    for(Account i:bank.getAccountList()) {
297             String s2 = i.getAccountNum().substring(3, 16);
298             if(s1.equals(s2)) {
299                 for(BankCard j:i.getBankCardList()) {
300                     if(cardNum.equals(j.getCardNum()))
301                     {
302                     //    System.out.println("¥"+i.getAccountBalance());
303                         if(pass.equals(j.getPassword()))
304                              return i;
305                         else
306                         {
307                             flag = 1;
308                             System.out.println("Sorry,your password is wrong.");
309                             break cir1;
310                         }
311
312                     }
313                 }
314             }
315         }
316         if(flag == 0)
317             System.out.println("Sorry,this card does not exist.");
318         return null;
319     }
320 }
321 class User {
322
323     private String userName;
324
325     User(String userName){
326         this.userName = userName;
327     }
328
329     public String getUserName() {
330         return userName;
331     }
332
333     public void setUserName(String userName) {
334         this.userName = userName;
335     }
336
337 }
338 class Deal {
339
340     static void dealData(BankFederation BF) {
341         ArrayList<String> cmd;
342         cmd = Input.in_cmd();
343         boolean flag = true;
344         int ss = 0;
345         String[] temp;
346
347         for(String i:cmd) {
348             temp = i.split("\\s+");
349             if(ss==1)
350                 System.out.print("\n");
351             ss = 1;
352             if(temp.length==1)
353                 flag = deal_cmd_2(i,BF);
354             else if(temp.length==4)
355                 flag = deal_cmd_1(i,BF);
356             if(flag == false)
357                 return ;
358         }
359
360
361     }
362
363     protected static boolean deal_cmd_1(String temp,BankFederation BF) {
364         //卡号 密码 ATM机编号 金额
365         //当金额大于0时，代表取款，否则代表存款。
366         String[] cmd = temp.split("\\s+");
367         String s1 = cmd[0].substring(0, 3);
368         int i = findATM(temp,BF);
369         boolean flag = false;
370         if(i>=1&&i<=4&&s1.equals("621"))
371         {
372             if(Double.valueOf(cmd[3])>0)
373                 flag = BF.getBankList().get(0).getAtmList().get(i-1).withdrawal(cmd[0], cmd[1], Double.valueOf(cmd[3]));
374             else
375                 flag = BF.getBankList().get(0).getAtmList().get(i-1).deposit(cmd[0], cmd[1], Double.valueOf(cmd[3]));
376         }
377         else if(i>=5&&s1.equals("622"))
378         {
379             if(Double.valueOf(cmd[3])>0)
380                 flag = BF.getBankList().get(1).getAtmList().get(i-5).withdrawal(cmd[0], cmd[1], Double.valueOf(cmd[3]));
381             else
382                 flag = BF.getBankList().get(1).getAtmList().get(i-5).deposit(cmd[0], cmd[1], Double.valueOf(cmd[3]));
383         }
384         else if(i!=-1) {
385             System.out.println("Sorry,cross-bank withdrawal is not supported.");
386         }
387         return flag;
388     }
389
390     public static int findATM(String temp,BankFederation BF)
391     {
392         String[] cmd = temp.split("\\s+");
393         String s1 = cmd[0].substring(0, 3);
394         int num = 0;
395
396         for(ATM i:BF.getBankList().get(0).getAtmList())
397         {
398             num++;
399             if(cmd[2].equals(i.getNum()))
400             {
401                 return num;
402             }
403
404         }
405
406         for(ATM i:BF.getBankList().get(1).getAtmList())
407         {
408             num++;
409             if(cmd[2].equals(i.getNum()))
410             {
411                 return num;
412             }
413
414         }
415
416         System.out.println("Sorry,the ATM's id is wrong.");
417         return -1;
418     }
419
420     protected static boolean deal_cmd_2(String temp,BankFederation BF) {
421
422         String cardName = temp.substring(0, 3);
423         boolean flag = false;
424         if(cardName.equals("621"))
425             flag = BF.getBankList().get(0).getAtmList().get(0).checkBalance(temp);
426         else if (cardName.equals("622"))
427             flag = BF.getBankList().get(1).getAtmList().get(0).checkBalance(temp);
428         return flag;
429     }
430 }
431 class Input {
432
433     static ArrayList<String> in_cmd() {
434         Scanner input = new Scanner(System.in);
435         ArrayList<String> cmd = new ArrayList<String>();
436         String temp;
437
438         temp = input.nextLine();
439         while(!temp.equals("#")) {
440             cmd.add(temp);
441             temp = input.nextLine();
442         }
443
444         return cmd;
445     }
446 }

题目集8

关于我自己的设计思路：

第一步，我首先思考的是题目中给出的几个“实体”之间的关系。

题目明确给出的几个实体：银联、银行、账户、用户、银行卡、ATM机

这几个实体之间的关系，我的结论如下。

第二步，完善实体的逻辑结构。

1、

类：银联

属性：ArrayList<银行>

2、

类：银行

属性：String 名称、ArrayList<账户>、ArrayList<ATM>

3、

类：账户

属性：String 账号、double 账户余额、User 所属用户、ArrayList<银行卡>

4、

类：银行卡

属性：String 卡号、String 密码

5、

类：ATM

属性：String 编号、Bank 所属银行

行为：存、取、查询

第三步，基于实体的类设计，完成整个类图的设计。

踩坑心得

在本次实验中，要求不能跨行存取等等，根据这些要求的描述，有一系列需要判断的条件，需要自己理清一个先后顺序。

判断ATM编号是否正确----------->判断是否跨行--------------->卡号是否存在------------->密码是否错误------------->取款是否大于余额

还有一个就是关于程序数据的存储、初始化，这个我是专门搞了一个Initial来写的。

改进建议

先给出SourceMonitor截图。

可以看出来总体在类设计上圈复杂度还是比较可观的，也可以说明初步我的类设计应该是没有什么问题的。现在就是有一个类Deal的圈复杂度过高了。从名字就可以看出来，这是一个处理数据的类。下面我给出具体的类详情。

这里需要说明一下，我是将命令分为了两类存储，一类就是查询的，一类是存取的。显然搞存取的命令函数会复杂很多，这里还是需要进一步的分割职责才行，不然容易出现bug。

题目集9

先给出我的源码

  1 import java.util.ArrayList;
  2 import java.util.Scanner;
  3 public class Main {
  4     public static void main(String[] args) {
  5         // TODO Auto-generated method stub
  6         BankFederation BF =  Initiate.Init_bank();
  7         Deal.dealData(BF);
  8     }
  9 }
 10 class Deal {
 11     static void dealData(BankFederation BF) {
 12         ArrayList<String> cmd;
 13         cmd = Input.in_cmd();
 14         boolean flag = true;
 15         String[] temp;
 16         for(String i:cmd) {
 17             temp = i.split("\\s+");
 18             if(temp.length==1)
 19                 flag = deal_cmd_2(i,BF);
 20             else if(temp.length==4)
 21                 flag = deal_cmd_1(i,BF);
 22             if(flag == false)
 23                 return ;
 24         }
 25     }
 26
 27     protected static boolean deal_cmd_1(String temp,BankFederation BF) {
 28         //卡号 密码 ATM机编号 金额
 29         //当金额大于0时，代表取款，否则代表存款。
 30         String[] cmd = temp.split("\\s+");
 31         String s1 = cmd[0].substring(0, 3);
 32         int i = findATM(temp,BF);
 33         boolean flag = false;
 34         /*
 35         if(i>=1&&i<=4&&s1.equals("621"))
 36         {
 37             if(Double.valueOf(cmd[3])>0)
 38                 flag = BF.getBankList().get(0).getAtmList().get(i-1).withdrawal(cmd[0], cmd[1], Double.valueOf(cmd[3]));
 39             else
 40                 flag = BF.getBankList().get(0).getAtmList().get(i-1).deposit(cmd[0], cmd[1], Double.valueOf(cmd[3]));
 41         }
 42         else if(i>=5&&s1.equals("622"))
 43         {
 44             if(Double.valueOf(cmd[3])>0)
 45                 flag = BF.getBankList().get(1).getAtmList().get(i-5).withdrawal(cmd[0], cmd[1], Double.valueOf(cmd[3]));
 46             else
 47                 flag = BF.getBankList().get(1).getAtmList().get(i-5).deposit(cmd[0], cmd[1], Double.valueOf(cmd[3]));
 48         }
 49         else if(i!=-1) {
 50             System.out.println("Sorry,cross-bank withdrawal is not supported.");
 51         } */
 52         if(i>=1&&i<=4) {
 53             if(Double.valueOf(cmd[3])>0)
 54                 flag = BF.getBankList().get(0).getAtmList().get(i-1).withdrawal(cmd[0], cmd[1], Double.valueOf(cmd[3]),BF);
 55         //    else
 56     //            flag = BF.getBankList().get(0).getAtmList().get(i-1).deposit(cmd[0], cmd[1], Double.valueOf(cmd[3]),BF);
 57         }
 58         else if(i==5||i==6) {
 59             if(Double.valueOf(cmd[3])>0)
 60                 flag = BF.getBankList().get(1).getAtmList().get(i-5).withdrawal(cmd[0], cmd[1], Double.valueOf(cmd[3]),BF);
 61 //            else
 62 //                flag = BF.getBankList().get(1).getAtmList().get(i-5).deposit(cmd[0], cmd[1], Double.valueOf(cmd[3]),BF);
 63         }
 64         else if(i>=7&&i<=11) {
 65             if(Double.valueOf(cmd[3])>0)
 66                 flag = BF.getBankList().get(2).getAtmList().get(i-7).withdrawal(cmd[0], cmd[1], Double.valueOf(cmd[3]),BF);
 67 //            else
 68 //                flag = BF.getBankList().get(2).getAtmList().get(i-7).deposit(cmd[0], cmd[1], Double.valueOf(cmd[3]),BF);
 69         }
 70
 71         return flag;
 72     }
 73
 74     public static int findATM(String temp,BankFederation BF)
 75     {
 76         String[] cmd = temp.split("\\s+");
 77         String s1 = cmd[0].substring(0, 3);
 78         int num = 0;
 79
 80         for(ATM i:BF.getBankList().get(0).getAtmList())
 81         {
 82             num++;
 83             if(cmd[2].equals(i.getNum()))
 84             {
 85                 return num;
 86         //        return 0;
 87             }
 88
 89         }
 90
 91         for(ATM i:BF.getBankList().get(1).getAtmList())
 92         {
 93             num++;
 94             if(cmd[2].equals(i.getNum()))
 95             {
 96                 return num;
 97                 //return 1;
 98             }
 99
100         }
101
102         for(ATM i:BF.getBankList().get(2).getAtmList())
103         {
104             num++;
105             if(cmd[2].equals(i.getNum()))
106             {
107                 return num;
108                 //return 2;
109             }
110
111         }
112
113         System.out.println("Sorry,the ATM's id is wrong.");
114         return -1;
115     }
116
117     protected static boolean deal_cmd_2(String temp,BankFederation BF) {
118
119         String cardName = temp.substring(0, 3);
120         boolean flag = false;
121
122         if(cardName.equals("621"))
123             flag = BF.getBankList().get(0).getAtmList().get(0).checkBalance(temp);
124         else if (cardName.equals("622"))
125             flag = BF.getBankList().get(1).getAtmList().get(0).checkBalance(temp);
126         else
127             flag = BF.getBankList().get(2).getAtmList().get(0).checkBalance(temp,BF);
128
129         return flag;
130     }
131 }
132 class Bank {
133
134     private String bankName;
135     private double rate;
136     private ArrayList<Account> accountList = new ArrayList<Account>();
137 //    private ArrayList<Account> accountDList = new ArrayList<Account>();        //贷记账户
138     private ArrayList<ATM> atmList = new ArrayList<ATM>();
139
140     Bank(String bankName,double rate){
141         this.bankName = bankName;
142         this.rate = rate;
143     }
144
145     public String getBankName() {
146         return bankName;
147     }
148     public void setBankName(String bankName) {
149         this.bankName = bankName;
150     }
151     public ArrayList<Account> getAccountList() {
152         return accountList;
153     }
154     public void addAccountList(Account accountListmen) {
155         this.accountList.add(accountListmen);
156
157     }
158
159     public ArrayList<ATM> getAtmList() {
160         return atmList;
161     }
162
163     public void addAtmList(ATM atmListmen) {
164         this.atmList.add(atmListmen);
165     }
166
167     public double getRate() {
168         return rate;
169     }
170
171     public void setRate(double rate) {
172         this.rate = rate;
173     }
174
175     /*
176      * public ArrayList<Account> getAccountDList() { return accountDList; }
177      *
178      * public void addAccountDList(Account accountDList) {
179      * this.accountDList.add(accountDList); }
180      */
181
182 }
183 class ATM {
184
185     private Bank bank;
186     private String num;
187
188     ATM(Bank bank,String num){
189         this.bank = bank;
190         this.num = num;
191     }
192
193     public Bank getBank() {
194         return bank;
195     }
196     public void setBank(Bank bank) {
197         this.bank = bank;
198     }
199     public String getNum() {
200         return num;
201     }
202     public void setNum(String num) {
203         this.num = num;
204     }
205
206     public boolean checkBalance(String cardNum,BankFederation BF) {
207         Bank k;
208         Account nowUse = findBankCard(cardNum,0);
209         boolean flag = false;
210         if(nowUse==null)
211             {
212                cir4: for(Bank i:BF.getBankList()) {
213                     flag = i.getAtmList().get(0).checkBalance(cardNum);
214                     if(flag==true)
215                         break cir4;
216                }
217                if(flag==false)
218                    System.out.println("Sorry,this card does not exist.");
219                return flag;
220             }
221         else
222             System.out.print("业务：查询余额 ¥"+String.format("%.2f",nowUse.getAccountBalance()));
223         return true;
224
225     }
226
227     public boolean checkBalance(String cardNum) {
228     //    Bank k;
229         Account nowUse = findBankCard(cardNum,0);
230         if(nowUse==null)
231             return false;
232         else
233             System.out.print("业务：查询余额 ¥"+String.format("%.2f",nowUse.getAccountBalance()));
234         return true;
235
236     }
237
238     //外部进入，取钱
239     public boolean withdrawal(String cardNum,String password,double quantity,Bank bank,String num) {
240         Account nowUse = findBankCard(cardNum,password);
241         double renew;
242         int flag = 0;
243         if(nowUse==null)
244             return false;
245         else
246         {
247             if(nowUse.getAccountBalance()>=(quantity+(quantity*(bank.getRate()))))
248             {
249                 flag = 1;
250                 renew = nowUse.getAccountBalance()-quantity-(quantity*bank.getRate());
251                 nowUse.setAccountBalance(renew);
252                 System.out.println("业务：取款 "+nowUse.getUser().getUserName()+"在"+bank.getBankName()+"的"+num+"号ATM机上取款¥"+String.format("%.2f",Math.abs(quantity)));
253                 System.out.println("当前余额为¥"+String.format("%.2f",nowUse.getAccountBalance()));
254             }
255             else if(nowUse.getType().equals("debit"))
256                 System.out.print("Sorry,your account balance is insufficient.");
257             else if(nowUse.getType().equals("credits")) {
258                 flag = 1;
259
260                 if(nowUse.getAccountBalance()>=0) {
261                 renew = nowUse.getAccountBalance()-quantity;
262                 renew = renew+renew*0.05;
263                 renew = renew-quantity*bank.getRate();
264                 }else {
265                     renew = nowUse.getAccountBalance()-quantity;
266                     renew = renew-quantity*0.05;
267                     renew = renew-quantity*bank.getRate();
268                 }
269                 if(renew<-50000)
270                 {System.out.print("Sorry,your account balance is insufficient.");return false;}
271                 nowUse.setAccountBalance(renew);
272                 System.out.println("业务：取款 "+nowUse.getUser().getUserName()+"在"+bank.getBankName()+"的"+num+"号ATM机上取款¥"+String.format("%.2f",Math.abs(quantity)));
273                 System.out.println("当前余额为¥"+String.format("%.2f",nowUse.getAccountBalance()));
274             }
275
276         }
277         if(flag==0)
278             return false;
279         else
280             return true;
281     }
282
283     public boolean withdrawal(String cardNum,String password,double quantity,BankFederation BF) {
284         int ii = 0;
285         Account nowUse = findBankCard(cardNum,password);
286         Account external;
287         Bank k = null;
288         double renew;
289         int flag = 0;
290         if(nowUse==null)
291             {
292             cir2:    for(Bank i:BF.getBankList()) {
293                         if(!this.bank.getBankName().equals(i.getBankName())) {
294                                     external = i.getAtmList().get(0).findBankCard(cardNum, password);
295                                     if(external!=null)
296                                         {
297                                             ii = 1;
298                                              k = i;
299                                             break cir2;
300                                         }
301                             else
302                                     {
303                                         if(i.getAtmList().get(0).findBankCard(cardNum,0)!=null)
304                                             ii = 2;
305                                     }
306                 }
307             }
308             if(ii==0) {
309                 System.out.print("Sorry,this card does not exist.");
310                 return false;
311             }else if(ii==2)
312                 return false;
313                 return k.getAtmList().get(0).withdrawal(cardNum, password, quantity,this.bank,this.num);
314             }
315         else
316         {
317             if(nowUse.getAccountBalance()>=quantity)
318             {
319                 flag = 1;
320                 renew = nowUse.getAccountBalance()-quantity;
321                 nowUse.setAccountBalance(renew);
322                 System.out.println("业务：取款 "+nowUse.getUser().getUserName()+"在"+nowUse.getBankName()+"的"+this.num+"号ATM机上取款¥"+String.format("%.2f",Math.abs(quantity)));
323                 System.out.println("当前余额为¥"+String.format("%.2f",nowUse.getAccountBalance()));
324             }
325             else if(nowUse.getType().equals("debit"))
326                 System.out.println("Sorry,your account balance is insufficient.");
327             else if(nowUse.getType().equals("credits")) {
328                 flag = 1;
329
330                 if(nowUse.getAccountBalance()>=0) {
331                 renew = nowUse.getAccountBalance()-quantity;
332                 renew = renew+renew*0.05;
333         //        renew = renew-quantity*this.bank.getRate();
334                 }else {
335                     renew = nowUse.getAccountBalance()-quantity;
336                     renew = renew-quantity*0.05;
337             //        renew = renew-quantity*this.bank.getRate();
338                 }
339                 if(renew<-50000)
340                 {System.out.print("Sorry,your account balance is insufficient.");return false;}
341                 nowUse.setAccountBalance(renew);
342                 System.out.println("业务：取款 "+nowUse.getUser().getUserName()+"在"+nowUse.getBankName()+"的"+this.num+"号ATM机上取款¥"+String.format("%.2f",Math.abs(quantity)));
343                 System.out.println("当前余额为¥"+String.format("%.2f",nowUse.getAccountBalance()));
344             }
345         }
346         if(flag==0)
347             return false;
348         else
349             return true;
350     }
351     /*
352     public boolean deposit(String cardNum,String password,double quantity,Bank bank,String num) {
353         Account nowUse = findBankCard(cardNum,password);
354         double renew;
355         int flag = 0;
356         if(nowUse==null)
357             return false;
358         else
359         {
360             flag = 1;
361             renew = nowUse.getAccountBalance()+Math.abs(quantity);
362             nowUse.setAccountBalance(renew);
363             System.out.println(nowUse.getUser().getUserName()+"在"+bank.getBankName()+"的"+num+"号ATM机上存款¥"+Math.abs(quantity));
364             System.out.println("当前余额为¥"+String.format("%.2f",nowUse.getAccountBalance()));
365         }
366         if(flag==0)
367             return false;
368         else
369             return true;
370     }
371
372     public boolean deposit(String cardNum,String password,double quantity,BankFederation BF) {
373         Account nowUse = findBankCard(cardNum,password);
374         Account external;
375         Bank k = null;
376         int ii = 0;
377         double renew;
378         int flag = 0;
379         if(nowUse==null) {
380             cir3:    for(Bank i:BF.getBankList()) {
381                 if(!this.bank.getBankName().equals(i.getBankName())) {
382                             external = i.getAtmList().get(0).findBankCard(cardNum, password);
383                             if(external!=null)
384                                 {
385                                     ii = 1;
386                                      k = i;
387                                     break cir3;
388                                 }
389         }
390     }
391             if(ii==0) {
392                 System.out.println("Sorry,this card does not exist.");
393                 return false;
394             }
395             k.getAtmList().get(0).deposit(cardNum, password, quantity,this.bank,this.num);
396         }
397         else
398         {
399             flag = 1;
400             renew = nowUse.getAccountBalance()+Math.abs(quantity);
401             nowUse.setAccountBalance(renew);
402             System.out.println(nowUse.getUser().getUserName()+"在"+nowUse.getBankName()+"的"+this.num+"号ATM机上存款¥"+Math.abs(quantity));
403             System.out.println("当前余额为¥"+String.format("%.2f",nowUse.getAccountBalance()));
404         }
405         if(flag==0)
406             return false;
407         else
408             return true;
409     }
410     */
411     public Account findBankCard(String cardNum,int n) {
412         String s1 = cardNum.substring(3, 16);
413         int flag = 0;
414
415         for(Account i:bank.getAccountList()) {
416             String s2 = i.getAccountNum().substring(3, 16);
417             if(s1.equals(s2)) {
418                 for(BankCard j:i.getBankCardList()) {
419                     if(cardNum.equals(j.getCardNum()))
420                     {
421                     //    System.out.println("¥"+i.getAccountBalance());
422                             return i;
423
424                     }
425                 }
426             }
427         }
428
429         return null;
430     }
431
432     public Account findBankCard(String cardNum,String pass) {
433         String s1 = cardNum.substring(3, 16);
434         int flag = 0;
435
436     cir1:    for(Account i:bank.getAccountList()) {
437             String s2 = i.getAccountNum().substring(3, 16);
438             if(s1.equals(s2)) {
439                 for(BankCard j:i.getBankCardList()) {
440                     if(cardNum.equals(j.getCardNum()))
441                     {
442                     //    System.out.println("¥"+i.getAccountBalance());
443                         if(pass.equals(j.getPassword()))
444                              return i;
445                         else
446                         {
447                             flag = 1;
448                             System.out.println("Sorry,your password is wrong.");
449                             break cir1;
450                         }
451
452                     }
453                 }
454             }
455         }
456         /*
457          * if(flag == 0) System.out.println("Sorry,this card does not exist.");
458          */
459         return null;
460     }
461 }
462 class BankFederation {
463
464     private ArrayList<Bank> bankList = new ArrayList<Bank>();
465
466     public ArrayList<Bank> getBankList() {
467         return bankList;
468     }
469
470     public void addBankList(Bank bankListmen) {
471         this.bankList.add(bankListmen);
472     }
473
474 }
475 class Initiate {
476
477     static BankFederation Init_bank() {
478         BankFederation BF = new BankFederation();
479         Bank bank_1 = new Bank("中国建设银行",0.02);
480         Bank bank_2 = new Bank("中国工商银行",0.03);
481         Bank bank_3 = new Bank("中国农业银行",0.04);
482         BF.addBankList(bank_1);
483         BF.addBankList(bank_2);
484         BF.addBankList(bank_3);
485
486         //bank_1
487         User user_1_1 = new User("杨过");
488         Account account_1_1 = new Account("3217000010041315709",10000,user_1_1,"中国建设银行","debit");
489         BankCard bankcard_1_1_1 = new BankCard("6217000010041315709","88888888");
490         BankCard bankcard_1_1_2 = new BankCard("6217000010041315715","88888888");
491         account_1_1.addBankCardList(bankcard_1_1_1);
492         account_1_1.addBankCardList(bankcard_1_1_2);
493         Account account_1_2 = new Account("3217000010041315715",10000,user_1_1,"中国建设银行","debit");
494         BankCard bankcard_1_2_1 = new BankCard("6217000010041315718","88888888");
495         account_1_2.addBankCardList(bankcard_1_2_1);
496         User user_1_2 = new User("郭靖");
497         Account account_1_3 = new Account("3217000010051320007",10000,user_1_2,"中国建设银行","debit");
498         BankCard bankcard_1_3_1 = new BankCard("6217000010051320007","88888888");
499         account_1_3.addBankCardList(bankcard_1_3_1);
500         User user_1_3 = new User("张三丰");
501         Account account_1_4 = new Account("3640000010045442002",10000,user_1_3,"中国建设银行","credits");
502         BankCard bankcard_1_4_1 = new BankCard("6640000010045442002","88888888");
503         BankCard bankcard_1_4_2 = new BankCard("6640000010045442003","88888888");
504         account_1_4.addBankCardList(bankcard_1_4_1);
505         account_1_4.addBankCardList(bankcard_1_4_2);
506         bank_1.addAccountList(account_1_1);
507         bank_1.addAccountList(account_1_2);
508         bank_1.addAccountList(account_1_3);
509         bank_1.addAccountList(account_1_4);
510
511         ATM atm_1_1 = new ATM(bank_1,"01");
512         ATM atm_1_2 = new ATM(bank_1,"02");
513         ATM atm_1_3 = new ATM(bank_1,"03");
514         ATM atm_1_4 = new ATM(bank_1,"04");
515         bank_1.addAtmList(atm_1_1);
516         bank_1.addAtmList(atm_1_2);
517         bank_1.addAtmList(atm_1_3);
518         bank_1.addAtmList(atm_1_4);
519
520
521         //bank_2
522         User user_2_1 = new User("张无忌");
523         Account account_2_1 = new Account("3222081502001312389",10000,user_2_1,"中国工商银行","debit");
524         BankCard bankcard_2_1_1 = new BankCard("6222081502001312389","88888888");
525         account_2_1.addBankCardList(bankcard_2_1_1);
526         Account account_2_2 = new Account("3222081502001312390",10000,user_2_1,"中国工商银行","debit");
527         BankCard bankcard_2_2_1 = new BankCard("6222081502001312390","88888888");
528         account_2_2.addBankCardList(bankcard_2_2_1);
529         Account account_2_3 = new Account("3222081502001312399",10000,user_2_1,"中国工商银行","debit");
530         BankCard bankcard_2_3_1 = new BankCard("6222081502001312399","88888888");
531         BankCard bankcard_2_3_2 = new BankCard("6222081502001312400","88888888");
532         account_2_3.addBankCardList(bankcard_2_3_1);
533         account_2_3.addBankCardList(bankcard_2_3_2);
534         User user_2_2 = new User("韦小宝");
535         Account account_2_4 = new Account("3222081502051320785",10000,user_2_2,"中国工商银行","debit");
536         BankCard bankcard_2_4_1 = new BankCard("6222081502051320785","88888888");
537         account_2_4.addBankCardList(bankcard_2_4_1);
538         Account account_2_5 = new Account("3222081502051320786",10000,user_2_2,"中国工商银行","debit");
539         BankCard bankcard_2_5_1 = new BankCard("6222081502051320786","88888888");
540         account_2_5.addBankCardList(bankcard_2_5_1);
541         User user_2_3 = new User("令狐冲");
542         Account account_2_6 = new Account("3640000010045441009",10000,user_2_3,"中国工商银行","credits");
543         BankCard bankcard_2_6_1 = new BankCard("6640000010045441009","88888888");
544         account_2_6.addBankCardList(bankcard_2_6_1);
545         bank_2.addAccountList(account_2_1);
546         bank_2.addAccountList(account_2_2);
547         bank_2.addAccountList(account_2_3);
548         bank_2.addAccountList(account_2_4);
549         bank_2.addAccountList(account_2_5);
550         bank_2.addAccountList(account_2_6);
551
552         ATM atm_2_1 = new ATM(bank_2,"05");
553         ATM atm_2_2 = new ATM(bank_2,"06");
554         bank_2.addAtmList(atm_2_1);
555         bank_2.addAtmList(atm_2_2);
556
557
558         User user_3_1 = new User("乔峰");
559         Account account_3_1 = new Account("3630000010033431001",10000,user_3_1,"中国农业银行","credits");
560         BankCard bankcard_3_1_1 = new BankCard("6630000010033431001","88888888");
561         account_3_1.addBankCardList(bankcard_3_1_1);
562         User user_3_2 = new User("洪七公");
563         Account account_3_2 = new Account("3630000010033431008",10000,user_3_2,"中国农业银行","credits");
564         BankCard bankcard_3_2_1 = new BankCard("6630000010033431008","88888888");
565         account_3_2.addBankCardList(bankcard_3_2_1);
566         bank_3.addAccountList(account_3_1);
567         bank_3.addAccountList(account_3_2);
568
569         ATM atm_3_1 = new ATM(bank_3,"07");
570         ATM atm_3_2 = new ATM(bank_3,"08");
571         ATM atm_3_3 = new ATM(bank_3,"09");
572         ATM atm_3_4 = new ATM(bank_3,"10");
573         ATM atm_3_5 = new ATM(bank_3,"11");
574         bank_3.addAtmList(atm_3_1);
575         bank_3.addAtmList(atm_3_2);
576         bank_3.addAtmList(atm_3_3);
577         bank_3.addAtmList(atm_3_4);
578         bank_3.addAtmList(atm_3_5);
579
580
581         return BF;
582     }
583 }
584 class Account {
585
586     private String bankName;
587     private String accountNum;
588     private double accountBalance;
589     private String type;        //账户类型
590     private ArrayList<BankCard> bankCardList = new ArrayList<BankCard>();
591     private User user;
592
593     Account(String accountNum,double accountBalance,User user,String bank,String type){
594         this.accountBalance = accountBalance;
595         this.accountNum = accountNum;
596         this.user = user;
597         this.bankName = bank;
598         this.type = type;
599
600     }
601
602     public User getUser() {
603         return user;
604     }
605
606     public void setUser(User user) {
607         this.user = user;
608     }
609
610     public String getAccountNum() {
611         return accountNum;
612     }
613     public void setAccountNum(String accountNum) {
614         this.accountNum = accountNum;
615     }
616     public double getAccountBalance() {
617         return accountBalance;
618     }
619     public void setAccountBalance(double accountBalance) {
620         this.accountBalance = accountBalance;
621     }
622     public ArrayList<BankCard> getBankCardList() {
623         return bankCardList;
624     }
625     public void addBankCardList(BankCard bankCardmen) {
626         this.bankCardList.add(bankCardmen);
627     }
628
629     public String getBankName() {
630         return bankName;
631     }
632
633     public void setBankName(String bankName) {
634         this.bankName = bankName;
635     }
636
637     public String getType() {
638         return type;
639     }
640
641     public void setType(String type) {
642         this.type = type;
643     }
644
645
646
647
648 }
649 class User {
650
651     private String userName;
652
653     User(String userName){
654         this.userName = userName;
655     }
656
657     public String getUserName() {
658         return userName;
659     }
660
661     public void setUserName(String userName) {
662         this.userName = userName;
663     }
664
665 }
666 class Input {
667
668     static ArrayList<String> in_cmd() {
669         Scanner input = new Scanner(System.in);
670         ArrayList<String> cmd = new ArrayList<String>();
671         String temp;
672
673         temp = input.nextLine();
674         while(!temp.equals("#")) {
675             cmd.add(temp);
676             temp = input.nextLine();
677         }
678
679         return cmd;
680     }
681 }
682 class BankCard {
683
684     private String cardNum;
685     private String password;
686
687     BankCard(String cardNum,String password){
688         this.cardNum = cardNum;
689         this.password = password;
690     }
691
692     public String getCardNum() {
693         return cardNum;
694     }
695     public void setCardNum(String cardNum) {
696         this.cardNum = cardNum;
697     }
698     public String getPassword() {
699         return password;
700     }
701     public void setPassword(String password) {
702         this.password = password;
703     }
704
705
706 }

题目集9

在做这个题的时候遇到了bug，还搞了挺久的。

踩坑心得

我首先遇到的问题，也是最后才发现解决的问题-------格式问题。也许看起来觉得很不可思议，但确实就是这个。因为这里我是改动了代码的，在改动的地方输出的数据没有保留两位小数输出。在测试样例的很迷的事情就是，它并没有用红色的下划波浪线表明我的答案是错的，只给了一个蓝色的波浪线.....然后我以为它的作用是为了让我更好的对齐，以便于对比我的答案和标准答案....（大汗 = . =||）就是在这样的情况下，我并没有发现自己的格式错误...（最后是让舍友测出来的）

当然在这中途我发现了一个计算错误的问题。其实在题目九中的修改，算是一个比较大的改动了，就是在计算方面。先不说我是怎么改动的代码，这个我留到之后做比较分析的时候专门讲。在计算的时候需要注意到一个不同情况的计算问题。题目中给出的要求“可以跨行存取到需要收取手续费，有的账户可以超支但也要收取手续费”。

根据以上的要求，那么在取款时，就会出现几种不同的情况，必须先搞清楚所有可能发生的情况然后再去针对性的写代码。

1、如果就是普通的信用卡，不支持超支

①不跨行，直接扣钱

②跨行，将所取钱款加上它应该收取的手续费一同，与现有余额做比较。（这里会有一个余额可能不足的情况）

2、贷记

①不跨行

　　（1）没有超支，普通的扣款

　　（2）超支，计算超支部分的手续费，计算总金额，看是否超出了超支底线，若未超出可扣，若超出，显示余额不足

②跨行（加上跨行的手续费再看有没有超支）

　　（1）没有超支，所取钱款加上收取的跨行手续费，若未超支，直接扣款

　　（2）超支，先将所取钱款的跨行手续费算出来，加在一起计算一个阶段性总金额，然后再在其中超支部分计算超支的手续费加起来。如果超出了余额，则余额不足无法借款，若未　　超出则可以借款。

改进建议

两题的类图是没有改动的，只其中的部分计算函数有增加，不影响整体代码。所以这里就不作赘了，一起放在后面做一个分析。

设计思路分析总结

这两题本质上就是在考验我们面向对象的设计原则。面对变化的要求，我们的代码是否可以灵活变化满足需求。在题目集8设计类图的时候，是没有考虑过贷记账户和普通账户的，但我们职责类划分的比较清晰，所以加一个账户的类型并不是很难的事情。在题目集9，最困难的事情其实是计算存取款的函数。因为加了条件之后，这个计算的事情就变得比较多种类了。我的代码的话，我原本考虑的代码里面是完全没有考虑过跨行的事情的，所以这个计算函数肯定是要换掉的。又从我上面写的判断步骤来看，其实有部分代码是可以利用的，比如原来如果我判断到不是同行的ATM机就直接输出了，但比较好的是，我的判断代码是单独拿出来写的。也就是说我在这里具有足够的灵活性改变之后的代码走向。

 1 public static int findATM(String temp,BankFederation BF)
 2     {
 3         String[] cmd = temp.split("\\s+");
 4         String s1 = cmd[0].substring(0, 3);
 5         int num = 0;
 6
 7         for(ATM i:BF.getBankList().get(0).getAtmList())
 8         {
 9             num++;
10             if(cmd[2].equals(i.getNum()))
11             {
12                 return num;
13             }
14
15         }
16
17         for(ATM i:BF.getBankList().get(1).getAtmList())
18         {
19             num++;
20             if(cmd[2].equals(i.getNum()))
21             {
22                 return num;
23             }
24
25         }
26
27         System.out.println("Sorry,the ATM's id is wrong.");
28         return -1;
29     }

这是我写的判断代码。我把判断的职责分给了其他的函数，意味着在这一点上我就有很大的文章可作了。所以判断是否跨行我的代码基本不用改动（因为我的银行卡也是有专门的判断代码的）。所以在这个代码中我做的就是多加一个计算函数，当发现跨行的时候跳入另一个我新写的代码内进行计算，如果不跨行就直接沿用原本的代码就行。这样就完全将我上次实验的代码和我这次实验要实现的功能隔离开了。我是一个很好的局面，因为只有分开来，我考虑的面才足够小，不至于出现联动反应让其他的代码由于我的改动产生bug。

 1 public boolean withdrawal(String cardNum,String password,double quantity,BankFederation BF) {
 2         int ii = 0;
 3         Account nowUse = findBankCard(cardNum,password);
 4         Account external;
 5         Bank k = null;
 6         double renew;
 7         int flag = 0;
 8         if(nowUse==null)
 9             {
10             cir2:    for(Bank i:BF.getBankList()) {
11                         if(!this.bank.getBankName().equals(i.getBankName())) {
12                                     external = i.getAtmList().get(0).findBankCard(cardNum, password);
13                                     if(external!=null)
14                                         {
15                                             ii = 1;
16                                              k = i;
17                                             break cir2;
18                                         }
19                             else
20                                     {
21                                         if(i.getAtmList().get(0).findBankCard(cardNum,0)!=null)
22                                             ii = 2;
23                                     }
24                 }
25             }
26             if(ii==0) {
27                 System.out.print("Sorry,this card does not exist.");
28                 return false;
29             }else if(ii==2)
30                 return false;
31                 return k.getAtmList().get(0).withdrawal(cardNum, password, quantity,this.bank,this.num);
32             }
33         else
34         {
35             if(nowUse.getAccountBalance()>=quantity)
36             {
37                 flag = 1;
38                 renew = nowUse.getAccountBalance()-quantity;
39                 nowUse.setAccountBalance(renew);
40                 System.out.println("业务：取款 "+nowUse.getUser().getUserName()+"在"+nowUse.getBankName()+"的"+this.num+"号ATM机上取款¥"+String.format("%.2f",Math.abs(quantity)));
41                 System.out.println("当前余额为¥"+String.format("%.2f",nowUse.getAccountBalance()));
42             }
43             else if(nowUse.getType().equals("debit"))
44                 System.out.println("Sorry,your account balance is insufficient.");
45             else if(nowUse.getType().equals("credits")) {
46                 flag = 1;
47
48                 if(nowUse.getAccountBalance()>=0) {
49                 renew = nowUse.getAccountBalance()-quantity;
50                 renew = renew+renew*0.05;
51         //        renew = renew-quantity*this.bank.getRate();
52                 }else {
53                     renew = nowUse.getAccountBalance()-quantity;
54                     renew = renew-quantity*0.05;
55             //        renew = renew-quantity*this.bank.getRate();
56                 }
57                 if(renew<-50000)
58                 {System.out.print("Sorry,your account balance is insufficient.");return false;}
59                 nowUse.setAccountBalance(renew);
60                 System.out.println("业务：取款 "+nowUse.getUser().getUserName()+"在"+nowUse.getBankName()+"的"+this.num+"号ATM机上取款¥"+String.format("%.2f",Math.abs(quantity)));
61                 System.out.println("当前余额为¥"+String.format("%.2f",nowUse.getAccountBalance()));
62             }
63         }
64         if(flag==0)
65             return false;
66         else
67             return true;
68     }

总结

这三次的题目集侧重点很明确，就是类设计，考验我们面向对象设计原则。在题目集7中给出了具体的类设计，像是一个例子吧，让我们自己照类图写出来代码，然后在后面添加功能的题目中自己感受类设计的好处，看代码是否满足灵活变化的要求。之后在题目集8和题目集9中就是自己实操进行类设计。这是第一次自己完全独立的进行类设计，其实看到题目之后开始在纸上自己写画思路，感觉设计起来还是挺快的，并没有想象中的阻塞感，就比较顺溜....可能是这是最基础的题目吧，总体来说设计方面并不是太难。再结合后面我做要求改变的代码的时候，其实可以感受出来，类设计的最终目的就是职责必须划分清楚，不能把职责杂糅在一起，这样不仅容易出bug而且代码的灵活性大大下降，不足以支撑更多的要求。把模块化想的更细一点大概就是“单一职责”需要做到的了。说是类设计，更倾向于搞出一个贴合题目的“框架”，在“框架”的里面有函数，把函数所承担的职责划分的细一点，绝不多做不在自己职责之内的事情。

posted @ 2021-12-17 21:23 frangipane_xx 阅读(57) 评论(0) 收藏举报

刷新页面返回顶部

Xia

JAVA第三次大作业Blog

前言

设计与分析

①题目集7中7-1、7-2两题的递进式设计分析总结

②题目集8和题目集9两道ATM机仿真题目的设计思路分析总结

总结

公告
