idea使用tomcat时，读取不到SpringMVC的配置信息--404

springmvc测试时，发生以下错误：

访问【http://localhost:8080/t1】这个路径时发生404错误。

而http://localhost:8080是可以正常访问的。

报错信息如下：

17-Mar-2021 09:23:02.410 信息 [RMI TCP Connection(3)-127.0.0.1] org.apache.catalina.core.ApplicationContext.log 将servlet[springmvc]标记为不可用
17-Mar-2021 09:23:02.410 严重 [RMI TCP Connection(3)-127.0.0.1] org.apache.catalina.core.StandardContext.loadOnStartup web应用程序[]中的Servlet[springmvc]引发了load（）异常
    java.lang.ClassNotFoundException: org.springframework.web.servlet.DispatcherServlet
        at org.apache.catalina.loader.WebappClassLoaderBase.loadClass(WebappClassLoaderBase.java:1364)
        at org.apache.catalina.loader.WebappClassLoaderBase.loadClass(WebappClassLoaderBase.java:1187)
        at org.apache.catalina.core.DefaultInstanceManager.loadClass(DefaultInstanceManager.java:539)
        at org.apache.catalina.core.DefaultInstanceManager.loadClassMaybePrivileged(DefaultInstanceManager.java:520)
        at org.apache.catalina.core.DefaultInstanceManager.newInstance(DefaultInstanceManager.java:150)
        at org.apache.catalina.core.StandardWrapper.loadServlet(StandardWrapper.java:1042)
        at org.apache.catalina.core.StandardWrapper.load(StandardWrapper.java:983)
        at org.apache.catalina.core.StandardContext.loadOnStartup(StandardContext.java:4902)
        at org.apache.catalina.core.StandardContext.startInternal(StandardContext.java:5211)
        at org.apache.catalina.util.LifecycleBase.start(LifecycleBase.java:183)
        at org.apache.catalina.core.ContainerBase.addChildInternal(ContainerBase.java:717)
        at org.apache.catalina.core.ContainerBase.addChild(ContainerBase.java:690)
        at org.apache.catalina.core.StandardHost.addChild(StandardHost.java:706)
        at org.apache.catalina.startup.HostConfig.manageApp(HostConfig.java:1671)
        at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
        at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
        at java.lang.reflect.Method.invoke(Method.java:498)
        at org.apache.tomcat.util.modeler.BaseModelMBean.invoke(BaseModelMBean.java:288)
        at com.sun.jmx.interceptor.DefaultMBeanServerInterceptor.invoke(DefaultMBeanServerInterceptor.java:819)
        at com.sun.jmx.mbeanserver.JmxMBeanServer.invoke(JmxMBeanServer.java:801)
        at org.apache.catalina.mbeans.MBeanFactory.createStandardContext(MBeanFactory.java:459)
        at org.apache.catalina.mbeans.MBeanFactory.createStandardContext(MBeanFactory.java:408)
        at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
        at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
        at java.lang.reflect.Method.invoke(Method.java:498)
        at org.apache.tomcat.util.modeler.BaseModelMBean.invoke(BaseModelMBean.java:288)
        at com.sun.jmx.interceptor.DefaultMBeanServerInterceptor.invoke(DefaultMBeanServerInterceptor.java:819)
        at com.sun.jmx.mbeanserver.JmxMBeanServer.invoke(JmxMBeanServer.java:801)
        at com.sun.jmx.remote.security.MBeanServerAccessController.invoke(MBeanServerAccessController.java:468)
        at javax.management.remote.rmi.RMIConnectionImpl.doOperation(RMIConnectionImpl.java:1468)
        at javax.management.remote.rmi.RMIConnectionImpl.access$300(RMIConnectionImpl.java:76)
        at javax.management.remote.rmi.RMIConnectionImpl$PrivilegedOperation.run(RMIConnectionImpl.java:1309)
        at java.security.AccessController.doPrivileged(Native Method)
        at javax.management.remote.rmi.RMIConnectionImpl.doPrivilegedOperation(RMIConnectionImpl.java:1408)
        at javax.management.remote.rmi.RMIConnectionImpl.invoke(RMIConnectionImpl.java:829)
        at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
        at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
        at java.lang.reflect.Method.invoke(Method.java:498)
        at sun.rmi.server.UnicastServerRef.dispatch(UnicastServerRef.java:357)
        at sun.rmi.transport.Transport$1.run(Transport.java:200)
        at sun.rmi.transport.Transport$1.run(Transport.java:197)
        at java.security.AccessController.doPrivileged(Native Method)
        at sun.rmi.transport.Transport.serviceCall(Transport.java:196)
        at sun.rmi.transport.tcp.TCPTransport.handleMessages(TCPTransport.java:573)
        at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run0(TCPTransport.java:834)
        at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.lambda$run$0(TCPTransport.java:688)
        at java.security.AccessController.doPrivileged(Native Method)
        at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run(TCPTransport.java:687)
        at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
        at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
        at java.lang.Thread.run(Thread.java:748)

web.xml配置如下：

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">

    <!--    DispatcherServlet-->
    <servlet>
        <servlet-name>springmvc</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath:applicationContext.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>springmvc</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>
</web-app>

spring配置如下:

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       http://www.springframework.org/schema/context/spring-context.xsd
       http://www.springframework.org/schema/mvc
       http://www.springframework.org/schema/mvc/spring-mvc.xsd">

    <!--    1注解驱动-->
    <!--自动加载xmlns:mvc="http://www.springframework.org/schema/cache  需要把cache改成mvc   -->
    <mvc:annotation-driven>
        <!--    json乱码问题-->
        <mvc:message-converters register-defaults="true">
            <bean class="org.springframework.http.converter.StringHttpMessageConverter">
                <constructor-arg value="UTF-8"/>
            </bean>
            <bean class="org.springframework.http.converter.json.MappingJackson2HttpMessageConverter">
                <property name="objectMapper">
                    <bean class="org.springframework.http.converter.json.Jackson2ObjectMapperFactoryBean">
                        <property name="failOnEmptyBeans" value="false"/>
                    </bean>
                </property>
            </bean>
        </mvc:message-converters>
    </mvc:annotation-driven>
    <!--    2 静态资源过滤-->
    <mvc:default-servlet-handler/>
    <!--    3 扫描包 controller-->
    <context:component-scan base-package="com.wpz.controller"/>
    <!--    4 视图解析器-->
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/jsp/"/>
        <property name="suffix" value=".jsp"/>
    </bean>
</beans>

并且相关jar包已经添加到lib下





---

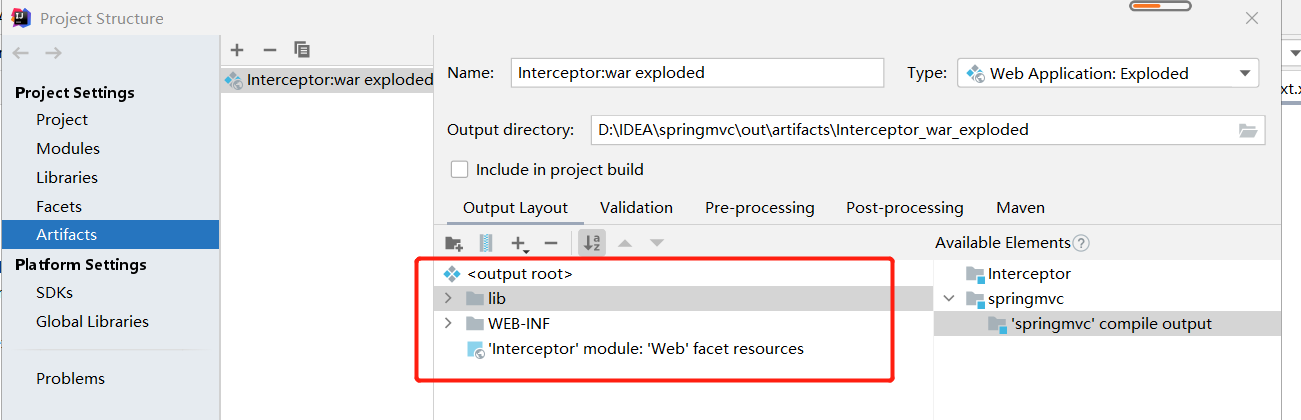

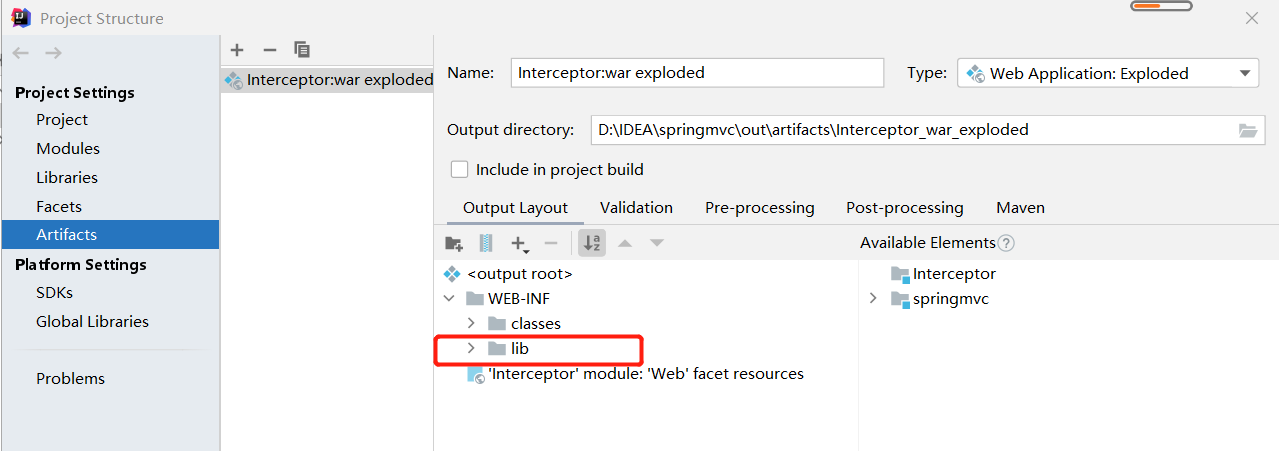

哦，不好意思，我加错位置了：

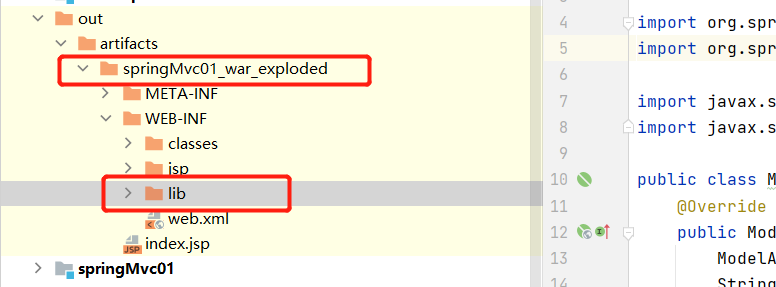

 同时还要保证项目目录中的out文件夹下，是否有lib:

（如果没有，可以删掉重新生成）

同时也要检查out中是否缺少文件
