harbor 安装和使用操作

安装harbor ：

a.解压harbor：

[root@zabbix 14:59:20/data/recycle]# tar zxf harbor-offline-installer-v2.4.1.tgz
[root@zabbix 14:59:30/data/recycle]# ll
total 1237908
drwxr-xr-x 2 root root 4096 Mar 9 14:59 harbor

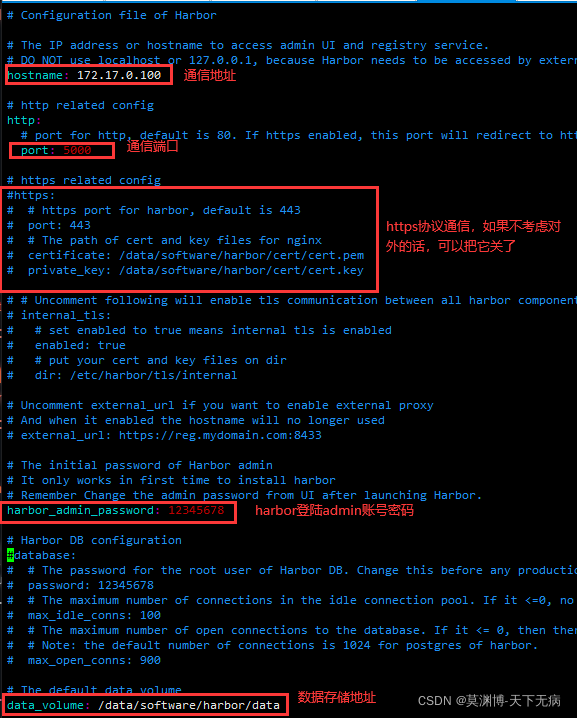

b.修改配置文件

[root@zabbix 15:00:06/data/software/harbor]# cp harbor.yml.tmpl harbor.yml
vim harbor.yml







c.修改daemon，并添加http的通信地址，不然docker默认使用https进行通信，如果配置了https协议就不需要添加

## 如果不修改，可能会碰到如下错误，只是不一定
## [WARNING IsDockerSystemdCheck]: detected "cgroupfs" as the Docker cgroup driver. The recommended driver is "systemd".



[root@zabbix 16:08:52/data/software/harbor]# cat /etc/docker/daemon.json
{
"registry-mirrors": ["https://nr240upq.mirror.aliyuncs.com", "https://registry.docker-cn.com", "https://docker.mirrors.ustc.edu.cn", "https://dockerhub.azk8s.cn", "http://hub-mirror.c.163.com"],
"exec-opts": ["native.cgroupdriver=systemd"],
"log-driver": "json-file",
"log-opts": {
"max-size": "100m"
},
"insecure-registries": ["172.17.0.100:5000"]
}
[root@zabbix 16:16:59/data/software/harbor]#

d.改好之后，重新加载配置和重启docker

[root@zabbix 15:00:50/data/software/harbor]# systemctl daemon-reload && systemctl restart docker



e.执行部署脚本：./install.sh

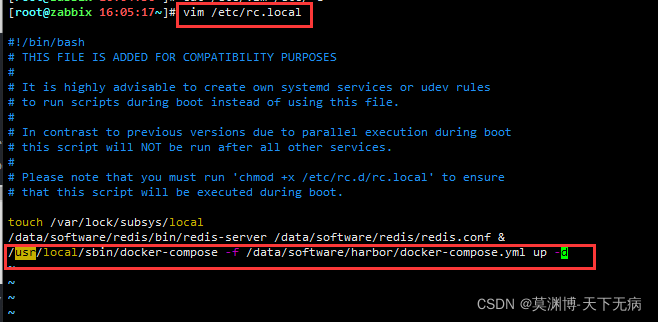

f.配置开机自启：

/usr/local/sbin/docker-compose -f /data/software/harbor/docker-compose.yml up -d





设置权限

chmod +x /etc/rc.local /etc/rc.d/rc.local

Linux系统中/etc/rc.local和/etc/rc.d/rc.local的区别
一般我们重启服务器的时，顺带开启其他的一些业务服务，这时候会使用到这个两个文件。可以将启动的命令【一定绝对路径】添加到这两个文件中去，添加之前先要给予这个两个文件操作的权限。

/etc/rc.d/rc.local 用于添加开机启动命令

/etc/rc.local是/etc/rc.d/rc.local的软连接

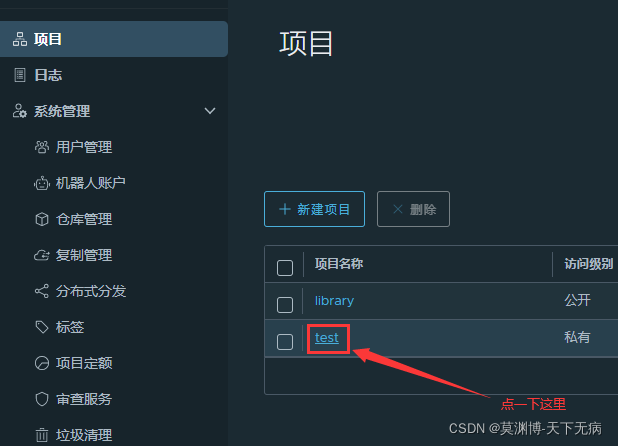

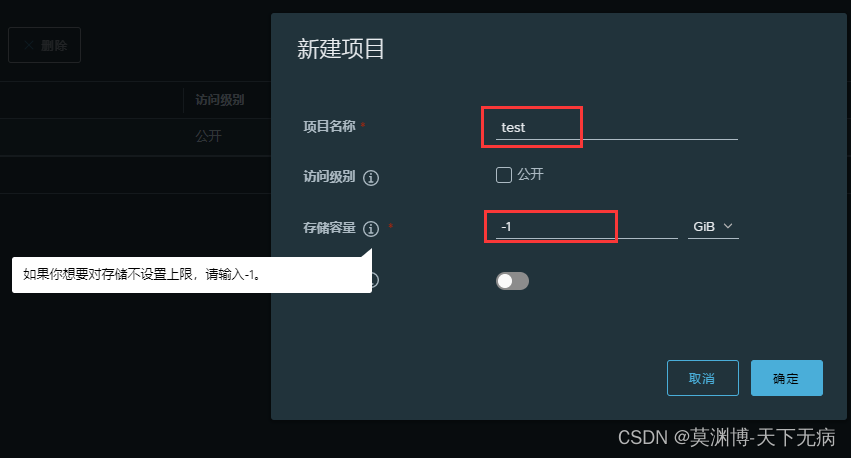

1.尝试登陆harbor

http://192.168.30.107:5012/

2.命令行登陆

[root@k8s-master01 ~]# docker login 192.168.30.107:5012
Username: admin
Password:
Error response from daemon: Get "https://192.168.30.107:5012/v2/": http: server gave HTTP response to HTTPS client

解决方法：在client机器上加入下面的配置，然后重启docker

vim /etc/docker/daemon.json

然后加入：

"insecure-registries": ["192.168.30.107:5012"]

[root@k8s-master01 metallb]# systemctl restart docker



[root@k8s-master01 ~]# docker login 192.168.30.107:5012
Username: admin
Password:
WARNING! Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store



3. 测试上传

























a.先把本地镜像做好标记

[root@k8s-master01 ~]# docker tag hello-world:latest 192.168.30.107:5012/test/nginx2.0:v1

                                   docker tag  fenghua:v2.0.0 192.168.30.107:5012/repo/fenghua:v2.0.0







b.推送本地镜像到harbor仓库。

[root@k8s-master01 ~]# docker push 192.168.30.107:5012/test/nginx2.0:v1

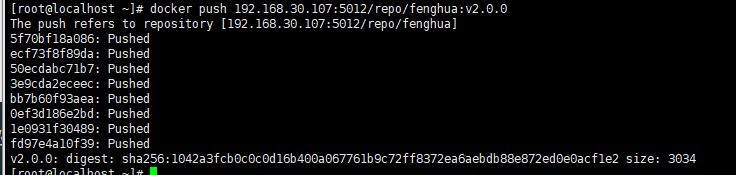

[root@localhost ~]# docker push 192.168.30.107:5012/repo/fenghua:v2.0.0



报错：unauthorized: unauthorized to access repository: repo/fenghua, action: push: unauthorized to access repository: repo/fenghua, action: push

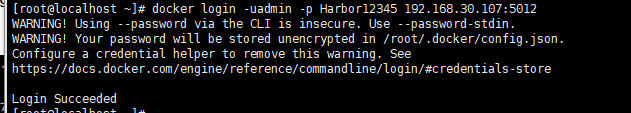

登入horbor就可以了。 docker login -uadmin -p Harbor12345 192.168.30.107:5012

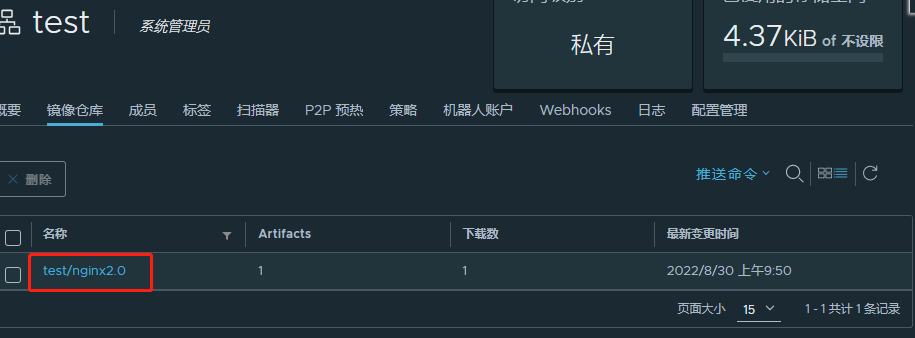

c.查看镜像仓库，可以看到多了一个镜像





4. 镜像拉取(镜像下载)

a.先在电脑上删除这个镜像

[root@k8s-master01 ~]# docker image rm 192.168.30.107:5012/test/nginx2.0:v1



 b.然后拉去镜像

[root@k8s-master01 ~]# docker pull 192.168.30.107:5012/test/nginx2.0:v1
v1: Pulling from test/nginx2.0
Digest: sha256:f54a58bc1aac5ea1a25d796ae155dc228b3f0e11d046ae276b39c4bf2f13d8c4
Status: Downloaded newer image for 192.168.30.107:5012/test/nginx2.0:v1
192.168.30.107:5012/test/nginx2.0:v1

[root@localhost ~]# docker pull 192.168.30.107:5012/repo/fenghua:v2.0.0







至此，harbor部署完毕

知识补充：

1、如果以后修改了harbor.yml文件，那么先停止使用docker-compose down，再去修改harbor.yml文件，重新启动部署 ./install.sh

2、正常启动harbor启动：

docker-compose up -d
3、未修改配置文件，重启Harbor命令：docker-compose start | stop | restart
