华为交换机常见命令

system-view 进去特权模式

sysname s1 设置交换机名称

vlan 名称 创建vlan名称

display vlan  查看创建的vlan信息



vlan batch 名称1 名称2 名称3 创建多个vlan

int g0/0/1 进入0/0/1接口

port link-type access 设置接口类型access

port default vlan 2 添加接口为vlan2

环境





<Huawei>system
进入系统模式
[Huawei]sysname SW1
更改名称
[SW1]vlan batch 10 20
Info: This operation may take a few seconds. Please wait for a moment...done.
创建两个vlan 10和20
[SW1]display vlan
查看vlan信息
[SW1]interface g0/0/1
进入接口
[SW1-GigabitEthernet0/0/1]port link-type access
设置类型为access
[SW1-GigabitEthernet0/0/1]port default vlan 10
设置vlan10

[SW1]int g0/0/2
[SW1-GigabitEthernet0/0/2]port link-type access
设置类型为access
[SW1-GigabitEthernet0/0/2]port default vlan 20
设置vlan20
[SW1-GigabitEthernet0/0/2]q

[SW1]int g0/0/3

[SW1-GigabitEthernet0/0/3]port link-type access
设置类型为access
[SW1-GigabitEthernet0/0/3]port default vlan 10
设置vlan10
[SW1-GigabitEthernet0/0/3]q

[SW1]int g0/0/4
[SW1-GigabitEthernet0/0/4]port link-type access
设置类型为access
[SW1-GigabitEthernet0/0/4]port default vlan 20
设置vlan20
[SW1-GigabitEthernet0/0/4]q

[SW1]display vlan

The total number of vlans is : 3
--------------------------------------------------------------------------------
U: Up;         D: Down;         TG: Tagged;         UT: Untagged;
MP: Vlan-mapping;               ST: Vlan-stacking;
#: ProtocolTransparent-vlan;    *: Management-vlan;
--------------------------------------------------------------------------------

VID  Type    Ports
--------------------------------------------------------------------------------
1    common  UT:GE0/0/5(D)      GE0/0/6(D)      GE0/0/7(D)      GE0/0/8(D)
                GE0/0/9(D)      GE0/0/10(D)     GE0/0/11(D)     GE0/0/12(D)
                GE0/0/13(D)     GE0/0/14(D)     GE0/0/15(D)     GE0/0/16(D)
                GE0/0/17(D)     GE0/0/18(D)     GE0/0/19(D)     GE0/0/20(D)
                GE0/0/21(D)     GE0/0/22(D)     GE0/0/23(D)     GE0/0/24(D)

10   common  UT:GE0/0/1(U)      GE0/0/3(U)

20   common  UT:GE0/0/2(U)      GE0/0/4(U)


VID  Status  Property      MAC-LRN Statistics Description
--------------------------------------------------------------------------------

1    enable  default       enable  disable    VLAN 0001
10   enable  default       enable  disable    VLAN 0010
20   enable  default       enable  disable    VLAN 0020

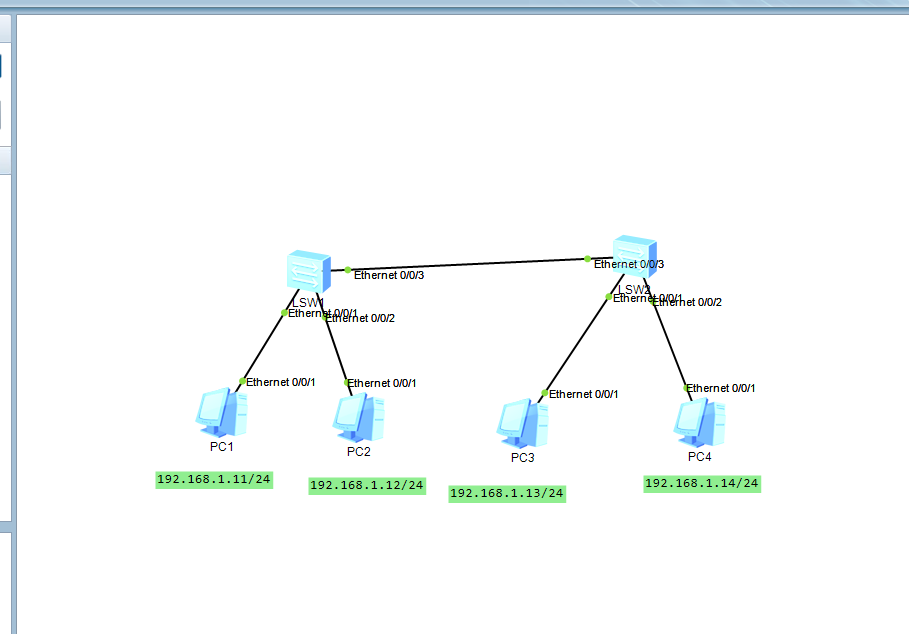

#二层交换机1
<Huawei>system-view
[Huawei]sysname jsjsw-1
[jsjsw-1]undo info-center en
[jsjsw-1]vlan batch 10 20
[jsjsw-1]interface E0/0/3
[jsjsw-1-Ethernet0/0/3]port link-type trunk
[jsjsw-1-Ethernet0/0/3]port trunk allow-pass vlan 10 20
[jsjsw-1]display vlan

#设置端口
[jsjsw-1]interface E0/0/1
[jsjsw-1-Ethernet0/0/2]port link-type access
[jsjsw-1-Ethernet0/0/1]port default vlan 10

[jsjsw-1]interface E0/0/2
[jsjsw-1-Ethernet0/0/2]port link-type access
[jsjsw-1-Ethernet0/0/2]port default vlan 20



#二层交换机2
<Huawei>system-view
[Huawei]undo info-center enable
[Huawei]sysname jsjsw-2
[jsjsw-2]vlan batch 10 20
[jsjsw-2]int e0/0/3
[jsjsw-2-Ethernet0/0/3]port link-type trunk
[jsjsw-2-Ethernet0/0/3]port trunk allow-pass vlan 10 20
[jsjsw-2]display vlan
#设置端口
[jsjsw-2]int e0/0/1
[jsjsw-2-Ethernet0/0/1]port link-type access
[jsjsw-2-Ethernet0/0/1]port default vlan 10
[jsjsw-2-Ethernet0/0/1]q

[jsjsw-2]int e0/0/2
[jsjsw-2-Ethernet0/0/2]port link-type access
[jsjsw-2-Ethernet0/0/2]port default vlan 20
[jsjsw-2-Ethernet0/0/2]q
