SpringMVC_整合ssmbulid
数据库环境
CREATE DATABASE `ssmbuild`;
USE `ssmbuild`;
DROP TABLE IF EXISTS `books`;
CREATE TABLE `books` (
`bookID` INT(10) NOT NULL AUTO_INCREMENT COMMENT '书id',
`bookName` VARCHAR(100) NOT NULL COMMENT '书名',
`bookCounts` INT(11) NOT NULL COMMENT '数量',
`detail` VARCHAR(200) NOT NULL COMMENT '描述',
KEY `bookID` (`bookID`)
) ENGINE=INNODB DEFAULT CHARSET=utf8
INSERT INTO `books`(`bookID`,`bookName`,`bookCounts`,`detail`)VALUES
(1,'Java',1,'从入门到放弃'),
(2,'MySQL',10,'从删库到跑路'),
(3,'Linux',5,'从进门到进牢');
基本环境搭建
1、新建一Maven项目！ssmbuild ， 添加web的支持
2、导入相关的pom依赖！
<!-- 依赖：junit,数据库驱动,连接池，servlet,jsp,mybatis,mybatis-spring,spring-->
<dependencies>
<!--Junit-->
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.12</version>
</dependency>
<!--数据库驱动-->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>5.1.47</version>
</dependency>
<!-- 数据库连接池 -->
<dependency>
<groupId>com.mchange</groupId>
<artifactId>c3p0</artifactId>
<version>0.9.5.2</version>
</dependency>
<!--Servlet - JSP -->
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>servlet-api</artifactId>
<version>2.5</version>
</dependency>
<dependency>
<groupId>javax.servlet.jsp</groupId>
<artifactId>jsp-api</artifactId>
<version>2.2</version>
</dependency>
<dependency>
<groupId>javax.servlet</groupId>
<artifactId>jstl</artifactId>
<version>1.2</version>
</dependency>
<!--Mybatis-->
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis</artifactId>
<version>3.5.2</version>
</dependency>
<dependency>
<groupId>org.mybatis</groupId>
<artifactId>mybatis-spring</artifactId>
<version>2.0.2</version>
</dependency>
<!--Spring-->
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>5.1.9.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>5.1.9.RELEASE</version>
</dependency>
</dependencies>
<!-- 静态资源导出问题-->
<build>
<resources>
<resource>
<directory>src/main/java</directory>
<includes>
<include>**/*.properties</include>
<include>**/*.xml</include>
</includes>
<filtering>false</filtering>
</resource>
<resource>
<directory>src/main/resources</directory>
<includes>
<include>**/*.properties</include>
<include>**/*.xml</include>
</includes>
<filtering>false</filtering>
</resource>
</resources>
</build>
4、建立基本结构和配置框架！
-
com.fan.pojo
-
com.fan.dao
-
com.fan.service
-
com.fan.controller
-
mybatis-config.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
</configuration>
- applicationContext.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd">
</beans>
mybatis层编写
1、数据库配置文件
jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/ssmbuild?useSSL=false&useUnicode=true&characterEncoding=utf8
jdbc.username=xiaofan
jdbc.password=123456
2、IDEA关联数据库
3、编写MyBatis的核心配置文件
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
<!-- 配置数据源，交给spring去做-->
<!-- 设置-->
<settings>
<setting name="logImpl" value="STDOUT_LOGGING"/>
</settings>
<!-- 别名-->
<typeAliases>
<package name="com.fan.pojo"/>
</typeAliases>
</configuration>
4、编写数据库对应的实体类 com.kuang.pojo.Books
使用lombok插件！
@Data
@AllArgsConstructor
@NoArgsConstructor
public class Books {
private int bookID;
private String bookName;
private int bookCounts;
private String detail;
}
5、编写Dao层的 Mapper接口！
public interface BookMapper {
//增加一本书
public int addBook(Books books);
//删除一本书
public int deleteBookById(@Param("bookID") int id);
//修改一本书
public int updateBook(Books books);
//查询一本书
public Books queryBookById(@Param("bookID") int id);
//查询全部的书
public List<Books> queryAllBook();
}
6、编写接口对应的 Mapper.xml 文件。需要导入MyBatis的包；
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.fan.dao.BookMapper">
<insert id="addBook" parameterType="Books">
insert into books (bookID, bookName, bookCounts, detail)
values (#{bookID},#{bookName},#{bookCounts},#{detail});
</insert>
<!-- 此处parameterType本应该写为Integer,写为int是因为java内部有自动装箱拆箱，会自动转换-->
<delete id="deleteBookById" parameterType="int">
delete from books where bookID =#{bookID}
</delete>
<update id="updateBook" parameterType="Books">
update books set bookName =#{bookName} ,
bookCounts = #{bookCounts} ,
detail =#{detail}
where bookID =#{bookID}
</update>
<select id="queryBookById" parameterType="int" resultType="Books">
select * from books where bookID = #{bookID}
</select>
<select id="queryAllBook" resultType="Books">
select * from books
</select>
</mapper>
7、编写Service层的接口和实现类
public interface BookService {
//增加一本书
public int addBook(Books books);
//删除一本书
public int deleteBookById(int id);
//修改一本书
public int updateBook(Books books);
//查询一本书
public Books queryBookById(int id);
//查询全部的书
public List<Books> queryAllBook();
}
public class BookServiceImpl implements BookService{
// service 调用 dao
private BookMapper bookMapper;
public void setBookMapper(BookMapper bookMapper) {
this.bookMapper = bookMapper;
}
@Override
public int addBook(Books books) {
return bookMapper.addBook(books);
}
@Override
public int deleteBookById(int id) {
return bookMapper.deleteBookById(id);
}
@Override
public int updateBook(Books books) {
return bookMapper.updateBook(books);
}
@Override
public Books queryBookById(int id) {
return bookMapper.queryBookById(id);
}
@Override
public List<Books> queryAllBook() {
return bookMapper.queryAllBook();
}
}
spring层编写
1、配置Spring整合MyBatis，我们这里数据源使用c3p0连接池；
2、我们去编写Spring整合Mybatis的相关的配置文件；spring-dao.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
https://www.springframework.org/schema/context/spring-context.xsd">
<!-- 关联数据库配置文件-->
<context:property-placeholder location="classpath:database.properties"/>
<!-- 连接池 dbcp,半自动化，不能自动连接
c3p0,自动化操作，自动化加载配置文件，并且可以自动设置到对象中
druid,
hikari-->
<bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
<property name="driverClass" value="${jdbc.driver}"/>
<property name="jdbcUrl" value="${jdbc.url}"/>
<property name="user" value="${jdbc.username}"/>
<property name="password" value="${jdbc.password}"/>
<!-- c3p0连接池的私有属性 -->
<property name="maxPoolSize" value="30"/>
<property name="minPoolSize" value="10"/>
<!-- 关闭连接后不自动commit -->
<property name="autoCommitOnClose" value="false"/>
<!-- 获取连接超时时间 -->
<property name="checkoutTimeout" value="10000"/>
<!-- 当获取连接失败重试次数 -->
<property name="acquireRetryAttempts" value="2"/>
</bean>
<!-- sqlSessionFactory-->
<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
<property name="dataSource" ref="dataSource"/>
<!-- 绑定mybatis的配置文件-->
<property name="configLocation" value="classpath:mybatis-config.xml"/>
</bean>
<!-- 配置dao接口扫描包，动态的实现了Dao接口可以注入到spring容器中-->
<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
<!-- 注入sqlSessionFactory-->
<property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
<!-- 扫描包-->
<property name="basePackage" value="com.fan.dao"/>
</bean>
</beans>
3、Spring整合service层:spring-service.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
https://www.springframework.org/schema/context/spring-context.xsd">
<!-- 扫描service下的包-->
<context:component-scan base-package="com.fan.service"/>
<!-- 将我们的说有业务类注入到spring，可以通过配置或者注解实现-->
<bean id="bookServiceImpl" class="com.fan.service.BookServiceImpl">
<property name="bookMapper" ref="bookMapper"/>
</bean>
<!-- 声明式事务配置-->
<bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
<property name="dataSource" ref="dataSource"/>
</bean>
<!-- AOP事务支持-->
</beans>

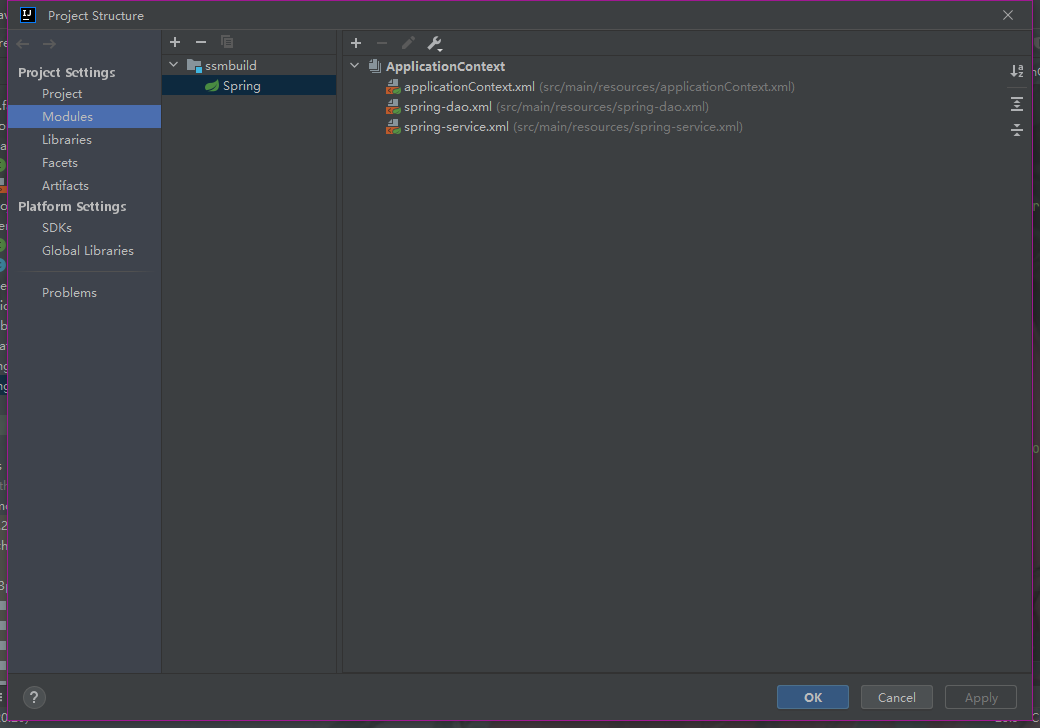

最后确applicationContext.xml,spring-dao.xml,spring-service.xml在一个上下文中，
springmvc层编写
1、web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
version="4.0">
<!-- DispatchServlet-->
<servlet>
<servlet-name>springmvc</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:spring-mvc.xml</param-value>
</init-param>
<load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>springmvc</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
<!-- 乱码过滤-->
<filter>
<filter-name>encodingFilter</filter-name>
<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
<init-param>
<param-name>encoding</param-name>
<param-value>utf-8</param-value>
</init-param>
</filter>
<filter-mapping>
<filter-name>encodingFilter</filter-name>
<url-pattern>/*</url-pattern>
</filter-mapping>
<session-config>
<session-timeout>15</session-timeout>
</session-config>
</web-app>
2、spring-mvc.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:mvc="http://www.springframework.org/schema/mvc"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
https://www.springframework.org/schema/context/spring-context.xsd
http://www.springframework.org/schema/mvc
https://www.springframework.org/schema/mvc/spring-mvc.xsd">
<!-- 注解驱动-->
<mvc:annotation-driven/>
<!-- 静态资源过滤-->
<mvc:default-servlet-handler/>
<!-- 扫描包-->
<context:component-scan base-package="com.fan.controller"/>
<!-- 视图解析器-->
<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="prefix" value="/WEB-INF/jsp/"/>
<property name="suffix" value=".jsp"/>
</bean>
</beans>
3、Spring配置整合文件，applicationContext.xml
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd">
<import resource="spring-dao.xml"/>
<import resource="spring-service.xml"/>
<import resource="spring-mvc.xml"/>
</beans>
controller层
@Controller
@RequestMapping("/book")
public class BookController {
//controller 调用 service
@Autowired
@Qualifier("bookServiceImpl")
private BookService bookService;
//查询全部书籍，并且返回到一个书籍展示页面
@RequestMapping("/allBook")
public String list(Model model){
List<Books> books = bookService.queryAllBook();
model.addAttribute("list",books);
return "allBook";
}
//跳转到增加书籍页面
@RequestMapping("/toAddBook")
public String toAddPage(){
return "addBook";
}
//添加书籍的请求
@RequestMapping("/addBook")
public String addBook(Books books){
System.out.println("addBook==>"+books);
bookService.addBook(books);
return "redirect:/book/allBook";
}
//跳转到修改页面
@RequestMapping("/toUpdateBook/{id}")
public String toUpdatePage(@PathVariable int id,Model model){
Books book = bookService.queryBookById(id);
model.addAttribute("QBook",book);
return "updateBook";
}
@RequestMapping("/updateBook")
public String updateBook(Books books){
System.out.println("updateBook==>"+books);
bookService.updateBook(books);
return "redirect:/book/allBook";
}
@RequestMapping("/deleteBook/{id}")
public String deleteBook(@PathVariable int id){
bookService.deleteBookById(id);
return "redirect:/book/allBook";
}
}
前端代码
addBook.jsp
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>新增书籍</title>
<%-- BootStrap 美化界面--%>
<link href="https://cdn.bootcdn.net/ajax/libs/twitter-bootstrap/3.4.1/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>
<div class="container">
<div class="row clearfix">
<div class="col-md-12 column">
<div class="page-header">
<h1>
<small>新增书籍</small>
</h1>
</div>
</div>
</div>
<%-- name要和实体类的名字一样--%>
<%-- input 里面加required，表示必须要写此空，才能提交--%>
<form action="${pageContext.request.contextPath}/book/addBook" method="post">
<div class="form-group">
<label for="bookName">书籍名称</label>
<input type="text" class="form-control" id="bookName" name="bookName" required>
</div>
<div class="form-group">
<label for="bookCounts">书籍数量</label>
<input type="text" class="form-control" id="bookCounts" name="bookCounts" required>
</div>
<div class="form-group">
<label for="bookDetail">书籍描述</label>
<input type="text" class="form-control" id="bookDetail" name="detail" required>
</div>
<div class="form-group">
<input type="submit" class="form-control" value="添加">
</div>
</form>
</div>
</body>
</html>
allBook.jsp
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>书籍展示</title>
<%-- BootStrap 美化界面--%>
<link href="https://cdn.bootcdn.net/ajax/libs/twitter-bootstrap/3.4.1/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>
<div class="container">
<div class="row clearfix">
<div class="col-md-12 column">
<div class="page-header">
<h1>
<small>书籍列表----------------显示所有书籍</small>
</h1>
</div>
</div>
<div class="row">
<div class="col-md-4 column">
<a class="btn btn-primary" href="${pageContext.request.contextPath}/book/toAddBook">新增书籍</a>
</div>
</div>
</div>
<div class="row clearfix">
<div class="col-md-12 column">
<table class="table table-hover table-striped">
<thead>
<tr>
<th>书籍编号</th>
<th>书籍名称</th>
<th>书籍数量</th>
<th>书籍描述</th>
<th>操 作</th>
</tr>
</thead>
<tbody>
<c:forEach var="book" items="${list}">
<tr>
<td>${book.bookID}</td>
<td>${book.bookName}</td>
<td>${book.bookCounts}</td>
<td>${book.detail}</td>
<td>
<a href="${pageContext.request.contextPath}/book/toUpdateBook/${book.bookID}">修改</a>
|
<a href="${pageContext.request.contextPath}/book/deleteBook/${book.bookID}">删除</a>
</td>
</tr>
</c:forEach>
</tbody>
</table>
</div>
</div>
</div>
</body>
</html>
updateBook.jsp
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>修改书籍信息</title>
<%-- BootStrap 美化界面--%>
<link href="https://cdn.bootcdn.net/ajax/libs/twitter-bootstrap/3.4.1/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>
<div class="container">
<div class="row clearfix">
<div class="col-md-12 column">
<div class="page-header">
<h1>
<small>更新书籍信息</small>
</h1>
</div>
</div>
</div>
<%-- name要和实体类的名字一样--%>
<%-- input 里面加required，表示必须要写此空，才能提交--%>
<form action="${pageContext.request.contextPath}/book/updateBook" method="post">
<input type="hidden" name="bookID" value="${QBook.bookID}">
<div class="form-group">
<label for="bookName">书籍名称</label>
<input type="text" class="form-control" id="bookName" name="bookName" value="${QBook.bookName}" required>
</div>
<div class="form-group">
<label for="bookCounts">书籍数量</label>
<input type="text" class="form-control" id="bookCounts" name="bookCounts" value="${QBook.bookCounts}" required>
</div>
<div class="form-group">
<label for="bookDetail">书籍描述</label>
<input type="text" class="form-control" id="bookDetail" name="detail" value="${QBook.detail}" required>
</div>
<div class="form-group">
<input type="submit" class="form-control" value="修改">
</div>
</form>
</div>
</body>
</html>
index.jsp
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
<title>首页</title>
<style>
a{
text-decoration: none;
color: black;
font-size:18px ;
}
h3{
width: 180px;
height: 40px;
margin: 100px auto;
text-align: center;
line-height: 38px;
background:deepskyblue ;
border-radius:15px ;
}
</style>
</head>
<body>
<h3>
<a href="${pageContext.request.contextPath}/book/allBook">进入展示书籍页面</a>
</h3>
</body>
</html>
报错bean不存在
步骤
1.查看bean是否注入 ok
2.junit单元测试，看我们的代码能否查询出来结果 ok
3.问题一点不在底层，肯定是spring出了问题
4.springMvc 整合的时候没调到我们的Service层的bean
1.applicationContext.xml 没有注入bean
2.web.xml中我们也绑定过配置文件
发现问题，我们在web.xml中配置的是spring-mvc.xml，应改为applicationContext.xml
<init-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:applicationContext.xml</param-value>
</init-param>
浙公网安备 33010602011771号
