Avalonia 复杂渐变动画与炫酷的卡片示例
Avalonia 实现炫酷的卡片渐变动画效果
Avalonia 复杂渐变动画与炫酷的卡片示例
本示例参考自 https://codepen.io/gayane-gasparyan/pen/jOmaBQK ，并没有完全的复刻，因为这边代码实现的实在是太长了。
下面就是开源代码，如果想要直接看跑的效果，欢迎移步我的仓库：https://gitee.com/fanbal/avalonia-magic-card

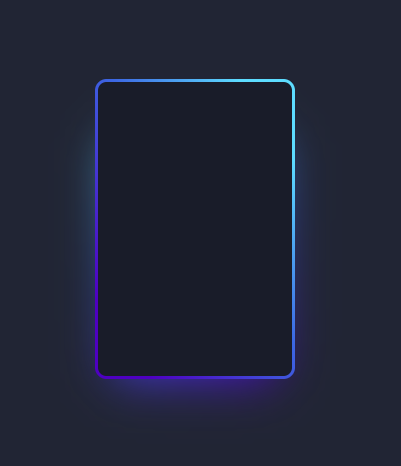

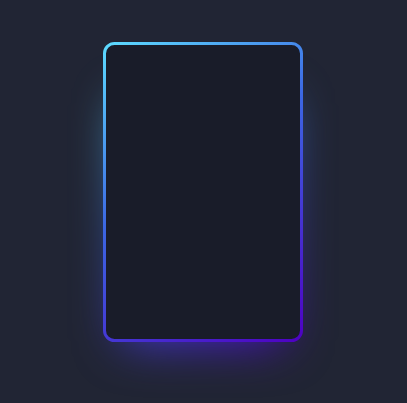

先放一张效果图，以免你没有兴趣读下去：
零、实现上的缺陷和要解决的问题
由于 Avalonia 中无法按照角度创建渐变色，为此我们需要手写一个这样的轮子，以便我们之后旋转动画的进行。
一、根据控件尺寸进行支持角度（弧度制）的旋转的实现
/// <summary>
/// 设置渐变色的角度。
/// </summary>
/// <param name="visual"></param>
/// <param name="linearGradientBrush"></param>
/// <param name="rotation"></param>
/// <exception cref="Exception"></exception>
public static void SetGradientRotation(Visual visual, LinearGradientBrush linearGradientBrush, double rotation)
{
var borderRect = new Rect(visual.Bounds.Size);
SetGradientRotation(borderRect, linearGradientBrush, rotation);
}
/// <summary>
/// 设置渐变色的角度。
/// </summary>
/// <param name="visual"></param>
/// <param name="linearGradientBrush"></param>
/// <param name="rotation"></param>
/// <exception cref="Exception"></exception>
public static void SetGradientRotation(Rect borderRect, LinearGradientBrush linearGradientBrush, double rotation)
{
var m = Math.Tan(rotation);
double Normalize(double rotation)
{
return rotation % (2 * Math.PI);
}
bool IsP90(double nrotation)
{
if (nrotation == (Math.PI / 2)) return true;
return false;
}
bool IsN90(double nrotation)
{
if (nrotation == (Math.PI / 2 + Math.PI)) return true;
return false;
}
bool IsP180(double nrotation)
{
return nrotation == Math.PI;
}
bool IsP0(double nrotation)
{
return nrotation == 0 || nrotation == Math.PI * 2;
}
double GetY(double x)
{
return m * (x - borderRect.Center.X) + borderRect.Center.Y;
}
double GetX(double y)
{
return (y - borderRect.Center.Y) / m + borderRect.Center.X;
}
Point GetFollowDirectionInsectionCore(double nrotation)
{
if (nrotation > 0 && nrotation < Math.PI / 2)
{
var bottomY = borderRect.Height;
var bottomX = GetX(bottomY);
var rightX = borderRect.Width;
var rightY = GetY(rightX);
if (bottomY < rightY) return new Point(bottomX, bottomY);
else return new Point(rightX, rightY);
}
else if (nrotation > Math.PI / 2 && nrotation < Math.PI * 1)
{
var bottomY = borderRect.Height;
var bottomX = GetX(bottomY);
var leftX = 0;
var leftY = GetY(leftX);
if (bottomY < leftY) return new Point(bottomX, bottomY);
else return new Point(leftX, leftY);
}
else if (nrotation > Math.PI * 1 && nrotation < Math.PI * 3d / 2d)
{
var topY = 0;
var topX = GetX(topY);
var leftX = 0;
var leftY = GetY(leftX);
if (topY > leftY) return new Point(topX, topY);
else return new Point(leftX, leftY);
}
else if (nrotation > Math.PI * 3d / 2d && nrotation < Math.PI * 2)
{
var topY = 0;
var topX = GetX(topY);
var rightX = borderRect.Width;
var rightY = GetY(rightX);
if (topY > rightY) return new Point(topX, topY);
else return new Point(rightX, rightY);
}
throw new Exception("GetFollowDirectionInsection 角度不在定义域内，定义域不包括 0 90 180 270");
}
Point GetReverseDirectionInsectionCore(double nrotation)
{
var vrotation = (nrotation + Math.PI) % (Math.PI * 2);
return GetFollowDirectionInsectionCore(vrotation);
}
Point GetFollowDirectionInsection(double nrotation)
{
var point = GetFollowDirectionInsectionCore(nrotation);
return new Point(point.X / borderRect.Width, point.Y / borderRect.Height);
}
Point GetReverseDirectionInsection(double nrotation)
{
var point = GetReverseDirectionInsectionCore(nrotation);
return new Point(point.X / borderRect.Width, point.Y / borderRect.Height);
}
void SetPoint(Point startPoint, Point endPoint)
{
linearGradientBrush.StartPoint = new RelativePoint(startPoint, RelativeUnit.Relative);
linearGradientBrush.EndPoint = new RelativePoint(endPoint, RelativeUnit.Relative);
}
var nrotation = Normalize(rotation);
Point startPoint, endPoint;
if (IsP90(nrotation))
{
startPoint = new Point(0.5, 0);
endPoint = new Point(0.5, 1);
SetPoint(startPoint, endPoint);
}
else if (IsN90(nrotation))
{
startPoint = new Point(0.5, 1);
endPoint = new Point(0.5, 0);
SetPoint(startPoint, endPoint);
}
else if (IsP0(nrotation))
{
startPoint = new Point(0, 0.5);
endPoint = new Point(1, 0.5);
SetPoint(startPoint, endPoint);
}
else if (IsP180(nrotation))
{
startPoint = new Point(1, 0.5);
endPoint = new Point(0, 0.5);
SetPoint(startPoint, endPoint);
}
else
{
startPoint = GetReverseDirectionInsection(nrotation);
endPoint = GetFollowDirectionInsection(nrotation);
SetPoint(startPoint, endPoint);
}
}
一、关于 axaml 的部分的创建
<Panel>
<Border
Width="{Binding ElementName=PART_MainBorder, Path=Width}"
Height="{Binding ElementName=PART_MainBorder, Path=Height}"
BorderThickness="0"
CornerRadius="{Binding ElementName=PART_MainBorder, Path=CornerRadius}">
<Border.Background>
<LinearGradientBrush StartPoint="0%,0%" EndPoint="100%,100%">
<LinearGradientBrush.GradientStops>
<GradientStop Offset="0" Color="#5ddcff" />
<GradientStop Offset="0.43" Color="#3c67e3" />
<GradientStop Offset="1" Color="#4e00c2" />
</LinearGradientBrush.GradientStops>
</LinearGradientBrush>
</Border.Background>
<Border.Effect>
<BlurEffect Radius="100" />
</Border.Effect>
<Border.RenderTransform>
<TransformGroup>
<ScaleTransform ScaleX="0.80" ScaleY="0.80" />
<TranslateTransform X="0" Y="30" />
</TransformGroup>
</Border.RenderTransform>
</Border>
<Border
Name="PART_MainBorder"
Width="200"
Height="300"
Background="#191c29"
BorderThickness="3"
CornerRadius="10"
IsVisible="true">
<Border.BorderBrush>
<LinearGradientBrush StartPoint="0%,0%" EndPoint="100%,100%">
<LinearGradientBrush.GradientStops>
<GradientStop Offset="0" Color="#5ddcff" />
<GradientStop Offset="0.43" Color="#3c67e3" />
<GradientStop Offset="1" Color="#4e00c2" />
</LinearGradientBrush.GradientStops>
</LinearGradientBrush>
</Border.BorderBrush>
</Border>
</Panel>
二、关于渐变色和旋转的实现
我们将上面的弧度制的线性填充放到了控件的部分。你需要加入这样的一块内容。
/// <summary>
/// 线性渐变的画刷帮助。
/// </summary>
public class LinearGradientBrushHelper
{
/// <summary>
/// RotateAngle AttachedProperty definition
/// indicates ....
/// </summary>
public static readonly AttachedProperty<double> RotateAngleProperty =
AvaloniaProperty.RegisterAttached<LinearGradientBrushHelper, StyledElement, double>("RotateAngle", coerce: OnRotateAngleChanged);
private static double OnRotateAngleChanged(AvaloniaObject @object, double arg2)
{
if (@object is Border border)
{
SetGradientRotation(border, border.BorderBrush as LinearGradientBrush, arg2);
}
return arg2;
}
/// <summary>
/// Accessor for Attached property <see cref="RotateAngleProperty"/>.
/// </summary>
/// <param name="element">Target element</param>
/// <param name="value">The value to set <see cref="RotateAngleProperty"/>.</param>
public static void SetRotateAngle(StyledElement element, double value) =>
element.SetValue(RotateAngleProperty, value);
/// <summary>
/// Accessor for Attached property <see cref="RotateAngleProperty"/>.
/// </summary>
/// <param name="element">Target element</param>
public static double GetRotateAngle(StyledElement element) =>
element.GetValue(RotateAngleProperty);
/// <summary>
/// 设置渐变色的角度。
/// </summary>
/// <param name="visual"></param>
/// <param name="linearGradientBrush"></param>
/// <param name="rotation"></param>
/// <exception cref="Exception"></exception>
public static void SetGradientRotation(Visual visual, LinearGradientBrush linearGradientBrush, double rotation)
{
var borderRect = new Rect(visual.Bounds.Size);
SetGradientRotation(borderRect, linearGradientBrush, rotation);
}
/// <summary>
/// 设置渐变色的角度。
/// </summary>
/// <param name="visual"></param>
/// <param name="linearGradientBrush"></param>
/// <param name="rotation"></param>
/// <exception cref="Exception"></exception>
public static void SetGradientRotation(Rect borderRect, LinearGradientBrush linearGradientBrush, double rotation)
{
var m = Math.Tan(rotation);
double Normalize(double rotation)
{
return rotation % (2 * Math.PI);
}
bool IsP90(double nrotation)
{
if (nrotation == (Math.PI / 2)) return true;
return false;
}
bool IsN90(double nrotation)
{
if (nrotation == (Math.PI / 2 + Math.PI)) return true;
return false;
}
bool IsP180(double nrotation)
{
return nrotation == Math.PI;
}
bool IsP0(double nrotation)
{
return nrotation == 0 || nrotation == Math.PI * 2;
}
double GetY(double x)
{
return m * (x - borderRect.Center.X) + borderRect.Center.Y;
}
double GetX(double y)
{
return (y - borderRect.Center.Y) / m + borderRect.Center.X;
}
Point GetFollowDirectionInsectionCore(double nrotation)
{
if (nrotation > 0 && nrotation < Math.PI / 2)
{
var bottomY = borderRect.Height;
var bottomX = GetX(bottomY);
var rightX = borderRect.Width;
var rightY = GetY(rightX);
if (bottomY < rightY) return new Point(bottomX, bottomY);
else return new Point(rightX, rightY);
}
else if (nrotation > Math.PI / 2 && nrotation < Math.PI * 1)
{
var bottomY = borderRect.Height;
var bottomX = GetX(bottomY);
var leftX = 0;
var leftY = GetY(leftX);
if (bottomY < leftY) return new Point(bottomX, bottomY);
else return new Point(leftX, leftY);
}
else if (nrotation > Math.PI * 1 && nrotation < Math.PI * 3d / 2d)
{
var topY = 0;
var topX = GetX(topY);
var leftX = 0;
var leftY = GetY(leftX);
if (topY > leftY) return new Point(topX, topY);
else return new Point(leftX, leftY);
}
else if (nrotation > Math.PI * 3d / 2d && nrotation < Math.PI * 2)
{
var topY = 0;
var topX = GetX(topY);
var rightX = borderRect.Width;
var rightY = GetY(rightX);
if (topY > rightY) return new Point(topX, topY);
else return new Point(rightX, rightY);
}
throw new Exception("GetFollowDirectionInsection 角度不在定义域内，定义域不包括 0 90 180 270");
}
Point GetReverseDirectionInsectionCore(double nrotation)
{
var vrotation = (nrotation + Math.PI) % (Math.PI * 2);
return GetFollowDirectionInsectionCore(vrotation);
}
Point GetFollowDirectionInsection(double nrotation)
{
var point = GetFollowDirectionInsectionCore(nrotation);
return new Point(point.X / borderRect.Width, point.Y / borderRect.Height);
}
Point GetReverseDirectionInsection(double nrotation)
{
var point = GetReverseDirectionInsectionCore(nrotation);
return new Point(point.X / borderRect.Width, point.Y / borderRect.Height);
}
void SetPoint(Point startPoint, Point endPoint)
{
linearGradientBrush.StartPoint = new RelativePoint(startPoint, RelativeUnit.Relative);
linearGradientBrush.EndPoint = new RelativePoint(endPoint, RelativeUnit.Relative);
}
var nrotation = Normalize(rotation);
Point startPoint, endPoint;
if (IsP90(nrotation))
{
startPoint = new Point(0.5, 0);
endPoint = new Point(0.5, 1);
SetPoint(startPoint, endPoint);
}
else if (IsN90(nrotation))
{
startPoint = new Point(0.5, 1);
endPoint = new Point(0.5, 0);
SetPoint(startPoint, endPoint);
}
else if (IsP0(nrotation))
{
startPoint = new Point(0, 0.5);
endPoint = new Point(1, 0.5);
SetPoint(startPoint, endPoint);
}
else if (IsP180(nrotation))
{
startPoint = new Point(1, 0.5);
endPoint = new Point(0, 0.5);
SetPoint(startPoint, endPoint);
}
else
{
// 关于起点和终点的配置，哪个是起点，哪个是终点？
startPoint = GetReverseDirectionInsection(nrotation);
endPoint = GetFollowDirectionInsection(nrotation);
SetPoint(startPoint, endPoint);
}
Debug.WriteLine($"{startPoint} {endPoint}");
}
}
播放动画请看此处：
private void Button_Click(object? sender, Avalonia.Interactivity.RoutedEventArgs e)
{
var gradientBrush = new LinearGradientBrush()
{
StartPoint = new RelativePoint(0, 0, RelativeUnit.Relative),
EndPoint = new RelativePoint(1, 1, RelativeUnit.Relative)
};
var color0 = ColorToHexConverter.ParseHexString("#5ddcff", AlphaComponentPosition.Leading)!.Value;
var color1 = ColorToHexConverter.ParseHexString("#3c67e3", AlphaComponentPosition.Leading)!.Value;
var color2 = ColorToHexConverter.ParseHexString("#4e00c2", AlphaComponentPosition.Leading)!.Value;
var gradientStop0 = new GradientStop(color0, 0);
var gradientStop1 = new GradientStop(color1, 0.43);
var gradientStop2 = new GradientStop(color2, 1);
gradientBrush.GradientStops.AddRange([gradientStop0, gradientStop1, gradientStop2]);
PART_MainBorder.BorderBrush = gradientBrush;
var anim = new Animation() { Duration = TimeSpan.FromSeconds(2), IterationCount = IterationCount.Infinite };
var keyframe0 = new KeyFrame() { Cue = new Cue(0) };
keyframe0.Setters.Add(new Setter(LinearGradientBrushHelper.RotateAngleProperty, 0d));
var keyframe1 = new KeyFrame() { Cue = new Cue(1) };
keyframe1.Setters.Add(new Setter(LinearGradientBrushHelper.RotateAngleProperty, Math.PI * 2));
anim.Children.Add(keyframe0);
anim.Children.Add(keyframe1);
anim.RunAsync(PART_MainBorder);
}
三、总而言之最终的效果
它确实动了，不信你和上面的比较一下看看，从浅蓝色的部分就可以看出不一样了好吧。
浙公网安备 33010602011771号
