ArcPy脚本检查矢量数据XY变更记录

功能需求：每次矢量数据迭代会有X、Y（经度、纬度）信息变更，把这些变更的信息检查并提取出来。

分析思路：一、传统处理办法：利用要素属性表关联，新数据ID连接旧数据ID，比较新旧XY是否一致，添加字段用来记录新旧XY的比较结果，筛选出不一致的记录。

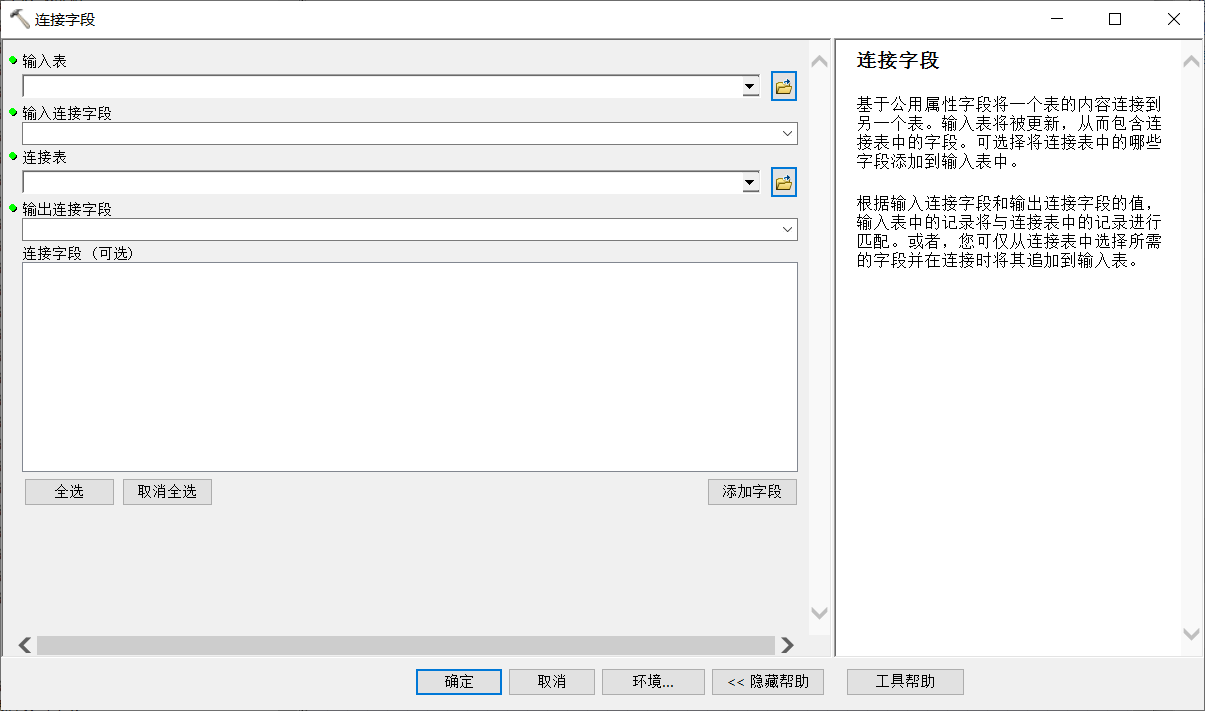

1.新旧表连接字段，用Join Field (Data Management)，工具箱中--数据管理工具--连接--连接字段

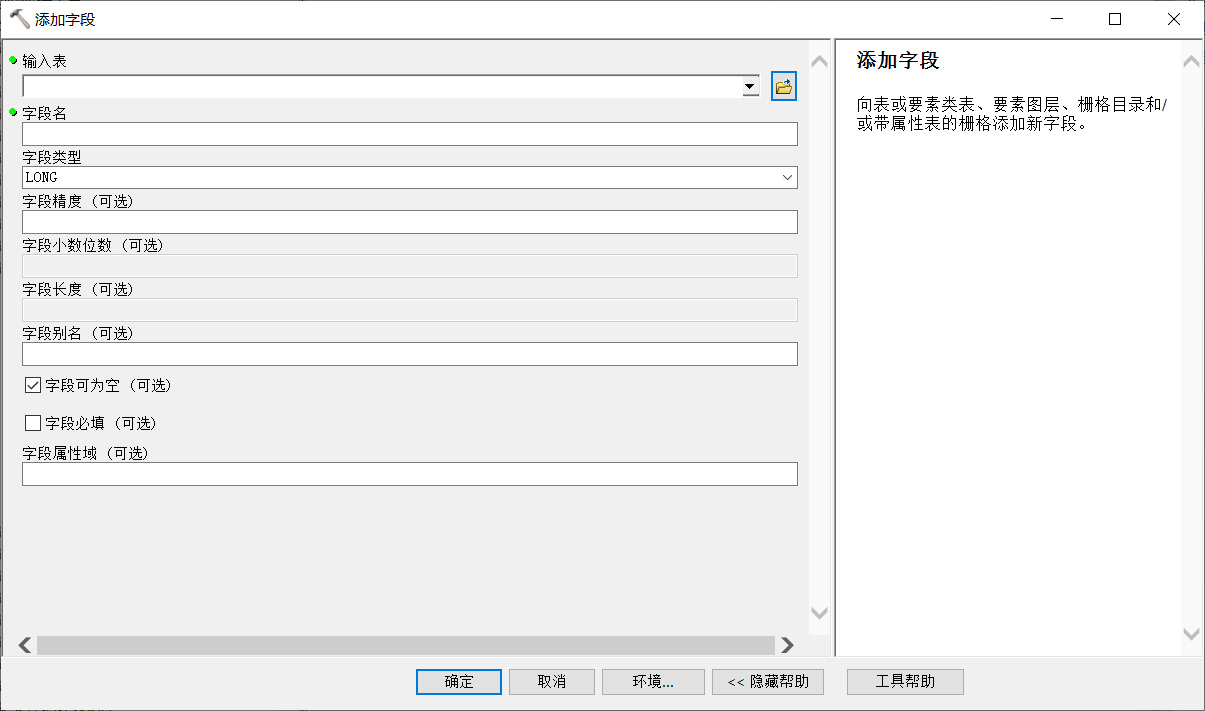

2.对连接后的表添加字段，用Add Field (Data Management)，工具箱中--数据管理工具--字段--添加字段

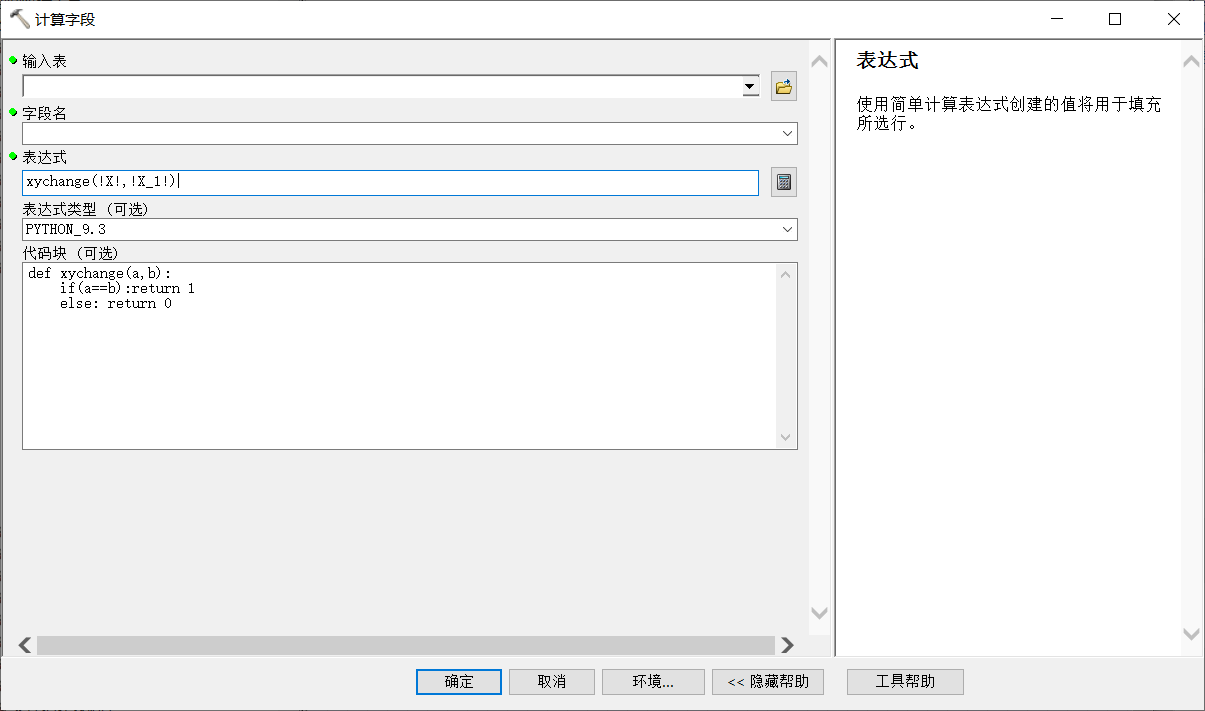

3.对添加的字段进行计算，用Calculate Field (Data Management)，工具箱中--数据管理工具--字段--计算字段

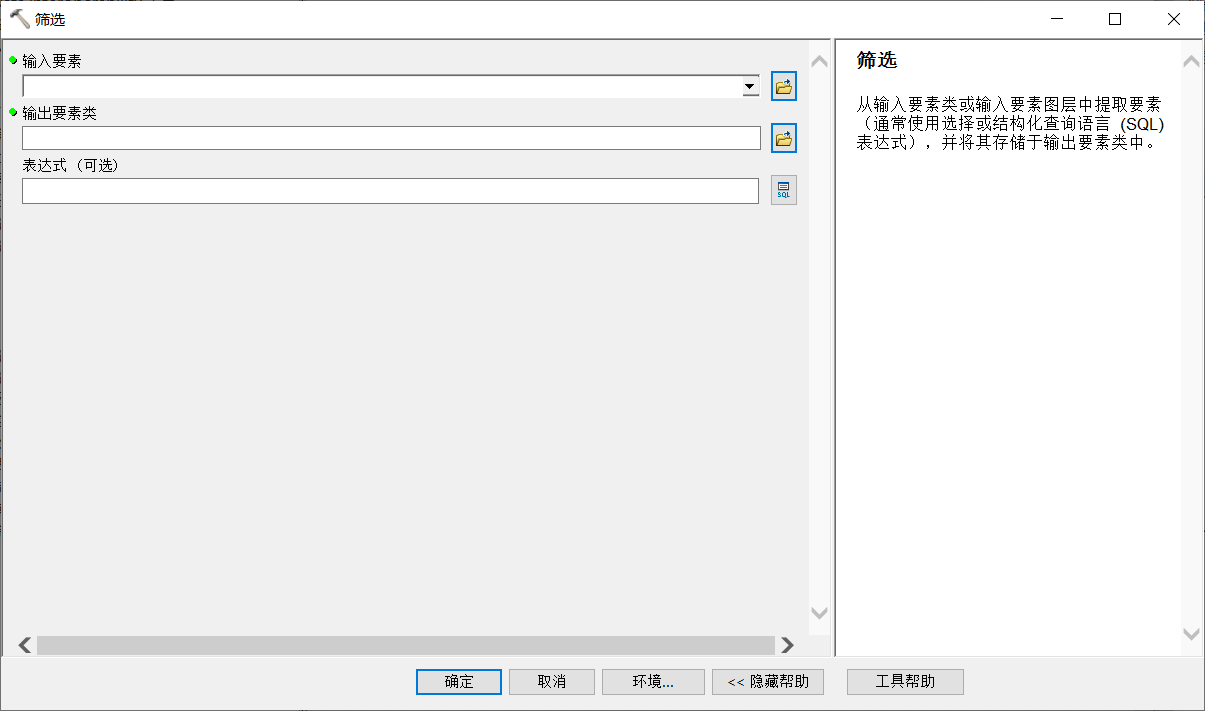

4.对计算后的XY进行筛选，用Select (Analysis)，工具箱中--分析工具--提取分析--筛选

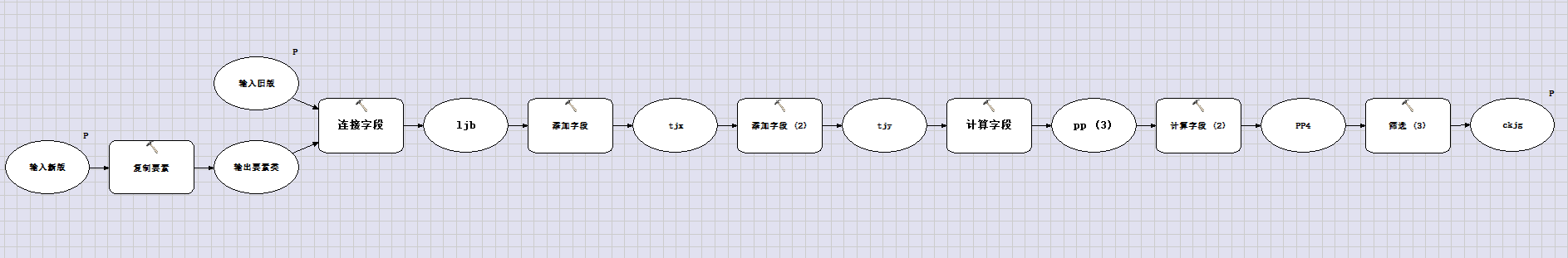

 二、利用以上思路逻辑可以用ArcGIS模型构建器，创建模型工具处理：

大致构建模型草图



 三、利用模型处理逻辑思路，转换为Python脚本，把变更记录写入csv中

 1 # -*- coding: GBK -*-
 2 import arcpy , os , csv
 3
 4 in_new = arcpy.GetParameterAsText(0)
 5 in_old = arcpy.GetParameterAsText(1)
 6 output = arcpy.GetParameterAsText(2)
 7
 8 def XYChangeCheck(in_new,in_old,output):
 9     fcnew = os.path.join(output,"copy.shp")
10     filename = os.path.basename(in_new)
11     print str(filename[0:-4])
12
13     xycheck = "xychange_" + filename
14     ckjg = os.path.join(output,xycheck)
15     print arcpy.AddMessage("1- 复制要素...")
16     arcpy.CopyFeatures_management(in_new, fcnew, "", "0", "0", "0")
17     arcpy.JoinField_management(fcnew, "admincode", in_old, "admincode", "")

18     print arcpy.AddMessage("2- 添加字段cx...")
19     arcpy.AddField_management(fcnew, "cx", "SHORT", "", "", "", "", "NULLABLE", "NON_REQUIRED", "")

20     print arcpy.AddMessage("3- 添加字段cy...")
21     arcpy.AddField_management(fcnew, "cy", "SHORT", "", "", "", "", "NULLABLE", "NON_REQUIRED", "")

22     print arcpy.AddMessage("4- 计算字段cx...")
23     arcpy.CalculateField_management(fcnew, "cx", "js( !X! , !X_1! )", "PYTHON_9.3", "def js(a,b):\\n  if(a==b):return 1\\n  else: return 0")

24     print arcpy.AddMessage("5- 计算字段cy...")
25     arcpy.CalculateField_management(fcnew, "cy", "js( !Y! , !Y_1! )", "PYTHON_9.3", "def js(a,b):\\n  if(a==b):return 1\\n  else: return 0")

26     print arcpy.AddMessage("6- 字段筛选...")
27     arcpy.Select_analysis(fcnew, ckjg, "cx = 0 OR cy = 0")

28     print arcpy.AddMessage("7- 删除要素...")
29     arcpy.Delete_management(fcnew)
30     print arcpy.AddMessage("8- 处理完成...\n以下是变更记录：")
31
32     # 读取错误要素游标，写入csv文件
33     cursor = arcpy.da.SearchCursor(ckjg, ["admin_code", "name", "X", "Y"])
34     i = 1
35     for row in cursor:
36
37         ck = str(i) +"- "+ str(row[0])+","+str(row[1])+","+str(row[2])+","+str(row[3])
38         arcpy.AddMessage(ck)
39         flist = str(i)+","+ str(row[0])+","+str(row[1])+","+str(row[2])+","+str(row[3])
40         # print flist
41
42         name = str(filename[0:-4]) + "_XY.csv"
43         csvpath = os.path.join(output, name)
44         path = csvpath
45         with open(path, 'ab') as f:
46             csv_write = csv.writer(f)
47             csv_write.writerow([flist.decode("utf-8")])
48         i += 1
49
53
54 XYChangeCheck(in_new,in_old,output)
55
56 print arcpy.GetMessages()
