实验7:基于REST API的SDN北向应用实践

一、实验目的

1.能够编写程序调用OpenDaylight REST API实现特定网络功能;

2.能够编写程序调用Ryu REST API实现特定网络功能。

二、实验环境

1.下载虚拟机软件Oracle VisualBox或VMware;

2.在虚拟机中安装Ubuntu 20.04 Desktop amd64,并完整安装Mininet、OpenDaylight(Carbon版本)、Postman和Ryu;

三、实验要求

(一)基本要求

OpenDaylight

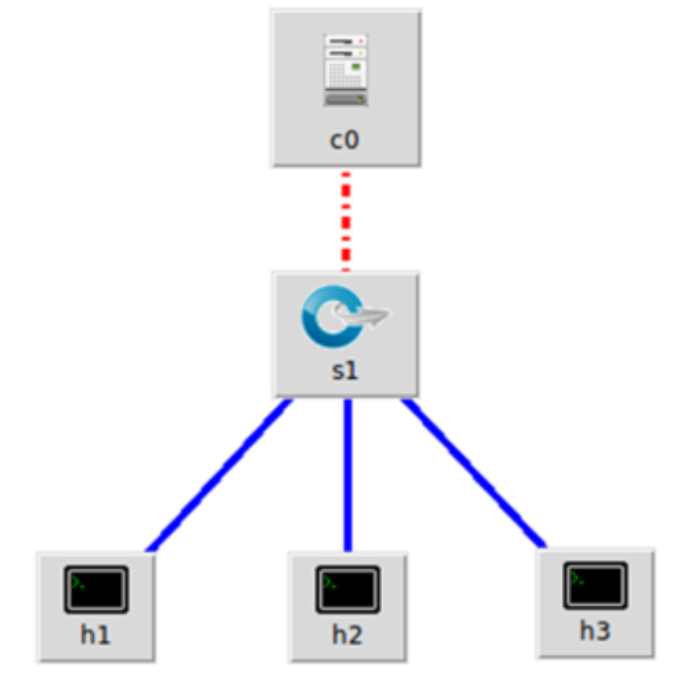

(1) 利用Mininet平台搭建下图所示网络拓扑,并连接OpenDaylight;

(2) 编写Python程序,调用OpenDaylight的北向接口下发指令删除s1上的流表数据。 (delete.py)

#!/usr/bin/python
import requests
from requests.auth import HTTPBasicAuth

if __name__ == "__main__":
    url = 'http://127.0.0.1:8181/restconf/config/opendaylight-inventory:nodes/node/openflow:1/'
    headers = {'Content-Type': 'application/json'}
    res = requests.delete(url, headers=headers, auth=HTTPBasicAuth('admin', 'admin'))
    print (res.content)

(3) 编写Python程序,调用OpenDaylight的北向接口下发硬超时流表,实现拓扑内主机h1和h3网络中断20s。(put.py)

#!/usr/bin/python
import requests
from requests.auth import HTTPBasicAuth

if __name__ == "__main__":
    url = 'http://127.0.0.1:8181/restconf/config/opendaylight-inventory:nodes/node/openflow:1/flow-node-inventory:table/0/flow/1'
    with open("./flowtable.json") as f:
        jstr = f.read()
    headers = {'Content-Type': 'application/json'}
    res = requests.put(url, jstr, headers=headers, auth=HTTPBasicAuth('admin', 'admin'))
    print (res.content)

flowtable.json文件

{
  "flow": [
    {
      "id": "1",
      "match": {
        "in-port": "1",
        "ethernet-match": {
          "ethernet-type": {
            "type": "0x0800"
          }
        },
        "ipv4-destination": "10.0.0.3/32"
      },
      "instructions": {
        "instruction": [
          {
            "order": "0",
            "apply-actions": {
              "action": [
                {
                  "order": "0",
                  "drop-action": {}
                }
              ]
            }
          }
        ]
      },
      "flow-name": "flow1",
      "priority": "65535",
      "hard-timeout": "20",
      "cookie": "2",
      "table_id": "0"
    }
  ]
}

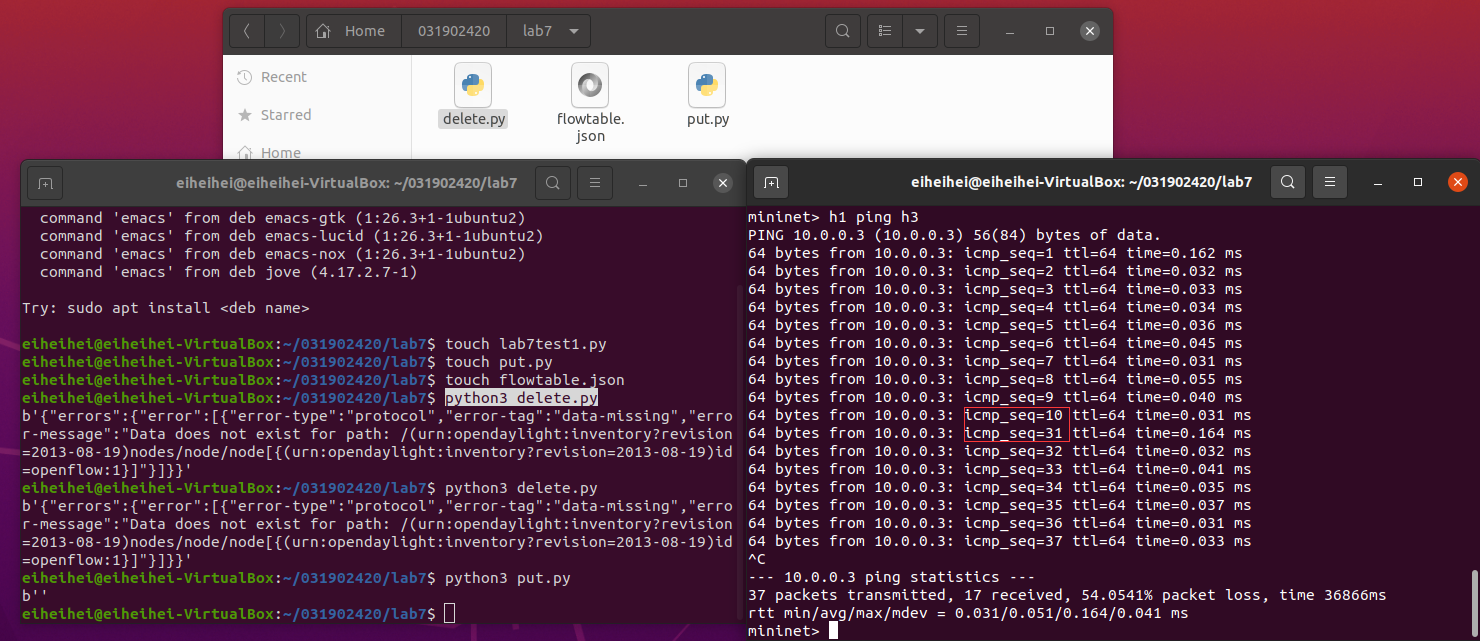

  • 执行结果如下

(4) 编写Python程序,调用OpenDaylight的北向接口获取s1上活动的流表数。

#!/usr/bin/python
import requests
from requests.auth import HTTPBasicAuth

if __name__ == "__main__":
    url = 'http://127.0.0.1:8181/restconf/operational/opendaylight-inventory:nodes/node/openflow:1/flow-node-inventory:table/0/opendaylight-flow-table-statistics:flow-table-statistics'
    headers = {'Content-Type': 'application/json'}
    res = requests.get(url,headers=headers, auth=HTTPBasicAuth('admin', 'admin'))
    print (res.content)

  • 执行结果如下

RYU

运行RYU

ryu-manager  ryu.app.simple_switch_13 ryu.app.ofctl_rest

(1) 编写Python程序,调用Ryu的北向接口,实现上述OpenDaylight实验拓扑上相同的硬超时流表下发。

#!/usr/bin/python
import requests

if __name__ == "__main__":
    url = 'http://127.0.0.1:8080/stats/flowentry/add'
    with open("./flowtable.json") as f:
        jstr = f.read()
    headers = {'Content-Type': 'application/json'}
    res = requests.post(url, jstr, headers=headers)
    print (res.content)
{
    "dpid": 1,
    "cookie": 1,
    "cookie_mask": 1,
    "table_id": 0,
    "hard_timeout": 20,
    "priority": 65535,
    "flags": 1,
    "match":{
        "in_port":1
    },
    "actions":[

    ]
 }

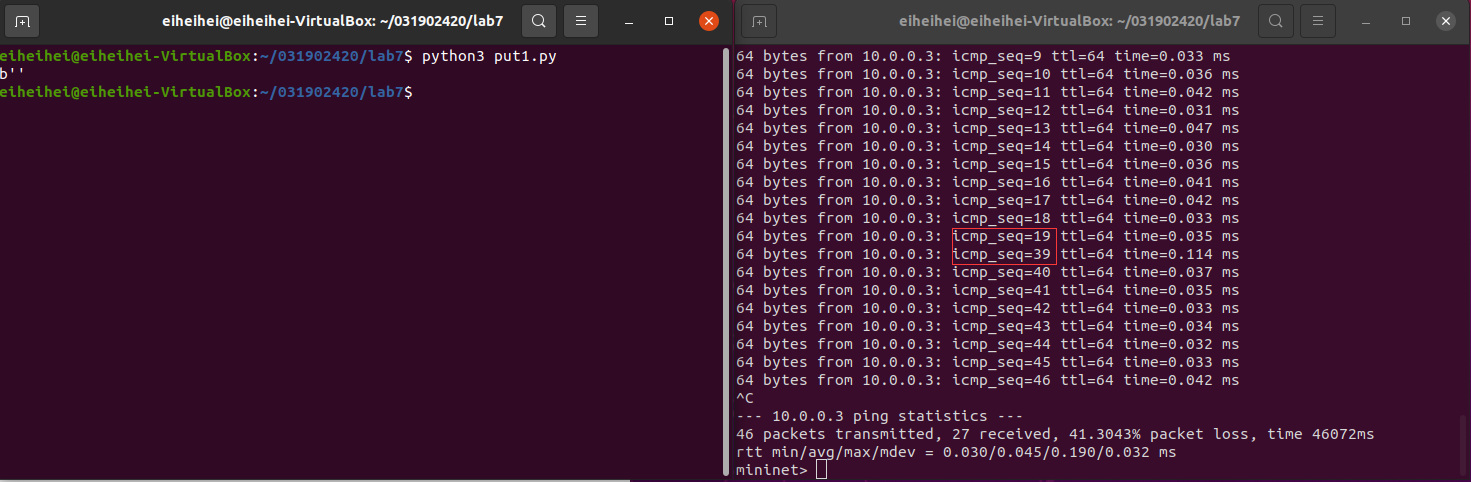

  • 执行结果如下

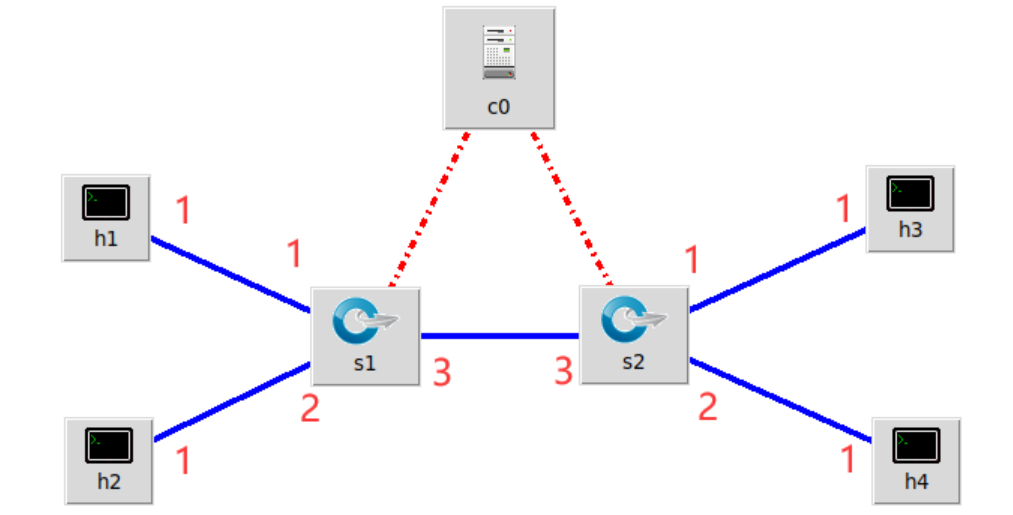

(2) 利用Mininet平台搭建下图所示网络拓扑,要求支持OpenFlow 1.3协议,主机名、交换机名以及端口对应正确。拓扑生成后需连接Ryu,且Ryu应能够提供REST API服务

#!/usr/bin/env python
from mininet.topo import Topo

class MyTopo(Topo):
    def __init__(self):
        # initilaize topology
        Topo.__init__(self)

        self.addSwitch("s1")
        self.addSwitch("s2")

        self.addHost("h1")
        self.addHost("h2")
        self.addHost("h3")
        self.addHost("h4")

        self.addLink("s1", "h1")
        self.addLink("s1", "h2")
        self.addLink("s2", "h3")
        self.addLink("s2", "h4")
        self.addLink("s1", "s2")

topos = {'mytopo': (lambda: MyTopo())}

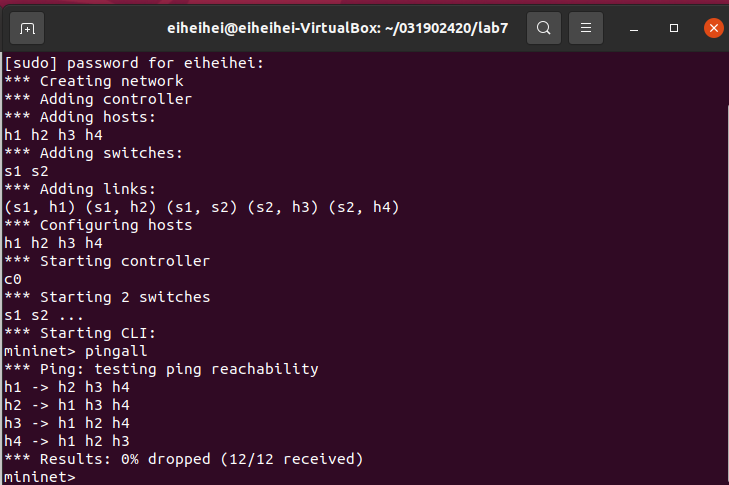

搭建拓扑:

(3) 整理一个Shell脚本,参考Ryu REST API的文档,利用curl命令,实现和实验2相同的VLAN。

命令行运行

curl -X DELETE http://localhost:8080/stats/flowentry/clear/1
curl -X DELETE http://localhost:8080/stats/flowentry/clear/2

shell脚本:

# 将主机1,2发送来的数据包打上vlan标记
curl -X POST -d '{
    "dpid": 1,
    "priority": 1,
    "match":{
        "in_port": 1
    },
    "actions":[
        {
            "type": "PUSH_VLAN",
            "ethertype": 33024
        },
        {
            "type": "SET_FIELD",
            "field": "vlan_vid",
            "value": 4096
        },
        {
            "type": "OUTPUT",
            "port": 3
        }
    ]
 }' http://localhost:8080/stats/flowentry/add

 curl -X POST -d '{
    "dpid": 1,
    "priority": 1,
    "match":{
        "in_port": 2
    },
    "actions":[
        {
            "type": "PUSH_VLAN",
            "ethertype": 33024
        },
        {
            "type": "SET_FIELD",
            "field": "vlan_vid",
            "value": 4097
        },
        {
            "type": "OUTPUT",
            "port": 3
        }
    ]
 }' http://localhost:8080/stats/flowentry/add

# 将主机3,4发送来的数据包取出vlan标记
 curl -X POST -d '{
    "dpid": 1,
    "priority": 1,
    "match":{
        "vlan_vid": 0
    },
    "actions":[
        {
            "type": "POP_VLAN",
            "ethertype": 33024
        },
        {
            "type": "OUTPUT",
            "port": 1
        }
    ]
 }' http://localhost:8080/stats/flowentry/add

 curl -X POST -d '{
    "dpid": 1,
    "priority": 1,
    "match":{
        "vlan_vid": 1
    },
    "actions":[
        {
            "type": "POP_VLAN",
            "ethertype": 33024
        },
        {
            "type": "OUTPUT",
            "port": 2
        }
    ]
 }' http://localhost:8080/stats/flowentry/add

# 将主机3,4发送来的数据包打上vlan标记
 curl -X POST -d '{
    "dpid": 2,
    "priority": 1,
    "match":{
        "in_port": 1
    },
    "actions":[
        {
            "type": "PUSH_VLAN",
            "ethertype": 33024
        },
        {
            "type": "SET_FIELD",
            "field": "vlan_vid",
            "value": 4096
        },
        {
            "type": "OUTPUT",
            "port": 3
        }
    ]
 }' http://localhost:8080/stats/flowentry/add

 curl -X POST -d '{
    "dpid": 2,
    "priority": 1,
    "match":{
        "in_port": 2
    },
    "actions":[
        {
            "type": "PUSH_VLAN",
            "ethertype": 33024
        },
        {
            "type": "SET_FIELD",
            "field": "vlan_vid",
            "value": 4097
        },
        {
            "type": "OUTPUT",
            "port": 3
        }
    ]
 }' http://localhost:8080/stats/flowentry/add

 curl -X POST -d '{
    "dpid": 2,
    "priority": 1,
    "match":{
        "vlan_vid": 0
    },
    "actions":[
        {
            "type": "POP_VLAN",
            "ethertype": 33024
        },
        {
            "type": "OUTPUT",
            "port": 1
        }
    ]
 }' http://localhost:8080/stats/flowentry/add

 curl -X POST -d '{
    "dpid": 2,
    "priority": 1,
    "match":{
        "vlan_vid": 1
    },
    "actions":[
        {
            "type": "POP_VLAN",
            "ethertype": 33024
        },
        {
            "type": "OUTPUT",
            "port": 2
        }
    ]
 }' http://localhost:8080/stats/flowentry/add

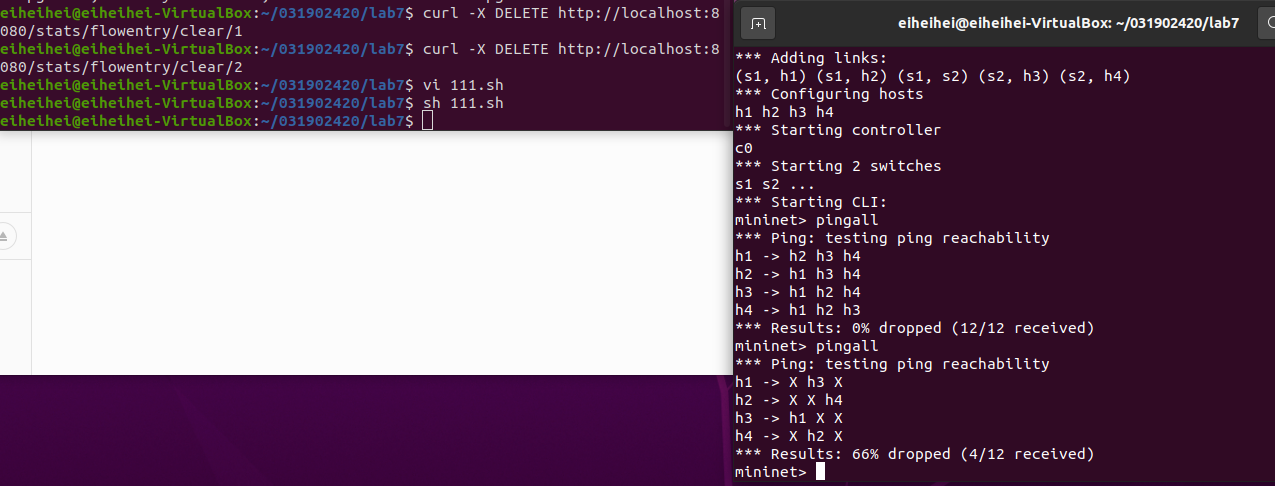

  • 执行结果如下

三.实验总结

  • 实验难度:本次实验难度较难。

  • 实验中遇到的问题:

(1).在重装系统之后ODL无法打开
解决方案:重新下载的JAVA版本太高,到时无法使用ODL,更换版本较低的JAVA即可这正常打开。
(2).调用Ryu的北向接口实现硬超时流表下发前创建拓扑无法ping通
解决方案:建立拓扑时应该使用OpenFlow1.3,使用OpenFlow1.0会出现无法ping通的情况。
(3).在流表删除的时候报错

解决办法:原因是刚打开的时候服务器没有流表,没有东西需要删除。

  • 个人感想:本次实验的实验内容主要内容在先前实验的基础上进行,泵且在实验难度上提升,所以本次实验所耗费时间相对较久。但同时也让我对于Open DayLight 和 Ryu的使用和北向API都有了更加深刻的了解,对于request包的使用更加熟悉。通过这次实验进一步熟悉了OpenDaylight和Ryu,使用工具实现特定网络功能,同时也复习了关于Ryu的运行方面的操作命令,以及关于.sh脚本的命令,但是对Python语言不是很了解,在进行代码的阅读时有很多不懂的地方通过询问同学完成,有很多的地方需要学习。
