vanlif

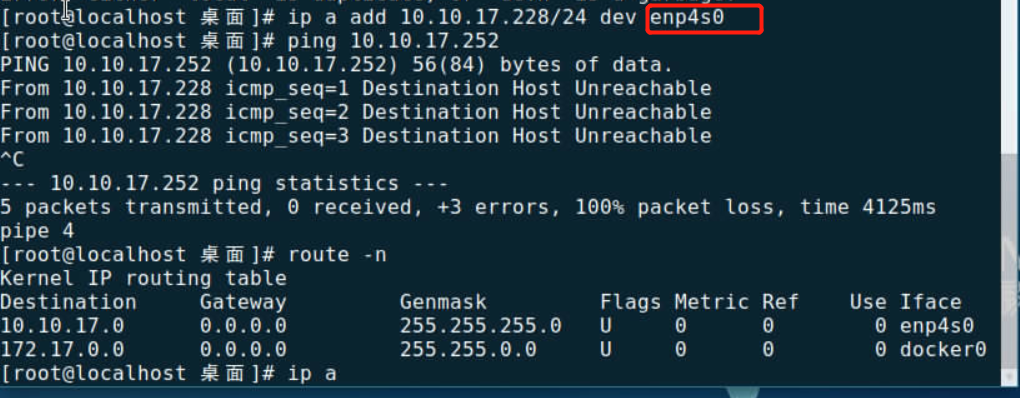

无法访问10.10.17.252









dis mac-add | inc 9044
Flags: * - Backup
       # - forwarding logical interface, operations cannot be performed based
           on the interface.
BD   : bridge-domain   Age : dynamic MAC learned time in seconds
-------------------------------------------------------------------------------
MAC Address    VLAN/VSI/BD   Learned-From        Type                Age
-------------------------------------------------------------------------------
9c52-f891-9044 234/-/-       10GE1/0/34          dynamic             183
-------------------------------------------------------------------------------
Total items: 34







<XuNiJi_YeWu_252>dis ip routing-table
Proto: Protocol        Pre: Preference
Route Flags: R - relay, D - download to fib, T - to vpn-instance, B - black hole route
------------------------------------------------------------------------------
Routing Table : _public_
         Destinations : 8        Routes : 8

Destination/Mask    Proto   Pre  Cost        Flags NextHop         Interface

     10.10.16.0/24  Static  60   0             RD  10.10.17.254    Vlanif1017
     10.10.17.0/24  Direct  0    0             D   10.10.17.252    Vlanif1017
   10.10.17.252/32  Direct  0    0             D   127.0.0.1       Vlanif1017
   10.10.17.255/32  Direct  0    0             D   127.0.0.1       Vlanif1017
      127.0.0.0/8   Direct  0    0             D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0             D   127.0.0.1       InLoopBack0
127.255.255.255/32  Direct  0    0             D   127.0.0.1       InLoopBack0
255.255.255.255/32  Direct  0    0             D   127.0.0.1       InLoopBack0
<XuNiJi_YeWu_252>dis port vlan | inc 10GE1/0/34
Port                    Link Type    PVID  Trunk VLAN List
-------------------------------------------------------------------------------
10GE1/0/34              access        234  --
<XuNiJi_YeWu_252>

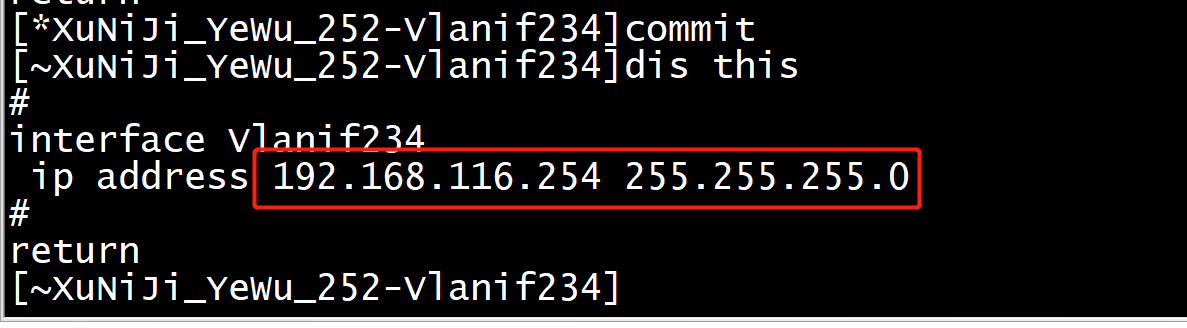

可以在交换机山配个234的vlanif









 交换机vlan
