How to use renault can clip China clone diagnostic Interface?

Look down

This blog aims to help freshmen to use V163 Can Clip China Clone for Renault and give some available suggestions on frequently questions

1.Renault can clip best quality (quality a)

2.Renault can clip best price (free shipping - Cheap)

3.Can Clip For Renault V163 Software CD

4.Can clip plus multi-diag j2534

5.Can Clip Plus Lexia 3 Plus Multidiag Access 2015.1(€375)

6.Renault CAN Clip V162 Plus Nissan Consult 3 2 in 1

7.Renault can clip bluetooth (New Renault-com Diagnostic and Programming Tool Bluetooth for Renault replacement can clip €84.99)



If you purchase a V163 Renault Can Clip multilanguage. You will receive a carton box, a can clip Renault diagnostic tool, a 12 pin cable, an OBD II 16 pin cable, USB cable and CD to update software inside.

Features should be known first:

Software version: V163

Operating System: Windows 7 32bit

Vehicle model: Renault cars from 1996-2016

Can Clip for renault support Language: English, German, Danish, Spanish, Finnish, French, Italian, Norwegian, Dutch, Portuguese, Romania, and Swedish.

Renault can clip car list:
Alpine
Avantime
Cherokee
Clio II
Clio III
Clio Phase 1 & 2
Clio Phase 3
Clio RS V6
Espace(1-3)
Espace IV
Extra
Kangoo
Kangoo II
Koleos
Laguna
Laguna Estate
Laguna II
Laguna III
Logan/Sandero
Logan India
Mascott/Master Propulsion
Master from 1981
Megane Megane Classic/Estate
Megane Coupe/Cabriolet
Megane II
Megane III
Megane Scenic
Modus
New Twingo
R19
R21
R21 Savanna
R25
R4 from 1983
R5 New
Safrane
Scenic II
Scenic III
Spider
Symbol-Thalia
Trafic from 03.89.
Trafic II
Twingo
Vel Satis

Wrangler

What can renault can clip do - Main function:

1 Scan, diagnose, and automatically test all Renault models’ computers, reprogramming, airbag test and other functions.
2 Read Renault car vin number.

Install Renault Can Clip OBD2 diagnostic interface

Maybe you have known the basic info before. The next case refers to software installation.

The steps roughly can be defined into 4 stages

Step 1: Install DAEMON tools lite.

Step2: Install Clip

Step3: Register Can Clip

Step 4: Diagnostic procedure

If you are interested in the more specific instructions on installation, this blog will help you to a certain extent.

Can Clip VS Multidiag Pro VS DDT2000

I have the Can Clip it does all I need it to on my Megane as for diagnosing it will do it as long as you have a PC that includes its software. The main reason I got Clip is it covers all the rovers so the MRS, MGF, I can sort out when the car ever goes wrong and it never let me down.
About Multidiag Pro and Clip, I think the biggest difference is their vehicle coverage. Multidiag Pro is universal (works in a very large car brands), while Clip is for Renault cars. Besides, Multidiag Pro is cheaper than Clip.

The DDT2000 actually does not pass the test. I have got a MAF sensor disconnected and the software is not able to read it. It just states that no errors are present but in fact there is something going on. Then I plugged ELM327 scanner and run its software, there it is the fault present. For now the price is the only good thing, but so is the ELM327 cable and way more easy to use.

Conclusion:

Renualt CAN CLIP and Multidiag Pro are clearly above DDT2000 and both can do what DDT does. CAN Clip works good with Renault cars, Multidiag Pro supports other car brands. As a DIY-er, I would choose Renault without doubt. But, this rank may change if you own a car that works fully or almost fully in KWP protocol, cars before 2004 or so.

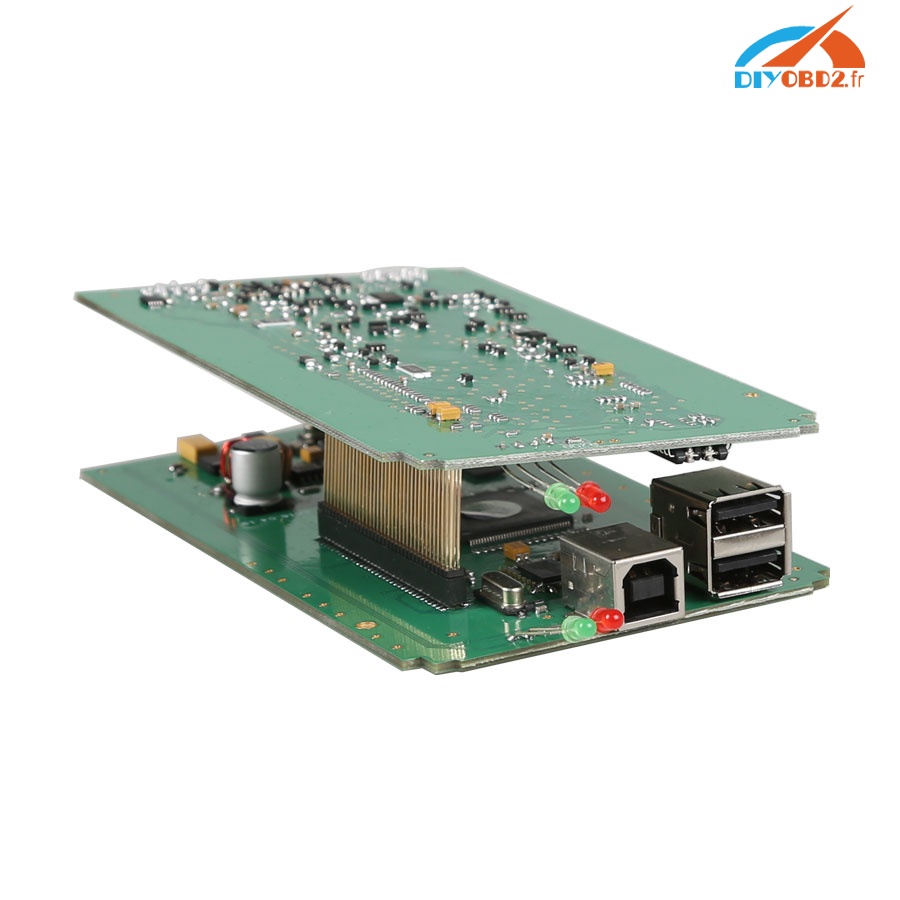

Renault can clip pcb:

Sp19-A:CAN Clip with AN2135SC/AN2136SC Chip



In the PCB, engineers add the high quality chip CYPRESS AN2135SC or CYPRESS AN2136SC.

The new chip AN2135SC/AN2136SC solved communication issues of old CLIP versions below. That make CLIP work more stable and can be used for a longer time



Using other versions of Renault CLIP, the diagnostic interface will disconnect if users have no operation for 10 minutes around after successful communication to the car.



With this new CAN CLIP for Renault, the issue solved, with the chip AN2135SC/AN2136SC. This is the PCB with new design.

Sp19-b: Renault can clip diagnostic interface



Sp19-c: Renault can clip diagnostic tool



Renault can clip how to use - experience

During using the V163 Can Clip, the four indicated lights flashed at first. When I came to the diagnostic menu, the CAN indicator light off and the connection can’t be established. After consulting with professional engineers, I got two methods to solute the problems.

1 Try to install the software on another laptop, and do not connect with power.

2 Try to diagnostic car with K-line protocol. If it works, but can’t diagnostic car with CAN protocol. Turn back to factory for check is the best way.

Luckily, the first solution solved my problem. Now I share with the users who come across the same situation.


So far, I have tested various functions with Renault Can Clip V163. For example, I tested the status of RenaultⅡMegane 2003 and the switch of its electric windows. V163 Can Clip works well according to my need in general.

Renault CAN Clip forum (Top three site)
1.http://www.renaultforums.co.uk/

2.https://www.renault.co.uk/


3.http://meganeownersclub.co.uk/forum/

Renault can clip user manual:

-

Renault can clip youtube:





https://www.youtube.com/user/diyobd2/search?query=can+clip



1.Renault can clip software free:

1.Renault CAN CLiP v163 Download on Mega

2.Download can clip v162



3. renault can clip v160.rar - CLIP 157 torrent  - Renault-CAN-CLIP-156.rar - Renault Clip V155.iso



2.Renault can clip installation guide:

1.How to install Renault CAN CLIP v163 on Windows xp

2.How to install Can Clip V162 for Renault on the XP system

3.How to install Can Clip V160 for Renault on the XP system



Renault can clip install on windows 7 64 bit ?

Renault Clip software is always tested ok in Windows XP system 32 bit. But XP system is kind of out of date. Nowadays, most use Windows 7 64 bit. To run CLIP on WIN 7 or not, that’s a question of luck.

Here are users feedback on can clip windows 7 64 bit, some successful & some failed:

– Works fine on win7 x86.

– Yes, Can Clip runs on Windows 7-x64 and Windows 8….8.1-x64 m because use x-86 files from the system.

– If your version of Windows 7 Home Basic or Home Premium x64 it is normally not work, try Enterprise or Ultimate , I use Win 7 Ultimate x64 and canclip works very well

– Automatically detect a driver in both win7 and in win7-x86-x64, a kind can clip ALIANCE driver, bosch automotive … etc..

is absolutely necessary to have all updates made​to the operating system before installation canclip

– i try install in win 7 x64 pc but the driver of VCI not work

– It is NOT working in my Win7 64-bit

– same issue, not working W7 64bit

*** why some Renault CLIP cannot work on Widows 7 64bit?

– The Clip software itself works with 64bit version of Windows 7 but the hardware won’t.. Simply because the there are no 64bit drivers for SONDE can clip..

– I think there are no drivers made for 64bit windows…

it works only with 32bit windows

*** What to do if Renault CAN CLIP cannot work on Windows 64 bit?

-Try disable driver signature enforsment in win 64bit..that help many times

– Or just RIGHT CLICK the .inf File and click INSTALL

Then if you get certificate error you can fix that in device manager/

by right click and install certificate even if invalid

– You need to know your can clip is probe (sonde) or alliance.

alliance = works both on 32 and 64 bit os

probe (sonde) = works only on 32 bit os

i think sonde is better than alliance

You can disassemble your CAN Clip and check it on PCB

real CAN CLIP PROBE clone – RLT2002

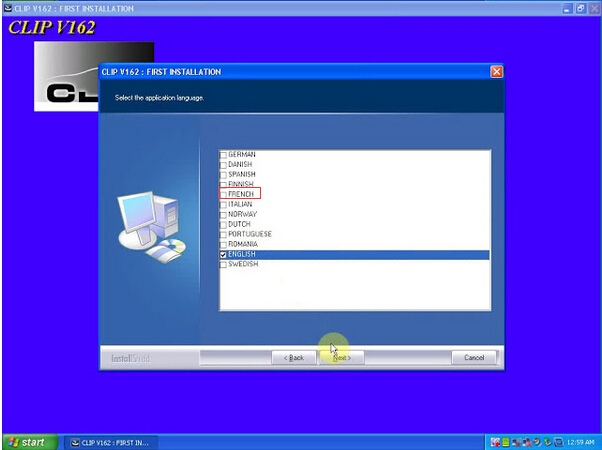

3.Renault can clip change language:

During the installation, some users will be confused about language changing. For example, how to change English into French? You should select French at the installation step of selecting application language.



If you want to select another language after installation, the only way is to uninstall and then reinstall the software.



4.Renault can clip connection:

Renault can clip OBD II 12 pin cable connection:

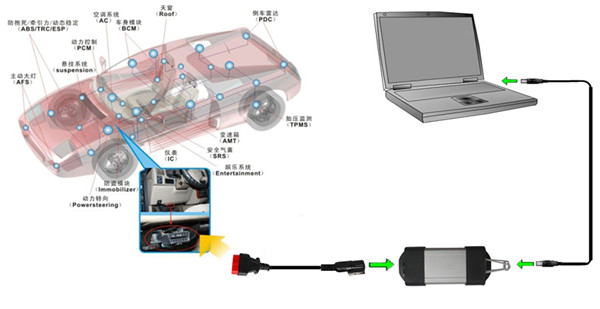

Renault can clip OBD II 16 pin cable connection:





5.Renault can clip reprogramming



6.Renault can clip error (problems):



1.Renault can clip firmware error



2.Renault can clip iso problem



3.Renault can clip no communication



4.Renault can clip no sensor detected

More:

http://obd2-diag.blogspot.com/p/renault-can-clip.html



Most people want to know:

Renault can clip review:

1.by Antonio , Jun 2, 2015

Hello.

Can Renault Can Clip reprogram the target (Key) of the scenic?

I hope your reply



Reply #1 by Summer  Jun 3, 2015

Dear friend,



Nice day!



Thanks for your interest in our product.



This Renault CAN Clip can't program keys, it is for diagnose.



Regards,



Summer





2.by Mr.placido hernande , Apr 10, 2015

The quality is very good ,i have use this tool about half month ,no problem ,works stable



3.by Mr.Jason lord , Apr 10, 2015

this scanner has been more than sufficient



4.by Mr.Frank , Apr 10, 2015

Can this tool work with my Renault scenic 2001？



Reply #1 by Cindy  Apr 10, 2015

Hello sir,



Thanks for your visit.



Yes, it support, you can have a try.



Regards,



Cindy



5.by Fasel chris , Apr 8, 2015

What warranty do your guys offer?



Reply #1 by Marshall  Apr 8, 2015

Dear sir,



we offer one year warranty



regards

marshall



6.by Pietro roscigno , Apr 5, 2015

Che tempo ci. Vuole per arrivare diagnosi renault v146(articolo no.sp19-b) prezzo complessivo con spedizione ,verso Napoli.grazie



7.by MAX AUTO , Mar 23, 2015

What can I do with this error "please contact the SPX helpline" ?



Reply #1 by Marshall  Mar 23, 2015

Dear sir



this is your system problem,you need change to XP system SP3



regards

marshall



8.by Fabio Uitursl , Dec 30, 2014

Can can clip work for my 2010 Renault Scenic III (JZQN type) electrics rear brakes?



Reply #1 by Marshall  Dec 30, 2014

sorry,it cannot do



regards

marshall



9.by Mr.Lyle , Dec 30, 2014

When I try to program with Renault CAN Clip, no communication, what's the problem?



Reply #1 by Cindy  Dec 30, 2014

Dear sir,



Thanks for your visit.



I am sorry Renault CAN Clip we supply only support diagnosis, not support programming.



Hope you can understand.



Regards,



Cindy





10.by Mr.Luis Tomé , May 20, 2014

hello what is the diferences in A and B versions in renault can clip

Reply #1 by Marshall  May 20, 2014

dear sir



thanks for your mail



for function they are same,i advise you buy A version now,as A version is 1:1 clone of the original with AN2135SC Chip

see this article:

Renault Can Clip 1:1 clone of the original with AN2135SC Chip



have a nice day!

marshall

Why do I need to buy renault can clip and nissan consult 3 2 in 1?

CAN CLIP and Nissan Consult 3 Use the same hardware

Yes,and Renault can clip hardware is good for nissan consult 3 software,it is able to diagnose nissan cars with renault can clip hardware!!! (sp19-b and sp38-b, Renault CAN Clip V163 And Nissan Consult 3 2 in 1 sp259)
very well and cheaper



Or if you only have one product, you can buy another one can clip or Consult 3 (sp38-b)
