实验4 8086标志寄存器及中断
1.实验任务1
验证性实验:有些汇编指令会影响到标志寄存器中的一个或多个状态标志位。
录入8086汇编源码task1.asm。
assume cs:code, ds:data data segment x dw 1020h, 2240h, 9522h, 5060h, 3359h, 6652h, 2530h, 7031h y dw 3210h, 5510h, 6066h, 5121h, 8801h, 6210h, 7119h, 3912h data ends code segment start: mov ax, data mov ds, ax mov si, offset x mov di, offset y call add128 mov ah, 4ch int 21h add128: push ax push cx push si push di sub ax, ax mov cx, 8 s: mov ax, [si] adc ax, [di] mov [si], ax inc si inc si inc di inc di loop s pop di pop si pop cx pop ax ret code ends end start
① line31~line34的4条inc指令,能否替换成如下代码?你的结论的依据/理由是什么?
add si, 2 add di, 2
不能替换成如下代码。
ADC在求和运算时会加入了CF标志位。ADD指令在运算时可能会产生进位,即改变CF的值,会影响ADC的结果。
② 在debug中调试,观察数据段中做128位加之前,和,加之后,数据段的值的变化。
2.实验任务2
使用任意文本编辑器,录入8086汇编源码task2.asm。 task2.asm
assume cs:code, ds:data data segment str db 80 dup(?) data ends code segment start: mov ax, data mov ds, ax mov si, 0 s1: mov ah, 1 int 21h mov [si], al cmp al, '#' je next inc si jmp s1 next: mov ah, 2 mov dl, 0ah int 21h mov cx, si mov si, 0 s2: mov ah, 2 mov dl, [si] int 21h inc si loop s2 mov ah, 4ch int 21h code ends end start
① 汇编指令代码line11-18,实现的功能是?
当输入字符的ascll码等于‘#’的ascll值时,跳转到next标号处执行,否则将向下继续执行程序,即继续读入。
② 汇编指令代码line20-22,实现的功能是?
实现的功能是换行
③ 汇编指令代码line24-30,实现的功能是?
循环输出键入的字符。3.实验任务3
针对8086CPU,已知逻辑段定义如下:
data segment x dw 91, 792, 8536, 65521, 2021 len equ $ - x data ends
编写8086汇编源程序task3.asm,在屏幕上以十进制形式输出data段中这一组连续的数据,数据和数据 之间以空格间隔。
要求: 编写子程序printNumber
功能:以十进制形式输出一个任意位数的整数(整数范围0 ~ 65535)
入口参数:寄存器ax(待输出的数据 --> ax)
出口参数:无 编写子程序printSpace
功能:打印一个空格
入口参数:无 出口参数:无
在主体代码中,综合应用寻址方式和循环,调用printNumber和printSpace, 实现题目要求。
实验源码:
assume cs:code, ds:data data segment x dw 91, 792, 8536, 65521, 2021 len equ $ - x data ends stack segment db 16 dup(0) stack ends code segment start: mov ax, data mov ds, ax mov ax, stack mov ss, ax mov sp, 16 mov si, offset x mov cx, 5 s: mov ax, ds:[si] call printNumber call printSpace add si, 2 loop s mov ah, 4ch int 21h printNumber: push cx mov cx, 0 s2: mov bx, 10 mov dx, 0 div bx push dx inc cx cmp ax, 0 jne s2 s3: pop bx or bl, 30h mov ah, 2 mov dl, bl int 21h loop s3 pop cx ret printSpace: mov ah, 2 mov dl, 20h int 21h ret code ends end start
4.实验任务4
针对8086CPU,已知逻辑段定义如下:
data segment str db "assembly language, it's not difficult but tedious" len equ $ - str data ends

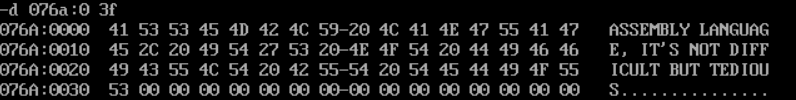

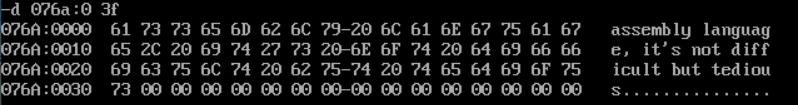

编写8086汇编源程序task4.asm,将data段中字符串里的小写字符转换成大写。
要求: 编写子程序strupr
功能:将包含任意字符的字符串中的小写字母变成大写
入口参数 (ds:si ) 字符串首地址的段地址和偏移地址分别送至ds和si (cx) 字符串的长度
出口参数:无
在主体代码中,设置入口参数,调用strupr, 实现题目要求。
assume cs:code, ds:data data segment str db "assembly language, it's not difficult but tedious" len equ $ - str data ends code segment start: mov ax, data mov ds, ax mov si, offset str mov cx, len call strupr mov ah, 4ch int 21h strupr: s: cmp byte ptr [si], 'a' jb s1 cmp byte ptr [si], 'z' ja s1 sub byte ptr [si], 32 s1: inc si loop s ret code ends end start
5.实验任务5
task5.asm
assume cs:code, ds:data data segment str1 db "yes", '$' str2 db "no", '$' data ends code segment start: mov ax, data mov ds, ax mov ah, 1 int 21h ; 从键盘输入字符 mov ah, 2 mov bh, 0 mov dh, 24 ; 设置光标位置在第24行 mov dl, 70 ; 设置光标位置在第70列 int 10h ; 设置光标位置 cmp al, '7' je s1 mov ah, 9 mov dx, offset str2 int 21h ; 显示标号str2处的字符串 jmp over s1: mov ah, 9 mov dx, offset str1 int 21h ; 显示标号str2处的字符串 over: mov ah, 4ch int 21h code ends end start
运行结果:
6.实验任务6
task6_1.asm
assume cs:code code segment start: ; 42 interrupt routine install code mov ax, cs mov ds, ax mov si, offset int42 ; set ds:si mov ax, 0 mov es, ax mov di, 200h ; set es:di mov cx, offset int42_end - offset int42 cld rep movsb ; set IVT(Interrupt Vector Table) mov ax, 0 mov es, ax mov word ptr es:[42*4], 200h mov word ptr es:[42*4+2], 0 mov ah, 4ch int 21h int42: jmp short int42_start str db "welcome to 2049!" len equ $ - str ; display string "welcome to 2049!" int42_start: mov ax, cs mov ds, ax mov si, 202h mov ax, 0b800h mov es, ax mov di, 24*160 + 32*2 mov cx, len s: mov al, [si] mov es:[di], al mov byte ptr es:[di+1], 2 inc si add di, 2 loop s iret int42_end: nop code ends end start
