Tengine 结合ngx_lua_waf做WEB安全防护

一、WAF 作用

• 防止sql注入，本地包含，部分溢出，fuzzing测试，xss,SSRF等web攻击
• 防止svn/备份之类文件泄漏
• 防止ApacheBench之类压力测试工具的攻击
• 屏蔽常见的扫描黑客工具，扫描器
• 屏蔽异常的网络请求
• 屏蔽图片附件类目录php执行权限
• 防止webshell上传
• Tengine下载地址 http://tengine.taobao.org/
• luajit 下载地址 http://luajit.org/download.html

二、luajit安装

wget https://luajit.org/download/LuaJIT-2.0.5.zip --no-check-certificate
unzip LuaJIT-2.0.5.zip && cd LuaJIT-2.0.5
make -j8
make install PREFIX=/usr/local/luajit

三、tengine 一键安装

 cat >>install-nginx.sh<<-"EOF"
#!/bin/bash
base_dir=`pwd`
tengine_tar=tengine-2.3.3.tar.gz
yum -y install gcc automake autoconf libtool make
yum install gcc gcc-c++ glibc -y
cd $base_dir
tar -xf openssl-1.1.1g.tar.gz
tar -xf pcre-8.44.tar.gz
tar -xf $tengine_tar
tar -xf zlib-1.2.11.tar.gz

cd $base_dir/tengine-2.3.3 && \
./configure --prefix=/opt/module/tengine-2.3.3 --with-http_ssl_module --with-http_realip_module --with-http_addition_module --with-http_sub_module --with-http_dav_module --with-http_flv_module --with-http_stub_status_module --with-http_gzip_static_module --with-stream --with-pcre=${base_dir}/pcre-8.44   --with-openssl=${base_dir}/openssl-1.1.1g --with-zlib=${base_dir}/zlib-1.2.11 --add-module=./modules/ngx_http_upstream_check_module/  --add-module=./modules/ngx_http_substitutions_filter_module --add-module=./modules/ngx_http_upstream_session_sticky_module  --add-module=./modules/ngx_http_concat_module/  --add-module=./modules/ngx_http_sysguard_module/ --with-http_lua_module --with-luajit-lib=/usr/local/luajit/lib/ --with-luajit-inc=/usr/local/luajit/include/luajit-2.0/ --with-ld-opt=-Wl,-rpath,/usr/local/luajit/lib && \
make -j4 && make install
EOF

四、下载ngx_lua_waf并配置

• https://github.com/loveshell/ngx_lua_waf

 unzip ngx_lua_waf-0.7.2.zip -d /opt/module/tengine/conf
 mv ngx_lua_waf-0.7.2 waf
cat /opt/module/tengine/conf/waf/config.lua |head -3
RulePath = "/opt/module/tengine/conf/waf/wafconf/"
attacklog = "on"
logdir = "/data/logs/waf/hack/"

• 修改NGINX http代码段增加


nginx.conf
        lua_package_path "/opt/module/tengine/conf/waf/?.lua";
        lua_shared_dict limit 10m;
        init_by_lua_file  /opt/module/tengine/conf/waf/init.lua;
        access_by_lua_file /opt/module/tengine/conf/waf/waf.lua;

• 启动tengine
• 测试配置文件

/opt/module/tengine/sbin/nginx -t

• 启动服务

/opt/module/tengine/sbin/nginx

五、验证WAF防护

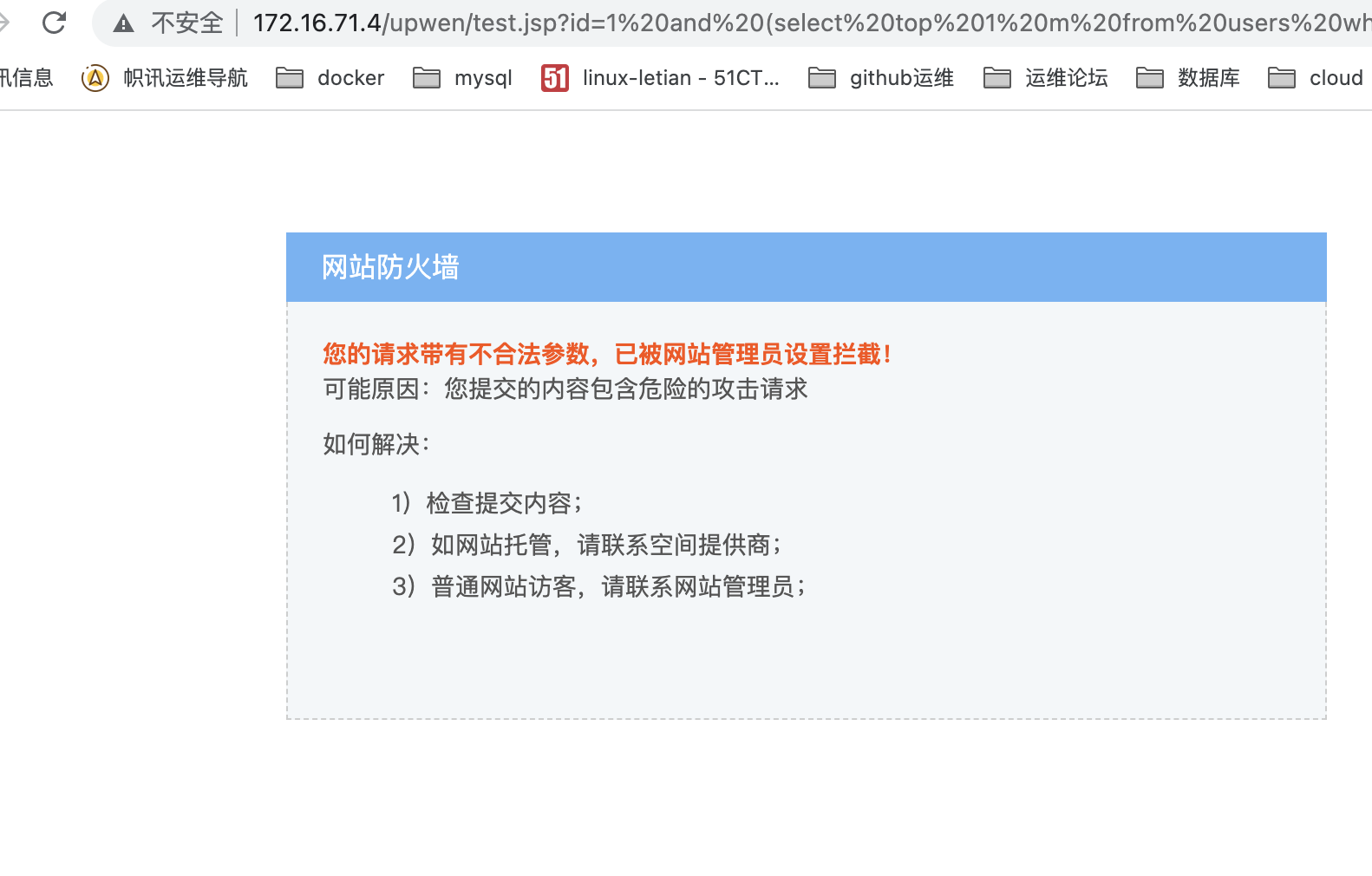

• sql注入验证


http://172.16.71.4/upwen/test.jsp?id=1 and (select top 1 m from users where d=1 and m not in(select top 0 m from users))>0

• 密码暴力破解

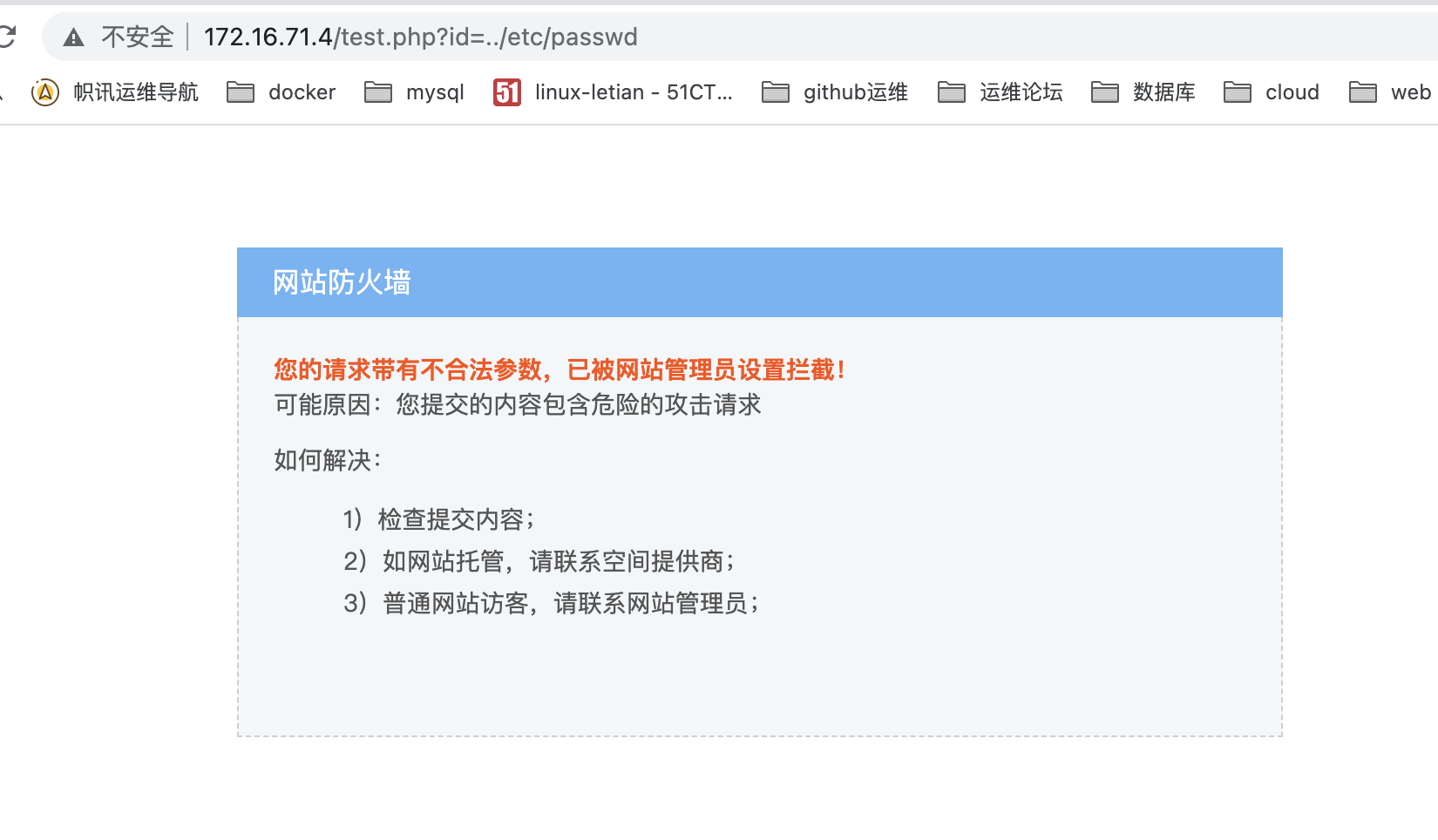

http://172.16.71.4/test.php?id=../etc/passwd
