动态路由

在静态路由基础上，配置动态路由，在每台路由器上对直连ip配置

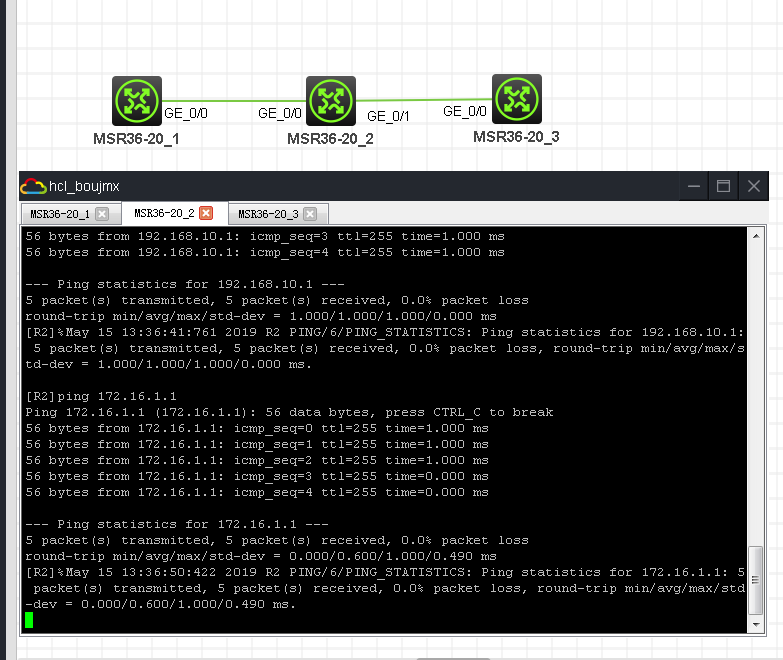

接着测试R1能不能ping通ip172.16.1.1，R2ping通192.168.10.1和172.16.1.1，R3ping通192.168.10.1

R1:

rip 1

network 192.168.10.0

network 10.1.1.0

undo summary

undo network 10.0.0.0

version 2

network 10.1.1.0 0.0.0.3

R2:

rip1

network 10.1.1.0

undo summary

undo network 10.0.0.0

version 2

network 10.1.1.0 0.0.0.3

R3:

rip 1

network 172.16.1.0

network 10.1.1.0

undo summary

undo network 10.0.0.0

version 2

network 10.0.0.0 0.0.0.3
