C# Avalonia 13- MoreDrawing - BezierCurve

BezierCurve.axaml代码

<Window xmlns="https://github.com/avaloniaui"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        Height="264" Width="281.6"
        x:Class="AvaloniaUI.BezierCurve"
        Title="BezierCurve">
    <Canvas>
        <Path Stroke="Blue" StrokeThickness="5" Canvas.Top="20">
            <Path.Data>
                <PathGeometry>
                    <PathGeometry.Figures>
                        <PathFigure StartPoint="10,10" IsClosed="False">
                            <BezierSegment Point1="130,30" Point2="40,140" Point3="150,150"></BezierSegment>
                        </PathFigure>
                    </PathGeometry.Figures>
                </PathGeometry>
            </Path.Data>
        </Path>

        <Path Stroke="Green" StrokeThickness="2" StrokeDashArray="5,2" Canvas.Top="20">
            <Path.Data>
                <GeometryGroup>
                    <LineGeometry StartPoint="10,10" EndPoint="130,30"></LineGeometry>
                    <LineGeometry StartPoint="40,140" EndPoint="150,150"></LineGeometry>
                </GeometryGroup>
            </Path.Data>
        </Path>

        <Path Fill="Red" Stroke="Red" StrokeThickness="8" Canvas.Top="20">
            <Path.Data>
                <GeometryGroup>
                    <EllipseGeometry Center="130,30" RadiusX="2" RadiusY="2"></EllipseGeometry>
                    <EllipseGeometry Center="40,140" RadiusX="2" RadiusY="2"></EllipseGeometry>
                </GeometryGroup>
            </Path.Data>
        </Path>
    </Canvas>
</Window>

BezierCurve.axaml.cs代码

using Avalonia;
using Avalonia.Controls;
using Avalonia.Markup.Xaml;

namespace AvaloniaUI;

public partial class BezierCurve : Window
{
    public BezierCurve()
    {
        InitializeComponent();
    }
}

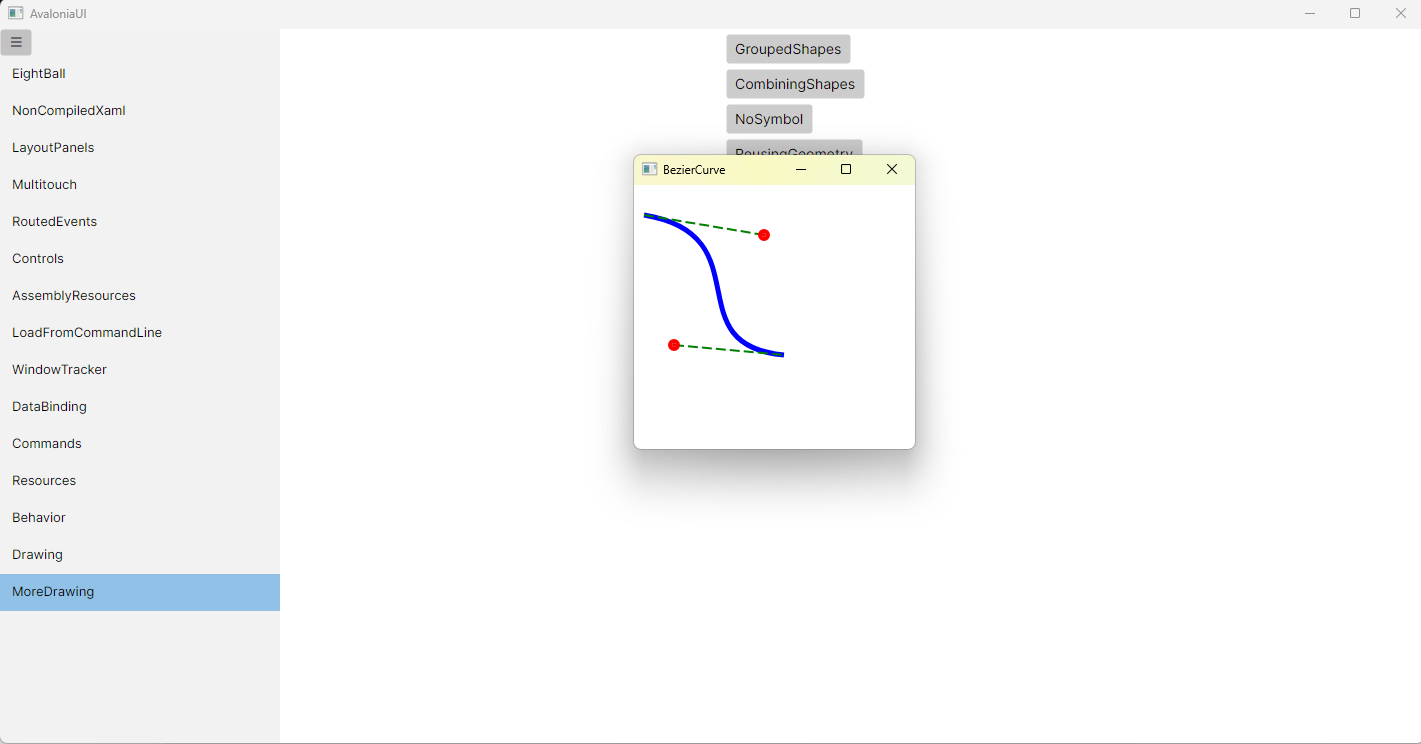

运行效果
