C# Avalonia 13- MoreDrawing - NoSymbol

NoSymbol.axaml代码

<Window xmlns="https://github.com/avaloniaui"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        Height="300" Width="300"
        x:Class="AvaloniaUI.NoSymbol"
        Title="NoSymbol">
    <StackPanel Margin="5">
        <Path Fill="Yellow" Stroke="Blue" StrokeThickness="1">
            <Path.Data>
                <CombinedGeometry GeometryCombineMode="Union">
                    <CombinedGeometry.Geometry1>
                        <CombinedGeometry GeometryCombineMode="Exclude">
                            <CombinedGeometry.Geometry1>
                                <EllipseGeometry Center="50,50" RadiusX="50" RadiusY="50"></EllipseGeometry>
                            </CombinedGeometry.Geometry1>
                            <CombinedGeometry.Geometry2>
                                <EllipseGeometry Center="50,50" RadiusX="40" RadiusY="40"></EllipseGeometry>
                            </CombinedGeometry.Geometry2>
                        </CombinedGeometry>
                    </CombinedGeometry.Geometry1>

                    <CombinedGeometry.Geometry2>
                        <RectangleGeometry Rect="44,5,10,90">
                            <RectangleGeometry.Transform>
                                <RotateTransform Angle="45" CenterX="50" CenterY="50"></RotateTransform>
                            </RectangleGeometry.Transform>
                        </RectangleGeometry>
                    </CombinedGeometry.Geometry2>
                </CombinedGeometry>
            </Path.Data>
        </Path>
    </StackPanel>
</Window>

NoSymbol.axaml.cs代码

using Avalonia;
using Avalonia.Controls;
using Avalonia.Markup.Xaml;

namespace AvaloniaUI;

public partial class NoSymbol : Window
{
    public NoSymbol()
    {
        InitializeComponent();
    }
}

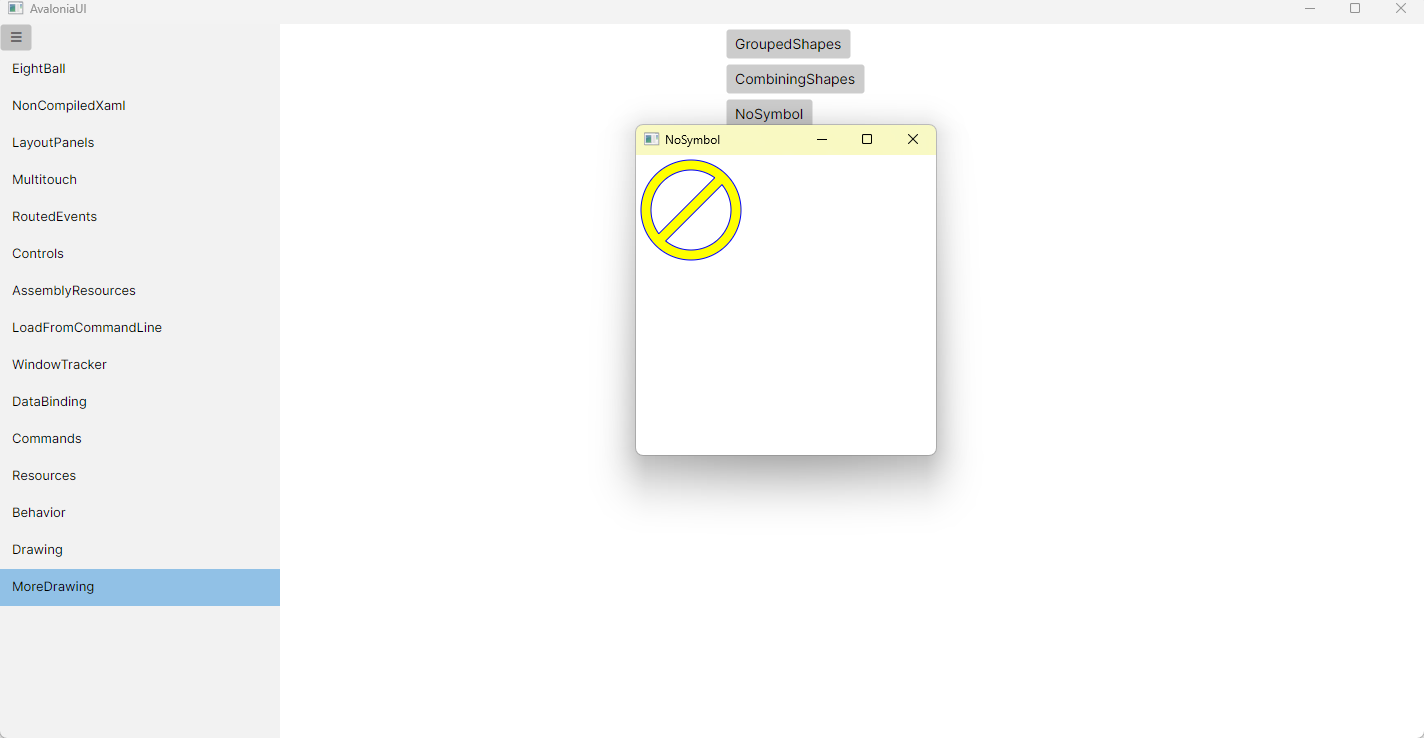

运行效果
