C# Avalonia 12- Drawing - TileFlip

TileFlip.axaml代码

<Window xmlns="https://github.com/avaloniaui"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        Height="353.6" Width="552"
        x:Class="AvaloniaUI.TileFlip"
        Title="TileFlip">

    <Window.Styles>
        <!-- 只作用于 .MyUniformGrid 内 TextBlock -->
        <Style Selector=".MyUniformGrid TextBlock">
            <Setter Property="HorizontalAlignment" Value="Center"/>
            <Setter Property="VerticalAlignment" Value="Bottom"/>
            <Setter Property="FontSize" Value="25"/>
            <Setter Property="FontWeight" Value="Bold"/>
            <Setter Property="Margin" Value="3"/>
        </Style>
    </Window.Styles>

    <Grid>
        <UniformGrid>
            <Rectangle Stroke="Black" StrokeThickness="1">
                <Rectangle.Fill>
                    <ImageBrush Source="avares://AvaloniaUI/Resources/Images/tile.jpg" TileMode="Tile"
                                DestinationRect="0,0,37,37"></ImageBrush>
                </Rectangle.Fill>
            </Rectangle>

            <Rectangle Stroke="Black" StrokeThickness="1">
                <Rectangle.Fill>
                    <ImageBrush Source="avares://AvaloniaUI/Resources/Images/tile.jpg"  TileMode="FlipX"
                                DestinationRect="0,0,37,37"></ImageBrush>
                </Rectangle.Fill>
            </Rectangle>

            <Rectangle Stroke="Black" StrokeThickness="1">
                <Rectangle.Fill>
                    <ImageBrush Source="avares://AvaloniaUI/Resources/Images/tile.jpg"  TileMode="FlipY"
                                DestinationRect="0,0,37,37"></ImageBrush>
                </Rectangle.Fill>
            </Rectangle>

            <Rectangle Stroke="Black" StrokeThickness="1">
                <Rectangle.Fill>
                    <ImageBrush Source="avares://AvaloniaUI/Resources/Images/tile.jpg"  TileMode="FlipXY"
                                DestinationRect="0,0,37,37"></ImageBrush>
                </Rectangle.Fill>
            </Rectangle>
        </UniformGrid>

        <UniformGrid Classes="MyUniformGrid">
            <TextBlock>Tile</TextBlock>
            <TextBlock>FlipX</TextBlock>
            <TextBlock>FlipY</TextBlock>
            <TextBlock>FlipXY</TextBlock>
        </UniformGrid>
    </Grid>
</Window>

TileFlip.axaml.cs代码

using Avalonia;
using Avalonia.Controls;
using Avalonia.Markup.Xaml;

namespace AvaloniaUI;

public partial class TileFlip : Window
{
    public TileFlip()
    {
        InitializeComponent();
    }
}

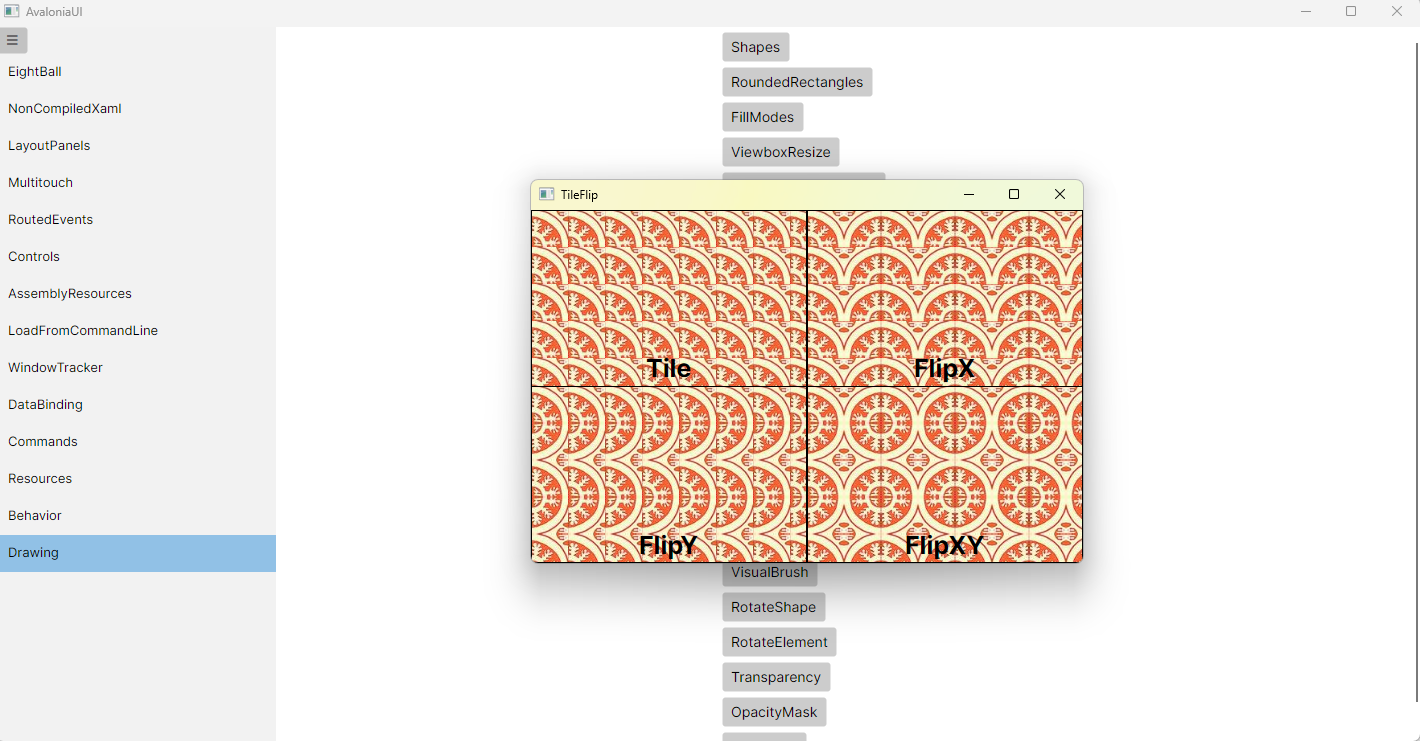

运行效果
