C# Avalonia 03 - LayoutPanels - DoubleSplitWindow

DoubleSplitWindow.axaml代码

<Window xmlns="https://github.com/avaloniaui"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        mc:Ignorable="d" Height="300" Width="300"
        x:Class="AvaloniaUI.DoubleSplitWindow"
        Title="DoubleSplitWindow">
    <Grid ColumnDefinitions="*,auto,*">

        <Grid Grid.Column="0" VerticalAlignment="Stretch" RowDefinitions="*,*">
            <Button Margin="3" Grid.Row="0">Top Left</Button>
            <Button Margin="3" Grid.Row="1">Bottom Left</Button>
        </Grid>

        <GridSplitter Grid.Column="1"
                    Width="3" VerticalAlignment="Stretch" HorizontalAlignment="Center"
                    ShowsPreview="False"></GridSplitter>

        <Grid Grid.Column="2" RowDefinitions="*,auto,*">

            <Button Grid.Row="0" Margin="3">Top Right</Button>
            <Button Grid.Row="2" Margin="3">Bottom Right</Button>

            <GridSplitter Grid.Row="1"
                     Height="3" VerticalAlignment="Center"
                     HorizontalAlignment="Stretch"
                     ShowsPreview="False"></GridSplitter>
        </Grid>
    </Grid>
</Window>

DoubleSplitWindow.axaml.cs代码

using Avalonia;
using Avalonia.Controls;
using Avalonia.Markup.Xaml;

namespace AvaloniaUI;

public partial class DoubleSplitWindow : Window
{
    public DoubleSplitWindow()
    {
        InitializeComponent();
    }
}

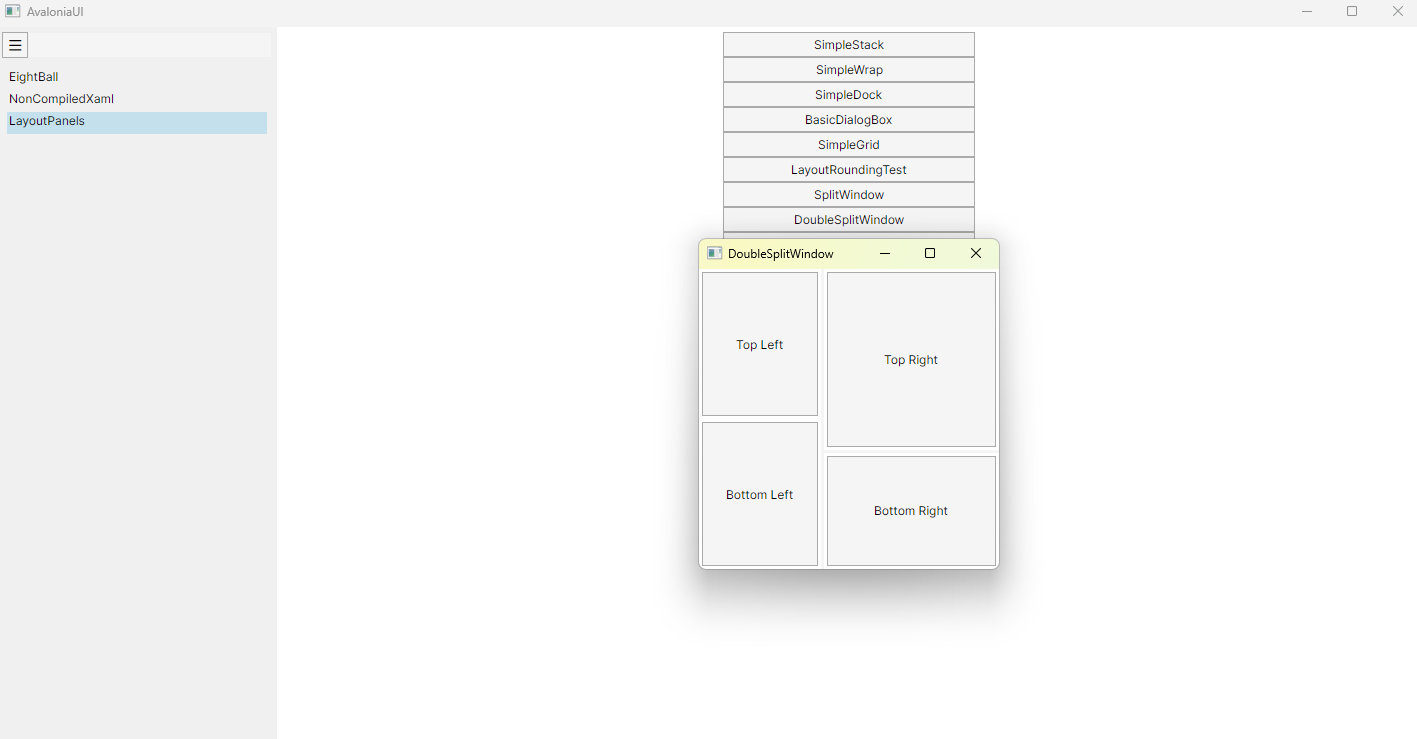

运行效果
