C# Avalonia 03 - LayoutPanels - SplitWindow

SplitWindow.axaml代码

<Window xmlns="https://github.com/avaloniaui"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        mc:Ignorable="d" Height="300" Width="300"
        x:Class="AvaloniaUI.SplitWindow"
        Title="SplitWindow">
    <Grid RowDefinitions="*,*">
        <Grid.ColumnDefinitions>
            <ColumnDefinition MinWidth="100"></ColumnDefinition>
            <ColumnDefinition Width="Auto"></ColumnDefinition>
            <ColumnDefinition MinWidth="50"></ColumnDefinition>
        </Grid.ColumnDefinitions>

        <Button Grid.Row="0" Grid.Column="0" Margin="3">Left</Button>
        <Button Grid.Row="0" Grid.Column="2" Margin="3">Right</Button>
        <Button Grid.Row="1" Grid.Column="0" Margin="3">Left</Button>
        <Button Grid.Row="1" Grid.Column="2" Margin="3">Right</Button>

        <GridSplitter Grid.Row="0" Grid.Column="1" Grid.RowSpan="2"
                    Width="3" VerticalAlignment="Stretch" HorizontalAlignment="Center"
                    ShowsPreview="False"></GridSplitter>

    </Grid>
</Window>

SplitWindow.axaml.cs代码

using Avalonia;
using Avalonia.Controls;
using Avalonia.Markup.Xaml;

namespace AvaloniaUI;

public partial class SplitWindow : Window
{
    public SplitWindow()
    {
        InitializeComponent();
    }
}

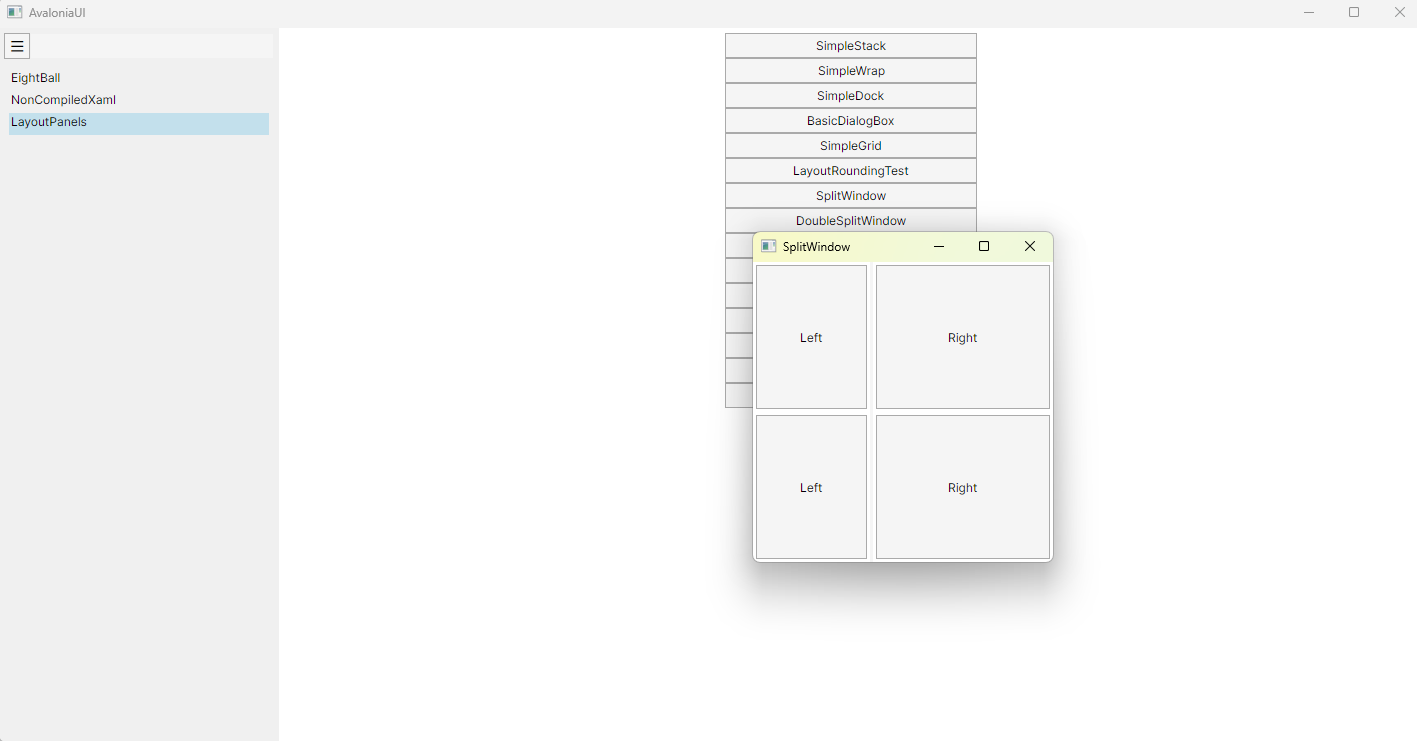

运行效果
