由于C# Maui是跨平台，所以按钮是没有写PointerOver这个样式的。本例子通过两种方法展示Button的Style修改。
方法一，使用xaml。这个方法，可以看我前面的教程，在App.xaml中添加MyStyles.xaml，然后自定义的按钮样式就可以被所有项目使用了。
<!--Button定义--> <Style TargetType="Button" x:Key="WpfStyleButton"> <!-- 基础样式 --> <Setter Property="BackgroundColor" Value="#DDDDDD" /> <Setter Property="TextColor" Value="Black" /> <Setter Property="BorderColor" Value="Gray" /> <Setter Property="BorderWidth" Value="1" /> <Setter Property="CornerRadius" Value="4" /> <Setter Property="Padding" Value="12,6" /> <Setter Property="FontSize" Value="14" /> <!-- 视觉状态管理 --> <Setter Property="VisualStateManager.VisualStateGroups"> <VisualStateGroupList> <VisualStateGroup x:Name="CommonStates"> <!-- 默认状态 --> <VisualState x:Name="Normal" /> <!-- 鼠标悬停状态 --> <VisualState x:Name="PointerOver"> <VisualState.Setters> <Setter Property="BackgroundColor" Value="#BBBBBB" /> <Setter Property="BorderColor" Value="#888888" /> </VisualState.Setters> </VisualState> <!-- 按下状态 --> <VisualState x:Name="Pressed"> <VisualState.Setters> <Setter Property="BackgroundColor" Value="#999999" /> <Setter Property="TextColor" Value="#EEEEEE" /> </VisualState.Setters> </VisualState> <!-- 禁用状态 --> <VisualState x:Name="Disabled"> <VisualState.Setters> <Setter Property="BackgroundColor" Value="#EEEEEE" /> <Setter Property="TextColor" Value="Gray" /> </VisualState.Setters> </VisualState> </VisualStateGroup> </VisualStateGroupList> </Setter> </Style>
方式二，自己写一个WpfButton，这个按钮是支持直接内容的，是wpf的button使用方法一样。在写之前，我在Shares.Utility项目里创建了VisualManager.cs，这样以后所有的状态切换可以在这里实现。
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace Shares.Utility
{
public static class VisualManager
{
public static Dictionary<string, VisualStateGroupList> Visuals = new Dictionary<string, VisualStateGroupList>();
static VisualManager()
{
Visuals[nameof(WpfButton)] = CreateWpfButtonStyle();
}
public static VisualStateGroupList CreateWpfButtonStyle()
{
return new VisualStateGroupList
{
new VisualStateGroup
{
Name = "CommonStates",
States =
{
// 正常状态
new VisualState
{
Name = "Normal",
Setters =
{
new Setter {Property =WpfButton.BackgroundColorProperty, Value = Color.FromArgb("#DDDDDD")},
new Setter {Property = WpfButton.TextColorProperty, Value = Colors.Black}
}
},
// 指针悬停状态
new VisualState
{
Name = "PointerOver",
Setters =
{
new Setter { Property = WpfButton.BackgroundColorProperty, Value =Color.FromArgb("#BBBBBB") },
new Setter { Property = WpfButton.BorderColorProperty, Value =Color.FromArgb("#888888")},
}
},
// 按下状态
new VisualState
{
Name = "Pressed",
Setters =
{
new Setter { Property = WpfButton.BackgroundColorProperty, Value = Color.FromArgb("#999999") },
new Setter { Property = WpfButton.TextColorProperty, Value = Color.FromArgb("#EEEEEE")},
}
},
// 禁用状态
new VisualState
{
Name = "Disabled",
Setters =
{
new Setter { Property = WpfButton.BackgroundColorProperty, Value = Color.FromArgb("#EEEEEE") },
new Setter { Property = WpfButton.TextColorProperty, Value = Colors.Gray },
}
}
}
}
};
}
}
}
WpfButton类代码
public class WpfButton : Border
{
// 事件
public event EventHandler? Clicked;
public event EventHandler? Released;
public event EventHandler? PointerEntered;
public event EventHandler? PointerExited;
// 命令绑定
public static readonly BindableProperty CommandProperty =
BindableProperty.Create(nameof(Command), typeof(ICommand), typeof(WpfButton), null);
public static readonly BindableProperty CommandParameterProperty =
BindableProperty.Create(nameof(CommandParameter), typeof(object), typeof(WpfButton), null);
public static readonly BindableProperty TextProperty =
BindableProperty.Create(nameof(Text), typeof(string), typeof(WpfButton), null);
public static readonly BindableProperty TextColorProperty =
BindableProperty.Create(nameof(TextColor), typeof(Color), typeof(WpfButton), Colors.Black);
public static readonly BindableProperty FontSizeProperty =
BindableProperty.Create(nameof(FontSize), typeof(float), typeof(WpfButton), 14f);
public static readonly BindableProperty FontAttributesProperty =
BindableProperty.Create(nameof(FontAttributes), typeof(FontAttributes), typeof(WpfButton), FontAttributes.None);
public static readonly BindableProperty FontFamilyProperty =
BindableProperty.Create(nameof(FontFamily), typeof(string), typeof(WpfButton), null);
public static readonly BindableProperty BorderColorProperty =
BindableProperty.Create(nameof(BorderColor), typeof(Color), typeof(WpfButton), Colors.Gray);
public static readonly BindableProperty BorderWidthProperty =
BindableProperty.Create(nameof(BorderWidth), typeof(float), typeof(WpfButton), 1f);
public static readonly BindableProperty CornerRadiusProperty =
BindableProperty.Create(nameof(CornerRadius), typeof(float), typeof(WpfButton), 0f);
public ICommand Command
{
get => (ICommand)GetValue(CommandProperty);
set => SetValue(CommandProperty, value);
}
public object CommandParameter
{
get => GetValue(CommandParameterProperty);
set => SetValue(CommandParameterProperty, value);
}
public string Text
{
get => (string)GetValue(TextProperty);
set => SetValue(TextProperty, value);
}
public Color TextColor
{
get => (Color)GetValue(TextColorProperty);
set => SetValue(TextColorProperty, value);
}
public float FontSize
{
get=>(float)GetValue(FontSizeProperty);
set => SetValue(FontSizeProperty, value);
}
public FontAttributes FontAttributes
{
get=>(FontAttributes)GetValue(FontAttributesProperty);
set => SetValue(FontAttributesProperty, value);
}
public string FontFamily
{
get => (string)GetValue(FontFamilyProperty);
set => SetValue(FontFamilyProperty, value);
}
public Color BorderColor
{
get => (Color)GetValue(BorderColorProperty);
set => SetValue(BorderColorProperty, value);
}
public float BorderWidth
{
get => (float)GetValue(BorderWidthProperty);
set => SetValue(BorderWidthProperty, value);
}
public float CornerRadius
{
get => (float)GetValue(CornerRadiusProperty);
set => SetValue(CornerRadiusProperty, value);
}
public WpfButton()
{
//默认是一个Label
this.Content = new Label();
this.HeightRequest = 40;
this.Padding = new Thickness(12, 6);
//初始化绑定
this.SetBinding(Border.StrokeProperty, new Binding(nameof(BorderColor), BindingMode.TwoWay, source: this));
this.SetBinding(Border.StrokeThicknessProperty, new Binding(nameof(BorderWidth), BindingMode.TwoWay, source: this));
this.StrokeShape = new RoundRectangle();
((RoundRectangle)this.StrokeShape).SetBinding(RoundRectangle.CornerRadiusProperty,
new Binding(nameof(CornerRadius), BindingMode.TwoWay, source: this));
//初始化样式
VisualStateManager.SetVisualStateGroups(this, VisualManager.Visuals[nameof(WpfButton)]);
//初始化事件
EnablePointerInteraction();
}
protected void UpdateLabelBindings(object? obj)
{
if (obj is Label label && (this.Content?.GetType() == obj.GetType()))
{
label.SetBinding(Label.TextProperty, new Binding(nameof(Text), BindingMode.TwoWay, source: this));
label.SetBinding(Label.TextColorProperty, new Binding(nameof(TextColor), BindingMode.TwoWay, source: this));
label.SetBinding(Label.FontSizeProperty, new Binding(nameof(FontSize), BindingMode.TwoWay, source: this));
label.SetBinding(Label.FontAttributesProperty, new Binding(nameof(FontAttributes), BindingMode.TwoWay, source: this));
label.SetBinding(Label.FontFamilyProperty, new Binding(nameof(FontFamily), BindingMode.TwoWay, source: this));
//只有一个Label时，则自动对齐
label.VerticalOptions = LayoutOptions.Center;
label.HorizontalOptions = LayoutOptions.Center;
}
HeightRequest = -1;
}
protected override void OnPropertyChanged([CallerMemberName] string? propertyName = null)
{
base.OnPropertyChanged(propertyName);
if (propertyName == nameof(Content))
{
UpdateLabelBindings(this.Content);
}
}
protected void EnablePointerInteraction()
{
var pointer = new PointerGestureRecognizer();
pointer.PointerEntered += (s, e) =>
{
if (!IsEnabled)
return;
PointerEntered?.Invoke(this, e);
};
pointer.PointerExited += (s, e) =>
{
if (!IsEnabled)
return;
PointerExited?.Invoke(this, e);
};
pointer.PointerPressed += (s, e) =>
{
if (!IsEnabled)
return;
if (Command?.CanExecute(CommandParameter) == true)
{
Command.Execute(CommandParameter);
}
Clicked?.Invoke(this, e);
VisualStateManager.GoToState(this, "Pressed");
};
pointer.PointerReleased += (s, e) =>
{
if (!IsEnabled)
return;
Released?.Invoke(this, e);
VisualStateManager.GoToState(this, "Normal");
};
GestureRecognizers.Add(pointer);
}
}
ButtonsWithContent.xaml使用例子
<?xml version="1.0" encoding="utf-8" ?> <ContentPage xmlns="http://schemas.microsoft.com/dotnet/2021/maui" xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml" x:Class="MauiViews.MauiDemos.Book._06.ButtonsWithContent" Title="ButtonsWithContent" WidthRequest="300" HeightRequest="600"> <ScrollView> <StackLayout Margin="3" Spacing="5"> <Button Margin="3" Text="Text Button"/> <Button Margin="3" Text="Wpf Style Button" Style="{StaticResource WpfStyleButton}" CornerRadius="15" Clicked="Button_Clicked"/> <Button Margin="3" Style="{StaticResource WpfStyleButton}" ImageSource="happyface.jpg" Text="happyface" ContentLayout="Top, 5"/> <WpfButton Text="Maui按钮" CornerRadius="15" /> <WpfButton Padding="3" Margin="3" HorizontalOptions="Start"> <StackLayout> <Label Margin="3" Text="Type something here:"/> <TextBox Margin="3" HorizontalOptions="Start" Placeholder="Text box in a button"/> </StackLayout> </WpfButton> </StackLayout> </ScrollView> </ContentPage>
对应的cs代码
using Shares;
using System.Diagnostics;
namespace MauiViews.MauiDemos.Book._06;
public partial class ButtonsWithContent : ContentPage
{
public ButtonsWithContent()
{
InitializeComponent();
}
private void Button_Clicked(object sender, EventArgs e)
{
Shell.Current.MessageBox("提示", "你按下了WPF样式的按钮");//这个是Shell扩展中实现，大家可以看看之前代码。
}
}

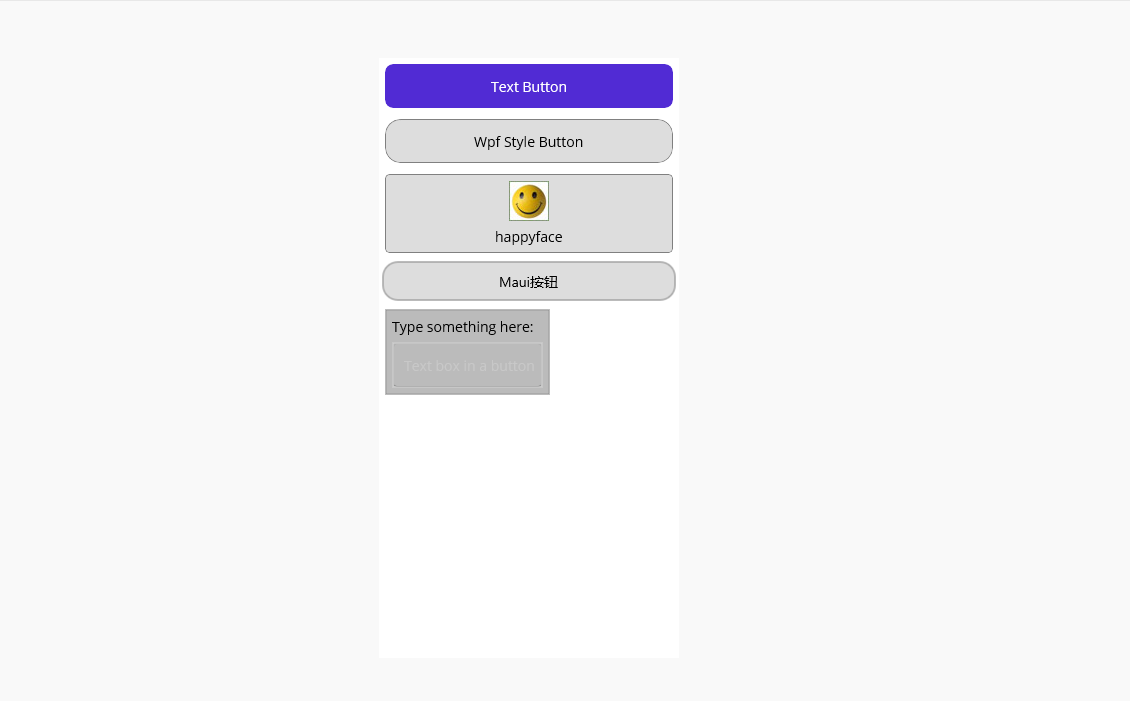

运行效果
