课程路径表结构分析

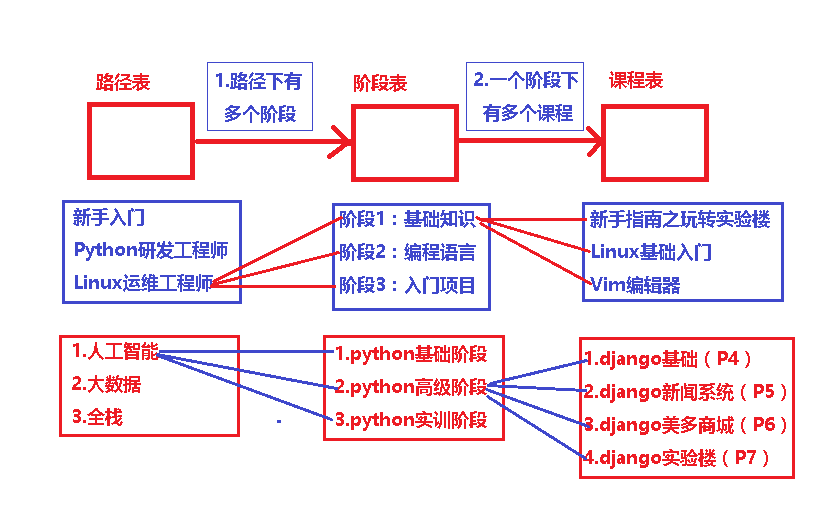

1.路径表关系梳理

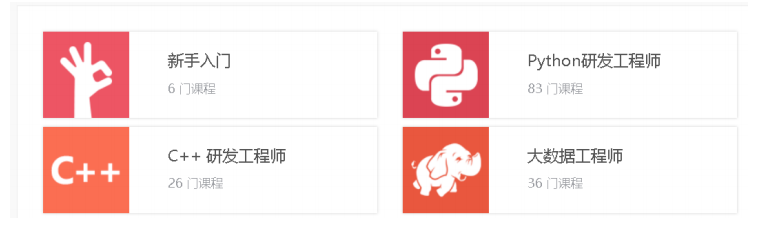

1.1路径表

class Path(Base):
    title=models.CharField('路径名',max_length=16)
    img=models.ImageField('路径图片',upload_to='path',null=True)
    desc=models.CharField('路径描述',max_length=255)
    user=models.ManyToManyField('user.User',blank=True)
    def course_tota(self):
        count=0
        for jb in self.jieduan.all():
            count=count+jb.courses.count()
        return count
    class Meta:
        db_table='tb_path'
    def __str__(self):
        return self.title

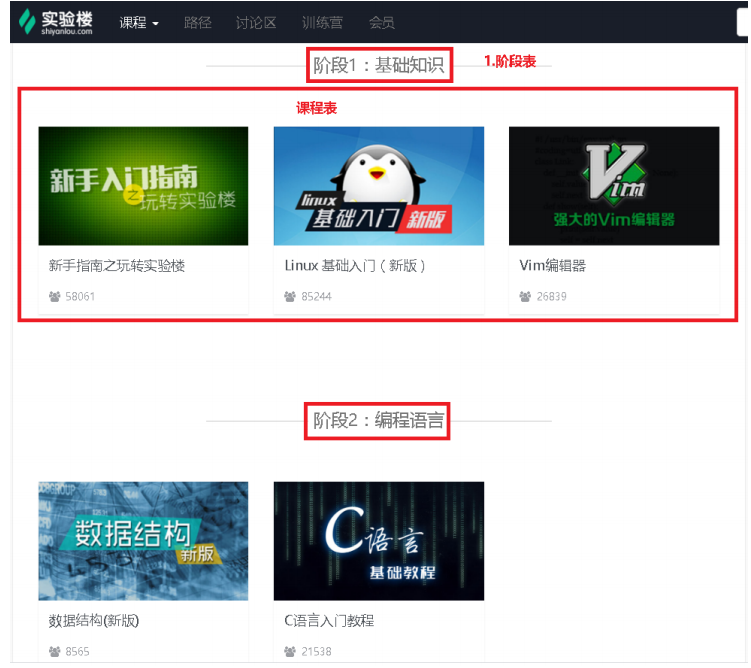

 2.阶段表

class JieDuan(Base):
    title=models.CharField('阶段名',max_length=16)
    serial_num=models.IntegerField('阶段序号')
    path=models.ForeignKey(Path,related_name='jieduan',on_delete=models.SET_NULL,null=True)
    coueses=models.ManyToManyField(Course,blank=True)
    class Meta:
        db_table = 'tb_jieduan'
    def __str__(self):
        return "%s-第%s阶段-%s" % (self.path.title,self.serial_num,self.coueses)
