testNg+allure测试报告

1. 安装Allure

allure下载 <Assets>标签下选择对应的安装包
添加环境变量将allure的bin目录添加到系统path中，注意分隔符;

2. 工程文件

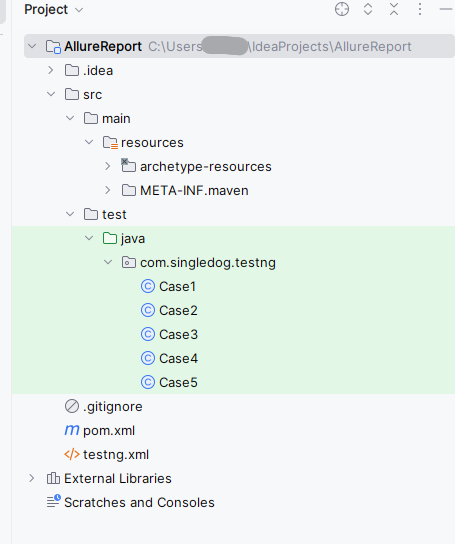

① 工程目录

④ pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.csj2018</groupId>
    <artifactId>AllureReport</artifactId>
    <version>1.0-SNAPSHOT</version>

    <!--不打jar包，没用就删掉 -->
    <packaging>jar</packaging>

    <name>Archetype - AllureReport</name>
    <url>http://maven.apache.org</url>

    <properties>
        <!-- 文件拷贝时的编码 -->
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>

        <!-- 编译时的编码 -->
        <maven.compiler.encoding>UTF-8</maven.compiler.encoding>
        <aspectj.version>1.9.22.1</aspectj.version>
        <maven.build.timestamp.format>yyyyMMddHHmmss</maven.build.timestamp.format>

    </properties>
    <dependencies>
        <dependency>
            <groupId>org.testng</groupId>
            <artifactId>testng</artifactId>
            <version>7.10.2</version>
        </dependency>
        <!-- Allure的jar包 -->
        <!-- https://mvnrepository.com/artifact/io.qameta.allure/allure-testng -->
        <dependency>
            <groupId>io.qameta.allure</groupId>
            <artifactId>allure-testng</artifactId>
            <version>2.29.1</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.apache.maven.plugins/maven-deploy-plugin -->
        <dependency>
            <groupId>org.apache.maven.plugins</groupId>
            <artifactId>maven-deploy-plugin</artifactId>
            <version>3.1.1</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
				<!-- <version>3.13.0</version> -->
                <configuration>
                    <source>8</source>
                    <target>8</target>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-surefire-plugin</artifactId>
                <version>3.1.2</version><!-- 仓库内多版本 3.5.2 -->
                <configuration>
                    <skipTests>false</skipTests>
                    <testFailureIgnore>true</testFailureIgnore>
                    <!-- UTF-8编码-->
                    <argLine>-Dfile.encoding=UTF-8</argLine>
                    <argLine>
                        <!-- 配置拦截器 -->
                        -javaagent:"${settings.localRepository}/org/aspectj/aspectjweaver/${aspectj.version}/aspectjweaver-${aspectj.version}.jar"
                    </argLine>
                    <systemProperties>
                        <property>
                            <!-- 配置 allure 结果存储路径 -->
                            <name>allure.results.directory</name>
                            <value>${project.build.directory}/allure-results</value>
                        </property>
                    </systemProperties>
                    <suiteXmlFiles>
                        <suiteXmlFile>testng.xml</suiteXmlFile>
                    </suiteXmlFiles>
                </configuration>
                <dependencies>
                    <!-- https://mvnrepository.com/artifact/org.aspectj/aspectjweaver -->
                    <dependency>
                        <groupId>org.aspectj</groupId>
                        <artifactId>aspectjweaver</artifactId>
                        <version>1.9.22.1</version>
                    </dependency>
                </dependencies>
            </plugin>
        </plugins>
    </build>
</project>

② 测试代码

package com.singledog.testng;

import org.testng.annotations.DataProvider;
import org.testng.annotations.Test;

public class Case5 {
    @Test(dataProvider = "datas")
    public void test1(String animal, String name){
        System.out.println("Case5 ... test1 ...");
        System.out.printf("这是%s，它的名字是%s\n",animal,name);
    }
    @DataProvider(name = "datas")
    public Object[][] datas(){
        Object[][] datas = {
                {"猫","汤姆"},
                {"老鼠","杰瑞"},
        };
        return datas;
    }
    @Test(groups = "回归")
    public void testMain(){
        System.out.println("主页面");
    }
    @Test(groups = "回归")
    public void testSearch(){
        System.out.println("search func");
    }
}

③ testng.xml

<?xml version="1.0" encoding="utf-8" ?>
<suite name="棋牌项目" parallel="false">
    <test name="模块1">
       <groups>
           <run>
               <include name="回归" />
           </run>
       </groups>
        <classes>
            <class name="com.singledog.testng.Case5" />
        </classes>
    </test>
</suite>

3. 执行测试 mvn clean test

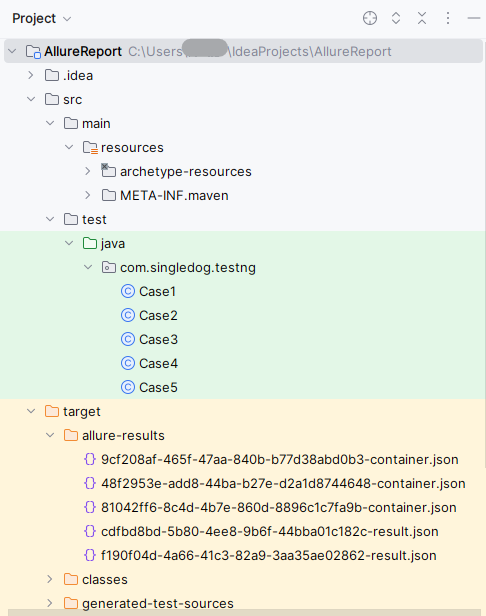

执行命令后，会在target下生成allure-results目录，里面的json数据就是测试结果文件

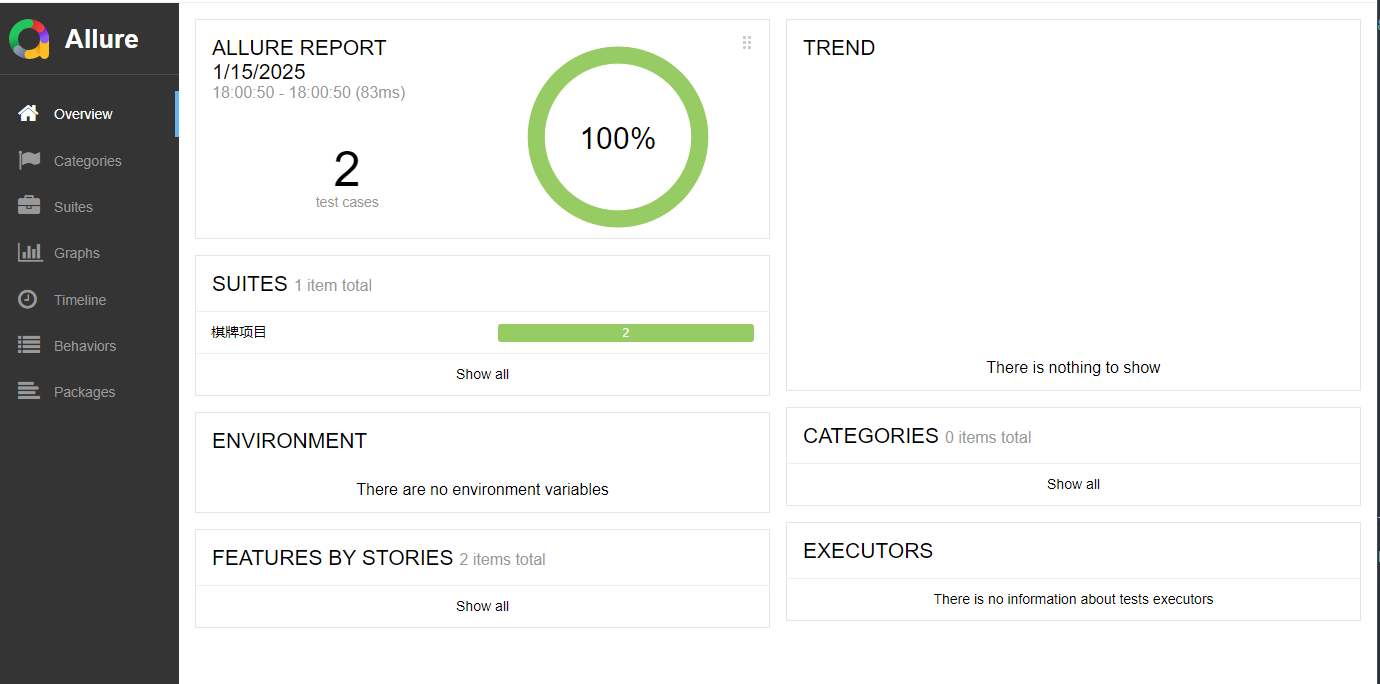

4. 生成测试报告

方式一：启用allure服务，生成在线报告

cmd切换到工程目录，执行命令allure serve target/allure-results，会自动打开浏览器

方式二：生成本地静态页面

cmd切换到target目录，执行命令allure generate allure-results/ -o report/html --clean
