表格列等宽--latex

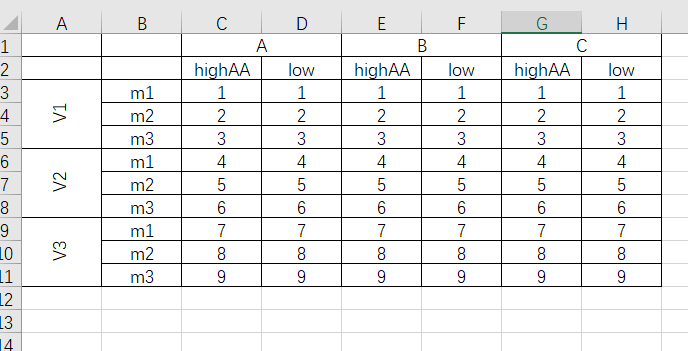

因写论文的需要,想要做一个这样的表格:

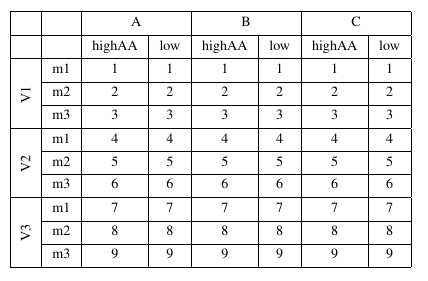

使用Excel2Latex(github上有下载)将做的Excel转为latex代码,发现使用texstudio编译运行后得到的是:
其中highAA和low这两列的宽度不同,试了好多网上的方法,发现这一个满足要求,便记录下来。

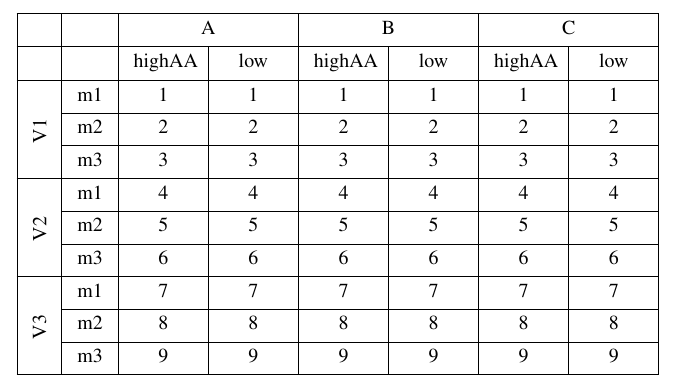

得到的效果如下:

原latex代码:

\begin{table*}[htbp]
	\centering
	\caption{Add caption}
	\begin{tabular}{|c|c|c|c|c|c|c|c|}
		\hline
		&       & \multicolumn{2}{c|}{A} & \multicolumn{2}{c|}{B} & \multicolumn{2}{c|}{C} \bigstrut\\
		\hline
		&       & highAA & low   & highAA & low   & highAA & low \bigstrut\\
		\hline
		\multirow{3}[6]{*}{\begin{sideways}V1\end{sideways}} & m1    & 1     & 1     & 1     & 1     & 1     & 1 \bigstrut\\
		\cline{2-8}          & m2    & 2     & 2     & 2     & 2     & 2     & 2 \bigstrut\\
		\cline{2-8}          & m3    & 3     & 3     & 3     & 3     & 3     & 3 \bigstrut\\
		\hline
		\multirow{3}[6]{*}{\begin{sideways}V2\end{sideways}} & m1    & 4     & 4     & 4     & 4     & 4     & 4 \bigstrut\\
		\cline{2-8}          & m2    & 5     & 5     & 5     & 5     & 5     & 5 \bigstrut\\
		\cline{2-8}          & m3    & 6     & 6     & 6     & 6     & 6     & 6 \bigstrut\\
		\hline
		\multirow{3}[6]{*}{\begin{sideways}V3\end{sideways}} & m1    & 7     & 7     & 7     & 7     & 7     & 7 \bigstrut\\
		\cline{2-8}          & m2    & 8     & 8     & 8     & 8     & 8     & 8 \bigstrut\\
		\cline{2-8}          & m3    & 9     & 9     & 9     & 9     & 9     & 9 \bigstrut\\
		\hline
	\end{tabular}%
	\label{tab:addlabel}%
\end{table*}%

修改后的:

\begin{table*}[htbp]
	\centering
	\caption{Add caption}
	\begin{tabularx}{.5\textwidth}{|c|c|*{6}{Y|}} %可以调整宽度
		\hline
		&       & \multicolumn{2}{c|}{A} & \multicolumn{2}{c|}{B} & \multicolumn{2}{c|}{C} \bigstrut\\
		\hline
		&       & highAA & low   & highAA & low   & highAA & low \bigstrut\\
		\hline
		\multirow{3}[6]{*}{\begin{sideways}V1\end{sideways}} & m1    & 1     & 1     & 1     & 1     & 1     & 1 \bigstrut\\
		\cline{2-8}          & m2    & 2     & 2     & 2     & 2     & 2     & 2 \bigstrut\\
		\cline{2-8}          & m3    & 3     & 3     & 3     & 3     & 3     & 3 \bigstrut\\
		\hline
		\multirow{3}[6]{*}{\begin{sideways}V2\end{sideways}} & m1    & 4     & 4     & 4     & 4     & 4     & 4 \bigstrut\\
		\cline{2-8}          & m2    & 5     & 5     & 5     & 5     & 5     & 5 \bigstrut\\
		\cline{2-8}          & m3    & 6     & 6     & 6     & 6     & 6     & 6 \bigstrut\\
		\hline
		\multirow{3}[6]{*}{\begin{sideways}V3\end{sideways}} & m1    & 7     & 7     & 7     & 7     & 7     & 7 \bigstrut\\
		\cline{2-8}          & m2    & 8     & 8     & 8     & 8     & 8     & 8 \bigstrut\\
		\cline{2-8}          & m3    & 9     & 9     & 9     & 9     & 9     & 9 \bigstrut\\
		\hline
	\end{tabularx}%
	\label{tab:addlabel}%
\end{table*}%
