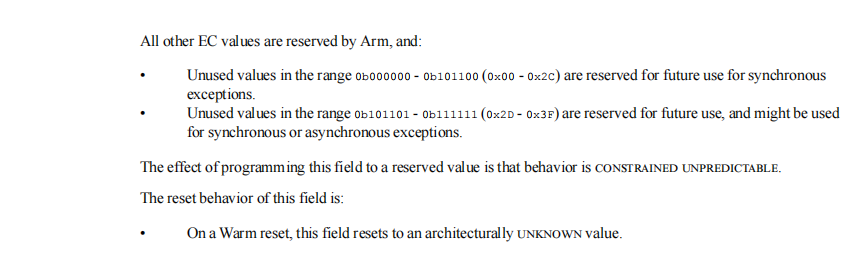

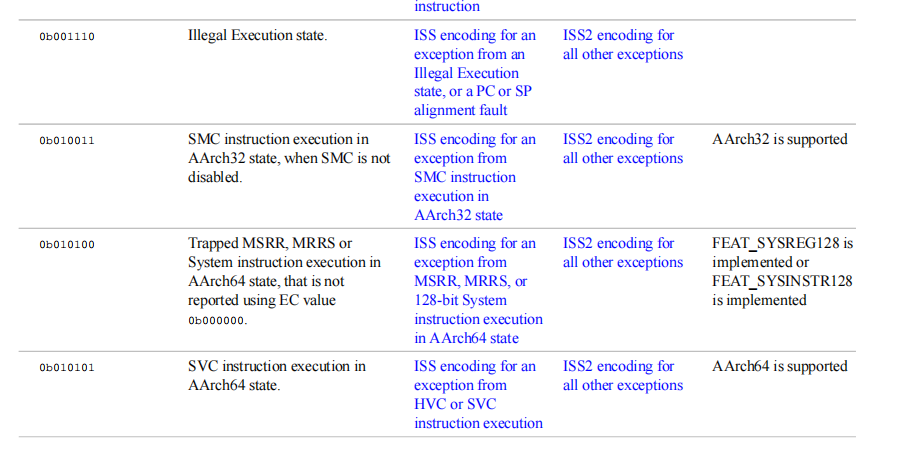

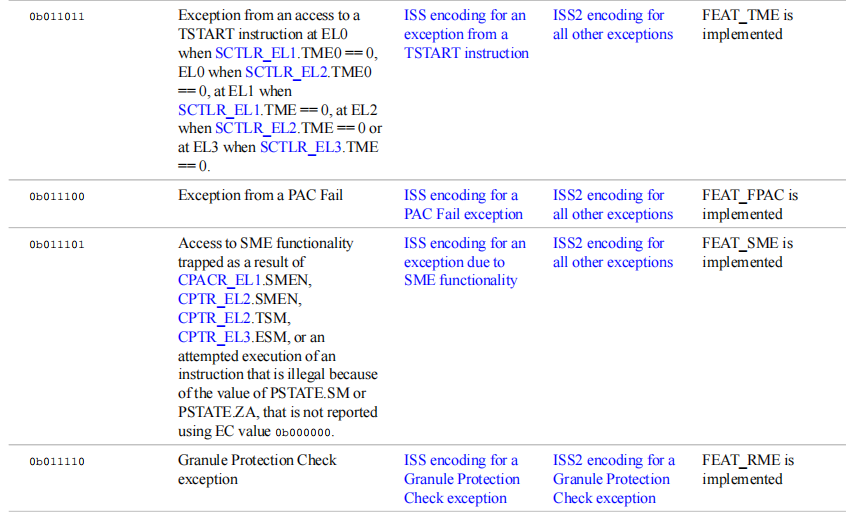

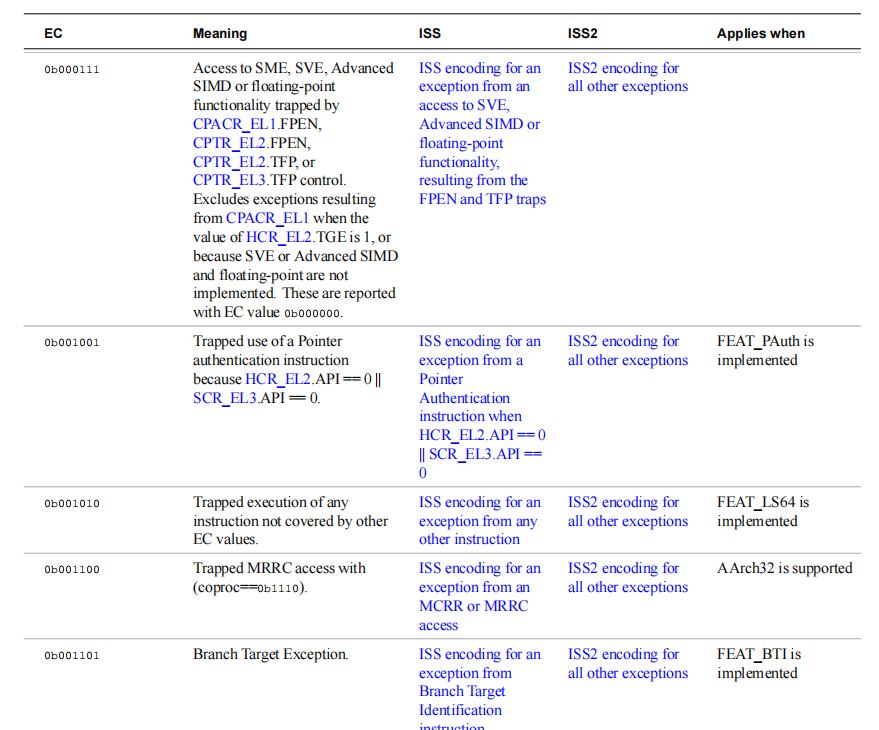

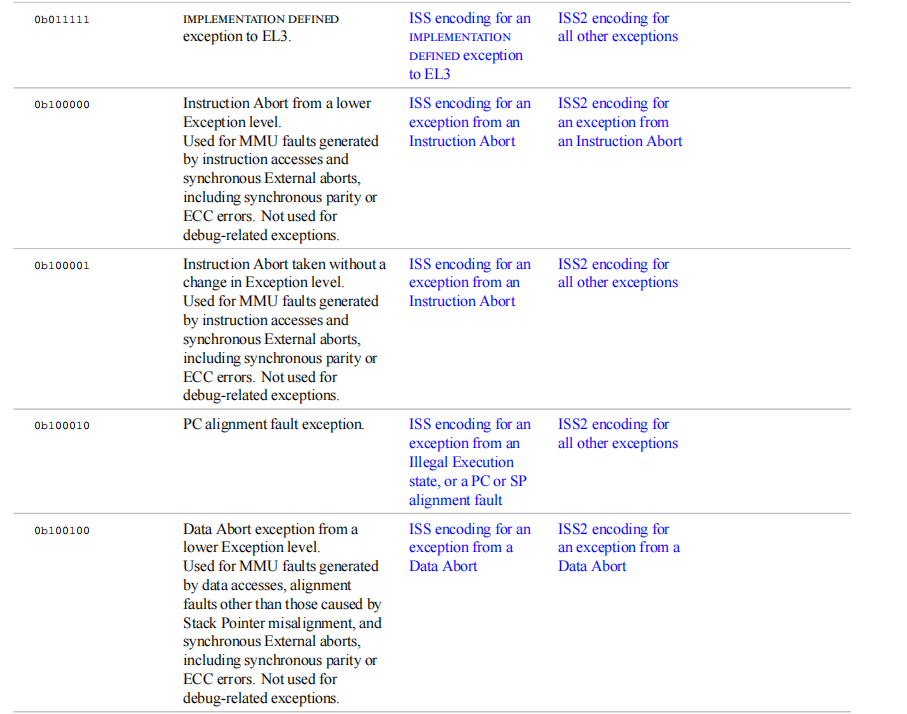

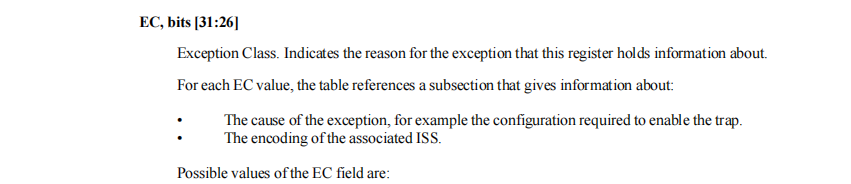

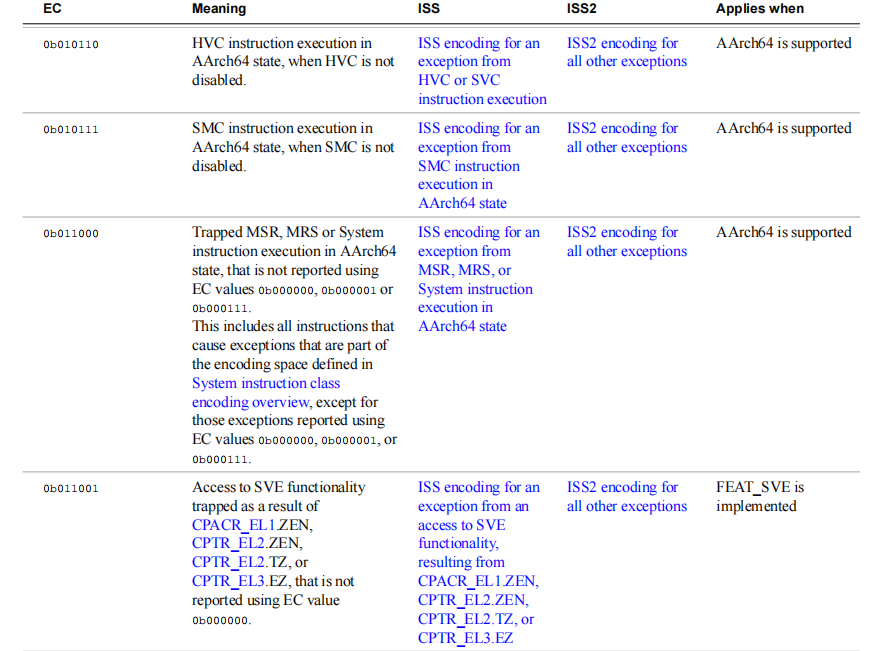

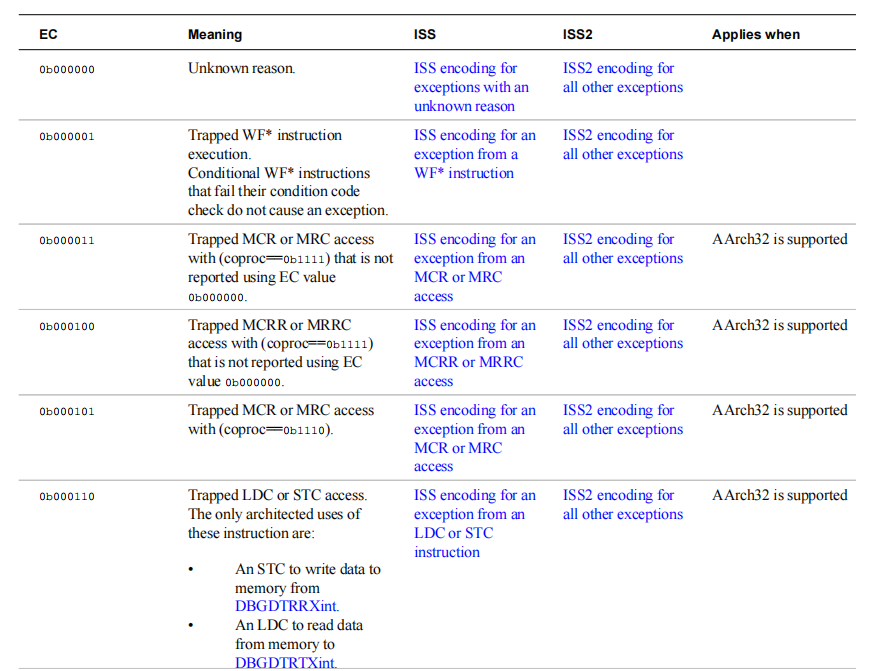

ARMv8 ESR_El3 寄存器 EC 范围 bit定义

/* Exception Syndrome register bits and bobs */
#define ESR_EC_SHIFT                    U(26)
#define ESR_EC_MASK                     U(0x3f)
#define ESR_EC_LENGTH                   U(6)
#define ESR_ISS_SHIFT                   U(0)
#define ESR_ISS_LENGTH                  U(25)
#define EC_UNKNOWN                      U(0x0)
#define EC_WFE_WFI                      U(0x1)
#define EC_AARCH32_CP15_MRC_MCR         U(0x3)
#define EC_AARCH32_CP15_MRRC_MCRR       U(0x4)
#define EC_AARCH32_CP14_MRC_MCR         U(0x5)
#define EC_AARCH32_CP14_LDC_STC         U(0x6)
#define EC_FP_SIMD                      U(0x7)
#define EC_AARCH32_CP10_MRC             U(0x8)
#define EC_AARCH32_CP14_MRRC_MCRR       U(0xc)
#define EC_ILLEGAL                      U(0xe)
#define EC_AARCH32_SVC                  U(0x11)
#define EC_AARCH32_HVC                  U(0x12)
#define EC_AARCH32_SMC                  U(0x13)
#define EC_AARCH64_SVC                  U(0x15)
#define EC_AARCH64_HVC                  U(0x16)
#define EC_AARCH64_SMC                  U(0x17)
#define EC_AARCH64_SYS                  U(0x18)
#define EC_IABORT_LOWER_EL              U(0x20)
#define EC_IABORT_CUR_EL                U(0x21)
#define EC_PC_ALIGN                     U(0x22)
#define EC_DABORT_LOWER_EL              U(0x24)
#define EC_DABORT_CUR_EL                U(0x25)
#define EC_SP_ALIGN                     U(0x26)
#define EC_AARCH32_FP                   U(0x28)

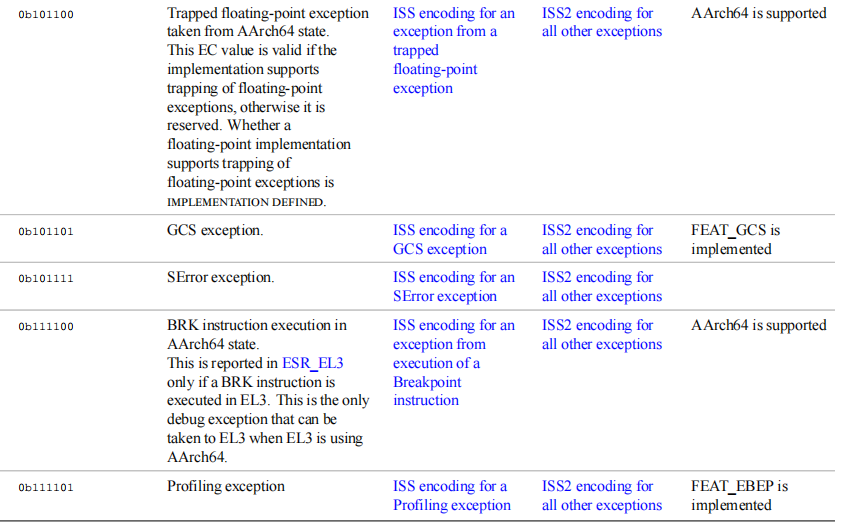

#define EC_AARCH64_FP                   U(0x2c)
#define EC_SERROR                       U(0x2f)
#define EC_BRK                          U(0x3c)
