ssm整合小项目（书籍管理系统）

数据库准备

CREATE DATABASE `ssmbuild`;

USE `ssmbuild`;

DROP TABLE IF EXISTS `books`;

CREATE TABLE `books` (
`bookID` INT(10) NOT NULL AUTO_INCREMENT COMMENT '书id',
`bookName` VARCHAR(100) NOT NULL COMMENT '书名',
`bookCounts` INT(11) NOT NULL COMMENT '数量',
`detail` VARCHAR(200) NOT NULL COMMENT '描述',
KEY `bookID` (`bookID`)
) ENGINE=INNODB DEFAULT CHARSET=utf8

INSERT  INTO `books`(`bookID`,`bookName`,`bookCounts`,`detail`)VALUES
(1,'Java',1,'从入门到放弃'),
(2,'MySQL',10,'从删库到跑路'),
(3,'Linux',5,'从进门到进牢');

基本环境搭建

1.新建一个Maven项目，ssmbuild，添加web支持

2.导入pom依赖和Maven资源过滤设置

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>org.example</groupId>
    <artifactId>ssmbuild</artifactId>
    <version>1.0-SNAPSHOT</version>
    <dependencies>
        <!--Junit-->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
        </dependency>
        <!--数据库驱动-->
        <!-- https://mvnrepository.com/artifact/mysql/mysql-connector-java -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.22</version>
        </dependency>

        <!-- 数据库连接池 -->
        <dependency>
            <groupId>com.mchange</groupId>
            <artifactId>c3p0</artifactId>
            <version>0.9.5.2</version>
        </dependency>

        <!--Servlet - JSP -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>servlet-api</artifactId>
            <version>2.5</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet.jsp</groupId>
            <artifactId>jsp-api</artifactId>
            <version>2.2</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
            <version>1.2</version>
        </dependency>

        <!--Mybatis-->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.2</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>2.0.2</version>
        </dependency>

        <!--Spring-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>5.1.9.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>5.1.9.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.12</version>
        </dependency>
    </dependencies>
    <build>
        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>false</filtering>
            </resource>
            <resource>
                <directory>src/main/resources</directory>
                <includes>
                    <include>**/*.properties</include>
                    <include>**/*.xml</include>
                </includes>
                <filtering>false</filtering>
            </resource>
        </resources>
    </build>

</project>

建立基本结构和配置框架

• com.kuang.pojo

• com.kuang.dao

• com.kuang.service

• com.kuang.controller

1.创建mybatis-config.xml文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
       PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
       "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

</configuration>

2.创建applicationContext.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
      xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
      xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd">

</beans>

Mybatis层

1.数据库配置文件 database.properties

jdbc.driver=com.mysql.cj.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/ssmbuild?useUnicode=true&characterEncoding=utf8&serverTimezone=GMT%2B8&useSSL=false
jdbc.username=root
jdbc.password=1234

2.IDEA关联数据库

3.编写MyBatis的mybatis-config.xml文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
       PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
       "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

   <typeAliases>
       <package name="com.kuang.pojo"/>
   </typeAliases>
   <mappers>
       <mapper resource="com/kuang/dao/BookMapper.xml"/>
   </mappers>

</configuration>

4.编写数据库对应的实体类 com.kuang.pojo.Books

package com.kuang.pojo;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class Books {

   private int bookID;
   private String bookName;
   private int bookCounts;
   private String detail;

}

5.编写Dao层的 Mapper接口

package com.kuang.dao;

import com.kuang.pojo.Books;
import org.apache.ibatis.annotations.Param;

import java.util.List;

public interface BookMapper {

    //to add a book
    int addBook(Books books);
    //to delete a book
    int deleteBookById(@Param("bookId") int id);
    //to  update a book
    int updateBook(Books books);
    //to query a book
    Books queryBookBuId(int id);
    //to find all book
    List<Books> queryAllBook();

}

6.编写接口对应的 Mapper.xml 文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
       PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
       "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.kuang.dao.BookMapper">

   <!--增加一个Book-->
   <insert id="addBook" parameterType="Books">
      insert into ssmbuild.books(bookName,bookCounts,detail)
      values (#{bookName}, #{bookCounts}, #{detail})
   </insert>

   <!--根据id删除一个Book-->
   <delete id="deleteBookById" parameterType="int">
      delete from ssmbuild.books where bookID=#{bookID}
   </delete>

   <!--更新Book-->
   <update id="updateBook" parameterType="Books">
      update ssmbuild.books
      set bookName = #{bookName},bookCounts = #{bookCounts},detail = #{detail}
      where bookID = #{bookID}
   </update>

   <!--根据id查询,返回一个Book-->
   <select id="queryBookById" resultType="Books">
      select * from ssmbuild.books
      where bookID = #{bookID}
   </select>

   <!--查询全部Book-->
   <select id="queryAllBook" resultType="Books">
      SELECT * from ssmbuild.books
   </select>

</mapper>

7.编写Service层的接口和实现类

package com.kuang.service;

import com.kuang.pojo.Books;

import java.util.List;

//BookService:底下需要去实现,调用dao层
public interface BookService {
   //增加一个Book
   int addBook(Books book);
   //根据id删除一个Book
   int deleteBookById(int id);
   //更新Book
   int updateBook(Books books);
   //根据id查询,返回一个Book
   Books queryBookById(int id);
   //查询全部Book,返回list集合
   List<Books> queryAllBook();
}

package com.kuang.service;

import com.kuang.dao.BookMapper;
import com.kuang.pojo.Books;
import java.util.List;

public class BookServiceImpl implements BookService {

   //调用dao层的操作，设置一个set接口，方便Spring管理
   private BookMapper bookMapper;

   public void setBookMapper(BookMapper bookMapper) {
       this.bookMapper = bookMapper;
  }

   public int addBook(Books book) {
       return bookMapper.addBook(book);
  }

   public int deleteBookById(int id) {
       return bookMapper.deleteBookById(id);
  }

   public int updateBook(Books books) {
       return bookMapper.updateBook(books);
  }

   public Books queryBookById(int id) {
       return bookMapper.queryBookById(id);
  }

   public List<Books> queryAllBook() {
       return bookMapper.queryAllBook();
  }
}

Spring层

1.配置Spring整合MyBatis，这里数据源使用c3p0连接池

2.编写Spring整合Mybatis的文件spring-dao.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
      xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
      xmlns:context="http://www.springframework.org/schema/context"
      xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       https://www.springframework.org/schema/context/spring-context.xsd">

   <!-- 配置整合mybatis -->
   <!-- 1.关联数据库文件 -->
   <context:property-placeholder location="classpath:database.properties"/>

   <!-- 2.数据库连接池 -->
   <!--数据库连接池
       dbcp 半自动化操作 不能自动连接
       c3p0 自动化操作（自动的加载配置文件 并且设置到对象里面）
   -->
   <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
       <!-- 配置连接池属性 -->
       <property name="driverClass" value="${jdbc.driver}"/>
       <property name="jdbcUrl" value="${jdbc.url}"/>
       <property name="user" value="${jdbc.username}"/>
       <property name="password" value="${jdbc.password}"/>

       <!-- c3p0连接池的私有属性 -->
       <property name="maxPoolSize" value="30"/>
       <property name="minPoolSize" value="10"/>
       <!-- 关闭连接后不自动commit -->
       <property name="autoCommitOnClose" value="false"/>
       <!-- 获取连接超时时间 -->
       <property name="checkoutTimeout" value="10000"/>
       <!-- 当获取连接失败重试次数 -->
       <property name="acquireRetryAttempts" value="2"/>
   </bean>

   <!-- 3.配置SqlSessionFactory对象 -->
   <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
       <!-- 注入数据库连接池 -->
       <property name="dataSource" ref="dataSource"/>
       <!-- 配置MyBatis全局配置文件:mybatis-config.xml -->
       <property name="configLocation" value="classpath:mybatis-config.xml"/>
   </bean>

   <!-- 4.配置扫描Dao接口包，动态实现Dao接口注入到spring容器中 -->
   <!--解释 ：https://www.cnblogs.com/jpfss/p/7799806.html-->
   <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
       <!-- 注入sqlSessionFactory -->
       <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
       <!-- 给出需要扫描Dao接口包 -->
       <property name="basePackage" value="com.kuang.dao"/>
   </bean>

</beans>

3.Spring整合service层

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
      xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
      xmlns:context="http://www.springframework.org/schema/context"
      xsi:schemaLocation="http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context.xsd">

   <!-- 扫描service相关的bean -->
   <context:component-scan base-package="com.kuang.service" />

   <!--BookServiceImpl注入到IOC容器中-->
   <bean id="BookServiceImpl" class="com.kuang.service.BookServiceImpl">
       <property name="bookMapper" ref="bookMapper"/>
   </bean>

   <!-- 配置事务管理器 -->
   <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
       <!-- 注入数据库连接池 -->
       <property name="dataSource" ref="dataSource" />
   </bean>

</beans>

如果bookMapper和dataSource爆红alt+enter，并且确定右上角的提示添加到spring中了

4.增加web支持配置web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
         version="4.0">
    <!--DispatcherServlet-->
    <servlet>
        <servlet-name>DispatcherServlet</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <!--一定要注意:我们这里加载的是总的配置文件，之前被这里坑了！-->
            <param-value>classpath:applicationContext.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>DispatcherServlet</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>

    <!--encodingFilter-->
    <filter>
        <filter-name>encodingFilter</filter-name>
        <filter-class>
            org.springframework.web.filter.CharacterEncodingFilter
        </filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>utf-8</param-value>
        </init-param>
    </filter>
    <filter-mapping>
        <filter-name>encodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!--Session过期时间-->
    <session-config>
        <session-timeout>15</session-timeout>
    </session-config>

</web-app>

5.配置spring-mvc.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
      xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
      xmlns:context="http://www.springframework.org/schema/context"
      xmlns:mvc="http://www.springframework.org/schema/mvc"
      xsi:schemaLocation="http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context.xsd
   http://www.springframework.org/schema/mvc
   https://www.springframework.org/schema/mvc/spring-mvc.xsd">

   <!-- 配置SpringMVC -->
   <!-- 1.开启SpringMVC注解驱动 -->
   <mvc:annotation-driven />
   <!-- 2.静态资源默认servlet配置-->
   <mvc:default-servlet-handler/>

   <!-- 3.配置jsp 显示ViewResolver视图解析器 -->
   <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
       <property name="viewClass" value="org.springframework.web.servlet.view.JstlView" />
       <property name="prefix" value="/WEB-INF/jsp/" />
       <property name="suffix" value=".jsp" />
   </bean>

   <!-- 4.扫描web相关的bean -->
   <context:component-scan base-package="com.kuang.controller" />

</beans>

6.整合Spring配置文件，applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
      xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
      xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd">

   <import resource="spring-dao.xml"/>
   <import resource="spring-service.xml"/>
   <import resource="spring-mvc.xml"/>

</beans>

Controller 和 视图层编写

 欢迎页面

<%--
  Created by IntelliJ IDEA.
  User: fwm
  Date: 2021/6/25
  Time: 21:57
  To change this template use File | Settings | File Templates.
--%>
<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8" %>
<!DOCTYPE HTML>
<html>
<head>
  <title>首页</title>
  <style type="text/css">
    a {
      text-decoration: none;
      color: black;
      font-size: 18px;
    }
    h3 {
      width: 180px;
      height: 38px;
      margin: 100px auto;
      text-align: center;
      line-height: 38px;
      background: deepskyblue;
      border-radius: 4px;
    }
  </style>
</head>
<body>

<h3>
  <a href="${pageContext.request.contextPath}/book/allBook">点击进入列表页</a>
</h3>
</body>
</html>

添加书籍页面

<%--
  Created by IntelliJ IDEA.
  User: fwm
  Date: 2021/6/26
  Time: 8:51
  To change this template use File | Settings | File Templates.
--%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>

<html>
<head>
    <title>新增书籍</title>
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <!-- 引入 Bootstrap -->
    <link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>
<div class="container">

    <div class="row clearfix">
        <div class="col-md-12 column">
            <div class="page-header">
                <h1>
                    <small>新增书籍</small>
                </h1>
            </div>
        </div>
    </div>
    <form action="${pageContext.request.contextPath}/book/addBook" method="post">
        书籍名称：<input type="text" name="bookName"><br><br><br>
        书籍数量：<input type="text" name="bookCounts"><br><br><br>
        书籍详情：<input type="text" name="detail"><br><br><br>
        <input type="submit" value="添加">
    </form>

</div>

修改书籍页面

<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>修改信息</title>
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <!-- 引入 Bootstrap -->
    <link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>
<div class="container">

    <div class="row clearfix">
        <div class="col-md-12 column">
            <div class="page-header">
                <h1>
                    <small>修改信息</small>
                </h1>
            </div>
        </div>
    </div>

    <form action="${pageContext.request.contextPath}/book/updateBook" method="post">
        <input type="hidden" name="bookID" value="${book.getBookID()}"/>
        书籍名称：<input type="text" name="bookName" value="${book.getBookName()}"/>
        书籍数量：<input type="text" name="bookCounts" value="${book.getBookCounts()}"/>
        书籍详情：<input type="text" name="detail" value="${book.getDetail() }"/>
        <input type="submit" value="提交"/>
    </form>

</div>

主页面

<%--
  Created by IntelliJ IDEA.
  User: fwm
  Date: 2021/6/25
  Time: 21:59
  To change this template use File | Settings | File Templates.
--%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<html>
<head>
    <title>书籍列表</title>
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <!-- 引入 Bootstrap -->
    <link href="https://cdn.bootcss.com/bootstrap/3.3.7/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>

<div class="container">

    <div class="row clearfix">
        <div class="col-md-12 column">
            <div class="page-header">
                <h1>
                    <small>书籍列表 —— 显示所有书籍</small>
                </h1>
            </div>
        </div>
    </div>

    <div class="row">
        <div class="col-md-4 column">
            <a class="btn btn-primary" href="${pageContext.request.contextPath}/book/toAddBook">新增</a>
        </div>
    </div>

    <div class="row clearfix">
        <div class="col-md-12 column">
            <table class="table table-hover table-striped">
                <thead>
                <tr>
                    <th>书籍编号</th>
                    <th>书籍名字</th>
                    <th>书籍数量</th>
                    <th>书籍详情</th>
                    <th>操作</th>
                </tr>
                </thead>

                <tbody>
                <c:forEach var="book" items="${requestScope.get('list')}">
                    <tr>
                        <td>${book.getBookID()}</td>
                        <td>${book.getBookName()}</td>
                        <td>${book.getBookCounts()}</td>
                        <td>${book.getDetail()}</td>
                        <td>
                            <a href="${pageContext.request.contextPath}/book/toUpdateBook?id=${book.getBookID()}">更改</a> |
                            <a href="${pageContext.request.contextPath}/book/del/${book.getBookID()}">删除</a>
                        </td>
                    </tr>
                </c:forEach>
                </tbody>
            </table>
        </div>
    </div>
</div>

controller.java

package com.kuang.controller;

import com.kuang.pojo.Books;
import com.kuang.service.BookService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;

import java.util.List;

@Controller
@RequestMapping("/book")
public class BookController {
    //controller调用service层

    @Autowired
    @Qualifier("BookServiceImpl")
    public BookService bookService;


    //find all books and return to a new page to show
//    @RequestMapping("/allBook")请求
    //        return "allBook";转发或重定向
    @RequestMapping("/allBook")
    public String list(Model model){
        List<Books> list = bookService.queryAllBook();
        model.addAttribute("list",list);

        return "allBook";
    }

    //go to add page
    @RequestMapping("/toAddBook")
    public String toAddPaper() {
        return "addBook";
    }

    //Request add

    @RequestMapping("/addBook")
    public String addBook(Books books){
        System.out.println("addBook"+books);
        bookService.addBook(books);

        return "redirect:/book/allBook";//重定向到allBook

    }
    //to update  book page
    @RequestMapping("/toUpdateBook")
    public String toUpdateBook(Model model, int id) {
        Books books = bookService.queryBookById(id);
        System.out.println(books);
        model.addAttribute("book",books );
        return "updateBook";
    }


    //update  book
    @RequestMapping("/updateBook")
    public String updateBook(Model model, Books book) {
        System.out.println(book);
        bookService.updateBook(book);
        Books books = bookService.queryBookById(book.getBookID());
        model.addAttribute("books", books);
        return "redirect:/book/allBook";
    }

    //delete book
    @RequestMapping("/del/{bookId}")
    public String deleteBook(@PathVariable("bookId")int id){
        bookService.deleteBookById(id);
        return "redirect:/book/allBook";
    }



}

总结

通过ssm框架实现书籍管理系统的增删改功能，通过这个项目体会到了ssm框架在项目中所发挥的作用，前期将框架搭建好，将精力集中在业务逻辑上，使用框架也让项目的整体结构变得清晰明了。

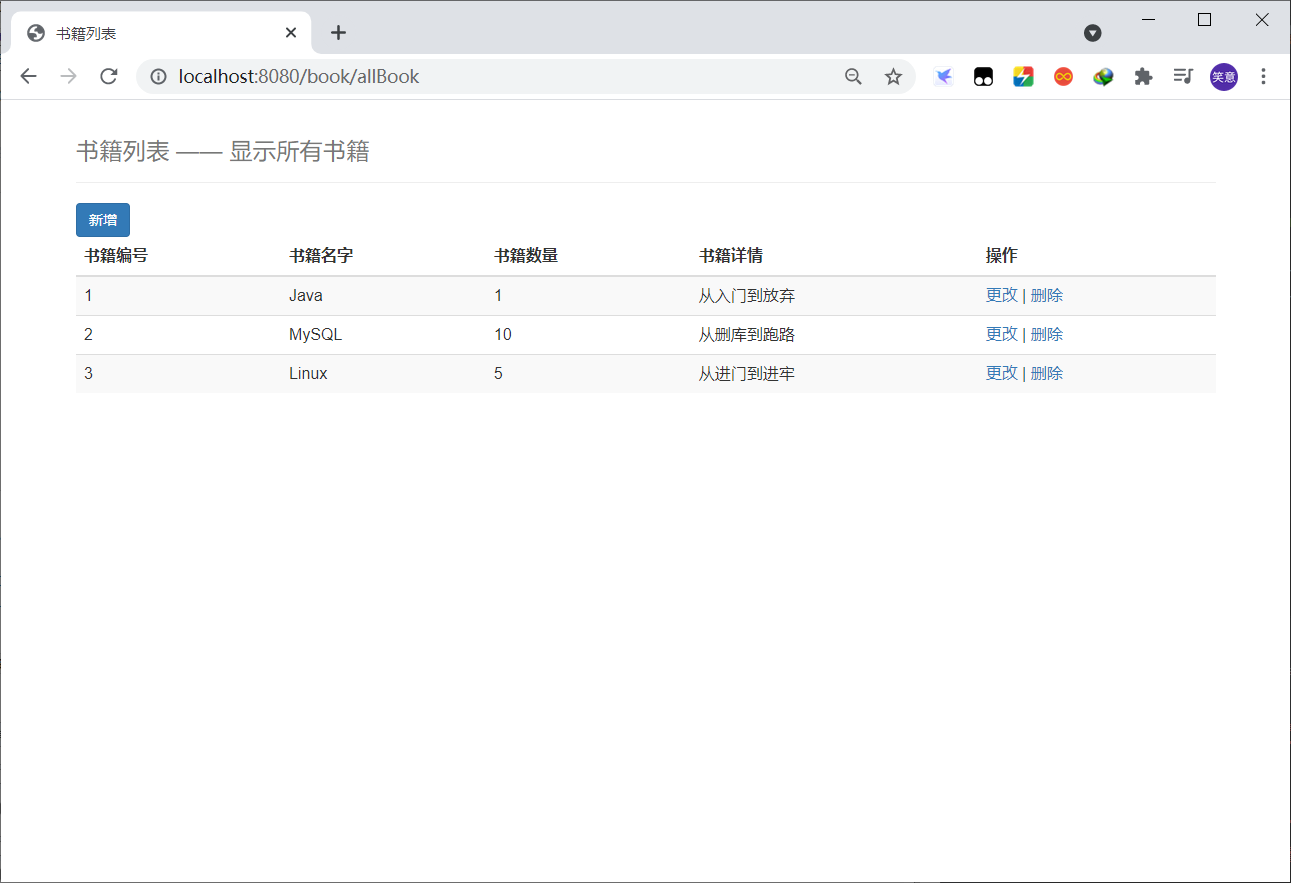

主界面

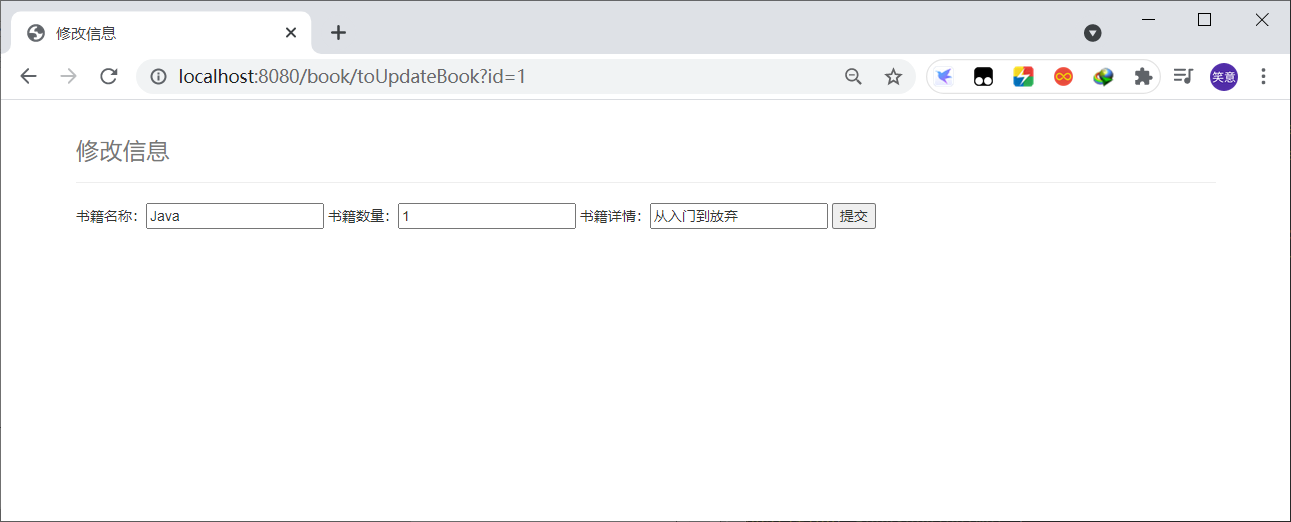

 修改界面

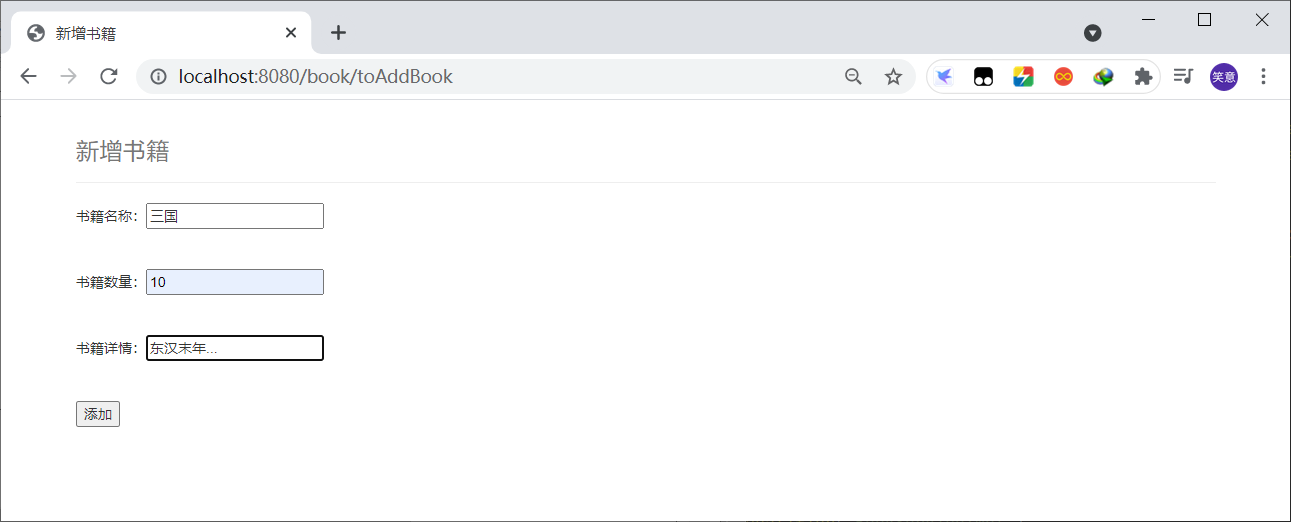

 添加界面
