INDEX_JOIN

Posted on 2024-08-11 00:18  大势趋007  阅读(15)  评论(0)    收藏  举报
create table a0001 as select * from dba_objects;
create table a0002 as select * from dba_objects where 1=2;
create index iOBJECT_ID on a0001(OBJECT_ID)
create index iCREATED on a0001(CREATED)

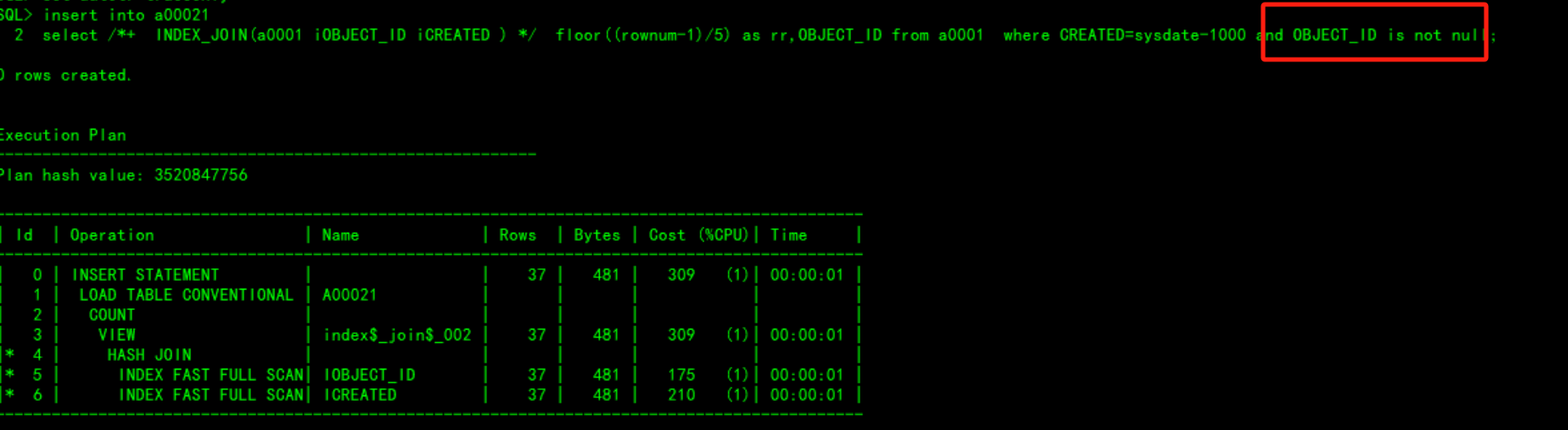

set autotr traceonly
insert into a00021
select /*+ INDEX_JOIN(a0001 iOBJECT_ID iCREATED ) */ floor((rownum-1)/5) as rr,OBJECT_ID from a0001 where CREATED=sysdate-1000 and OBJECT_ID is not null;



相关文档:

Oracle® Database Performance Tuning Guide

Optimizer Hints

https://docs.oracle.com/cd/B13789_01/server.101/b10752/hintsref.htm

https://docs.oracle.com/en/database/oracle/oracle-database/19/tgsql/sql-tuning-guide.pdf

数据准备
create table b001(
b1 varchar2(100),
b2 varchar2(100),
b3 varchar2(100),
b4 varchar2(100),
b5 varchar2(100),
b6 varchar2(100),
b7 varchar2(100),
b8 date);

insert into b001
select
trunc(dbms_random.value(1000,9000)) ,
rpad(trunc(dbms_random.value(1000,9000)),60,'B2') ,
rpad(trunc(dbms_random.value(1000,9000)),60,'B3') ,
rpad(trunc(dbms_random.value(1000,9000)),60,'B4') ,
rpad(trunc(dbms_random.value(1000,9000)),60,'B5') ,
rpad(trunc(dbms_random.value(1000,9000)),60,'B6') ,
rpad(trunc(dbms_random.value(1000,9000)),60,'B7') ,
sysdate-trunc(dbms_random.value(1,9000))
from dual
connect by level <100000
create index ab8 on b001(b8)
create index ab4 on b001(b4)

create table b0021(rr number,b4 varchar2(100))


SQL> select dbms_sql_monitor.report_sql_monitor(sql_id=>'10gh8x2650tzr',sql_exec_id=>'16777216',type=>'TEXT') from dual;
SQL Monitoring Report
SQL Text
------------------------------
insert into b0021 select /*+ monitor INDEX_JOIN(b001 ab8 ab4 ) */ floor((rownum-1)/5) as rr,b4 from b001 where b8<=sysdate and b4 is not null
Global Information
------------------------------
 Status              :  DONE
 Instance ID         :  1
 Session             :  SYS (45:47786)
 SQL ID              :  10gh8x2650tzr
 SQL Execution ID    :  16777216
 Execution Started   :  08/12/2024 14:37:07
 First Refresh Time  :  08/12/2024 14:37:07
 Last Refresh Time   :  08/12/2024 14:37:09
 Duration            :  2s
 Module/Action       :  sqlplus@redhat76 (TNS V1-V3)/-
 Service             :  SYS$USERS
 Program             :  sqlplus@redhat76 (TNS V1-V3)

Global Stats
===================================================================================
| Elapsed |   Cpu   |    IO    |  Other   | Buffer | Read | Read  | Write | Write |
| Time(s) | Time(s) | Waits(s) | Waits(s) |  Gets  | Reqs | Bytes | Reqs  | Bytes |
===================================================================================
|    1.97 |    1.41 |     0.16 |     0.40 |  39641 |  937 |  61MB |    54 |  30MB |  写请求 30M
===================================================================================
SQL> select 30*1024*1024/54 from dual;
     582542.222
SQL>
SQL> select 30*1024*1024/54/8192 from dual;
          71.1111111  ---每次写70来个快

SQL Plan Monitoring Details (Plan Hash Value=1494519326)
====================================================================================================================================================================
| Id |         Operation          |       Name       |  Rows   | Cost  |   Time    | Start  | Execs |   Rows   | Read | Read  |  Mem  | Activity | Activity Detail |
|    |                            |                  | (Estim) |       | Active(s) | Active |       | (Actual) | Reqs | Bytes | (Max) |   (%)    |   (# samples)   |
====================================================================================================================================================================
|  0 | INSERT STATEMENT           |                  |         |       |         1 |     +2 |     1 |        0 |      |       |     . |          |                 |
|  1 |   LOAD TABLE CONVENTIONAL  | B0021            |         |       |         2 |     +1 |     1 |        0 |      |       |     . |          |                 |
|  2 |    COUNT                   |                  |         |       |         1 |     +2 |     1 |     410K |      |       |     . |          |                 |
|  3 |     VIEW                   | index$_join$_002 |    371K | 17275 |         1 |     +2 |     1 |     410K |      |       |     . |          |                 |
|  4 |      HASH JOIN             |                  |         |       |         1 |     +2 |     1 |     410K |      |       |  29MB |          |                 |
|  5 |       INDEX FAST FULL SCAN | AB8              |    371K |  2073 |         1 |     +2 |     1 |     410K |  226 |  12MB |     . |          |                 |
|  6 |       INDEX FAST FULL SCAN | AB4              |    371K |  7922 |         1 |     +2 |     1 |     410K |  642 |  49MB |     . |          |                 |
====================================================================================================================================================================

SQL> set linesize 300
SQL> col segment_name for a30
SQL> select bytes/1024/1024,segment_name from dba_segments where segment_name IN ('B001','AB8','AB4','B0021');
            184 B001
             13 AB8
             50 AB4
             32 B0021     ******* 空表插入数据后大小!
SQL>
SQL> select sum(length(b4))/1024/1024 from b0021;
               23.4601021
SQL>
SQL> select sum(length(b4))/1024/1024 from b001;
               23.4601021
SQL>

SQL> select sum(length(b4))/1024/1024+sum(length(rr))/1024/1024 from b0021;
                                          25.362134
SQL>

--如何获取一个表的大小的增量!
如何获取一个表数据增量大小

SQL> set linesize 300
SQL> select a.*,to_char(scn_to_timestamp(DBMS_ROWID.ROWID_BLOCK_NUMBER(a.ROWID)),'yyyy-mm-dd hh24:mi:ss') insert_tm from b0021 a
  2  where scn_to_timestamp(DBMS_ROWID.ROWID_BLOCK_NUMBER(a.ROWID))>to_date('201911','yyyymm')
  3    and scn_to_timestamp(DBMS_ROWID.ROWID_BLOCK_NUMBER(a.ROWID))<to_date('202011','yyyymm')
  4    and rownum<10;
        RR B4                                                               INSERT_TM
---------- ---------------------------------------------------------------- -------------------
         0 1000B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4     2019-11-23 16:30:15
         0 1000B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4     2019-11-23 16:30:15
         0 1000B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4     2019-11-23 16:30:15
         0 1000B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4     2019-11-23 16:30:15
         0 1000B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4     2019-11-23 16:30:15
         1 1000B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4     2019-11-23 16:30:15
         1 1000B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4     2019-11-23 16:30:15
         1 1000B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4     2019-11-23 16:30:15
         1 1000B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4B4     2019-11-23 16:30:15

9 rows selected.
SQL>
通过时间获取增加的数据量!或者通过源表(数据未改的情况)获取数据量!建议备库操作
