ospf

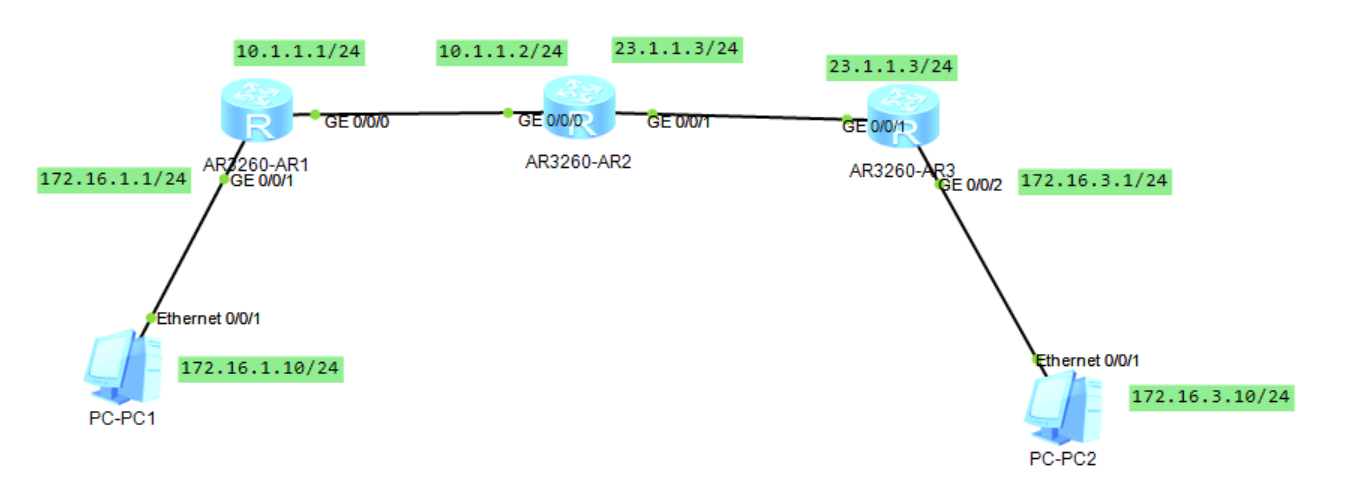

一、拓扑图

二、路由器设置

<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]interface GigabitEthernet 0/0/1
[Huawei-GigabitEthernet0/0/1]ip address 172.16.1.1 24
Oct 21 2022 22:33:36-08:00 Huawei %%01IFNET/4/LINK_STATE(l)[0]:The line protocol
 IP on the interface GigabitEthernet0/0/1 has entered the UP state.
[Huawei-GigabitEthernet0/0/1]quit

[Huawei]ospf
[Huawei-ospf-1]area 0
[Huawei-ospf-1-area-0.0.0.0]network 172.16.1.0 0.0.0.255
[Huawei-ospf-1-area-0.0.0.0]network 10.1.1.0 0.0.0.255
[Huawei-ospf-1-area-0.0.0.0]dis this
[V200R003C00]
#
 area 0.0.0.0
  network 10.1.1.0 0.0.0.255
  network 172.16.1.0 0.0.0.255
#
return


[Huawei]ospf
[Huawei-ospf-1]area 0
[Huawei-ospf-1-area-0.0.0.0]net
[Huawei-ospf-1-area-0.0.0.0]network 10.1.1.0 0.0.0.255
[Huawei-ospf-1-area-0.0.0.0]network 23.1.1.0 0.0.0.255
[Huawei-ospf-1-area-0.0.0.0]dis this
[V200R003C00]
#
 area 0.0.0.0
  network 10.1.1.0 0.0.0.255
  network 23.1.1.0 0.0.0.255
#
return
[Huawei-ospf-1-area-0.0.0.0]

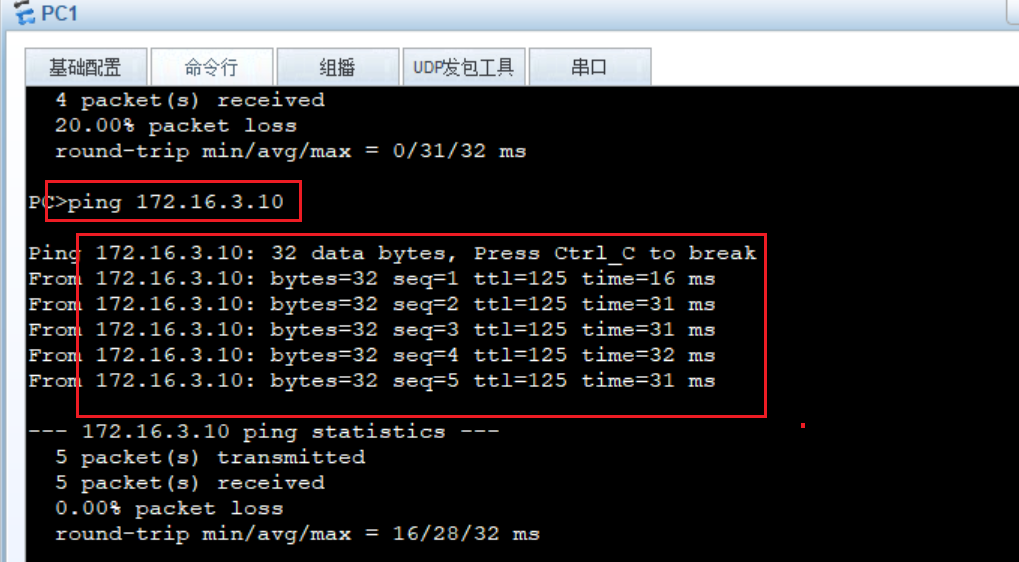

 三、测试
