Qt-spreadsheet程序测试

mainwindow.h

#ifndef MAINWINDOW_H
#define MAINWINDOW_H

#include <QMainWindow>

QT_BEGIN_NAMESPACE
namespace Ui { class MainWindow; }
QT_END_NAMESPACE

class QAction;
class QMenu;
class QToolBar;
class QLabel;
class FindDialog;
class Spreadsheet;

class MainWindow : public QMainWindow
{
    Q_OBJECT

public:
    MainWindow(QWidget *parent = nullptr);
    ~MainWindow();
protected:
    void closeEvent(QCloseEvent *event);
private slots:
    void newFile();
    bool okToContinue();
    void open();
    bool save();
    bool saveAs();
    bool saveFile(const QString &fileName);

    bool loadFile(const QString &fileName);
    void setCurrentFile(const QString &fileName);
    QString strippedName(const QString &fullFileName);

    void find();
    void goToCell();
    void sort();
    void about();



    void openRecentFile();
    void updateStatusBar();
    void spreadsheetModified();

private:
    Ui::MainWindow *ui;

    FindDialog *findDialog;
    Spreadsheet *spreadsheet;
    QString currentFileName;

    void createActions();
    void createMenus();

    void createFileActions();
    void createEditActions();
    void createToolsActions();
    void createOptionsActions();
    void createHelpActions();
    void createToolBars();
    void createStatusBar();

    void createContextMenu();

    void readSettings();
    void writeSettings();
    void updateRecentFileAction();


    QStringList recentFiles;
    QString curFile;

    /*最近浏览文件*/
    enum {MaxRecentFiles=5};
    QAction *recentFileActions[MaxRecentFiles];
    QAction *separatorAction;
    /*菜单*/
    QMenu *fileMenu;
    QMenu *editMenu;
    QMenu *toolsMenu;
    QMenu *optionsMenu;
    QMenu *helpMenu;

    /*工具栏*/
    QToolBar *fileToolBar;
    QToolBar *editToolBar;

    /*状态栏标签*/
    QLabel *locationLabel;
    QLabel *formulaLabel;

    /*File动作*/
    QAction *newAction;
    QAction *openAction;
    QAction *saveAction;
    QAction *saveAsAction;
    QAction *exitAction;

    /*Edit动作*/
    QAction *cutAction;
    QAction *copyAction;
    QAction *pasteAction;
    QAction *deleteAction;
    QMenu   *selectSubMenu;
    QAction *selectRowAction;
    QAction *selectColumnAction;
    QAction *selectAllAction;
    QAction *findAction;
    QAction *goToCellAction;

    /*Tools动作*/
    QAction *recalculateAction;
    QAction *sortAction;

    /*Options动作*/
    QAction *showGridAction;
    QAction *autoRecalcAction;

    /*Help动作*/
    QAction *aboutAction;
    QAction *aboutQtAction;

};
#endif // MAINWINDOW_H

mainwindow.cpp

#include <QtWidgets>
#include "mainwindow.h"
#include "ui_mainwindow.h"
#include "spreadsheet.h"
#include "finddialog.h"
#include "gotocelldialog.h"
#include "sortdialog.h"

MainWindow::MainWindow(QWidget *parent)
    : QMainWindow(parent)
    , ui(new Ui::MainWindow)
{
    ui->setupUi(this);
    spreadsheet =new Spreadsheet(this);
    setCentralWidget(spreadsheet);


    createActions();
    createMenus();
    createToolBars();
    createStatusBar();

    readSettings();

    findDialog= nullptr;
    setWindowIcon(QIcon(":/image/clear.png"));
    setCurrentFile("");
}

void MainWindow::createMenus()
{
    /*file menu*/
    fileMenu = menuBar()->addMenu(tr("&File"));
    fileMenu->addAction(newAction);
    fileMenu->addAction(openAction);
    fileMenu->addAction(saveAction);
    fileMenu->addAction(saveAsAction);
    separatorAction=fileMenu->addSeparator();
    for (int i=0;i<MaxRecentFiles;++i)
        fileMenu->addAction(recentFileActions[i]);
    fileMenu->addSeparator();
    fileMenu->addAction(exitAction);

    /*edit menu*/

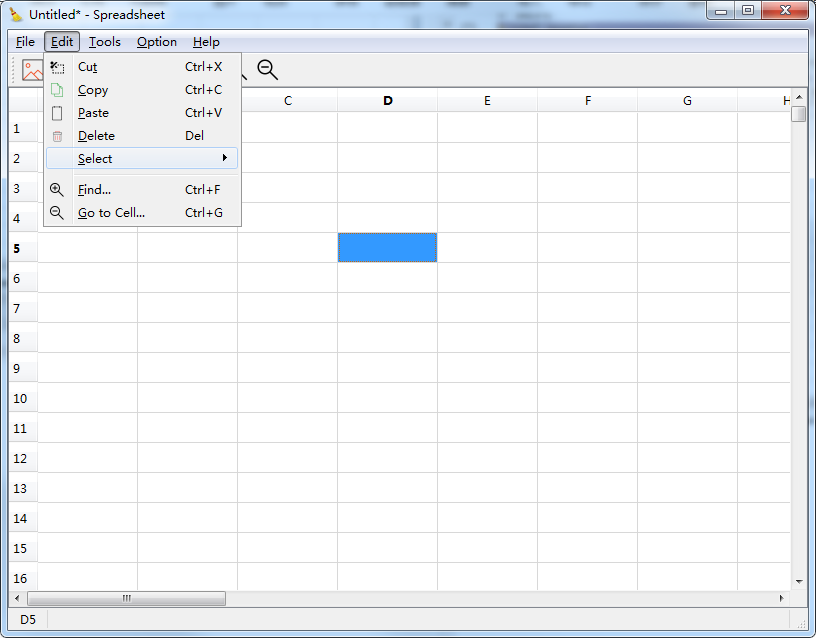

    editMenu = menuBar()->addMenu(tr("&Edit"));
    editMenu->addAction(cutAction);
    editMenu->addAction(copyAction);
    editMenu->addAction(pasteAction);
    editMenu->addAction(deleteAction);

    selectSubMenu = editMenu->addMenu(tr("&Select"));
    selectSubMenu->addAction(selectRowAction);
    selectSubMenu->addAction(selectColumnAction);
    selectSubMenu->addAction(selectAllAction);

    editMenu->addSeparator();
    editMenu->addAction(findAction);
    editMenu->addAction(goToCellAction);

    /*tools menu*/
    toolsMenu = menuBar()->addMenu(tr("&Tools"));
    toolsMenu->addAction(recalculateAction);
    toolsMenu->addAction(sortAction);

    menuBar()->addSeparator();

    /*option menu*/
    optionsMenu = menuBar()->addMenu(tr("&Option"));
    optionsMenu->addAction(showGridAction);
    optionsMenu->addAction(autoRecalcAction);

    /*间隔器*/
    menuBar()->addSeparator();

    /*help menu*/
    helpMenu = menuBar()->addMenu(tr("&Help"));
    helpMenu->addAction(aboutAction);
    helpMenu->addAction(aboutQtAction);
}
void MainWindow::createActions()
{
    createFileActions();
    createEditActions();
    createToolsActions();
    createOptionsActions();
    createHelpActions();

}
void MainWindow::createContextMenu()
{
    spreadsheet->addAction(cutAction);
    spreadsheet->addAction(copyAction);
    spreadsheet->addAction(pasteAction);
    spreadsheet->setContextMenuPolicy(Qt::ActionsContextMenu);
}

/*工具栏*/
void MainWindow::createToolBars()
{
    fileToolBar = addToolBar(tr("&File"));
    fileToolBar->addAction(newAction);
    fileToolBar->addAction(openAction);
    fileToolBar->addAction(saveAction);

    editToolBar = addToolBar(tr("&Edit"));
    editToolBar->addAction(cutAction);
    editToolBar->addAction(copyAction);
    editToolBar->addAction(pasteAction);
    editToolBar->addSeparator();
    editToolBar->addAction(findAction);
    editToolBar->addAction(goToCellAction);
}

/*状态栏*/
void MainWindow::createStatusBar()
{
    /* W999 作用：1.显示的内容。2.决定locationLabel的尺寸大小*/
    locationLabel = new QLabel(" W999 ");
    /*对齐方式：居中对齐*/
    locationLabel->setAlignment(Qt::AlignHCenter);
    /*最小大小为窗口部件的理想大小*/
    locationLabel->setMinimumSize(locationLabel->sizeHint());
    formulaLabel = new QLabel;
    /*缩进，文本与左侧边的偏移量*/
    formulaLabel->setIndent(3);
    /*单元格定位指示器，伸展因子默认为0*/
    statusBar()->addWidget(locationLabel);
    /*单元格公式指示器，伸展因子为1*/
    statusBar()->addWidget(formulaLabel, 1);

    connect(spreadsheet,SIGNAL(currentCellChanged(int,int,int,int)),this,SLOT(updateStatusBar()));
    connect(spreadsheet,SIGNAL(modified()),this,SLOT(spreadsheetModified()));
    updateStatusBar();
}
void MainWindow::updateStatusBar()
{
    locationLabel->setText(spreadsheet->currentLocation());
    formulaLabel->setText(spreadsheet->currentFormula());
}

void MainWindow::spreadsheetModified()
{
    setWindowModified(true);
    updateStatusBar();
}

void MainWindow::createFileActions()
{
    /*newAction*/
    newAction=new QAction(tr("&New"),this);
    newAction->setIcon(QIcon(":/image/load.png"));
    newAction->setShortcut(QKeySequence::New);
    newAction->setStatusTip(tr("Create a new spreadsheet file"));
    connect(newAction,SIGNAL(triggered()),this,SLOT(newFile()));

    /*openAction*/
    openAction = new QAction(tr("&Open"), this);
    openAction->setIcon(QIcon(":/image/massload.png"));
    openAction->setShortcut(QKeySequence::Open);
    openAction->setStatusTip(tr("Opne an existing spreadsheet file"));
    connect(openAction,SIGNAL(triggered()),this,SLOT(open()));

    /*saveAction*/
    saveAction = new QAction(tr("&Save"), this);
    saveAction->setIcon(QIcon(":/image/save.png"));
    saveAction->setShortcut(QKeySequence::Save);
    saveAction->setStatusTip(tr("Save the spreadsheet to disk"));
    connect(saveAction,SIGNAL(triggered()),this,SLOT(save()));

    /*saveAsAction*/
    saveAsAction = new QAction(tr("Save &As..."), this);
    saveAsAction->setIcon(QIcon(":/image/save-as.png"));
    saveAsAction->setShortcut(QKeySequence::SaveAs);
    saveAsAction->setStatusTip(tr("Save the spreadsheet under a new name"));
    connect(saveAsAction,SIGNAL(triggered()),this,SLOT(saveAs()));
    /*openRecentFile*/
    for (int i =0;i<MaxRecentFiles;++i)
    {
      recentFileActions[i]=new QAction(this);
      recentFileActions[i]->setVisible(false);
      connect(recentFileActions[i],SIGNAL(triggered()),this,SLOT(openRecentFile()));
    }
    /*exitAction */
    exitAction = new QAction(tr("&Exit"), this);
    exitAction->setShortcut(tr("Ctrl+Q"));
    exitAction->setStatusTip(tr("Exit the application"));
    connect(exitAction,SIGNAL(triggered()),this,SLOT(close()));
}
/*edit动作*/
void MainWindow::createEditActions()
{
    /*cutAction*/
    cutAction = new QAction(tr("Cu&t"), this);
    cutAction->setIcon(QIcon(":/image/cut.png"));
    cutAction->setShortcut(QKeySequence::Cut);
    cutAction->setStatusTip(tr("Cut the Current selection's "
                               "contents to the clipboard"));

    /*copyAction*/
    copyAction = new QAction(tr("&Copy"), this);
    copyAction->setIcon(QIcon(":/image/copy.png"));
    copyAction->setShortcut(QKeySequence::Copy);
    copyAction->setStatusTip(tr("Copy the current selection's "
                                "contents to the clipboard"));

    /*pasteAction*/
    pasteAction = new QAction(tr("&Paste"), this);
    pasteAction->setIcon(QIcon(":/image/paste.png"));
    pasteAction->setShortcut(QKeySequence::Paste);
    pasteAction->setStatusTip(tr("Paste the clipboard's "
                                 "contents into the current selection"));

    /*deleteAction*/
    deleteAction = new QAction(tr("&Delete"), this);
    deleteAction->setIcon(QIcon(":/image/delete.png"));
    deleteAction->setShortcut(QKeySequence::Delete);
    deleteAction->setStatusTip(tr("Delete the current selection's "     "contents"));

    selectRowAction = new QAction(tr("&Row"), this);
    selectRowAction->setStatusTip(tr("Select all the cells in "
                                     "the current row"));
    selectColumnAction = new QAction(tr("&Column"), this);
    selectColumnAction->setStatusTip(tr("Select all the cells in "
                                        "the current column"));
    selectAllAction = new QAction(tr("&All"), this);
    selectAllAction->setShortcut(QKeySequence::SelectAll);
    selectAllAction->setStatusTip(tr("Select all the cells in "
                                     "the spreadsheet"));
    connect(selectAllAction,SIGNAL(triggered()),spreadsheet,SLOT(selectAll()));

    /*findAction*/
    findAction = new QAction(tr("&Find..."), this);
    findAction->setIcon(QIcon(":/image/enlarge.png"));
    findAction->setShortcut(QKeySequence::Find);
    findAction->setStatusTip(tr("Find a matching cell"));
    connect(findAction,SIGNAL(triggered()),this,SLOT(find()));

    /*goToCellAction*/
    goToCellAction = new QAction(tr("&Go to Cell..."), this);
    goToCellAction->setIcon(QIcon(":/image/reduce"));
    goToCellAction->setShortcut(tr("Ctrl+G"));
}

/*tools动作*/
void MainWindow::createToolsActions()
{
    recalculateAction = new QAction(tr("&Recalculate"), this);
    recalculateAction->setShortcut(tr("F9"));
    recalculateAction->setStatusTip(tr("Recalculate all the "
                                       "spreadsheet's formulas"));
    sortAction = new QAction(tr("&Sort..."), this);
    sortAction->setStatusTip(tr("Sort the selected cells or all "
                                "the cells"));
}

/*options动作*/
void MainWindow::createOptionsActions()
{
    showGridAction = new QAction(tr("&Show Grid"), this);
    showGridAction->setCheckable(true);        /*使动作可被选*/
    showGridAction->setStatusTip(tr("Show or hide the "
                                    "spreadsheet's grid"));
    connect(showGridAction,SIGNAL(toggled(bool)),spreadsheet,SLOT(setShowGrid(bool)));

    autoRecalcAction = new QAction(tr("Auto-Recalculate"), this);
    autoRecalcAction->setCheckable(true);    /*使动作可被选*/
    autoRecalcAction->setStatusTip(tr("Switch auto-"
                                           "recalculate on or off"));

}

/*help动作*/
void MainWindow::createHelpActions()
{
    aboutAction = new QAction(tr("&About"), this);
    aboutAction->setStatusTip(tr("Show the application's "
                                 "About box"));

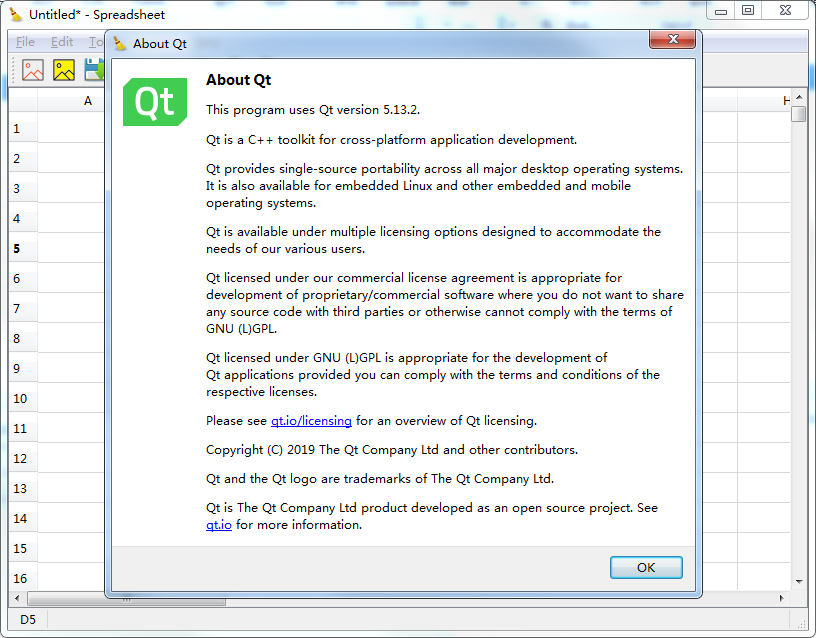

    aboutQtAction = new QAction(tr("About &Qt"), this);
    aboutQtAction->setStatusTip(tr("Show the Qt library's "
                                   "About box"));
    connect(aboutAction,SIGNAL(triggered()),this,SLOT(about()));
    connect(aboutQtAction,SIGNAL(triggered()),qApp,SLOT(aboutQt()));
}

void MainWindow::setCurrentFile(const QString &fileName)
{
    currentFileName = fileName;
    /*true:保存过和未保存有区别；false:无区别*/
    setWindowModified(true);

    QString shownName = tr("Untitled");

    if (!currentFileName.isEmpty())
    {
        shownName = strippedName(currentFileName);    /*名字去掉路径*/
    }

    /*[*]:当WindowModified属性为true时，保存过的文件才没有星号*/
    setWindowTitle(tr("%1[*] - %2").arg(shownName)
                   .arg("Spreadsheet"));
}

/*去掉路径，只保留文件名*/
QString MainWindow::strippedName(const QString &fullFileName)
{
    return QFileInfo(fullFileName).fileName();
}

/************************具体功能实现*******************************/
void MainWindow::newFile()
{
    MainWindow* mainWin=new MainWindow;
    mainWin->show();
//    if (okToContinue())  {
//        spreadsheet->clear();
//        setCurrentFile("");
//    }
}
bool MainWindow::okToContinue()
{
    if (isWindowModified()){
        int r=QMessageBox::warning(this,tr("Spreadsheet"),tr("The document has been modified.\n""Do you want to save your changes?"),QMessageBox::Yes|QMessageBox::No|QMessageBox::Cancel);
        if (r==QMessageBox::Yes){
            return save();
        }else if(r==QMessageBox::Cancel){
            return false;
        }
    }
    return true;
}
void MainWindow::open()
{
    if(okToContinue()){
        QString fileName=QFileDialog::getOpenFileName(this,tr("Open Spreadsheet"),".",tr("Spreadsheet files(*.sp)\n""Comma-separated values files(*.csv)\n"));
        if (!fileName.isEmpty())
            loadFile(fileName);
    }
}
void MainWindow::openRecentFile()
{
 if(okToContinue()){
     QAction *action=qobject_cast<QAction *>(sender());
     if (action)
         loadFile(action->data().toString());
 }
}
bool MainWindow::loadFile(const QString &fileName)
{
    if (!spreadsheet->readFile(fileName))
    {
        statusBar()->showMessage(tr("Loading canceled"), 2000);
    } return false;
    setCurrentFile(fileName);
    statusBar()->showMessage( tr("File loaded"), 2000);
    return true;
}
bool MainWindow::saveAs()
{
    QString fileName = QFileDialog::getSaveFileName( this, tr("Save Spreadsheet"), "." , tr("Spreadsheet files (*.sp)") );
    if( fileName.isEmpty() ) return false;
    return saveFile(fileName);
}
bool MainWindow::save()
{
    if (curFile.isEmpty()){
        return saveAs();
    }else{
        return saveFile(curFile);
    }
}

bool MainWindow::saveFile(const QString &fileName)
{
    if (!spreadsheet->writeFile(fileName)){
        statusBar()->showMessage(tr("Saving canceled"), 2000);} return false;
    setCurrentFile(fileName);
    statusBar()->showMessage( tr("File loaded"), 2000);
    return true;
}

void MainWindow::closeEvent(QCloseEvent *event)
{
    if (okToContinue()){
        writeSettings();
        event->accept();
    }else {
    event->ignore();
    }
}
//void MainWindow::setCurrentFile(const QString &fileName)
//{
//    curFile=fileName;
//    setWindowModified(false);
//    QString showName=tr("Untitled");
//    if (!curFile.isEmpty()){
//        showName=strippedName(curFile);
//    recentFiles.removeAll(curFile);
//    recentFiles.prepend(curFile);
//    updateRecentFileAction();
//    }
//    setWindowTitle(tr("%1[*]-%2").arg(showName).arg(tr("Spreadsheet")));
//}
//QString MainWindow::strippedName(const QString &fullFileName)
//{
//    return QFileInfo(fullFileName).fileName();
//}
void MainWindow::updateRecentFileAction()
{
//    QSettings settings("Trolltech", "Recent Files Example");
//    QStringList files = settings.value("recentFileList").toStringList();
//    int numRecentFiles = qMin(files.size(), int(MaxRecentFiles));
//    for (int i = 0; i < numRecentFiles; ++i) {
//        QString text = tr("&%1 %2").arg(i + 1).arg(strippedName(files[i]));
//        recentFileActions[i]->setText(text);
//        recentFileActions[i]->setData(files[i]);
//        recentFileActions[i]->setVisible(true);
//    }
//    for (int j = numRecentFiles; j < MaxRecentFiles; ++j)
//        recentFileActions[j]->setVisible(false);
//    separatorAction->setVisible(numRecentFiles > 0);
    QMutableStringListIterator i(recentFiles);
    while (i.hasNext()) {
        if (!QFile::exists(i.next()))
            i.remove();
    }

    for (int j = 0; j < MaxRecentFiles; ++j) {
        if (j < recentFiles.count()) {
            QString text = tr("&%1 %2")
                           .arg(j + 1)
                           .arg(strippedName(recentFiles[j]));
            recentFileActions[j]->setText(text);
            recentFileActions[j]->setData(recentFiles[j]);
            recentFileActions[j]->setVisible(true);
        } else {
            recentFileActions[j]->setVisible(false);
        }
    }
    separatorAction->setVisible(!recentFiles.isEmpty());

}

void MainWindow::find()
{
    if (!findDialog) {
        findDialog = new FindDialog(this);
        connect(findDialog, SIGNAL(findNext(const QString &,
                                            Qt::CaseSensitivity)),
                spreadsheet, SLOT(findNext(const QString &,
                                           Qt::CaseSensitivity)));
        connect(findDialog, SIGNAL(findPrevious(const QString &,
                                                Qt::CaseSensitivity)),
                spreadsheet, SLOT(findPrevious(const QString &,
                                               Qt::CaseSensitivity)));
    }

    findDialog->show();
    findDialog->raise();
    findDialog->activateWindow();
}

void MainWindow::goToCell()
{
    GoToCellDialog dialog;
    //GoToCellDialog dialog(this);
    if (dialog.exec()) {
        QString str = dialog.lineEdit->text().toUpper();
        spreadsheet->setCurrentCell(str.mid(1).toInt() - 1,
                                    str[0].unicode() - 'A');
    }
}

void MainWindow::sort()
{
//    SortDialog dialog;
//    //SortDialog dialog(this);
//    QTableWidgetSelectionRange range = spreadsheet->selectedRange();
//    dialog.setColumnRange('A' + range.leftColumn(),
//                          'A' + range.rightColumn());

//    if (dialog.exec()) {
//        SpreadsheetCompare compare;
//        compare.keys[0] =
//              dialog.primaryColumnCombo->currentIndex();
//        compare.keys[1] =
//              dialog.secondaryColumnCombo->currentIndex() - 1;
//        compare.keys[2] =
//              dialog.tertiaryColumnCombo->currentIndex() - 1;
//        compare.ascending[0] =
//              (dialog.primaryOrderCombo->currentIndex() == 0);
//        compare.ascending[1] =
//              (dialog.secondaryOrderCombo->currentIndex() == 0);
//        compare.ascending[2] =
//              (dialog.tertiaryOrderCombo->currentIndex() == 0);
//        spreadsheet->sort(compare);
//    }
}

void MainWindow::about()
{
    QMessageBox::about(this, tr("About Spreadsheet"),
            tr("<h2>Spreadsheet 1.1</h2>"
               "<p>Copyright &copy; 2008 Software Inc."
               "<p>Spreadsheet is a small application that "
               "demonstrates QAction, QMainWindow, QMenuBar, "
               "QStatusBar, QTableWidget, QToolBar, and many other "
               "Qt classes."));
}


void MainWindow::readSettings()
{
    QSettings settings("Software Inc.", "Spreadsheet");restoreGeometry(settings.value("geometry").toByteArray());

    recentFiles = settings.value("recentFiles").toStringList();
    updateRecentFileAction();

    bool showGrid = settings.value("showGrid", true).toBool();
    showGridAction->setChecked(showGrid);

    bool autoRecalc = settings.value("autoRecalc", true).toBool();
    autoRecalcAction->setChecked(autoRecalc);
}

void MainWindow::writeSettings()
{
    QSettings settings("Software Inc.", "Spreadsheet");

    settings.setValue("geometry", saveGeometry());
    settings.setValue("recentFiles", recentFiles);
    settings.setValue("showGrid", showGridAction->isChecked());
    settings.setValue("autoRecalc", autoRecalcAction->isChecked());
}
MainWindow::~MainWindow()
{
    delete ui;
}

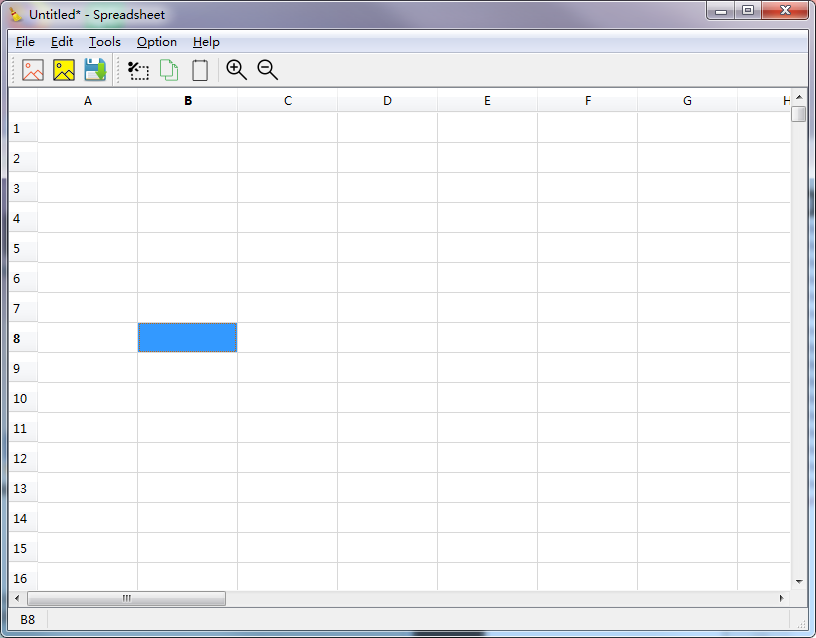

主界面

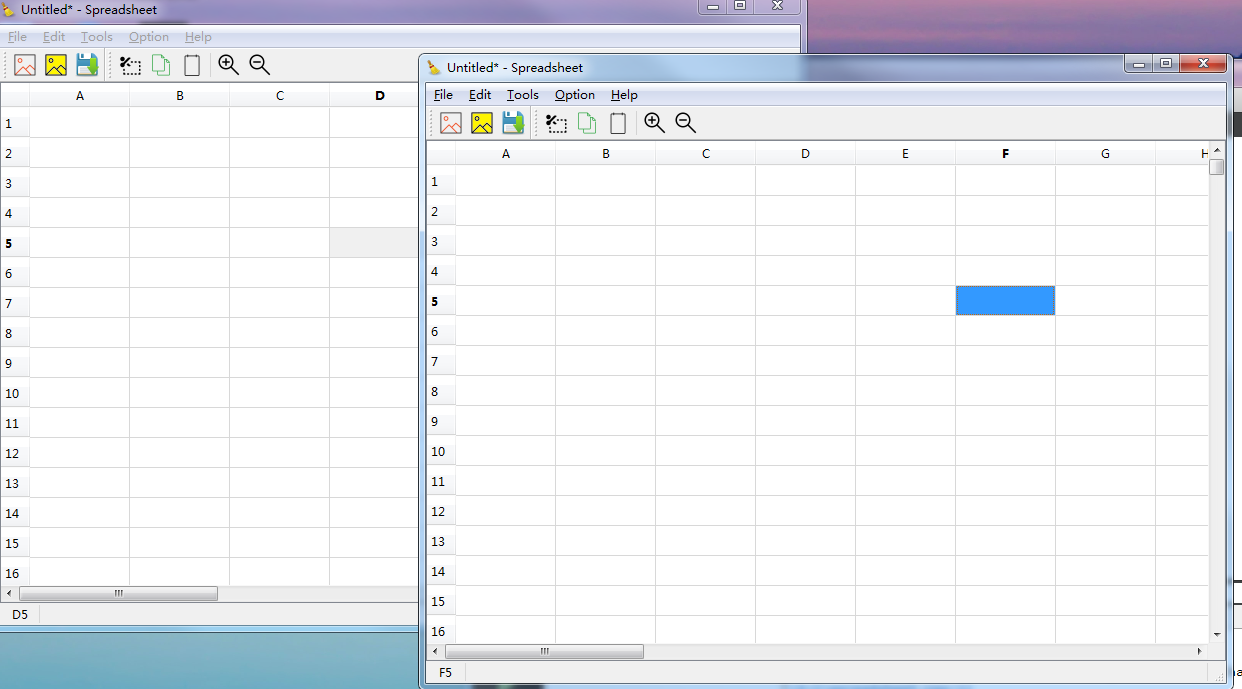

多窗口

编辑

关于

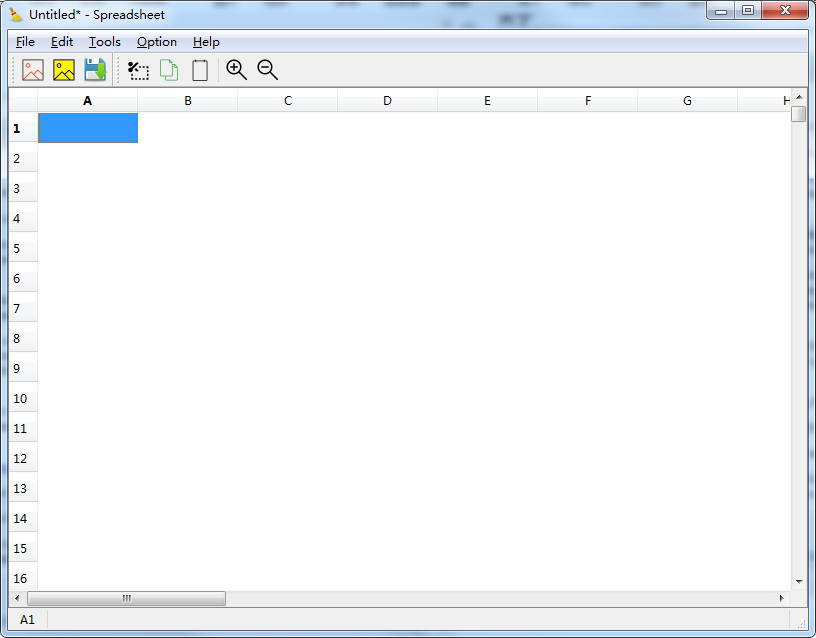

无网格
