socket bind2vrf

　Add l3mdev index to flow struct and avoid oif reset for port devices

　　VRF和l3mdev核心代码的基本前提是，将套接字绑定到一个设备（l3mdev或带有三层域的网络设备）以指示三层网络的作用域。
旧的代码会将flowi_oif（输出接口）重置为l3mdev设备，从而丢失了原始的端口设备绑定。
Ben展示了需要保留原始端口设备绑定的重要使用场景。该补丁通过在通用流结构（flow struct）中添加一个新条目来解决这个问题，
该条目可以指示l3mdev索引，用于后续的规则和路由表匹配，从而避免了重置flowi_oif的需求。

解决方案：
- 这个补丁通过向通用流结构（flow struct）中添加一个新条目来保留l3mdev索引。这样可以在后续的规则和路由表匹配中使用该索引，而不需要重置flowi_oif。
- 这种改进允许更多需要端口设备绑定的使用场景，并且简化了部分数据路径。
改进细节：
- l3mdev_fib_rule_match：这个函数只在遍历FIB（转发信息库）规则时调用，并且总是在调用l3mdev_update_flow之后。这个改进允许对非VRF类型的使用场景进行优化，如果flowi_l3mdev没有设置，可以提前跳过无关的操作。此外，FIB表ID只需要检查这个新加入的索引。
- l3mdev_update_flow：该函数可以在flowi_oif设置为l3mdev设备（如VRF设备）的情况下调用。通过仅在这种情况下重置flowi_oif，可以不再需要FLOWI_FLAG_SKIP_NH_OIF标志，从而简化多个数据路径中的检查。flowi_iif路径也可以简化，只有在不是环回接口（loopback）且l3mdev索引未设置的情况下才调用。
- 输出路径中的优化：当FIB查找返回拒绝失败时，避免另一个设备查找。

此次修改见：https://lore.kernel.org/netdev/20220314204551.16369-1-dsahern@kernel.org/

　Before the patch, if the original output interface was enslaved to a
> > VRF, the output interface in the flow struct would be updated to the VRF
> > and the 'FLOWI_FLAG_SKIP_NH_OIF' flag would be set, causing the above
> > check to be skipped.
> > After the patch, the check is no longer skipped, as original output
> > interface is retained and the flag was removed.

 > This breaks scenarios where a GRE tunnel specifies a dummy device
> > enslaved to a VRF as its physical device. The purpose of this
> > configuration is to redirect the underlay lookup to the table associated
> > with the VRF to which the dummy device is enslaved to. The check fails
> > because 'flp->flowi4_oif' points to the dummy device, whereas
> > 'nhc->nhc_oif' points to the interface via which the encapsulated packet
> > should egress.

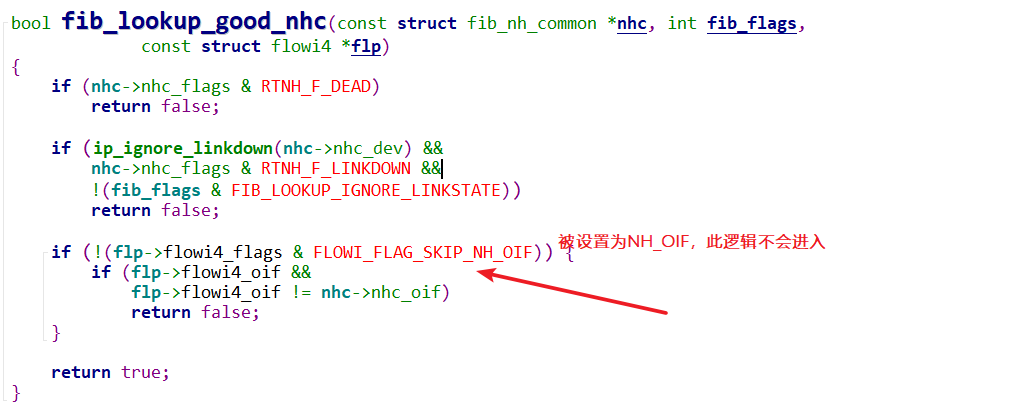

如果原始输出接口被绑定到一个VRF，流结构中的输出接口会更新为该VRF，并且会设置FLOWI_FLAG_SKIP_NH_OIF标志，导致跳过上述检查。
修改后，不再跳过该检查，因为原始输出接口得以保留，且该标志被移除。
　　这破坏了某些场景，其中GRE隧道指定了一个绑定到VRF的虚拟设备作为其物理设备。这种配置的目的是将底层查找重定向到与虚拟设备所属VRF相关的路由表。
检查失败的原因是flp->flowi4_oif指向虚拟设备，而nhc->nhc_oif指向封装包应通过的接口。

也就是 fib_table_lookup------>fib_lookup_good_nhc

What's the callchain for this failure?

 What's the callchain for this failure? Perhaps the
> FLOWI_FLAG_SKIP_NH_OIF needs to be kept for this particular use case.

This is the stack trace for the failure:

    fib_lookup_good_nhc+5
    fib_table_lookup+3281
    fib4_rule_action+501
    fib_rules_lookup+858
    __fib_lookup+233
    fib_lookup.constprop.0+926
    ip_route_output_key_hash_rcu+3707
    ip_route_output_key_hash+392
    ip_route_output_flow+33
    ip_tunnel_xmit+1794
    gre_tap_xmit+1312
    dev_hard_start_xmit+448
    sch_direct_xmit+615
    __dev_queue_xmit+4841

The GRE tap is using a dummy device enslaved to a VRF as its physical
device.

　　是在使用VRF（虚拟路由和转发）时遇到的一个需求，即将一个套接字（socket）绑定到一个端口设备，并希望网络查找时强制使用这个出站端口（例如用于多路径场景）。

原来的机制将输出接口（oif）切换到VRF设备，然后忽略oif检查，这种做法让检查变得过于宽松，不符合这种用例的要求。

需求背景：
- 某些使用VRF的场景中，用户希望套接字能绑定到特定的物理端口设备，期望在进行路由查找时，系统能够强制使用这个特定的出站端口。比如在多路径（multipath）场景下，需要确保数据流量走某个特定的路径。
原始机制的问题：
- 在原有实现中，当绑定套接字时，系统会将输出接口（oif）切换为VRF设备，而不再是原始的端口设备。同时，系统会忽略oif检查。虽然这种做法让检查变得更加灵活，但对某些用例来说，灵活性过头了，导致无法强制执行对特定端口的使用。

patch：https://lore.kernel.org/netdev/Yjnrz7vL9HqE5UBz@shredder/

https://lore.kernel.org/netdev/20220314204551.16369-1-dsahern@kernel.org/

所以改动为：

@@ -551,10 +550,10 @@ static netdev_tx_t vrf_process_v4_outbound(struct sk_buff *skb,

     memset(&fl4, 0, sizeof(fl4));
     /* needed to match OIF rule */
-    fl4.flowi4_oif = vrf_dev->ifindex;
+    fl4.flowi4_l3mdev = vrf_dev->ifindex;
     fl4.flowi4_iif = LOOPBACK_IFINDEX;
     fl4.flowi4_tos = RT_TOS(ip4h->tos);
-    fl4.flowi4_flags = FLOWI_FLAG_ANYSRC | FLOWI_FLAG_SKIP_NH_OIF;
+    fl4.flowi4_flags = FLOWI_FLAG_ANYSRC;
     fl4.flowi4_proto = ip4h->protocol;
     fl4.daddr = ip4h->daddr;
     fl4.saddr = ip4h->saddr;
diff --git a/include/net/flow.h b/include/net/flow.h
index 58beb16a49b8..987bd511d652 100644
--- a/include/net/flow.h
+++ b/include/net/flow.h
@@ -29,6 +29,7 @@ struct flowi_tunnel {
 struct flowi_common {
     int    flowic_oif;
     int    flowic_iif;
+    int     flowic_l3mdev;
     __u32    flowic_mark;
     __u8    flowic_tos;
     __u8    flowic_scope;
@@ -36,7 +37,6 @@ struct flowi_common {
     __u8    flowic_flags;
 #define FLOWI_FLAG_ANYSRC        0x01
 #define FLOWI_FLAG_KNOWN_NH        0x02
-#define FLOWI_FLAG_SKIP_NH_OIF        0x04
     __u32    flowic_secid;
     kuid_t  flowic_uid;
     struct flowi_tunnel flowic_tun_key;
@@ -70,6 +70,7 @@ struct flowi4 {
     struct flowi_common    __fl_common;
 #define flowi4_oif        __fl_common.flowic_oif
 #define flowi4_iif        __fl_common.flowic_iif
+#define flowi4_l3mdev        __fl_common.flowic_l3mdev
 #define flowi4_mark        __fl_common.flowic_mark
 #define flowi4_tos        __fl_common.flowic_tos
 #define flowi4_scope        __fl_common.flowic_scope
@@ -102,6 +103,7 @@ static inline void flowi4_init_output(struct flowi4 *fl4, int oif,
 {
     fl4->flowi4_oif = oif;
     fl4->flowi4_iif = LOOPBACK_IFINDEX;
+    fl4->flowi4_l3mdev = 0;
     fl4->flowi4_mark = mark;
     fl4->flowi4_tos = tos;
     fl4->flowi4_scope = scope;
@@ -132,6 +134,7 @@ struct flowi6 {
     struct flowi_common    __fl_common;
 #define flowi6_oif        __fl_common.flowic_oif
 #define flowi6_iif        __fl_common.flowic_iif
+#define flowi6_l3mdev        __fl_common.flowic_l3mdev
 #define flowi6_mark        __fl_common.flowic_mark
 #define flowi6_scope        __fl_common.flowic_scope
 #define flowi6_proto        __fl_common.flowic_proto
@@ -177,6 +180,7 @@ struct flowi {
     } u;
 #define flowi_oif    u.__fl_common.flowic_oif
 #define flowi_iif    u.__fl_common.flowic_iif
+#define flowi_l3mdev    u.__fl_common.flowic_l3mdev
 #define flowi_mark    u.__fl_common.flowic_mark
 #define flowi_tos    u.__fl_common.flowic_tos
 #define flowi_scope    u.__fl_common.flowic_scope
diff --git a/net/ipv4/fib_frontend.c b/net/ipv4/fib_frontend.c
index 7408051632ac..af8209f912ab 100644
--- a/net/ipv4/fib_frontend.c
+++ b/net/ipv4/fib_frontend.c
@@ -291,7 +291,7 @@ __be32 fib_compute_spec_dst(struct sk_buff *skb)
         bool vmark = in_dev && IN_DEV_SRC_VMARK(in_dev);
         struct flowi4 fl4 = {
             .flowi4_iif = LOOPBACK_IFINDEX,
-            .flowi4_oif = l3mdev_master_ifindex_rcu(dev),
+            .flowi4_l3mdev = l3mdev_master_ifindex_rcu(dev),
             .daddr = ip_hdr(skb)->saddr,
             .flowi4_tos = ip_hdr(skb)->tos & IPTOS_RT_MASK,
             .flowi4_scope = scope,
@@ -353,9 +353,8 @@ static int __fib_validate_source(struct sk_buff *skb, __be32 src, __be32 dst,
     bool dev_match;

     fl4.flowi4_oif = 0;
-    fl4.flowi4_iif = l3mdev_master_ifindex_rcu(dev);
-    if (!fl4.flowi4_iif)
-        fl4.flowi4_iif = oif ? : LOOPBACK_IFINDEX;
+    fl4.flowi4_l3mdev = l3mdev_master_ifindex_rcu(dev);
+    fl4.flowi4_iif = oif ? : LOOPBACK_IFINDEX;
     fl4.daddr = src;
     fl4.saddr = dst;
     fl4.flowi4_tos = tos;
diff --git a/net/ipv4/fib_semantics.c b/net/ipv4/fib_semantics.c
index c5a29703185a..cc8e84ef2ae4 100644
--- a/net/ipv4/fib_semantics.c
+++ b/net/ipv4/fib_semantics.c
@@ -2234,7 +2234,7 @@ void fib_select_multipath(struct fib_result *res, int hash)
 void fib_select_path(struct net *net, struct fib_result *res,
              struct flowi4 *fl4, const struct sk_buff *skb)
 {
-    if (fl4->flowi4_oif && !(fl4->flowi4_flags & FLOWI_FLAG_SKIP_NH_OIF))
+    if (fl4->flowi4_oif)
         goto check_saddr;

 #ifdef CONFIG_IP_ROUTE_MULTIPATH
diff --git a/net/ipv4/fib_trie.c b/net/ipv4/fib_trie.c
index 2af2b99e0bea..fb0e49c36c2e 100644
--- a/net/ipv4/fib_trie.c
+++ b/net/ipv4/fib_trie.c
@@ -1429,11 +1429,8 @@ bool fib_lookup_good_nhc(const struct fib_nh_common *nhc, int fib_flags,
         !(fib_flags & FIB_LOOKUP_IGNORE_LINKSTATE))
         return false;

-    if (!(flp->flowi4_flags & FLOWI_FLAG_SKIP_NH_OIF)) {
-        if (flp->flowi4_oif &&
-            flp->flowi4_oif != nhc->nhc_oif)
-            return false;
-    }
+    if (flp->flowi4_oif && flp->flowi4_oif != nhc->nhc_oif)
+        return false;

     return true;
 }

ipv4: fix source address selection with route leak

　　By default, an address assigned to the output interface is selected when the source address is not specified.

This is problematic when a route, configured in a vrf, uses an interface from another vrf (aka route leak).

The original vrf does not own the selected source address.

Let's add a check against the output interface and call the appropriate function to select the source address.

diff --git a/net/ipv4/fib_semantics.c b/net/ipv4/fib_semantics.c
index f669da98d11d8f..8956026bc0a2c3 100644
--- a/net/ipv4/fib_semantics.c
+++ b/net/ipv4/fib_semantics.c

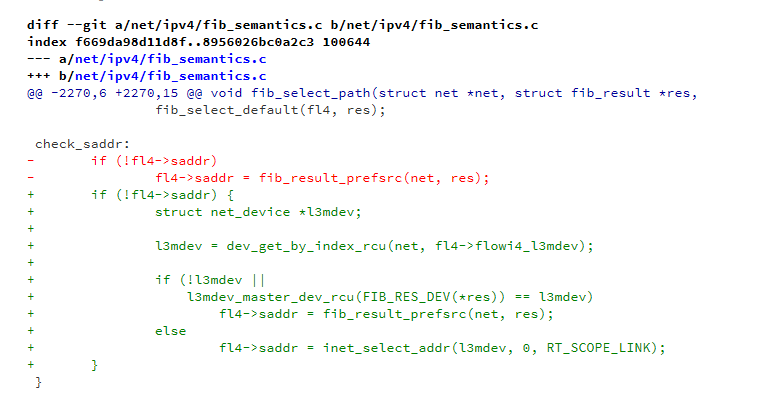

@@ -2270,6 +2270,15 @@ void fib_select_path(struct net *net, struct fib_result *res,
         fib_select_default(fl4, res);

 check_saddr:
-    if (!fl4->saddr)
-        fl4->saddr = fib_result_prefsrc(net, res);
+    if (!fl4->saddr) {
+        struct net_device *l3mdev;
+
+        l3mdev = dev_get_by_index_rcu(net, fl4->flowi4_l3mdev);
+
+        if (!l3mdev ||
+            l3mdev_master_dev_rcu(FIB_RES_DEV(*res)) == l3mdev)
+            fl4->saddr = fib_result_prefsrc(net, res);
+        else
+            fl4->saddr = inet_select_addr(l3mdev, 0, RT_SCOPE_LINK);
+    }
 }
