CentOS 7 elasticsearch-6.5.3 cluster

环境准备
系统版本：CentOS Linux release 7.5.1804 (Core)

服务器IP

172.16.88.23 node3
172.16.88.24 node4
172.16.88.25 node5

角色分配

node3(es-master elasticsearch-head kibana)
node4(es-slave)
node5(es-slave)

关闭防火墙

关闭防火墙
# systemctl stop firewalld
# systemctl disable firewalld
检查selinux的状态
# getenforce （Disabled状态）
如果状态不对，请修改配置文件
# vim /etc/selinux/config

系统参数配置

新增用户es,用于启动
# useradd es
设置vm.max_map_count的大小
# vim /etc/sysctl.conf
vm.max_map_count=655360
设置ulimit的大小
# vim /etc/security/limits.conf
* hard nofile 65536
* soft nofile 65536
es hard nofile 65536
es soft nofile 65536
安装java的JDK（直接下载rpm安装）
下载地址：
https://www.oracle.com/technetwork/java/javase/downloads/jdk8-downloads-2133151.html
安装完成后重启服务器

配置elasticsearch

上传下载好的资料到服务器node3
elasticsearch下载地址：
https://www.elastic.co/cn/downloads
Search Guard插件下载地址：
https://docs.search-guard.com/latest/search-guard-versions
在线证书生成地址(用于测试实验)：
TLS Certificate Generator

离线证书下载地址：
https://repo1.maven.org/maven2/com/floragunn/search-guard-tlstool/1.6/
创建软件目录elk
# mkdir -p /data/elk
上传需要使用的软件，软件详情
elasticsearch-6.5.3.tar.gz
logstash-6.5.3.tar.gz
search-guard-kibana-plugin-6.5.3-18.zip
kibana-6.5.3-linux-x86_64.tar.gz
search-guard-6-6.5.3-24.1.zip
search-guard-tlstool-1.6.tar.gz

进入elasticsearch的bin目录
# /data/elk/elasticsearch-6.5.3/bin
安装search-guard插件(离线安装方式)
# ./elasticsearch-plugin  install file:///data/elk/search-guard-6-6.5.3-24.1.zip

创建tls目录，解压tlstool工具
# cd /data/elk && mkdir tls
# tar xf search-guard-tlstool-1.6.tar.gz -C tls
解压后有三个子目录
config  配置文件目录，工具可以根据配置文件模板为你生成证书
dep     工具所依赖的jar包
tools   生成证书的脚本

在config目录example.yml生成模板
# cp example.yml node3.yml
修改node3.yml的配置内容
node配置说明
node-01 node-02 node-03 可以对应ES集群中的node节点名称
dns: 此项注意后面会用上。
ip 与es集群ip对应

client配置
上面的配置是client端证书生成用于client端访问es用的
xxx 替换成公司域名 xxx.com baidu.com xxx即 baidu

node3的配置内容，仅供参考
ca:
   root:
      dn: CN=root.ca.test.com,OU=CA,O=test Com\, Inc.,DC=test,DC=com
      keysize: 2048
      validityDays: 3650
      pkPassword: auto
      file: root-ca.pem
   intermediate:
      dn: CN=signing.ca.test.com,OU=CA,O=test Com\, Inc.,DC=test,DC=com
      keysize: 2048
      validityDays: 3650
      pkPassword: auto
      crlDistributionPoints: URI:https://raw.githubusercontent.com/floragunncom/unittest-assets/master/revoked.crl
defaults:
      validityDays: 3650
      pkPassword: auto
      generatedPasswordLength: 12
      httpsEnabled: true
nodes:
  - name: node3
    dn: CN=node3.test.com,OU=Ops,O=test Com\, Inc.,DC=test,DC=com
    dns: node3.test.com
    ip: 172.16.88.23
  - name: node4
    dn: CN=node4.test.com,OU=Ops,O=test Com\, Inc.,DC=test,DC=com
    dns: node4.example.com
    ip: 172.16.88.24
  - name: node5
    dn: CN=node5.test.com,OU=Ops,O=test Com\, Inc.,DC=test,DC=com
    dns: node5.test.com
    ip: 172.16.88.25
clients:
  - name: kibana
    dn: CN=kibana.test.com,OU=Ops,O=test Com\, Inc.,DC=test,DC=com
    admin: true

证书生成，进入tools目录
# chmod +x sgtlstool.sh
# ./sgtlstool.sh -c ../config/node3.yml  -ca -crt
证书在tools目录的out目录下
根证书：
root-ca.key
root-ca.pem
root-ca.readme
signing-ca.key
signing-ca.pem
节点证书(每个节点五个文件)：
node3_elasticsearch_config_snippet.yml
node3_http.key
node3_http.pem
node3.key
node3.pem
客户端证书：
client-certificates.readme
kibana.key
kibana.pem

拷贝证书到elasticsearch软件的config目录，并重命名
# mv out /data/elk/elasticsearch-6.5.3/config/key
拷贝证书到elasticsearch-6.5.3/plugins/search-guard-6/tools
#

配置elasticsearch.yml
# cp elasticsearch.yml elasticsearch.yml.bak
node3节点的配置详情
cluster.name: es-cluster
node.name: node-03
node.master: true
node.data: true
bootstrap.memory_lock: false
bootstrap.system_call_filter: false
network.host: 172.16.88.23
http.port: 9200
discovery.zen.ping.unicast.hosts: ["172.16.88.23"]
http.cors.enabled: true
http.cors.allow-origin: "*"
http.cors.allow-headers: "Authorization,X-Requested-With,Content-Length,Content-Type"
xpack.security.enabled: false
searchguard.ssl.transport.pemcert_filepath: key/node3.pem
searchguard.ssl.transport.pemkey_filepath: key/node3.key
searchguard.ssl.transport.pemkey_password: bSOZ14quf2SA
searchguard.ssl.transport.pemtrustedcas_filepath: key/root-ca.pem
searchguard.ssl.transport.enforce_hostname_verification: false
searchguard.ssl.transport.resolve_hostname: false
searchguard.ssl.http.enabled: true
searchguard.ssl.http.pemcert_filepath: key/node3_http.pem
searchguard.ssl.http.pemkey_filepath: key/node3_http.key
searchguard.ssl.http.pemkey_password: SkE65ES8DXjb
searchguard.ssl.http.pemtrustedcas_filepath: key/root-ca.pem
searchguard.nodes_dn:
- CN=node3.test.com,OU=Ops,O=test Com\, Inc.,DC=test,DC=com
- CN=node4.test.com,OU=Ops,O=test Com\, Inc.,DC=test,DC=com
- CN=node5.test.com,OU=Ops,O=test Com\, Inc.,DC=test,DC=com
searchguard.authcz.admin_dn:
- CN=kibana.test.com,OU=Ops,O=test Com\, Inc.,DC=test,DC=com
searchguard.audit.type: internal_elasticsearch
searchguard.enable_snapshot_restore_privilege: true
searchguard.check_snapshot_restore_write_privileges: true
searchguard.restapi.roles_enabled: ["sg_all_access"]
cluster.routing.allocation.disk.threshold_enabled: false
node.max_local_storage_nodes: 3

node4和node5配置根据实际情况做更改

启动elasticsearch
# chown -R es:es  /data/elk
# su es
# cd /data/elk/elasticsearch-6.5.3
# ./bin/elasticsearch -d &

无异常和报错后，激活searchguard
# cd /data/elk/elasticsearch-6.5.3/plugins/search-guard-6/tools
# chmod +x  *.sh
# ./sgadmin.sh -h 172.16.88.23 -p 9300 -cacert root-ca.pem -cert kibana.pem -key kibana.key -keypass SPatLfgHUEtj -nhnv -icl -cd ../sgconfig

在浏览器访问node3节点https://172.16.88.23:9200
输入默认账号密码admin  admin,出现如下显示
{
  "name" : "node-03",
  "cluster_name" : "es-cluster",
  "cluster_uuid" : "7zCfP2hWQXOmzsorCC9CJw",
  "version" : {
    "number" : "6.5.3",
    "build_flavor" : "default",
    "build_type" : "tar",
    "build_hash" : "159a78a",
    "build_date" : "2018-12-06T20:11:28.826501Z",
    "build_snapshot" : false,
    "lucene_version" : "7.5.0",
    "minimum_wire_compatibility_version" : "5.6.0",
    "minimum_index_compatibility_version" : "5.0.0"
  },
  "tagline" : "You Know, for Search"
}
elasticsearch配置完成

配置elasticsearch-head

安装软件依赖包
# yum install -y git bzip2 nmp nodejs
#cd /data/elk
# git clone https://github.com/mobz/elasticsearch-head.git

安装grunt
# cd elasticsearch-head
# npm install -g grunt --registry=https://registry.npm.taobao.org
# npm install

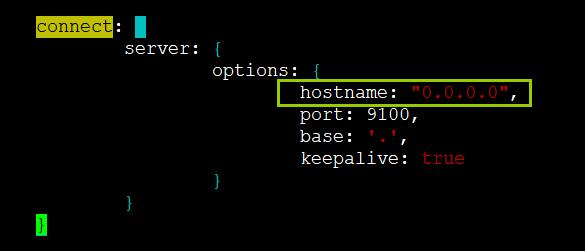

修改配置 elasticsearch-head下Gruntfile.js文件

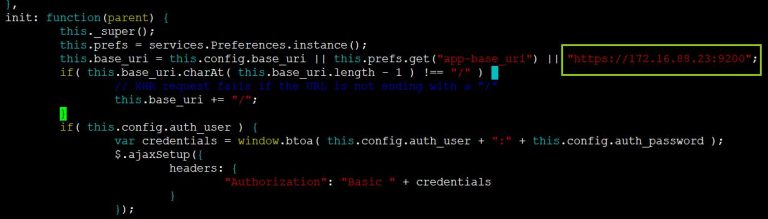

修改 _site/app.js 修改http://localhost:9200字段到本机ES端口与IP

启动head插件服务
需要检查elasticsearch.yml 是否支持跨域，没有需要添加后重启
是否支持跨域
http.cors.enabled: true
*表示支持所有域名
http.cors.allow-origin: "*"

# /data/elk/elasticsearch-head/node_modules/grunt/bin/grunt  server &
在浏览器上面访问
http://172.16.88.23:9100/?base_uri=https://172.16.88.23:9200&auth_user=admin&auth_password=admin
能正常看到集群的连接信息

kibana配置

先到软件的bin目录，安装search-guard插件
# cd /data/elk/kibana-6.5.3-linux-x86_64/bin
# ./kibana-plugin  install file:///data/elk/search-guard-kibana-plugin-6.5.3-18.zip
安装完成后，配置config目录的kibana.yml
参考配置如下
server.port: 5601
server.host: "0.0.0.0"
elasticsearch.url: "https://172.16.88.23:9200"
elasticsearch.username: "admin"
elasticsearch.password: "admin"
elasticsearch.ssl.verificationMode: none
elasticsearch.requestHeadersWhitelist: [ "Authorization", "sgtenant" ]
xpack.monitoring.enabled: false
xpack.graph.enabled: false
xpack.ml.enabled: false
xpack.watcher.enabled: false
xpack.security.enabled: false

启动程序
# /data/elk/kibana-6.5.3-linux-x86_64/bin/kibana &
浏览器访问（输入账号密码admin）
http://172.16.88.23:5601
