开关电源驱动电路影响因素设计

2025-12-09 16:02  斑鸠，一生。  阅读(3)  评论(0)    收藏  举报

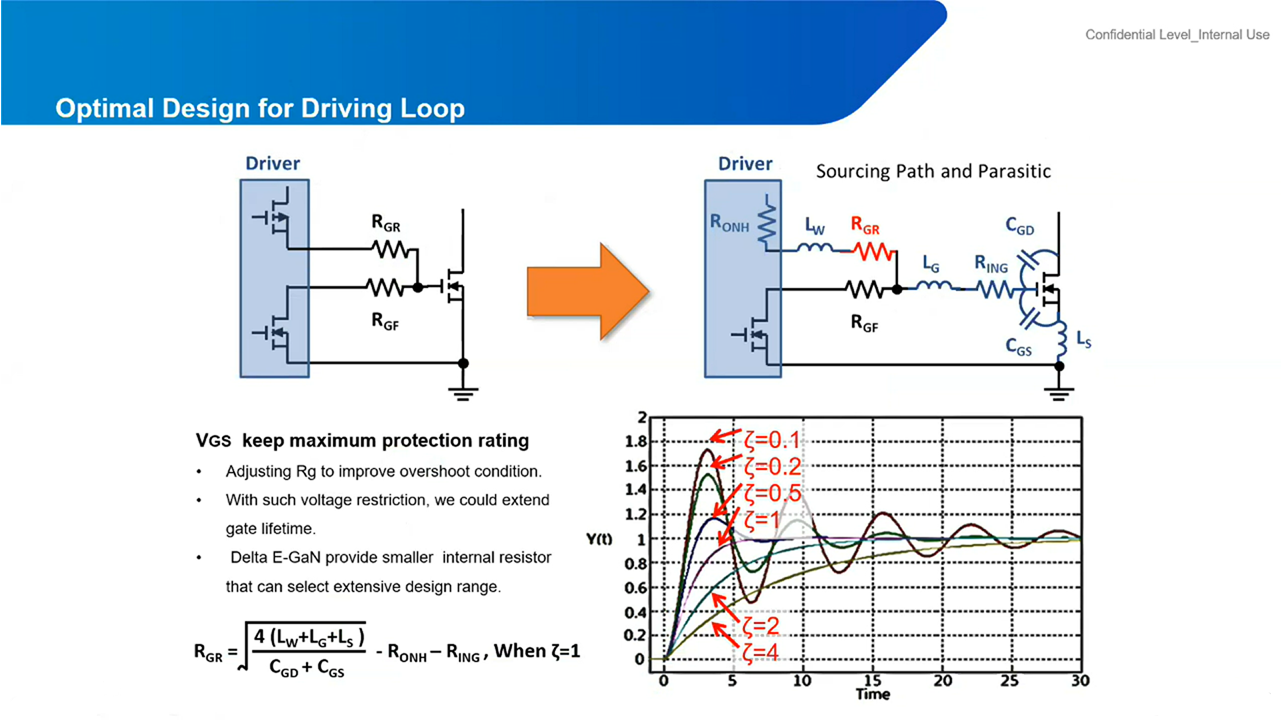

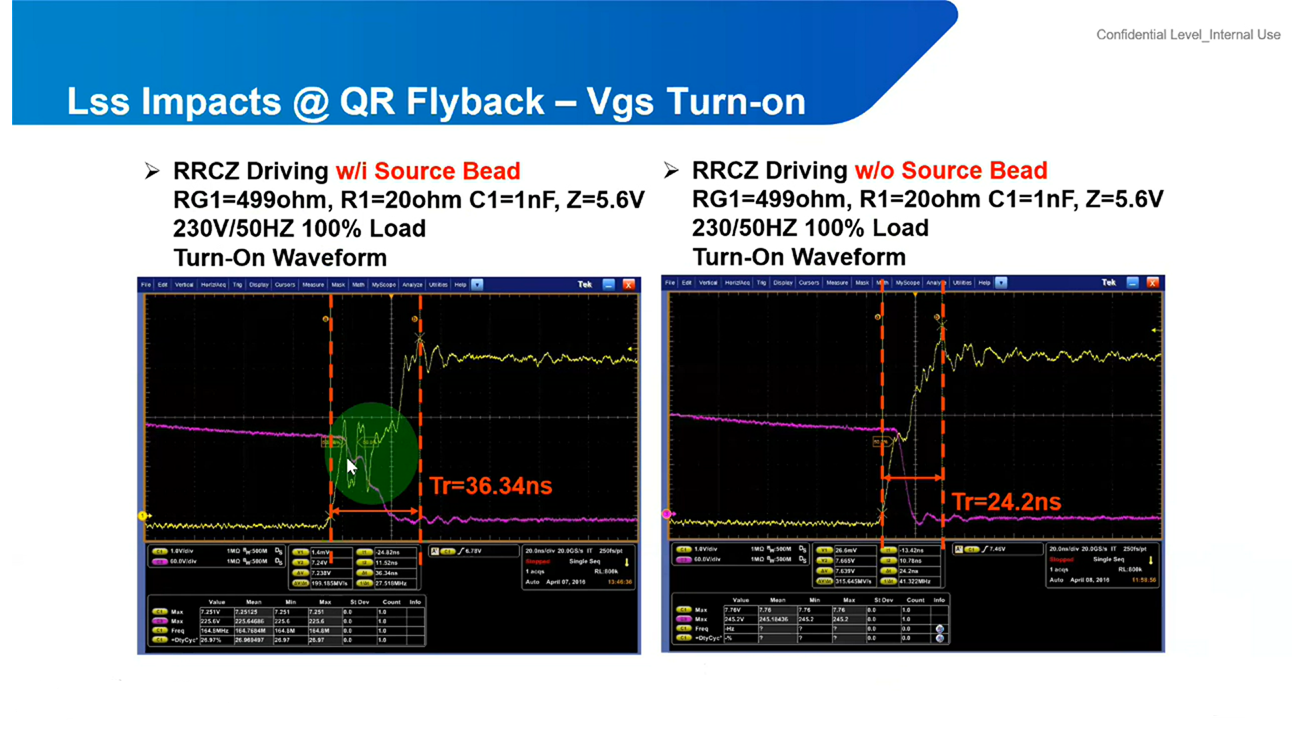

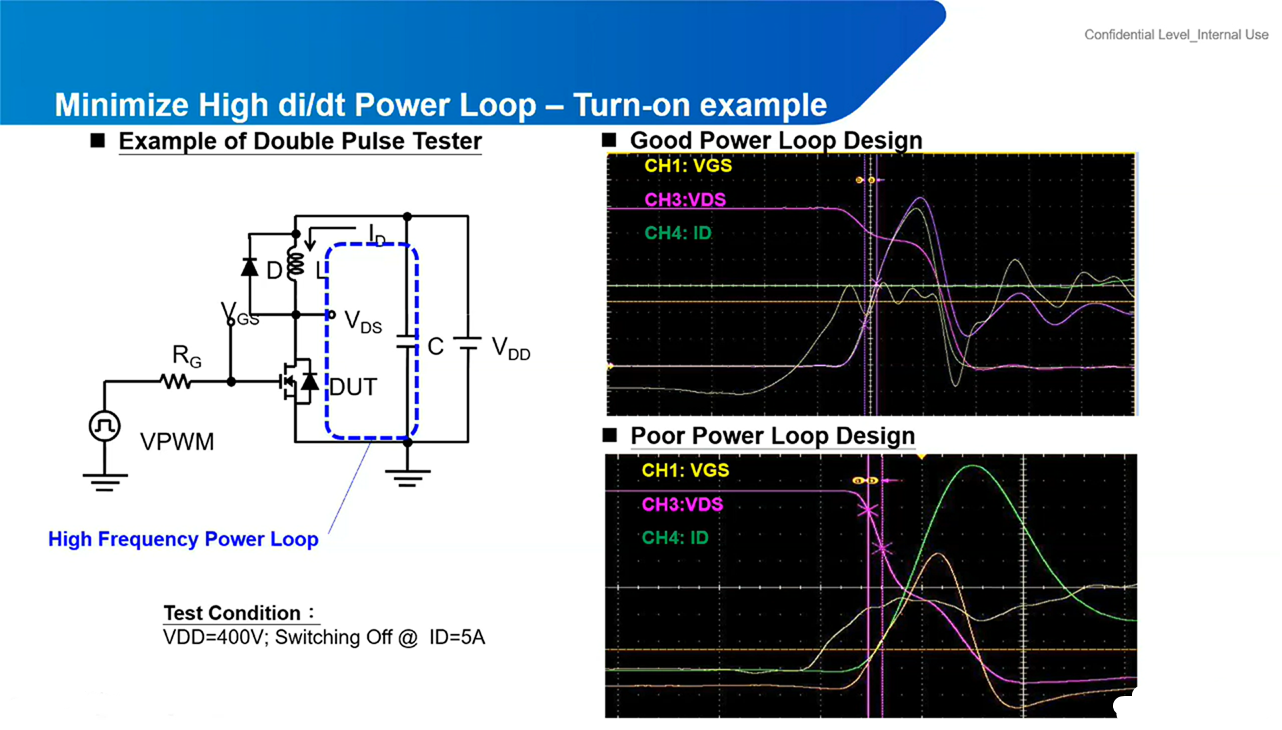

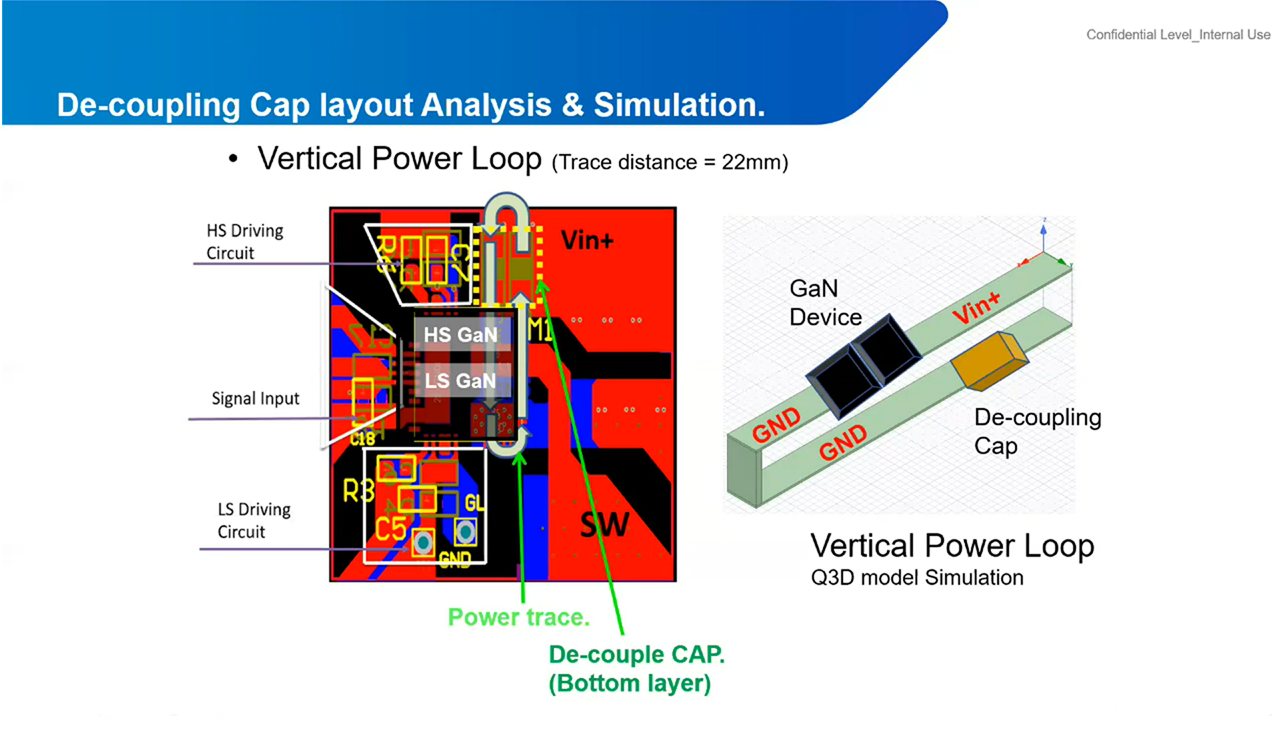

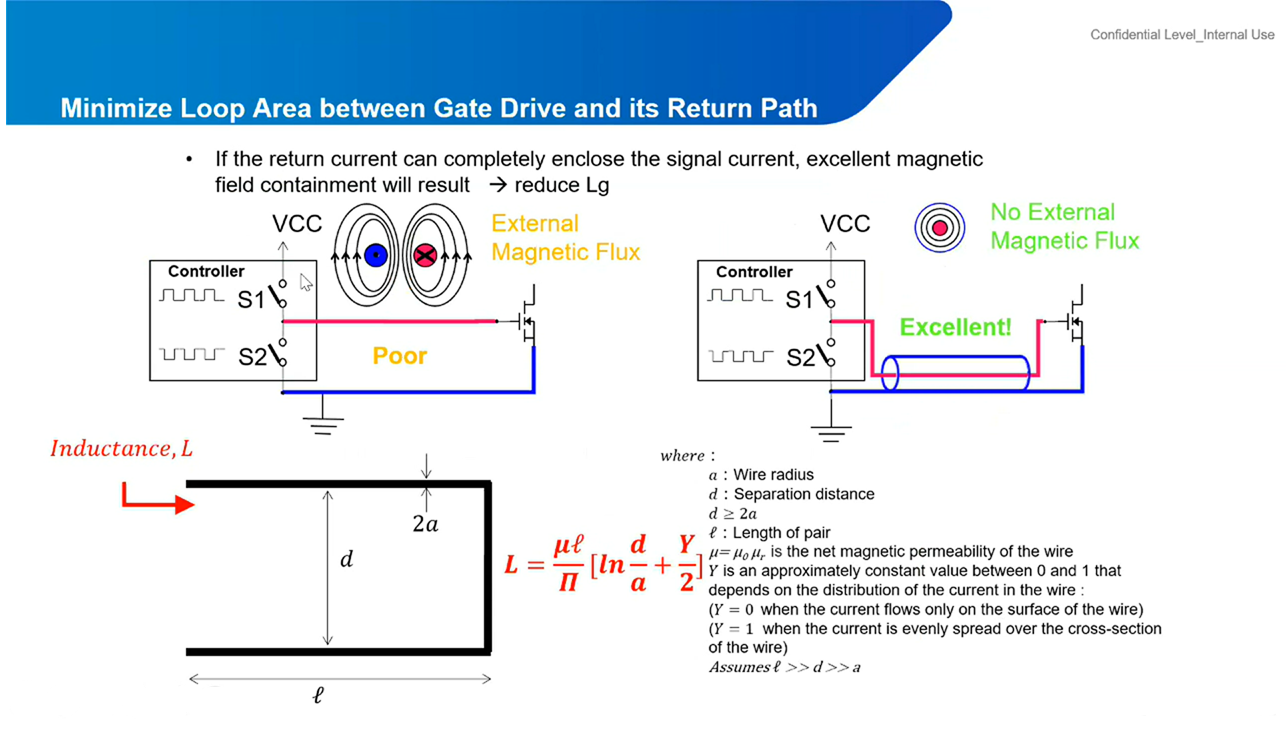

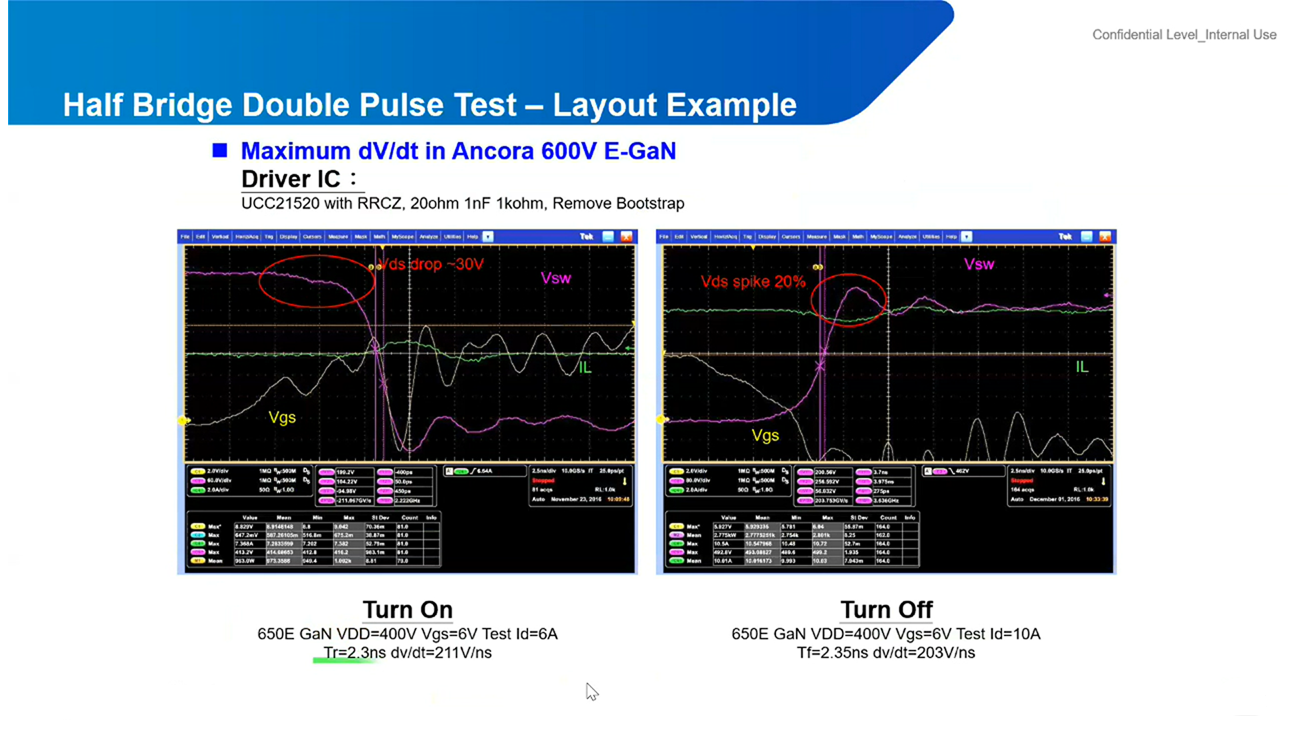

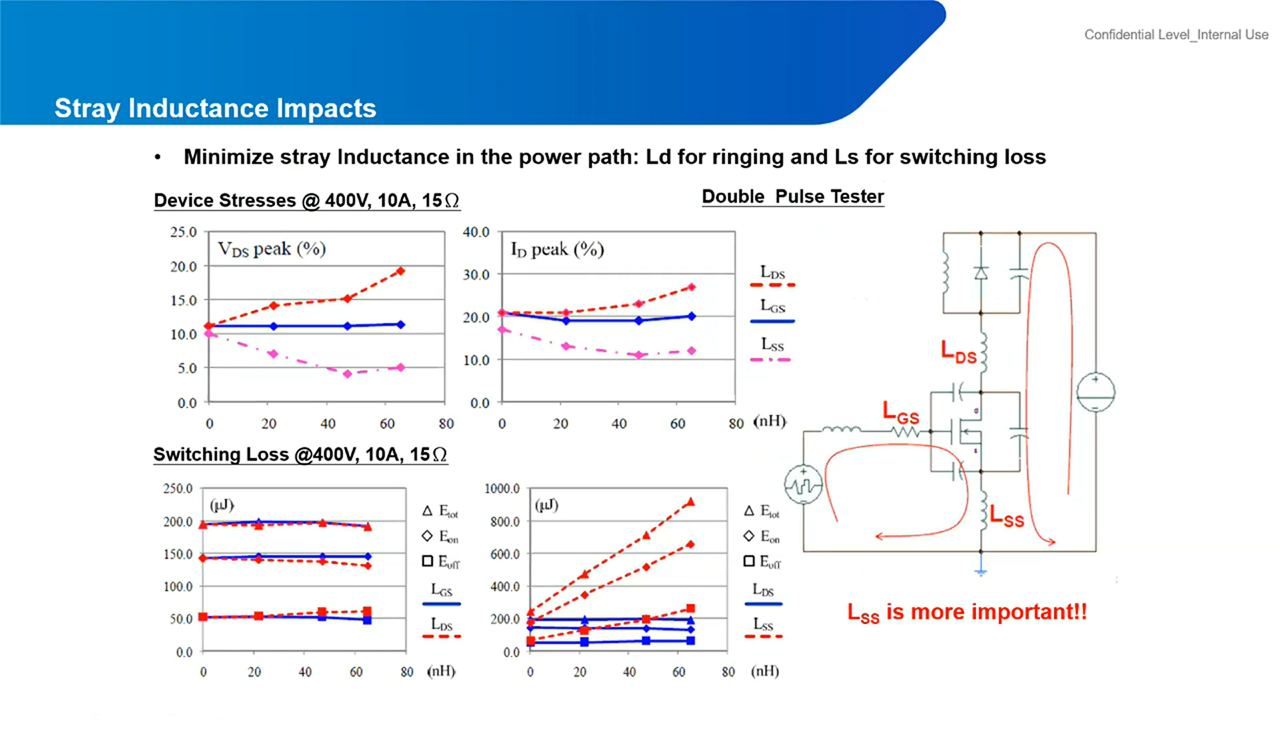

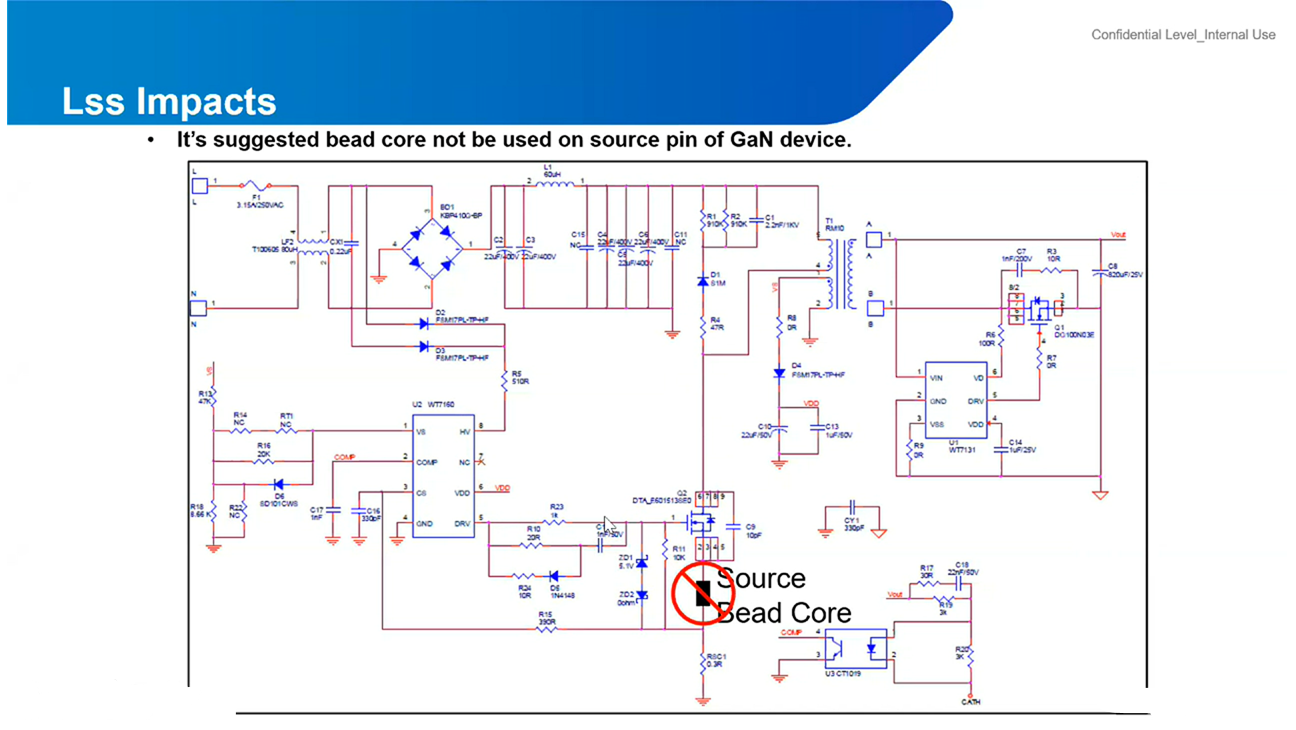

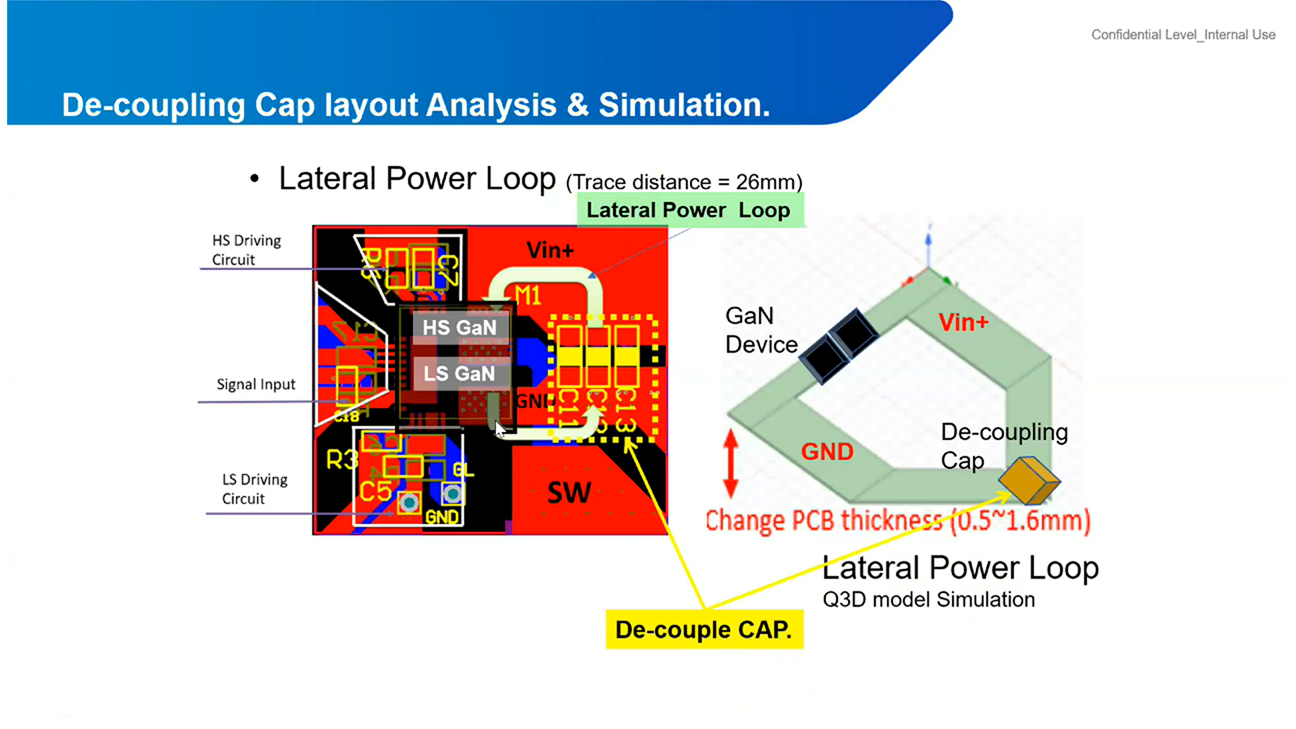

一、开关管寄生电感

ce11c6897b221468d909f7685cf297bf

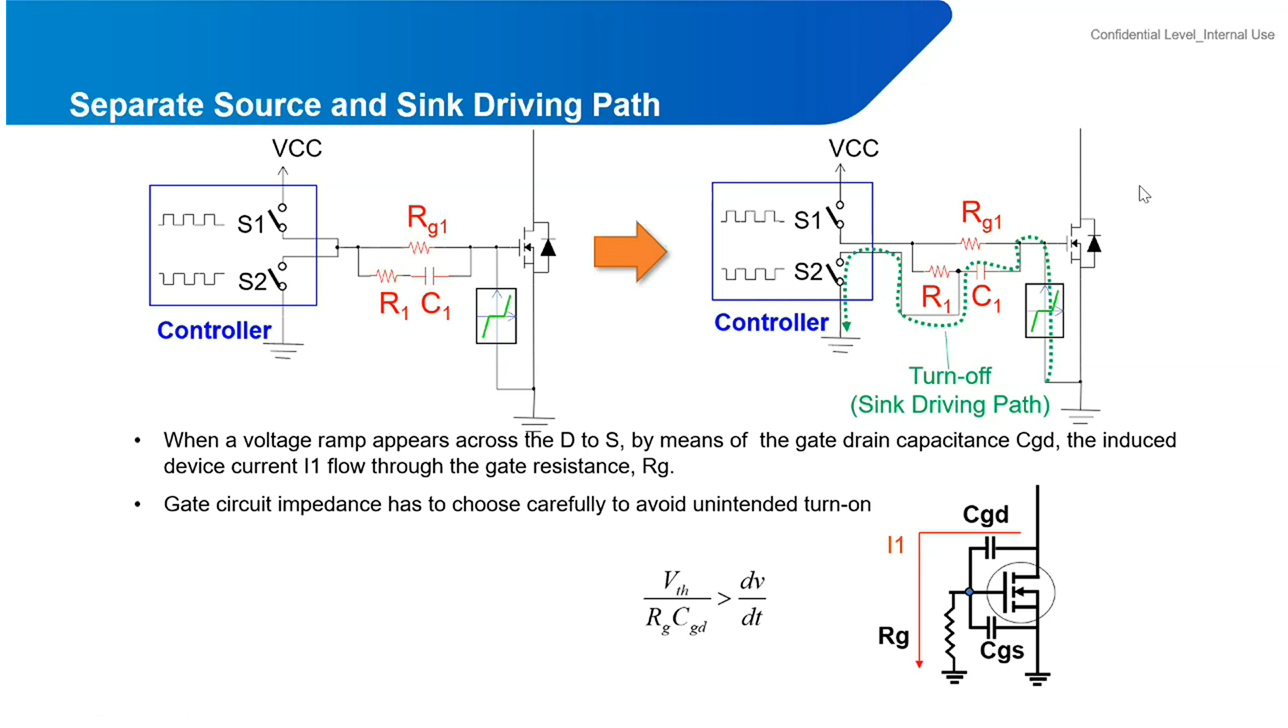

36b32d6006c36e3e50cb53d1e8059412
c956e528d05928bcdd18c2e44f993d9b

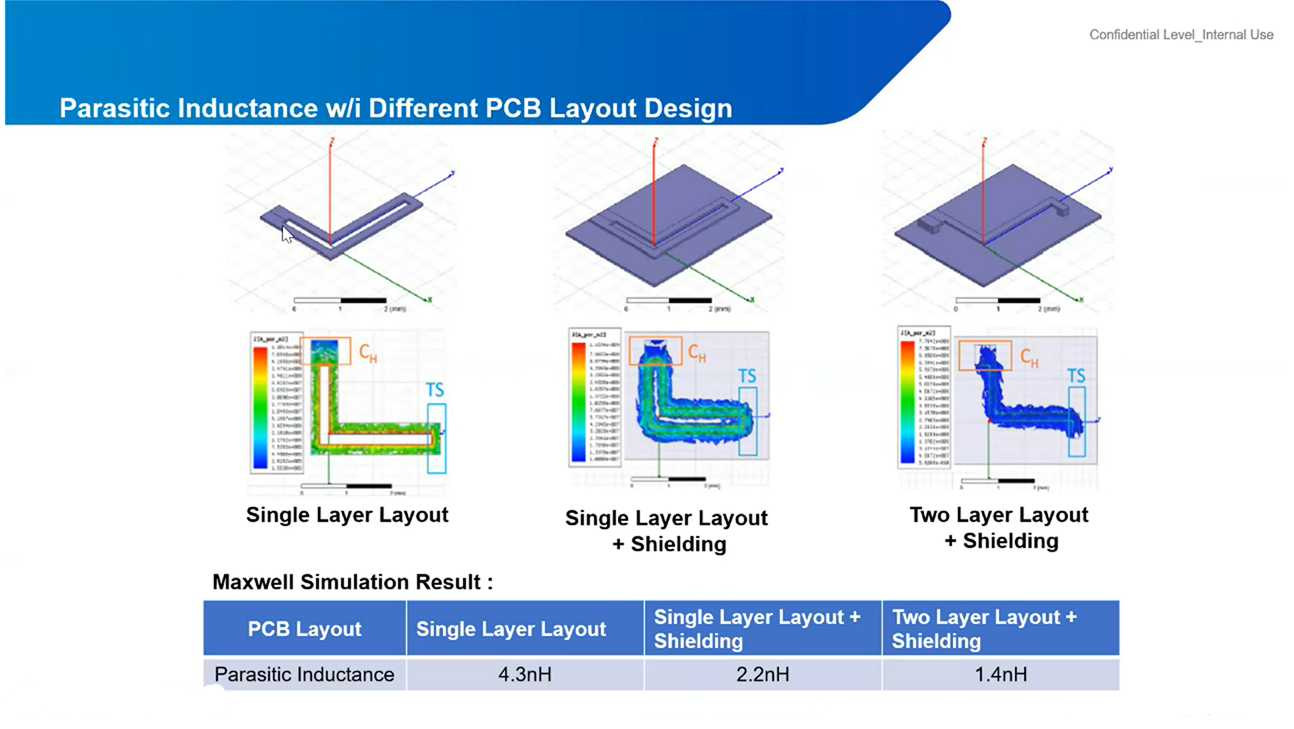

c2c947bb1f3c0853e3c2224e639e4e78
3e40af88a6f953686853a8b255057c72
b5c2e26e4ed386a04f4fa508e8d7ab5f

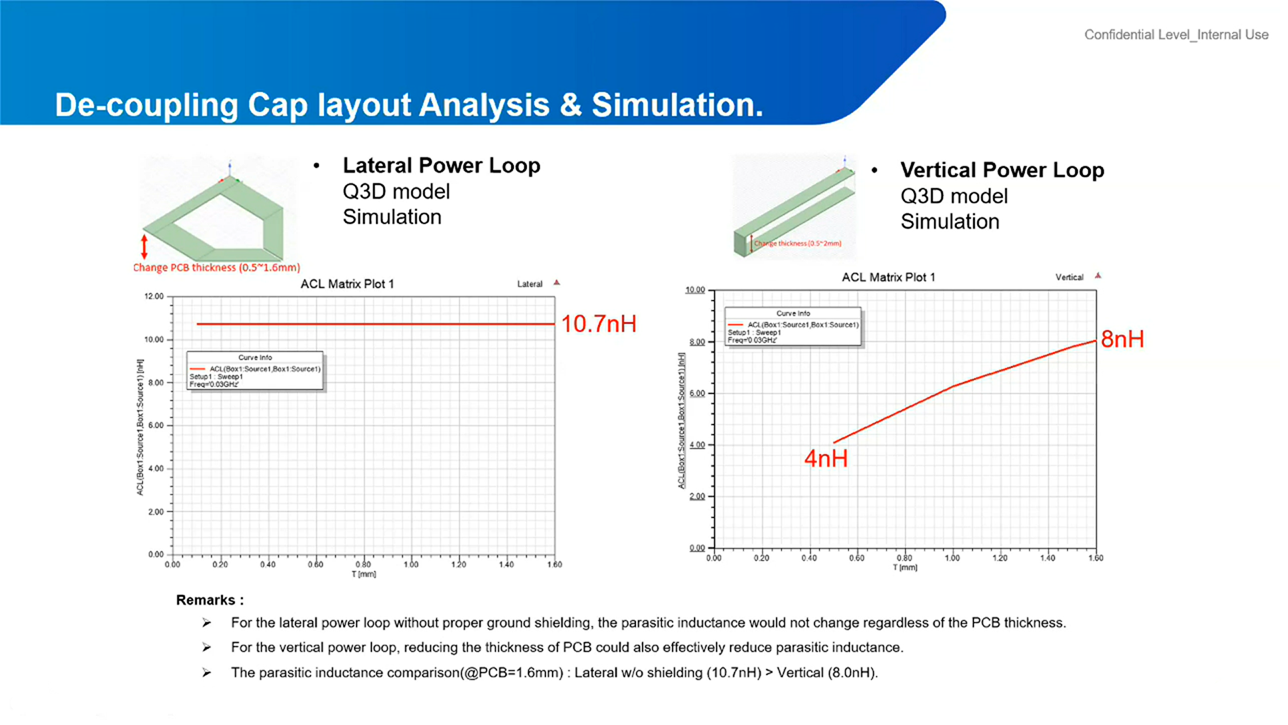

55966ec865b0f194b68bc4f04d38e777

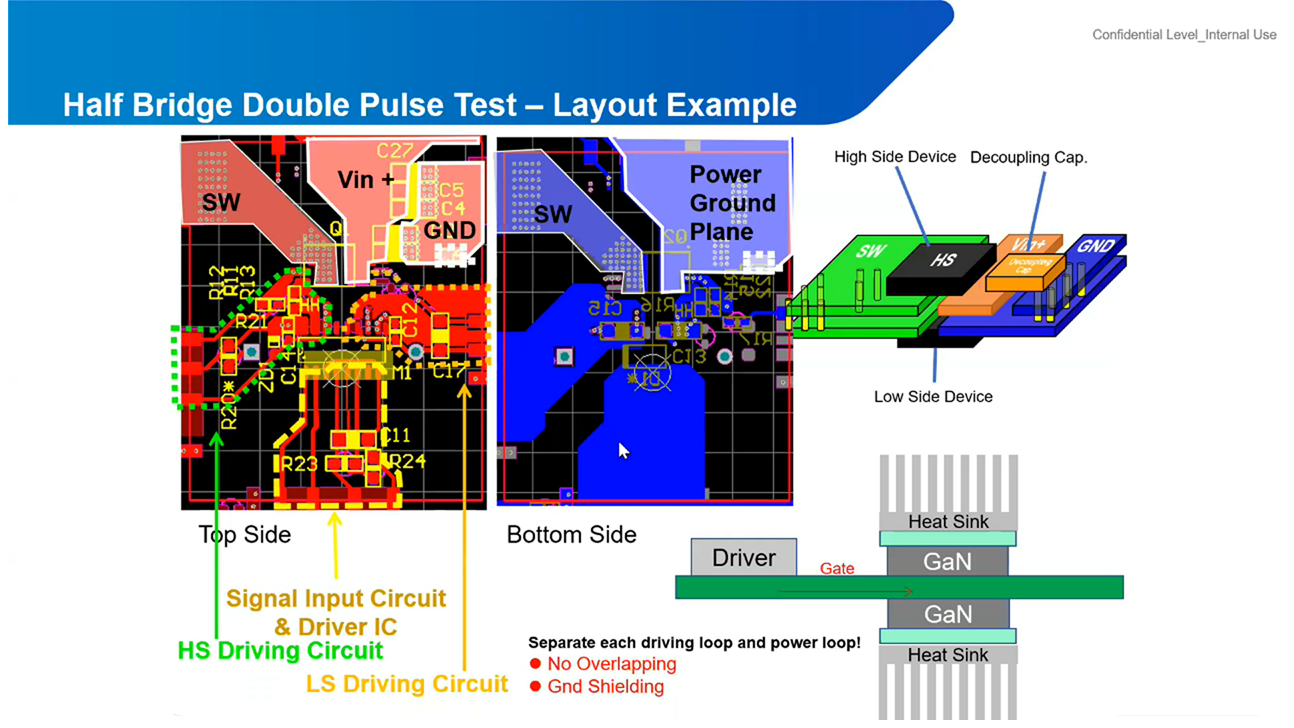

8404852a3a27a27c2350951b8e8a6a96
b022c3e621076ae45cce6f98ef1b0f04
ba316f1eec2b97f8917bdfe980e1394d
1b209a8d66e5943e962b2748275dcd3f
64bb5a4c03e326f3affe3261eec072f9

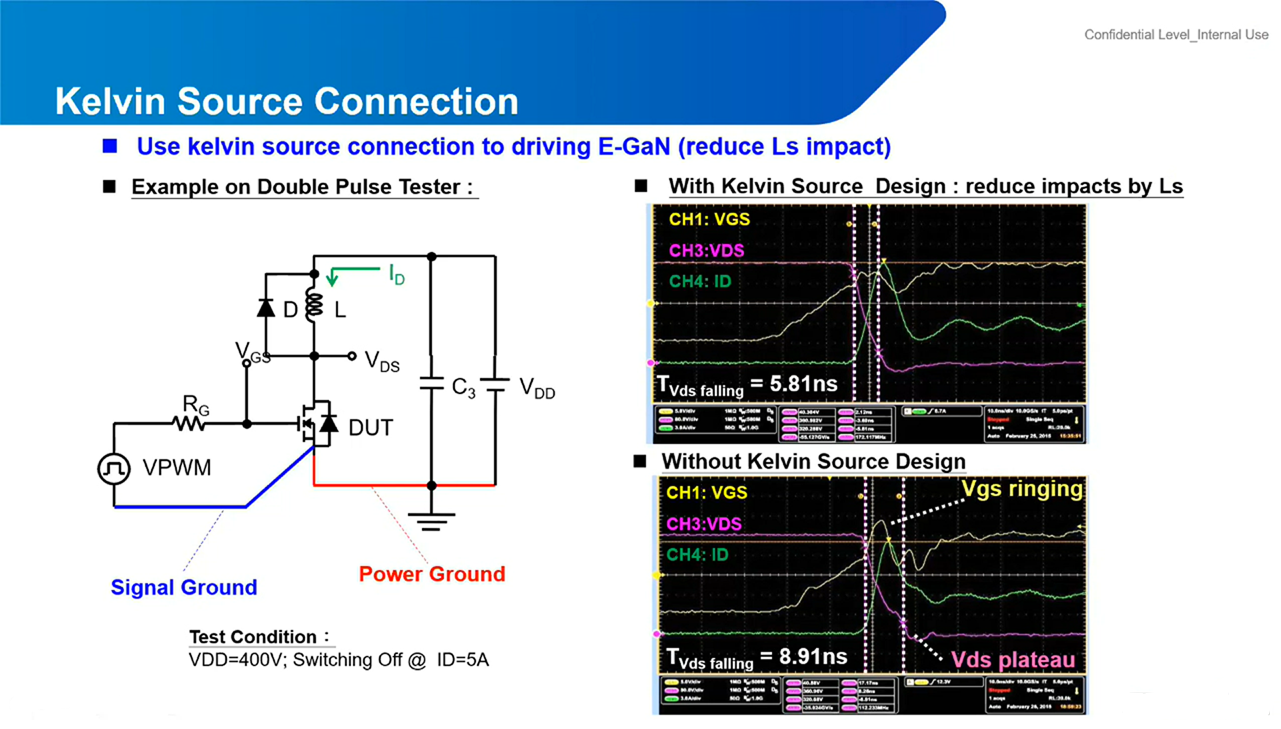

1197e8c8c99463a67f2a588c645fcddd
43b6773d17236983ada3f2a05ece2124
393ae92a6304096e70036be5529f8eb9

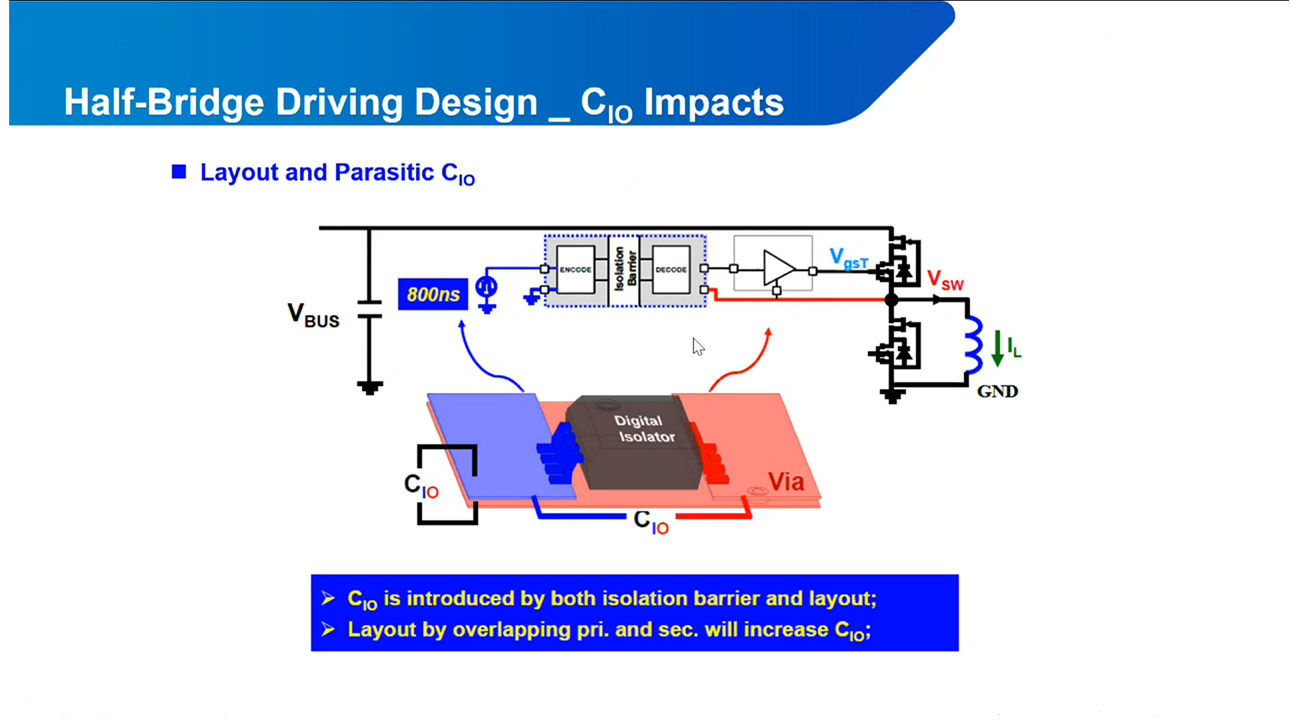

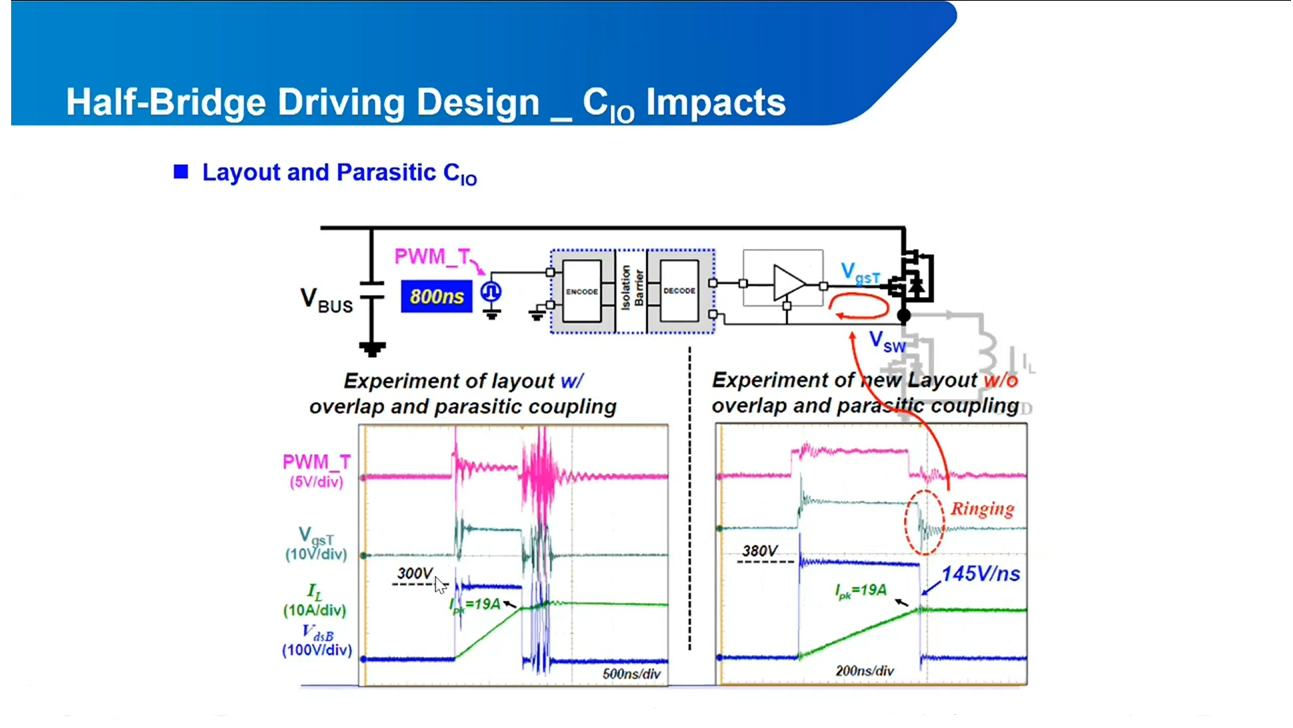

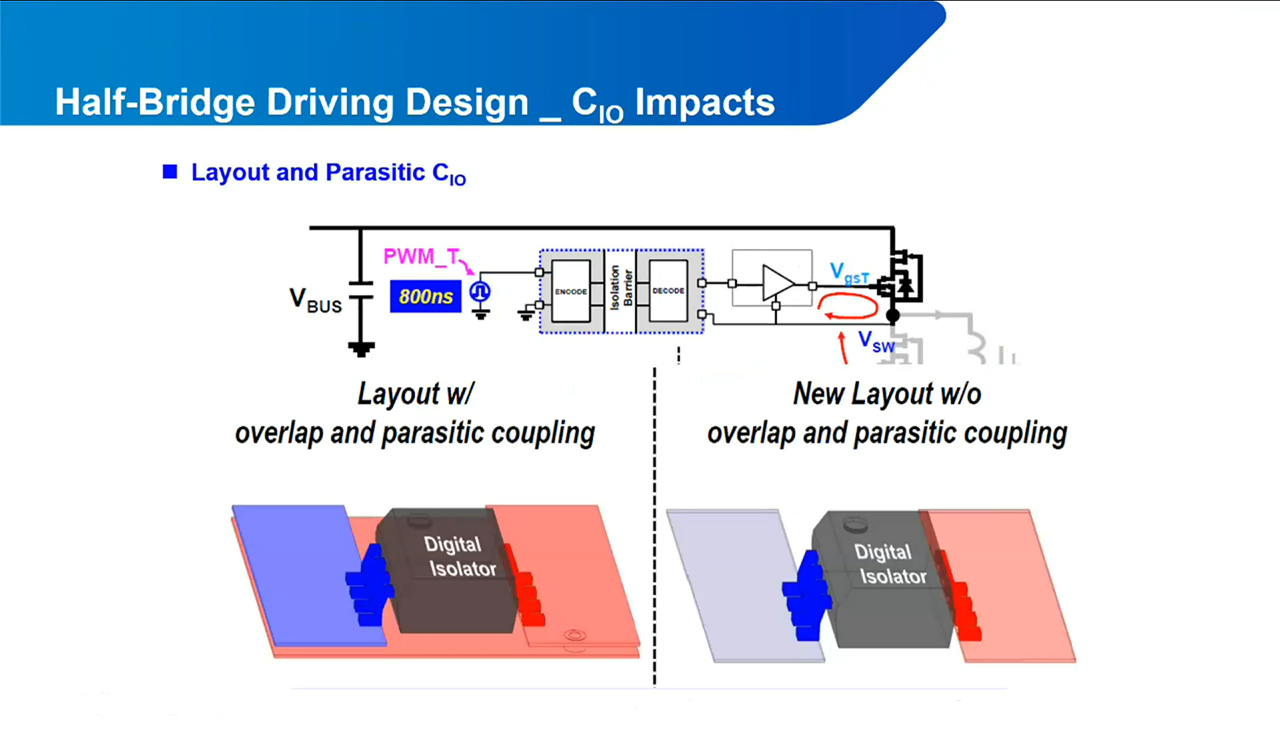

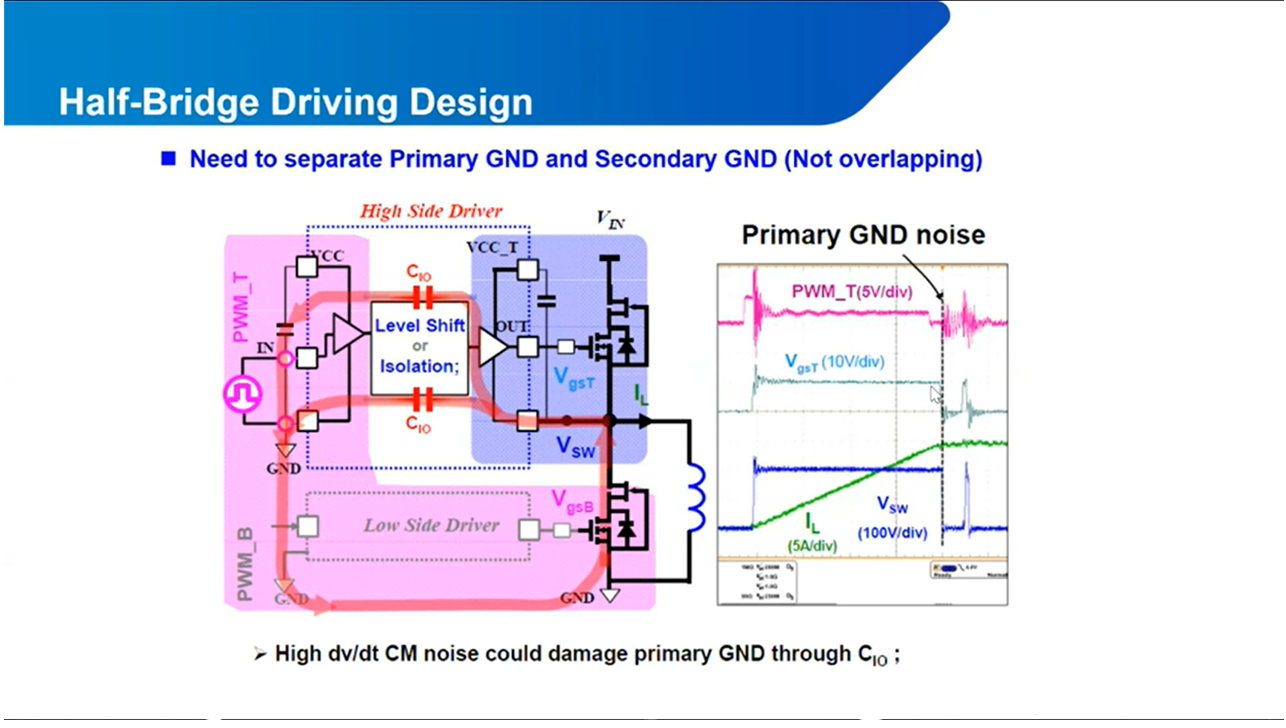

二、Cio 对驱动的影响

2d8322f5c2e21f2fc742d32d01553526
8d92e31ca6765573e93a9a784f0fd07d
4d3b3dbff3122c79d8c8c4c7373bc69f
990abaf420cac2b2f3a934666af0387a

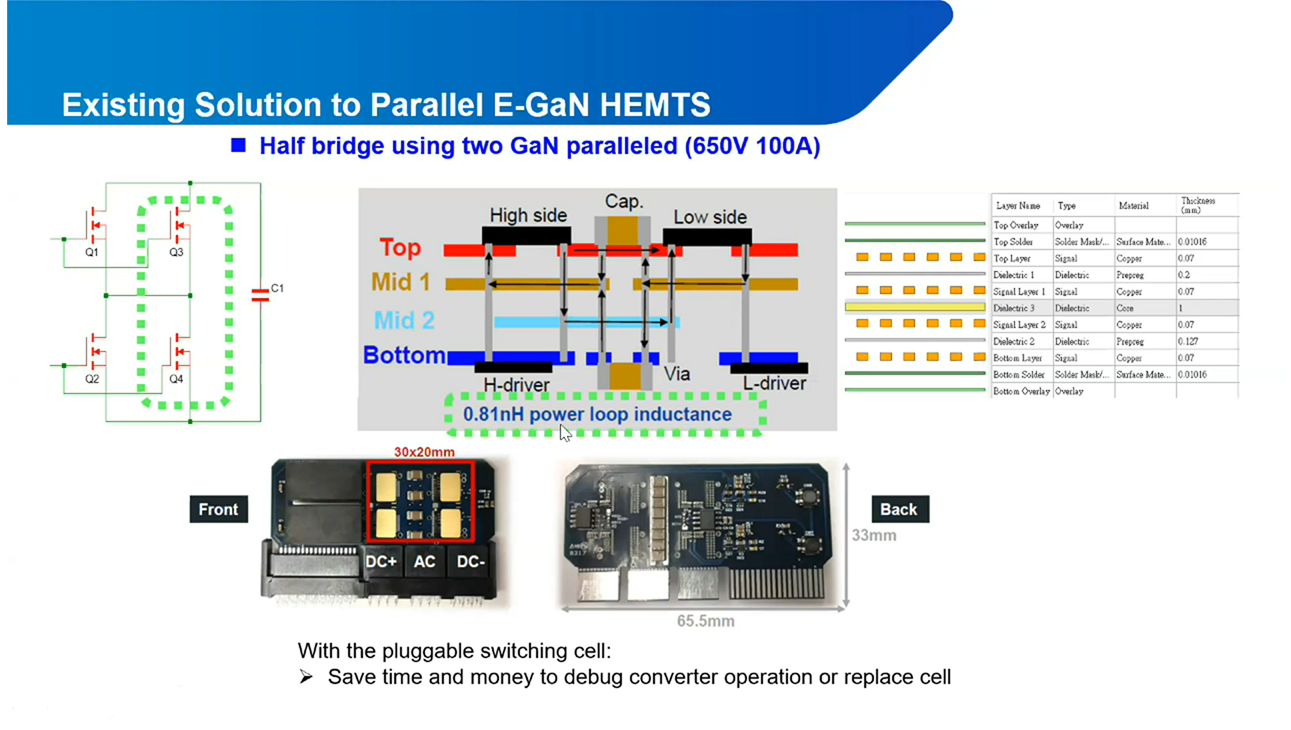

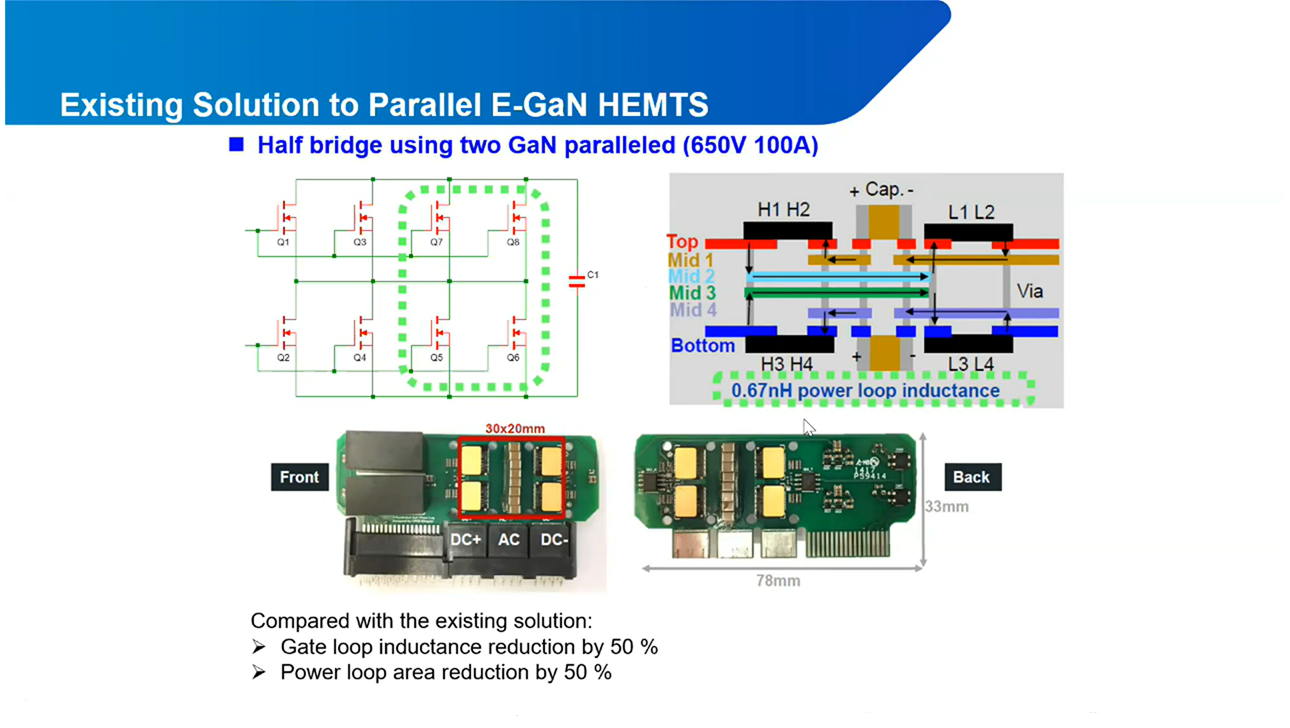

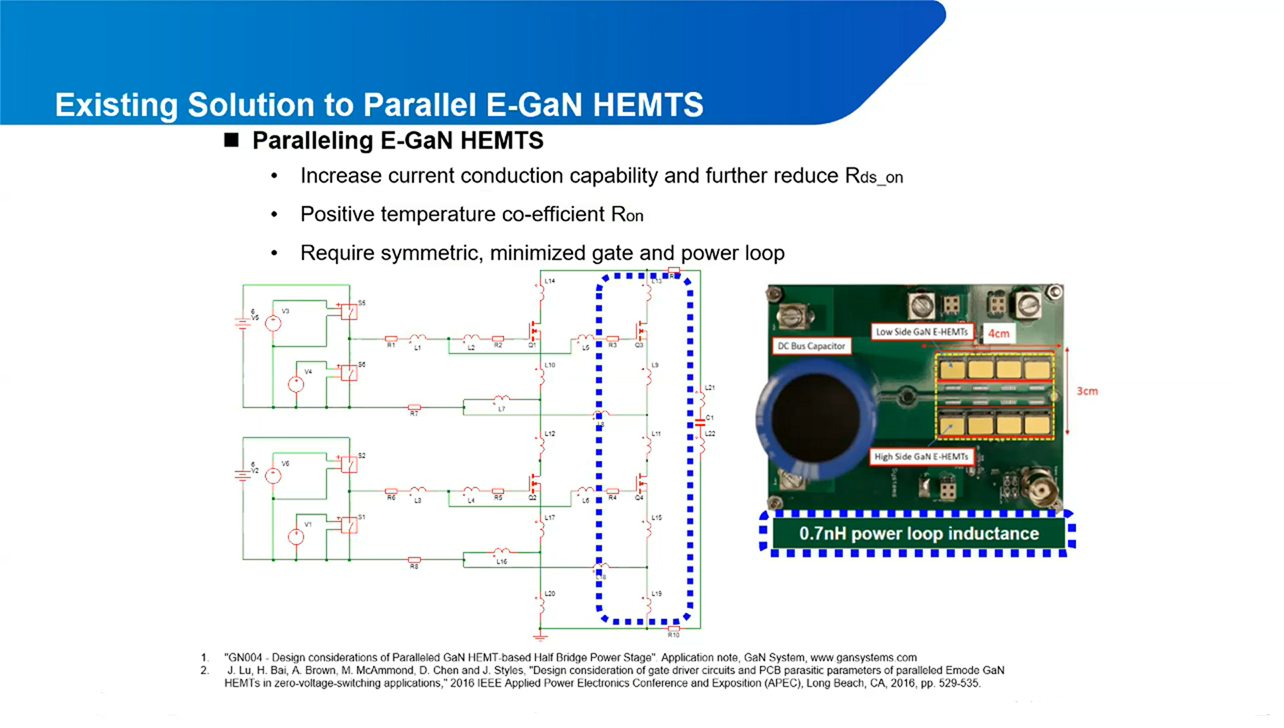

三、并联均流驱动

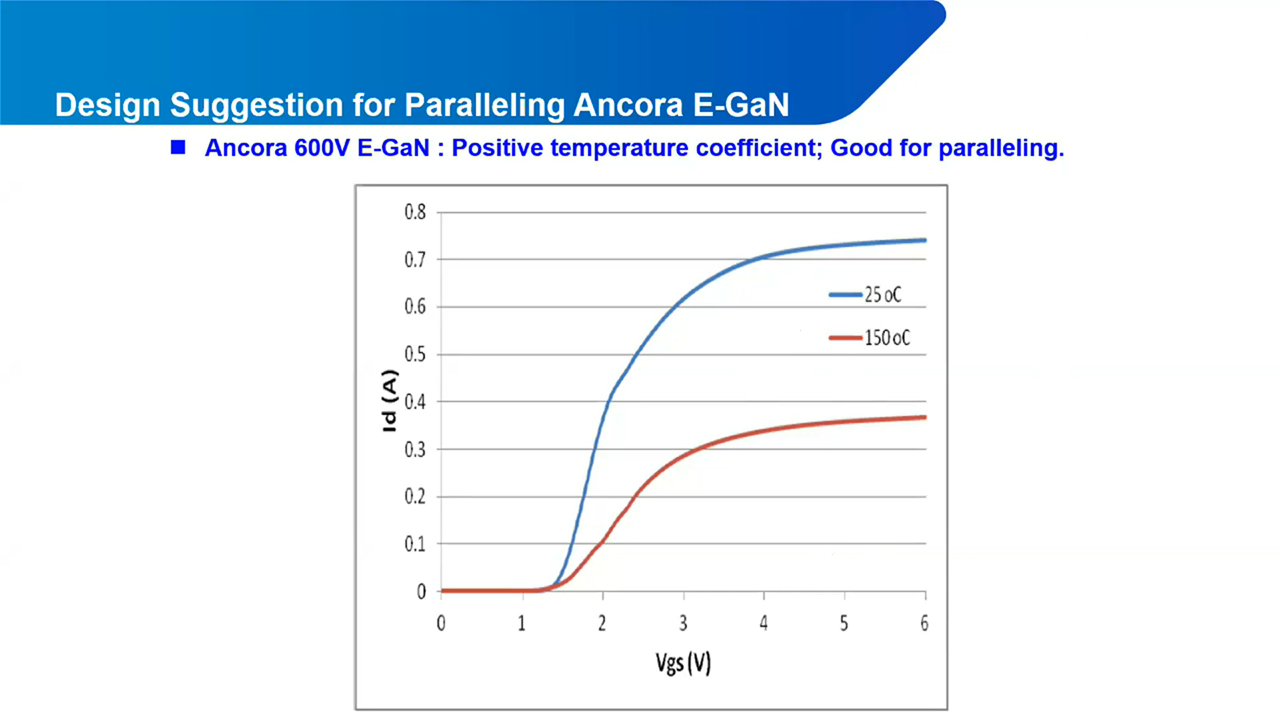

7093e84aed83101fe6d27c5c587f0eff

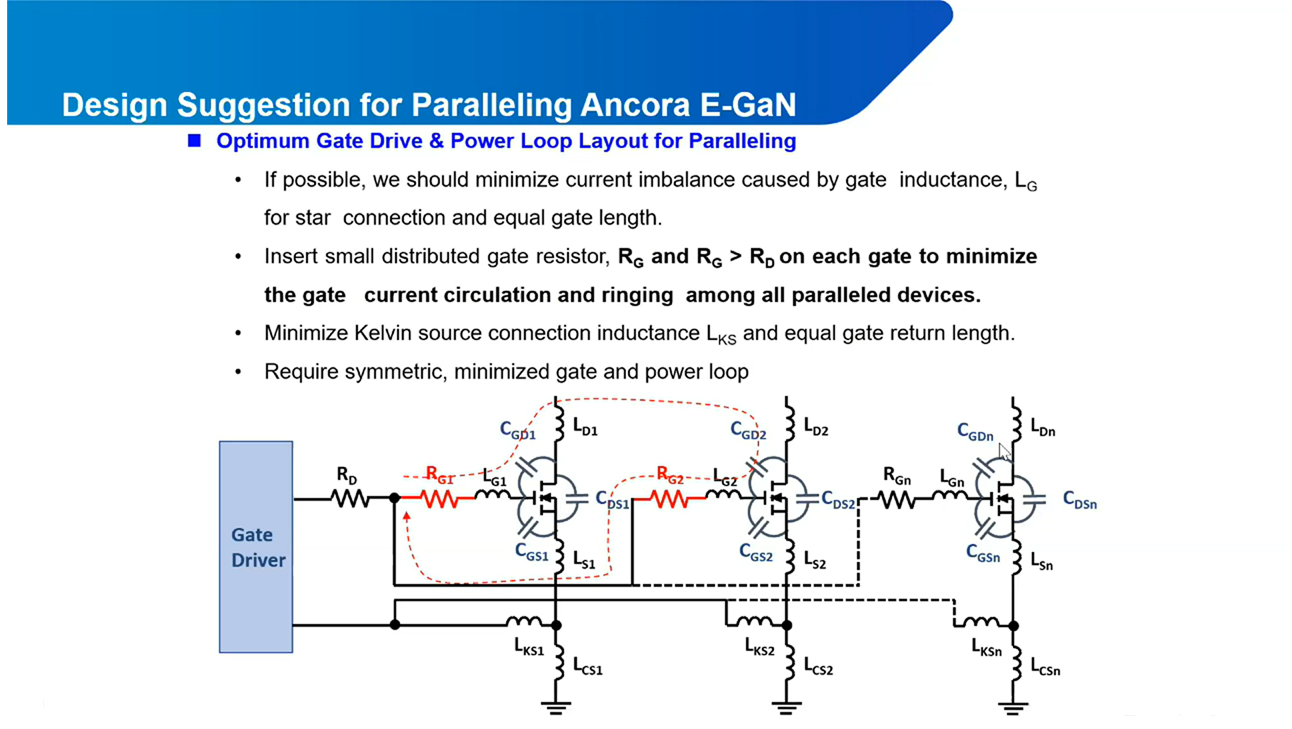

e62b4649861d7ec53714a5a4790bc160
952d7b08322db2f7a8756dd6d797db3b
c6de7d64c3a37d5d7d555bdc0da83de8
ff76a74a78dfc37e4c2953c1d504e12a
