Java基础知识_AQS

一、AQS是什么？

首先我们来普及一下juc是什么：juc其实就是包的缩写java.util.concurrent

不要被人家唬到了，以为juc是什么牛逼玩意儿，实际上就是包而已

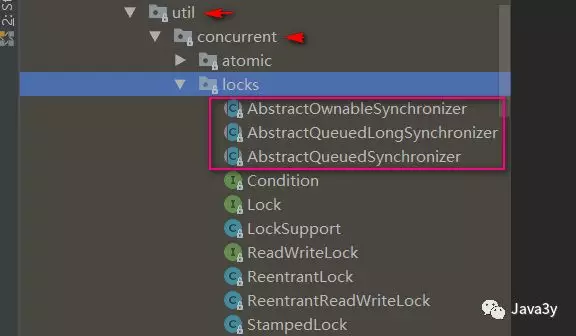

我们可以发现lock包下有三个抽象类：



AbstractOwnableSynchronizer

AbstractQueuedLongSynchronizer

AbstractQueuedSynchronizer

通常地：AbstractQueuedSynchronizer简称为AQS

我们Lock之类的常见的两个锁都是基于他实现的



 那么我们来看看AbstractQueuedSynchronizer到底是什么，看一个类最快的途径就是看他的顶部注释

/**
 * Provides a framework for implementing blocking locks and related
 * synchronizers (semaphores, events, etc) that rely on
 * first-in-first-out (FIFO) wait queues.  This class is designed to
 * be a useful basis for most kinds of synchronizers that rely on a
 * single atomic {@code int} value to represent state. Subclasses
 * must define the protected methods that change this state, and which
 * define what that state means in terms of this object being acquired
 * or released.  Given these, the other methods in this class carry
 * out all queuing and blocking mechanics. Subclasses can maintain
 * other state fields, but only the atomically updated {@code int}
 * value manipulated using methods {@link #getState}, {@link
 * #setState} and {@link #compareAndSetState} is tracked with respect
 * to synchronization.
 *
 * <p>Subclasses should be defined as non-public internal helper
 * classes that are used to implement the synchronization properties
 * of their enclosing class.  Class
 * {@code AbstractQueuedSynchronizer} does not implement any
 * synchronization interface.  Instead it defines methods such as
 * {@link #acquireInterruptibly} that can be invoked as
 * appropriate by concrete locks and related synchronizers to
 * implement their public methods.
 *
 * <p>This class supports either or both a default <em>exclusive</em>
 * mode and a <em>shared</em> mode. When acquired in exclusive mode,
 * attempted acquires by other threads cannot succeed. Shared mode
 * acquires by multiple threads may (but need not) succeed. This class
 * does not &quot;understand&quot; these differences except in the
 * mechanical sense that when a shared mode acquire succeeds, the next
 * waiting thread (if one exists) must also determine whether it can
 * acquire as well. Threads waiting in the different modes share the
 * same FIFO queue. Usually, implementation subclasses support only
 * one of these modes, but both can come into play for example in a
 * {@link ReadWriteLock}. Subclasses that support only exclusive or
 * only shared modes need not define the methods supporting the unused mode.
 *
 * <p>This class defines a nested {@link ConditionObject} class that
 * can be used as a {@link Condition} implementation by subclasses
 * supporting exclusive mode for which method {@link
 * #isHeldExclusively} reports whether synchronization is exclusively
 * held with respect to the current thread, method {@link #release}
 * invoked with the current {@link #getState} value fully releases
 * this object, and {@link #acquire}, given this saved state value,
 * eventually restores this object to its previous acquired state.  No
 * {@code AbstractQueuedSynchronizer} method otherwise creates such a
 * condition, so if this constraint cannot be met, do not use it.  The
 * behavior of {@link ConditionObject} depends of course on the
 * semantics of its synchronizer implementation.
 *
 * <p>This class provides inspection, instrumentation, and monitoring
 * methods for the internal queue, as well as similar methods for
 * condition objects. These can be exported as desired into classes
 * using an {@code AbstractQueuedSynchronizer} for their
 * synchronization mechanics.
 *
 * <p>Serialization of this class stores only the underlying atomic
 * integer maintaining state, so deserialized objects have empty
 * thread queues. Typical subclasses requiring serializability will
 * define a {@code readObject} method that restores this to a known
 * initial state upon deserialization.
 *
 * <h3>Usage</h3>
 *
 * <p>To use this class as the basis of a synchronizer, redefine the
 * following methods, as applicable, by inspecting and/or modifying
 * the synchronization state using {@link #getState}, {@link
 * #setState} and/or {@link #compareAndSetState}:
 *
 * <ul>
 * <li> {@link #tryAcquire}
 * <li> {@link #tryRelease}
 * <li> {@link #tryAcquireShared}
 * <li> {@link #tryReleaseShared}
 * <li> {@link #isHeldExclusively}
 * </ul>
 *
 * Each of these methods by default throws {@link
 * UnsupportedOperationException}.  Implementations of these methods
 * must be internally thread-safe, and should in general be short and
 * not block. Defining these methods is the <em>only</em> supported
 * means of using this class. All other methods are declared
 * {@code final} because they cannot be independently varied.
 *
 * <p>You may also find the inherited methods from {@link
 * AbstractOwnableSynchronizer} useful to keep track of the thread
 * owning an exclusive synchronizer.  You are encouraged to use them
 * -- this enables monitoring and diagnostic tools to assist users in
 * determining which threads hold locks.
 *
 * <p>Even though this class is based on an internal FIFO queue, it
 * does not automatically enforce FIFO acquisition policies.  The core
 * of exclusive synchronization takes the form:
 *
 * <pre>
 * Acquire:
 *     while (!tryAcquire(arg)) {
 *        <em>enqueue thread if it is not already queued</em>;
 *        <em>possibly block current thread</em>;
 *     }
 *
 * Release:
 *     if (tryRelease(arg))
 *        <em>unblock the first queued thread</em>;
 * </pre>
 *
 * (Shared mode is similar but may involve cascading signals.)
 *
 * <p id="barging">Because checks in acquire are invoked before
 * enqueuing, a newly acquiring thread may <em>barge</em> ahead of
 * others that are blocked and queued.  However, you can, if desired,
 * define {@code tryAcquire} and/or {@code tryAcquireShared} to
 * disable barging by internally invoking one or more of the inspection
 * methods, thereby providing a <em>fair</em> FIFO acquisition order.
 * In particular, most fair synchronizers can define {@code tryAcquire}
 * to return {@code false} if {@link #hasQueuedPredecessors} (a method
 * specifically designed to be used by fair synchronizers) returns
 * {@code true}.  Other variations are possible.
 *
 * <p>Throughput and scalability are generally highest for the
 * default barging (also known as <em>greedy</em>,
 * <em>renouncement</em>, and <em>convoy-avoidance</em>) strategy.
 * While this is not guaranteed to be fair or starvation-free, earlier
 * queued threads are allowed to recontend before later queued
 * threads, and each recontention has an unbiased chance to succeed
 * against incoming threads.  Also, while acquires do not
 * &quot;spin&quot; in the usual sense, they may perform multiple
 * invocations of {@code tryAcquire} interspersed with other
 * computations before blocking.  This gives most of the benefits of
 * spins when exclusive synchronization is only briefly held, without
 * most of the liabilities when it isn't. If so desired, you can
 * augment this by preceding calls to acquire methods with
 * "fast-path" checks, possibly prechecking {@link #hasContended}
 * and/or {@link #hasQueuedThreads} to only do so if the synchronizer
 * is likely not to be contended.
 *
 * <p>This class provides an efficient and scalable basis for
 * synchronization in part by specializing its range of use to
 * synchronizers that can rely on {@code int} state, acquire, and
 * release parameters, and an internal FIFO wait queue. When this does
 * not suffice, you can build synchronizers from a lower level using
 * {@link java.util.concurrent.atomic atomic} classes, your own custom
 * {@link java.util.Queue} classes, and {@link LockSupport} blocking
 * support.
 *
 * <h3>Usage Examples</h3>
 *
 * <p>Here is a non-reentrant mutual exclusion lock class that uses
 * the value zero to represent the unlocked state, and one to
 * represent the locked state. While a non-reentrant lock
 * does not strictly require recording of the current owner
 * thread, this class does so anyway to make usage easier to monitor.
 * It also supports conditions and exposes
 * one of the instrumentation methods:
 *
 *  <pre> {@code
 * class Mutex implements Lock, java.io.Serializable {
 *
 *   // Our internal helper class
 *   private static class Sync extends AbstractQueuedSynchronizer {
 *     // Reports whether in locked state
 *     protected boolean isHeldExclusively() {
 *       return getState() == 1;
 *     }
 *
 *     // Acquires the lock if state is zero
 *     public boolean tryAcquire(int acquires) {
 *       assert acquires == 1; // Otherwise unused
 *       if (compareAndSetState(0, 1)) {
 *         setExclusiveOwnerThread(Thread.currentThread());
 *         return true;
 *       }
 *       return false;
 *     }
 *
 *     // Releases the lock by setting state to zero
 *     protected boolean tryRelease(int releases) {
 *       assert releases == 1; // Otherwise unused
 *       if (getState() == 0) throw new IllegalMonitorStateException();
 *       setExclusiveOwnerThread(null);
 *       setState(0);
 *       return true;
 *     }
 *
 *     // Provides a Condition
 *     Condition newCondition() { return new ConditionObject(); }
 *
 *     // Deserializes properly
 *     private void readObject(ObjectInputStream s)
 *         throws IOException, ClassNotFoundException {
 *       s.defaultReadObject();
 *       setState(0); // reset to unlocked state
 *     }
 *   }
 *
 *   // The sync object does all the hard work. We just forward to it.
 *   private final Sync sync = new Sync();
 *
 *   public void lock()                { sync.acquire(1); }
 *   public boolean tryLock()          { return sync.tryAcquire(1); }
 *   public void unlock()              { sync.release(1); }
 *   public Condition newCondition()   { return sync.newCondition(); }
 *   public boolean isLocked()         { return sync.isHeldExclusively(); }
 *   public boolean hasQueuedThreads() { return sync.hasQueuedThreads(); }
 *   public void lockInterruptibly() throws InterruptedException {
 *     sync.acquireInterruptibly(1);
 *   }
 *   public boolean tryLock(long timeout, TimeUnit unit)
 *       throws InterruptedException {
 *     return sync.tryAcquireNanos(1, unit.toNanos(timeout));
 *   }
 * }}</pre>
 *
 * <p>Here is a latch class that is like a
 * {@link java.util.concurrent.CountDownLatch CountDownLatch}
 * except that it only requires a single {@code signal} to
 * fire. Because a latch is non-exclusive, it uses the {@code shared}
 * acquire and release methods.
 *
 *  <pre> {@code
 * class BooleanLatch {
 *
 *   private static class Sync extends AbstractQueuedSynchronizer {
 *     boolean isSignalled() { return getState() != 0; }
 *
 *     protected int tryAcquireShared(int ignore) {
 *       return isSignalled() ? 1 : -1;
 *     }
 *
 *     protected boolean tryReleaseShared(int ignore) {
 *       setState(1);
 *       return true;
 *     }
 *   }
 *
 *   private final Sync sync = new Sync();
 *   public boolean isSignalled() { return sync.isSignalled(); }
 *   public void signal()         { sync.releaseShared(1); }
 *   public void await() throws InterruptedException {
 *     sync.acquireSharedInterruptibly(1);
 *   }
 * }}</pre>
 *
 * @since 1.5
 * @author Doug Lea
 */

总结一下关键信息

　　AQS其实就是一个可以给我们实现锁的框架

　　内部实现的关键是：先进先出的队列，state状态

　　定义了内部类ConditionObject

　　拥有两种线程模式

　　　　独占模式

　　　　共享模式

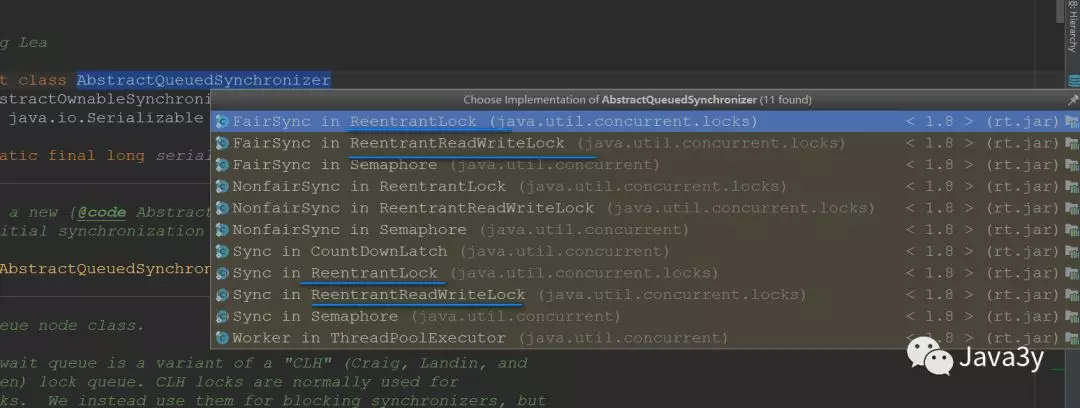

　　在lock包中的相关锁（常用的有ReentrantLock、ReadWriteLock）都是基于AQS来构建

　　一般我们叫AQS为同步器



二、简单看看AQS

上面也提到了AQS里面最重要的是状态和队列，我们接下来就看看其源码是怎么样的。

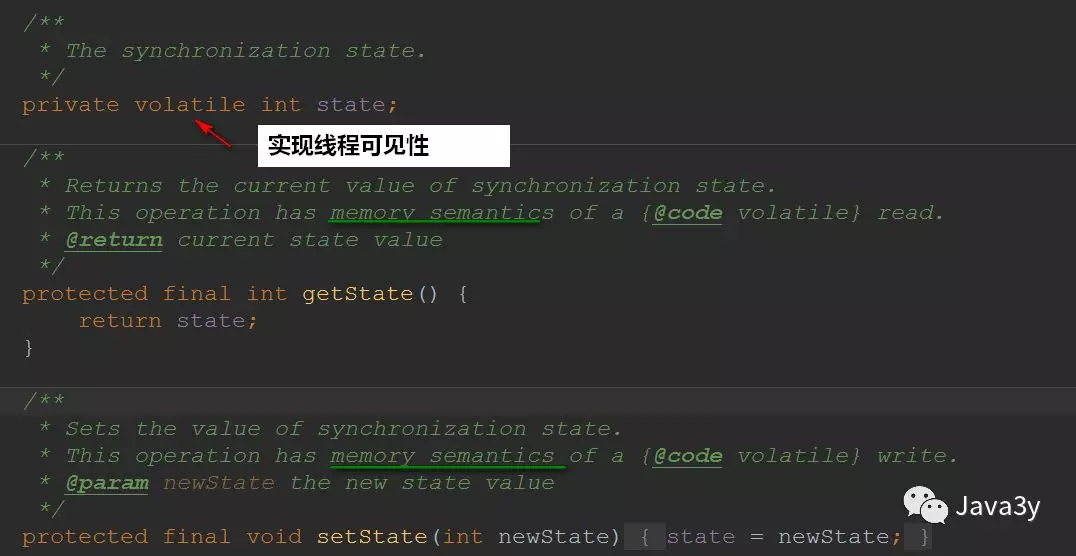

2.1 同步状态

使用volatile修饰实现线程可见性

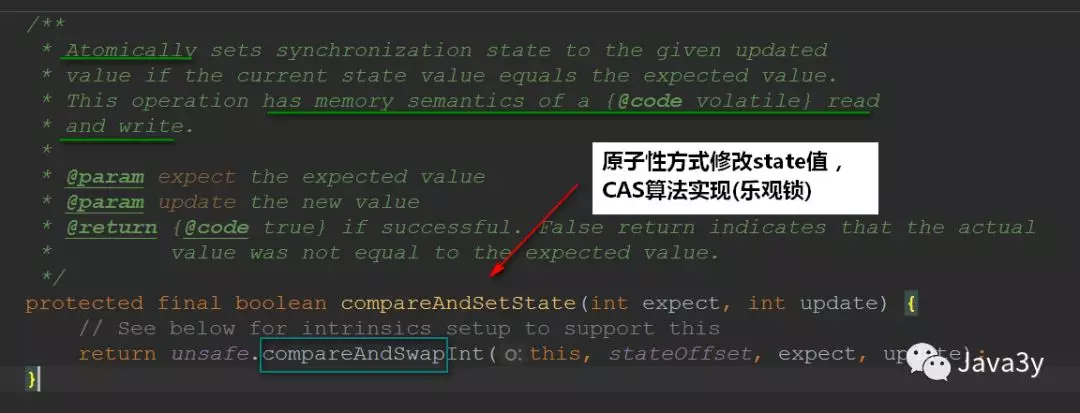

 修改state值得时候使用CAS算法来实现

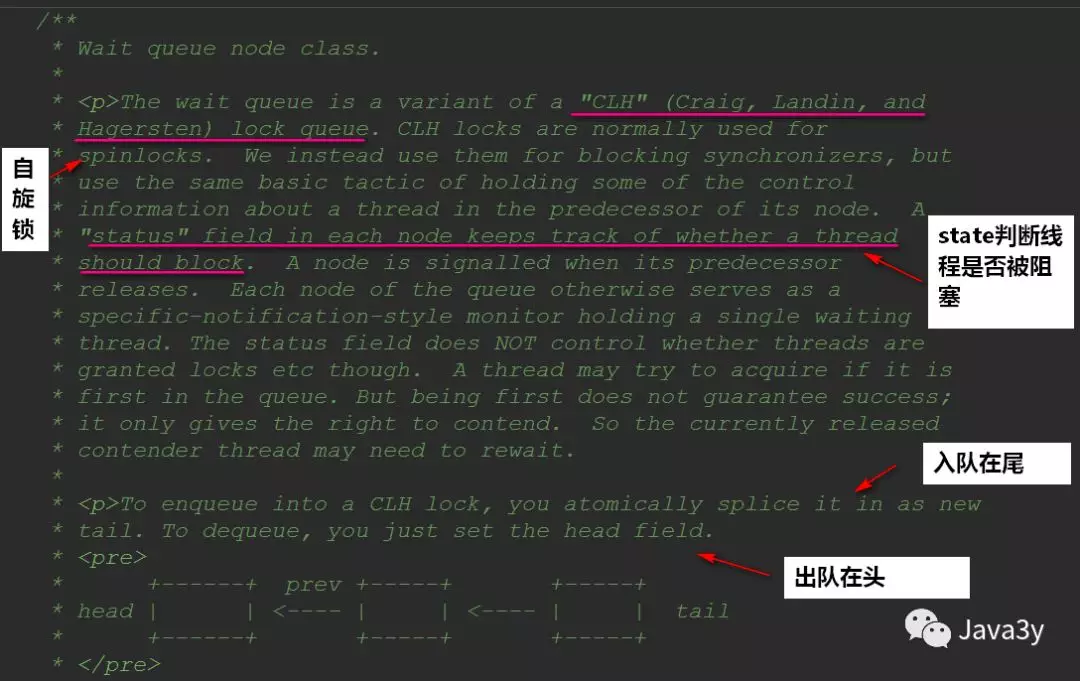

 2.2 先进先出队列

这个队列被称为：CLH队列（三个名字组成），是一个双向队列



 看看他队列源码得组成：

  static final class Node {

        // 共享
        static final Node SHARED = new Node();

        // 独占
        static final Node EXCLUSIVE = null;

        // 线程被取消了
        static final int CANCELLED =  1;

        // 后继线程需要唤醒
        static final int SIGNAL    = -1;

        // 等待condition唤醒
        static final int CONDITION = -2;

        // 共享式同步状态获取将会无条件地传播下去(没看懂)
        static final int PROPAGATE = -3;


        // 初始为0，状态是上面的几种
        volatile int waitStatus;

        // 前置节点
        volatile Node prev;

        // 后继节点
        volatile Node next;


        volatile Thread thread;


        Node nextWaiter;

        final boolean isShared() {
            return nextWaiter == SHARED;
        }


        final Node predecessor() throws NullPointerException {
            Node p = prev;
            if (p == null)
                throw new NullPointerException();
            else
                return p;
        }

        Node() {    // Used to establish initial head or SHARED marker
        }

        Node(Thread thread, Node mode) {     // Used by addWaiter
            this.nextWaiter = mode;
            this.thread = thread;
        }

        Node(Thread thread, int waitStatus) { // Used by Condition
            this.waitStatus = waitStatus;
            this.thread = thread;
        }
    }

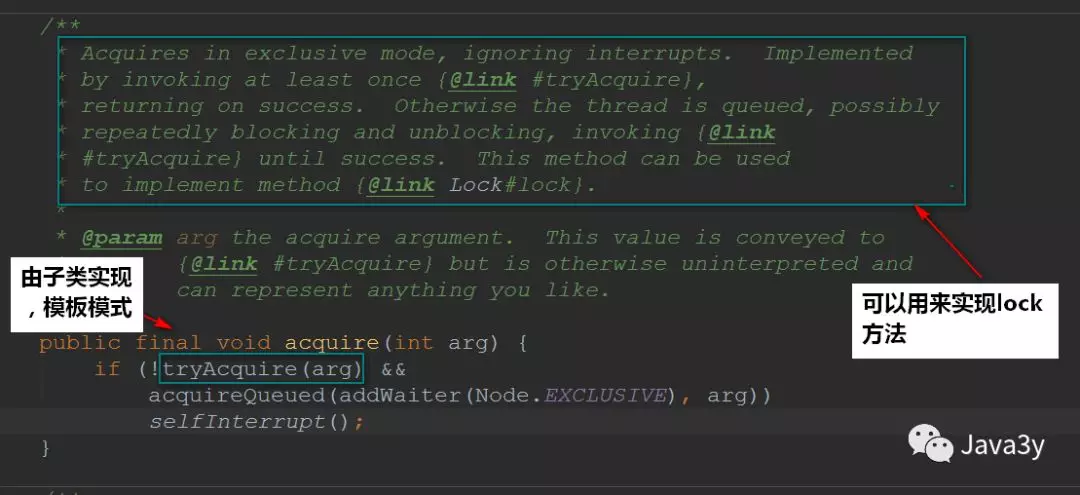

2.3 acquire方法

获取独占锁得过程就是在acquire定义得，该方法用到了设计模式，由子类实现的



 过程：acquire(int)尝试获取资源，如果获取失败，将线程插入等待队列。插入队列后，acquire(int)并没有放弃获取资源，而是根据前置节点的状态判断是否应该继续获取资源，如果前置节点是头节点，头节点，继续尝试获取资源，如果前置节点是SIGNAL状态，就中断当前线程，否则继续尝试获取资源。直到当前线程被park()或者获取到资源，acquire(int)结束。

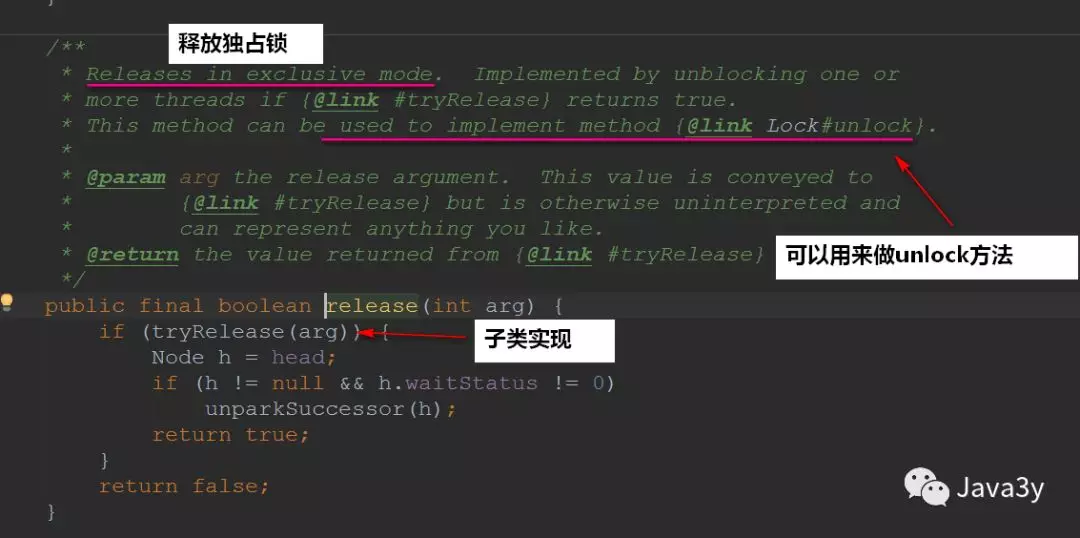

2.4 release方法

释放独占锁的过程就是在acquire定义的，该方法也用到了模板设计模式，由子类实现



 首先调用子类的tryRelease()方法释放锁，然后唤醒后继节点，在唤醒的过程中，需要判断后继节点是否满足，如果后继节点不为且不是作废状态，则唤醒这个后继节点，否则从tail节点向前寻找合适的节点，如果找到，则唤醒。

三、最后

总结一下AQS到底是啥玩意儿吧：

juc包中有很多可阻塞的类都是基于AQS构建的

　　AQS可以说是一个给予实现同步锁、同步器的一个框架，很多实现类都在它的基础上构建的

在AQS中实现了对等待队列的默认实现，子类只要重写部分代码即可实现（大量用到了模板代码）
