Istio部署监控
视图预览

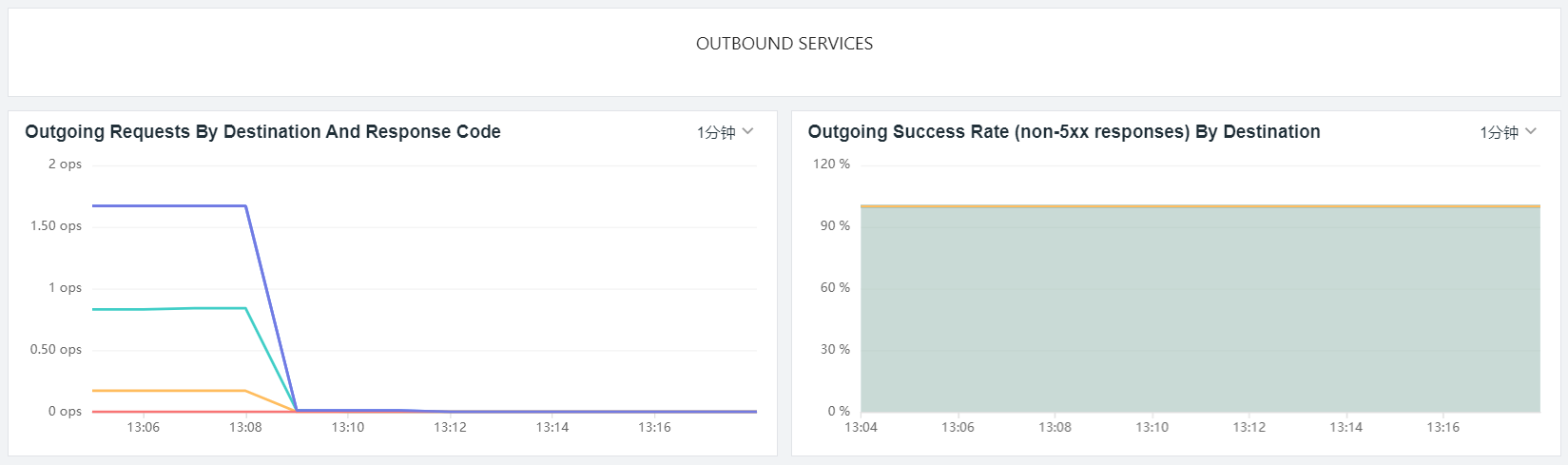

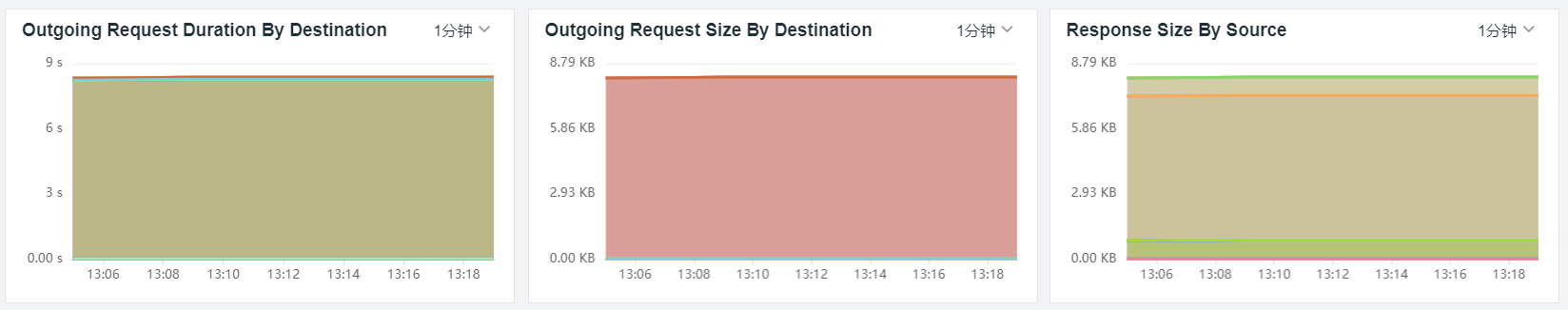

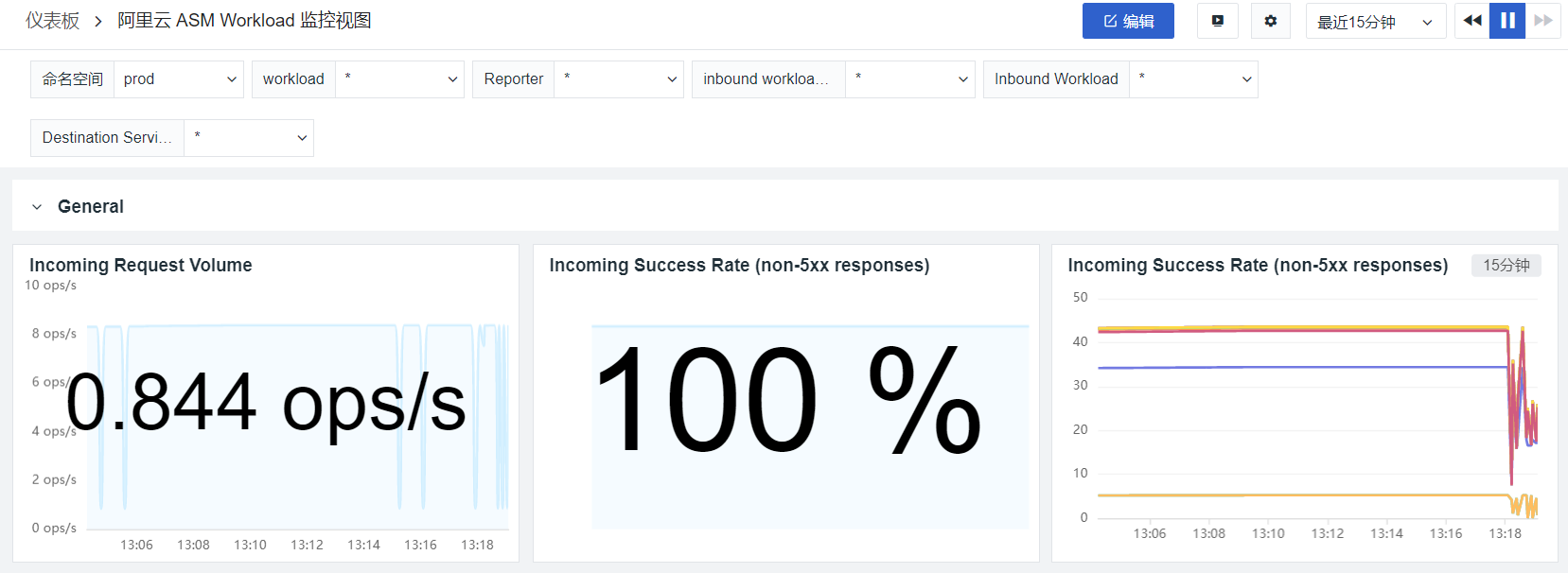

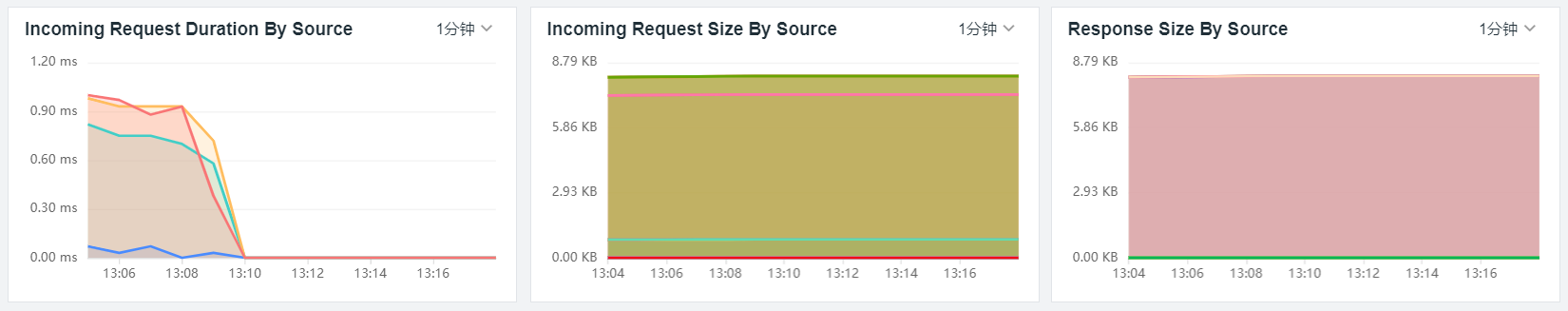

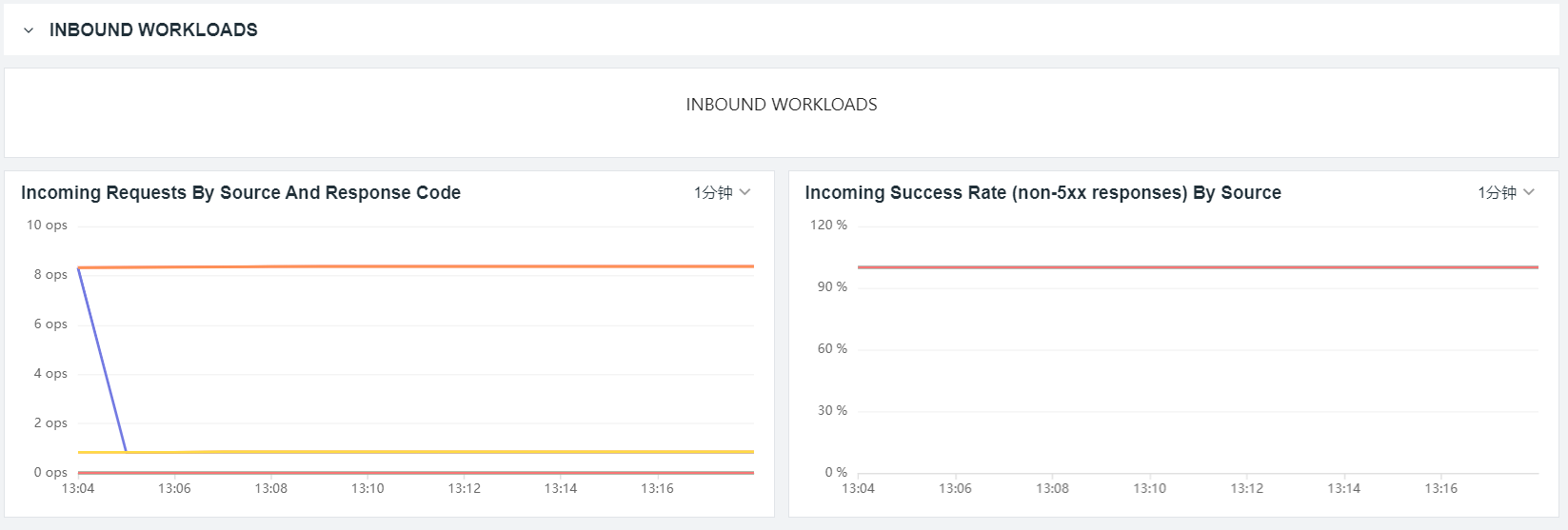

asm性能指标展示：Incoming Request Volume、Incoming Success Rate、Incoming Request Size By Source、Response Size By Source 等。
版本支持
ACK 集群支持：1.20.11-aliyun.1、1.22.3-aliyun.1
Istio 版本：v1.11.5.41-g10eacaaf-aliyun、v1.24.4.20-g4d72612f-aliyun
前置条件
- 已创建一个 ACK 集群。如果没有创建，请参见创建 Kubernetes 专有版集群和创建 Kubernetes 托管版集群。
- 已部署 DataKit，请参考 Kubernetes。

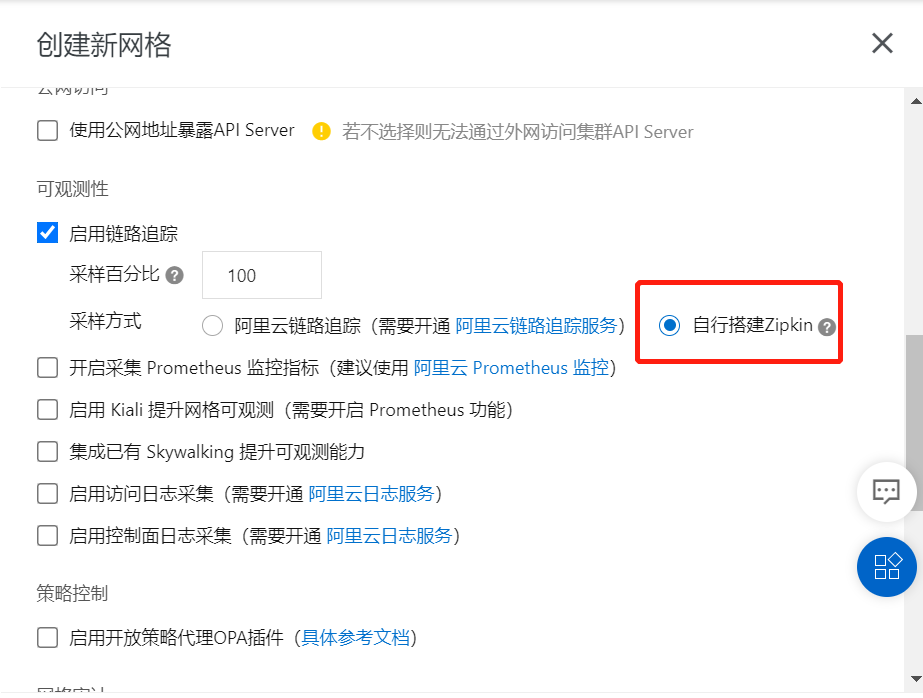

- 已创建一个 ASM 实例。如果没有创建，请参见创建 ASM 实例。注意，创建新网格时，请选择自行搭建 Zipkin。
安装配置
说明：示例 Istio 版本为 v1.11.5.41-g10eacaaf-aliyun。
部署实施
指标采集 (必选)
-
开通 Sidecar 注入
为集群中的 namespace 设置 sidecar 自动注入，在该 namespace 下，新创建的 Pod 就会注入一个 Envoy容器用来接管流量。开通方式是为 namespace 添加标签，下面以 default 名称空间为例。
- 登录容器服务管理控制台。
- 在控制台左侧导航栏中，单击集群。
- 在集群列表页面中，单击目标集群名称或者目标集群右侧操作列下的详情。
- 在集群管理页左侧导航栏单击命名空间与配额。
- 在命名空间页面，单击创建。
- 在创建命名空间对话框中，名称输入 default。
-
在变量名称文本框中输入 istio-injection。
-
在变量值文本框中输入 enabled。
点击添加后，再点确定。
-
-
开启 Zipkin 采集器
登录 [观测云](https://console.guance.com/)，【集成】->【Datakit】-> 【Kubernetes】，请按照指引在 Kubernetes 集群中安装 DataKit ，其中部署使用的 datakit.yaml 文件，在接下来的操作中会使用到。 在观测云的一个工作空间中，可能收到多个集群的采集数据，为了区分集群，使用全局 Tag 为这个集群增加 ** cluster_name 值为 k8s-ack** 的 Tag。<font style="background-color:#FADB14;">Tag 请自定义，不同集群不能相同</font>。
- name: ENV_GLOBAL_TAGS
value: host=__datakit_hostname,host_ip=__datakit_ip,cluster_name=k8s-ack
观测云收集 ASM 的链路数据，需要开通 Zipkin 采集器，即在前置条件下载的 datakit.yaml 中的 ConfigMap 中增加：
apiVersion: v1
kind: ConfigMap
metadata:
name: datakit-conf
namespace: datakit
data: # 下面是新增部分
zipkin.conf: |-
[[inputs.zipkin]]
pathV1 = "/api/v1/spans"
pathV2 = "/api/v2/spans"
然后再把 zipkin.conf 挂载到 DataKit 的 /usr/local/datakit/conf.d/zipkin 目录：
- mountPath: /usr/local/datakit/conf.d/zipkin/zipkin.conf
name: datakit-conf
subPath: zipkin.conf
开通 istiod、ingressgateway 和 egressgateway 指标采集，其中 ingressgateway 和 egressgateway 需要 Service 支持，把下面的 yaml 文件在集群中执行。
apiVersion: v1
kind: Service
metadata:
name: istiod-ext
namespace: istio-system
spec:
ports:
- name: http-monitoring
port: 15014
protocol: TCP
targetPort: 15014
selector:
app: istiod
istio: pilot
type: ClusterIP
---
apiVersion: v1
kind: Service
metadata:
name: istio-ingressgateway-ext
namespace: istio-system
spec:
ports:
- name: http-monitoring
port: 15020
protocol: TCP
targetPort: 15020
selector:
app: istio-ingressgateway
istio: ingressgateway
type: ClusterIP
---
apiVersion: v1
kind: Service
metadata:
name: istio-egressgateway-ext
namespace: istio-system
spec:
ports:
- name: http-monitoring
port: 15020
protocol: TCP
targetPort: 15020
selector:
app: istio-egressgateway
istio: egressgateway
type: ClusterIP
在 datakit.yaml 中的 ConfigMap 中增加：
apiVersion: v1
kind: ConfigMap
metadata:
name: datakit-conf
namespace: datakit
data: # 下面是新增部分
prom_istiod.conf: |-
[[inputs.prom]]
url = "http://istiod.istio-system.svc.cluster.local:15014/metrics"
source = "prom-istiod"
metric_types = ["counter", "gauge"]
interval = "60s"
tags_ignore = ["cache","cluster_type","component","destination_app","destination_canonical_revision","destination_canonical_service","destination_cluster","destination_principal","group","grpc_code","grpc_method","grpc_service","grpc_type","reason","request_protocol","request_type","resource","responce_code_class","response_flags","source_app","source_canonical_revision","source_canonical-service","source_cluster","source_principal","source_version","wasm_filter"]
metric_name_filter = ["istio_requests_total","pilot_k8s_cfg_events","istio_build","process_virtual_memory_bytes","process_resident_memory_bytes","process_cpu_seconds_total","envoy_cluster_assignment_stale","go_goroutines","pilot_xds_pushes","pilot_proxy_convergence_time_bucket","citadel_server_root_cert_expiry_timestamp","pilot_conflict_inbound_listener","pilot_conflict_outbound_listener_http_over_current_tcp","pilot_conflict_outbound_listener_tcp_over_current_tcp","pilot_conflict_outbound_listener_tcp_over_current_http","pilot_virt_services","galley_validation_failed","pilot_services","envoy_cluster_upstream_cx_total","envoy_cluster_upstream_cx_connect_fail","envoy_cluster_upstream_cx_active","envoy_cluster_upstream_cx_rx_bytes_total","envoy_cluster_upstream_cx_tx_bytes_total","istio_request_duration_milliseconds_bucket","istio_request_duration_seconds_bucket","istio_request_bytes_bucket","istio_response_bytes_bucket"]
#measurement_prefix = ""
measurement_name = "istio_prom"
#[[inputs.prom.measurements]]
# prefix = "cpu_"
# name ="cpu"
[inputs.prom.tags]
app_id="istiod"
prom-ingressgateway.conf: |-
[[inputs.prom]]
url = "http://istio-ingressgateway-ext.istio-system.svc.cluster.local:15020/stats/prometheus"
source = "prom-ingressgateway"
metric_types = ["counter", "gauge"]
interval = "60s"
tags_ignore = ["cache","cluster_type","component","destination_app","destination_canonical_revision","destination_canonical_service","destination_cluster","destination_principal","group","grpc_code","grpc_method","grpc_service","grpc_type","reason","request_protocol","request_type","resource","responce_code_class","response_flags","source_app","source_canonical_revision","source_canonical-service","source_cluster","source_principal","source_version","wasm_filter"]
metric_name_filter = ["istio_requests_total","pilot_k8s_cfg_events","istio_build","process_virtual_memory_bytes","process_resident_memory_bytes","process_cpu_seconds_total","envoy_cluster_assignment_stale","go_goroutines","pilot_xds_pushes","pilot_proxy_convergence_time_bucket","citadel_server_root_cert_expiry_timestamp","pilot_conflict_inbound_listener","pilot_conflict_outbound_listener_http_over_current_tcp","pilot_conflict_outbound_listener_tcp_over_current_tcp","pilot_conflict_outbound_listener_tcp_over_current_http","pilot_virt_services","galley_validation_failed","pilot_services","envoy_cluster_upstream_cx_total","envoy_cluster_upstream_cx_connect_fail","envoy_cluster_upstream_cx_active","envoy_cluster_upstream_cx_rx_bytes_total","envoy_cluster_upstream_cx_tx_bytes_total","istio_request_duration_milliseconds_bucket","istio_request_duration_seconds_bucket","istio_request_bytes_bucket","istio_response_bytes_bucket"]
#measurement_prefix = ""
measurement_name = "istio_prom"
#[[inputs.prom.measurements]]
# prefix = "cpu_"
# name ="cpu"
prom-egressgateway.conf: |-
[[inputs.prom]]
url = "http://istio-egressgateway-ext.istio-system.svc.cluster.local:15020/stats/prometheus"
source = "prom-egressgateway"
metric_types = ["counter", "gauge"]
interval = "60s"
tags_ignore = ["cache","cluster_type","component","destination_app","destination_canonical_revision","destination_canonical_service","destination_cluster","destination_principal","group","grpc_code","grpc_method","grpc_service","grpc_type","reason","request_protocol","request_type","resource","responce_code_class","response_flags","source_app","source_canonical_revision","source_canonical-service","source_cluster","source_principal","source_version","wasm_filter"]
metric_name_filter = ["istio_requests_total","pilot_k8s_cfg_events","istio_build","process_virtual_memory_bytes","process_resident_memory_bytes","process_cpu_seconds_total","envoy_cluster_assignment_stale","go_goroutines","pilot_xds_pushes","pilot_proxy_convergence_time_bucket","citadel_server_root_cert_expiry_timestamp","pilot_conflict_inbound_listener","pilot_conflict_outbound_listener_http_over_current_tcp","pilot_conflict_outbound_listener_tcp_over_current_tcp","pilot_conflict_outbound_listener_tcp_over_current_http","pilot_virt_services","galley_validation_failed","pilot_services","envoy_cluster_upstream_cx_total","envoy_cluster_upstream_cx_connect_fail","envoy_cluster_upstream_cx_active","envoy_cluster_upstream_cx_rx_bytes_total","envoy_cluster_upstream_cx_tx_bytes_total","istio_request_duration_milliseconds_bucket","istio_request_duration_seconds_bucket","istio_request_bytes_bucket","istio_response_bytes_bucket"]
#measurement_prefix = ""
measurement_name = "istio_prom"
#[[inputs.prom.measurements]]
# prefix = "cpu_"
# name ="cpu"
然后再挂载 prom_istiod.conf、prom-ingressgateway.conf 和 prom-egressgateway.conf：
- mountPath: /usr/local/datakit/conf.d/prom/prom_istiod.conf
name: datakit-conf
subPath: prom_istiod.conf
- mountPath: /usr/local/datakit/conf.d/prom/prom-ingressgateway.conf
name: datakit-conf
subPath: prom-ingressgateway.conf
- mountPath: /usr/local/datakit/conf.d/prom/prom-egressgateway.conf
name: datakit-conf
subPath: prom-egressgateway.conf
部署 DataKit
kubectl apply -f datakit.yaml
-
开启 Annotations
在业务Pod处添加如下annotations（具体路径deployment.spec.template.metadata下），这样即可采集 Envoy 的指标数据。
annotations:
datakit/prom.instances: |
[[inputs.prom]]
url = "http://$IP:15020/stats/prometheus"
source = "ack-istio-product"
metric_types = ["counter", "gauge"]
interval = "60s"
tags_ignore = ["cache","cluster_type","component","destination_app","destination_canonical_revision","destination_canonical_service","destination_cluster","destination_principal","group","grpc_code","grpc_method","grpc_service","grpc_type","reason","request_protocol","request_type","resource","responce_code_class","response_flags","source_app","source_canonical_revision","source_canonical-service","source_cluster","source_principal","source_version","wasm_filter"]
metric_name_filter = ["istio_requests_total","pilot_k8s_cfg_events","istio_build","process_virtual_memory_bytes","process_resident_memory_bytes","process_cpu_seconds_total","envoy_cluster_assignment_stale","go_goroutines","pilot_xds_pushes","pilot_proxy_convergence_time_bucket","citadel_server_root_cert_expiry_timestamp","pilot_conflict_inbound_listener","pilot_conflict_outbound_listener_http_over_current_tcp","pilot_conflict_outbound_listener_tcp_over_current_tcp","pilot_conflict_outbound_listener_tcp_over_current_http","pilot_virt_services","galley_validation_failed","pilot_services","envoy_cluster_upstream_cx_total","envoy_cluster_upstream_cx_connect_fail","envoy_cluster_upstream_cx_active","envoy_cluster_upstream_cx_rx_bytes_total","envoy_cluster_upstream_cx_tx_bytes_total","istio_request_duration_milliseconds_bucket","istio_request_duration_seconds_bucket","istio_request_bytes_bucket","istio_response_bytes_bucket"]
#measurement_prefix = ""
measurement_name = "prom_asm_istio"
#[[inputs.prom.measurements]]
# prefix = "cpu_"
# name = "cpu"
[inputs.prom.tags]
namespace = "$NAMESPACE"
参数说明
- url：Exporter 地址
- source：采集器名称
- metric_types：指标类型过滤
- measurement_name：采集后的指标集名称
- interval：采集指标频率，s秒
- $IP：通配 Pod 的内网 IP
- $NAMESPACE：Pod所在命名空间
- tags_ignore: 忽略的 tag。
下面是 bookinfo 的部署，下载 bookinfo.yaml 文件修改如下：
apiVersion: v1
kind: Service
metadata:
name: details
labels:
app: details
service: details
spec:
ports:
- port: 9080
name: http
selector:
app: details
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: bookinfo-details
labels:
account: details
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: details-v1
labels:
app: details
version: v1
spec:
replicas: 1
selector:
matchLabels:
app: details
version: v1
template:
metadata:
labels:
app: details
version: v1
annotations:
datakit/prom.instances: |
[[inputs.prom]]
url = "http://$IP:15020/stats/prometheus"
source = "ack-istio-details"
metric_types = ["counter", "gauge"]
interval = "60s"
tags_ignore = ["cache","cluster_type","component","destination_app","destination_canonical_revision","destination_canonical_service","destination_cluster","destination_principal","group","grpc_code","grpc_method","grpc_service","grpc_type","reason","request_protocol","request_type","resource","responce_code_class","response_flags","source_app","source_canonical_revision","source_canonical-service","source_cluster","source_principal","source_version","wasm_filter"]
metric_name_filter = ["istio_requests_total","pilot_k8s_cfg_events","istio_build","process_virtual_memory_bytes","process_resident_memory_bytes","process_cpu_seconds_total","envoy_cluster_assignment_stale","go_goroutines","pilot_xds_pushes","pilot_proxy_convergence_time_bucket","citadel_server_root_cert_expiry_timestamp","pilot_conflict_inbound_listener","pilot_conflict_outbound_listener_http_over_current_tcp","pilot_conflict_outbound_listener_tcp_over_current_tcp","pilot_conflict_outbound_listener_tcp_over_current_http","pilot_virt_services","galley_validation_failed","pilot_services","envoy_cluster_upstream_cx_total","envoy_cluster_upstream_cx_connect_fail","envoy_cluster_upstream_cx_active","envoy_cluster_upstream_cx_rx_bytes_total","envoy_cluster_upstream_cx_tx_bytes_total","istio_request_duration_milliseconds_bucket","istio_request_duration_seconds_bucket","istio_request_bytes_bucket","istio_response_bytes_bucket"]
#measurement_prefix = ""
measurement_name = "prom_asm_istio"
#[[inputs.prom.measurements]]
# prefix = "cpu_"
# name = "cpu"
[inputs.prom.tags]
namespace = "$NAMESPACE"
spec:
serviceAccountName: bookinfo-details
containers:
- name: details
image: docker.io/istio/examples-bookinfo-details-v1:1.16.2
imagePullPolicy: IfNotPresent
ports:
- containerPort: 9080
---
##################################################################################################
# Ratings service
##################################################################################################
apiVersion: v1
kind: Service
metadata:
name: ratings
labels:
app: ratings
service: ratings
spec:
ports:
- port: 9080
name: http
selector:
app: ratings
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: bookinfo-ratings
labels:
account: ratings
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: ratings-v1
labels:
app: ratings
version: v1
spec:
replicas: 1
selector:
matchLabels:
app: ratings
version: v1
template:
metadata:
labels:
app: ratings
version: v1
annotations:
datakit/prom.instances: |
[[inputs.prom]]
url = "http://$IP:15020/stats/prometheus"
source = "ack-istio-ratings"
metric_types = ["counter", "gauge", "histogram"]
interval = "60s"
tags_ignore = ["cache","cluster_type","component","destination_app","destination_canonical_revision","destination_canonical_service","destination_cluster","destination_principal","group","grpc_code","grpc_method","grpc_service","grpc_type","reason","request_protocol","request_type","resource","responce_code_class","response_flags","source_app","source_canonical_revision","source_canonical-service","source_cluster","source_principal","source_version","wasm_filter"]
metric_name_filter = ["istio_requests_total","pilot_k8s_cfg_events","istio_build","process_virtual_memory_bytes","process_resident_memory_bytes","process_cpu_seconds_total","envoy_cluster_assignment_stale","go_goroutines","pilot_xds_pushes","pilot_proxy_convergence_time_bucket","citadel_server_root_cert_expiry_timestamp","pilot_conflict_inbound_listener","pilot_conflict_outbound_listener_http_over_current_tcp","pilot_conflict_outbound_listener_tcp_over_current_tcp","pilot_conflict_outbound_listener_tcp_over_current_http","pilot_virt_services","galley_validation_failed","pilot_services","envoy_cluster_upstream_cx_total","envoy_cluster_upstream_cx_connect_fail","envoy_cluster_upstream_cx_active","envoy_cluster_upstream_cx_rx_bytes_total","envoy_cluster_upstream_cx_tx_bytes_total","istio_request_duration_milliseconds_bucket","istio_request_duration_seconds_bucket","istio_request_bytes_bucket","istio_response_bytes_bucket"]
#measurement_prefix = ""
measurement_name = "prom_asm_istio"
#[[inputs.prom.measurements]]
# prefix = "cpu_"
# name = "cpu"
[inputs.prom.tags]
namespace = "$NAMESPACE"
spec:
serviceAccountName: bookinfo-ratings
containers:
- name: ratings
image: docker.io/istio/examples-bookinfo-ratings-v1:1.16.2
imagePullPolicy: IfNotPresent
ports:
- containerPort: 9080
---
##################################################################################################
# Reviews service
##################################################################################################
apiVersion: v1
kind: Service
metadata:
name: reviews
labels:
app: reviews
service: reviews
spec:
ports:
- port: 9080
name: http
selector:
app: reviews
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: bookinfo-reviews
labels:
account: reviews
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: reviews-v1
labels:
app: reviews
version: v1
spec:
replicas: 1
selector:
matchLabels:
app: reviews
version: v1
template:
metadata:
labels:
app: reviews
version: v1
annotations:
datakit/prom.instances: |
[[inputs.prom]]
url = "http://$IP:15020/stats/prometheus"
source = "ack-istio-review1"
metric_types = ["counter", "gauge"]
interval = "60s"
tags_ignore = ["cache","cluster_type","component","destination_app","destination_canonical_revision","destination_canonical_service","destination_cluster","destination_principal","group","grpc_code","grpc_method","grpc_service","grpc_type","reason","request_protocol","request_type","resource","responce_code_class","response_flags","source_app","source_canonical_revision","source_canonical-service","source_cluster","source_principal","source_version","wasm_filter"]
metric_name_filter = ["istio_requests_total","pilot_k8s_cfg_events","istio_build","process_virtual_memory_bytes","process_resident_memory_bytes","process_cpu_seconds_total","envoy_cluster_assignment_stale","go_goroutines","pilot_xds_pushes","pilot_proxy_convergence_time_bucket","citadel_server_root_cert_expiry_timestamp","pilot_conflict_inbound_listener","pilot_conflict_outbound_listener_http_over_current_tcp","pilot_conflict_outbound_listener_tcp_over_current_tcp","pilot_conflict_outbound_listener_tcp_over_current_http","pilot_virt_services","galley_validation_failed","pilot_services","envoy_cluster_upstream_cx_total","envoy_cluster_upstream_cx_connect_fail","envoy_cluster_upstream_cx_active","envoy_cluster_upstream_cx_rx_bytes_total","envoy_cluster_upstream_cx_tx_bytes_total","istio_request_duration_milliseconds_bucket","istio_request_duration_seconds_bucket","istio_request_bytes_bucket","istio_response_bytes_bucket"]
#measurement_prefix = ""
measurement_name = "prom_asm_istio"
#[[inputs.prom.measurements]]
# prefix = "cpu_"
# name = "cpu"
[inputs.prom.tags]
namespace = "$NAMESPACE"
spec:
serviceAccountName: bookinfo-reviews
containers:
- name: reviews
image: docker.io/istio/examples-bookinfo-reviews-v1:1.16.2
imagePullPolicy: IfNotPresent
env:
- name: LOG_DIR
value: "/tmp/logs"
ports:
- containerPort: 9080
volumeMounts:
- name: tmp
mountPath: /tmp
- name: wlp-output
mountPath: /opt/ibm/wlp/output
volumes:
- name: wlp-output
emptyDir: {}
- name: tmp
emptyDir: {}
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: reviews-v2
labels:
app: reviews
version: v2
spec:
replicas: 1
selector:
matchLabels:
app: reviews
version: v2
template:
metadata:
labels:
app: reviews
version: v2
annotations:
datakit/prom.instances: |
[[inputs.prom]]
url = "http://$IP:15020/stats/prometheus"
source = "ack-istio-review2"
metric_types = ["counter", "gauge"]
interval = "60s"
tags_ignore = ["cache","cluster_type","component","destination_app","destination_canonical_revision","destination_canonical_service","destination_cluster","destination_principal","group","grpc_code","grpc_method","grpc_service","grpc_type","reason","request_protocol","request_type","resource","responce_code_class","response_flags","source_app","source_canonical_revision","source_canonical-service","source_cluster","source_principal","source_version","wasm_filter"]
metric_name_filter = ["istio_requests_total","pilot_k8s_cfg_events","istio_build","process_virtual_memory_bytes","process_resident_memory_bytes","process_cpu_seconds_total","envoy_cluster_assignment_stale","go_goroutines","pilot_xds_pushes","pilot_proxy_convergence_time_bucket","citadel_server_root_cert_expiry_timestamp","pilot_conflict_inbound_listener","pilot_conflict_outbound_listener_http_over_current_tcp","pilot_conflict_outbound_listener_tcp_over_current_tcp","pilot_conflict_outbound_listener_tcp_over_current_http","pilot_virt_services","galley_validation_failed","pilot_services","envoy_cluster_upstream_cx_total","envoy_cluster_upstream_cx_connect_fail","envoy_cluster_upstream_cx_active","envoy_cluster_upstream_cx_rx_bytes_total","envoy_cluster_upstream_cx_tx_bytes_total","istio_request_duration_milliseconds_bucket","istio_request_duration_seconds_bucket","istio_request_bytes_bucket","istio_response_bytes_bucket"]
#measurement_prefix = ""
measurement_name = "prom_asm_istio"
#[[inputs.prom.measurements]]
# prefix = "cpu_"
# name = "cpu"
[inputs.prom.tags]
namespace = "$NAMESPACE"
spec:
serviceAccountName: bookinfo-reviews
containers:
- name: reviews
image: docker.io/istio/examples-bookinfo-reviews-v2:1.16.2
imagePullPolicy: IfNotPresent
env:
- name: LOG_DIR
value: "/tmp/logs"
ports:
- containerPort: 9080
volumeMounts:
- name: tmp
mountPath: /tmp
- name: wlp-output
mountPath: /opt/ibm/wlp/output
volumes:
- name: wlp-output
emptyDir: {}
- name: tmp
emptyDir: {}
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: reviews-v3
labels:
app: reviews
version: v3
spec:
replicas: 1
selector:
matchLabels:
app: reviews
version: v3
template:
metadata:
labels:
app: reviews
version: v3
annotations:
datakit/prom.instances: |
[[inputs.prom]]
url = "http://$IP:15020/stats/prometheus"
source = "ack-istio-review3"
metric_types = ["counter", "gauge"]
interval = "60s"
tags_ignore = ["cache","cluster_type","component","destination_app","destination_canonical_revision","destination_canonical_service","destination_cluster","destination_principal","group","grpc_code","grpc_method","grpc_service","grpc_type","reason","request_protocol","request_type","resource","responce_code_class","response_flags","source_app","source_canonical_revision","source_canonical-service","source_cluster","source_principal","source_version","wasm_filter"]
metric_name_filter = ["istio_requests_total","pilot_k8s_cfg_events","istio_build","process_virtual_memory_bytes","process_resident_memory_bytes","process_cpu_seconds_total","envoy_cluster_assignment_stale","go_goroutines","pilot_xds_pushes","pilot_proxy_convergence_time_bucket","citadel_server_root_cert_expiry_timestamp","pilot_conflict_inbound_listener","pilot_conflict_outbound_listener_http_over_current_tcp","pilot_conflict_outbound_listener_tcp_over_current_tcp","pilot_conflict_outbound_listener_tcp_over_current_http","pilot_virt_services","galley_validation_failed","pilot_services","envoy_cluster_upstream_cx_total","envoy_cluster_upstream_cx_connect_fail","envoy_cluster_upstream_cx_active","envoy_cluster_upstream_cx_rx_bytes_total","envoy_cluster_upstream_cx_tx_bytes_total","istio_request_duration_milliseconds_bucket","istio_request_duration_seconds_bucket","istio_request_bytes_bucket","istio_response_bytes_bucket"]
#measurement_prefix = ""
measurement_name = "prom_asm_istio"
#[[inputs.prom.measurements]]
# prefix = "cpu_"
# name = "cpu"
[inputs.prom.tags]
namespace = "$NAMESPACE"
serviceAccountName: bookinfo-reviews
containers:
- name: reviews
image: docker.io/istio/examples-bookinfo-reviews-v3:1.16.2
imagePullPolicy: IfNotPresent
env:
- name: LOG_DIR
value: "/tmp/logs"
ports:
- containerPort: 9080
volumeMounts:
- name: tmp
mountPath: /tmp
- name: wlp-output
mountPath: /opt/ibm/wlp/output
volumes:
- name: wlp-output
emptyDir: {}
- name: tmp
emptyDir: {}
---
##################################################################################################
# Productpage services
##################################################################################################
apiVersion: v1
kind: Service
metadata:
name: productpage
labels:
app: productpage
service: productpage
spec:
ports:
- port: 9080
name: http
selector:
app: productpage
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: bookinfo-productpage
labels:
account: productpage
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: productpage-v1
labels:
app: productpage
version: v1
spec:
replicas: 1
selector:
matchLabels:
app: productpage
version: v1
template:
metadata:
labels:
app: productpage
version: v1
annotations:
datakit/prom.instances: |
[[inputs.prom]]
url = "http://$IP:15020/stats/prometheus"
source = "ack-istio-product"
metric_types = ["counter", "gauge"]
interval = "60s"
tags_ignore = ["cache","cluster_type","component","destination_app","destination_canonical_revision","destination_canonical_service","destination_cluster","destination_principal","group","grpc_code","grpc_method","grpc_service","grpc_type","reason","request_protocol","request_type","resource","responce_code_class","response_flags","source_app","source_canonical_revision","source_canonical-service","source_cluster","source_principal","source_version","wasm_filter"]
metric_name_filter = ["istio_requests_total","pilot_k8s_cfg_events","istio_build","process_virtual_memory_bytes","process_resident_memory_bytes","process_cpu_seconds_total","envoy_cluster_assignment_stale","go_goroutines","pilot_xds_pushes","pilot_proxy_convergence_time_bucket","citadel_server_root_cert_expiry_timestamp","pilot_conflict_inbound_listener","pilot_conflict_outbound_listener_http_over_current_tcp","pilot_conflict_outbound_listener_tcp_over_current_tcp","pilot_conflict_outbound_listener_tcp_over_current_http","pilot_virt_services","galley_validation_failed","pilot_services","envoy_cluster_upstream_cx_total","envoy_cluster_upstream_cx_connect_fail","envoy_cluster_upstream_cx_active","envoy_cluster_upstream_cx_rx_bytes_total","envoy_cluster_upstream_cx_tx_bytes_total","istio_request_duration_milliseconds_bucket","istio_request_duration_seconds_bucket","istio_request_bytes_bucket","istio_response_bytes_bucket"]
#measurement_prefix = ""
measurement_name = "istio_prom"
#[[inputs.prom.measurements]]
# prefix = "cpu_"
# name = "cpu"
[inputs.prom.tags]
namespace = "$NAMESPACE"
spec:
serviceAccountName: bookinfo-productpage
containers:
- name: productpage
image: docker.io/istio/examples-bookinfo-productpage-v1:1.16.2
imagePullPolicy: IfNotPresent
ports:
- containerPort: 9080
volumeMounts:
- name: tmp
mountPath: /tmp
volumes:
- name: tmp
emptyDir: {}
kubectl apply -f bookinfo.yaml

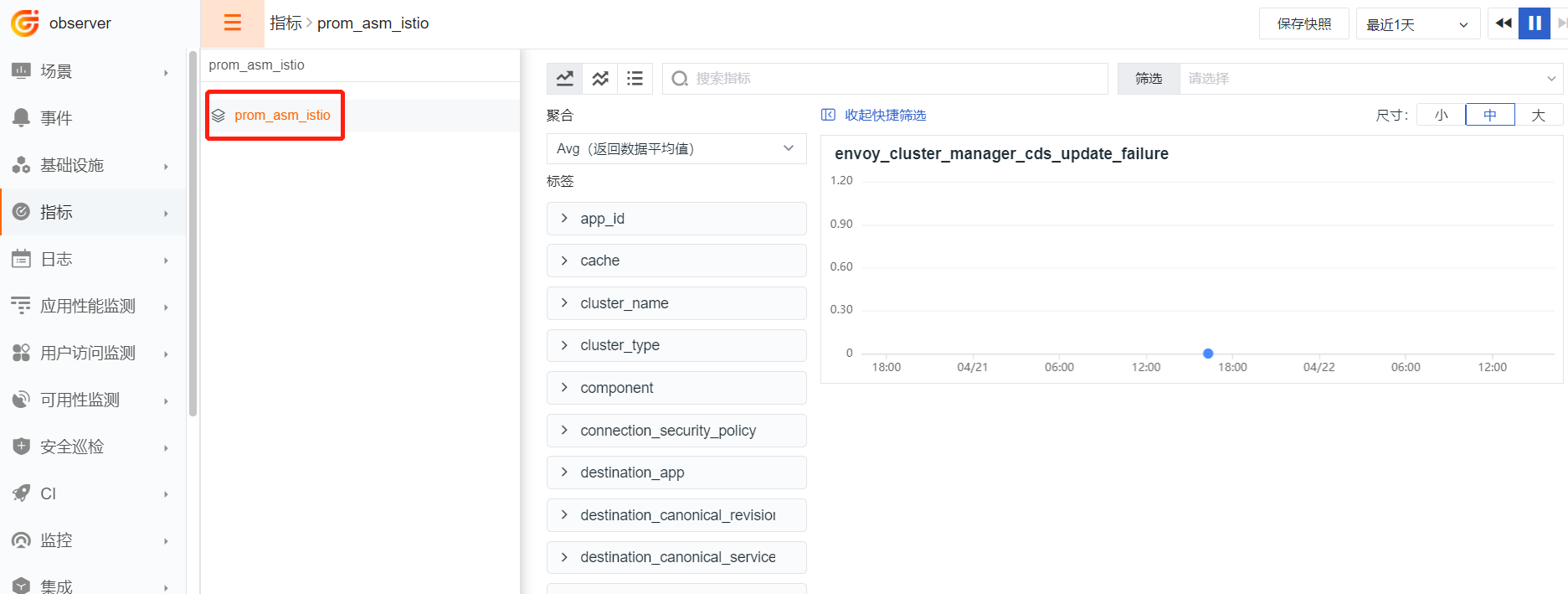

指标预览
APM 采集 (必选)

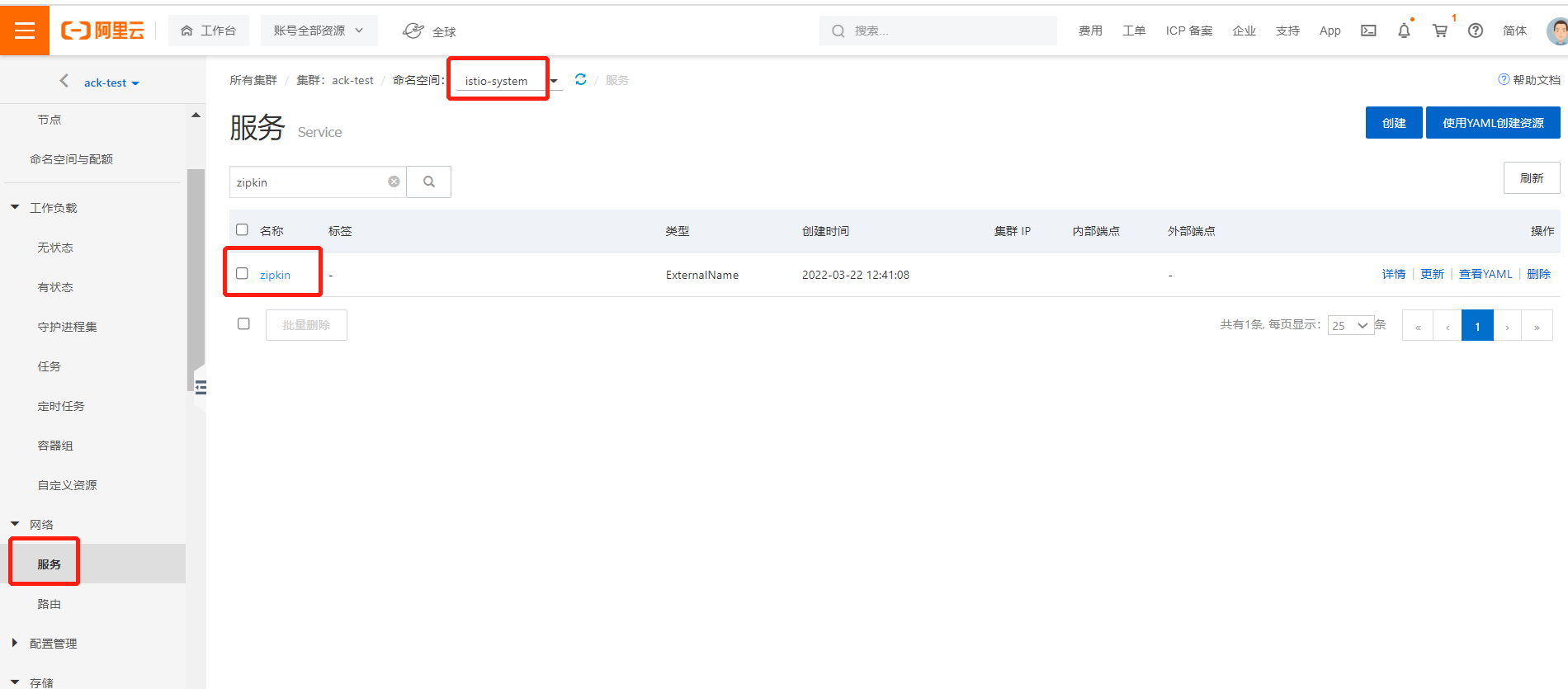

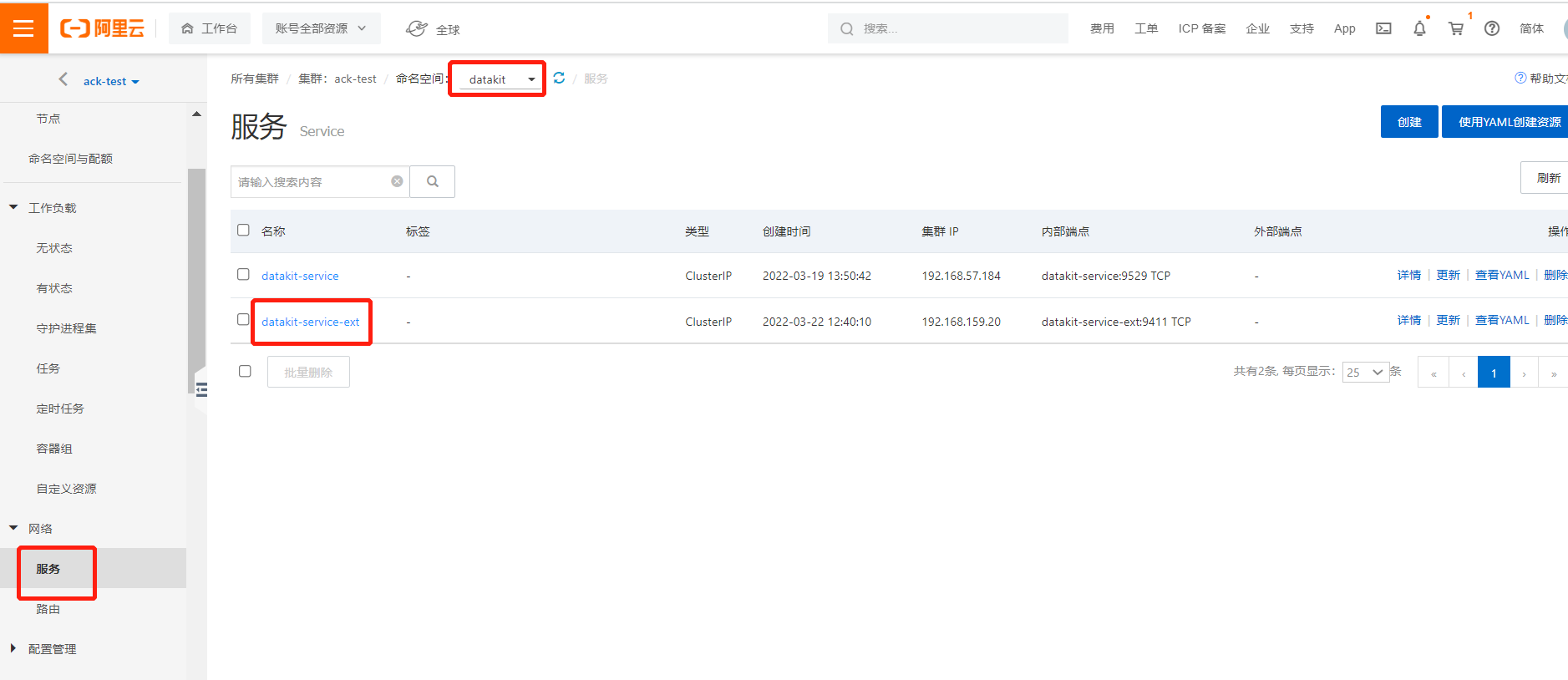

新增 ASM 时，如果选择了**<font style="color:rgb(51, 51, 51);">自行搭建 Zipkin，</font>**则链路数据会被打到**<font style="color:rgb(51, 51, 51);"> </font>**<font style="color:rgb(23, 26, 29);">zipkin.istio-system的 Service上，且上报端口是 9411。在部署 DataKit 时已开通链路指标采集的 Zipkin 采集器，由于 DataKit 服务的名称空间是 datakit，端口是 9529，所以这里需要做一下转换，详情请参考</font>[Kubernetes 集群使用 ExternalName 映射 DataKit 服务](https://www.yuque.com/dataflux/bp/external-name)。创建后的 Service 如下图：

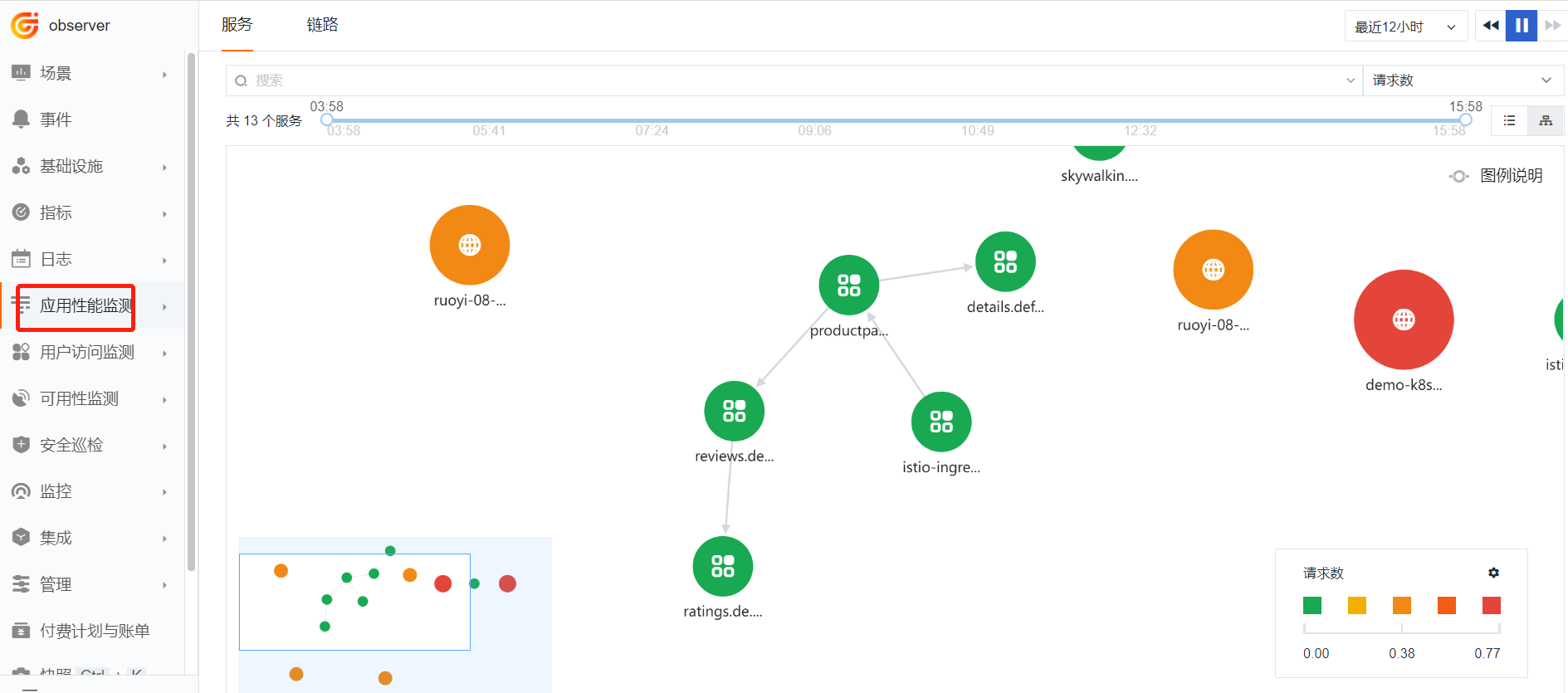

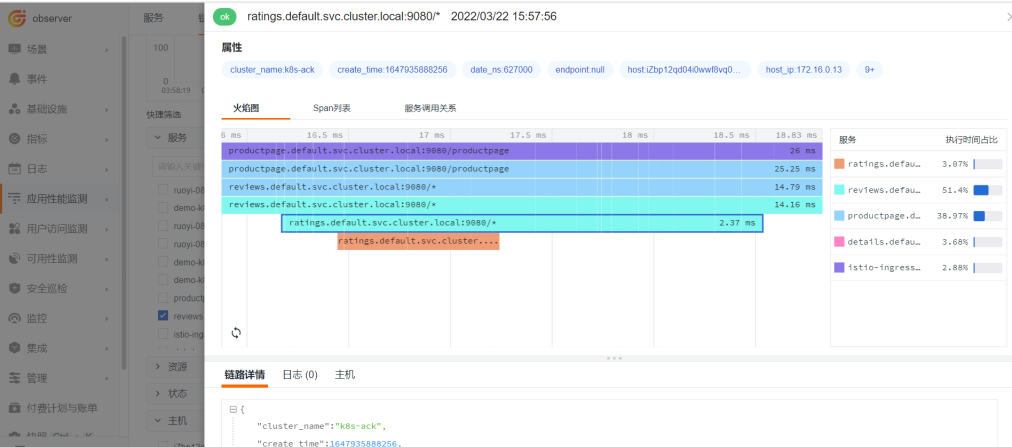

链路预览
日志采集 (非必选)
DataKit 默认的配置，采集容器输出到 /dev/stdout 的日志。更多关于日志的配置，请参考文章末尾的进一步阅读内容。

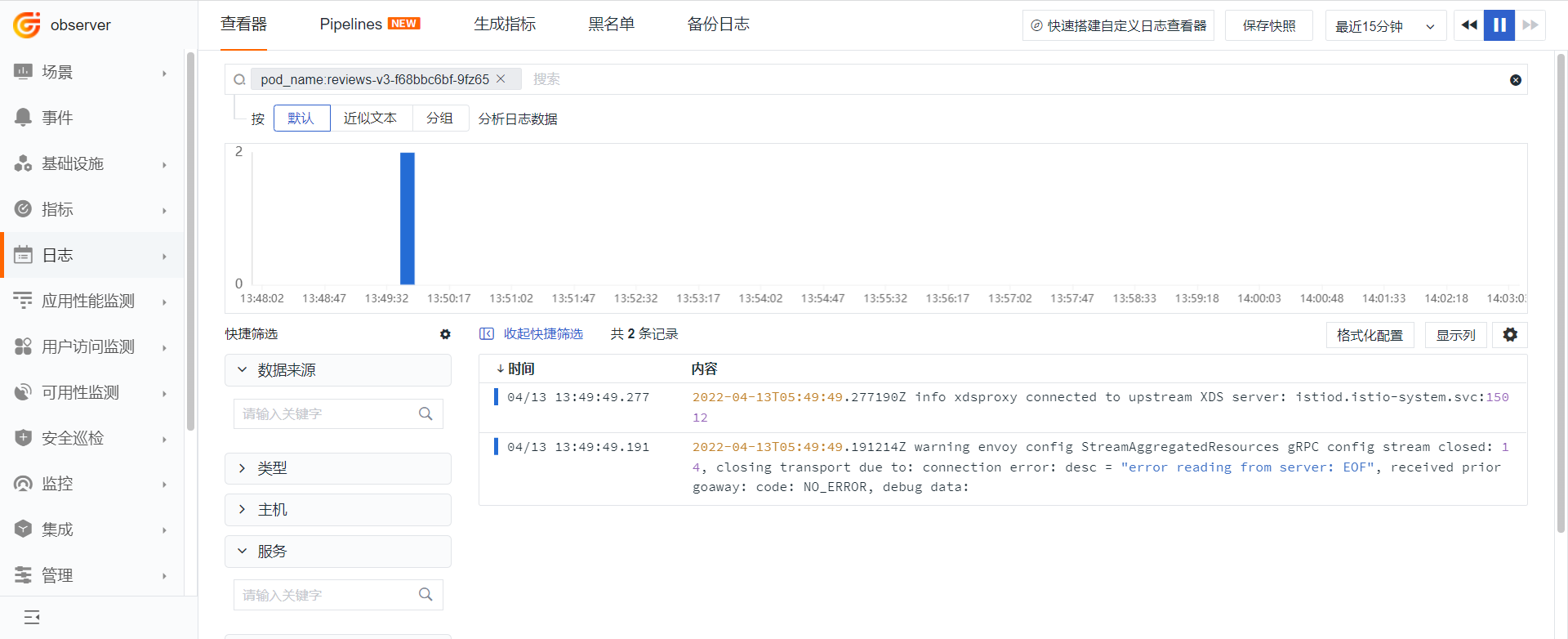

日志预览
插件标签 (非必选)
暂无
场景视图
场景 - 新建仪表板 - 阿里云 ASM Workload 监控视图
- 阿里云 ASM Mesh 监控视图
- 阿里云 ASM Control Plane 监控视图
- 阿里云 ASM Service 监控视图
相关文档 <DataFlux 场景管理>
指标详解
| 指标 | 描述 | 数据类型 | 单位 |
|---|---|---|---|
| istio_agent_process_virtual_memory_bytes | Virtual memory size in bytes | int | B |
| istio_agent_go_memstats_alloc_bytes | Number of bytes allocated and still in use. | int | B |
| istio_agent_go_memstats_heap_inuse_bytes | Number of heap bytes that are in use. | int | B |
| istio_agent_go_memstats_stack_inuse_bytes | Number of bytes in use by the stack allocator. | int | B |
| istio_agent_go_memstats_last_gc_time_seconds | Number of seconds since 1970 of last garbage collection | int | s |
| istio_agent_go_memstats_next_gc_bytes | Number of heap bytes when next garbage collection will take place. | int | B |
| istio_agent_process_cpu_seconds_total | Total user and system CPU time spent in seconds. | int | count |
| istio_agent_outgoing_latency | The latency of outgoing requests (e.g. to a token exchange server, CA, etc.) in milliseconds. | int | count |
| istio_requests_total | requests total. | int | |
| istio_agent_pilot_xds | Number of endpoints connected to this pilot using XDS. | int | count |
| istio_agent_pilot_xds_pushes | Pilot build and send errors for lds, rds, cds and eds. | int | count |
| istio_agent_pilot_xds_expired_nonce | Total number of XDS requests with an expired nonce. | int | count |
| istio_agent_pilot_push_triggers | Total number of times a push was triggered, labeled by reason for the push. | int | count |
| istio_agent_pilot_endpoint_not_ready | Endpoint found in unready state. | int | count |
| envoy_cluster_upstream_cx_total | envoy cluster upstream cx total | int | count |
| istio_agent_pilot_conflict_inbound_listener | Number of conflicting inbound listeners | int | count |
| istio_agent_pilot_conflict_outbound_listener_http_over_current_tcp | Number of conflicting wildcard http listeners with current wildcard tcp listener. | int | count |
| istio_agent_pilot_conflict_outbound_listener_tcp_over_current_tcp | Number of conflicting tcp listeners with current tcp listener. | int | count |
| istio_agent_pilot_conflict_outbound_listener_tcp_over_current_http | Number of conflicting wildcard tcp listeners with current wildcard http listener. | int | count |
posted on 2025-10-21 15:53 chuchengzhi 阅读(13) 评论(0) 收藏 举报
浙公网安备 33010602011771号
