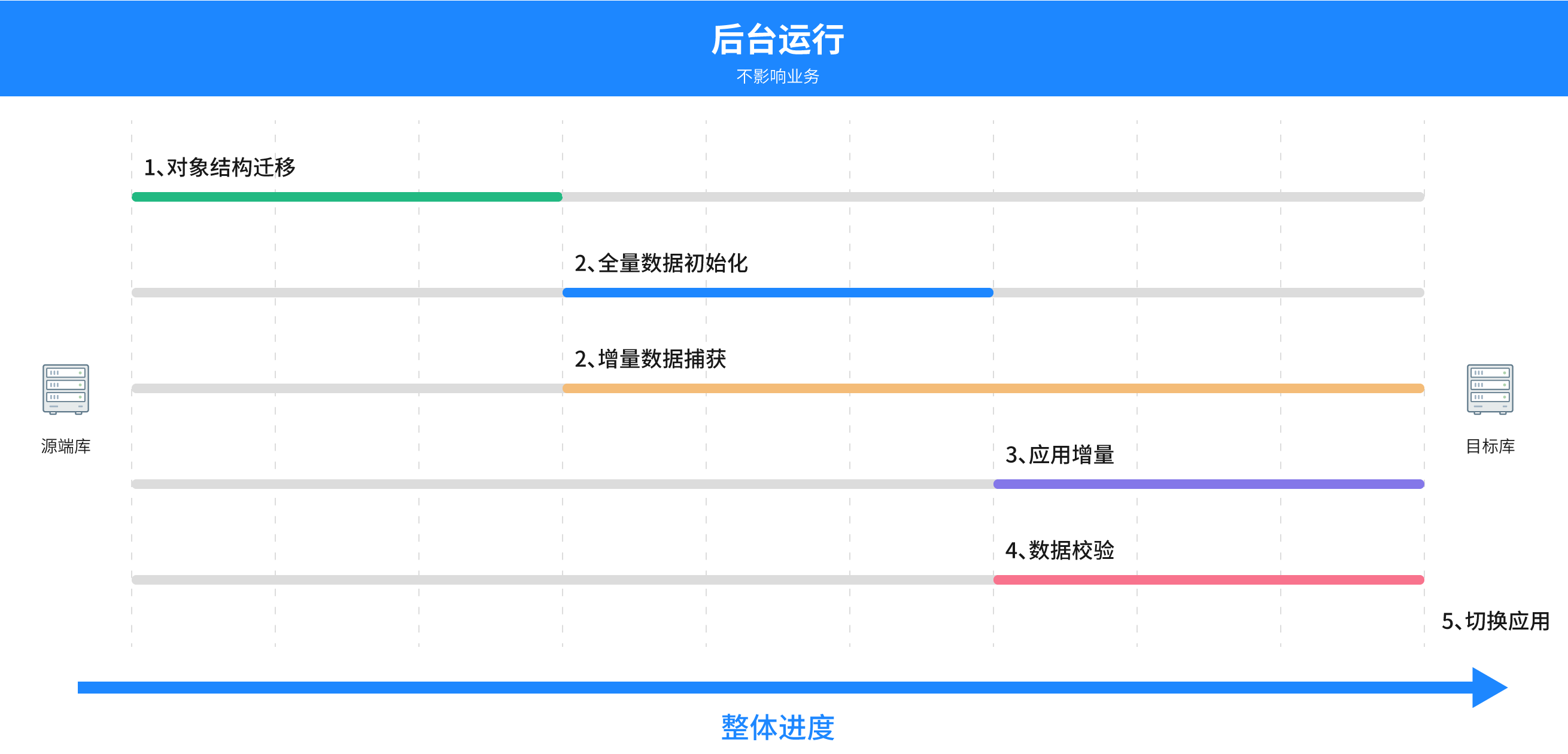

## 功能
1. 先同步表、视图、存储过程、函数、触发器、事件等对象
2. 同步表数据
3. 增量同步
## 优点
1. 与阿里DTS差不多，不单支持表数据，还同时同步视图、存储过程、函数、触发器、事件
2. 支持一次性同步整个库，也支持指定对象，如指定表、指定函数、指定视图
3. 支持实时同步
4. 操作简单
5. 支持并发
## 缺点
1. 不支持目标表批量改名添加前缀
2. 不开源工具，无法进行二次开发，定制功能。

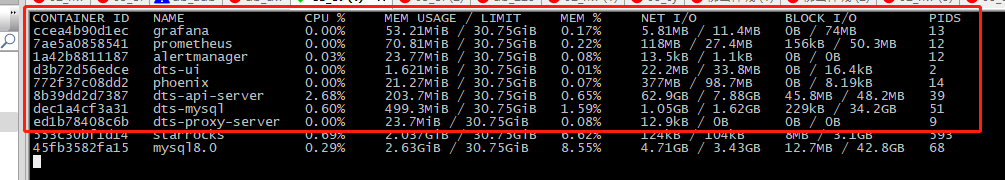

3. 看启动的pod较多，需要资源较多，
## 注意点
1. 有在线版本和docker-compose本地化部署两个版本，本线版本未做测试，不知是否收费。
2. 本地版本免费，功能不限制，但有带宽限制，32M的总带宽，按任务分配，最小1M，最大不限，所以最多只支持创建32个任务，不适用于高性能的生产环境。
3. 任务停止后，带宽会释放出来，可以启动其它任务。
#### 官网
https://squids.cn/
#### docker-compose.yaml下载
https://www.woqutech.com/dts/docker-compose.yaml
version: '3.8'
services:
dts-mysql:
image: swr.cn-east-2.myhuaweicloud.com/squids/mysql:latest
container_name: dts-mysql
environment:
MYSQL_ROOT_PASSWORD: dbmotion
MYSQL_DATABASE: phoenix
command: [ 'mysqld', '--character-set-server=utf8mb4', '--collation-server=utf8mb4_unicode_ci', --default-time-zone=UTC ]
volumes:
- mysql-conf:/etc/mysql/conf.d
depends_on:
- monitor-conf
healthcheck:
test: [ "CMD", "mysqladmin" ,"ping", "-h", "localhost" ]
timeout: 30s
retries: 10
networks:
dts-network:
dts-proxy-files:
image: swr.cn-east-2.myhuaweicloud.com/squids/dbmotion-proxy-linux:latest
container_name: dts-proxy-files
command: [ sh, -c, 'cp * /client_files/' ]
volumes:
- /var/dbmotion/client_files:/client_files
privileged: true
networks:
dts-network:
dts-proxy-server:
image: swr.cn-east-2.myhuaweicloud.com/squids/dbmotion-proxy-server:latest
container_name: dts-proxy-server
command: [ -L, 'forward+ssh://:3002' ]
ports:
- "31002:3002"
networks:
dts-network:
dts-api-server:
image: swr.cn-east-2.myhuaweicloud.com/squids/dbmotion:2308.01
container_name: dts-api-server
environment:
- SERVER_MODE=DOCKER
- MYSQL_URI=root:dbmotion@(dts-mysql)/dbmotion
- PHOENIX_ENDPOINT=http://phoenix:9091/phoenix/api/v2/
depends_on:
monitor-conf:
condition: service_started
dts-mysql:
condition: service_healthy
dts-proxy-files:
condition: service_started
dts-proxy-server:
condition: service_started
volumes:
- /var/dbmotion:/dbmotion/log
- /var/dbmotion/client_files:/client_files
ports:
- "31000:3000"
# export grpc server
- "31001:3001"
privileged: true
networks:
dts-network:
dts-ui:
image: swr.cn-east-2.myhuaweicloud.com/squids/dbmotion-ui:2308.01
container_name: dts-ui
ports:
- "30000:80"
depends_on:
- monitor-conf
- dts-mysql
- dts-api-server
networks:
dts-network:
phoenix:
image: swr.cn-east-2.myhuaweicloud.com/squids/phoenix:v1.4.1-dbmotion
container_name: phoenix
entrypoint:
- /phoenix
- --database-address=dts-mysql
- --database-port=3306
- --database-username=root
- --database-password=dbmotion
- --database-database=phoenix
- --data-dir=/etc/phoenix/monitor
- --rule-config=/rules.yml
- --prom-url=http://prometheus:9090
- --alert-url=http://alertmanager:9093
- --tmpl-dir=/etc/alert/tmpl
- --alerting-target-type-file-path=/etc/phoenix/conf/target_type.yml
- --alerting-type-file-path=/etc/phoenix/conf/alerting_type.yml
- --alerting-model-file-paths=/etc/phoenix/conf/dbmotion_model.yml
- --default-templates-file-path=/etc/phoenix/conf/templates.yml
- --notify-base-url=http://phoenix:9091
- --http-receivers-discovery-endpoint=http://dts-api-server:3000/api/v2/alert/phoenix/receivers
- --http-targets-discovery-endpoints=http://dts-api-server:3000/api/v2/alert/phoenix/targets
- --alert-hook=http://dts-api-server:3000/api/v2/alert/notice
- --http-discovery-interval=60
- --enable-multi-tenant=false
- --tailor-port=15100
ports:
- "9091:9091"
volumes:
- phoenix-volume:/etc/phoenix/conf
- monitor-volume:/etc/phoenix/monitor
depends_on:
monitor-conf:
condition: service_started
dts-mysql:
condition: service_healthy
dts-api-server:
condition: service_started
privileged: true
networks:
dts-network:
prometheus:
image: swr.cn-east-2.myhuaweicloud.com/squids/prometheus:v2.30.4
container_name: prometheus
ports:
- "9090:9090"
command: [ "--config.file=/etc/prometheus/prometheus.yml",
"--web.enable-lifecycle",
"--storage.tsdb.retention=180d",
"--storage.tsdb.path=/prometheus/data",
"--storage.tsdb.retention.time=10d",
"--web.route-prefix=/",
"--storage.tsdb.no-lockfile",
"--storage.tsdb.min-block-duration=2h",
"--storage.tsdb.max-block-duration=2h",
"--log.level=debug" ]
volumes:
- monitor-volume:/etc/prometheus
depends_on:
- monitor-conf
- dts-api-server
networks:
dts-network:
alertmanager:
image: swr.cn-east-2.myhuaweicloud.com/squids/alertmanager:v0.23.0
container_name: alertmanager
ports:
- "9093:9093"
command: [ "--storage.path=/alertmanager/data",
"--config.file=/etc/alertmanager/alertmanager.yml" ]
volumes:
- monitor-volume:/etc/alertmanager
- tmpl-volume:/etc/alert/tmpl
depends_on:
- monitor-conf
- dts-api-server
networks:
dts-network:
grafana:
image: swr.cn-east-2.myhuaweicloud.com/squids/grafana:9.2.8
container_name: grafana
ports:
- "3000:3000"
environment:
GF_SECURITY_ADMIN_PASSWORD: admin
GF_AUTH_ANONYMOUS_ENABLED: true
GF_SECURITY_ALLOW_EMBEDDING: true
volumes:
- datasource-conf:/etc/grafana/provisioning/datasources
- dashboards-conf:/etc/grafana/provisioning/dashboards
- dashboards-volumes:/var/lib/grafana/dashboards
depends_on:
- monitor-conf
- prometheus
networks:
dts-network:
monitor-conf:
image: swr.cn-east-2.myhuaweicloud.com/squids/dbmotion-monitor-conf:latest
container_name: monitor-conf
volumes:
- phoenix-volume:/phoenix-conf
- monitor-volume:/monitor-conf
- tmpl-volume:/alert-tmpl
- mysql-conf:/mysql
- datasource-conf:/grafana/config/datasources
- dashboards-conf:/grafana/config/dashboards
- dashboards-volumes:/grafana/dashboards
networks:
dts-network:
volumes:
phoenix-volume:
monitor-volume:
tmpl-volume:
mysql-conf:
datasource-conf:
dashboards-conf:
dashboards-volumes:
networks:
dts-network:
ipam:
config:
- subnet: 172.22.22.0/24
gateway: 172.22.22.1
