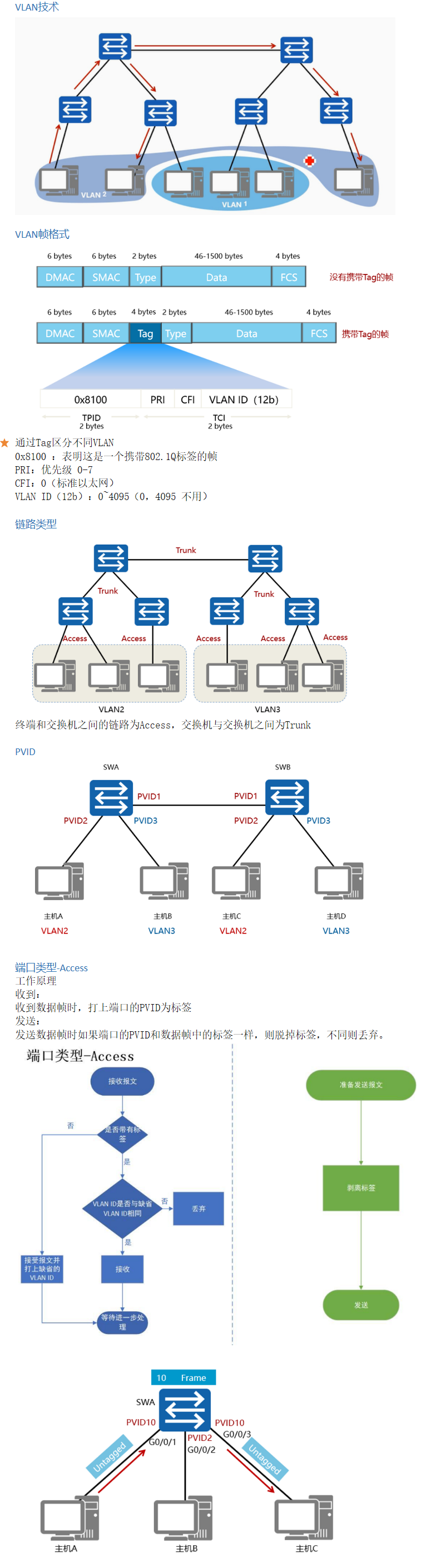

VLAN





[Huawei]dis vlan //查看Vlan
The total number of vlans is : 1
--------------------------------------------------------------------------------
U: Up;         D: Down;         TG: Tagged;         UT: Untagged;
MP: Vlan-mapping;               ST: Vlan-stacking;
#: ProtocolTransparent-vlan;    *: Management-vlan;
--------------------------------------------------------------------------------

VID  Type    Ports
--------------------------------------------------------------------------------
1    common  UT:Eth0/0/1(U)     Eth0/0/2(U)     Eth0/0/3(U)     Eth0/0/4(D)
                Eth0/0/5(D)     Eth0/0/6(D)     Eth0/0/7(D)     Eth0/0/8(D)
                Eth0/0/9(D)     Eth0/0/10(D)    Eth0/0/11(D)    Eth0/0/12(D)
                Eth0/0/13(D)    Eth0/0/14(D)    Eth0/0/15(D)    Eth0/0/16(D)
                Eth0/0/17(D)    Eth0/0/18(D)    Eth0/0/19(D)    Eth0/0/20(D)
                Eth0/0/21(D)    Eth0/0/22(D)    GE0/0/1(D)      GE0/0/2(D)


VID  Status  Property      MAC-LRN Statistics Description
--------------------------------------------------------------------------------

1    enable  default       enable  disable    VLAN 0001

[Huawei]vlan  ?
  INTEGER<1-4094>  VLAN ID
  batch            Batch process
[Huawei]vlan 10 //创建Vlan 10
[Huawei]vlan batch 50 60 70 //批量创建VLAN
[Huawei]vlan batch 50 to 60 //批量创建VLAN

[Huawei]undo vlan batch 50 60 70 //删除VLAN
Warning: The configurations of the VLAN will be deleted. Continue?[Y/N]:y
Info: This operation may take a few seconds. Please wait for a moment...done.

[Huawei]int e0/0/1
[Huawei-Ethernet0/0/1]port link-type access //修改链路类型为Access
[Huawei-Ethernet0/0/1]port default vlan 10 //修改端口vlan 10

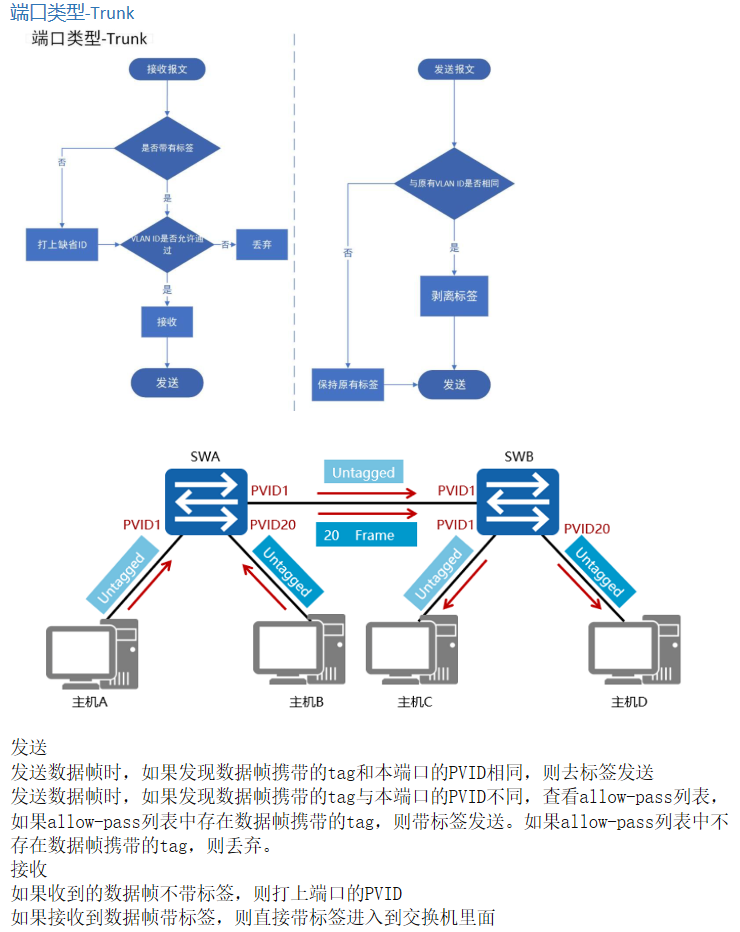

[Huawei]int e0/0/3
[Huawei-Ethernet0/0/3]port link-type trunk //改变链路类型为Trunk
[Huawei-Ethernet0/0/3]port trunk  allow-pass vlan  10 2 //允许通过vlan 10 2通过 ，默认只允许

[SW1-Ethernet0/0/3]port trunk pvid vlan ?//修改端口的PVID
  INTEGER<1-4094>  VLAN ID

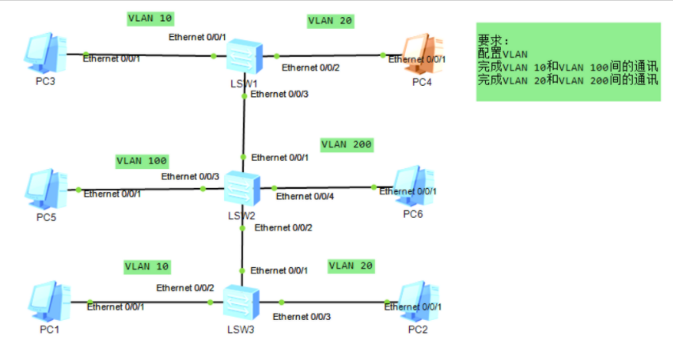

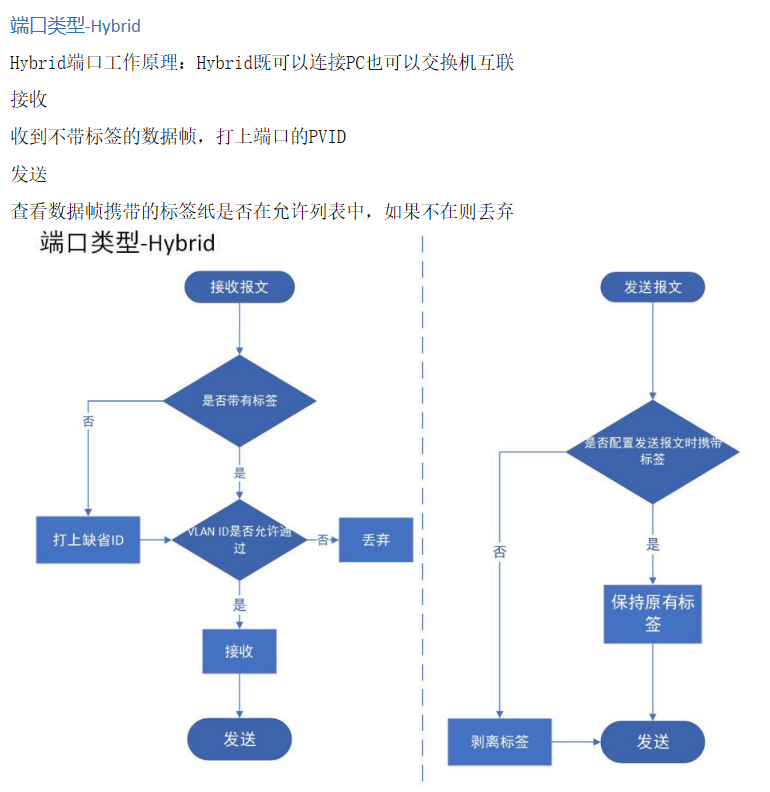

SW1:
vlan batch 10 20 100 200
interface Ethernet0/0/1
 port hybrid pvid vlan 10
 port hybrid untagged vlan 10 100
interface Ethernet0/0/2
 port hybrid pvid vlan 20
 port hybrid untagged vlan 20 200
interface Ethernet0/0/3
 port hybrid tagged vlan 10 20 100 200

SW2:
vlan batch 10 20 100 200
interface Ethernet0/0/1
 port hybrid tagged vlan 10 20 100 200
interface Ethernet0/0/2
 port hybrid tagged vlan 10 20 100 200
interface Ethernet0/0/3
 port hybrid pvid vlan 100
 port hybrid untagged vlan 10 100
interface Ethernet0/0/4
 port hybrid pvid vlan 200
 port hybrid untagged vlan 20 200

SW3:
vlan batch 10 20 100 200
interface Ethernet0/0/1
 port hybrid pvid vlan 10
 port hybrid tagged vlan 10 20 100 200
interface Ethernet0/0/2
 port hybrid pvid vlan 10
 port hybrid untagged vlan 10 100
interface Ethernet0/0/3
 port hybrid pvid vlan 20
 port hybrid untagged vlan 20 200

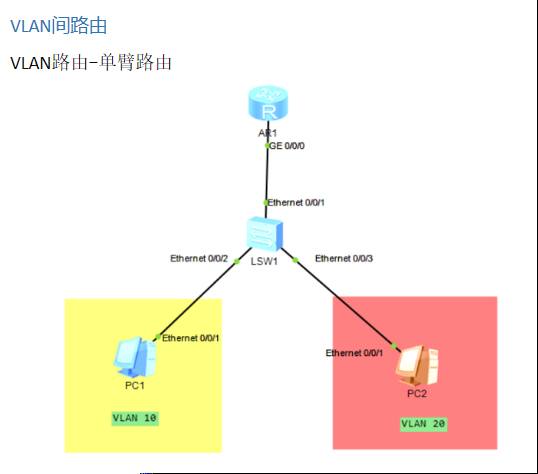

SW1:
[SW1]vlan batch 10 20
[SW1]int e0/0/2
[SW1-Ethernet0/0/2]port link-type access
[SW1-Ethernet0/0/2]port default vlan 10
[SW1-Ethernet0/0/2]int e0/0/1
[SW1-Ethernet0/0/1]port link-type trunk
[SW1-Ethernet0/0/1]port trunk allow-pass vlan 10 20
[SW1-Ethernet0/0/1]int e0/0/3
[SW1-Ethernet0/0/3]port link-type access
[SW1-Ethernet0/0/3]port default vlan 20

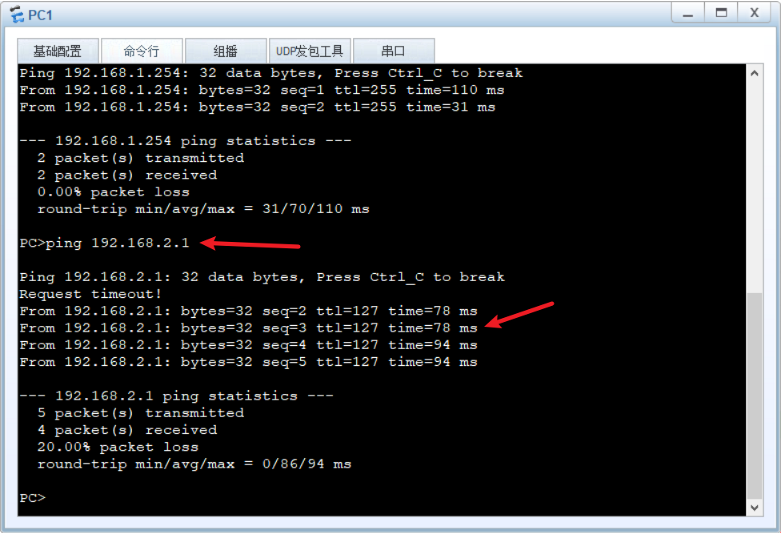

AR1:
[R1]int g0/0/0.10
[R1-GigabitEthernet0/0/0.10]dot1q termination vid 10 -------接收报文时，剥掉报文中携带的Tag后进行三层转发，发送报文时，将相应的VLAN信息添加到报文中再发送
[R1-GigabitEthernet0/0/0.10]arp broadcast enable ----缺省情况下，终结子接口没有使能ARP广播功能。终结子接口不能转发广播报文，在收到广播报文后它们直接把该报文丢弃。为了允许终结子接口能转发广播报文，可以通过在子接口上执行此命令。
[R1-GigabitEthernet0/0/0.10]ip add 192.168.1.254 24
[R1-GigabitEthernet0/0/0.10]int g0/0/0.20
[R1-GigabitEthernet0/0/0.20]arp broadcast enable
[R1-GigabitEthernet0/0/0.20]dot1q termination vid 20
[R1-GigabitEthernet0/0/0.20]arp broadcast enable
[R1-GigabitEthernet0/0/0.20]ip add 192.168.2.254 24

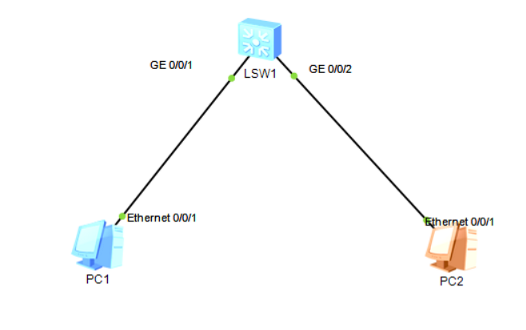

SW1：
[sw1]vlan batch 10 20
[sw1-GigabitEthernet0/0/1]port link-type access
[sw1-GigabitEthernet0/0/1]port default vlan 10
[sw1-GigabitEthernet0/0/1]int g0/0/2
[sw1-GigabitEthernet0/0/2]port link-type access
[sw1-GigabitEthernet0/0/2]port default vlan 20
[sw1]int Vlanif 10
[sw1-Vlanif10]ip add 1.0.0.254 24
[sw1]int Vlanif 20
[sw1-Vlanif20]ip add 1.0.1.254 24
